Check Box Selection in Windows Forms ListView (SfListView)

9 Oct 202314 minutes to read

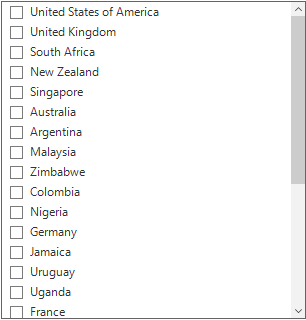

The Windows Forms ListView (SfListView) supports loading the checkBox to each item that allows the user to check or uncheck the corresponding item. You can display the check box in each item by setting the SfListView.ShowCheckBoxes property to true.

sfListView1.ShowCheckBoxes = true;
sfListView1.ShowCheckBoxes = True

CheckBoxSelectionMode_images10

Check box selection mode

The check box provides support to select in the context of state of the check box based on the SfListView.CheckBoxSelectionMode property.

SfListView has the following modes for selection based on the check box state.

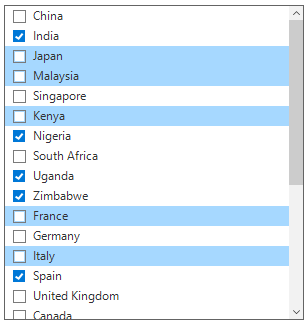

  • Default: don’t want to affect the selection while checking/unchecking the item CheckBox, you need to set SfListView.CheckBoxSelectionMode as Default.

    sfListView1.CheckBoxSelectionMode = CheckBoxSelectionMode.Default;
    sfListView1.CheckBoxSelectionMode = CheckBoxSelectionMode.Default

CheckBoxSelectionMode_images1

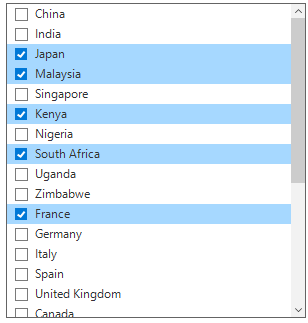

  • SelectOnCheck: To select/deselect the items by using the CheckBox alone, set the SfListView.CheckBoxSelectionMode as SelectOnCheck.
    Navigation, editing, and programmatic selection are not supported in this mode.

    sfListView1.CheckBoxSelectionMode = CheckBoxSelectionMode.SelectOnCheck;
    sfListView1.CheckBoxSelectionMode = CheckBoxSelectionMode.SelectOnCheck

CheckBoxSelectionMode_images2

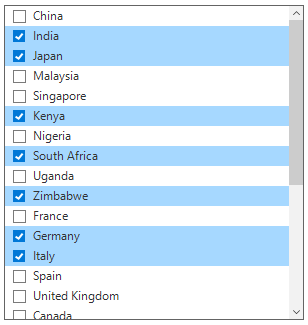

  • SynchronizeSelection: To synchronize the selection with IsChecked state, set the SfListView.CheckBoxSelectionMode as SynchronizeSelection. In this mode, you can select an item by checking the check box or select/deselect the item will check/uncheck the corresponding item checkbox.

    sfListView1.CheckBoxSelectionMode = CheckBoxSelectionMode.SynchronizeSelection;
    sfListView1.CheckBoxSelectionMode = CheckBoxSelectionMode.SynchronizeSelection

CheckBoxSelectionMode_images3

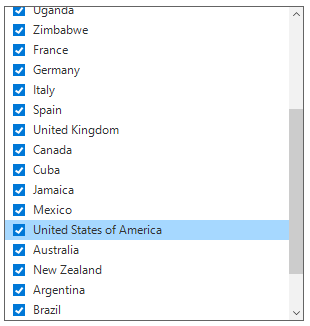

  • CheckOnItemClick: To check or uncheck the item check box state by clicking the item, set the SfListView.CheckBoxSelectionMode as CheckOnItemClick.
    MultiSimple and MultiExtended selection mode were not supported in this mode.

    sfListView1.CheckBoxSelectionMode = CheckBoxSelectionMode.CheckOnItemClick;
    sfListView1.CheckBoxSelectionMode = CheckBoxSelectionMode.CheckOnItemClick

CheckBoxSelectionMode_images4

TriState mode

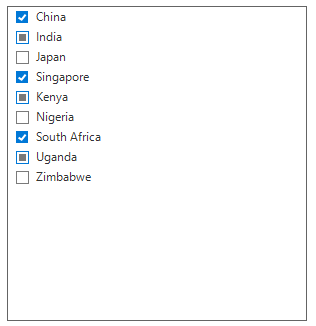

The SfListView allows you to enable or disable the indeterminate state for item check box by using the SfListView.AllowTriStateMode property. The tristate mode can only be supported in the data bound mode i.e. the SfListView.CheckedMember property must have the underlying datasource property in type of CheckState.

public class CountryInfo
{
   public string CountryName{ get;  set;}

   public string Continent { get; set; }

   public CheckState CheckedState { get; set; }
}

public ObservableCollection<CountryInfo> GetDataSource()
{
   countryInfoCollection.Add(new CountryInfo() { CountryName = "China", Continent = "Asia", CheckedState = CheckState.Checked });
   countryInfoCollection.Add(new CountryInfo() { CountryName = "India", Continent = "Asia" , CheckedState = CheckState.Indeterminate});
   countryInfoCollection.Add(new CountryInfo() { CountryName = "Japan", Continent = "Asia", CheckedState = CheckState.Unchecked });
   countryInfoCollection.Add(new CountryInfo() { CountryName = "Singapore", Continent = "Asia", CheckedState = CheckState.Checked});
   countryInfoCollection.Add(new CountryInfo() { CountryName = "Kenya", Continent = "Africa" , CheckedState = CheckState. Indeterminate});
   countryInfoCollection.Add(new CountryInfo() { CountryName = "Nigeria", Continent = "Africa" , CheckedState = CheckState. Unchecked});
   countryInfoCollection.Add(new CountryInfo() { CountryName = "South Africa", Continent = "Africa" , CheckedState = CheckState.Checked});
   countryInfoCollection.Add(new CountryInfo() { CountryName = "Uganda", Continent = "Africa" , CheckedState = CheckState. Indeterminate});
   countryInfoCollection.Add(new CountryInfo() { CountryName = "Zimbabwe", Continent = "Africa" , CheckedState = CheckState. Unchecked});
   return countryInfoCollection;
}

sfListView1.DataSource = GetDataSource();
sfListView1.DisplayMember = "CountryName";
sfListView1.ShowCheckBoxes = true;
sfListView1.AllowTriStateMode = true;
sfListView1.CheckedMember = "CheckedState";
Public Class CountryInfo
   Public Property CountryName() As String

   Public Property Continent() As String

   Public Property CheckedState() As CheckState
End Class

Public Function GetDataSource() As ObservableCollection(Of CountryInfo)
   countryInfoCollection.Add(New CountryInfo() With {.CountryName = "China", .Continent = "Asia", .CheckedState = CheckState.Checked})
   countryInfoCollection.Add(New CountryInfo() With {.CountryName = "India", .Continent = "Asia", .CheckedState = CheckState.Indeterminate})
   countryInfoCollection.Add(New CountryInfo() With {.CountryName = "Japan", .Continent = "Asia", .CheckedState = CheckState.Unchecked})
   countryInfoCollection.Add(New CountryInfo() With {.CountryName = "Singapore", .Continent = "Asia", .CheckedState = CheckState.Checked})
   countryInfoCollection.Add(New CountryInfo() With {.CountryName = "Kenya", .Continent = "Africa", .CheckedState = CheckState.Indeterminate})
   countryInfoCollection.Add(New CountryInfo() With {.CountryName = "Nigeria", .Continent = "Africa", .CheckedState = CheckState.Unchecked})
   countryInfoCollection.Add(New CountryInfo() With {.CountryName = "South Africa", .Continent = "Africa", .CheckedState = CheckState.Checked})
   countryInfoCollection.Add(New CountryInfo() With {.CountryName = "Uganda", .Continent = "Africa", .CheckedState = CheckState.Indeterminate})
   countryInfoCollection.Add(New CountryInfo() With {.CountryName = "Zimbabwe", .Continent = "Africa", .CheckedState = CheckState.Unchecked})
   Return countryInfoCollection
End Function

sfListView1.DataSource = GetDataSource()
sfListView1.DisplayMember = "CountryName"
sfListView1.ShowCheckBoxes = true
sfListView1.AllowTriStateMode = true
sfListView1.CheckedMember = "CheckedState"

CheckBoxSelectionMode_images5

Checked items

Get checked items

The SfListView gets all the checked items through the SfListView.CheckedItems property.

Clear checked items

The checked items can be cleared by calling the ‘CheckedItems.Clear()` method.

sfListView1.CheckedItems.Clear();
sfListView1.CheckedItems.Clear()

Select all the items

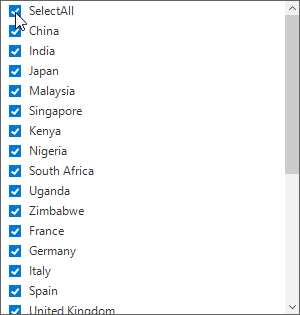

The SfListView allows all the items to change the checked state by checking the SelectAll item. You can enable select all item by setting the SfListView.AllowSelectAll and SfListView.ShowCheckBoxes properties to true.

sfListView1.ShowCheckBoxes = true;
sfListView1.AllowSelectAll = true;
sfListView1.ShowCheckBoxes = true
sfListView1.AllowSelectAll = true

CheckBoxSelectionMode_images6

Recursive checking

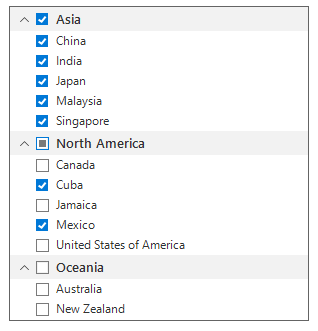

The SfListView provides support for recursive checking where the checked state of the group header item and group item are changed recursively based on the state of currently changed item.

The recursive checking actions are:

  • The group header item will be checked only if all its group items are checked.
  • The group header item will be unchecked if all its group items are unchecked.
  • The group header item will be in Indeterminate state in other combinations of its group items.

You can enable recursive checking by setting SfListView.AllowRecursiveChecking property and SfListView.ShowCheckBoxes property as true.

sfListView1.ShowCheckBoxes = true;
sfListView1.AllowRecursiveChecking = true;
sfListView1.ShowCheckBoxes = true
sfListView1.AllowSelectAll = true

CheckBoxSelectionMode_images7

Appearance

The SfListView allows the item check box customization by using the SfListView.Style.CheckBoxStyle property.

sfListView1.Style.CheckBoxStyle.CheckedBackColor = Color.BlueViolet;
sfListView1.Style.CheckBoxStyle.CheckedBorderColor = Color.Black;
sfListView1.Style.CheckBoxStyle.CheckedTickColor = Color.White;
sfListView1.Style.CheckBoxStyle.CheckedBackColor = Color.BlueViolet
sfListView1.Style.CheckBoxStyle.CheckedBorderColor = Color.Black
sfListView1.Style.CheckBoxStyle.CheckedTickColor = Color.White

CheckBoxSelectionMode_images8

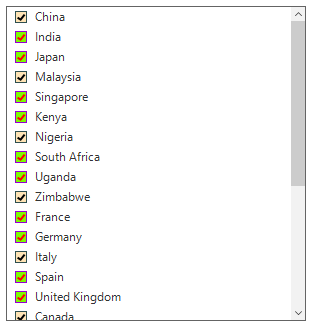

Conditional styling

The SfListView allows the item check box customization by using SfListView.DrawCheckBox event.

sfListView1.DrawCheckBox += new EventHandler<DrawCheckBoxEventArgs>(SfListView1_DrawCheckBox);
private void SfListView1_DrawCheckBox(object sender, DrawCheckBoxEventArgs e)
{
   if (e.ItemType == ItemType.Record && e.ItemIndex % 3 == 0)
   {
       e.Style.CheckedBackColor = Color.Moccasin;
       e.Style.CheckedBorderColor = Color.DarkSlateGray;
       e.Style.CheckedTickColor = Color.Black;
   }
}
AddHandler sfListView1.DrawCheckBox, AddressOf SfListView1_DrawCheckBox
Private Sub SfListView1_DrawCheckBox(ByVal sender As Object, ByVal e As DrawCheckBoxEventArgs)
   If e.ItemType Is ItemType.Record AndAlso e.ItemIndex Mod 3 = 0 Then
	   e.Style.CheckedBackColor = Color.Moccasin
	   e.Style.CheckedBorderColor = Color.DarkSlateGray
	   e.Style.CheckedTickColor = Color.Black
   End If
End Sub

CheckBoxSelectionMode_images9

Events

ItemChecking event

The ItemChecking event is raised while checking an item at the execution time by using ItemChecking event as follows:

  • ItemData: Gets the checked item data object.
  • ItemIndex: Gets an index of checked item.
  • NewState: Gets the new check state of checked item.
  • OldState: Gets the old check state of checked item.

You can cancel the checking process within this event by setting the ItemCheckingEventArgs.Cancel property to true.

The ItemChecking event is used for the following use case:

  • Disable the checking process of the particular item based on the underlying data.
sfListView1.ItemChecking += new EventHandler<ItemCheckingEventArgs>(SfListView1_ItemChecking);
private void SfListView1_ItemChecking(object sender, ItemCheckingEventArgs e)
{
  if ((sender as SfListView).CheckedItems.Count > 0)
      e.Cancel = true;
}
AddHandler sfListView1.ItemChecking, AddressOf SfListView1_ItemChecking
Private Sub SfListView1_ItemChecking(ByVal sender As Object, ByVal e As ItemCheckingEventArgs)
  If (TryCast(sender, SfListView)).CheckedItems.Count > 0 Then
	  e.Cancel = True
  End If
End Sub

ItemChecked event

The ItemChecked event will occur once checking process is completed for the checked item in the SfListView by using ItemChecked event.

The ItemChecked event used for the following use cases:

  • ItemData: Gets the checked item data object.
  • ItemIndex: Gets an index of checked item.
  • NewState: Gets the new check state of checked item.
  • OldState: Gets the old check state of checked item.
sfListView1.ItemChecked += new EventHandler<Syncfusion.WinForms.ListView.Events.ItemCheckedEventArgs>(SfListView1_ItemChecked);
private void SfListView1_ItemChecked(object sender, Syncfusion.WinForms.ListView.Events.ItemCheckedEventArgs e)
{
  if ((sender as SfListView).CheckedItems.Count > 0)
      (sender as SfListView).CheckedItems.Clear();
}
AddHandler sfListView1.ItemChecked, AddressOf SfListView1_ItemChecked
Private Sub SfListView1_ItemChecked(ByVal sender As Object, ByVal e As Syncfusion.WinForms.ListView.Events.ItemCheckedEventArgs)
  If (TryCast(sender, SfListView)).CheckedItems.Count > 0 Then
	  TryCast(sender, SfListView).CheckedItems.Clear()
  End If
End Sub
