Title Bar in Windows Forms Form (SfForm)

25 May 202310 minutes to read

Title bar height

Height of the title bar can be changed by using the Style.TitleBar.Height property.

this.Style.TitleBar.Height = 45;
Me.Style.TitleBar.Height = 45

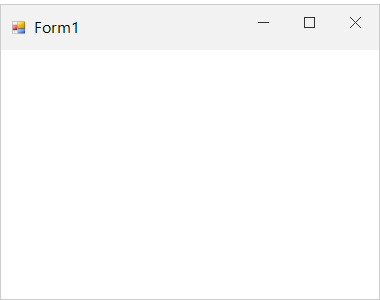

WindowsForms Form titlebar shown with custom height

Text alignment

Text on the title bar can be aligned horizontally and vertically by using the Style.TitleBar.TextHorizontalAlignment and Style.TitleBar.TextVerticalAlignment properties respectively.

this.Style.TitleBar.TextHorizontalAlignment = HorizontalAlignment.Center;
this.Style.TitleBar.TextVerticalAlignment = VerticalAlignment.Top;
Me.Style.TitleBar.TextHorizontalAlignment = HorizontalAlignment.Center
Me.Style.TitleBar.TextVerticalAlignment = VerticalAlignment.Top

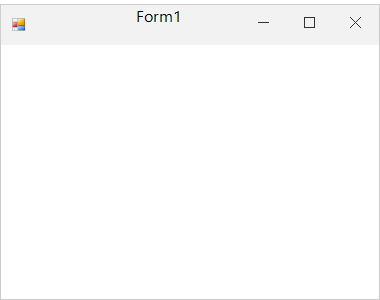

WindowsForms Form shown with text alignment

Customization of title bar buttons

Icons on the title bar buttons can be changed by loading any custom icon by using the button image properties in the Style.TitleBar such as CloseButtonImage, MaximizeButtonImage and MinimizeButtonImage.

By default, the title bar buttons have the following states:

  • Normal state
  • Hover state
  • Pressed state

Icons for the title bar buttons can be changed to normal, hovered, and pressed states by using the image properties of the corresponding state such as CloseButtonHoverImage and MaximizeButtonPressedImage.

//Title bar button icons on normal state
this.Style.TitleBar.CloseButtonImage = Image.FromFile("close.ico");
this.Style.TitleBar.MaximizeButtonImage = Image.FromFile("max.ico");
this.Style.TitleBar.MinimizeButtonImage = Image.FromFile("min.ico");

//Title bar button icons on hover state
this.Style.TitleBar.CloseButtonHoverImage = Image.FromFile("hoverClose.ico");
this.Style.TitleBar.MaximizeButtonHoverImage = Image.FromFile("hoverMax.ico");
this.Style.TitleBar.MinimizeButtonHoverImage = Image.FromFile("hoverMin.ico");

//Title bar button icons on pressed state
this.Style.TitleBar.CloseButtonPressedImage = Image.FromFile("pressedClose.ico");
this.Style.TitleBar.MaximizeButtonPressedImage = Image.FromFile("pressedMax.ico");
this.Style.TitleBar.MinimizeButtonPressedImage = Image.FromFile("pressedMin.ico");
'Title bar button icons on normal state
Me.Style.TitleBar.CloseButtonImage = Image.FromFile("close.ico")
Me.Style.TitleBar.MaximizeButtonImage = Image.FromFile("max.ico")
Me.Style.TitleBar.MinimizeButtonImage = Image.FromFile("min.ico")

'Title bar button icons on hover state
Me.Style.TitleBar.CloseButtonHoverImage = Image.FromFile("hoverClose.ico")
Me.Style.TitleBar.MaximizeButtonHoverImage = Image.FromFile("hoverMax.ico")
Me.Style.TitleBar.MinimizeButtonHoverImage = Image.FromFile("hoverMin.ico")

'Title bar button icons on pressed state
Me.Style.TitleBar.CloseButtonPressedImage = Image.FromFile("pressedClose.ico")
Me.Style.TitleBar.MaximizeButtonPressedImage = Image.FromFile("pressedMax.ico")
Me.Style.TitleBar.MinimizeButtonPressedImage = Image.FromFile("pressedMin.ico")

Hiding the title bar buttons

Buttons in the title bar can be hide by disabling the MinimizeBox, MaximizeBox and CloseButtonVisible properties.

this.MinimizeBox = false;
this.MaximizeBox = false;
Me.MinimizeBox = False
Me.MaximizeBox = False

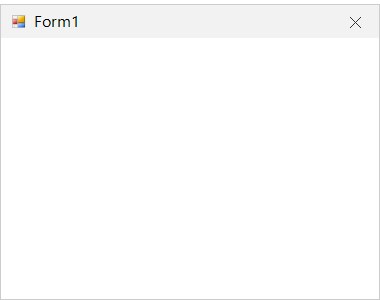

Hiding title bar buttons in WindowsForms Form

Rich text formatting

Rich text can be displayed inside the title bar by enabling the Style.TitleBar.AllowRichText property and adding the proper rich text to the Text property of the form.

//Enabling the rich text support
this.Style.TitleBar.AllowRichText = true;
//Adding rich text
this.Text = "{\\rtf1\\ansi\\deff0{\\colortbl;\\red150\\green0\\blue20;\\red100\\green0\\blue150;}" + "{\\fonttbl{\\f0 Segoe UI;\r\n}}\\qc\\f0\\fs23 {\\cf1 Untitled* \\cf2 - \\b Custom Text Editor}}";
'Enabling the rich text support
Me.Style.TitleBar.AllowRichText = True

'Adding rich text
Me.Text = "{\\rtf1\\ansi\\deff0{\\colortbl;\\red150\\green0\\blue20;\\red100\\green0\\blue150;}" + "{\\fonttbl{\\f0 Segoe UI;\r\n}}\\qc\\f0\\fs23 {\\cf1 Untitled* \\cf2 - \\b Custom Text Editor}}"

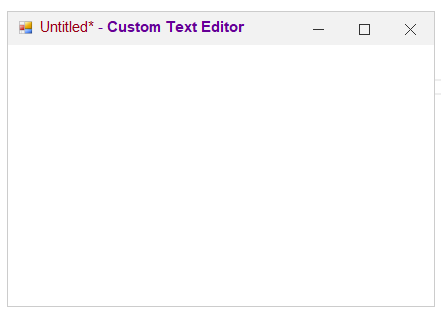

Rich text formatting in WindowsForms Form

NOTE

Adding rich text to the Text property will have no effect, if the AllowRichText property is false.

Loading user control to the title bar

The WinForms Form (SfForm) allows you to load any user control into the title bar instead of title bar text by using the TitleBarTextControl property. Size of the user control should be set properly to fit the control within the title bar.

FlowLayoutPanel searchPanel = new FlowLayoutPanel();
searchPanel.Size = new Size(190, 25);
Label searchingLabel = new Label();
searchingLabel.Size = new Size(70, 80);
searchingLabel.Text = "Searching";
TextBox searchBox = new TextBox();
searchPanel.Controls.Add(searchingLabel);
searchPanel.Controls.Add(searchBox);

//Loads the searchPanel to the title bar.
this.TitleBarTextControl = searchPanel;
Dim searchPanel As New FlowLayoutPanel()
searchPanel.Size = New Size(190, 25)
Dim searchingLabel As New Label()
searchingLabel.Size = New Size(70, 80)
searchingLabel.Text = "Searching"
Dim searchBox As New TextBox()
searchPanel.Controls.Add(searchingLabel)
searchPanel.Controls.Add(searchBox)

'Loads the searchPanel to the title bar.
Me.TitleBarTextControl = searchPanel

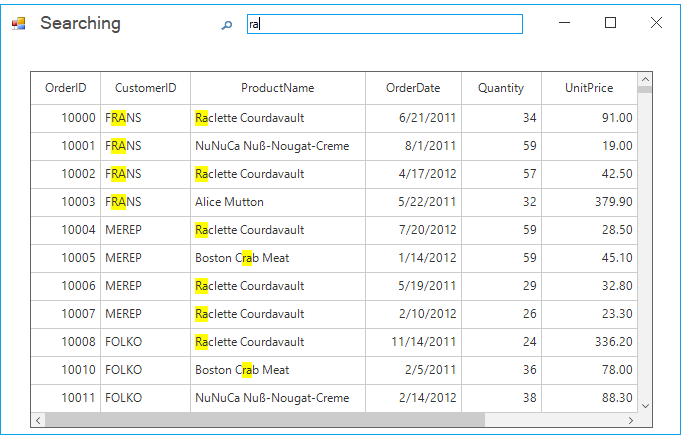

WindowsForms Form shows control in Title Bar

The following sample shows how to load user control to the title bar:

<Installation Location>\Syncfusion\EssentialStudio[Version_ Number]\ Windows\Core.WinForms\Samples\SfForm\TitleBarControl

Appearance

Appearance of the title bar can be customized by using the Style.TitleBar property that contains all the settings for customizing the title bar appearance.

//Sets the back color and fore color of the title bar.
this.Style.TitleBar.BackColor = Color.Black;
this.Style.TitleBar.ForeColor = Color.White;

//Sets the fore color of the title bar buttons
this.Style.TitleBar.CloseButtonForeColor = Color.White;
this.Style.TitleBar.MinimizeButtonForeColor = Color.White;
this.Style.TitleBar.MaximizeButtonForeColor = Color.White;

//Sets the hover state back color of the title bar buttons
this.Style.TitleBar.CloseButtonHoverBackColor = Color.DarkGray;
this.Style.TitleBar.MinimizeButtonHoverBackColor = Color.DarkGray;
this.Style.TitleBar.MaximizeButtonHoverBackColor = Color.DarkGray;

//Sets the pressed state back color of the title bar buttons
this.Style.TitleBar.CloseButtonPressedBackColor = Color.Gray;
this.Style.TitleBar.MaximizeButtonPressedBackColor = Color.Gray;
this.Style.TitleBar.MinimizeButtonPressedBackColor = Color.Gray;

//Sets the back color of the client area.
this.Style.BackColor = Color.DarkGray;
'Sets the back color and fore color of the title bar.
Me.Style.TitleBar.BackColor = Color.Black
Me.Style.TitleBar.ForeColor = Color.White

'Sets the fore color of the title bar buttons
Me.Style.TitleBar.CloseButtonForeColor = Color.White
Me.Style.TitleBar.MinimizeButtonForeColor = Color.White
Me.Style.TitleBar.MaximizeButtonForeColor = Color.White

'Sets the hover state back color of the title bar buttons
Me.Style.TitleBar.CloseButtonHoverBackColor = Color.DarkGray
Me.Style.TitleBar.MinimizeButtonHoverBackColor = Color.DarkGray
Me.Style.TitleBar.MaximizeButtonHoverBackColor = Color.DarkGray

'Sets the pressed state back color of the title bar buttons
Me.Style.TitleBar.CloseButtonPressedBackColor = Color.Gray
Me.Style.TitleBar.MaximizeButtonPressedBackColor = Color.Gray
Me.Style.TitleBar.MinimizeButtonPressedBackColor = Color.Gray

'Sets the back color of the client area.
Me.Style.BackColor = Color.DarkGray

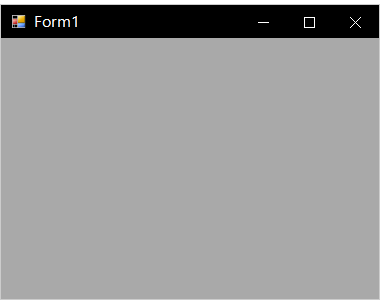

Appearance customization in WindowsForms Form

Icon backcolor

You can customize the back color of the icon in title bar using the IconBackColor property.

//Sets the icon back color of the title bar.
this.Style.TitleBar.IconBackColor = Color.Olive;
'Sets the icon back color of the title bar.
Me.Style.TitleBar.IconBackColor = Color.Olive

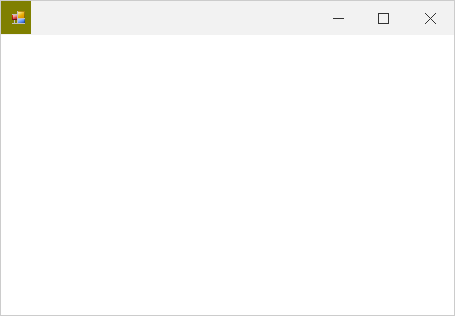

Back color of icon in title bar is changed for WindowsForms Form

Caption image

You can change the caption image in title bar by using the CaptionImage property.

//Sets the caption image of the title bar.
this.Style.TitleBar.CaptionImage = SystemIcons.Error.ToBitmap();
'Sets the caption image of the title bar.
Me.Style.TitleBar.CaptionImage = SystemIcons.Error.ToBitmap()

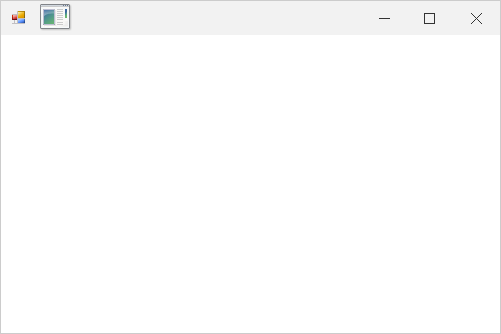

Caption image in titlebar is changed for WindowsForms Form

Caption image location

You can change the location of the caption image in title bar by using the CaptionImageLocation property.

//Sets the caption image location of the title bar.
this.Style.TitleBar.CaptionImageLocation = new Point(40, 5);
'Sets the caption image location of the title bar.
Me.Style.TitleBar.CaptionImageLocation = New Point(40, 5)
