Getting Started

This section briefly describes how to create a new Windows Forms project in Visual Studio and add “ButtonEdit” with it’s basic functionalities.

Assembly deployment

Refer to the control dependencies section to get the list of assemblies or NuGet package details which needs to be added as reference to use the control in any application.

Click here to find more details on how to install nuget packages in Windows Forms application.

Adding a ButtonEdit control through designer

Step 1: Create a new Windows Forms application in Visual Studio. Drag and drop the ButtonEdit from toolbox into form design view. The following dependent assemblies will be added automatically.

  • Syncfusion.Grid.Base
  • Syncfusion.Grid.Windows
  • Syncfusion.Shared.Base
  • Syncfusion.Shared.Windows
  • Syncfusion.Tools.Base
  • Syncfusion.Tools.Windows

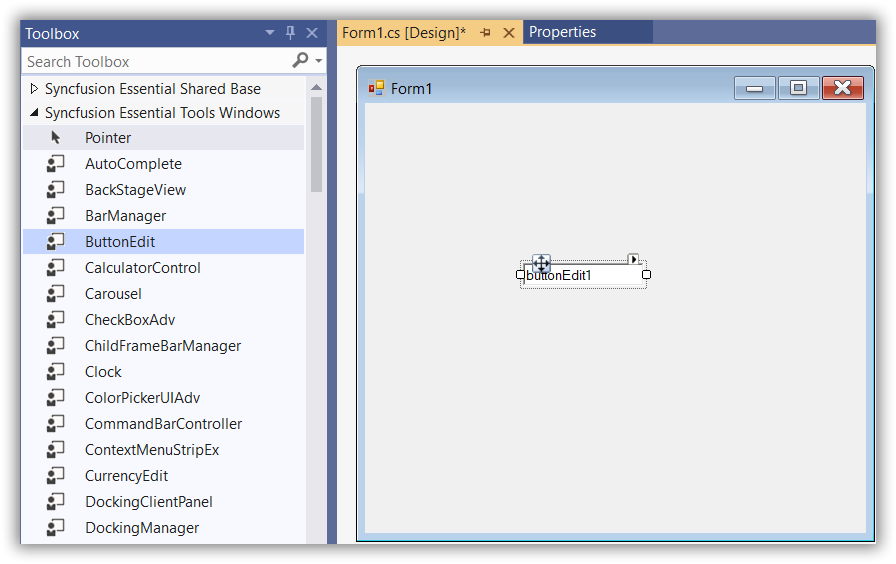

ButtonEdit control from toolbox

Showing control added to the form

Windows Form ButtonAdv Assembly reference added to application

Step 2: When the control is initially added to the form, it appears like an edit control with no buttons. Set the desired properties for “ButtonEdit” control using the “Properties” dialog window. Similarly you can add the child buttons for the ButtonEdit using ButtonEditChildButton Collection Editor” property. Here, we have illustrated how to add child buttons and how to access the ButtonEdit properties.

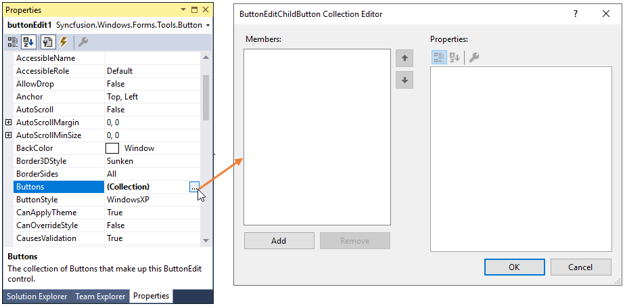

Showing properties pane customizing ButtonEditi control

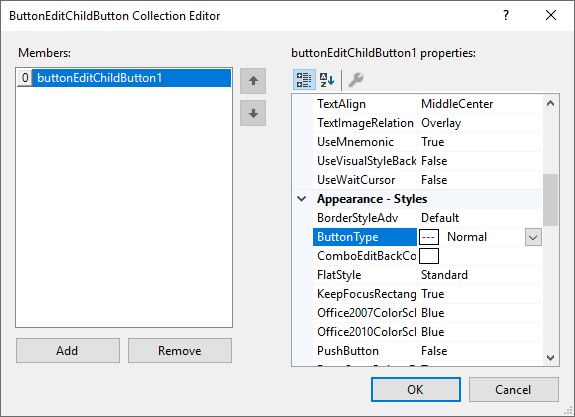

Showing Button child buttons collection editor

Step 3: Run the application and the following output will be shown:

Showing ButtonEdit through desginer

Adding a ButtonEdit control through Code

Step 1: Create a new Windows Forms application in Visual Studio. Add the following required assembly references and namespace to the project.

  • Syncfusion.Grid.Base
  • Syncfusion.Grid.Windows
  • Syncfusion.Shared.Base
  • Syncfusion.Shared.Windows
  • Syncfusion.Tools.Base
  • Syncfusion.Tools.Windows
using Syncfusion.Windows.Forms.Tools;
Imports Syncfusion.Windows.Forms.Tools

Showing ButtonEdit dependency assembly reference

Step 2: In Form1.cs, create an instance of “ButtonEdit” control and add in to the form. Also you can customize the ButtonEdit properties using the following code.

public Form1()
{

            InitializeComponent();
            ButtonEdit ButtonEdit = new ButtonEdit();
            ButtonEdit.UseVisualStyle = true;
            ButtonEdit.ThemeName = "Office2019Colorful";
            ButtonEdit.Location = new System.Drawing.Point(367, 135);
            ButtonEdit.Name = "buttonEdit1";
            ButtonEdit.Size = new System.Drawing.Size(121, 21);
            this.Controls.Add(ButtonEdit);

}
Public Sub New()

    InitializeComponent()
    Dim ButtonEdit As ButtonEdit = New ButtonEdit()
    ButtonEdit.UseVisualStyle = True
    ButtonEdit.ThemeName = "Office2019Colorful"
    ButtonEdit.Location = New System.Drawing.Point(367, 135)
    ButtonEdit.Name = "buttonEdit1"
    ButtonEdit.Size = New System.Drawing.Size(121, 21)
    Me.Controls.Add(ButtonEdit)

End Sub

Step 3: Run the application and the following output will be shown.

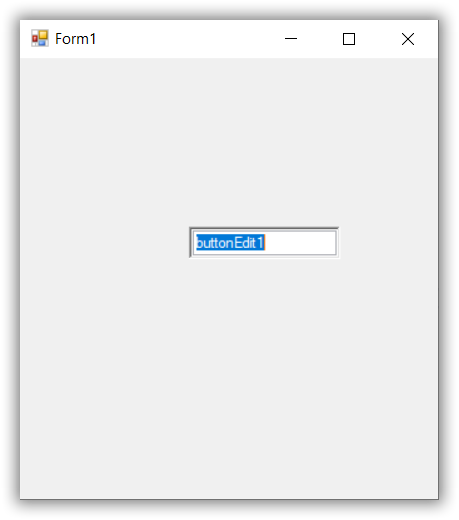

Showing ButtonEdit through code

Embed the TextBox and ChildButtons to ButtonEdit control

ButtonEdit control is a combination of textbox and buttons. It contains TextBox property to embed the instance of the textbox control. Also, we can set different types of textbox such as PercentTextBox, IntegerTextBox, etc. Meanwhile we can add child buttons in Buttons collection.

public Form1()
{

            InitializeComponent();
            Syncfusion.Windows.Forms.Tools.TextBoxExt textBoxExt1;
            Syncfusion.Windows.Forms.Tools.ButtonEditChildButton ButtonEditChildButton1;
            Syncfusion.Windows.Forms.Tools.ButtonEditChildButton ButtonEditChildButton2;
            Syncfusion.Windows.Forms.Tools.ButtonEditChildButton ButtonEditChildButton3;
            ButtonEdit ButtonEdit = new ButtonEdit();
            ButtonEdit.UseVisualStyle = true;
            ButtonEdit.ThemeName = "Office2019Colorful";
            ButtonEdit.Location = new System.Drawing.Point(367, 135);
            ButtonEdit.Name = "ButtonEdit1";
            ButtonEdit.Size = new System.Drawing.Size(121, 21);
            textBoxExt1 = new Syncfusion.Windows.Forms.Tools.TextBoxExt();
            ButtonEditChildButton1 = new ButtonEditChildButton();
            ButtonEditChildButton2 = new ButtonEditChildButton();
            ButtonEditChildButton3 = new ButtonEditChildButton();
            //Embedding text in TextBox
            ButtonEdit.TextBox = textBoxExt1;
            ButtonEdit.Controls.Add(this.textBoxExt1);
            //Aligning the child button
            ButtonEditChildButton1.ButtonAlign = ButtonAlignment.Left;
            //Setting text for child buttons
            ButtonEditChildButton1.Text = "L";
            ButtonEditChildButton2.Text = "R";
            ButtonEditChildButton3.Text = "E";
            //Adding child buttons
            ButtonEdit.Buttons.Add(ButtonEditChildButton1);
            ButtonEdit.Buttons.Add(ButtonEditChildButton2);
            ButtonEdit.Buttons.Add(ButtonEditChildButton3);
            this.Controls.Add(ButtonEdit);

}
Public Sub New()

    InitializeComponent()
    Dim textBoxExt1 As Syncfusion.Windows.Forms.Tools.TextBoxExt
    Dim ButtonEditChildButton1 As Syncfusion.Windows.Forms.Tools.ButtonEditChildButton
    Dim ButtonEditChildButton2 As Syncfusion.Windows.Forms.Tools.ButtonEditChildButton
    Dim ButtonEditChildButton3 As Syncfusion.Windows.Forms.Tools.ButtonEditChildButton
    Dim ButtonEdit As ButtonEdit = New ButtonEdit()
    ButtonEdit.UseVisualStyle = True
    ButtonEdit.ThemeName = "Office2019Colorful"
    ButtonEdit.Location = New System.Drawing.Point(367, 135)
    ButtonEdit.Name = "ButtonEdit1"
    ButtonEdit.Size = New System.Drawing.Size(121, 21)
    textBoxExt1 = New Syncfusion.Windows.Forms.Tools.TextBoxExt()
    ButtonEditChildButton1 = New ButtonEditChildButton()
    ButtonEditChildButton2 = New ButtonEditChildButton()
    ButtonEditChildButton3 = New ButtonEditChildButton()
    'Embedding text in TextBox
    ButtonEdit.TextBox = textBoxExt1
    ButtonEdit.Controls.Add(Me.textBoxExt1)
    ButtonEditChildButton1.ButtonAlign = ButtonAlignment.Left
    ButtonEditChildButton1.Text = "L"
    ButtonEditChildButton2.Text = "R"
    ButtonEditChildButton3.Text = "E"
    'Adding child buttons
    ButtonEdit.Buttons.Add(ButtonEditChildButton1)
    ButtonEdit.Buttons.Add(ButtonEditChildButton2)
    ButtonEdit.Buttons.Add(ButtonEditChildButton3)
    Me.Controls.Add(ButtonEdit)

End Sub

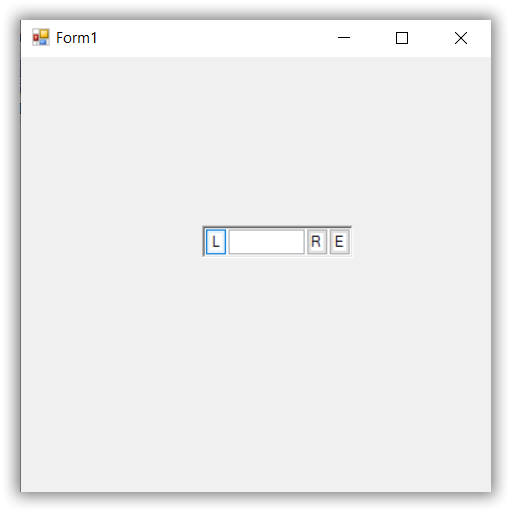

Windows Forms ButtonEdit Text and child buttons add through code
