Adornments in UWP Charts (SfChart)

Chart adornments are used to display values related to a chart segment element. Values from data point(x, y) or other custom properties from a data source can be displayed.

You can initialize the adornment as in the below code snippet:

<syncfusion:ColumnSeries  Interior="#777777"

ItemsSource="{Binding Demands}"

XBindingPath="Demand"

YBindingPath="Year2011">

<syncfusion:ColumnSeries.AdornmentsInfo>

<syncfusion:ChartAdornmentInfo></syncfusion:ChartAdornmentInfo>

</syncfusion:ColumnSeries.AdornmentsInfo>

</syncfusion:ColumnSeries>
ColumnSeries series = new ColumnSeries()
{

    ItemsSource = new ViewModel().Demands,

    XBindingPath = "Demand",

    YBindingPath = "Year2011",

    Interior = new SolidColorBrush(Color.FromRgb(0x77, 0x77, 0x77))

};

ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo();

series.AdornmentsInfo = adornmentInfo;

chart.Series.Add(series);

Each adornment can be represented by the following:

  • Marker- Displays the desired symbol at the (X, Y) point.
  • Label - Displays the segment label content at the (X, Y) point.

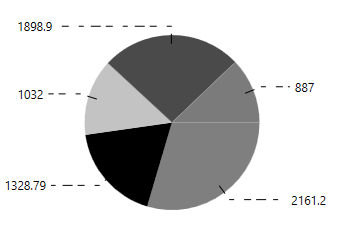

  • ConnectorLine - Line used to connect the (X, Y) point and the label element.

The following topics discuss briefly about various adornment customization.

Marker

To enable the marker in adornments you have to set the ShowMarker property as True. By default, there is no symbol displayed, you have to add the desired symbol using Symbol property.

The following code example demonstrates the column series with Diamond symbol:

<syncfusion:ColumnSeries  Interior="#777777"

ItemsSource="{Binding Demands}"

XBindingPath="Demand"

YBindingPath="Year2011">

<syncfusion:ColumnSeries.AdornmentsInfo>

<syncfusion:ChartAdornmentInfo ShowMarker="True" SymbolInterior="Black" Symbol="Diamond"></syncfusion:ChartAdornmentInfo>

</syncfusion:ColumnSeries.AdornmentsInfo>

</syncfusion:ColumnSeries>
ColumnSeries series = new ColumnSeries()
{

    ItemsSource = new ViewModel().Demands,

    XBindingPath = "Demand",

    YBindingPath = "Year2011",

    Interior = new SolidColorBrush(Color.FromRgb(0x77, 0x77, 0x77))

};

ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
{

    ShowMarker = true,

    SymbolInterior = new SolidColorBrush(Colors.Black),

    Symbol = ChartSymbol.Diamond

};

series.AdornmentsInfo = adornmentInfo;

chart.Series.Add(series);

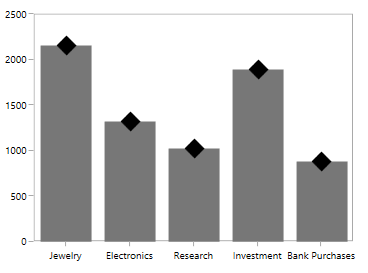

Symbol support in UWP Chart

Customization

SfChart provide support more customization for markers in adornments.

You can customize the marker size using SymbolHeight and SymbolWidth property. Also the marker fill color and stroke can be customized using SymbolInterior and SymbolStroke.

<syncfusion:LineSeries  Interior="#777777"

ItemsSource="{Binding Demands}"

XBindingPath="Demand"

YBindingPath="Year2011">

<syncfusion:LineSeries.AdornmentsInfo>

<syncfusion:ChartAdornmentInfo SymbolStroke="Black"

SymbolInterior="DarkGray"

SymbolWidth="10"

SymbolHeight="10"

Symbol="Ellipse"></syncfusion:ChartAdornmentInfo>

</syncfusion:LineSeries.AdornmentsInfo>

</syncfusion:LineSeries>
LineSeries series = new LineSeries()
{

    ItemsSource = new ViewModel().Demands,

    XBindingPath = "Demand",

    YBindingPath = "Year2011",

    Interior = new SolidColorBrush(Color.FromRgb(0x77, 0x77, 0x77))

};

ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
{

    ShowMarker = true,

    SymbolStroke = new SolidColorBrush(Colors.Black),

    SymbolInterior = new SolidColorBrush(Colors.DarkGray),

    SymbolHeight = 10,

    SymbolWidth = 10,

    Symbol = ChartSymbol.Ellipse

};

series.AdornmentsInfo = adornmentInfo;

chart.Series.Add(series);

Symbol customization support in UWP Chart

Custom Template

You can also provide the template for the symbol using SymbolTemplate property as in the below code snippet.

<syncfusion:SfChart>

    <syncfusion:SfChart.Resources>

         <DataTemplate x:Key="symbolTemplate">

            <Grid>

                <Grid Name="backgroundGrid" Width="24" Height="24" Visibility="Visible">

                     <Ellipse Fill="#FFE2DBDB" Name="Fill" Visibility="Visible" />

                </Grid>

                     <Path Stretch="Uniform" Fill="#FF0F0E0E" Width="24" Height="24" Margin="0,0,0,0" RenderTransformOrigin="0.5,0.5">

                          <Path.Data>

                            <PathGeometry FillRule="Nonzero" Figures="M23.9296875,10.6165618896484L20.759765625,11.2200794219971 18.09375,
                            13.0306243896484 16.283203125,15.6966400146484 15.6796875,18.8665618896484 16.283203125,
                            22.0423431396484 18.09375,24.7259368896484 20.759765625,26.5540618896484 23.9296875,27.1634368896484 27.1025371551514,
                            26.5540618896484 29.77734375,24.7259368896484 31.5966796875,22.0423431396484 32.203125,18.8665618896484 31.5966796875,
                            15.6966400146484 29.77734375,13.0306243896484 27.1025371551514,11.2200794219971 23.9296875,10.6165618896484z M25.265625,
                            7.35874938964844L26.6953125,9.86656188964844 29.3671875,8.64781188964844 29.765625,11.4837493896484 32.7421875,
                            11.2728118896484 32.015625,14.1790618896484 34.921875,14.9759368896484 33.1875,17.4134368896484 35.578125,
                            19.1478118896484 33.140625,20.7884368896484 34.640625,23.3665618896484 31.8046875,23.9759368896484 32.3203125,
                            26.9759368896484 29.4375,26.5540618896484 28.921875,29.4837493896484 26.25,27.9603118896484 24.75,
                            30.4681243896484 22.8046875,28.2181243896484 20.5078125,30.0228118896484 19.5703125,27.1634368896484 16.640625,
                            28.0306243896484 16.875,25.1009368896484 13.875,24.7728118896484 15.140625,22.1478118896484 12.421875,
                            20.7415618896484 14.5546875,18.6790618896484 12.4921875,16.5228118896484 15.2578125,15.3040618896484 14.203125,
                            12.5384368896484 17.1328125,12.3978118896484 17.1328125,9.42124938964844 19.921875,10.4056243896484 21.046875,
                            7.61656188964844 23.296875,9.49156188964844 25.265625,7.35874938964844z" />

                        </Path.Data>

                        <Path.RenderTransform>

                            <TransformGroup>

                                    <TransformGroup.Children>

                                        <RotateTransform Angle="0" />

                                        <ScaleTransform ScaleX="1" ScaleY="1" />

                                    </TransformGroup.Children>

                                </TransformGroup>

                            </Path.RenderTransform>

                        </Path>

                    </Grid>

                </DataTemplate>

     </syncfusion:SfChart.Resources>


    <syncfusion:ColumnSeries  Label="2011" Interior="#777777"

                              ItemsSource="{Binding Demands}"

                              XBindingPath="Demand"

                              YBindingPath="Year2011">

         <syncfusion:ColumnSeries.AdornmentsInfo>

                    <syncfusion:ChartAdornmentInfo AdornmentsPosition="Top"

                                                   SymbolTemplate="{StaticResource symbolTemplate}">

                    </syncfusion:ChartAdornmentInfo>

         </syncfusion:ColumnSeries.AdornmentsInfo>

    </syncfusion:ColumnSeries>


</syncfusion:SfChart>
ColumnSeries series = new ColumnSeries()
{

    ItemsSource = new ViewModel().Demands,

    XBindingPath = "Demand",

    YBindingPath = "Year2011",

    Label = "2011",

    Interior = new SolidColorBrush(Color.FromRgb(0x77, 0x77, 0x77))

};

ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
{

    AdornmentsPosition = AdornmentsPosition.Top,

    SymbolTemplate = chart.Resources["symbolTemplate"] as DataTemplate

};

series.AdornmentsInfo = adornmentInfo;

chart.Series.Add(series);

Template support for symbol in UWP Chart

Label

Label represents the text in the adornments which helps to identify the segment based on it y or x value. You can enable the label by setting ShowLabel property as true as in the below code example.

<syncfusion:ColumnSeries  Label="2011" Interior="#777777"

ItemsSource="{Binding Demands}"

XBindingPath="Demand"

YBindingPath="Year2011">

<syncfusion:ColumnSeries.AdornmentsInfo>

<syncfusion:ChartAdornmentInfo AdornmentsPosition="Top" ShowLabel="True" >

</syncfusion:ChartAdornmentInfo>

</syncfusion:ColumnSeries.AdornmentsInfo>

</syncfusion:ColumnSeries>
ColumnSeries series = new ColumnSeries()
{

    ItemsSource = new ViewModel().Demands,

    XBindingPath = "Demand",

    YBindingPath = "Year2011",

    Label = "2011",

    Interior = new SolidColorBrush(Color.FromRgb(0x77, 0x77, 0x77))

};

ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
{

    AdornmentsPosition = AdornmentsPosition.Top,

    ShowLabel = true

};

series.AdornmentsInfo = adornmentInfo;

chart.Series.Add(series);

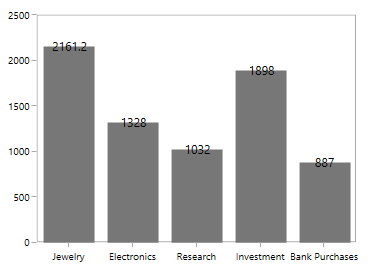

Label to represent the text for adornments in UWP Chart

Defining the Label Content

SfChart provides the support to customize the label content using SegmentLabelContent property. This property allows you to define the value to be displayed as adornment label.

XValue

<syncfusion:ColumnSeries  Label="2011" Interior="#777777"

ItemsSource="{Binding Demands}"

XBindingPath="Demand"

YBindingPath="Year2011">

<syncfusion:ColumnSeries.AdornmentsInfo>

<syncfusion:ChartAdornmentInfo AdornmentsPosition="Top" SegmentLabelContent="XValue" ShowLabel="True" >

</syncfusion:ChartAdornmentInfo>

</syncfusion:ColumnSeries.AdornmentsInfo>

</syncfusion:ColumnSeries>
ColumnSeries series = new ColumnSeries()
{

    ItemsSource = new ViewModel().Demands,

    XBindingPath = "Demand",

    YBindingPath = "Year2011",

    Label = "2011",

    Interior = new SolidColorBrush(Color.FromRgb(0x77, 0x77, 0x77))

};

ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
{

    AdornmentsPosition = AdornmentsPosition.Top,

    ShowLabel = true,

    SegmentLabelContent = LabelContent.XValue

};

series.AdornmentsInfo = adornmentInfo;

chart.Series.Add(series);

Adornments label content customization support in UWP Chart

NOTE

For CategoryAxis, the x values will be taken as the index since it is an indexed based axis. If it is a numerical axis or date time the corresponding x value will be displayed.

Percentage

<syncfusion:ColumnSeries  Label="2011" Interior="#777777"

ItemsSource="{Binding Demands}"

XBindingPath="Demand"

YBindingPath="Year2011">

<syncfusion:ColumnSeries.AdornmentsInfo>

<syncfusion:ChartAdornmentInfo AdornmentsPosition="Top" SegmentLabelContent="Percentage" ShowLabel="True" >

</syncfusion:ChartAdornmentInfo>

</syncfusion:ColumnSeries.AdornmentsInfo>

</syncfusion:ColumnSeries>
ColumnSeries series = new ColumnSeries()
{

    ItemsSource = new ViewModel().Demands,

    XBindingPath = "Demand",

    YBindingPath = "Year2011",

    Label = "2011",

    Interior = new SolidColorBrush(Color.FromRgb(0x77, 0x77, 0x77))

};

ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
{

    AdornmentsPosition = AdornmentsPosition.Top,

    ShowLabel = true,

    SegmentLabelContent = LabelContent.Percentage

};

series.AdornmentsInfo = adornmentInfo;

chart.Series.Add(series);

Adornments label content customization support in UWP Chart

YofTot

<syncfusion:ColumnSeries  ItemsSource="{Binding Demands}"

XBindingPath="Demand"

YBindingPath="Year2011">

<syncfusion:ColumnSeries.AdornmentsInfo>

<syncfusion:ChartAdornmentInfo AdornmentsPosition="Top" SegmentLabelContent="YofTot" ShowLabel="True" >

</syncfusion:ChartAdornmentInfo>

</syncfusion:ColumnSeries.AdornmentsInfo>

</syncfusion:ColumnSeries>
ColumnSeries series = new ColumnSeries()
{

    ItemsSource = new ViewModel().Demands,

    XBindingPath = "Demand",

    YBindingPath = "Year2011",

    Label = "2011",

    Interior = new SolidColorBrush(Color.FromRgb(0x77, 0x77, 0x77))

};

ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
{

    AdornmentsPosition = AdornmentsPosition.Top,

    ShowLabel = true,

    SegmentLabelContent = LabelContent.YofTot

};

series.AdornmentsInfo = adornmentInfo;

chart.Series.Add(series);

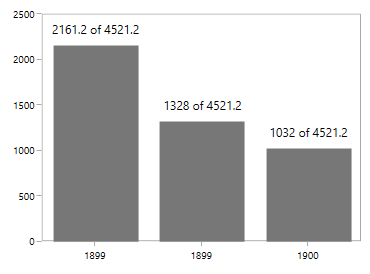

Adornments label content customization support in UWP Chart

DateTime

<syncfusion:ColumnSeries ItemsSource="{Binding Demands}"   XBindingPath="Date"

YBindingPath="Year2011">

<syncfusion:ColumnSeries.AdornmentsInfo>

<syncfusion:ChartAdornmentInfo ShowLabel="True"

SegmentLabelContent="DateTime" >

</syncfusion:ChartAdornmentInfo>

</syncfusion:ColumnSeries.AdornmentsInfo>

</syncfusion:ColumnSeries>
ColumnSeries series = new ColumnSeries()
{

    ItemsSource = new ViewModel().Demands,

    XBindingPath = "Date",

    YBindingPath = "Year2011",
};

ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
{

    ShowLabel = true,

    SegmentLabelContent = LabelContent.DateTime

};

series.AdornmentsInfo = adornmentInfo;

chart.Series.Add(series);

Adornments label content customization support in UWP Chart

NOTE

If you are having DateTimeAxis then the corresponding date time value will be displayed as LabelContent. In case of category or numerical axis the value will be converted to OADate.

LabelContentPath

LabelContentPath property by default displays the y value. If you need to specify the value other than y value you can define the LabelTemplate where you can retrieve the adornment value of every segment.

The following code example demonstrates displaying the string value which is taken as x values.

<syncfusion:PieSeries ItemsSource="{Binding Demands}" XBindingPath="Demand"  YBindingPath="Year2011">

<syncfusion:PieSeries.AdornmentsInfo>

<syncfusion:ChartAdornmentInfo ShowLabel="True"  ShowConnectorLine="True"

SegmentLabelContent="LabelContentPath"

LabelPosition="Auto"

Foreground="Black"  >

<syncfusion:ChartAdornmentInfo.LabelTemplate>

<DataTemplate >

<Border CornerRadius="2" BorderBrush="Black" BorderThickness="1" Background="LightGray" >

<TextBlock HorizontalAlignment="Center" FontSize="11" Foreground="Black" Text="{Binding Converter={StaticResource con}}"></TextBlock>

</Border>

</DataTemplate>

</syncfusion:ChartAdornmentInfo.LabelTemplate>

</syncfusion:ChartAdornmentInfo>

</syncfusion:PieSeries.AdornmentsInfo>

</syncfusion:PieSeries>
public class convert : IValueConverter

{

public object Convert(object value, Type targetType, object parameter, System.Globalization.CultureInfo culture)

{

    ChartPieAdornment adornment= value as ChartPieAdornment;

    return (adornment.Item as GoldDemand).Demand ;

}

public object ConvertBack(object value, Type targetType, object parameter, System.Globalization.CultureInfo culture)

{

return value;

}

}

LabelTemplate support for adornments in UWP Chart

Label Rotation

LabelRotationAngle property is used to define the angle to which the label has to rotate. The following code demonstrates the label rotating angle.

<syncfusion:ColumnSeries.AdornmentsInfo>

<syncfusion:ChartAdornmentInfo  ShowLabel="True" LabelPosition="Outer" LabelRotationAngle="45" >

</syncfusion:ChartAdornmentInfo>

</syncfusion:ColumnSeries.AdornmentsInfo>
ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
{

    ShowLabel = true,

    LabelPosition = AdornmentsLabelPosition.Outer,

    LabelRotationAngle = 45

};

Adornments label rotation support in UWP Chart

Customization

The following properties are used to customize the adornment label.

The following code example demonstrates the customization of label using the above properties:

<syncfusion:ColumnSeries  Label="2011"

Interior="#777777"

ItemsSource="{Binding Demands}"

XBindingPath="Date"

YBindingPath="Year2011">

<syncfusion:ColumnSeries.AdornmentsInfo>

<syncfusion:ChartAdornmentInfo ShowLabel="True" LabelPosition="Outer"

Foreground="Black"

FontSize="11"

Background="DarkGray"

FontFamily="Calibri"

BorderBrush="Black"

BorderThickness="1"

Margin="1"

FontStyle="Italic"

>

</syncfusion:ChartAdornmentInfo>

</syncfusion:ColumnSeries.AdornmentsInfo>

</syncfusion:ColumnSeries>
ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
{

    ShowLabel = true,

    LabelPosition = AdornmentsLabelPosition.Outer,

    Foreground = new SolidColorBrush(Colors.Black),

    BorderBrush = new SolidColorBrush(Colors.Black),

    Background = new SolidColorBrush(Colors.DarkGray),

    BorderThickness = new Thickness(1),

    Margin = new Thickness(1),

    FontStyle = FontStyles.Italic,

    FontFamily = new FontFamily("Calibri"),

    FontSize = 11

};

series.AdornmentsInfo = adornmentInfo;

Adornments label customization support in UWP Chart

Applying Series Brush

UseSeriesPalette property is used to set the interior of the series to the adornment background.

For Accumulation like Pie, Doughnut, Funnel and Pyramid the segment interior color will be reflected in adornment background.

<syncfusion:PieSeries.AdornmentsInfo>

<syncfusion:ChartAdornmentInfo ShowLabel="True" Foreground="White" UseSeriesPalette="True" ShowConnectorLine="True" ConnectorHeight="20">

</syncfusion:ChartAdornmentInfo>

</syncfusion:PieSeries.AdornmentsInfo>
ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
{

    ShowLabel = true,

    Foreground = new SolidColorBrush(Colors.White),

    UseSeriesPalette = true,

    ShowConnectorLine = true,

    ConnectorHeight = 20

};

series.AdornmentsInfo = adornmentInfo;

Series brush for adornments background support in UWP Chart

The default appearance of the label can be customized using LabelTemplate property as in the below code example:

  • xaml
  • <syncfusion:ColumnSeries  Label="2011"

    Interior="#777777"

    ItemsSource="{Binding Demands}"

    XBindingPath="Demand"

    YBindingPath="Year2011">

    <syncfusion:ColumnSeries.AdornmentsInfo>

    <syncfusion:ChartAdornmentInfo ShowLabel="True" LabelPosition="Outer">

    <syncfusion:ChartAdornmentInfo.LabelTemplate>

    <DataTemplate>

    <Grid>

    <Grid.RowDefinitions>

    <RowDefinition Height="15" ></RowDefinition>

    <RowDefinition Height="15"></RowDefinition>

    </Grid.RowDefinitions>

    <Grid Name="backgroundGrid" Width="24" Height="24" Visibility="Collapsed" />

    <Path Grid.Row="0"  Stretch="Uniform" Fill="#FF0F0E0E" Width="24" Height="24" Margin="0,0,0,0" RenderTransformOrigin="0.5,0.5">

    <Path.Data>

    <PathGeometry FillRule="Nonzero" Figures="M22.5,15.8899993896484L37.5,30.8899993896484 7.5,30.8899993896484 22.5,15.8899993896484z" />

    </Path.Data>

    <Path.RenderTransform>

    <TransformGroup>

    <TransformGroup.Children>

    <RotateTransform Angle="0" />

    <ScaleTransform ScaleX="1" ScaleY="1" />

    </TransformGroup.Children>

    </TransformGroup>

    </Path.RenderTransform>

    </Path>

    <TextBlock Grid.Row="1" Text="{Binding}" FontSize="11" Foreground="Black"></TextBlock>

    </Grid>

    </DataTemplate>

    </syncfusion:ChartAdornmentInfo.LabelTemplate>

    </syncfusion:ChartAdornmentInfo>

    </syncfusion:ColumnSeries.AdornmentsInfo>

    </syncfusion:ColumnSeries>

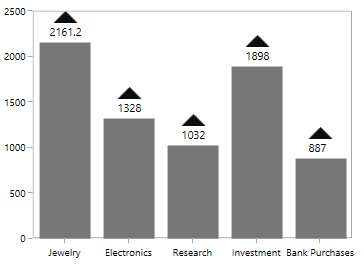

    LabelTemplate support for adornments in UWP Chart

    Label Format

    SegmentLabelFormat property allows you to provide formatting for the labels.

    In the following image, you can see the decimal position will be rounded off to two digits by default.

    Adornments label format support in UWP Chart

    The following code example demonstrates the rounding off the y value having three decimal digits:

    <syncfusion:ColumnSeries  Label="2011"

    Interior="#777777"

    ItemsSource="{Binding Demands}"

    XBindingPath="Demand"

    YBindingPath="Year2011">

    <syncfusion:ColumnSeries.AdornmentsInfo>

    <syncfusion:ChartAdornmentInfo ShowLabel="True" SegmentLabelFormat="0.000" AdornmentsPosition="Top">

    </syncfusion:ChartAdornmentInfo>

    </syncfusion:ColumnSeries.AdornmentsInfo>

    </syncfusion:ColumnSeries>
    ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
    {

        ShowLabel = true,

        AdornmentsPosition = AdornmentsPosition.Top,

        SegmentLabelFormat = "0.000"

    };

    Adding Connector Line to Adornments

    You can add connector line for the adornments using ShowConnectorLine property. Also this connector line can be customized using ConnectorHeight, ConnectorLineStyle and ConnectorRotationAngle properties.

    The following code example shows the customization option for connector line:

    <syncfusion:ColumnSeries.AdornmentsInfo>

    <syncfusion:ChartAdornmentInfo  ShowLabel="True" LabelPosition="Outer"
                                    ShowConnectorLine="True" ConnectorHeight="10"
                                    ConnectorRotationAngle="90">
    </syncfusion:ChartAdornmentInfo>

    </syncfusion:ColumnSeries.AdornmentsInfo>
    ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
    {

        ShowLabel = true,

        LabelPosition = AdornmentsLabelPosition.Outer,

        ShowConnectorLine = true,

        ConnectorHeight = 10,

        ConnectorRotationAngle = 90

    };

    series.AdornmentsInfo = adornmentInfo;

    Connector line for adornments support in UWP Chart

    Connector Height and Rotation

    You can customize the connector line height and also line can be rotated to any specified angle.

    Connector Line Style

    You can define the style for the connector line using ConnectorLineStyle properties.

    <syncfusion:ChartAdornmentInfo.ConnectorLineStyle>

    <Style TargetType="Path">

    <Setter Property="StrokeDashArray" Value="10,7,5"/>

    <Setter Property="Stroke" Value="Black"/>

    </Style>

    </syncfusion:ChartAdornmentInfo.ConnectorLineStyle>
    Style style = new Style() { TargetType = typeof(Path) };

    Setter strokeDash = new Setter()
    {

        Property = Path.StrokeProperty,

        Value = new SolidColorBrush(Colors.Red)

    };

    Setter stroke = new Setter()
    {

        Property = Path.StrokeDashArrayProperty,

        Value = new DoubleCollection() { 10, 7, 5 }

    };

    style.Setters.Add(strokeDash);

    style.Setters.Add(stroke);

    ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
    {

        ShowLabel = true,

        ShowConnectorLine =true,

        ConnectorHeight = 20,

        ConnectorLineStyle = style

    };

    series.AdornmentsInfo = adornmentInfo;

    Connector line style support in UWP Chart

    Connector Type

    ConnectorType property in AccumulationSeries is used to specify the connector line type such as Line or Bezier. This property is only for AccumulationSeries like PieSeries, DoughnutSeries, PyramidSeries and FunnelSeries.

    Line

    Connector type support in UWP Chart

    Bezier

    <syncfusion:PieSeries ConnectorType="Bezier" LabelPosition="Outside"

    ItemsSource="{Binding Demands}"

    XBindingPath="Demand"  EnableSmartLabels="True"

    YBindingPath="Year2011">

    <syncfusion:PieSeries.AdornmentsInfo>

    <syncfusion:ChartAdornmentInfo ShowLabel="True" ConnectorHeight="17" ShowConnectorLine="True" >

    </syncfusion:ChartAdornmentInfo>

    </syncfusion:PieSeries.AdornmentsInfo>

    </syncfusion:PieSeries>
    PieSeries series = new PieSeries()
    {

        ItemsSource = new ViewModel().Data,

        XBindingPath = "XValue",

        YBindingPath = "YValue",

        Label = "2011",

        EnableSmartLabels = true,

        ConnectorType = ConnectorMode.Bezier,

        LabelPosition = CircularSeriesLabelPosition.Outside

    };

    ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
    {

        ShowLabel = true,

        ShowConnectorLine = true,

        ConnectorHeight = 17

    };

    series.AdornmentsInfo = adornmentInfo;

    chart.Series.Add(series);

    Connector type support in UWP Chart

    Positioning the Adornments

    The positioning of adornments inside the series is defined using AdornmentPosition property.

    • Top - Positions the Adornment at the top edge point of a chart segment.
    • Bottom - Positions the Adornment at the bottom edge point of a chart segment.
    • TopAndBottom - Positions the Adornment at the center point of a chart segment.

    NOTE

    This behavior varies based on the type chart series.

    The following code example explains the positioning of adornments in the middle of the segment.

    <syncfusion:ColumnSeries.AdornmentsInfo>

    <syncfusion:ChartAdornmentInfo AdornmentsPosition="TopAndBottom"

    ShowMarker="True" Symbol="Ellipse">

    </syncfusion:ChartAdornmentInfo>

    </syncfusion:ColumnSeries.AdornmentsInfo>
    ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
    {

        AdornmentsPosition = AdornmentsPosition.TopAndBottom,

        ShowMarker = true,

        Symbol = ChartSymbol.Ellipse

    };

    series.AdornmentsInfo = adornmentInfo;

    Adornments positioning support in UWP Chart

    Also you can define the label alignment using HorizontalAlignment and VerticalAlignment properties and the following code example demonstrates the labels positioned using horizontal and vertical alignment.

    <syncfusion:ColumnSeries.AdornmentsInfo>

    <syncfusion:ChartAdornmentInfo  ShowLabel="True" LabelPosition="Default" HorizontalAlignment="Right" VerticalAlignment="Top">

    </syncfusion:ChartAdornmentInfo>

    </syncfusion:ColumnSeries.AdornmentsInfo>
    ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
    {

        LabelPosition = AdornmentsLabelPosition.Default,

        ShowLabel = true,

        HorizontalAlignment = HorizontalAlignment.Right,

        VerticalAlignment = VerticalAlignment.Top

    };

    series.AdornmentsInfo = adornmentInfo;

    Adornments positioning support in UWP Chart

    Advanced Positioning

    Other than the above positioning options, SfChart providing additional customization option to position the adornments smartly based on series types using LabelPosition property.

    The following are the values for this property:

    The following section shows few examples for this LabelPosition behavior with respect to the series.

    Column Series

    LabelPosition as Center

    <syncfusion:ColumnSeries.AdornmentsInfo>

    <syncfusion:ChartAdornmentInfo  ShowLabel="True" LabelPosition="Center">

    </syncfusion:ChartAdornmentInfo>

    </syncfusion:ColumnSeries.AdornmentsInfo>
    ColumnSeries series = new ColumnSeries();

    ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
    {

    ShowLabel = true,

    LabelPosition = AdornmentsLabelPosition.Center

    };

    series.AdornmentsInfo = adornmentInfo;

    Adornments positioning support in UWP Chart

    LabelPosition as Inner

    <syncfusion:ColumnSeries.AdornmentsInfo>

    <syncfusion:ChartAdornmentInfo  ShowLabel="True" LabelPosition="Inner">

    </syncfusion:ChartAdornmentInfo>

    </syncfusion:ColumnSeries.AdornmentsInfo>
    ColumnSeries series = new ColumnSeries();

    ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
    {

        ShowLabel = true,

        LabelPosition = AdornmentsLabelPosition.Inner

    };

    series.AdornmentsInfo = adornmentInfo;

    Adornments positioning support in UWP Chart

    LabelPosition as Outer

    <syncfusion:ColumnSeries.AdornmentsInfo>

    <syncfusion:ChartAdornmentInfo  ShowLabel="True" LabelPosition="Outer">

    </syncfusion:ChartAdornmentInfo>

    </syncfusion:ColumnSeries.AdornmentsInfo>
    ColumnSeries series = new ColumnSeries();

    ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
    {

        ShowLabel = true,

        LabelPosition = AdornmentsLabelPosition.Outer

    };

    series.AdornmentsInfo = adornmentInfo;

    Adornments positioning support in UWP Chart

    Line Series

    LabelPosition as Auto

    <syncfusion:SplineSeries.AdornmentsInfo>

    <syncfusion:ChartAdornmentInfo  ShowLabel="True" LabelPosition="Auto">

    </syncfusion:ChartAdornmentInfo>

    </syncfusion:SplineSeries.AdornmentsInfo>
    SplineSeries series = new SplineSeries();

    ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
    {

        ShowLabel = true,

        LabelPosition = AdornmentsLabelPosition.Auto

    };

    series.AdornmentsInfo = adornmentInfo;

    chart.Series.Add(series);

    Adornments positioning support in UWP Chart

    LabelPosition as Inner

    <syncfusion:SplineSeries.AdornmentsInfo>

    <syncfusion:ChartAdornmentInfo  ShowLabel="True" LabelPosition="Inner">

    </syncfusion:ChartAdornmentInfo>

    </syncfusion:SplineSeries.AdornmentsInfo>
    SplineSeries series = new SplineSeries();

    ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
    {

        ShowLabel = true,

        LabelPosition = AdornmentsLabelPosition.Inner

    };

    series.AdornmentsInfo = adornmentInfo;

    chart.Series.Add(series);

    Adornments positioning support in UWP Chart

    LabelPosition as Outer

    <syncfusion:SplineSeries.AdornmentsInfo>

    <syncfusion:ChartAdornmentInfo  ShowLabel="True" LabelPosition="Outer">

    </syncfusion:ChartAdornmentInfo>

    </syncfusion:SplineSeries.AdornmentsInfo>
    SplineSeries series = new SplineSeries();

    ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
    {

        ShowLabel = true,

        LabelPosition = AdornmentsLabelPosition.Outer

    };

    series.AdornmentsInfo = adornmentInfo;

    chart.Series.Add(series);

    Adornments positioning support in UWP Chart

    LabelPosition as Center

    <syncfusion:SplineSeries.AdornmentsInfo>

    <syncfusion:ChartAdornmentInfo  ShowLabel="True" LabelPosition="Center">

    </syncfusion:ChartAdornmentInfo>

    </syncfusion:SplineSeries.AdornmentsInfo>
    SplineSeries series = new SplineSeries();

    ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
    {

        ShowLabel = true,

        LabelPosition = AdornmentsLabelPosition.Center

    };

    series.AdornmentsInfo = adornmentInfo;

    chart.Series.Add(series);

    Adornments positioning support in UWP Chart

    Smart Labels for Accumulation Series

    When you have more datapoints in Pie or Doughnut series, the adornment labels might get overlap with each other. SfChart provides built-in support to avoid these overlapping by using EnableSmartLabels property.

    The following code example demonstrates the EnableSmartLabels property:

    <chart:PieSeries EnableAnimation="False" x:Name="DouughnutSeries"

    ExplodeAll="True" ExplodeRadius="3" Palette="Custom"

    EnableSmartLabels="True"

    XBindingPath="Category" ItemsSource="{Binding Tax}"

    Label="Tax" YBindingPath="Percentage">

    <chart:PieSeries.AdornmentsInfo>

    <chart:ChartAdornmentInfo HorizontalAlignment="Center"

    VerticalAlignment="Center" ShowLabel="True" ShowConnectorLine="True" UseSeriesPalette="True"

    >

    </chart:ChartAdornmentInfo>

    </chart:PieSeries.AdornmentsInfo>
    PieSeries series = new PieSeries()
    {

        ItemsSource = new ViewModel().Tax,

        XBindingPath = "Category",

        YBindingPath = "Percentage",

        Label = "Tax",

        EnableSmartLabels = true,

        ExplodeAll = true ,

        ExplodeRadius = 3,

        Palette = ChartColorPalette.Custom,

    };

    ChartAdornmentInfo adornmentInfo = new ChartAdornmentInfo()
    {

        ShowLabel = true,

        ShowConnectorLine = true,

        UseSeriesPalette = true,

        HorizontalAlignment = HorizontalAlignment.Center,

        VerticalAlignment = VerticalAlignment.Center

    };

    series.AdornmentsInfo = adornmentInfo;

    chart.Series.Add(series);

    Smart labels for adornments in UWP Chart
