Getting Started

This section explains briefly about how to create a Tab Control in your application with JavaScript. The Essential JavaScript Tab control is an interface that displays the content in multiple sections. Each TabPanel consists of HeaderText or HeaderTemplate as well as a ContentTemplate. Tab is useful for a dashboard that is having limited space. The following section guides you to on-demand customize the Tab for displaying Hotel menu items, its rating details and ingredients.

Create Tab Control

The following steps describe the creation of Tab control.

Create an HTML file and add the following template in the HTML file for creating Tab control.

  • html
  • <!DOCTYPE html>
    <html>
    <head>
       <meta charset="utf-8" />
       <title>Getting Started - RichTextEditor</title>
       <link href="http://cdn.syncfusion.com/17.1.0.47/js/web/flat-azure/ej.web.all.min.css" rel="stylesheet" />
       <script src="http://cdn.syncfusion.com/js/assets/external/jquery-1.10.2.min.js"></script>
       <script src="http://cdn.syncfusion.com/17.1.0.47/js/web/ej.web.all.min.js"></script>
    </head>
    </html>

    Add Tab header within <body> tag.

  • html
  • <div id="dishType" style="width: 550px">
      <ul>
         <li><a href="#pizza">Pizza Menu</a></li>
         <li><a href="#sandwich">Sandwich Menu</a></li>
         <li><a href="#pasta">Pasta Menu</a></li>
      </ul>
    </div>

    Initialize the Tab in ts file by using the ej.Tab method.

  • javascript
  • /// <reference path="jquery.d.ts" />
    /// <reference path="scripts/typings/ej/ej.web.all.d.ts" />

    module TabComponent {
        $(function () {
            var tab = new ej.Tab($("#dishType"));
        });
    }

    The following screen shot illustrates the Tab control with Header.

    Configure Content

    In this application a detailed description is provided to each item. You can specify the contents in the Tab section within the <div> element.

  • html
  • <div id="pizza" style="background-color: #F5F5F5">
         <!--Food item description-->
         <p>Pizza cooked to perfection tossed with milk, vegetables, potatoes, poultry, 100% pure mutton, and cheese - and in creating nutritious and tasty meals to maintain good health.</p>
    </div>

    You can provide more customization to the Tab with rating control as content in it for describing the item rating value.

    Create the Rating

    The Essential JavaScript Rating control provides you an intuitive rating experience that allows you to select the number of stars that represents the rating. For more information about the rating please refer the following link:

    http://help.syncfusion.com/js/rating/getting-started

    The following code example explains you the rating control creation. The input element is used to create the rating control. Render the input element as rating control using the input element id. The code example can be placed within the content description <div> element to declare the rating control and description in the Tab section and it can be appended with the header initialization code section <div> element.

  • html
  • <div id="pizza" style="background-color: #F5F5F5">
         <p>Rating:</p>
         <!--Rating control declaration-->
         <div class="dishRating">
            <input id="pizzaRating" type="text" class="rating" />
         </div>
          <!--Food item description-->
         <p>Pizza cooked to perfection tossed with milk, vegetables, potatoes, poultry, 100% pure mutton, and cheese - and in creating nutritious and tasty meals to maintain good health.</p>
    </div>

    To render the rating controls in the first Tab element refer the styles mentioned in the following code example.

  • css
  • <style type="text/css" class="cssStyles">
        .dishRating {
            position: absolute;
            margin: -31px 0px 0px 80px;
        }
    </style>

    The following code example is used for rendering the content with rating control within the first Tab content section.

  • javascript
  • /// <reference path="jquery.d.ts" />
    /// <reference path="scripts/typings/ej/ej.web.all.d.ts" />

    module TabComponent {
        $(function () {
            var tab = new ej.Tab($("#dishType"));
            var rating = new ej.Rating($("#pizzaRating"), {
                value: 4.9,
                precision: ej.Rating.Precision.Exact
            });
        });
    }

    The following screenshot illustrates the Tab content with rating control.

    AJAX Content Load (Load On Demand)

    You can change the contents in sub Tab element periodically and you are provided with a support to change the contents without any problems. To achieve the content load, use the Load on Demand concept.

    In Load On-Demand, the external HTML file with the necessary details is referred in <href> section during Tab header declaration section. When you click the Tab header, the AJAX automatically calls the content from the external files and displays in a Tab content section.

    Sub Tab with AJAX Content

    Each item is having a variety of options and these options are also specified in the limited space. So you can choose the Tab control that is used within the root Tab to specify more details.

    The following code example illustrates to create the Tab control within the root Tab element. This HTML code is appended within the previous HTML code section. To render the child Tab with its header, add this code example within the first Tab <div> element.

  • html
  • <!--sub Tab control, the contents loaded with load on demand-->
    <div id="pizzaType">
        <ul>
            <li><span class="cornSpinach"></span>
                <a href="http://js.syncfusion.com/UG/Web/Tab-Content/cornSpainach.html">Corn & Spinach </a></li>
            <li><span class="chickenDelite"></span>
                <a href="http://js.syncfusion.com/UG/Web/Tab-Content/ChickenDelite.html">Chicken Delite </a></li>
        </ul>
    </div>

    The Load On-Demand supported HTML file content (cornSpinach.html)

  • html
  • <!DOCTYPE html>
    <html xmlns="http://www.w3.org/1999/xhtml">
        <body>
            <div class="e-content">
                <img src=" http://js.syncfusion.com/demos/web/images/accordion/corn-and-spinach-05.png" alt="corn-spinach"/>
                <div class="ingredients">
                    Rate    : $70<br />
                    Ingredients : cheese, sweet corn &amp; green capsicums.
                        <br />
                    Description: Small pizza bases are topped with spinach and paneer and fresh cream, a nice layer of mozzarella cheese. This is baked until the cheese is all hot and gooey.
                </div>
            </div>
        </body>
    </html>

    The Load On Demand supported HTML file content (chickenDelite.html)

  • html
  • <!DOCTYPE html>
    <html xmlns="http://www.w3.org/1999/xhtml">
        <body>
            <div class="e-content">
                <img src="http://js.syncfusion.com/demos/web/images/accordion/chicken-delite.png" alt="chicken-delite"/>
                <div class="ingredients">
                    Rate    : $100<br />
                    Ingredients : cheese, chicken chunks, onions &amp; pineapple chunks.
                    <br />
                    Description: This is a tasty, elegant chicken dish that is easy to prepare.
                </div>
            </div>
        </body>
    </html>

    NOTE

    In Load On Demand, when the external files are referred from local the following error occurs.

    XMLHttpRequest cannot load [http://js.syncfusion.com/UG/Web/Tab-Content/cornSpainach.html?=1399883825133](http://js.syncfusion.com/UG/Web/Tab-Content/cornSpainach.html?=1399883825133). No ‘Access-Control-Allow-Origin’ header is present on the requested resource.

    To avoid these errors, the external files are hosted in the server to run this application.

    The following code example is used to position the image and content in Load On Demand.

  • css
  • <style type="text/css" class="cssStyles">
       /*reuse the previous rating control style section code*/
       .ingredients {
            height: 180px;
            margin-top: 8px;
        }
        img {
            float: left;
            margin: 10px 26px 5px 1px;
        }
    </style>

    The sub Tab control rendering script is represented in the following code example.

  • javascript
  • /// <reference path="jquery.d.ts" />
    /// <reference path="scripts/typings/ej/ej.web.all.d.ts" />

    module TabComponent {
        $(function () {
            var tab = new ej.Tab($("#pizzaType"));
        });
    }

    At the time of AJAX call, the content fetched from external file referenced location is illustrated in the following screenshot.

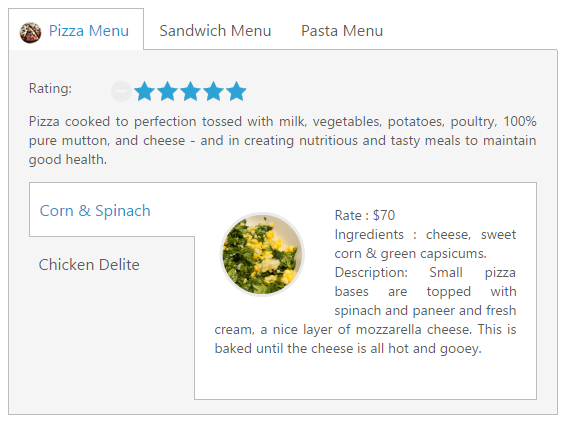

    The following screenshot illustrates the First Tab with the sub Tab control using Load on Demand.

    Orientation Change

    In this application, the sub Tab orientation needs to be vertical. By default, Tab control renders in horizontal orientation. Change the orientation to vertical using the “headerPosition” property. The Tab header orientation is set as “left”.

    The following code example is used to render the sub Tab element in the vertical orientation.

  • javascript
  • /// <reference path="jquery.d.ts" />
    /// <reference path="scripts/typings/ej/ej.web.all.d.ts" />

    module TabComponent {
        $(function () {
            var tab = new ej.Tab($("#dishType"));
            var rating = new ej.Rating($("#pizzaRating"), {
                value: 4.9,
                precision: ej.Rating.Precision.Exact
            });
            var tabOrientation = new ej.Tab($("#pizzaType"), {
                headerPosition: "left",
                height: "221px"
            });
        });
    }

    The following screenshot illustrates the sub Tab with vertical orientation.

    Header Image Customization

    In this application, you have to set the Tab header image for each Tab item to specify image in <span> tag element during the Tab header declaration time.

    The following code example is used for customizing the header image.

  • css
  • <style type="text/css" class="cssStyles">
        .dish {
            display: inline-block;
            vertical-align: middle;
            margin: 0px -9px 0px 9px;
        }
        .pizzaImg {
            background: url("http://js.syncfusion.com/UG/Web/Content/rsz_chicken-delite.png") no-repeat;
            height: 25px;
            width: 25px;
        }
        /*reuse the previous header orientation code*/
    </style>

    The following code example is used to add the header image for the root Tab header element.

  • html
  • <div id="dishType" style="width: 550px">
      <ul>
         <li><span class="dish pizzaImg"></span><a href="#pizza">Pizza Menu</a></li>
         <!-- reuse the remaining tab header -->
       </ul>
       <!-- reuse the previously defined first tab html content section-->
    </div>

    The following screenshot illustrates the Tab with the customized header image.

    Configuring Contents to remaining Tab items

    The second and third Tab contents are declared in the same method as of the first Tab content declaration. These Tabs also consist of rating and sub Tab controls. The sub Tab control contents are loaded in Load On Demand support.

    The following code example can be placed within the previous image customization HTML code section.

  • html
  • <!--reuse the first tab header defined in previous image customization -->
     <li><span class="dish sandwichImg"></span><a href="#sandwich">Sandwich Menu</a></li>
     <li><span class="dish pastaImg"></span><a href="#pasta">Pasta Menu</a></li>

    Add the second Tab contents in <div> element during initialization.

  • html
  • <div id="sandwich" style="background-color: #F5F5F5">
        <p>Rating:</p>
        <!--Rating control declaration-->
        <div class="dishRating">
            <input id="sandwichRating" type="text" class="rating" />
        </div>
        <!--dish description-->
        <p>Sandwich cooked to perfection tossed with bread, milk, vegetables, potatoes, poultry, 100% pure mutton, and cheese - and in creating nutritious and tasty meals to maintain good health.</p>
        <!--sub Tab control, the contents loaded with load on demand-->
        <div id="sandwichType">
            <ul>
                <li>
                    <a href="http://js.syncfusion.com/UG/Web/Tab-Content/gardenVeggie.html">Garden Veggie </a></li>
                <li>
                    <a href="http://js.syncfusion.com/UG/Web/Tab-Content/chickenTikka.html">Chicken Tikka </a></li>
                <li>
                    <a href="http://js.syncfusion.com/UG/Web/Tab-Content/paneerTikka.html">Paneer Tikka </a></li>
            </ul>
        </div>
    </div>

    Add third Tab contents in <div> element during initialization.

  • html
  • <div id="pasta" style="background-color: #F5F5F5">
        <p>Rating:</p>
        <!--Rating control declaration-->
        <div class="dishRating">
            <input id="pastaRating" type="text" class="rating" />
        </div>
        <!--dish description-->
        <p>Pasta cooked to perfection tossed with milk, vegetables, potatoes, poultry, 100% pure mutton, and cheese - and in creating nutritious and tasty meals to maintain good health.</p>
        <!--sub Tab control, the contents loaded with load on demand-->
        <div id="pastaType">
            <ul>
                <li>
                    <a href="http://js.syncfusion.com/UG/Web/Tab-Content/khemmaPasta.html">Kheema Pasta </a></li>
                <li>
                    <a href="http://js.syncfusion.com/UG/Web/Tab-Content/tunaPasta.html">Tuna Pasta</a></li>
                <li>
                    <a href="http://js.syncfusion.com/UG/Web/Tab-Content/channaPasta.html">Channa Pasta
                    </a></li>
            </ul>
        </div>
    </div>

    Apply the following styles to the Tab.

  • css
  • <style type="text/css" class="cssStyles">
        /*to reuse the previous style section code and following css*/
       .sandwichImg, .pastaImg {
            height: 25px;
            width: 25px;
        }
        .sandwichImg {
            background: url("http://js.syncfusion.com/UG/Web/Content/rsz_garden-fresh.png") no-repeat;
        }
        .pastaImg {
            background: url("http://js.syncfusion.com/UG/Web/Content/rsz_garden-veggie.png") no-repeat;
        }
    </style>

    After the content declaration of all the Tab control, render the final output using the following code example.

  • javascript
  • /// <reference path="jquery.d.ts" />
    /// <reference path="scripts/typings/ej/ej.web.all.d.ts" />

    module TabComponent {
        $(function () {
            var tab = new ej.Tab($("#dishType"));
            var rating = new ej.Rating($("#pizzaRating"), {
                value: 4.9,
                precision: ej.Rating.Precision.Exact
            });
            var tabOrientation = new ej.Tab($("#pizzaType"), {
                headerPosition: "left",
                height: "221px"
            });
            var exactRating = new ej.Rating($("#sandwichRating"), {
                value: 3.9,
                precision: ej.Rating.Precision.Exact
            });
            var orientationTab = new ej.Tab($("#pastaType"), {
                headerPosition: "left",
                height: "221px"
            });
            var precisionRating = new ej.Rating($("#pastaRating"), {
                value: 4.5,
                precision: ej.Rating.Precision.Exact
            });
        });
    }

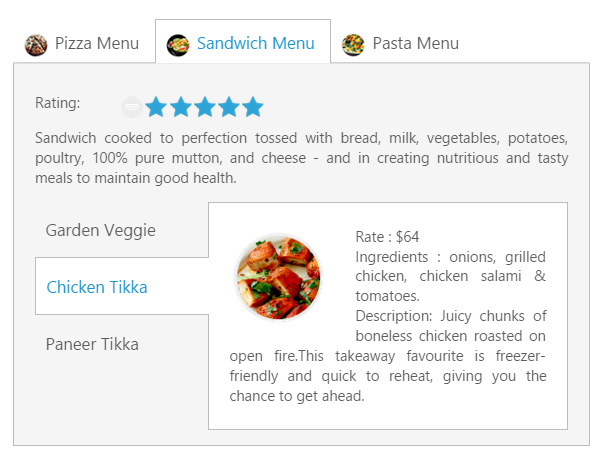

    The following screenshot illustrates you the second Tab contents in Tab and the final hotel menu with rating, description and ingredients of the item in the Tab interface.
