Nested Splitter Support

The Splitter provides nested pane support that allows you to add a pane between two pane elements.

Configure Nested Splitter

The following steps explain the implementation of the “nested splitter” option.

In the HTML page set the corresponding <div> elements for outer and inner Splitter control.

  • html
  • <div id="outersplitter">
        <div>
            <div style="padding: 0px 15px;">
                <h3 class="h3"> JavaScript </h3>
            </div>
        </div>
        <div id="innersplitter">
            <div>
                <div style="padding: 0px 15px;">
                    <h3 class="h3">Tools </h3>
                    Essential Tools is an collection of user interface components used to create interactive
                                JavaScript applications.
                </div>
            </div>
            <div>
                <div style="padding: 0px 15px;">
                    <h3 class="h3">Chart </h3>
                    Essential Chart is a business-oriented charting component.
                </div>
            </div>
            <div>
                <div style="padding: 0px 15px;">
                    <h3 class="h3">Grid </h3>
                    Essential JavaScript Grid offers full featured a Grid control with extensive support for
                                Grouping and the display of hierarchical data.
                </div>
            </div>
        </div>
    </div>
  • javascript
  • module SplitterComponent {
        $(function () {
            var splitterInstance = new ej.Splitter($("#outterSpliter"), {
            height: 280, width: 600,
            orientation: ej.Orientation.Vertical,
            properties: [{ paneSize: 60 }]
        });

        var splitterInstance1 = new ej.Splitter($("#innerSpliter"), {
            width: 600,
            properties: [{ paneSize: 200 }, { paneSize: 170 }]
        });
     });
    }

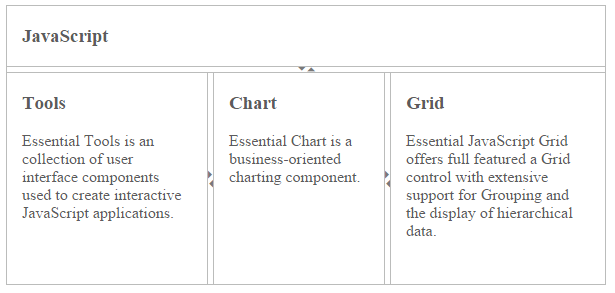

    The output for nested Splitter.
