Behavior Settings

Height

By default, Slider renders with a height of 14px. You can change the Slider height using height property.You can specify the value for this property in number or string format.

Width

By default, Slider widget renders with 100% width. You can customize the width of the Slider using width property.You can specify the value for this property in number or string format.

The following steps explains you on how to configure the height and width of the Slider.

In a HTML page, add a <div> element to render it as a Slider widget.

  • html
  • <div id="BasicSlider"></div>
  • javascript
  • /// <reference path="tsfiles/jquery.d.ts" />
    /// <reference path="tsfiles/ej.web.all.d.ts" />

    module SliderComponent {
        $(function () {
            var slider = new ej.Slider($("#BasicSlider"), {
                height: "20",
                width: "500"
            });
        });
     }

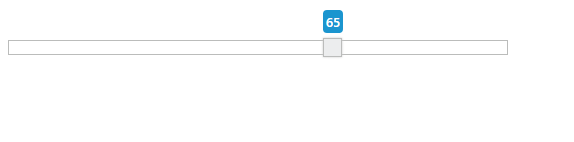

    Execute the above code example to render the following output.

    IncrementStep

    This property sets the incremental step value for the Slider. When the Slider handle slides through mouse or keyboard, it increments / decrements the value based on the step value. By default, when the slider handle is moved,the increments / decrements value is one. Using incrementStep property you can change the increment step value. Data type of this property is number.

    The following steps explains you on how to configure the incrementStep property.

    In a HTML page, add a <div> element to render it as a Slider widget.

  • html
  • <div id="ejSlider"></div>
  • javascript
  • // When initializing the Slider widget, configure the “incrementStep” property as follows.
    /// <reference path="tsfiles/jquery.d.ts" />
    /// <reference path="tsfiles/ej.web.all.d.ts" />

    module SliderComponent {
        $(function () {
            var slider = new ej.Slider($("#ejSlider"), {
                height: "15",
                width: "500",
                incrementStep:5
            });
        });
    }

    Execute the above code example to render the following output.

    In the above example, value for incrementStep property is specified as “5” therefore, when you move the Slider handle, value “5” increments/decrements from the current Slider value.

    ReadOnly

    This feature prevents you from interacting with the Slider. That is you can only view the Slider value and cannot change it.

    The following steps explain you on how to enable the readOnly property.

    In a HTML page, add a <div> element to render it as a Slider widget.

  • html
  • <div id="ejSlider"></div>
  • javascript
  • // When initializing the Slider widget, enable the “readOnly” property as follows.
    /// <reference path="tsfiles/jquery.d.ts" />
    /// <reference path="tsfiles/ej.web.all.d.ts" />

    module SliderComponent {
        $(function () {
            var slider = new ej.Slider($("#rangeSlider"), {
                height: "15",
                width: "500",
                readOnly:true
            });
        });
    }

    After you execute the above code example, the Slider values cannot be changed in any ways.
