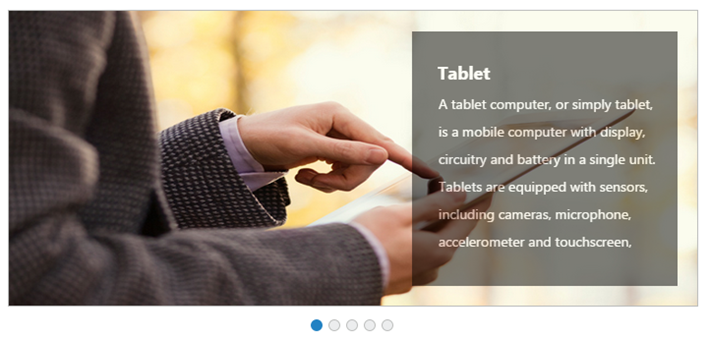

Image with Contents

This feature allows you to add text along with the image in Rotator control. This is achieved by splitting the content into two panels. In the following code example, image is given in the left panel and text is given in the right panel.

  • html
  • <html>
       <body>
          <div class="cols-sample-area">
             <ul id="sliderContent">
                <li>
                   <div class="leftPanel">
                      <img src="../images/rotator/tablet.jpg" />
                   </div>
                   <div class="rightPanel blog">
                      <div class="contentPanel">Tablet </div>
                      <ul>
                         <li>A tablet computer, or simply tablet, is a mobile computer with display, circuitry and battery in a single unit.</li>
                         <li>
                            Tablets are equipped with sensors, including cameras, microphone, accelerometer and touchscreen,
                      </ul>
                   </div>
                </li>
                <li>
                   <div class="leftPanel">
                      <img src="../images/rotator/nature.jpg" />
                   </div>
                   <div class="rightPanel">
                      <div class="contentPanel">Nature </div>
                      <ul>
                         <li>The health of the natural environment is critical to the long-term future of the planet</li>
                         <li>Nature, in the broadest sense, is equivalent to the natural, physical, or material world or universe.</li>
                      </ul>
                   </div>
                </li>
                <li>
                   <div class="leftPanel">
                      <img src="../images/rotator/card.jpg" />
                   </div>
                   <div class="rightPanel credit">
                      <div class="contentPanel">Credit card </div>
                      <ul>
                         <li>A credit card is a payment card issued to users as a system of payment</li>
                         <li>It allows the card holder to pay for goods and services based on the holder's promise to pay for them</li>
                      </ul>
                   </div>
                </li>
                <li>
                   <div class="leftPanel">
                      <img src="../images/rotator/rose.jpg" />
                   </div>
                   <div class="rightPanel">
                      <div class="contentPanel">Rose </div>
                      <ul>
                         <li>A rose is a woody perennial of the genus Rosa, within the family Rosaceae</li>
                         <li>Flowers vary in size and shape and are usually large and showy,
                            There are over 100 species
                         </li>
                      </ul>
                   </div>
                </li>
                <li>
                   <div class="leftPanel">
                      <img src="../images/rotator/snowfall.jpg" />
                   </div>
                   <div class="rightPanel rightSide">
                      <div class="contentPanel">Snowfall </div>
                      <ul>
                         <li>Mt. Baker ski area in Washington State has the world record for snowfall at 1,140 inches of snow in the 1998/1999 winter season</li>
                         <li>Mt. Baker ski area is located near but not on the real 10,781 Mount Baker</li>
                      </ul>
                   </div>
                </li>
             </ul>
          </div>
       </body>
    </html>
  • javascript
  • /// <reference path="tsfiles/jquery.d.ts" />
    /// <reference path="tsfiles/ej.web.all.d.ts" />

    module RotatorComponent {
        $(function () {
            var rotatorInstance = new ej.Rotator($("#sliderContent"), {
                slideWidth: "600px",
                displayItemsCount: "1",
                slideHeight: "300px",
                navigateSteps: "1",
                enableResize: true,
                pagerPosition: ej.Rotator.PagerPosition.Outside,
                orientation: ej.Orientation.Horizontal,
                showPager: true,
                enabled: true,
                showCaption: false,
                allowKeyboardNavigation: true,
                showPlayButton: true,
                animationType: "slide",
                enableRTL: true
            });
        });
    }
  • css
  • <style type="text/css" class="cssStyles">
        #sliderContent > li {
            background-color: #9ee8d8;
        }

        #sliderContent > li .leftPanel {
            float: left;
            width: 700px;
            height: 300px;
            padding-right: 0px;
        }

        #sliderContent > li .leftPanel img {
            width: 700px;
            height: 300px;
        }

        #sliderContent .rightPanel {
            background-color: #FFFFFF;
            height: 259px;
            margin-left: 410px;
            margin-top: 21px;
            opacity: 0.5;
            padding-left: 10px;
            position: absolute;
            width: 260px;
        }

        #sliderContent .rightPanel.credit {
            opacity: 0.6;
        }

        #sliderContent .rightPanel.blog {
            background-color: black;
        }

        #sliderContent .rightPanel.blog li {
            color: white;
            list-style: none;
            line-height: 2;
        }

        #sliderContent .rightPanel.blog .contentPanel {
            padding-top: 30px;
            color: white;
        }

        #sliderContent .rightPanel .contentPanel {
            color: #000000;
            font-size: large;
            font-weight: bold;
            left: 16px;
            padding-top: 30px;
            position: relative;
        }

        #sliderContent .rightPanel li {
            color: black;
            list-style: none;
            line-height: 2;
        }

        #sliderContent .rightPanel.rightSide {
            margin-left: 20px;
            background-color: black;
        }

        #sliderContent .rightPanel.rightSide li {
            color: white;
            list-style: none;
            line-height: 2;
        }

        #sliderContent .rightPanel.rightSide .contentPanel {
            padding-top: 30px;
            color: white;
        }

        .rightPanel > ul {
            padding: 6px 17px 17px;
        }
    </style>

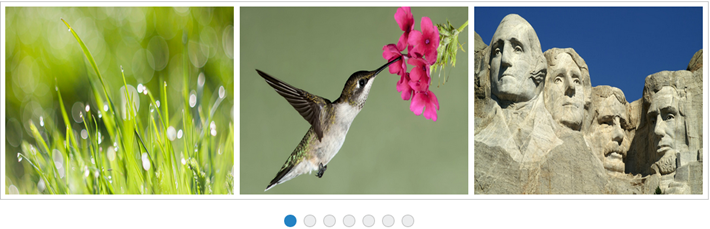

    Display items

    Display Items count

    This property specifies the number of Rotator Items to be displayed. The default value is ‘1’. The value set to this property is string or number.

  • javascript
  • /// <reference path="tsfiles/jquery.d.ts" />
    /// <reference path="tsfiles/ej.web.all.d.ts" />

    module RotatorComponent {
        $(function () {
            var rotatorInstance = new ej.Rotator($("#sliderContent"), {
              slideWidth: "200px",
              displayItemsCount: 3,
              slideHeight: "165px"
            });
        });
    }
  • css
  • <style type="text/css" class="cssStyles">
        #sliderContent > li .image {
            width:200px;
            height:165px;
        }
    </style>

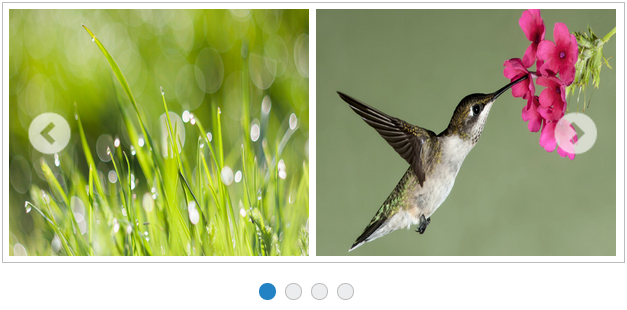

    This property specifies the number of Rotator Items to navigate on a single click (next/previous/play buttons). The navigateSteps property value must be less than or equal to the displayItemsCount property value. The default value is ‘1’. The value set to this property is string or number.

  • javascript
  • /// <reference path="tsfiles/jquery.d.ts" />
    /// <reference path="tsfiles/ej.web.all.d.ts" />

    module RotatorComponent {
        $(function () {
            var rotatorInstance = new ej.Rotator($("#sliderContent"), {
                 slideWidth: 200,
                 slideHeight: 165,
                 displayItemsCount: 2,
                 navigateSteps: 2
            });
        });
    }
  • css
  • <style type="text/css" class="cssStyles">
        #sliderContent > li .image {
            width:200px;
            height:165px;
        }
    </style>

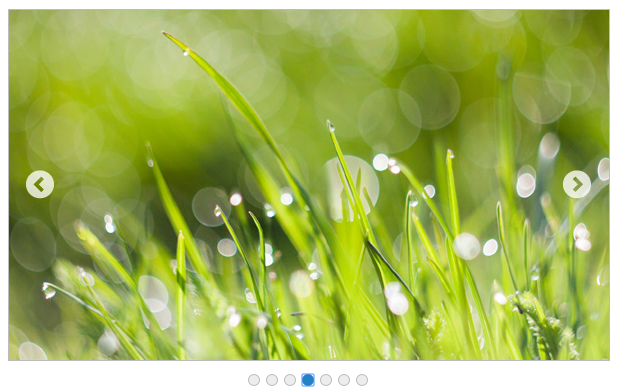

    Start index

    This property sets the index of the slide that is displayed first. The default value is ‘1’. The value set to this property is string or number.

  • javascript
  • /// <reference path="tsfiles/jquery.d.ts" />
    /// <reference path="tsfiles/ej.web.all.d.ts" />

    module RotatorComponent {
        $(function () {
            var rotatorInstance = new ej.Rotator($("#sliderContent"), {
                slideWidth: 500,
                startIndex: 4
            });
        });
    }

    Frame space

    This property sets the space between the Rotator Items. The value set to this property is string or number.

  • javascript
  • /// <reference path="tsfiles/jquery.d.ts" />
    /// <reference path="tsfiles/ej.web.all.d.ts" />

    module RotatorComponent {
        $(function () {
            var rotatorInstance = new ej.Rotator($("#sliderContent"), {
                 slideWidth: "500px",
                 slideHeight: "300px",
                 displayItemsCount: 2,
                 frameSpace: "30px"
            });
        });
     }

    Animation

    animationType property specifies the Animation type for the Rotator Item. animationType options include slide, fastSlide, slowSlide, and other custom easing animationTypes. The default value is ‘slide’. The value set to this property is string.

  • javascript
  • /// <reference path="tsfiles/jquery.d.ts" />
    /// <reference path="tsfiles/ej.web.all.d.ts" />

    module RotatorComponent {
        $(function () {
            var rotatorInstance = new ej.Rotator($("#sliderContent"), {
                 slideWidth: "500px",
                 animationType: "slowSlide"
            });
        });
    }

    Animation speed

    This property sets the speed of slide transition. The default value is ‘600’. The value set to this property is string or number.

  • javascript
  • /// <reference path="tsfiles/jquery.d.ts" />
    /// <reference path="tsfiles/ej.web.all.d.ts" />

    module RotatorComponent {
        $(function () {
            var rotatorInstance = new ej.Rotator($("#sliderContent"), {
                slideWidth: "500px",
                animationSpeed: 3000
             });
        });
    }

    Delay

    This property sets the delay between the Rotator Items to move after the slide transition. The default value is 500. The value set to this property is string or number.

  • javascript
  • /// <reference path="tsfiles/jquery.d.ts" />
    /// <reference path="tsfiles/ej.web.all.d.ts" />\

    module RotatorComponent {
        $(function () {
            var rotatorInstance = new ej.Rotator($("#sliderContent"), {
                 slideWidth: "500px",
                 delay: 5000
            });
        });
    }

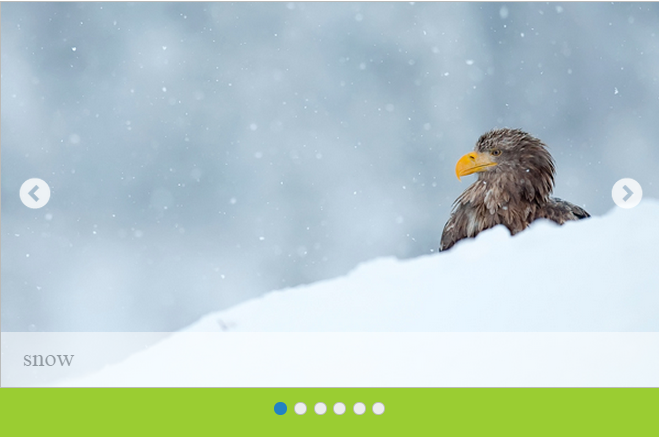

    Theme

    Rotator control’s style and appearance are controlled based on CSS classes. In order to apply styles to the Rotator control, you can refer 2 files namely, ej.widgets.core.min.css and ej.theme.min.css. When the file ej.widgets.all.min.css is referred, then it is not necessary to include the files ej.widgets.core.min.css and ej.theme.min.css in your project, as ej.widgets.all.min.css is the combination of these both.

    By default, there are 17 theme support available for RadialMenu component, namely:

    • flat-azure
    • flat-azure-dark
    • fat-lime
    • flat-lime-dark
    • flat-saffron
    • flat-saffron-dark
    • gradient-azure
    • gradient-azure-dark
    • gradient-lime
    • gradient-lime-dark
    • gradient-saffron
    • gradient-saffron-dark
    • bootstrap
    • high-contrast-01
    • high-contrast-02
    • material
    • office-365

    cssClass

    This property is used to set root class for Rotator control theme. The value set to this property is string type.

  • javascript
  • /// <reference path="tsfiles/jquery.d.ts" />
    /// <reference path="tsfiles/ej.web.all.d.ts" />

    module RotatorComponent {
        $(function () {
            var rotatorInstance = new ej.Rotator($("#sliderContent"), {
                 slideWidth: 500,
                 slideHeight: 300,
                 cssClass: "flat-lime"
            });
        });
    }

    Add the following code in your Css.

  • css
  • <style>
        .flat-lime {
            background-color: yellowgreen;
        }
    </style>
