Image and File browser

The editor allows you to manage the images and files using FileExplorer. The FileExplorer enables you to insert images from online source as well as local computer where you want to insert the image in your content. The Image and file browser is the ability to upload pictures and link file to the editor.

Insert a Image from Online Source

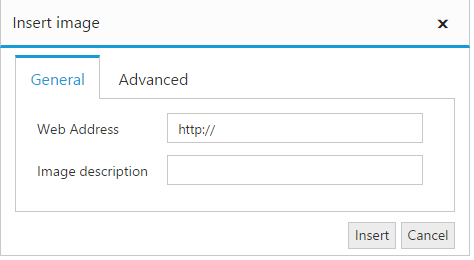

If you want to insert an image from online source like Google, Ping, etc., you need to enable images tool on the editor’s toolbar. By default, the images tool is open a simple dialog which allows you to inserting an image from online source.

  • html
  • <textarea id="rteSample"></textarea>

    /// <reference path="tsfiles/jquery.d.ts" />
    /// <reference path="tsfiles/ej.web.all.d.ts" />

    module RTEComponent {
        $(function () {
            var sample = new ej.RTE($("#rteSample"),{
                toolsList: ["images"],
                tools: {
                    images: ["image"]
                }
            });
        });
    }

    Insert a Image from Your Computer

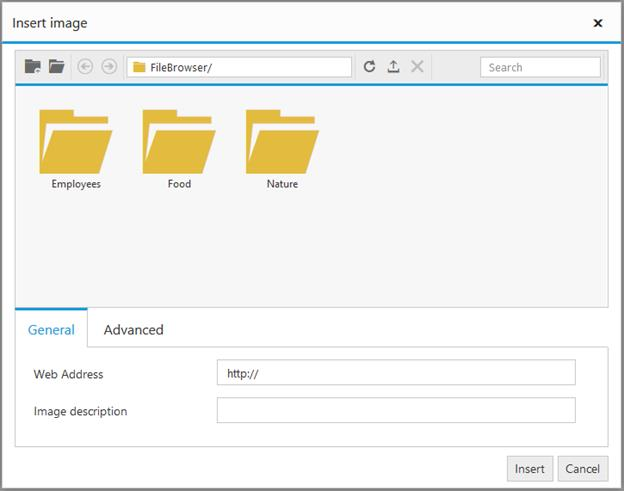

    Configure the imageBrowser and fileBrowser property to insert an image from your computer. You can specify the settings required by the FileExplorer for create, read, upload, and destroy the files and images from the explorer.

  • html
  • <textarea id="rteSample"></textarea>

        var fileService = "http://mvc.syncfusion.com/OdataServices/fileExplorer/fileoperation/doJSONAction";

    /// <reference path="tsfiles/jquery.d.ts" />
    /// <reference path="tsfiles/ej.web.all.d.ts" />

    module RTEComponent {
        $(function () {
            var sample = new ej.RTE($("#rteSample"),{
                toolsList: ["images"],
                tools: { images: ["image"] },
                imageBrowser: {
                    filePath: "http://mvc.syncfusion.com/OdataServices/FileBrowser/",
                    ajaxAction: fileService,
                    extensionAllow: "*.png, *.gif, *.jpg, *.jpeg"
                },

                fileBrowser: {
                    filePath: "http://mvc.syncfusion.com/OdataServices/FileBrowser/",
                    ajaxAction: fileService,
                    extensionAllow: "*.txt, *.pdf"
                }
            });

        });
    }

    NOTE

    FileExplorer component has been implemented and integrated with the editor in Volume 1, 2015 release. For more information about FileExplorer component, see here.

    Image Properties

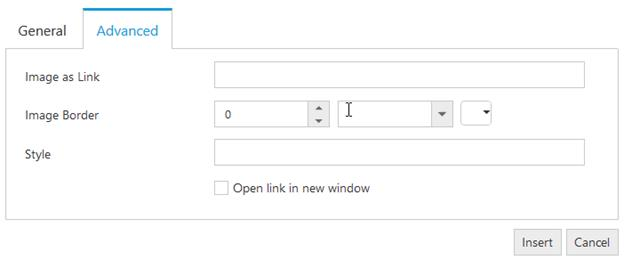

    You can set or modify properties of an image using the image dialog. It allows you to add links to images, apply border and additional styles. The editor provides option to specify the alternate text for an image, if the image cannot be displayed.

    Resize an Image

    You can able to resize an image either manually or set the width and height in the image dialog.

    Resize Manually

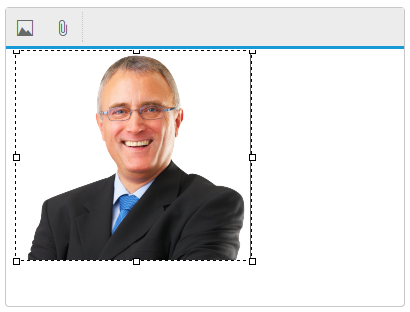

    You can resize an image by manually select an image, and drag a handle until the image is the desired size.

    NOTE

    Set the default height and width of the Images which was inserted into the RTE text area in “change” event of RTE - <p>Link</p>

    Set Width and Height

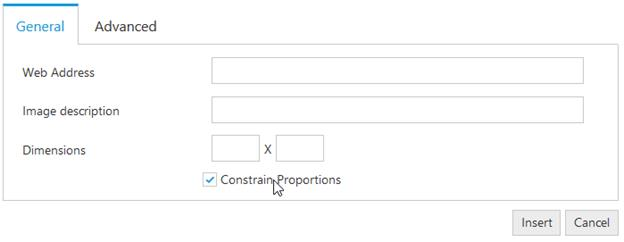

    The editor provides you to set the width and height properties to change the size of an image (rather than forcing you to set in style attributes) using showDimensions property. By default, the Constrain Proportion checkbox is selected to resize an image to an exact proportion. To apply the exact width and height that you specify into the Height and Width textboxes, uncheck the Constrain Proportions checkbox.

  • html
  • <textarea id="rteSample"></textarea>


    /// <reference path="tsfiles/jquery.d.ts" />
    /// <reference path="tsfiles/ej.web.all.d.ts" />

    module RTEComponent {
        $(function () {
            var sample = new ej.RTE($("#rteSample"),{
                toolsList: ["images"],
                tools: { images: ["image"] },
                showDimensions: true
            });
       });
    }

    </script>

    Suppression of the Image Browser

    The General and Advanced tabs in the RTE Image browser can be removed by setting its corresponding display CSS property to none.

  • css
  • <style type="text/css" class="cssStyles">
            div.e-rte-imageTab.e-tab.e-js.e-widget {
                display: none;
            }
        </style>

    Can remove the Add NewFolder button by using removeToolbarItem property of Image Browser in the RTE create event.

  • html
  • <textarea id="rteSample" rows="10" cols="30" style="width: 740px; height: 440px">
            Description:
            The Rich Text Editor (RTE) control is an easy to render in
            client side.Customer easy to edit the contents and get the HTML content for
            the displayed content.A rich text editor control provides users with a toolbar
            that helps them to apply rich text formats to the text entered in the text
            area.
        </textarea>
        var sample = new ej.RTE($("#rteSample"),{
                toolsList: ["images"],
                tools: { images: ["image"] },
                width: "100%",
                minWidth: "10px",
                imageBrowser: { filePath: "http://mvc.syncfusion.com/OdataServices/FileBrowser/", ajaxAction: fileService, extensionAllow: "*.png, *.gif, *.jpg, *.jpeg, *.docx", ajaxSettings: ajaxSettings },
                fileBrowser: { filePath: "http://mvc.syncfusion.com/OdataServices/FileBrowser/", ajaxAction: fileService, extensionAllow: "*.txt, *.png, *.pdf,*.jpeg", ajaxSettings: ajaxSettings1 },
                create: function (args) {
                    this._explorerObj.removeToolbarItem("NewFolder");
                }
       });
