Basic Settings

Adding Dimension

  • The basic customization for any control is setting the dimension. Here dimension refers the two major attributes, height and width. The height and width assigned in the control will render the canvas element in the given size.

  • The value attribute is used to set all pointer value in the Linear Gauge control. The attributes, minimum and maximum value are used to set the minimum value and maximum value for all the scales exist in the Linear Gauge control.

  • html
  • <div id="LinearGauge1"></div>
  • javascript
  • /// <reference path="../tsfiles/jquery.d.ts"></reference>
    /// <reference path="../tsfiles/ej.web.all.d.ts"></reference>

    module LinearGaugeComponent {

       $(function () {
            // For Linear Gauge rendering
          var sample = new ej.datavisualization.LinearGauge($("#LinearGauge1"),{
                // For setting linear gauge width
                width: 300,
                // For setting linear gauge height
                height: 500,
                // For setting linear gauge minimum value
                minimum: 10,
                // For setting linear gauge maximum value
                maximum: 110,
                // For setting linear gauge pointer value
                value: 78,
                // Adding scale collection
                scales: [{
                    border: { color: "transparent", width: 0 },
                    showMarkerPointers: false, showBarPointers: true,
                    // Adding bar pointer collection
                    barPointers: [{ width: 5, backgroundColor: "Grey" }],
                    // Adding ticks collection
                    ticks: [{
                        type: "MajorInterval", width: 2,
                        color: "#8c8c8c", distanceFromScale: { x: 7, y: 0 }
                    },
                    {
                        type: "MinorInterval", width: 1, height: 6,
                        color: "#8c8c8c", distanceFromScale: { x: 7, y: 0 }
                    }]
                }]
            });
        });
    }

    Execute the above code to render the following output.

    Adding frame

    • Frame is the element that decides the appearance of the Linear Gauge. You can customize it by using the object called frame. It contains frame inner width, frame outer width and frame background image URL properties.

    • The innerWidth of the frame defines the distance between the canvas element and the frame and the outerWidth refers to distance from the frame. backgroundImageUrl is used to set the background image for the frame.

  • html
  • <div id="LinearGauge1"></div>
  • javascript
  • $(function () {
            // For Linear Gauge rendering
            var sample = new ej.datavisualization.LinearGauge($("#LinearGauge1"),{
                value: 80,
                frame: {
                    // For setting frame inner width
                    innerWidth: 8,
                    // For setting frame outer width
                    outerWidth: 10,
                    // For setting back ground Image URL
                    backgroundImageUrl: "../images/gauge/Gauge_linear_light.png"
                },
                // Adding scale collection
                scales: [{
                    backgroundColor: "transparent",
                    border: { color: "transparent", width: 0 },
                    showMarkerPointers: false, showBarPointers: true,
                    // Adding bar pointer collection
                    barPointers: [{ width: 5, backgroundColor: "Grey" }],
                    // Adding ticks collection
                    ticks: [{
                        type: "MajorInterval", width: 2,
                        color: "#8c8c8c", distanceFromScale: { x: 7, y: 0 }
                    },
                    {
                        type: "MinorInterval", width: 1, height: 6,
                        color: "#8c8c8c", distanceFromScale: { x: 7, y: 0 }
                    }]
                }]
            });
        });

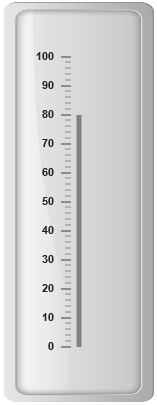

    Execute the above code to render the following output.

    Appearance

    • The attribute orientation is used to render the Linear Gauges either in horizontal position or vertical position.You can set the background color for the Linear Gauge for better appearance using the backgroundColor property. borderColor specifies the borderColor of the Linear Gauge. You can also add gradient effects to Linear Gauge with the help of pointerGradient1 and pointerGradient2 attribute.

    • Theme is the basic property of any control. It is used to set the theme for Linear Gauge. There are two types of themes used for Linear Gauge such as

    • FlatLight

    • FlatDark

  • html
  • <div id="LinearGauge1"></div>
  • javascript
  • $(function () {
            // For Linear Gauge rendering
           var sample = new ej.datavisualization.LinearGauge($("#LinearGauge1"),{
                enableAnimation: false,
                width: 400,
                height: 100,
                value: 80,
                // For setting theme
                theme: "FlatLight",
                // For setting Orientation
                orientation: "Horizontal",
                // For setting label color
                labelColor: "Black",
                //For Adding Frame
                frame: {
                    backgroundImageUrl: "../images/gauge/Gauge_linear_light1.png"
                },
                //For Adding Scales
                scales: [{
                    backgroundColor: "transparent",
                    direction: ej.datavisualization.LinearGauge.Directions.Clockwise,
                    border: { color: "transparent", width: 0 },
                    showMarkerPointers: false, showBarPointers: true,
                    //For Adding bar pointers
                    barPointers: [{ width: 5, backgroundColor: "Grey" }],
                    //For Adding label pointers
                    labels: [{ angle: 90, distanceFromScale: { x: 5, y: -5 } }],
                    //For Adding ticks
                    ticks: [{
                        type: "MajorInterval", width: 2,
                        color: "#8c8c8c", distanceFromScale: { x: 0, y: 0 }
                    },
                    {
                        type: "MinorInterval", width: 1, height: 6,
                        color: "#8c8c8c", distanceFromScale: { x: 0, y: 0 }
                    }]
                }]
            });
        });

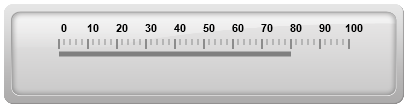

    Execute the above code to render the following output.

    Responsive

    • For any display devices, the control is to be rendered based on the space in that device. The control must be responsive. For this purpose resizing property is present in Linear Gauge control.

    • The Linear Gauge renders with the specified value. When the browser changes its size, the canvas element checks the dimension with its parent element and if there are any changes in parent dimension, gauge control also changes the dimension based on its parent changes. You can enable this feature using isResponsive property.

  • html
  • <div id="LinearGauge1"></div>
  • javascript
  • $(function () {
            // For Linear Gauge rendering
           var sample = new ej.datavisualization.LinearGauge($("#LinearGauge1"),{
                enableAnimation: false,
                width: 400,
                height: 100,
                value: 80,
                orientation: "Horizontal",
                labelColor: "Black",
                //For enabling responsible layout
                isResponsive: true,
                //For Adding Frame
                frame: {
                    backgroundImageUrl: "../images/gauge/Gauge_linear_light1.png"
                },
                //For Adding Scale
                scales: [{
                    backgroundColor: "transparent",
                    direction: ej.datavisualization.LinearGauge.Directions.Clockwise,
                    border: { color: "transparent", width: 0 },
                    showMarkerPointers: false, showBarPointers: true,
                    //For Adding bar pointer collection
                    barPointers: [{ width: 5, backgroundColor: "Grey" }],
                    //For Adding label collection
                    labels: [{ angle: 90, distanceFromScale: { x: 5, y: -5 } }],
                    //For Adding tick collection
                    ticks: [{
                        type: "MajorInterval", width: 2,
                        color: "#8c8c8c", distanceFromScale: { x: 0, y: 0 }
                    },
                   {
                       type: "MinorInterval", width: 1, height: 6,
                       color: "#8c8c8c", distanceFromScale: { x: 0, y: 0 }
                   }]
                }]
            });
        });

    Execute the above code to render the following output.

    Responsiveness of the linear gauge is controlled by using enableResize property.

  • javascript
  • <div id="LinearGauge1"></div>

    <script>
          var sample = new ej.datavisualization.LinearGauge($("#LinearGauge1"),{ enableResize: true });
    </script>

    Localization

    LinearGauge supports localization for its axis labels and tooltip. To render the gauge with specific culture you have to refer the corresponding globalize culture script and need to specify the culture name in locale property of gauge.

    Enable Group Separator is used to Convert the date object to string while using the locale settings, you can set enableGroupSeparator property as true.

  • javascript
  • <div id="LinearGauge1"></div>

    <script>
           var sample = new ej.datavisualization.LinearGauge($("#LinearGauge1"),{
                locale : "en-US" ,
                enableGroupSeparator: true
                });
    </script>
