Insert Audio in Angular Rich Text Editor
The Rich Text Editor enables insertion of audio files from online sources or local machines. You can insert audio with the following options using the insertAudioSettings property.
Configuring the audio toolbar item
The audio feature is enabled by adding the Audio item to the toolbar using the toolbarSettings.items property. The AudioService must be injected into the Angular module as shown below:
To use Audio feature, inject
AudioServicein the provider section.
The following example demonstrates configuring the audio toolbar item:
import { RichTextEditorAllModule } from '@syncfusion/ej2-angular-richtexteditor'
import { DialogModule } from '@syncfusion/ej2-angular-popups'
import { Component } from '@angular/core';
import { ToolbarService, QuickToolbarService, LinkService, HtmlEditorService, AudioService } from '@syncfusion/ej2-angular-richtexteditor';
@Component({
imports: [
RichTextEditorAllModule,
DialogModule
],
standalone: true,
selector: 'app-root',
template: `<ejs-richtexteditor id='' [toolbarSettings]='toolbarSettings' [value]="value"></ejs-richtexteditor>`,
providers: [
ToolbarService, QuickToolbarService, LinkService, AudioService, HtmlEditorService,
],
})
export class AppComponent {
public toolbarSettings: object = {
items: ['Audio']
};
public value: string = `<p>The Syncfudion Rich Text Editor, a WYSIWYG (what you see is what you get) editor, is a user interface that allows you to create, edit, and format rich text content. You can try out a demo of this editor here.</p><p><b>Key features:</b></p><ul>
<li>
<p>Provides <IFRAME> and <DIV> modes.</p>
</li>
<li>
<p>Bulleted and numbered lists.</p>
</li>
<li>
<p>Handles images, hyperlinks, videos, hyperlinks, uploads, etc.</p>
</li>
<li>
<p>Contains undo/redo manager. </p>
</li>
</ul><div style="display: inline-block; width: 60%; vertical-align: top; cursor: auto;"><img alt="Sky with sun" src="https://cdn.syncfusion.com/ej2/richtexteditor-resources/RTE-Overview.png" width="309" style="min-width: 10px; min-height: 10px; width: 309px; height: 174px;" class="e-rte-image e-imginline e-rte-drag-image" height="174" /></div> `;
}import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));Audio save formats
The audio files can be saved as Blob or Base64 URL by using the insertAudioSettings.saveFormat property, which is of enum type, and the generated URL will be set to the src attribute of the <source> tag.
By default,
saveFormatis set toBlob.
<audio>
<source src="blob:http://ej2.syncfusion.com/3ab56a6e-ec0d-490f-85a5-f0aeb0ad8879" type="audio/mp3">
</audio>
<audio>
<source src="data:audio/mp3;base64,iVBORw0KGgoAAAANSUhEUgAAADAAAAAwCAYAAABXAvmHA" type="audio/mp3">
</audio>Inserting audio
You can insert audio from either a hosted link or a local machine by clicking the audio button in the editor’s toolbar. A dialog opens allowing you to insert audio from a web URL or upload from your device.

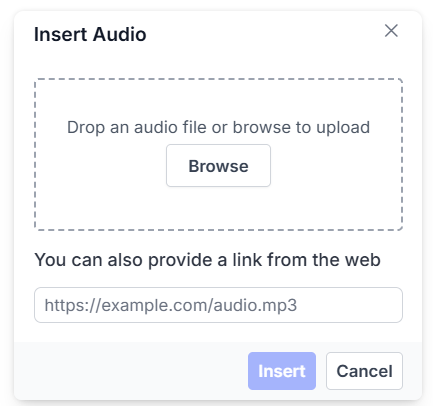

Inserting audio from web URLs
By default, the audio toolbar item opens a dialog for inserting audio from an online source. Entering a valid URL adds it to the src attribute of the <source> tag.
Uploading audio from local machine
The audio dialog includes a browse option to select audio file from a local machine and insert it into the Rich Text Editor content.
If the insertAudioSettings.path is not specified, the audio is converted to a Blob or Base64 URL and inserted into the editor.
Maximum file size restriction
You can restrict audio uploads from your local machine using the insertAudioSettings.maxFileSize property. By default, the maximum file size is 30000000 bytes (approximately 30 MB).
In the following illustration, the audio size has been validated before uploading, and it is determined whether the audio has been uploaded or not.
import { Component } from '@angular/core';
import { ToolbarService, QuickToolbarService, LinkService, HtmlEditorService, AudioService } from '@syncfusion/ej2-angular-richtexteditor';
import { RichTextEditorAllModule } from '@syncfusion/ej2-angular-richtexteditor'
@Component( {
imports: [
RichTextEditorAllModule
],
selector: 'app-root',
standalone: true,
template: `<ejs-richtexteditor id='' [toolbarSettings]='toolbarSettings' [insertAudioSettings] ='insertAudioSettings'>
</ejs-richtexteditor>`,
providers: [ToolbarService, LinkService, ImageService, HtmlEditorService, QuickToolbarService, AudioService, TableService, PasteCleanupService],
} )
export class AppComponent {
private toolbarSettings: object = {
items: [ 'Audio', 'Bold', 'Italic', 'Underline', '|', 'Formats', 'Alignments', 'Blockquote', 'OrderedList', 'UnorderedList', '|', 'CreateLink', 'CreateTable', 'Image', '|', 'SourceCode', '|', 'Undo', 'Redo' ]
};
private insertAudioSettings: Object = {
maxFileSize: 30000000
};
}Saving audio to the server
Configuration properties
| Property | Description |
|---|---|
| saveFormat | Sets the default save format when audio is inserted (Blob or Base64) |
| saveUrl | URL endpoint that receives the audio file for server-side processing |
| removeUrl | URL endpoint for deleting audio files from the server |
| path | Destination path on server where audio files are stored |
Server-side action
The selected audio can be uploaded to the required destination using the controller action below. Map this method name in insertAudioSettings.saveUrl and provide the required destination path through insertAudioSettings.path properties.
If you want to insert lower-sized audio files in the editor and don’t want a specific physical location for saving the audio, you can opt to save the format as
Base64.
In the following code blocks, the audio module has been injected and can insert the audio files saved in the specified path.
import { Component } from '@angular/core';
import { ToolbarService, QuickToolbarService, LinkService, HtmlEditorService, AudioService } from '@syncfusion/ej2-angular-richtexteditor';
@Component( {
selector: 'app-root',
template: `<ejs-richtexteditor [toolbarSettings] = "toolbarSettings" [insertAudioSettings] = "insertAudioSettings"></ejs-richtexteditor>`,
providers: [ToolbarService, QuickToolbarService, LinkService, AudioService, HtmlEditorService,],
})
export class AppComponent {
public toolbarSettings: object = {
items: ['Audio']
};
public insertAudioSettings: Object = {
saveUrl: "[SERVICE_HOSTED_PATH]/api/uploadbox/SaveFiles",
path: "[SERVICE_HOSTED_PATH]/Files/"
};
}The server-side action for saving audio in ASP.NET Core:
using System;
using System.IO;
using FileUpload.Models;
using System.Diagnostics;
using System.Net.Http.Headers;
using Microsoft.AspNetCore.Mvc;
using Microsoft.AspNetCore.Http;
using System.Collections.Generic;
using Microsoft.AspNetCore.Hosting;
namespace FileUpload.Controllers
{
public class HomeController : Controller
{
private IHostingEnvironment hostingEnv;
public HomeController(IHostingEnvironment env)
{
hostingEnv = env;
}
public IActionResult Index()
{
return View();
}
[AcceptVerbs("Post")]
public void SaveFiles(IList<IFormFile> UploadFiles)
{
try
{
foreach (IFormFile file in UploadFiles)
{
if (UploadFiles != null)
{
string filename = ContentDispositionHeaderValue.Parse(file.ContentDisposition).FileName.Trim('"');
filename = hostingEnv.WebRootPath + "\\Files" + $@"\{filename}";
// Create a new directory, if it does not exists
if (!Directory.Exists(hostingEnv.WebRootPath + "\\Files"))
{
Directory.CreateDirectory(hostingEnv.WebRootPath + "\\Files");
}
if (!System.IO.File.Exists(filename))
{
using (FileStream fs = System.IO.File.Create(filename))
{
file.CopyTo(fs);
fs.Flush();
}
Response.StatusCode = 200;
}
}
}
}
catch (Exception)
{
Response.StatusCode = 204;
}
}
[ResponseCache(Duration = 0, Location = ResponseCacheLocation.None, NoStore = true)]
public IActionResult Error()
{
return View(new ErrorViewModel { RequestId = Activity.Current?.Id ?? HttpContext.TraceIdentifier });
}
}
}Renaming audio before inserting
You can use the insertAudioSettings property, to specify the server handler to upload the selected audio. Then by binding the fileUploadSuccess event allows renaming audio files before insertion by updating the file name in the audio dialog:
<ejs-richtexteditor [toolbarSettings]='toolbarSettings' [insertAudioSettings] = 'insertAudioSettings' (fileUploadSuccess) = 'onAudioUploadSuccess($event)' >
<ng-template #valueTemplate>
<p>The Rich Text Editor is WYSIWYG ("what you see is what you get") editor useful to create and edit content, and return the valid <a href="https://ej2.syncfusion.com/home/" target="_blank" aria-label="Open in new window">HTML markup</a> or <a href="https://ej2.syncfusion.com/home/" target="_blank" aria-label="Open in new window">markdown</a> of the content</p>
</ng-template>
</ejs-richtexteditor>import { Component } from '@angular/core';
import { ToolbarService, QuickToolbarService, LinkService, HtmlEditorService, AudioService,} from '@syncfusion/ej2-angular-richtexteditor';
@Component({
selector: 'app-root',
templateUrl: `app.component.html`,
providers: [ ToolbarService, QuickToolbarService, LinkService, AudioService, HtmlEditorService ],
})
export class AppComponent {
public toolbarSettings: object = {
items: ['Audio'],
};
public insertAudioSettings: Object = {
saveUrl: "[SERVICE_HOSTED_PATH]/api/uploadbox/Rename",
path: "[SERVICE_HOSTED_PATH]/Files/"
};
public onAudioUploadSuccess = (args: any) => {
alert("Get the new file name here");
if( args.e.currenTarget.getResponseHeader('name') != null ){
args.file.name = args.e.currentTarget.getResponseHeader('name');
let fileName : any = document.querySelector(".e-file-name")[0];
fileName.innerHTML = args.fileData.name.replace(document.querySelectorAll(".e-file-type")[0].innerHTML , '');
fileName.title = args.fileData.name;
}
};
}To configure the server-side handler, refer to the below code.
int x = 0;
string file;
[AcceptVerbs("Post")]
public void Rename()
{
try
{
var httpPostedFile = System.Web.HttpContext.Current.Request.Files["UploadFiles"];
fileName = httpPostedFile.FileName;
if (httpPostedFile != null)
{
var fileSave = System.Web.HttpContext.Current.Server.MapPath("~/Files");
if (!Directory.Exists(fileSave))
{
Directory.CreateDirectory(fileSave);
}
var fileName = Path.GetFileName(httpPostedFile.FileName);
var fileSavePath = Path.Combine(fileSave, fileName);
while (System.IO.File.Exists(fileSavePath))
{
fileName = "rteFiles" + x + "-" + fileName;
fileSavePath = Path.Combine(fileSave, fileName);
x++;
}
if (!System.IO.File.Exists(fileSavePath))
{
httpPostedFile.SaveAs(fileSavePath);
HttpResponse Response = System.Web.HttpContext.Current.Response;
Response.Clear();
Response.Headers.Add("name", fileName);
Response.ContentType = "application/json; charset=utf-8";
Response.StatusDescription = "File uploaded succesfully";
Response.End();
}
}
}
catch (Exception e)
{
HttpResponse Response = System.Web.HttpContext.Current.Response;
Response.Clear();
Response.ContentType = "application/json; charset=utf-8";
Response.StatusCode = 204;
Response.Status = "204 No Content";
Response.StatusDescription = e.Message;
Response.End();
}
}Uploading audio with authentication
You can add additional data with the audio uploaded from the Rich Text Editor on the client side, which can even be received on the server side by using the fileUploading event and its customFormData argument, you can pass parameters to the controller action. On the server side, you can fetch the custom headers by accessing the form collection from the current request, which retrieves the values sent using the POST method.
By default, it doesn’t support the
UseDefaultCredentialsproperty; we need to manually append the default credentials with the upload request.
import { Component } from '@angular/core';
import { ToolbarService, QuickToolbarService, LinkService, HtmlEditorService, AudioService,} from '@syncfusion/ej2-angular-richtexteditor';
import { UploadingEventArgs } from '@syncfusion/ej2-angular-inputs';
@Component({
selector: 'app-root',
template: `<ejs-richtexteditor [toolbarSettings]= "toolbarSettings" [insertAudioSettings] = "insertAudioSettings" (fileUploading) = "onAudioUpload($event)"></ejs-richtexteditor>`,
providers: [ ToolbarService, QuickToolbarService, LinkService, AudioService, HtmlEditorService ],
})
export class AppComponent {
public toolbarSettings: object = {
items: ['Audio']
};
public insertAudioSettings: Object = {
saveUrl: "[SERVICE_HOSTED_PATH]/api/uploadbox/SaveFiles",
path: "[SERVICE_HOSTED_PATH]/Files/"
};
public onAudioUpload = (args: UploadingEventArgs) => {
let accessToken = "Authorization_token";
// adding custom form Data
args.customFormData = [{ 'Authorization': accessToken}];
};
}public void SaveFiles(IList<IFormFile> UploadFiles)
{
string currentPath = Request.Form["Authorization"].ToString();
}Audio replacement functionality

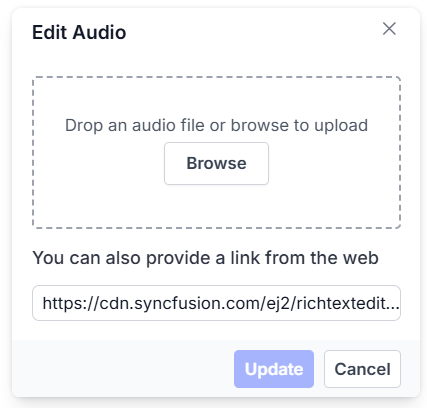

The quickToolbarSettings.audioReplace option enables replacing an inserted audio file through the quick toolbar, using either a web URL or the browse option in the audio dialog.

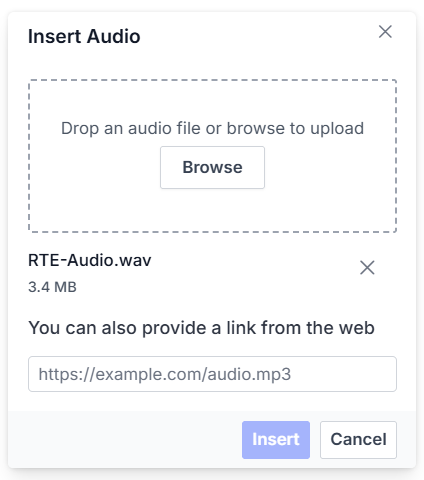

Deleting audios
To delete an audio file, select it and click the audioRemove button in the quick toolbar. It will delete the audio from the Rich Text Editor content as well as from the service location if the insertAudioSettings.removeUrl is given.
When an audio file is selected from the local machine, a URL is generated for it. You can remove the audio from the service location by clicking the cross icon in the audio dialog.
Configuring audio display position
Sets the default display property for audio when it is inserted in the Rich Text Editor using the insertAudioSettings.layoutOption property. It has two possible options: Inline and Break. When updating the display positions, it updates the audio elements layout position.
The default
layoutOptionproperty is set toInline.
import { Component } from '@angular/core';
import { ToolbarService, QuickToolbarService, LinkService, HtmlEditorService, AudioService } from '@syncfusion/ej2-angular-richtexteditor';
@Component( {
selector: 'app-root',
template: `<ejs-richtexteditor [toolbarSettings]="toolbarSettings" [insertAudioSettings] = "insertAudioSettings" >
</ejs-richtexteditor>`,
providers: [ ToolbarService, QuickToolbarService, LinkService, AudioService, HtmlEditorService, ],
} )
export class AppComponent {
public toolbarSettings: object = {
items: ['Audio'],
};
public insertAudioSettings: Object = {
layoutOption: 'Inline'
};
}Drag and drop audio insertion
By default, the Rich Text Editor allows you to insert audios by drag-and-drop from the local file system such as Windows Explorer into the content editor area. And, you can upload the audios to the server before inserting into the editor by configuring the saveUrl property.
In the following sample, you can see feature demo.
import { Component } from '@angular/core';
import { RichTextEditorModule, ToolbarService, LinkService, AudioService, HtmlEditorService, QuickToolbarService, TableService, PasteCleanupService } from '@syncfusion/ej2-angular-richtexteditor';
@Component({
imports: [
RichTextEditorModule
],
standalone: true,
selector: 'app-root',
template: `<ejs-richtexteditor [insertAudioSettings]='insertAudioSettings' [(value)]='value'></ejs-richtexteditor>`,
providers: [ToolbarService, LinkService, AudioService, HtmlEditorService, QuickToolbarService, TableService, PasteCleanupService]
})
export class AppComponent {
public value: string = "<p>The Rich Text Editor component is a WYSIWYG ('what you see is what you get') editor that provides the best user experience for creating and updating content. Users can format their content using standard toolbar commands.</p><p><b>Key features:</b></p><ul><li><p>Provides <IFRAME> and <DIV> modes.</p></li><li><p>Capable of handling markdown editing.</p></li><li><p>Contains a modular library to load the necessary functionality on demand.</p></li><li><p>Provides a fully customizable toolbar.</p></li><li><p>Provides HTML view to edit the source directly for developers.</p></li><li><p>Supports third-party library integration.</p></li><li><p>Allows preview of modified content before saving it.</p></li><li><p>Handles images, hyperlinks, videos, uploads, etc.</p></li><li><p>Contains undo/redo manager.</p></li><li><p>Creates bulleted and numbered lists.</p></li></ul>";
public insertAudioSettings = {
saveUrl: 'https://services.syncfusion.com/angular/production/api/RichTextEditor/SaveFile'
};
}import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));Disabling audio drag and drop
You can prevent drag-and-drop action by setting the actionBegin argument cancel value to true. The following code shows how to prevent the drag-and-drop.
actionBegin: function (args: any): void {
if(args.type === 'drop' || args.type === 'dragstart') {
args.cancel =true;
}
}
