Getting Started

This section explains briefly about how to create a BulletGraph in your application with PHP.

Create your first BulletGraph in PHP

This section encompasses the details on how to configure the BulletGraph control in applications. It also helps you to learn how to pass the required data to it and to customize its various options according to their needs.

In the following screenshot, a BulletGraph is used to compare the actual monsoon rainfall received in a state versus its forecasted values for the years ranging from 1988 to 2013.

Adding PHP EJ source and script reference

Create a first PHP file in Xampp and name it appropriately with .php extension and also place it under the newly created sample folder. Now refer AutoLoad.php file from EJ source of PHP in the sample page. For example, say Index.php with the initial code as shown below -

Refer the required scripts files in your PHP page as mentioned below in order to render the BulletGraph control.

  • html
  • <!DOCTYPE html>
    <html>
    <head>
    <!--  jquery script  -->
        <script type="text/javascript" src="//cdn.syncfusion.com/js/assets/external/jquery-3.0.0.min.js"></script>
        <!-- Essential JS UI widget -->
        <script type="text/javascript" src="//cdn.syncfusion.com/14.3.0.49/js/web/ej.web.all.min.js"></script></head>
    <body>
    <!--Refer AutoLoad.php common source to render the control-->
       <?php
          require_once '../EJ/AutoLoad.php';
        ?>
    </body>
    </html>

    In the above code, ej.web.all.min.js script reference has been added for demonstration purpose. It is not recommended to use this for deployment purpose, as its file size is larger since it contains all the widgets. Instead, you can use CSG utility to generate a custom script file with the required widgets for deployment purpose.

    Initialize BulletGraph

    Add the following code in the index.php file to create the BulletGraph control in index page.

  • html
  • <div>

        <?php
          require_once '../EJ/AutoLoad.php';
        ?>

       <?php
           $bullet=new EJ\BulletGraph("bullet");
           echo $bullet->render();
         ?>
    </div>

    Run the above code and the BulletGraph is displayed. In order to customize the measure bars within the BulletGraph, either local or remote data should be passed to it.

    Provide Required Data

    You can customize the values of feature and comparative measure bars in a BulletGraph, either locally or remotely. The category data is optional, and is used to display label values in parallel to the measure bars.

    Assign the data in localData variable to the dataSource property of BulletGraph as shown in the following code example.

  • html
  • <?php

    	$Json = '[
                    {
                        "value": 90, "comparativeMeasureValue": 100,
                        "category": 2013
                    },
                    {
                        "value": 93, "comparativeMeasureValue": 99,
                        "category": 2012
                    },
                    {
                        "value": 98, "comparativeMeasureValue": 96,
                        "category": 2011
                    },
                    {
                        "value": 102, "comparativeMeasureValue": 98,
                        "category": 2010
                    },
                    {
                        "value": 77, "comparativeMeasureValue": 96,
                        "category": 2009
                    },
                    {
                        "value": 99, "comparativeMeasureValue": 99,
                        "category": 2008
                    },
                    {
                        "value": 106, "comparativeMeasureValue": 94,
                        "category": 2007
                    },
                    {
                        "value": 105, "comparativeMeasureValue": 95,
                        "category": 2006
                    },
                    {
                        "value": 98, "comparativeMeasureValue": 98,
                        "category": 2005
                    },
                    {
                        "value": 87, "comparativeMeasureValue": 100,
                        "category": 2004
                    },
                    {
                        "value": 105, "comparativeMeasureValue": 98,
                        "category": 2003
                    },
                    {
                        "value": 84, "comparativeMeasureValue": 101,
                        "category": 2002
                    },
                    {
                        "value": 93, "comparativeMeasureValue": 98,
                        "category": 2001
                    },
                    {
                        "value": 90, "comparativeMeasureValue": 96,
                        "category": 2000
                    },
                    {
                        "value": 95, "comparativeMeasureValue": 107,
                        "category": 1999
                    },
                    {
                        "value": 104, "comparativeMeasureValue": 98,
                        "category": 1998
                    },
                    {
                        "value": 102, "comparativeMeasureValue": 92,
                        "category": 1997
                    },
                    {
                        "value": 103, "comparativeMeasureValue": 98,
                        "category": 1996
                    },
                    {
                        "value": 100, "comparativeMeasureValue": 96,
                        "category": 1995
                    },
                    {
                        "value": 110, "comparativeMeasureValue": 92,
                        "category": 1994
                    },
                    {
                        "value": 100, "comparativeMeasureValue": 103,
                        "category": 1993
                    },
                    {
                        "value": 94, "comparativeMeasureValue": 93,
                        "category": 1992
                    },
                    {
                        "value": 91, "comparativeMeasureValue": 95,
                        "category": 1991
                    },
                    {
                        "value": 107, "comparativeMeasureValue": 103,
                        "category": 1990
                    },
                    {
                        "value": 101, "comparativeMeasureValue": 102,
                        "category": 1989
                    },
                    {
                        "value": 119, "comparativeMeasureValue": 112,
                        "category": 1988
                    }]';

    	$Json = json_decode($Json,true);

    	$field= new EJ\BulletGraph\Field();
    				$field->dataSource($Json);
        echo $bullet->fields($field)->render();
    ?>

    Once the dataSource property is assigned with the required values, you can bind the variable names used in the JSON data to the corresponding fields of the BulletGraph as shown in the following code sample.

  • html
  • <?php
        $bullet=new EJ\BulletGraph("bullet");

        $field= new EJ\BulletGraph\Field();
        $field->dataSource($Json)->comparativeMeasure("comparativeMeasureValue")->
                                                                                     featureMeasures("value")->category("category");

        echo $bullet->fields($field)->qualitativeRangeSize(320)->height(400)->render();
        ?>

    Set Default and Scale Values

    You can plot more number of measure bars within the BulletGraph, the height and width of the control should be increased to locate all the measure bars within the graph.The qualitativeRangeSize and quantitativeScaleLength property needs to be set accordingly as shown in the following code example.

    By default, the BulletGraph is rendered in the Horizontal orientation with its flow direction set to Forward. In this example,to achieve the desired output, horizontal orientation should be changed to Vertical orientation with the flow direction set to Backward.

    Minimum, maximum and interval values for the quantitativeScale of the bullet graph should be set, as shown in the following code example. The ticks and labels within the scale also need to be positioned.

  • html
  • <?php
        $bullet=new EJ\BulletGraph("bullet");
    				$Json = json_decode($Json,true);
    				$field= new EJ\BulletGraph\Field();
    				$field->dataSource($Json)->comparativeMeasure("comparativeMeasureValue")->featureMeasures("value")->category("category");

    				$label = new EJ\BulletGraph\LabelSetting();
    				$label->position("above");
    				$quantitaiveScale = new EJ\BulletGraph\QuantitativeScaleSetting();
    				$quantitaiveScale->minimum(70)->maximum(130)->interval(10)->tickPosition("above")->labelSettings($label);

        echo $bullet->fields($field)->qualitativeRangeSize(800)->height(400)->quantitativeScaleSettings($quantitaiveScale)
    	->width(850)->quantitativeScaleLength(425)
    	      ->orientation("vertical")->flowDirection("backward")
    	->render();
        ?>

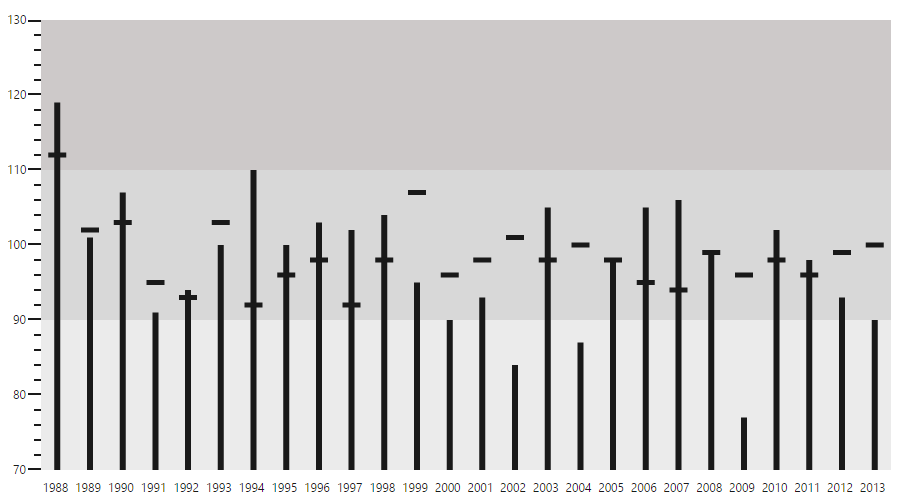

    As you can see in the image above, the bullet graph without any ranges is displayed in the background. The steps to add the qualitativeRanges are described in the next section.

    Add Qualitative Ranges

    By default, 3 ranges are displayed in the BulletGraph control during the initial rendering of the control with its default values. In order to customize it, you need to set appropriate values for the rangeEnd and its rangeStroke properties. Any number of qualitativeRanges can be added to the control.

  • html
  • <?php
        $bullet=new EJ\BulletGraph("bullet");
    				$Json = json_decode($Json,true);
    				$field= new EJ\BulletGraph\Field();
    				$field->dataSource($Json)->comparativeMeasure("comparativeMeasureValue")->featureMeasures("value")->category("category");

    				$label = new EJ\BulletGraph\LabelSetting();
    				$label->position("above");
    				$quantitaiveScale = new EJ\BulletGraph\QuantitativeScaleSetting();
    				$quantitaiveScale->minimum(70)->maximum(130)->interval(10)->tickPosition("above")->labelSettings($label);

    				$qualityRange1 = new EJ\BulletGraph\QualitativeRange();
    				$qualityRange2 = new EJ\BulletGraph\QualitativeRange();
    				$qualityRange3 = new EJ\BulletGraph\QualitativeRange();
    				$qualityRange1->rangeEnd(90);$qualityRange2->rangeEnd(110);$qualityRange3->rangeEnd(130)->rangeStroke("#CDC9C9");

    				$qualitativeRangeColl = array($qualityRange1, $qualityRange2, $qualityRange3);

        echo $bullet->fields($field)->qualitativeRangeSize(800)->height(400)->quantitativeScaleSettings($quantitaiveScale)
    	->width(850)->quantitativeScaleLength(425)->qualitativeRanges($qualitativeRangeColl)
    	      ->orientation("vertical")->flowDirection("backward")
    	->render();
        ?>

    After adding qualitativeRanges to the BulletGraph, the control will be rendered as follows.

    Ticks and Measure Bars Customization

    You have to do the following code changes in the quantitative scale in order to customize the tick size, the colors of the feature bar and comparative measure symbols.

  • html
  • <?php
        $bullet=new EJ\BulletGraph("bullet");
    				$Json = json_decode($Json,true);
    				$field= new EJ\BulletGraph\Field();
    				$field->dataSource($Json)->comparativeMeasure("comparativeMeasureValue")->featureMeasures("value")->category("category");

    				$label = new EJ\BulletGraph\LabelSetting();
    				$label->position("above");

    				$featureMeasure = new EJ\BulletGraph\FeaturedMeasureSetting();
    				$featureMeasure->stroke("#507786");
    				$comparativeMeasure = new EJ\BulletGraph\ComparativeMeasureSetting();
    				$comparativeMeasure->stroke("#169DD8");

    				$majorTick = new EJ\BulletGraph\MajorTickSetting();
    				$majorTick->width(1)->size(7);
    				$minorTick = new EJ\BulletGraph\MinorTickSetting();
    				$minorTick->width(1);

    				$quantitaiveScale = new EJ\BulletGraph\QuantitativeScaleSetting();
    				$quantitaiveScale->minimum(70)->maximum(130)->interval(10)->tickPosition("above")->labelSettings($label)
    				  ->comparativeMeasureSettings($comparativeMeasure)->majorTickSettings($majorTick)->minorTickSettings($minorTick )
    		          ->featuredMeasureSettings($featureMeasure);

    				$qualityRange1 = new EJ\BulletGraph\QualitativeRange();
    				$qualityRange2 = new EJ\BulletGraph\QualitativeRange();
    				$qualityRange3 = new EJ\BulletGraph\QualitativeRange();
    				$qualityRange1->rangeEnd(90);$qualityRange2->rangeEnd(110);$qualityRange3->rangeEnd(130)->rangeStroke("#CDC9C9");

    				$qualitativeRangeColl = array($qualityRange1, $qualityRange2, $qualityRange3);



        echo $bullet->fields($field)->qualitativeRangeSize(800)->height(400)->quantitativeScaleSettings($quantitaiveScale)
    	->width(850)->quantitativeScaleLength(425)->qualitativeRanges($qualitativeRangeColl)
    	      ->orientation("vertical")->flowDirection("backward")
    	->render();
        ?>

    When customization of ticks and measure bars is done, BulletGraph looks as follows

    Add Caption and Subtitle

    You can display an appropriate Caption and Subtitle in the BulletGraph by adding the following code example.

  • html
  • <?php
        $bullet=new EJ\BulletGraph("bullet");

    				$Json = json_decode($Json,true);
    				$field= new EJ\BulletGraph\Field();
    				$field->dataSource($Json)->comparativeMeasure("comparativeMeasureValue")->featureMeasures("value")->category("category");

    				$label = new EJ\BulletGraph\LabelSetting();
    				$label->position("above");

    				$featureMeasure = new EJ\BulletGraph\FeaturedMeasureSetting();
    				$featureMeasure->stroke("#507786");
    				$comparativeMeasure = new EJ\BulletGraph\ComparativeMeasureSetting();
    				$comparativeMeasure->stroke("#169DD8");

    				$majorTick = new EJ\BulletGraph\MajorTickSetting();
    				$majorTick->width(1)->size(7);
    				$minorTick = new EJ\BulletGraph\MinorTickSetting();
    				$minorTick->width(1);

    				$quantitaiveScale = new EJ\BulletGraph\QuantitativeScaleSetting();
    				$quantitaiveScale->minimum(70)->maximum(130)->interval(10)->tickPosition("above")->labelSettings($label)
    				  ->comparativeMeasureSettings($comparativeMeasure)->majorTickSettings($majorTick)->minorTickSettings($minorTick )
    		          ->featuredMeasureSettings($featureMeasure);

    				$qualityRange1 = new EJ\BulletGraph\QualitativeRange();
    				$qualityRange2 = new EJ\BulletGraph\QualitativeRange();
    				$qualityRange3 = new EJ\BulletGraph\QualitativeRange();
    				$qualityRange1->rangeEnd(90);$qualityRange2->rangeEnd(110);$qualityRange3->rangeEnd(130)->rangeStroke("#CDC9C9");

    				$qualitativeRangeColl = array($qualityRange1, $qualityRange2, $qualityRange3);

    				$font = new EJ\BulletGraph\Font();
    				$font->fontFamily("Segoe UI")->size("14px")->fontWeight("regular")->opacity(1);
    				$subtitlelocation = new EJ\BulletGraph\SubTitleLocation();
                    $subtitlelocation->x(180)->y(4);
                    $subtitle = new EJ\BulletGraph\SubTitle();
                    $subtitle->textAngle(0)->text("Rainfall (mm)")->location($subtitlelocation)->font($font);

    				$font->size("20px");
    				$captionlocation=new EJ\BulletGraph\CaptionSettingsLocation();
                    $captionlocation->x(470)->y(270);
                    $captions = new EJ\BulletGraph\CaptionSetting();
                    $captions->textAngle(0)->text("Monsoon Rainfall - Actual vs Forecast")
    	                     ->location($captionlocation)->textAngle(90)
    						 ->subTitle($subtitle)->font($font);

        echo $bullet->fields($field)->qualitativeRangeSize(800)->height(400)->quantitativeScaleSettings($quantitaiveScale)
    	      ->width(850)->quantitativeScaleLength(425)->qualitativeRanges($qualitativeRangeColl)
    	      ->orientation("vertical")->flowDirection("backward")
    		  ->captionSettings($captions)
    	->render();
        ?>

    The following screenshot displays a BulletGraph in the caption and title in the BulletGraph.

    Show Tooltip

    You can use a Tooltip in your application to display any information. In this example, a tooltip is used to show the values (in millimeter) of forecasted rainfall, actual rainfall received in (mm) and also the appropriate year. The tooltip is enabled by setting the visible property in tooltip to True. Also, in order to set the template tooltip, you can pass the template id to it as shown in the following code example.

  • html
  • <?php
          $bullet=new EJ\BulletGraph("bullet");

          $tooltip = new EJ\BulletGraph\TooltipSetting();
          $tooltip->visible(true) ->template("Tooltip");

         echo $bullet->tooltipSettings($tooltip)->render();

    Template content

  • html
  • <div id="Tooltip" style="display:none; width:125px;padding-top: 10px;padding-bottom:10px">
    <div align="center" style="font-weight:bold">
               Rainfall
    </div>
    <table>
    <tr><td>Actual</td>
    <td>: mm</td></tr>
    <tr><td>Forecast</td>
    <td>: mm</td></tr>
    <tr><td>Year</td>
    <td>: </td></tr>
    </table>
    </div>

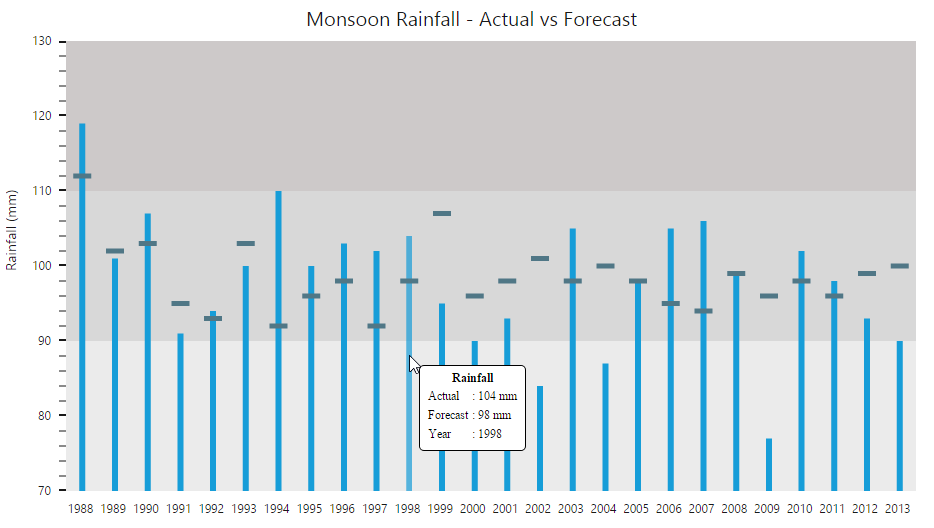

    By using the customization options discussed in this section, the BulletGraph is rendered as displayed on the following screenshot.
