Layout customization in the .NET MAUI Segmented control

18 Oct 20246 minutes to read

The SfSegmentedControl supports changing the layout width, height and the number of visible segments displayed.

Change the segment width

Change the width of the segmented control and each segment item.

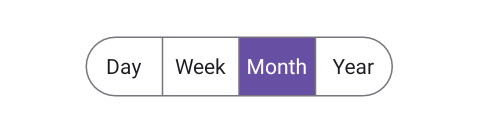

Change the segment width for segmented control

Use the SegmentWidth property of SfSegmentedControl to customize the segment width of the segmented control.

XAML

<ContentPage
    xmlns:segmentedControl="clr-namespace:Syncfusion.Maui.Toolkit.SegmentedControl;assembly=Syncfusion.Maui.Toolkit.SegmentedControl">
    <segmentedControl:SfSegmentedControl  SegmentWidth="50">
        <segmentedControl:SfSegmentedControl.ItemsSource>
            <x:Array Type="{x:Type x:String}">
                <x:String>Day</x:String>
                <x:String>Week</x:String>
                <x:String>Month</x:String>
                <x:String>Year</x:String>
            </x:Array>
        </segmentedControl:SfSegmentedControl.ItemsSource>
    </segmentedControl:SfSegmentedControl>
</ContentPage>

C#

using Syncfusion.Maui.Toolkit.SegmentedControl;
. . .

public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
        SfSegmentedControl segmentedControl = new SfSegmentedControl();
        segmentedControl.SegmentWidth = 50;
        this.Content = segmentedControl;
    }
}

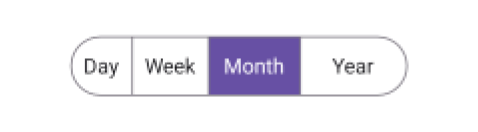

Change the each segment item width

You can change the width of each segment item using the Width property of SfSegmentItem.

MainPage.xaml.cs

using Syncfusion.Maui.Toolkit.SegmentedControl;
. . .

public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
        SfSegmentedControl segmentedControl = new SfSegmentedControl();
        List<SfSegmentItem> segmentItems = new List<SfSegmentItem>
            {
                new SfSegmentItem() {Text="Day", Width = 40},
                new SfSegmentItem() {Text="Week", Width = 50},
                new SfSegmentItem() {Text="Month", Width = 60},
                new SfSegmentItem() {Text="Year", Width = 70},
            };
        segmentedControl.ItemsSource = segmentItems;
        this.Content = segmentedControl;
    }
}

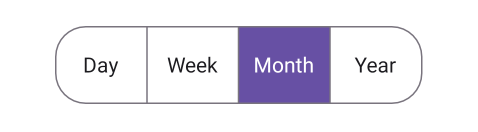

Change the segment height

You can use the SegmentHeight property of SfSegmentedControl to customize the segment height of the segmented control.

XAML

<ContentPage
    xmlns:segmentedControl="clr-namespace:Syncfusion.Maui.Toolkit.SegmentedControl;assembly=Syncfusion.Maui.Toolkit.SegmentedControl">
    <segmentedControl:SfSegmentedControl SegmentHeight="60">
        <segmentedControl:SfSegmentedControl.ItemsSource>
            <x:Array Type="{x:Type x:String}">
                <x:String>Day</x:String>
                <x:String>Week</x:String>
                <x:String>Month</x:String>
                <x:String>Year</x:String>
            </x:Array>
        </segmentedControl:SfSegmentedControl.ItemsSource>
    </segmentedControl:SfSegmentedControl>
</ContentPage>

C#

using Syncfusion.Maui.Toolkit.SegmentedControl;
. . .

public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
        SfSegmentedControl segmentedControl = new SfSegmentedControl();
        segmentedControl.SegmentHeight = 60;
        this.Content = segmentedControl;
    }
}

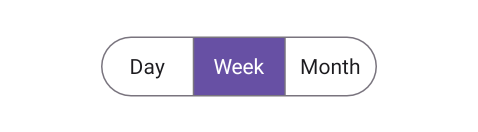

Visible segment count

Set the number of visible segments displayed in the SfSegmentedControl using VisibleSegmentsCount property.

XAML

<ContentPage
    xmlns:segmentedControl="clr-namespace:Syncfusion.Maui.Toolkit.SegmentedControl;assembly=Syncfusion.Maui.Toolkit.SegmentedControl">
    <segmentedControl:SfSegmentedControl VisibleSegmentsCount="3">
        <segmentedControl:SfSegmentedControl.ItemsSource>
            <x:Array Type="{x:Type x:String}">
                <x:String>Day</x:String>
                <x:String>Week</x:String>
                <x:String>Month</x:String>
                <x:String>Year</x:String>
            </x:Array>
        </segmentedControl:SfSegmentedControl.ItemsSource>
    </segmentedControl:SfSegmentedControl>
</ContentPage>

C#

using Syncfusion.Maui.Toolkit.SegmentedControl;
. . .

public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
        SfSegmentedControl segmentedControl = new SfSegmentedControl();
        segmentedControl.VisibleSegmentsCount = 3;
        this.Content = segmentedControl;
    }
}

NOTE

The layout of segments adjusts automatically once VisibleSegmentsCount is set. This means that the SegmentWidth and SfSegmentItem.Width properties will not be applied, and the WidthRequest value should be divided by the VisibleSegmentsCount to determine the width of each segment.
