Appearance Customization of .NET MAUI Segmented Control

15 Sep 202520 minutes to read

The .NET MAUI Segmented control allows you to customize the background, text color, selection style, and more.

Customize the border color

You can use the Stroke property of SfSegmentedControl to customize the border color of the segmented control.

<ContentPage
    xmlns:segmentedControl="clr-namespace:Syncfusion.Maui.Toolkit.SegmentedControl;assembly=Syncfusion.Maui.Toolkit">
    <segmentedControl:SfSegmentedControl Stroke="Red">
        <segmentedControl:SfSegmentedControl.ItemsSource>
            <x:Array Type="{x:Type x:String}">
                <x:String>Day</x:String>
                <x:String>Week</x:String>
                <x:String>Month</x:String>
                <x:String>Year</x:String>
            </x:Array>
        </segmentedControl:SfSegmentedControl.ItemsSource>
    </segmentedControl:SfSegmentedControl>
</ContentPage>
using Syncfusion.Maui.Toolkit.SegmentedControl;
. . .

public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
        SfSegmentedControl segmentedControl = new SfSegmentedControl();
        segmentedControl.Stroke = Colors.Red;
        this.Content = segmentedControl;
    }
}

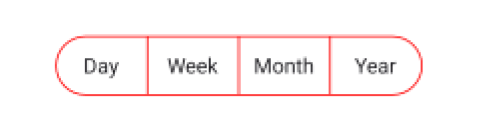

Border color customization in .NET MAUI Segmented control.

Customize the border thickness

You can use the StrokeThickness property of SfSegmentedControl to customize the border thickness of the segmented control.

<ContentPage
    xmlns:segmentedControl="clr-namespace:Syncfusion.Maui.Toolkit.SegmentedControl;assembly=Syncfusion.Maui.Toolkit">
    <segmentedControl:SfSegmentedControl StrokeThickness="2">
        <segmentedControl:SfSegmentedControl.ItemsSource>
            <x:Array Type="{x:Type x:String}">
                <x:String>Day</x:String>
                <x:String>Week</x:String>
                <x:String>Month</x:String>
                <x:String>Year</x:String>
            </x:Array>
        </segmentedControl:SfSegmentedControl.ItemsSource>
    </segmentedControl:SfSegmentedControl>
</ContentPage>
using Syncfusion.Maui.Toolkit.SegmentedControl;
. . .

public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
        SfSegmentedControl segmentedControl = new SfSegmentedControl();
        segmentedControl.StrokeThickness = 2;
        this.Content = segmentedControl;
    }
}

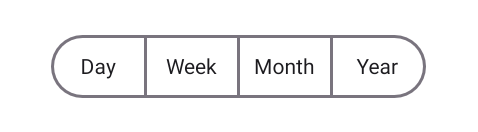

Border thickness customization in .NET MAUI Segmented control.

Customize the border corner radius

Use the CornerRadius property of SfSegmentedControl to customize the corner radius of the segmented control.

<ContentPage
    xmlns:segmentedControl="clr-namespace:Syncfusion.Maui.Toolkit.SegmentedControl;assembly=Syncfusion.Maui.Toolkit">
    <segmentedControl:SfSegmentedControl CornerRadius="5">
        <segmentedControl:SfSegmentedControl.ItemsSource>
            <x:Array Type="{x:Type x:String}">
                <x:String>Day</x:String>
                <x:String>Week</x:String>
                <x:String>Month</x:String>
                <x:String>Year</x:String>
            </x:Array>
        </segmentedControl:SfSegmentedControl.ItemsSource>
    </segmentedControl:SfSegmentedControl>
</ContentPage>
using Syncfusion.Maui.Toolkit.SegmentedControl;
. . .

public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
        SfSegmentedControl segmentedControl = new SfSegmentedControl();
        segmentedControl.CornerRadius = 5;
        this.Content = segmentedControl;
    }
}

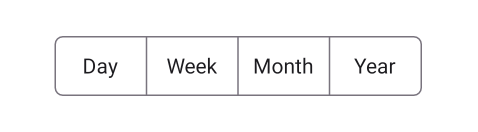

Corner radius customization in .NET MAUI Segmented control.

NOTE

The CornerRadius property will be applicable only for the first and last segment items. To set corner radius for all segments, use SegmentCornerRadius.

Customize the segment corner radius

Use the SegmentCornerRadius property of SfSegmentedControl to customize the segment corner radius of the segmented control.

<ContentPage
    xmlns:segmentedControl="clr-namespace:Syncfusion.Maui.Toolkit.SegmentedControl;assembly=Syncfusion.Maui.Toolkit">
    <segmentedControl:SfSegmentedControl SegmentCornerRadius="5">
        <segmentedControl:SfSegmentedControl.ItemsSource>
            <x:Array Type="{x:Type x:String}">
                <x:String>Day</x:String>
                <x:String>Week</x:String>
                <x:String>Month</x:String>
                <x:String>Year</x:String>
            </x:Array>
        </segmentedControl:SfSegmentedControl.ItemsSource>
    </segmentedControl:SfSegmentedControl>
</ContentPage>
using Syncfusion.Maui.Toolkit.SegmentedControl;
. . .

public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
        SfSegmentedControl segmentedControl = new SfSegmentedControl();
        segmentedControl.SegmentCornerRadius = 5;
        this.Content = segmentedControl;
    }
}

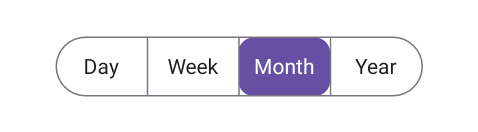

Segment corner radius customization in .NET MAUI Segmented control.

Customize the text style

You can customize the text style of the segmented control and each segment item.

Customize the text style of segmented Control

Use the TextStyle property of SfSegmentedControl to customize the text style of the segmented control.

<ContentPage
    xmlns:segmentedControl="clr-namespace:Syncfusion.Maui.Toolkit.SegmentedControl;assembly=Syncfusion.Maui.Toolkit">
    <segmentedControl:SfSegmentedControl>
        <segmentedControl:SfSegmentedControl.TextStyle>
            <segmentedControl:SegmentTextStyle TextColor="Red" FontAttributes="Italic" FontSize="20"/>
        </segmentedControl:SfSegmentedControl.TextStyle>
        <segmentedControl:SfSegmentedControl.ItemsSource>
            <x:Array Type="{x:Type x:String}">
                <x:String>Day</x:String>
                <x:String>Week</x:String>
                <x:String>Month</x:String>
                <x:String>Year</x:String>
            </x:Array>
        </segmentedControl:SfSegmentedControl.ItemsSource>
    </segmentedControl:SfSegmentedControl>
</ContentPage>
using Syncfusion.Maui.Toolkit.SegmentedControl;
. . .

public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
        SfSegmentedControl segmentedControl = new SfSegmentedControl();
        segmentedControl.TextStyle = new SegmentTextStyle()
        {
            TextColor = Colors.Red,
            FontAttributes = FontAttributes.Italic,
            FontSize = 20,
        };
        this.Content = segmentedControl;
    }
}

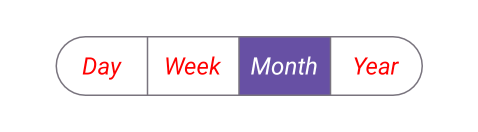

Text style customization in .NET MAUI Segmented control.

Customize the text style of each segment item

Customize the text style of each segment item using the TextStyle property of SfSegmentItem.

using Syncfusion.Maui.Toolkit.SegmentedControl;
. . .

public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
        SfSegmentedControl segmentedControl = new SfSegmentedControl();
        List<SfSegmentItem> segmentItems = new List<SfSegmentItem>
            {
                new SfSegmentItem() {Text="Day", TextStyle = new SegmentTextStyle(){TextColor = Colors.Green}},
                new SfSegmentItem() {Text="Week", TextStyle = new SegmentTextStyle(){TextColor = Colors.Red}},
                new SfSegmentItem() {Text="Month", TextStyle = new SegmentTextStyle(){TextColor = Colors.Yellow}},
                new SfSegmentItem() {Text="Year", TextStyle = new SegmentTextStyle(){TextColor = Colors.Blue}},
            };
        segmentedControl.ItemsSource = segmentItems;
        this.Content = segmentedControl;
    }
}

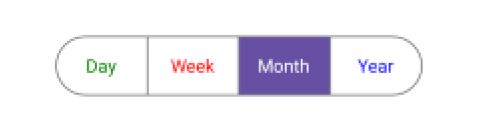

Segment item text style customization in .NET MAUI Segmented control.

Customize the segment background

You can customize the segmented background of the segmented control and each segment item.

Customize the segment background of segmented control

Use the SegmentBackground property of SfSegmentedControl to customize the segmented background of the segmented control.

<ContentPage
    xmlns:segmentedControl="clr-namespace:Syncfusion.Maui.Toolkit.SegmentedControl;assembly=Syncfusion.Maui.Toolkit">
    <segmentedControl:SfSegmentedControl SegmentBackground="LightGray">
        <segmentedControl:SfSegmentedControl.ItemsSource>
            <x:Array Type="{x:Type x:String}">
                <x:String>Day</x:String>
                <x:String>Week</x:String>
                <x:String>Month</x:String>
                <x:String>Year</x:String>
            </x:Array>
        </segmentedControl:SfSegmentedControl.ItemsSource>
    </segmentedControl:SfSegmentedControl>
</ContentPage>
using Syncfusion.Maui.Toolkit.SegmentedControl;
. . .

public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
        SfSegmentedControl segmentedControl = new SfSegmentedControl();
        segmentedControl.SegmentBackground = Colors.LightGray;
        this.Content = segmentedControl;
    }
}

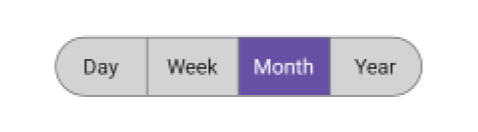

Background customization in .NET MAUI Segmented control.

Customize the segment background of each segment item

Customize the background of each segment item using the Background property of SfSegmentItem.

using Syncfusion.Maui.Toolkit.SegmentedControl;
. . .

public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
        SfSegmentedControl segmentedControl = new SfSegmentedControl();
        List<SfSegmentItem> segmentItems = new List<SfSegmentItem>
            {
                new SfSegmentItem() {Text="Day", Background = Colors.LightBlue},
                new SfSegmentItem() {Text="Week", Background = Colors.LightBlue},
                new SfSegmentItem() {Text="Month", Background = Colors.LightBlue},
                new SfSegmentItem() {Text="Year", Background = Colors.LightBlue},
            };
        segmentedControl.ItemsSource = segmentItems;
        this.Content = segmentedControl;
    }
}

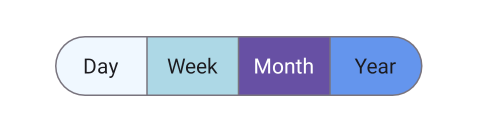

Segment item background customization in .NET MAUI Segmented control.

Customize segment items appearance using DataTemplate

Use the SegmentTemplate property of SfSegmentedControl to create custom segmented control. The following example code shows how to create a custom segmented control using a data template.

<ContentPage
    xmlns:segmentedControl="clr-namespace:Syncfusion.Maui.Toolkit.SegmentedControl;assembly=Syncfusion.Maui.Toolkit">
    <segmentedControl:SfSegmentedControl>
        <segmentedControl:SfSegmentedControl.ItemsSource>
            <x:Array Type="{x:Type x:String}">
                <x:String>Day</x:String>
                <x:String>Week</x:String>
                <x:String>Month</x:String>
                <x:String>Year</x:String>
            </x:Array>
        </segmentedControl:SfSegmentedControl.ItemsSource>
        <segmentedControl:SfSegmentedControl.SegmentTemplate>
            <DataTemplate>
                <Grid Background="LightGray">
                    <Label Text="{Binding Text}"
                           TextColor="Red"
                           Margin="6"/>
                </Grid>
            </DataTemplate>
        </segmentedControl:SfSegmentedControl.SegmentTemplate>
    </segmentedControl:SfSegmentedControl>
</ContentPage>

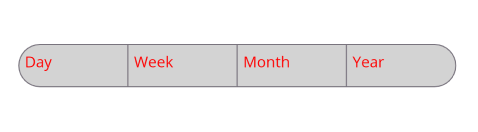

Appearance customization using DataTemplate in .NET MAUI Segmented control.

Customize selected segment item appearance using DataTemplate

Use the IsSelected property of SfSegmentItem to customize the selected segment item appearance. The following example code shows how to create a custom segmented control using a data template.

<ContentPage
    xmlns:buttons="clr-namespace:Syncfusion.Maui.Toolkit.SegmentedControl;assembly=Syncfusion.Maui.Toolkit">
    <ContentPage.Resources>
        <ResourceDictionary>
            <local:TextColorConverter x:Key="TextColorConverter" />
        </ResourceDictionary>
    </ContentPage.Resources>
    <StackLayout Spacing="20" VerticalOptions="Center">
        <buttons:SfSegmentedControl x:Name="segmentedControl">
            <buttons:SfSegmentedControl.ItemsSource>
                <x:Array Type="{x:Type x:String}">
                    <x:String>Day</x:String>
                    <x:String>Week</x:String>
                    <x:String>Month</x:String>
                    <x:String>Year</x:String>
                </x:Array>
            </buttons:SfSegmentedControl.ItemsSource>
            <buttons:SfSegmentedControl.SegmentTemplate>
                <DataTemplate>
                    <Grid BackgroundColor="{Binding Background}">
                        <Label Text="{Binding Text}"
                               TextColor="{Binding IsSelected, Converter={StaticResource TextColorConverter}}"/>
                    </Grid>
                </DataTemplate>
            </buttons:SfSegmentedControl.SegmentTemplate>
        </buttons:SfSegmentedControl>
    </StackLayout>
</ContentPage>
using Syncfusion.Maui.Toolkit.SegmentedControl;
. . .

public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
        SfSegmentedControl segmentedControl = new SfSegmentedControl();
        List<SfSegmentItem> segmentItems = new List<SfSegmentItem>
            {
                new SfSegmentItem() {Text="Day", Background = Colors.LightGrey},
                new SfSegmentItem() {Text="Week", Background = Colors.LightGrey},
                new SfSegmentItem() {Text="Month", Background = Colors.LightGrey},
                new SfSegmentItem() {Text="Year", Background = Colors.LightGrey},
            };
        segmentedControl.ItemsSource = segmentItems;
        this.Content = segmentedControl;
    }
}
public class TextColorConverter : IValueConverter
{
    public object Convert(object value, Type targetType, object parameter, CultureInfo culture)
    {
        if (value is bool isSelected)
        {
            return isSelected ? Colors.Red : Colors.Black;
        }

        return Colors.Black;
    }

    public object ConvertBack(object value, Type targetType, object parameter, CultureInfo culture)
    {
    }
}

NOTE

  • The BindingContext of the SegmentTemplate is the SfSegmentItem.

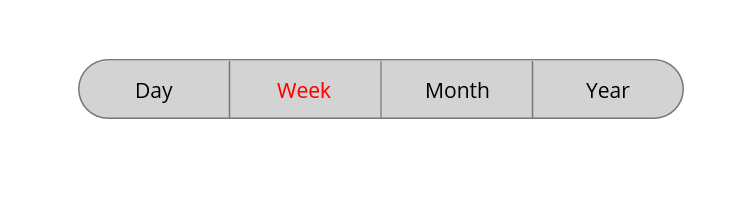

Customization for the selected segment item in .NET MAUI Segmented control.
