Columns Configuration and Workflow Stages in Blazor Kanban

The Blazor Kanban Board columns represent each stage of workflow process. These column definitions act as the schema for the Kanban board DataSource and drive operations such as drag-and-drop, swimlane grouping, and column toggling.

Single-key mapping

Columns are categorized by mapping the KeyField property to specific key values in the data source. The corresponding value in the datasource is mapped inside the columns KeyField. This categorization determines how cards are distributed across columns on the Kanban board.

The KeyField property is required to render columns on the Kanban board.

@using Syncfusion.Blazor.Kanban

<SfKanban TValue="TasksModel" KeyField="Status" DataSource="Tasks">
    <KanbanColumns>
        <KanbanColumn HeaderText="Backlog" KeyField="@(new List<string>() {"Open"})"></KanbanColumn>
        <KanbanColumn HeaderText="In Progress" KeyField="@(new List<string>() {"InProgress"})"></KanbanColumn>
        <KanbanColumn HeaderText="Testing" KeyField="@(new List<string>() {"Testing"})"></KanbanColumn>
        <KanbanColumn HeaderText="Done" KeyField="@(new List<string>() {"Close"})"></KanbanColumn>
    </KanbanColumns>
    <KanbanCardSettings HeaderField="Id" ContentField="Summary"></KanbanCardSettings>
</SfKanban>

@code {
    public class TasksModel
    {
        public string? Id { get; set; }
        public string? Title { get; set; }
        public string? Status { get; set; }
        public string? Summary { get; set; }
        public string? Assignee { get; set; }
    }

    public List<TasksModel> Tasks = new List<TasksModel>()
{
        new TasksModel { Id = "Task 1", Title = "BLAZ-29001", Status = "Open", Summary = "Analyze the new requirements gathered from the customer.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 2", Title = "BLAZ-29002", Status = "InProgress", Summary = "Improve application performance", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 3", Title = "BLAZ-29003", Status = "Open", Summary = "Arrange a web meeting with the customer to get new requirements.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 4", Title = "BLAZ-29004", Status = "InProgress", Summary = "Fix the issues reported in the IE browser.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 5", Title = "BLAZ-29005", Status = "Review", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 6", Title = "BLAZ-29006", Status = "Review", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 7", Title = "BLAZ-29007", Status = "Close", Summary = "Test the application in the IE browser.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 8", Title = "BLAZ-29008", Status = "Validate", Summary = "Validate the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 9", Title = "BLAZ-29009", Status = "Open", Summary = "Show the retrieved data from the server in grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 10", Title = "BLAZ-29010", Status = "InProgress", Summary = "Fix cannot open user’s default database SQL error.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 11", Title = "BLAZ-29011", Status = "Review", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 12", Title = "BLAZ-29012", Status = "Close", Summary = "Analyze SQL server 2008 connection.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 13", Title = "BLAZ-29013", Status = "Validate", Summary = "Validate databinding issues.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 14", Title = "BLAZ-29014", Status = "Close", Summary = "Analyze grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 15", Title = "BLAZ-29015", Status = "Close", Summary = "Stored procedure for initial data binding of the grid.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 16", Title = "BLAZ-29016", Status = "Close", Summary = "Analyze stored procedures.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 17", Title = "BLAZ-29017", Status = "Validate", Summary = "Validate editing issues.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 18", Title = "BLAZ-29018", Status = "Review", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 19", Title = "BLAZ-29019", Status = "Open", Summary = "Enhance editing functionality.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 20", Title = "BLAZ-29020", Status = "InProgress", Summary = "Improve the performance of the editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 21", Title = "BLAZ-29021", Status = "Open", Summary = "Arrange web meeting with the customer to show editing demo.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 22", Title = "BLAZ-29022", Status = "Review", Summary = "Fix the editing issues reported by the customer.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 23", Title = "BLAZ-29023", Status = "Testing", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 24", Title = "BLAZ-29024", Status = "Testing", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 25", Title = "BLAZ-29025", Status = "Testing", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 26", Title = "BLAZ-29026", Status = "Testing", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 27", Title = "BLAZ-29027", Status = "Testing", Summary = "Test editing feature in the IE browser.", Assignee = "Janet Leverling" }
    };
}

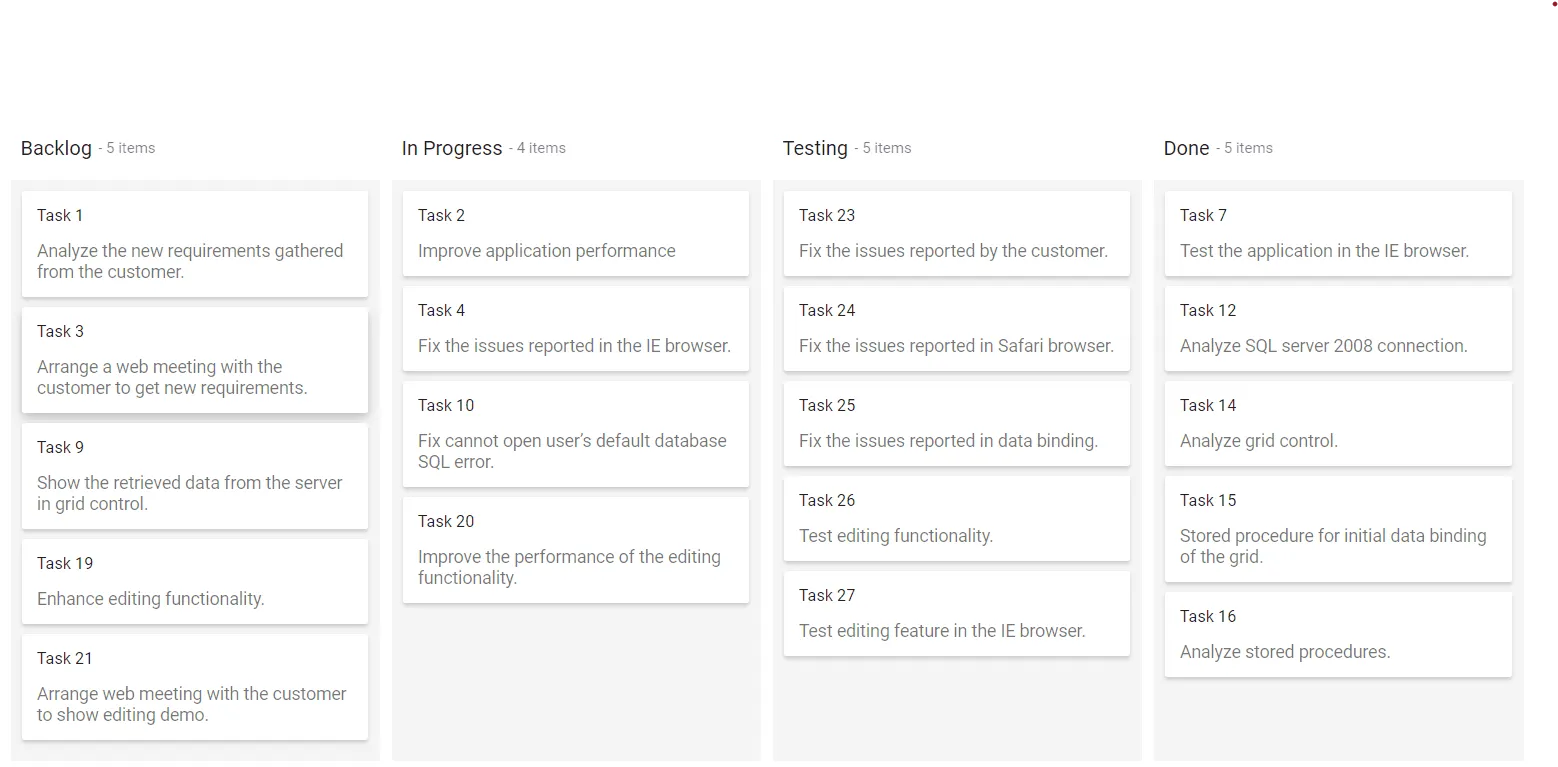

Blazor Kanban Columns with Single Key

Multi-key mapping

The Kanban board supports rendering a single column with multiple key mappings using the KeyField property.

@using Syncfusion.Blazor.Kanban

<SfKanban TValue="TasksModel" KeyField="Status" DataSource="Tasks">
    <KanbanColumns>
        <KanbanColumn HeaderText="Backlog" KeyField="@(new List<string>() {"Open", "Validate"})"></KanbanColumn>
        <KanbanColumn HeaderText="In Progress" KeyField="@(new List<string>() {"InProgress"})"></KanbanColumn>
        <KanbanColumn HeaderText="Testing" KeyField="@(new List<string>() {"Testing"})"></KanbanColumn>
        <KanbanColumn HeaderText="Done" KeyField="@(new List<string>() {"Close"})"></KanbanColumn>
    </KanbanColumns>
    <KanbanCardSettings HeaderField="Id" ContentField="Summary"></KanbanCardSettings>
</SfKanban>

@code {
    public class TasksModel
    {
        public string? Id { get; set; }
        public string? Title { get; set; }
        public string? Status { get; set; }
        public string? Summary { get; set; }
        public string? Assignee { get; set; }
    }

    public List<TasksModel> Tasks = new List<TasksModel>()
{
        new TasksModel { Id = "Task 1", Title = "BLAZ-29001", Status = "Open", Summary = "Analyze the new requirements gathered from the customer.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 2", Title = "BLAZ-29002", Status = "InProgress", Summary = "Improve application performance", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 3", Title = "BLAZ-29003", Status = "Open", Summary = "Arrange a web meeting with the customer to get new requirements.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 4", Title = "BLAZ-29004", Status = "InProgress", Summary = "Fix the issues reported in the IE browser.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 5", Title = "BLAZ-29005", Status = "Review", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 6", Title = "BLAZ-29006", Status = "Review", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 7", Title = "BLAZ-29007", Status = "Close", Summary = "Test the application in the IE browser.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 8", Title = "BLAZ-29008", Status = "Validate", Summary = "Validate the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 9", Title = "BLAZ-29009", Status = "Open", Summary = "Show the retrieved data from the server in grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 10", Title = "BLAZ-29010", Status = "InProgress", Summary = "Fix cannot open user’s default database SQL error.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 11", Title = "BLAZ-29011", Status = "Review", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 12", Title = "BLAZ-29012", Status = "Close", Summary = "Analyze SQL server 2008 connection.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 13", Title = "BLAZ-29013", Status = "Validate", Summary = "Validate databinding issues.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 14", Title = "BLAZ-29014", Status = "Close", Summary = "Analyze grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 15", Title = "BLAZ-29015", Status = "Close", Summary = "Stored procedure for initial data binding of the grid.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 16", Title = "BLAZ-29016", Status = "Close", Summary = "Analyze stored procedures.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 17", Title = "BLAZ-29017", Status = "Validate", Summary = "Validate editing issues.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 18", Title = "BLAZ-29018", Status = "Review", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 19", Title = "BLAZ-29019", Status = "Open", Summary = "Enhance editing functionality.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 20", Title = "BLAZ-29020", Status = "InProgress", Summary = "Improve the performance of the editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 21", Title = "BLAZ-29021", Status = "Open", Summary = "Arrange web meeting with the customer to show editing demo.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 22", Title = "BLAZ-29022", Status = "Review", Summary = "Fix the editing issues reported by the customer.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 23", Title = "BLAZ-29023", Status = "Testing", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 24", Title = "BLAZ-29024", Status = "Testing", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 25", Title = "BLAZ-29025", Status = "Testing", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 26", Title = "BLAZ-29026", Status = "Testing", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 27", Title = "BLAZ-29027", Status = "Testing", Summary = "Test editing feature in the IE browser.", Assignee = "Janet Leverling" }
    };
}

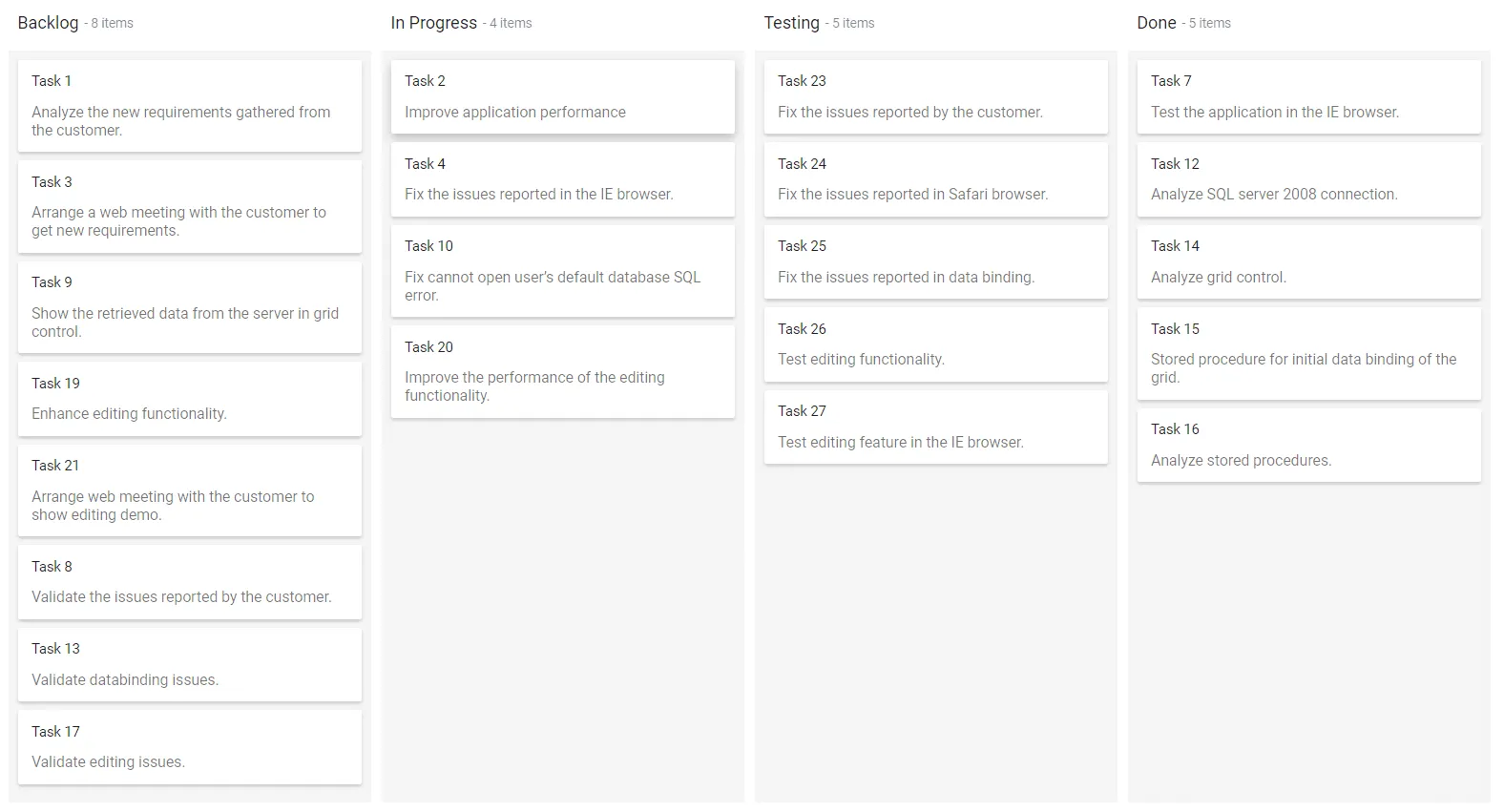

Blazor Kanban Column with Multi Key

Header text

Use the HeaderText property to define the display text for each Kanban column header. If no header text is specified, the column header will appear blank.

Header template

The column header can be customized using the Template property, as shown in the following code.

The following video demonstrates how to use templates in the Blazor Kanban component.

@using Syncfusion.Blazor.Kanban

<SfKanban TValue="TasksModel" KeyField="Status" DataSource="Tasks">
    <KanbanColumns>
        <KanbanColumn HeaderText="Backlog" KeyField="@(new List<string>() {"Open"})">
            <Template>
                @{
                    KanbanColumn column = (KanbanColumn)context;
                    <div class="header-template-wrap">
                        <div class="header-icon e-icons @column.KeyField[0]"></div>
                        <div class="header-text">@column.HeaderText</div>
                    </div>
                }
            </Template>
        </KanbanColumn>
        <KanbanColumn HeaderText="In Progress" KeyField="@(new List<string>() {"InProgress"})">
            <Template>
                @{
                    KanbanColumn column = (KanbanColumn)context;
                    <div class="header-template-wrap">
                        <div class="header-icon e-icons @column.KeyField[0]"></div>
                        <div class="header-text">@column.HeaderText</div>
                    </div>
                }
            </Template>
        </KanbanColumn>
        <KanbanColumn HeaderText="Review" KeyField="@(new List<string>() {"Review"})">
            <Template>
                @{
                    KanbanColumn column = (KanbanColumn)context;
                    <div class="header-template-wrap">
                        <div class="header-icon e-icons @column.KeyField[0]"></div>
                        <div class="header-text">@column.HeaderText</div>
                    </div>
                }
            </Template>
        </KanbanColumn>
        <KanbanColumn HeaderText="Done" KeyField="@(new List<string>() {"Close"})">
            <Template>
                @{
                    KanbanColumn column = (KanbanColumn)context;
                    <div class="header-template-wrap">
                        <div class="header-icon e-icons @column.KeyField[0]"></div>
                        <div class="header-text">@column.HeaderText</div>
                    </div>
                }
            </Template>
        </KanbanColumn>
    </KanbanColumns>
    <KanbanCardSettings HeaderField="Id" ContentField="Summary"></KanbanCardSettings>
</SfKanban>

<style type="text/css">
    .e-kanban .header-template-wrap {
        display: inline-flex;
        font-size: 15px;
        font-weight: 400;
    }

        .e-kanban .header-template-wrap .header-icon {
            font-family: "KanbanHeaderIcons";
            margin-top: 3px;
            width: 10%;
        }

        .e-kanban .header-template-wrap .header-text {
            margin-left: 15px;
        }

    .e-kanban .card-header {
        padding-left: 12px;
    }

    .e-kanban .Open::before {
        content: "\e700";
        color: #0251cc;
        font-size: 16px;
    }

    .e-kanban .InProgress::before {
        content: "\e703";
        color: #ea9713;
        font-size: 16px;
    }

    .e-kanban .Review::before {
        content: "\e701";
        color: #8e4399;
        font-size: 16px;
    }

    .e-kanban .Close::before {
        content: "\e702";
        color: #63ba3c;
        font-size: 16px;
    }

    @@font-face {
        font-family: "KanbanHeaderIcons";
        src: url(data:application/x-font-ttf;charset=utf-8;base64,AAEAAAAKAIAAAwAgT1MvMj1tSfUAAAEoAAAAVmNtYXDnE+dkAAABlAAAADxnbHlmg4weAgAAAdwAAAhQaGVhZBfH57sAAADQAAAANmhoZWEIVQQGAAAArAAAACRobXR4FAAAAAAAAYAAAAAUbG9jYQNeBi4AAAHQAAAADG1heHABGAFgAAABCAAAACBuYW1lH65UOQAACiwAAALNcG9zdFsyKlEAAAz8AAAAUgABAAAEAAAAAFwEAAAAAAAD+AABAAAAAAAAAAAAAAAAAAAABQABAAAAAQAA7pb8lF8PPPUACwQAAAAAANpY0WMAAAAA2ljRYwAAAAAD+AP4AAAACAACAAAAAAAAAAEAAAAFAVQACQAAAAAAAgAAAAoACgAAAP8AAAAAAAAAAQQAAZAABQAAAokCzAAAAI8CiQLMAAAB6wAyAQgAAAIABQMAAAAAAAAAAAAAAAAAAAAAAAAAAAAAUGZFZABA5wDnAwQAAAAAXAQAAAAAAAABAAAAAAAABAAAAAQAAAAEAAAABAAAAAQAAAAAAAACAAAAAwAAABQAAwABAAAAFAAEACgAAAAEAAQAAQAA5wP//wAA5wD//wAAAAEABAAAAAEAAgADAAQAAAAAAMwCBgKSBCgABAAAAAAD+AP4ACEAQwBlAKkAAAEfBw8HIS8HPwclHwcPByEvBz8HJR8HDwchLwc/BycRHw8hPw8RLw8hDw4CXgcGBQUEAwEBAQEDBAUFBgf+hgYGBQUEAwEBAQEDBAUFBgYCOAYGBQUEAwEBAQEDBAUFBgb9yAYGBQUEAwEBAQEDBAUFBgYCOAYGBQUEAwEBAQEDBAUFBgb9yAYGBQUEAwEBAQEDBAUFBgbcAQIDBQUHCAkKCgsMDQ0ODQLgDQ4NDQwLCgoJCAcFBQMCAQECAwUFBwgJCgoLDA0NDg39IA0ODQ0MCwoKCQgHBQUDAgFDAQEDBAUFBgYHBgUFBAMBAQEBAwQFBQYHBgYFBQQDAQG9AQEDBAUFBgcGBgUFBAMBAQEBAwQFBQYGBwYFBQQDAQG9AQEDBAUFBgYHBgUFBAMBAQEBAwQFBQYHBgYFBQQDAQGz/SANDg0NDAsKCgkIBwUFAwIBAQIDBQUHCAkKCgsMDQ0ODQLgDQ4NDQwLCgoJCAcFBQMCAQECAwUFBwgJCgoLDA0NDgAABAAAAAAD+AP4AD8AggDUARgAAAEfBw8PLw41Pw8fBicPDx8PMz8OLxAHNzMfEhUPESsBLxA9AT8UJREfDyE/DxEvDyEPDgJlCAcGBgQCAgEBAgMEBQcHCAkJCwsMDAwNDgwNDAsLCgkICAYFAwMBAQMDBQUHBwgJCQoLCwwMDA4MDAwLCgqEDg8PDw4PDw8VFBQUExMTEhUWFhYXFxgYEhMSERISEREUEBEREBESERkZGRgXFxcXEA8QEBAREREWFxYVFhUWFhIeFAsXGBkYGRkYGSATExISEhIRBQMBAgICHBkaGhscGx0UExMTExMTExoUFRQVFBUVHBoaGhkYGRkEAgIDGBQVFhYXFxcREREQEREQEQ8ODv4aAQIDBQUHCAkKCgsMDQ0ODQLgDQ4NDQwLCgoJCAcFBQMCAQECAwUFBwgJCgoLDA0NDg39IA0ODQ0MCwoKCQgHBQUDAgJXCQoKCwsMDAwNDAwMCgsJCQgHBgUEAwIBAQIDBQUHCAkJCgsMCw0MDQwLDAoLCQkJBwcGBQQCAgEBAgMEBQYIWQMEBQYGBwgJDg4PERETExUYFxUTEhAPDgkIBwUFAwEBAgIEBQYHCA0QEBMUFhcaEREQDw8NDQ0PDQsJCAYEAwEBMAIEBggJDA4PFg8PERESFBQHBwYGBgUEIBsZFhUTERAJCAYGBAMCAgQFBggJChAREhUWGBoeCAUFBAYHGxcVFBMREQ8KCQgHBgYEBAMCAYT9IA0ODQ0MCwoKCQgHBQUDAgEBAgMFBQcICQoKCwwNDQ4NAuANDg0NDAsKCgkIBwUFAwIBAQIDBQUHCAkKCgsMDQ0OAAIAAAAAA/gD+AArAG8AAAEfAhUPAwEPAy8INT8GMx8DAT8DHwIlER8PIT8PES8PIQ8OAvMEAwIBAQME/r8FBQYGBgYFBXkEAwEBAgMEBQUGBgYGBgViASoFBgYGBgYF/RoBAgMFBQcICQoKCwwNDQ4NAuANDg0NDAsKCgkIBwUFAwIBAQIDBQUHCAkKCgsMDQ0ODf0gDQ4NDQwLCgoJCAcFBQMCArQFBgYGBgYFBf7FBAMBAQEBAwR2BQUGBgYGBgUEAwEBAgMEYAElBAMBAQEBA7j9IA0ODQ0MCwoKCQgHBQUDAgEBAgMFBQcICQoKCwwNDQ4NAuANDg0NDAsKCgkIBwUFAwIBAQIDBQUHCAkKCgsMDQ0OAAAJAAAAAAP4A/gAIQBDAGUAhwCpAMsA7QEPAVMAAAEVDwcvBzU/Bx8GNx8EDwYrAS8GPQE/BTsBHwEFHwMPBysBLwU9AT8GOwEfASUfBw8HIy8HPwchHwcPByMvBz8HJR8DDwcrAS8FPQE/BjsBHwEFHwMdAQ8FKwEvBz8GOwEfASUVDwcvBzU/Bx8GJREfDyE/DxEvDyEPDgIgAQIDBAQGBgYGBgYEBAMCAQECAwQEBgYGBgYGBAQDAopiBAMCAQECAwQFBQYGBgYFBWIEAwICAwQFBQYGBgYF/t8EAwIBAQIDBGIFBQYGBgYFBQQDAgIDBGIFBQYGBgYFAdwHBgUFBAMBAQEBAwQFBQYHigYGBgQEAwIBAQIDBAQGBgb+YAYGBgQEAwIBAQIDBAQGBgaKBwYFBQQDAQEBAQMEBQUGBwJlBAMCAQECAwRiBQUGBgYGBQUEAwICAwRiBQUGBgYGBf4bYgQDAgIDBAUFBgYGBgUFYgQDAgEBAgMEBQUGBgYGBQEEAQIDBAQGBgYGBgYEBAMCAQECAwQEBgYGBgYGBAQDAv3pAQIDBQUHCAkKCgsMDQ0ODQLgDQ4NDQwLCgoJCAcFBQMCAQECAwUFBwgJCgoLDA0NDg39IA0ODQ0MCwoKCQgHBQUDAgEwigcGBQUEAwEBAQEDBAUFBgeKBgYGBAQDAgEBAgMEBAYGTWIFBQYGBgYFBQQDAgIDBGIFBQYGBgYFBQQDAgIDBAUFBgYGBgUFYgQDAgIDBAUFBgYGBgUFYgQDAgIDmQECAwQEBgYGBgYGBAQDAgEBAgMEBAYGBgYGBgQEAwIBAQIDBAQGBgYGBgYEBAMCAQECAwQEBgYGBgYGBAQDAgHrBQUGBgYGBQViBAMCAgMEBQUGBgYGBQViBAMCAgMEYgUFBgYGBgUFBAMCAgMEYgUFBgYGBgUFBAMCAgNLigYGBgQEAwIBAQIDBAQGBgaKBwYFBQQDAQEBAQMEBQUGD/0gDQ4NDQwLCgoJCAcFBQMCAQECAwUFBwgJCgoLDA0NDg0C4A0ODQ0MCwoKCQgHBQUDAgEBAgMFBQcICQoKCwwNDQ4AAAAAEgDeAAEAAAAAAAAAAQAAAAEAAAAAAAEAFQABAAEAAAAAAAIABwAWAAEAAAAAAAMAFQAdAAEAAAAAAAQAFQAyAAEAAAAAAAUACwBHAAEAAAAAAAYAFQBSAAEAAAAAAAoALABnAAEAAAAAAAsAEgCTAAMAAQQJAAAAAgClAAMAAQQJAAEAKgCnAAMAAQQJAAIADgDRAAMAAQQJAAMAKgDfAAMAAQQJAAQAKgEJAAMAAQQJAAUAFgEzAAMAAQQJAAYAKgFJAAMAAQQJAAoAWAFzAAMAAQQJAAsAJAHLIEthbmJhbiBwcmlvcml0eSBpY29uc1JlZ3VsYXJLYW5iYW4gcHJpb3JpdHkgaWNvbnNLYW5iYW4gcHJpb3JpdHkgaWNvbnNWZXJzaW9uIDEuMEthbmJhbiBwcmlvcml0eSBpY29uc0ZvbnQgZ2VuZXJhdGVkIHVzaW5nIFN5bmNmdXNpb24gTWV0cm8gU3R1ZGlvd3d3LnN5bmNmdXNpb24uY29tACAASwBhAG4AYgBhAG4AIABwAHIAaQBvAHIAaQB0AHkAIABpAGMAbwBuAHMAUgBlAGcAdQBsAGEAcgBLAGEAbgBiAGEAbgAgAHAAcgBpAG8AcgBpAHQAeQAgAGkAYwBvAG4AcwBLAGEAbgBiAGEAbgAgAHAAcgBpAG8AcgBpAHQAeQAgAGkAYwBvAG4AcwBWAGUAcgBzAGkAbwBuACAAMQAuADAASwBhAG4AYgBhAG4AIABwAHIAaQBvAHIAaQB0AHkAIABpAGMAbwBuAHMARgBvAG4AdAAgAGcAZQBuAGUAcgBhAHQAZQBkACAAdQBzAGkAbgBnACAAUwB5AG4AYwBmAHUAcwBpAG8AbgAgAE0AZQB0AHIAbwAgAFMAdAB1AGQAaQBvAHcAdwB3AC4AcwB5AG4AYwBmAHUAcwBpAG8AbgAuAGMAbwBtAAAAAAIAAAAAAAAACgAAAAAAAAAAAAAAAAAAAAAAAAAAAAAABQECAQMBBAEFAQYACFRvZG9saXN0BlJldmlldwlDb21wbGV0ZWQIUHJvZ3Jlc3MAAAAA) format("truetype");
        font-weight: normal;
        font-style: normal;
    }

    [class^="sf-icon-"],
    [class*=" sf-icon-"] {
        font-family: "KanbanHeaderIcons" !important;
        speak: none;
        font-size: 55px;
        font-style: normal;
        font-weight: normal;
        font-variant: normal;
        text-transform: none;
        line-height: 1;
        -webkit-font-smoothing: antialiased;
        -moz-osx-font-smoothing: grayscale;
    }
</style>

@code {
    public class TasksModel
    {
        public string? Id { get; set; }
        public string? Title { get; set; }
        public string? Status { get; set; }
        public string? Summary { get; set; }
        public string? Assignee { get; set; }
    }

    public List<TasksModel> Tasks = new List<TasksModel>()
{
        new TasksModel { Id = "Task 1", Title = "BLAZ-29001", Status = "Open", Summary = "Analyze the new requirements gathered from the customer.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 2", Title = "BLAZ-29002", Status = "InProgress", Summary = "Improve application performance", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 3", Title = "BLAZ-29003", Status = "Open", Summary = "Arrange a web meeting with the customer to get new requirements.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 4", Title = "BLAZ-29004", Status = "InProgress", Summary = "Fix the issues reported in the IE browser.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 5", Title = "BLAZ-29005", Status = "Review", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 6", Title = "BLAZ-29006", Status = "Review", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 7", Title = "BLAZ-29007", Status = "Close", Summary = "Test the application in the IE browser.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 8", Title = "BLAZ-29008", Status = "Validate", Summary = "Validate the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 9", Title = "BLAZ-29009", Status = "Open", Summary = "Show the retrieved data from the server in grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 10", Title = "BLAZ-29010", Status = "InProgress", Summary = "Fix cannot open user’s default database SQL error.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 11", Title = "BLAZ-29011", Status = "Review", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 12", Title = "BLAZ-29012", Status = "Close", Summary = "Analyze SQL server 2008 connection.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 13", Title = "BLAZ-29013", Status = "Validate", Summary = "Validate databinding issues.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 14", Title = "BLAZ-29014", Status = "Close", Summary = "Analyze grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 15", Title = "BLAZ-29015", Status = "Close", Summary = "Stored procedure for initial data binding of the grid.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 16", Title = "BLAZ-29016", Status = "Close", Summary = "Analyze stored procedures.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 17", Title = "BLAZ-29017", Status = "Validate", Summary = "Validate editing issues.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 18", Title = "BLAZ-29018", Status = "Review", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 19", Title = "BLAZ-29019", Status = "Open", Summary = "Enhance editing functionality.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 20", Title = "BLAZ-29020", Status = "InProgress", Summary = "Improve the performance of the editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 21", Title = "BLAZ-29021", Status = "Open", Summary = "Arrange web meeting with the customer to show editing demo.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 22", Title = "BLAZ-29022", Status = "Review", Summary = "Fix the editing issues reported by the customer.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 23", Title = "BLAZ-29023", Status = "Testing", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 24", Title = "BLAZ-29024", Status = "Testing", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 25", Title = "BLAZ-29025", Status = "Testing", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 26", Title = "BLAZ-29026", Status = "Testing", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 27", Title = "BLAZ-29027", Status = "Testing", Summary = "Test editing feature in the IE browser.", Assignee = "Janet Leverling" }
    };
}

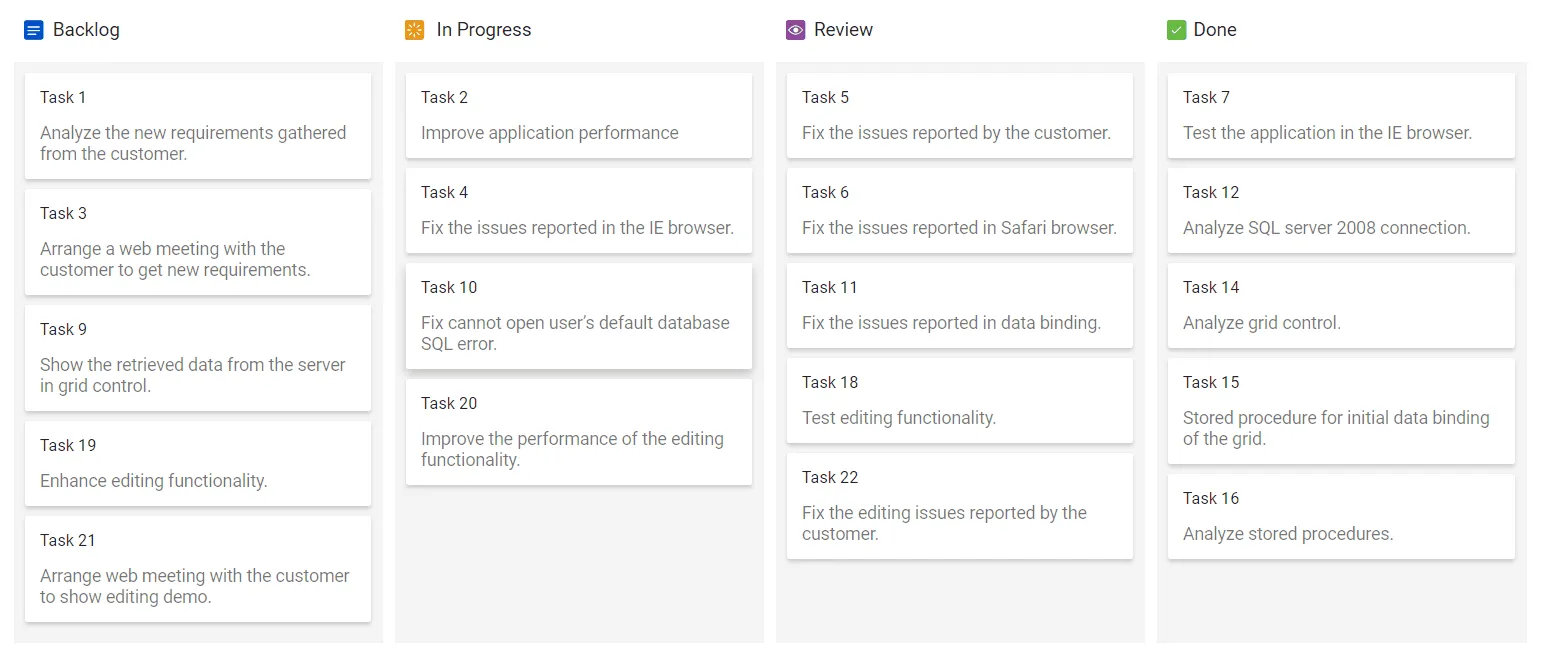

Customizing Column Header in Blazor Kanban

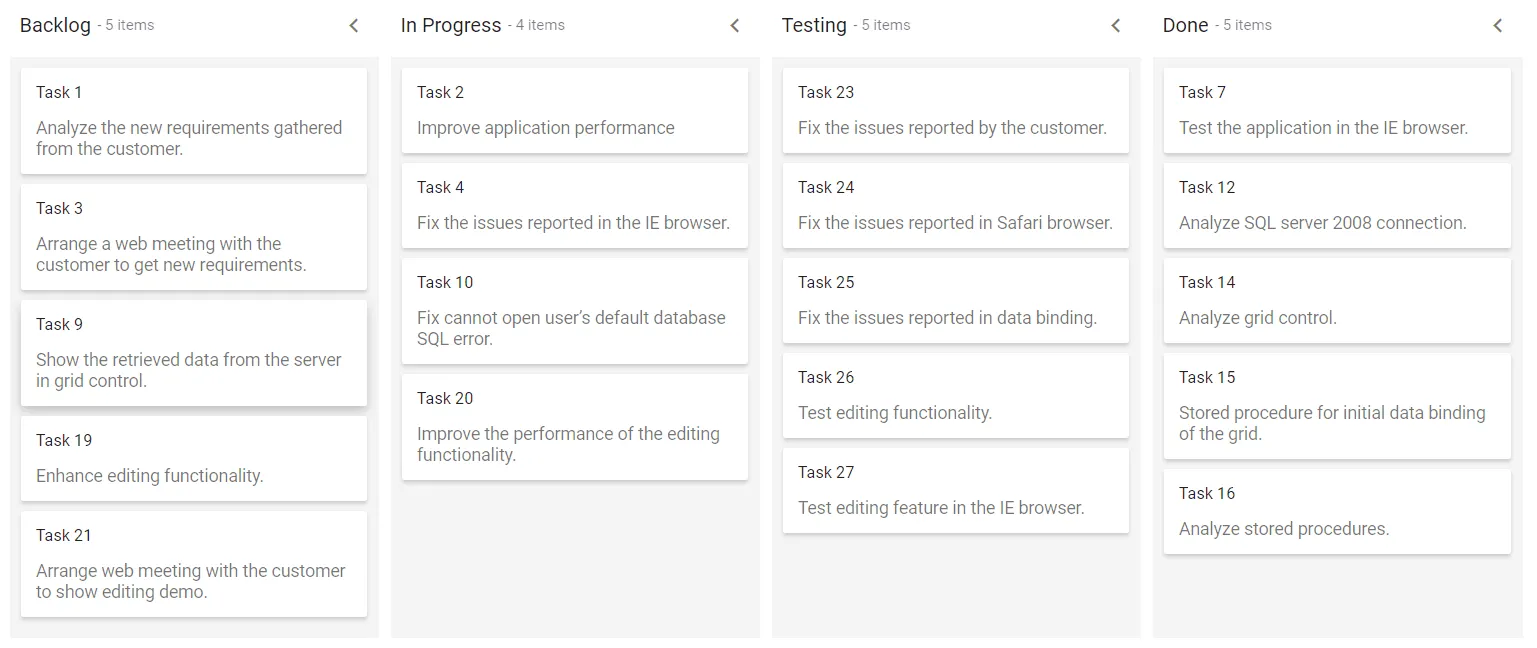

Toggle columns

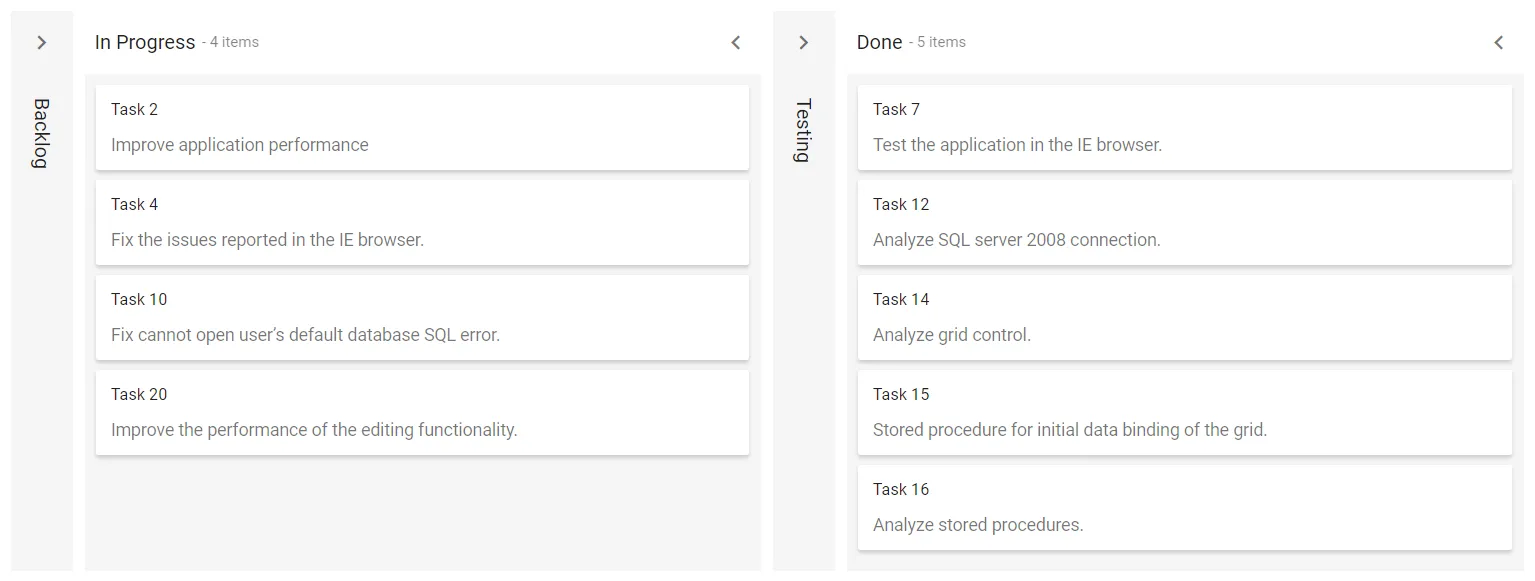

Kanban columns can be expanded or collapsed by enabling the AllowToggle property in KanbanColumn. When enabled, an expand or collapse icon appears in the column header.

By default, the collapsed column width is set to 50px.

@using Syncfusion.Blazor.Kanban

<SfKanban KeyField="Status" DataSource="Tasks">
    <KanbanColumns>
        <KanbanColumn HeaderText="Backlog" KeyField="@(new List<string>() {"Open"})" AllowToggle="true"></KanbanColumn>
        <KanbanColumn HeaderText="In Progress" KeyField="@(new List<string>() {"InProgress"})" AllowToggle="true"></KanbanColumn>
        <KanbanColumn HeaderText="Testing" KeyField="@(new List<string>() {"Testing"})" AllowToggle="true"></KanbanColumn>
        <KanbanColumn HeaderText="Done" KeyField="@(new List<string>() {"Close"})" AllowToggle="true"></KanbanColumn>
    </KanbanColumns>
    <KanbanCardSettings HeaderField="Id" ContentField="Summary"></KanbanCardSettings>
</SfKanban>

@code {
    public class TasksModel
    {
        public string? Id { get; set; }
        public string? Title { get; set; }
        public string? Status { get; set; }
        public string? Summary { get; set; }
        public string? Assignee { get; set; }
    }

    public List<TasksModel> Tasks = new List<TasksModel>()
    {
        new TasksModel { Id = "Task 1", Title = "BLAZ-29001", Status = "Open", Summary = "Analyze the new requirements gathered from the customer.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 2", Title = "BLAZ-29002", Status = "InProgress", Summary = "Improve application performance", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 3", Title = "BLAZ-29003", Status = "Open", Summary = "Arrange a web meeting with the customer to get new requirements.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 4", Title = "BLAZ-29004", Status = "InProgress", Summary = "Fix the issues reported in the IE browser.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 5", Title = "BLAZ-29005", Status = "Review", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 6", Title = "BLAZ-29006", Status = "Review", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 7", Title = "BLAZ-29007", Status = "Close", Summary = "Test the application in the IE browser.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 8", Title = "BLAZ-29008", Status = "Validate", Summary = "Validate the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 9", Title = "BLAZ-29009", Status = "Open", Summary = "Show the retrieved data from the server in grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 10", Title = "BLAZ-29010", Status = "InProgress", Summary = "Fix cannot open user’s default database SQL error.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 11", Title = "BLAZ-29011", Status = "Review", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 12", Title = "BLAZ-29012", Status = "Close", Summary = "Analyze SQL server 2008 connection.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 13", Title = "BLAZ-29013", Status = "Validate", Summary = "Validate databinding issues.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 14", Title = "BLAZ-29014", Status = "Close", Summary = "Analyze grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 15", Title = "BLAZ-29015", Status = "Close", Summary = "Stored procedure for initial data binding of the grid.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 16", Title = "BLAZ-29016", Status = "Close", Summary = "Analyze stored procedures.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 17", Title = "BLAZ-29017", Status = "Validate", Summary = "Validate editing issues.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 18", Title = "BLAZ-29018", Status = "Review", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 19", Title = "BLAZ-29019", Status = "Open", Summary = "Enhance editing functionality.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 20", Title = "BLAZ-29020", Status = "InProgress", Summary = "Improve the performance of the editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 21", Title = "BLAZ-29021", Status = "Open", Summary = "Arrange web meeting with the customer to show editing demo.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 22", Title = "BLAZ-29022", Status = "Review", Summary = "Fix the editing issues reported by the customer.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 23", Title = "BLAZ-29023", Status = "Testing", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 24", Title = "BLAZ-29024", Status = "Testing", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 25", Title = "BLAZ-29025", Status = "Testing", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 26", Title = "BLAZ-29026", Status = "Testing", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 27", Title = "BLAZ-29027", Status = "Testing", Summary = "Test editing feature in the IE browser.", Assignee = "Janet Leverling" }
    };
}

Blazor Kanban with Toggle Columns

Initially collapsed column

By default, all columns are expanded when the Kanban board is initially rendered. To render a column in a collapsed state initially, use the IsExpanded property.

The IsExpanded property only works when enabling the AllowToggle property on particular column.

In the following example, the Backlog column is collapsed on initialization of Kanban board.

@using Syncfusion.Blazor.Kanban

<SfKanban KeyField="Status" DataSource="Tasks">
    <KanbanColumns>
        <KanbanColumn HeaderText="Backlog" KeyField="@(new List<string>() {"Open"})" AllowToggle="true" IsExpanded="false"></KanbanColumn>
        <KanbanColumn HeaderText="In Progress" KeyField="@(new List<string>() {"InProgress"})" AllowToggle="true"></KanbanColumn>
        <KanbanColumn HeaderText="Testing" KeyField="@(new List<string>() {"Testing"})" AllowToggle="true" IsExpanded="false"></KanbanColumn>
        <KanbanColumn HeaderText="Done" KeyField="@(new List<string>() {"Close"})" AllowToggle="true"></KanbanColumn>
    </KanbanColumns>
    <KanbanCardSettings HeaderField="Id" ContentField="Summary"></KanbanCardSettings>
</SfKanban>

@code {
    public class TasksModel
    {
        public string? Id { get; set; }
        public string? Title { get; set; }
        public string? Status { get; set; }
        public string? Summary { get; set; }
        public string? Assignee { get; set; }
    }

    public List<TasksModel> Tasks = new List<TasksModel>()
    {
        new TasksModel { Id = "Task 1", Title = "BLAZ-29001", Status = "Open", Summary = "Analyze the new requirements gathered from the customer.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 2", Title = "BLAZ-29002", Status = "InProgress", Summary = "Improve application performance", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 3", Title = "BLAZ-29003", Status = "Open", Summary = "Arrange a web meeting with the customer to get new requirements.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 4", Title = "BLAZ-29004", Status = "InProgress", Summary = "Fix the issues reported in the IE browser.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 5", Title = "BLAZ-29005", Status = "Review", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 6", Title = "BLAZ-29006", Status = "Review", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 7", Title = "BLAZ-29007", Status = "Close", Summary = "Test the application in the IE browser.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 8", Title = "BLAZ-29008", Status = "Validate", Summary = "Validate the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 9", Title = "BLAZ-29009", Status = "Open", Summary = "Show the retrieved data from the server in grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 10", Title = "BLAZ-29010", Status = "InProgress", Summary = "Fix cannot open user’s default database SQL error.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 11", Title = "BLAZ-29011", Status = "Review", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 12", Title = "BLAZ-29012", Status = "Close", Summary = "Analyze SQL server 2008 connection.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 13", Title = "BLAZ-29013", Status = "Validate", Summary = "Validate databinding issues.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 14", Title = "BLAZ-29014", Status = "Close", Summary = "Analyze grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 15", Title = "BLAZ-29015", Status = "Close", Summary = "Stored procedure for initial data binding of the grid.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 16", Title = "BLAZ-29016", Status = "Close", Summary = "Analyze stored procedures.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 17", Title = "BLAZ-29017", Status = "Validate", Summary = "Validate editing issues.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 18", Title = "BLAZ-29018", Status = "Review", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 19", Title = "BLAZ-29019", Status = "Open", Summary = "Enhance editing functionality.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 20", Title = "BLAZ-29020", Status = "InProgress", Summary = "Improve the performance of the editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 21", Title = "BLAZ-29021", Status = "Open", Summary = "Arrange web meeting with the customer to show editing demo.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 22", Title = "BLAZ-29022", Status = "Review", Summary = "Fix the editing issues reported by the customer.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 23", Title = "BLAZ-29023", Status = "Testing", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 24", Title = "BLAZ-29024", Status = "Testing", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 25", Title = "BLAZ-29025", Status = "Testing", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 26", Title = "BLAZ-29026", Status = "Testing", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 27", Title = "BLAZ-29027", Status = "Testing", Summary = "Test editing feature in the IE browser.", Assignee = "Janet Leverling" }
    };
}

Blazor Kanban with Collapsed Column

Stacked headers

Stacked headers are additional header rows that group related columns under a common category. Group columns by specifying their key values in the KeyField property and assign a custom header label using the Text property in KanbanStackedHeaders.

In the following code, the kanban columns ‘InProgress, Review’ are grouped under ‘Development Phase’ category.

@using Syncfusion.Blazor.Kanban

<SfKanban KeyField="Status" DataSource="Tasks">
    <KanbanColumns>
        <KanbanColumn HeaderText="To Do" KeyField="@(new List<string>() {"Open"})"></KanbanColumn>
        <KanbanColumn HeaderText="In Progress" KeyField="@(new List<string>() {"InProgress"})"></KanbanColumn>
        <KanbanColumn HeaderText="Testing" KeyField="@(new List<string>() {"Testing"})"></KanbanColumn>
        <KanbanColumn HeaderText="Done" KeyField="@(new List<string>() {"Close"})"></KanbanColumn>
    </KanbanColumns>
    <KanbanStackedHeaders>
        <KanbanStackedHeader Text="To Do" KeyFields="@(new List<string>() {"Open"})"></KanbanStackedHeader>
        <KanbanStackedHeader Text="Development Phase" KeyFields="@(new List<string>() {"InProgress", "Testing"})"></KanbanStackedHeader>
        <KanbanStackedHeader Text="Done" KeyFields="@(new List<string>() {"Close"})"></KanbanStackedHeader>
    </KanbanStackedHeaders>
    <KanbanCardSettings HeaderField="Id" ContentField="Summary"></KanbanCardSettings>
</SfKanban>

@code {
    public class TasksModel
    {
        public string? Id { get; set; }
        public string? Title { get; set; }
        public string? Status { get; set; }
        public string? Summary { get; set; }
        public string? Assignee { get; set; }
    }

    public List<TasksModel> Tasks = new List<TasksModel>()
    {
        new TasksModel { Id = "Task 1", Title = "BLAZ-29001", Status = "Open", Summary = "Analyze the new requirements gathered from the customer.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 2", Title = "BLAZ-29002", Status = "InProgress", Summary = "Improve application performance", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 3", Title = "BLAZ-29003", Status = "Open", Summary = "Arrange a web meeting with the customer to get new requirements.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 4", Title = "BLAZ-29004", Status = "InProgress", Summary = "Fix the issues reported in the IE browser.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 5", Title = "BLAZ-29005", Status = "Review", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 6", Title = "BLAZ-29006", Status = "Review", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 7", Title = "BLAZ-29007", Status = "Close", Summary = "Test the application in the IE browser.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 8", Title = "BLAZ-29008", Status = "Validate", Summary = "Validate the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 9", Title = "BLAZ-29009", Status = "Open", Summary = "Show the retrieved data from the server in grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 10", Title = "BLAZ-29010", Status = "InProgress", Summary = "Fix cannot open user’s default database SQL error.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 11", Title = "BLAZ-29011", Status = "Review", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 12", Title = "BLAZ-29012", Status = "Close", Summary = "Analyze SQL server 2008 connection.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 13", Title = "BLAZ-29013", Status = "Validate", Summary = "Validate databinding issues.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 14", Title = "BLAZ-29014", Status = "Close", Summary = "Analyze grid control.", Assignee = "Margaret hamilt" },
        new TasksModel { Id = "Task 15", Title = "BLAZ-29015", Status = "Close", Summary = "Stored procedure for initial data binding of the grid.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 16", Title = "BLAZ-29016", Status = "Close", Summary = "Analyze stored procedures.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 17", Title = "BLAZ-29017", Status = "Validate", Summary = "Validate editing issues.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 18", Title = "BLAZ-29018", Status = "Review", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 19", Title = "BLAZ-29019", Status = "Open", Summary = "Enhance editing functionality.", Assignee = "Andrew Fuller" },
        new TasksModel { Id = "Task 20", Title = "BLAZ-29020", Status = "InProgress", Summary = "Improve the performance of the editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 21", Title = "BLAZ-29021", Status = "Open", Summary = "Arrange web meeting with the customer to show editing demo.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 22", Title = "BLAZ-29022", Status = "Review", Summary = "Fix the editing issues reported by the customer.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 23", Title = "BLAZ-29023", Status = "Testing", Summary = "Fix the issues reported by the customer.", Assignee = "Steven walker" },
        new TasksModel { Id = "Task 24", Title = "BLAZ-29024", Status = "Testing", Summary = "Fix the issues reported in Safari browser.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 25", Title = "BLAZ-29025", Status = "Testing", Summary = "Fix the issues reported in data binding.", Assignee = "Janet Leverling" },
        new TasksModel { Id = "Task 26", Title = "BLAZ-29026", Status = "Testing", Summary = "Test editing functionality.", Assignee = "Nancy Davloio" },
        new TasksModel { Id = "Task 27", Title = "BLAZ-29027", Status = "Testing", Summary = "Test editing feature in the IE browser.", Assignee = "Janet Leverling" }
    };
}

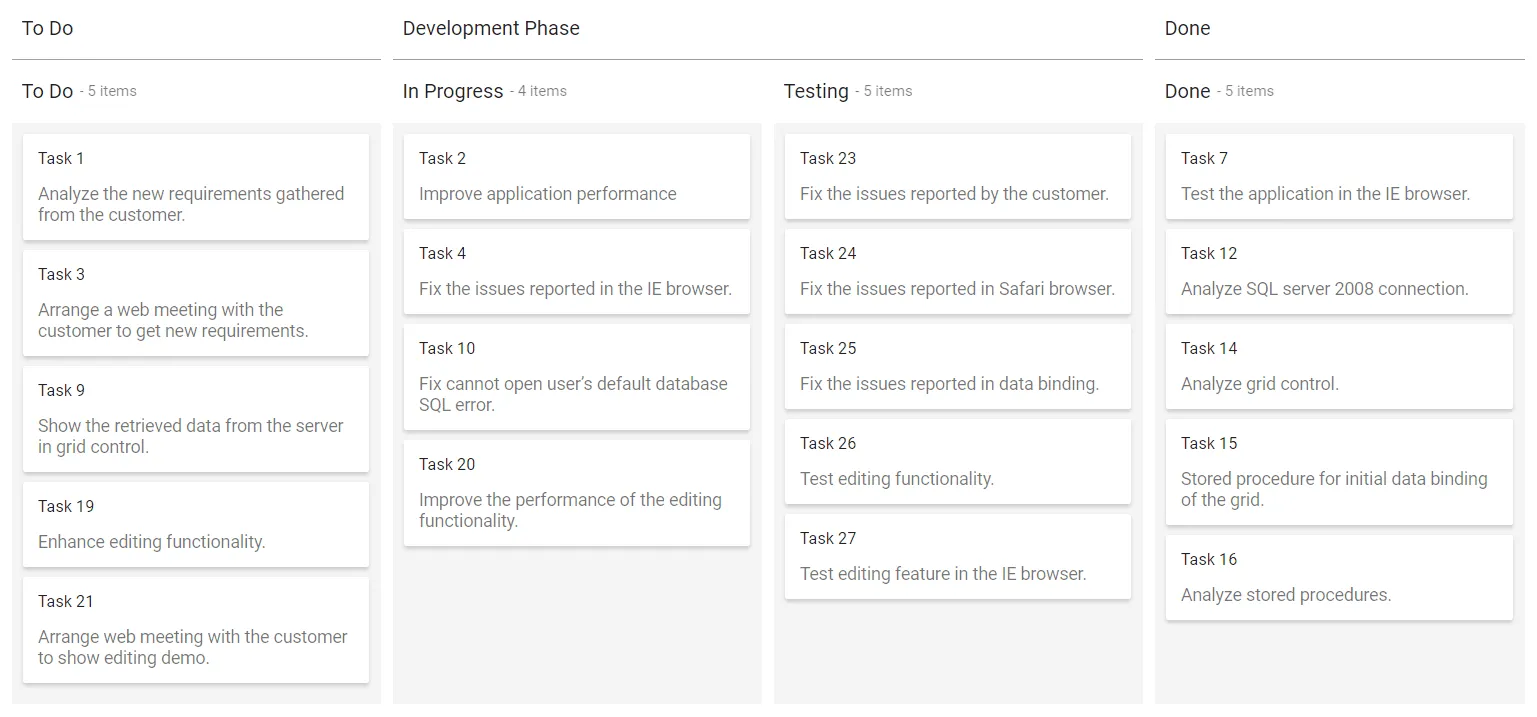

Blazor Kanban with Stacked Header
