Getting Started with ASP.NET Core Gantt Chart

The ASP.NET Core Gantt Chart is a UI control designed to visualize and manage project schedules using a timeline view. It supports hierarchical task structures, automatic scheduling, and rich interactive features.

This guide demonstrates how to create an ASP.NET Core application, configure task data, and render a basic Gantt Chart.

Prerequisites

Ensure the following prerequisites are installed:

Visual Studio 2022 or Visual Studio Code with the .NET SDK (.NET 8 or later recommended)
Basic knowledge of ASP.NET Core Razor Pages
A valid Syncfusion^® license key for commercial use. You can obtain a key from your Syncfusion account and register it as shown in the licensing documentation.

To get started quickly with the ASP.NET Core Gantt control, you can check out this video:

Create an ASP.NET Core Web App with Razor Pages

You can create an ASP.NET Core Web App using Visual Studio via Microsoft Templates or the ASP.NET Core Extension.

Run the following command to create a new ASP.NET Core Web App.

Terminal
dotnet new webapp -o GanttSample
code -r GanttSample

Alternatively, create an ASP.NET Core Web App using Visual Studio Code via Microsoft Templates or the ASP.NET Core Extension, or the C# Dev Kit extension.

Install the required NuGet packages

Install the Syncfusion.AspNetCore.Gantt and Syncfusion.AspNetCore.Themes NuGet packages. All Syncfusion ASP.NET Core packages are available on nuget.org. See the NuGet packages topic for details.

Go to Tools → NuGet Package Manager → Manage NuGet Packages for Solution.
Search the required NuGet packages (Syncfusion.AspNetCore.Gantt and Syncfusion.AspNetCore.Themes) and install them.

Alternatively, you can install the same packages using the Package Manager Console with the following commands.

Package Manager Console
Install-Package Syncfusion.AspNetCore.Gantt -Version 35.1.37
Install-Package Syncfusion.AspNetCore.Themes -Version 35.1.37

Open the terminal and run the following commands.

Terminal
dotnet add package Syncfusion.AspNetCore.Gantt --version 35.1.37
dotnet add package Syncfusion.AspNetCore.Themes --version 35.1.37

Add ASP.NET Core tag helpers

After the packages are installed, open the ~/Pages/_ViewImports.cshtml file and import the Syncfusion.AspNetCore.Gantt and Syncfusion.AspNetCore.Base tag helpers.

~/_ViewImports.cshtml
@addTagHelper *, Syncfusion.AspNetCore.Gantt
@addTagHelper *, Syncfusion.AspNetCore.Base

Add stylesheet and script resources

The theme stylesheet and script can be referenced from NuGet through Static Web Assets. Include the stylesheet and script references inside the <head> of ~/Pages/Shared/_Layout.cshtml file.

_Layout.cshtml
<head>
    ...
    <link rel="stylesheet" href="_content/Syncfusion.AspNetCore.Themes/styles/fluent2.css" />
    <script src="_content/Syncfusion.AspNetCore.Gantt/scripts/sf-gantt.min.js"></script>
</head>

Register the script manager

Open the ~/Pages/Shared/_Layout.cshtml file and register the script manager (<ejs-scripts>) at the end of the <body> element as shown below.

_Layout.cshtml
<body>
    ...
    <!-- Syncfusion ASP.NET Core Script Manager -->
    <ejs-scripts></ejs-scripts>
</body>

Create sample task data

Define a simple task list with hierarchical relationships. The data includes two parent tasks (TaskId 1 and 5) with child tasks linked via ParentID. Each task must have a StartDate and either a Duration (in days) or an EndDate to render properly. All datasource records are defined in the ~/Pages/Index.cshtml.cs page model.

Index.cshtml.cs
using Microsoft.AspNetCore.Mvc.RazorPages;

namespace CoreSamples.Pages
{
    public class IndexModel : PageModel
    {
        public List<GanttDataSource> GanttDataSourceCollection { get; set; }

        public void OnGet()
        {
            GanttDataSourceCollection = GetTaskCollection();
        }

        private List<GanttDataSource> GetTaskCollection()
        {
            return new List<GanttDataSource>()
            {
                new GanttDataSource
                {
                    TaskId = 1,
                    TaskName = "Project initiation",
                    StartDate = new DateTime(2024, 4, 1),
                    EndDate = new DateTime(2024, 4, 15)
                },
                new GanttDataSource
                {
                    TaskId = 2,
                    TaskName = "Identify site location",
                    StartDate = new DateTime(2024, 4, 1),
                    Duration = 4,
                    Progress = 50,
                    ParentId = 1
                },
                new GanttDataSource
                {
                    TaskId = 3,
                    TaskName = "Perform site survey",
                    StartDate = new DateTime(2024, 4, 1),
                    Duration = 4,
                    Progress = 50,
                    ParentId = 1
                },
                new GanttDataSource
                {
                    TaskId = 4,
                    TaskName = "Soil testing",
                    StartDate = new DateTime(2024, 4, 1),
                    Duration = 3,
                    Progress = 50,
                    ParentId = 1
                },
                new GanttDataSource
                {
                    TaskId = 5,
                    TaskName = "Project estimation",
                    StartDate = new DateTime(2024, 4, 15),
                    EndDate = new DateTime(2024, 4, 25)
                },
                new GanttDataSource
                {
                    TaskId = 6,
                    TaskName = "Develop floor plan",
                    StartDate = new DateTime(2024, 4, 15),
                    Duration = 5,
                    Progress = 50,
                    ParentId = 5
                },
                new GanttDataSource
                {
                    TaskId = 7,
                    TaskName = "Estimate project cost",
                    StartDate = new DateTime(2024, 4, 15),
                    Duration = 5,
                    Progress = 50,
                    ParentId = 5
                }
            };
        }
    }

    public class GanttDataSource
    {
        public int TaskId { get; set; }

        public string TaskName { get; set; }

        public DateTime? StartDate { get; set; }

        public DateTime? EndDate { get; set; }

        public int? Duration { get; set; }

        public int? Progress { get; set; }

        public int? ParentId { get; set; }
    }
}

Configure task fields mapping

Use the taskFields configuration to map the fields in your data source to the corresponding Gantt task properties.

Index.cshtml
<e-gantt-taskfields id="TaskId" name="TaskName" startDate="StartDate" endDate="EndDate" duration="Duration" progress="Progress" parentId="ParentId">
</e-gantt-taskfields>

Field mapping reference

Property	Description	Required
`id`	Unique task identifier	Yes
`name`	Task display name	Yes
`startDate`	Task start date	Yes
`duration`	Task duration in days	Either Duration or EndDate
`endDate`	Task end date	Either Duration or EndDate
`parentId`	Parent task ID for hierarchy	No

Render the ASP.NET Core Gantt Chart control

Add the ASP.NET Core Gantt control in the ~/Pages/Index.cshtml file and bind your task collection to it using the dataSource property.

Index.cshtml
Index.cshtml.cs
@page
@model GanttSample.Pages.IndexModel
@{
    ViewData["Title"] = "Home page";
}

<ejs-gantt id='Gantt' dataSource="Model.GanttDataSourceCollection" height="450px">
    <e-gantt-taskfields id="TaskId" name="TaskName" startDate="StartDate" endDate="EndDate" duration="Duration" progress="Progress" parentID = "ParentID">
    </e-gantt-taskfields>
</ejs-gantt>
using Microsoft.AspNetCore.Mvc.RazorPages;

namespace CoreSamples.Pages
{
    public class IndexModel : PageModel
    {
        public List<GanttDataSource> GanttDataSourceCollection { get; set; }

        public void OnGet()
        {
            GanttDataSourceCollection = GetTaskCollection();
        }

        private List<GanttDataSource> GetTaskCollection()
        {
            return new List<GanttDataSource>()
            {
                new GanttDataSource
                {
                    TaskId = 1,
                    TaskName = "Project initiation",
                    StartDate = new DateTime(2024, 4, 1),
                    EndDate = new DateTime(2024, 4, 15)
                },
                new GanttDataSource
                {
                    TaskId = 2,
                    TaskName = "Identify site location",
                    StartDate = new DateTime(2024, 4, 1),
                    Duration = 4,
                    Progress = 50,
                    ParentId = 1
                },
                new GanttDataSource
                {
                    TaskId = 3,
                    TaskName = "Perform soil test",
                    StartDate = new DateTime(2024, 4, 1),
                    Duration = 4,
                    Progress = 50,
                    ParentId = 1
                },
                new GanttDataSource
                {
                    TaskId = 4,
                    TaskName = "Soil test approval",
                    StartDate = new DateTime(2024, 4, 1),
                    Duration = 3,
                    Progress = 50,
                    ParentId = 1
                },
                new GanttDataSource
                {
                    TaskId = 5,
                    TaskName = "Project estimation",
                    StartDate = new DateTime(2024, 4, 15),
                    EndDate = new DateTime(2024, 4, 25)
                },
                new GanttDataSource
                {
                    TaskId = 6,
                    TaskName = "Develop floor plan",
                    StartDate = new DateTime(2024, 4, 15),
                    Duration = 5,
                    Progress = 50,
                    ParentId = 5
                },
                new GanttDataSource
                {
                    TaskId = 7,
                    TaskName = "List materials",
                    StartDate = new DateTime(2024, 4, 15),
                    Duration = 5,
                    Progress = 50,
                    ParentId = 5
                }
            };
        }
    }

    public class GanttDataSource
    {
        public int TaskId { get; set; }

        public string TaskName { get; set; }

        public DateTime? StartDate { get; set; }

        public DateTime? EndDate { get; set; }

        public int? Duration { get; set; }

        public int? Progress { get; set; }

        public int? ParentId { get; set; }
    }
}

Key Properties:

@page — Denotes a Razor Pages endpoint that can handle requests without a controller
@model IndexModel — Binds the page to the IndexModel page model containing the task data
dataSource — Binds the task data collection to the Gantt Chart
taskFields — Maps the data source field names to Gantt task properties

Run the application

Press Ctrl+F5 (Windows) or ⌘+F5 (macOS) to launch the application. The ASP.NET Core Gantt control will render in your default web browser.

Open the terminal and run the following command.

Terminal

dotnet run

This command:

Builds and launches the ASP.NET Core application
Hosts the application on https://localhost:<port> (the port is shown in the console output)
Serves the Gantt Chart from the Index page

Troubleshooting:

Build errors: Ensure the .NET SDK version installed matches the target framework in the project file
Missing packages: Restore dependencies with dotnet restore
Styles not applied: Verify the stylesheet references in ~/Pages/Shared/_Layout.cshtml are correct
Blank chart: Ensure the <ejs-scripts> tag is registered at the end of the <body> and the element <ejs-gantt> has a unique id

Output

The Gantt Chart displays:

Task hierarchy with parent-child relationships
Timeline view showing task bars
Automatically calculated dates based on duration

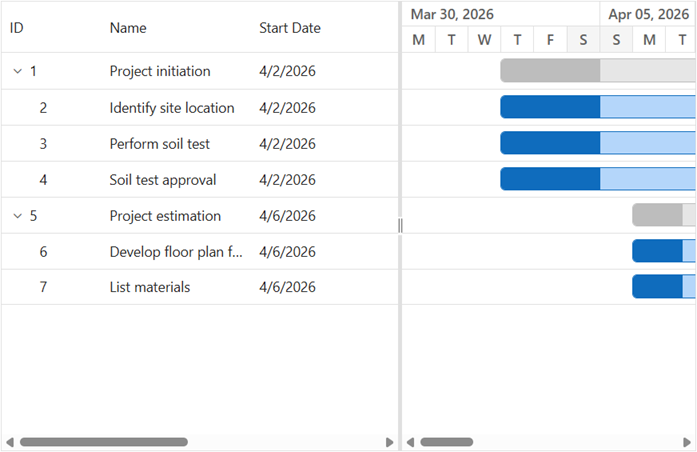

The chart displays two parent tasks (Project initiation, Project estimation) with child tasks shown in a tree structure. Task bars are rendered on the timeline, sized according to their duration and start dates.

ASP.NET Core Gantt Control

Error handling

Proper error handling helps identify and resolve issues during development. The Gantt Chart provides events to capture validation and configuration errors.

Common error scenarios

Missing taskFields mapping — If taskFields is not properly configured, the Gantt Chart cannot map data fields to task properties. Ensure all required fields (id, name, startDate) are mapped.
Invalid date format — Task dates must be valid DateTime values. Invalid dates prevent proper rendering.
Missing dataSource — Ensure dataSource is bound to the control with task data.
Unsupported field types — The id field must be numeric or string; Duration must be numeric.
Tag helpers not registered — Verify that the @addTagHelper directives are added in _ViewImports.cshtml.

Handling errors with actionFailure event

Use the actionFailure event to capture and handle errors:

Index.cshtml
@page
@model IndexModel

<ejs-gantt id="Gantt" height="450px" dataSource="@Model.GanttDataSourceCollection" actionFailure="actionFailure">
    <e-gantt-taskfields id="TaskId" name="TaskName" startDate="StartDate" endDate="EndDate" duration="Duration" parentId="ParentId">
    </e-gantt-taskfields>
</ejs-gantt>

<script>
    function actionFailure(args) {
        console.error('Gantt Chart Error:', args.error);
        alert('Configuration Error: ' + args.error);
    }
</script>

Next Steps

Key Elements - Learn about UI components and interactions
Overview - Explore all available features

Looking for the full ASP.NET Core Gantt Chart control overview, features, pricing, and documentation? Visit the ASP.NET Core Gantt Chart page.
