Getting Started with Angular Gantt Chart

18 Nov 201814 minutes to read

The Angular Gantt Chart is a UI component designed to visualize and manage project schedules using a timeline view. It supports hierarchical task structures, automatic scheduling, and rich interactive features.

This guide demonstrates how to create an Angular application, configure task data, and render a basic Gantt Chart.

Prerequisites

Ensure the following prerequisites are installed:

  • Node.js 20.11 or later (required by Angular 20/21)
  • npm or yarn package manager
  • Basic knowledge of Angular framework
  • A valid Syncfusion® license key for commercial use. You can obtain a key from your Syncfusion account and register it as shown in the licensing documentation.

Installation

Create a new Angular application using the Angular CLI:

npm install -g @angular/cli

Once the Angular CLI is installed, run the following command to generate a new application:

ng new syncfusion-angular-app

This command will prompt you for several configuration options:

Stylesheet Format — Choose your preferred stylesheet format:

  • CSS (default) — Standard CSS
  • SCSS — Sass with full CSS features (recommended for complex styling)
  • Sass (Indented) — Indented Sass syntax
  • Less — Less CSS preprocessor

To skip the prompts and use SCSS directly:

ng new syncfusion-angular-app --style=scss

Server-side Rendering (SSR) — When prompted, choose:

  • Yes — If you need server-side rendering for performance
  • No — For standard client-side rendering (recommended for most cases)

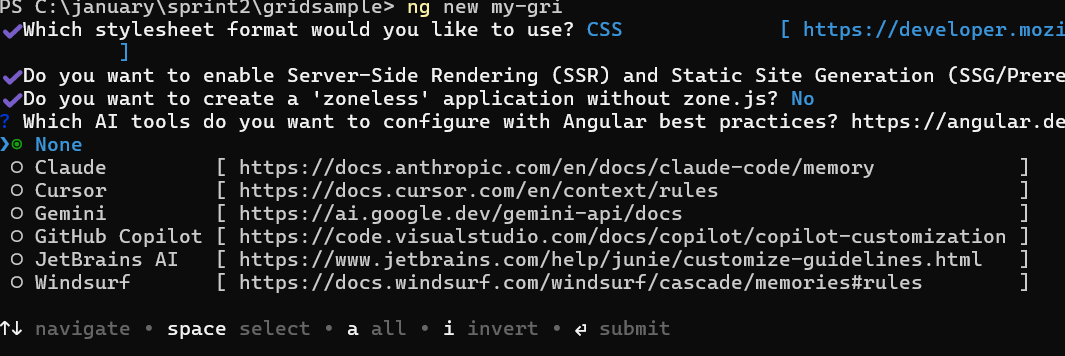

Initial_setup

Deployment Presets — Select the required AI tool or choose none if not needed.

Initial_setup

Once the project is created, navigate to your application directory:

cd syncfusion-angular-app

This guide uses Angular 21+ with standalone components. For compatibility with other Angular versions, see the Angular version support matrix.

Install the Gantt Chart package using the Angular CLI command:

ng add @syncfusion/ej2-angular-gantt

This command performs the following automatically:

  • Installs the @syncfusion/ej2-angular-gantt package and dependencies
  • Imports the Gantt Chart module into your application
  • Registers default theme styles in angular.json

Add theme styles

The Gantt Chart component requires specific CSS files for proper rendering. Syncfusion provides multiple themes for the Gantt Chart component. For a complete list of available themes, refer to the theme packages.

To apply the Tailwind 3 theme, install the corresponding theme package by using the following command:

npm install @syncfusion/ej2-tailwind3-theme

The installed theme package includes an index.css file that automatically imports all the required dependency styles. Import the following stylesheet into src/styles.css:

@import '../node_modules/@syncfusion/ej2-tailwind3-theme/styles/gantt/index.css';

Create sample task data

Define a simple task list with hierarchical relationships. The data includes two parent tasks (TaskID 1 and 5) with child tasks linked via ParentID. Each task must have a StartDate and either a Duration (in days) or EndDate to render properly.

public data = [
    {TaskID: 1, TaskName: 'Project initiation', StartDate: new Date('2024-04-01'), EndDate: new Date('2024-04-15')},
    {TaskID: 2, TaskName: 'Identify site location', StartDate: new Date('2024-04-01'), Duration: 4, ParentID: 1},
    {TaskID: 3, TaskName: 'Perform site survey', StartDate: new Date('2024-04-01'), Duration: 4, ParentID: 1},
    {TaskID: 4, TaskName: 'Soil testing', StartDate: new Date('2024-04-01'), Duration: 3, ParentID: 1},
    {TaskID: 5, TaskName: 'Project estimation', StartDate: new Date('2024-04-15'), EndDate: new Date('2024-04-25')},
    {TaskID: 6, TaskName: 'Develop floor plan', StartDate: new Date('2024-04-15'), Duration: 5, ParentID: 5},
    {TaskID: 7, TaskName: 'Estimate project cost', StartDate: new Date('2024-04-15'), Duration: 5, ParentID: 5}
];

Configure task fields mapping

Map the data fields to Gantt Chart properties using taskFields:

public taskSettings = {
    id: 'TaskID',
    name: 'TaskName',
    startDate: 'StartDate',
    duration: 'Duration',
    parentID: 'ParentID'
};

Field mapping reference

Property Description Required
id Unique task identifier Yes
name Task display name Yes
startDate Task start date Yes
duration Task duration in days Either Duration or EndDate
endDate Task end date Either Duration or EndDate
parentID Parent task ID for hierarchy No

Render the Angular Gantt Chart Component

Update the component file to render the Gantt Chart using the sample data and task settings defined earlier.

For Angular 20+ (Standalone Components)

Modify the src/app/app.ts file with the following code:

import { Component, ViewEncapsulation } from '@angular/core';
import { GanttModule } from '@syncfusion/ej2-angular-gantt';

@Component({
    imports: [GanttModule],
    standalone: true,
    selector: 'app-root',
    template: `<ejs-gantt [dataSource]="data" [taskFields]="taskSettings"></ejs-gantt>`,
    encapsulation: ViewEncapsulation.None
})
export class App {
    public data = [
        {TaskID: 1, TaskName: 'Project initiation', StartDate: new Date('2024-04-01'), EndDate: new Date('2024-04-15')},
        {TaskID: 2, TaskName: 'Identify site location', StartDate: new Date('2024-04-01'), Duration: 4, ParentID: 1},
        {TaskID: 3, TaskName: 'Perform site survey', StartDate: new Date('2024-04-01'), Duration: 4, ParentID: 1},
        {TaskID: 4, TaskName: 'Soil testing', StartDate: new Date('2024-04-01'), Duration: 3, ParentID: 1},
        {TaskID: 5, TaskName: 'Project estimation', StartDate: new Date('2024-04-15'), EndDate: new Date('2024-04-25')},
        {TaskID: 6, TaskName: 'Develop floor plan', StartDate: new Date('2024-04-15'), Duration: 5, ParentID: 5},
        {TaskID: 7, TaskName: 'Estimate project cost', StartDate: new Date('2024-04-15'), Duration: 5, ParentID: 5}
    ];
    public taskSettings = {
        id: 'TaskID',
        name: 'TaskName',
        startDate: 'StartDate',
        duration: 'Duration',
        parentID: 'ParentID'
    };
}

Key Properties:

  • imports: [GanttModule] — Imports the Gantt Chart module for use in this component
  • standalone: true — Indicates this is a standalone component (Angular 14+)
  • template — Defines the component’s HTML inline; [dataSource]="data" binds the task data and [taskFields]="taskSettings" maps the field names
  • encapsulation: ViewEncapsulation.None — Disables view encapsulation to allow global styles to apply to the Gantt Chart

For Angular 19 and Earlier (Module-Based)

If using Angular 19 or earlier, define the component in src/app/app.component.ts:

import { Component, ViewEncapsulation } from '@angular/core';
import { GanttModule } from '@syncfusion/ej2-angular-gantt';

@Component({
    selector: 'app-root',
    templateUrl: './app.component.html',
    styleUrls: ['./app.component.css'],
    encapsulation: ViewEncapsulation.None
})
export class AppComponent {
    public data = [/* ... task data ... */];
    public taskSettings = {/* ... field mappings ... */};
}

Then add to src/app/app.module.ts:

import { GanttModule } from '@syncfusion/ej2-angular-gantt';
import { NgModule } from '@angular/core';

@NgModule({
    imports: [GanttModule],
    // ... other declarations
})
export class AppModule { }

And create src/app/app.component.html:

<ejs-gantt [dataSource]="data" [taskFields]="taskSettings"></ejs-gantt>

Run the application

Start the development server with:

ng serve --open

This command:

  • Compiles the Angular application
  • Starts a local development server on http://localhost:4200 (default port)
  • Opens the application in your default browser (the --open flag)

Troubleshooting:

  • Port 4200 already in use: Run ng serve --port 4300 to use a different port
  • Module not found errors: Ensure all dependencies are installed with npm install
  • Styles not applied: Verify all CSS imports in src/styles.css are correct
  • Blank page: Check the browser console for errors and ensure the element <ejs-gantt> is rendering

Output

The Gantt Chart displays:

  • Task hierarchy with parent-child relationships
  • Timeline view showing task bars
  • Automatically calculated dates based on duration

The chart displays two parent tasks (Project initiation, Project estimation) with subtasks shown in a tree structure. Task bars are rendered on the timeline, sized according to their duration and start dates.

You can preview the following sample by clicking the Preview Sample button.

import { Component, ViewEncapsulation, OnInit } from '@angular/core';
import { GanttModule } from '@syncfusion/ej2-angular-gantt'

@Component({
    imports: [GanttModule],
    standalone: true,
    selector: 'app-root',
    template:
        `<ejs-gantt [dataSource]="data" [taskFields]="taskSettings" ></ejs-gantt>`,
    encapsulation: ViewEncapsulation.None
})

export class App implements OnInit {
    public data?: object[];
    public taskSettings?: object;

    public ngOnInit(): void {
        this.data = [
            { TaskID: 1, TaskName: 'Project initiation', StartDate: new Date('2024-04-01'), EndDate: new Date('2024-04-15') },
            { TaskID: 2, TaskName: 'Identify site location', StartDate: new Date('2024-04-01'), Duration: 4, ParentID: 1 },
            { TaskID: 3, TaskName: 'Perform site survey', StartDate: new Date('2024-04-01'), Duration: 4, ParentID: 1 },
            { TaskID: 4, TaskName: 'Soil testing', StartDate: new Date('2024-04-01'), Duration: 3, ParentID: 1 },
            { TaskID: 5, TaskName: 'Project estimation', StartDate: new Date('2024-04-15'), EndDate: new Date('2024-04-25') },
            { TaskID: 6, TaskName: 'Develop floor plan', StartDate: new Date('2024-04-15'), Duration: 5, ParentID: 5 },
            { TaskID: 7, TaskName: 'Estimate project cost', StartDate: new Date('2024-04-15'), Duration: 5, ParentID: 5 }
        ];
        this.taskSettings = {
            id: 'TaskID',
            name: 'TaskName',
            startDate: 'StartDate',
            duration: 'Duration',
            parentID: 'ParentID'
        };
    }
}

Error handling

Proper error handling helps identify and resolve issues during development. The Gantt Chart provides events to capture validation and configuration errors.

Common error scenarios

  • Missing taskFields mapping — If taskFields is not properly configured, the Gantt Chart cannot map data fields to task properties. Ensure all required fields (id, name, startDate) are mapped.
  • Invalid date format — Task dates must be valid JavaScript Date objects. Invalid dates prevent proper rendering.
  • Missing dataSource — Ensure dataSource is bound to the component with task data.
  • Unsupported field types — The id field must be numeric or string; Duration must be numeric.
  • Module not imported — Verify that GanttModule is imported in the component (standalone) or module declaration.

Handling errors with actionFailure event

Use the actionFailure event to capture and handle errors:

@Component({
    template: `<ejs-gantt [dataSource]="data" [taskFields]="taskSettings" (actionFailure)="onActionFailure($event)"></ejs-gantt>`
})
export class App {
    public data = [/* ... */];
    public taskSettings = {/* ... */};

    onActionFailure(args: any) {
        console.error('Gantt Chart Error:', args.error);
        alert(`Configuration Error: ${args.error}`);
    }
}
