Syncfusion® PDF Viewer SDK Template Studio

9 Dec 202517 minutes to read

Syncfusion® provides the PDF Viewer SDK Template Studio, which allows you to create a Syncfusion application based on the platform selection such as Blazor, .NET MAUI, WPF and Windows Forms using Syncfusion® PDF Viewer SDK component. The Syncfusion® application is created with the required Syncfusion® NuGet references, namespaces, styles, and component render code. The Template Studio includes an easy-to-use project wizard that guides you through the process of creating an application with Syncfusion® PDF Viewer SDK component.

The steps below will assist you to create your Syncfusion® Application through Visual Studio:

NOTE

Before use the Syncfusion® Project Template, check whether the Syncfusion® PDF Viewer SDK Extension installed or not in Visual Studio Extension Manager by clicking on the Extensions -> Manage Extensions -> Installed. If this extension not installed, install the extension by follow the steps from the download and installation help topic.

  1. Open Visual Studio 2022 or later.

  2. To create a Syncfusion® application, use either one of the following options:

    Option 1

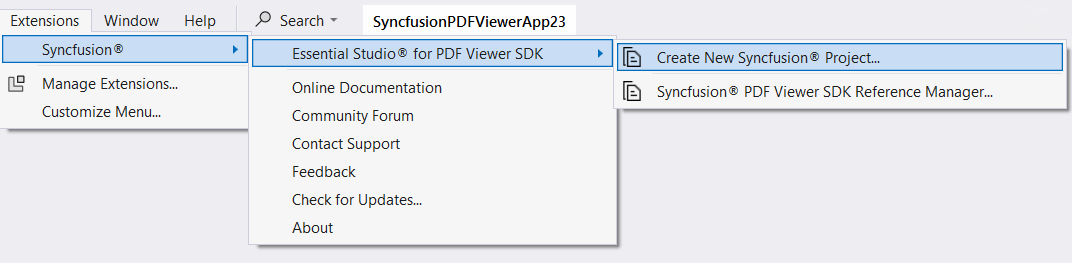

    Choose Extension -> Syncfusion -> Essential Studio® for PDF Viewer SDK -> Create New Syncfusion Project… from the Visual Studio menu.

    CreateMenu

    Option 2

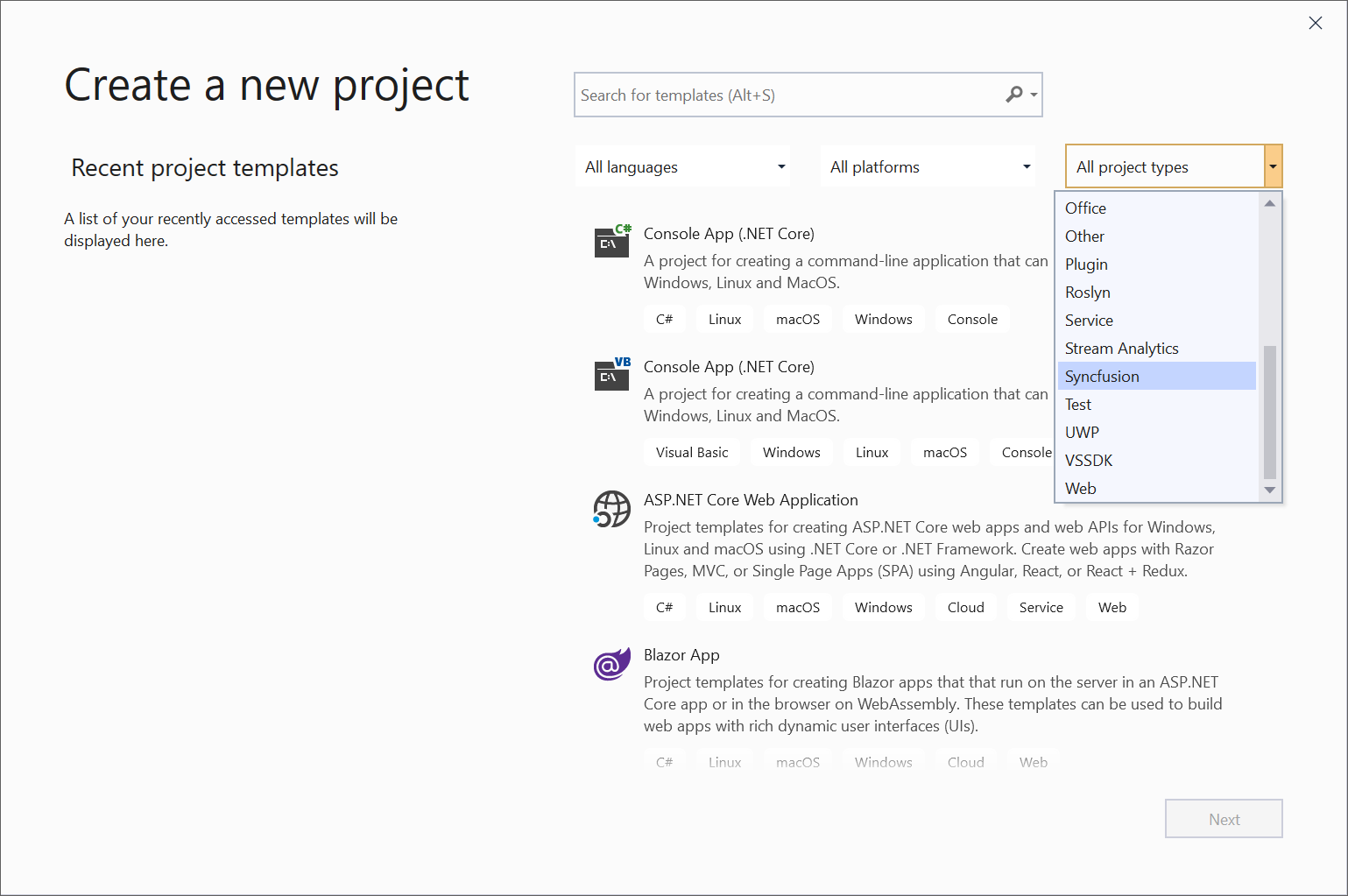

    Choose File -> New -> Project from the menu. This launches a new dialogue for creating a new application. Syncfusion® templates can be found by filtering the application type for Syncfusion or by entering Syncfusion as a keyword in the search option.

    CreateNewWindow

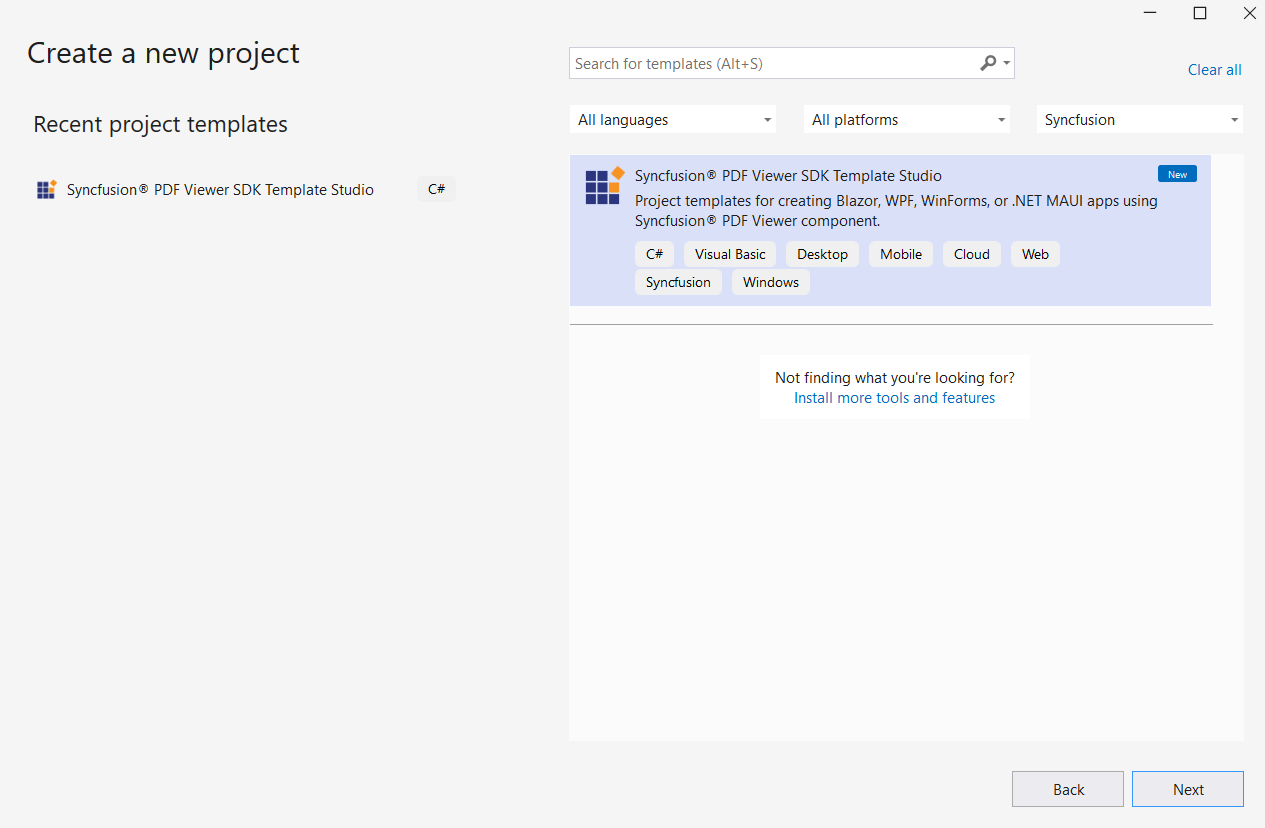

  3. Select the Syncfusion® PDF Viewer SDK Template Studio and click Next.

    CreateNewWizard

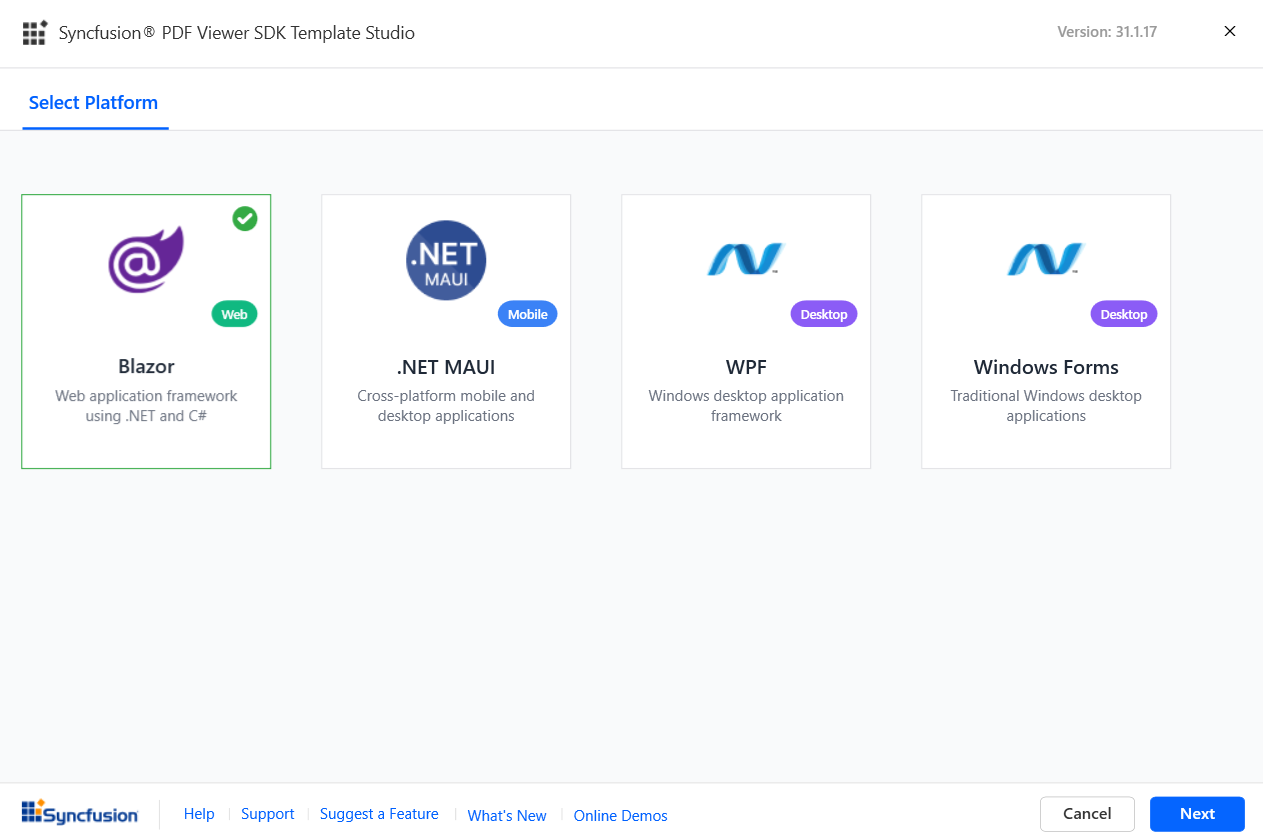

  4. The Syncfusion® PDF Viewer SDK Template Studio wizard will be launched. Select the platform to add the Syncfusion® PDF Viewer SDK component.

    PlatformSelection

  5. Based on the platform selection, choose the configurations and create the respective application to add the Syncfusion® PDF Viewer SDK component.

    • Blazor Platform:

      • Project type section

        Choose one of the Syncfusion® Blazor application types based on the version of the .NET SDK you are using.

        .NET SDK version Supported Syncfusion Blazor Application Type
        .NET 10.0, .NET 9.0, .NET 8.0 Syncfusion Blazor Web App
        .NET 10.0, .NET 9.0, .NET 8.0 Syncfusion Blazor WebAssembly App

        Note: Refer to the .NET SDK support for Syncfusion Blazor Components here.

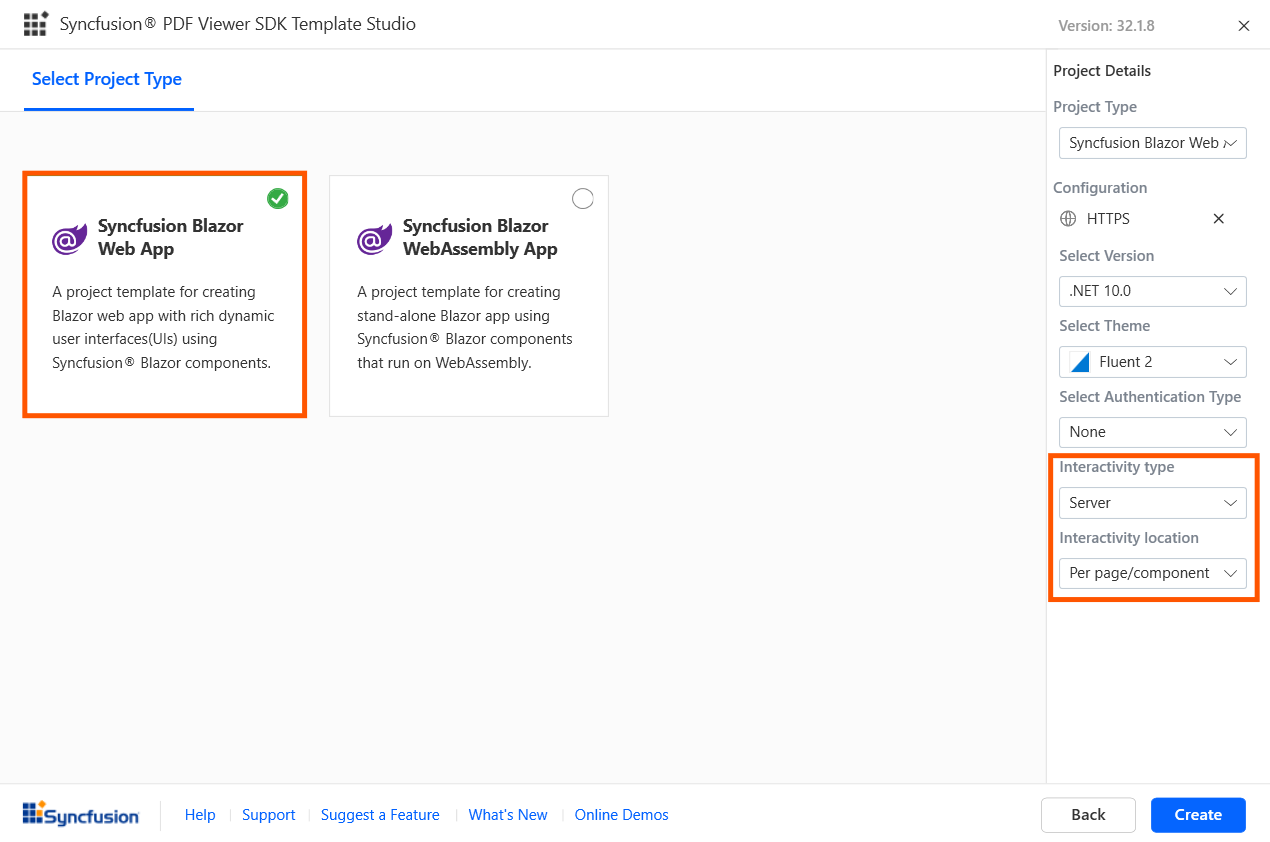

        In the Syncfusion Blazor Web App application type, you can configure the following options:

        Interactivity type Server, WebAssembly, Auto (Server and WebAssembly)
        Interactivity location Global, Per page/component

        WebAppTemplate

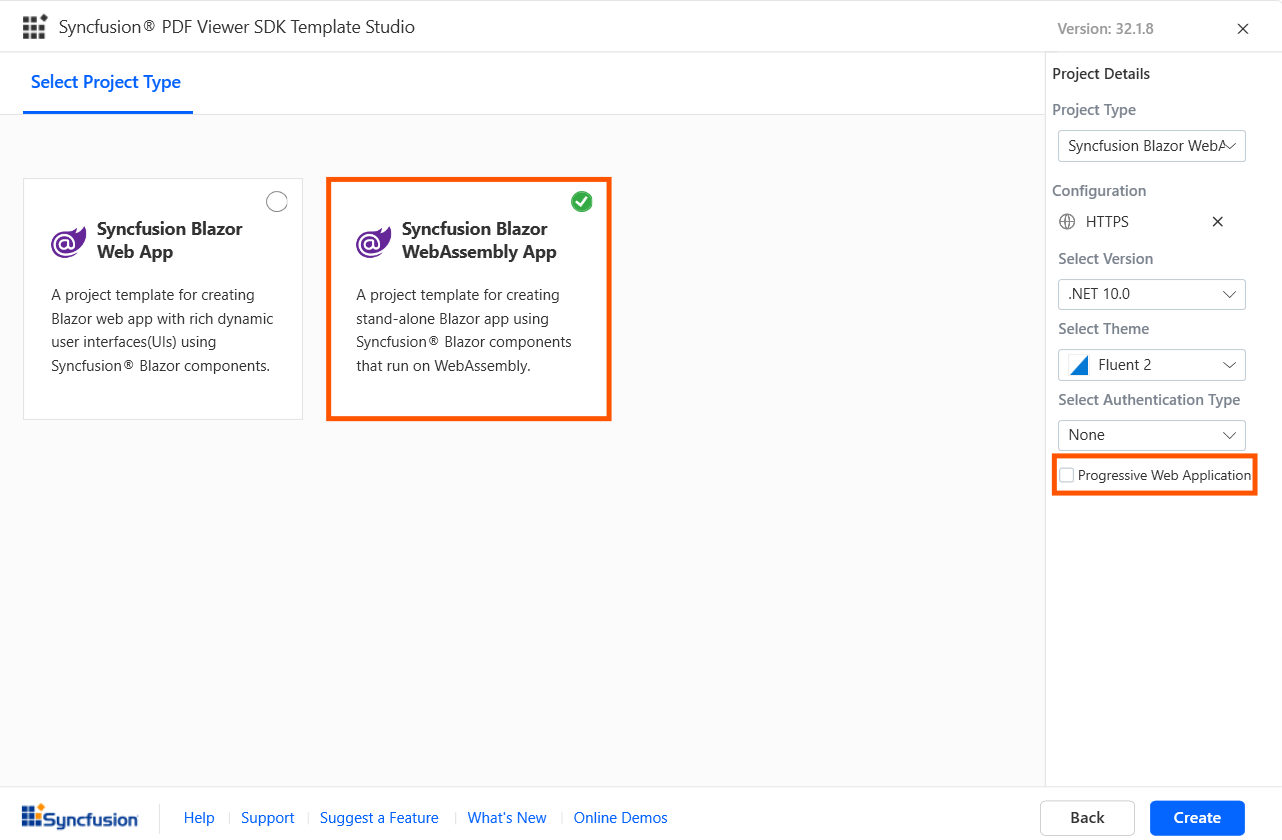

        In the Syncfusion Blazor WebAssembly App application type, you can choose Progressive Web Application.

        WASMTemplate

        Note: The Progressive Web Application will be enabled if .NET 8.0 version or higher is installed.

        You can choose the required (.NET 10.0, .NET 9.0 and .NET 8.0), themes, https configuration, authentication type, Blazor Web App, and Blazor Web Assembly application types.

        Depending on your Syncfusion Blazor Application Type, refer to the table below for supported authentication types.

        Syncfusion Blazor Application Type Supported Authentication Types
        Syncfusion Blazor Web App None and Individual Accounts
        Syncfusion Blazor WebAssembly App None, Individual Accounts and Microsoft Identity Platform

        Click Create button. The Syncfusion® PDF Viewer SDK Blazor application has been created. The created Syncfusion® PDF Viewer SDK Blazor app has the Syncfusion NuGet packages, styles, and the render code for Syncfusion® PDF Viewer SDK component.

    • . NET MAUI Platform

      • Configuration Section

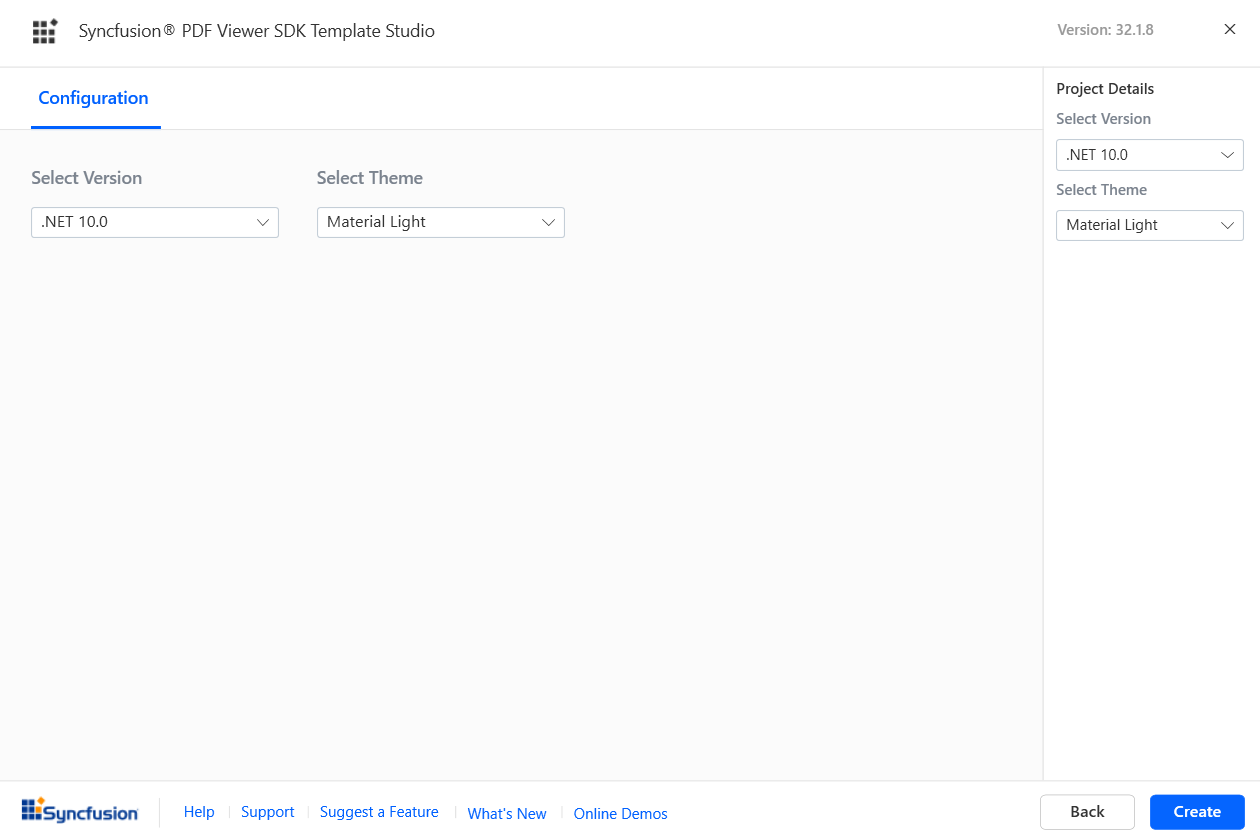

        You can select the required .NET Core Version (.NET 9.0 or .NET 10.0) and themes

        Configuration

        Click Create button. The Syncfusion® PDF Viewer SDK .NET MAUI application has been created and has the Syncfusion NuGet packages, styles, and the render code for Syncfusion® PDF Viewer SDK component.

    • WPF and Windows Forms Platform

      • Configuration Section

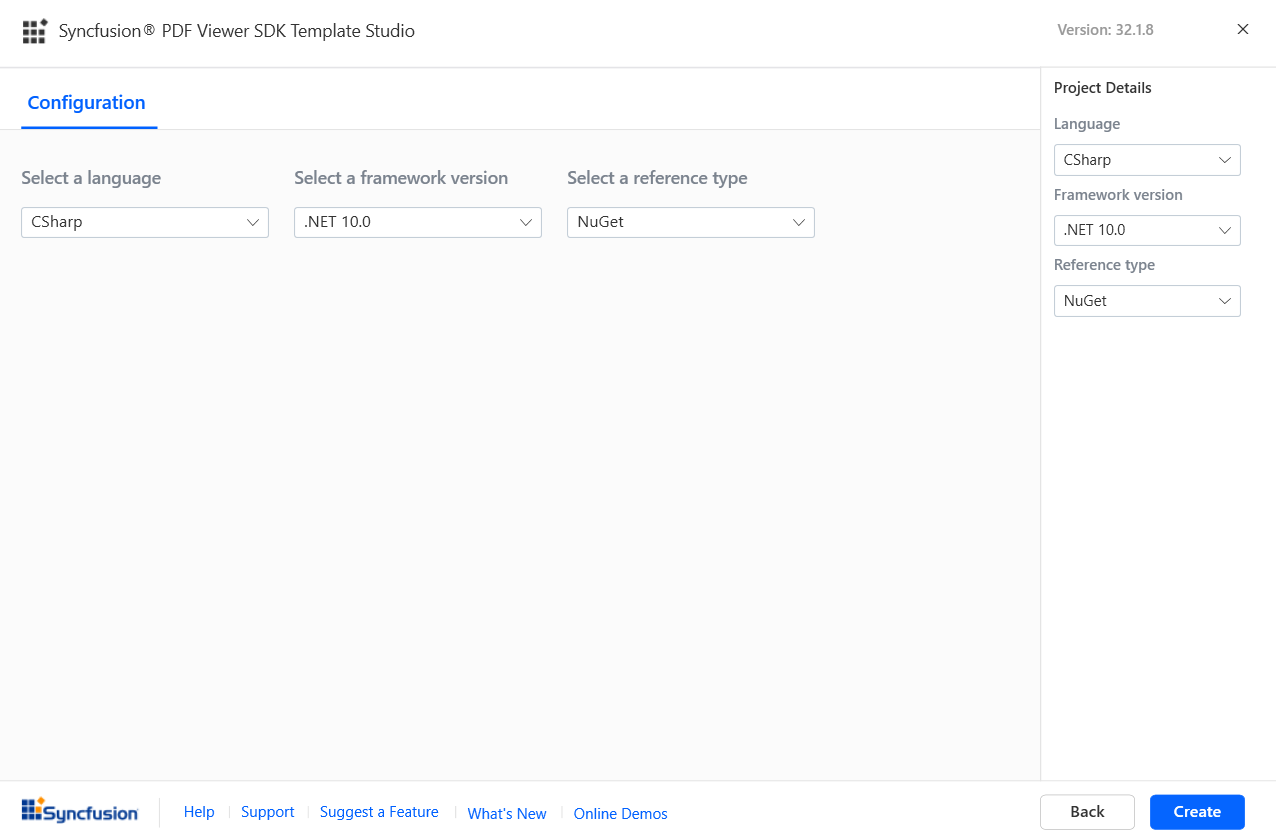

        You will have the option to specify your preferred .NET Framework Version, select the desired language(CSharp or Visual Basic), and choose the reference type according to your requirements.

        Configuration

        Note: The installed location and GAC options will be available only after the Syncfusion® PDF Viewer SDK setup has been installed. Use the NuGet option instead of installing the Syncfusion® Essential® PDF Viewer SDK setup.

        Click Create button. The Syncfusion® PDF Viewer SDK WPF or Windows Forms application has been created and has the Syncfusion NuGet packages, styles, and the render code for Syncfusion® PDF Viewer SDK component.

  6. The Syncfusion® application based on the platform selection configures with most recent Syncfusion® NuGet packages version, selected style, namespaces, selected authentication, and component render code for Syncfusion® PDF Viewer SDK component.

  7. If you installed the trial setup or NuGet packages from nuget.org you must register the Syncfusion® license key to your application since Syncfusion® introduced the licensing system from 2018 Volume 2 (v16.2.0.41) Essential Studio® release. Navigate to the help topic to generate and register the Syncfusion® license key to your application. Refer to this blog post for understanding the licensing changes introduced in Essential Studio®.

Authentication Configuration for Blazor Platform

We need to register the created application in the Google API Console for Individual Accounts and in Azure Active Directory for the Microsoft Identity Platform. From the Google API Console registration, we can obtain the client ID for Individual Accounts. From the Azure Active Directory registration, we can obtain the tenant ID and application client ID for the Microsoft Identity Platform. We need to configure these ID values in the created applications; only then will the application run correctly with authentication support.

Individual Accounts Authentication

Web Application and Progressive Web Application

  1. Go to below credentials page for the Google cloud platform API console.

    https://console.cloud.google.com/apis/credentials?project=aerobic-furnace-244104&pli=1

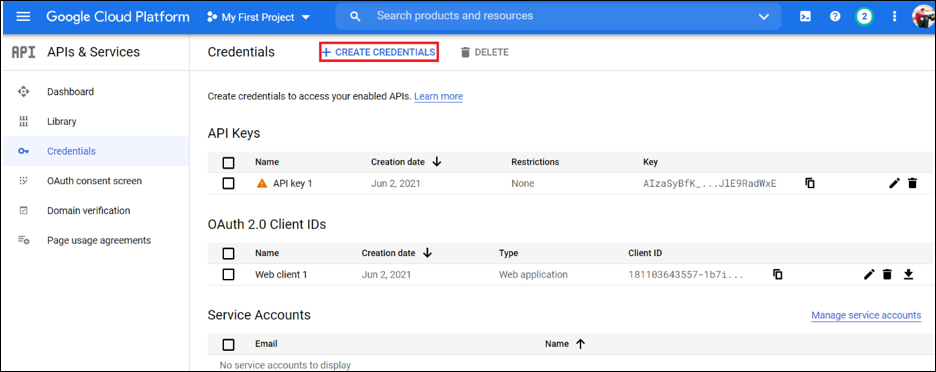

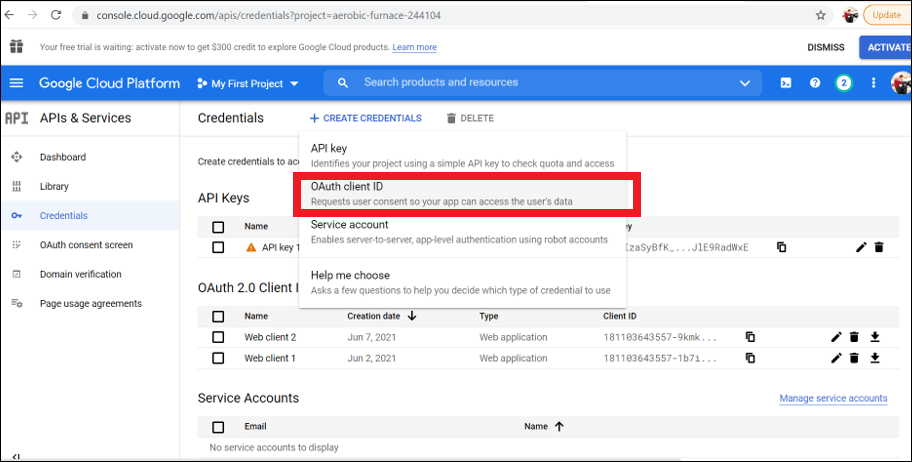

  2. Click Create Credentials and OAuth Client Id.

    Google API console credentials page

    Google API Oauth client Id

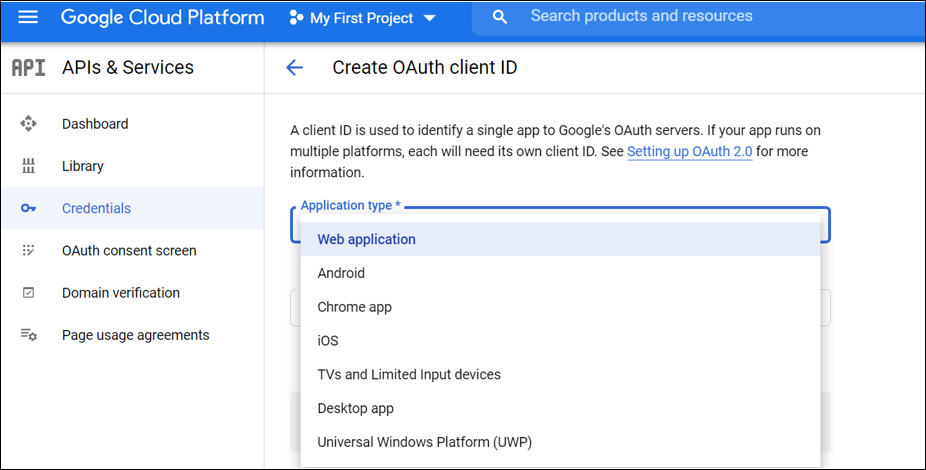

  3. Select Application type as Web Application in client Id creation.

    ApplicationType

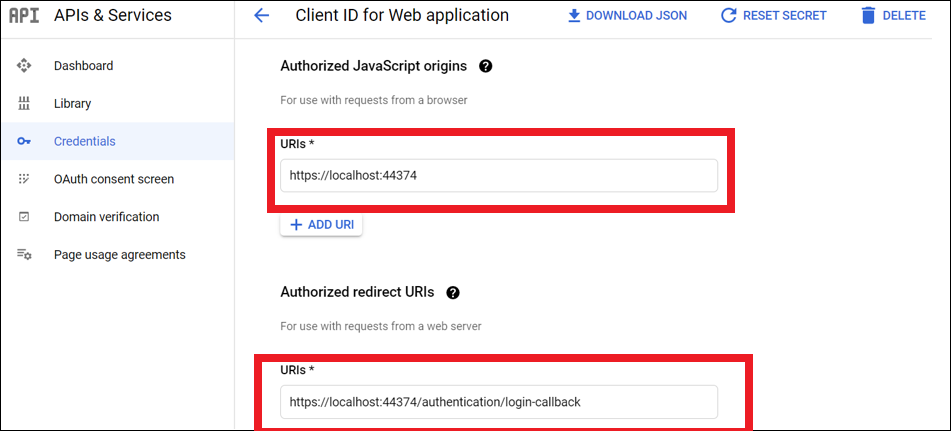

  4. Add your publish URL link as an Authorized URI and login URL as Redirected URI.

    RedirectedURI

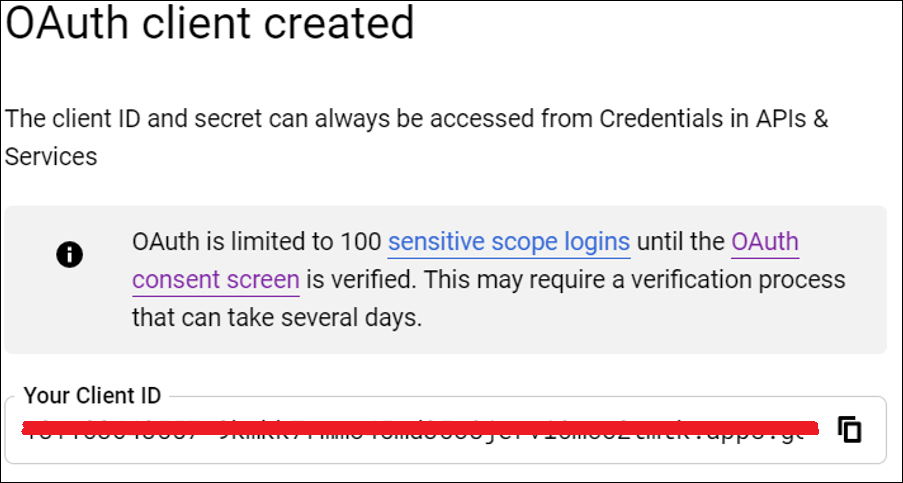

  5. Click save then OAuth client id will be created and copy that credential.

    ClientIdCreation

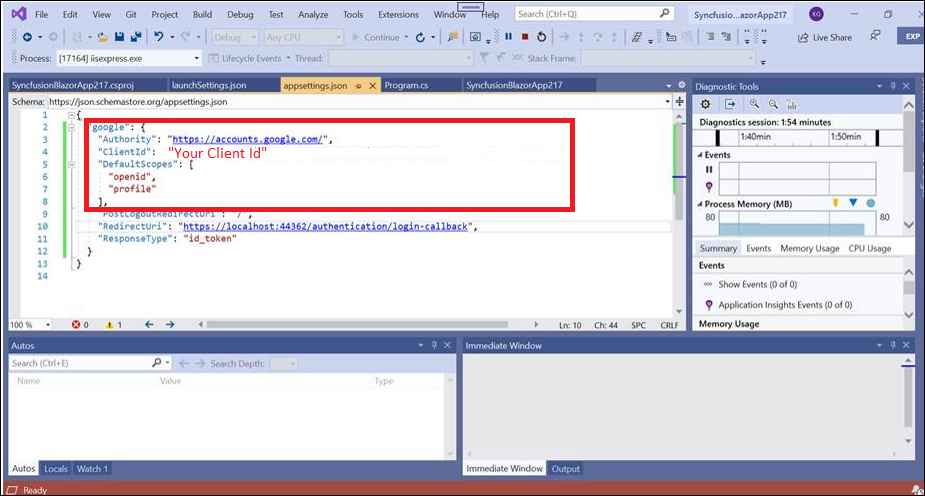

  6. Add that Client Id, and RedirectUri in appsettings.json file of your application.

    ClinetIdConfiguration

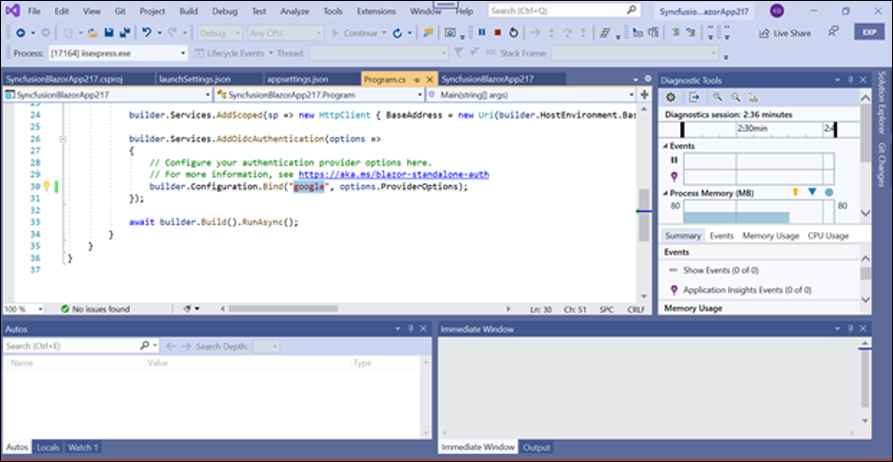

  7. Change the build configuration bind as google from Local in program.cs file.

    buildconfigurationbind

Microsoft Identity Platform Authentication

Server Application

  1. Go to below Azure Active Directory App Registration page.

    https://portal.azure.com/#view/Microsoft_AAD_IAM/ActiveDirectoryMenuBlade/~/RegisteredApps

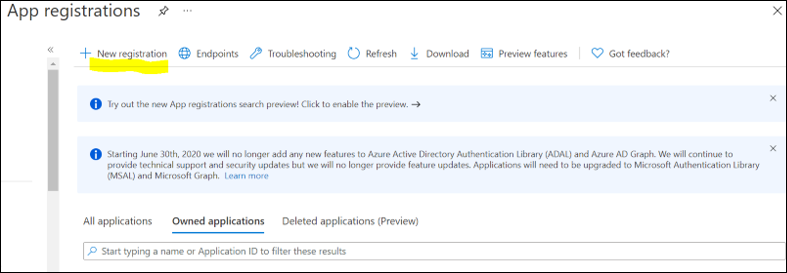

  2. Click New Registration in App Registration page.

    AppRegistration

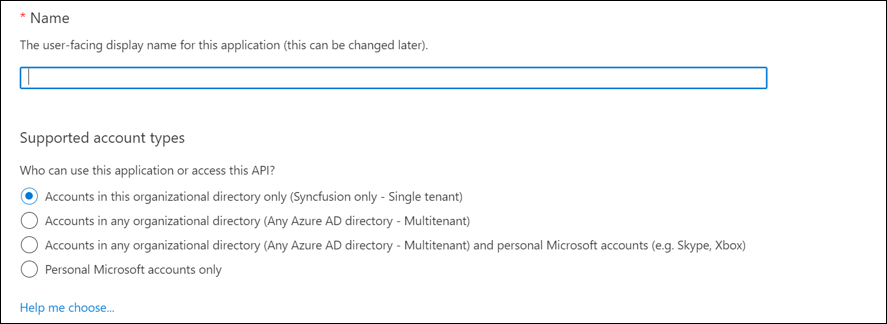

  3. Give name of the application and selected supported type as single tenant.

    Name and supported Account type

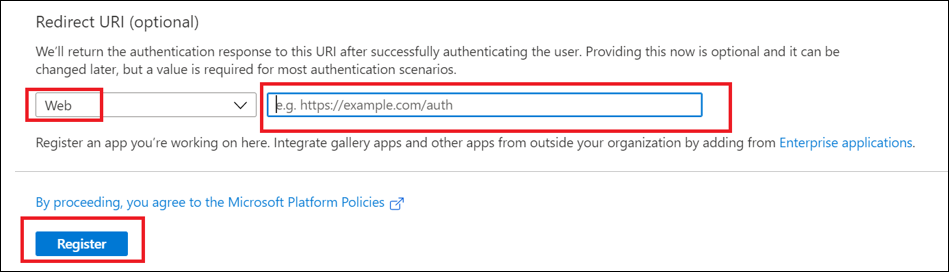

  4. Dropdown the page, select platform as web and give your application Redirect URI like {Redirect URI}/signin-oidc and click Register.

    Platform and Redirect URI

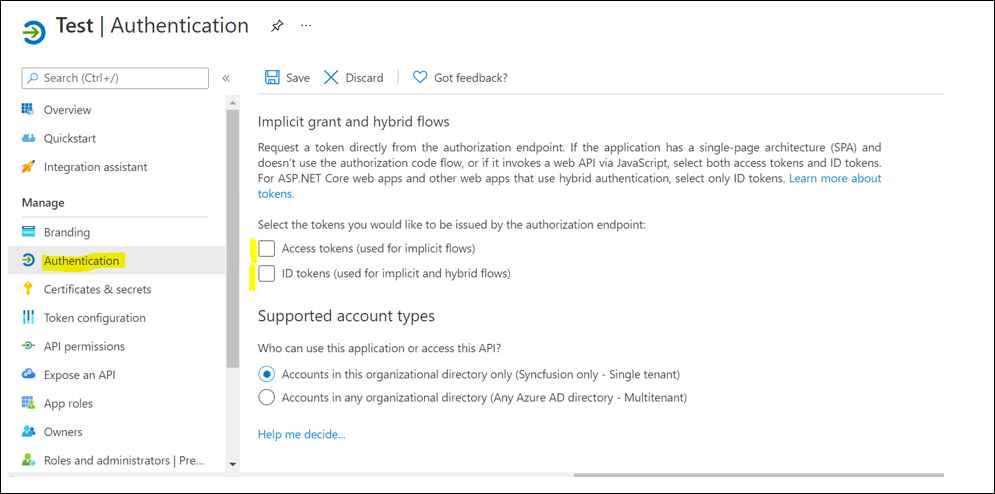

  5. App will be registered, go to the Authentication page and tick Id token check box.

    Access token and Id token

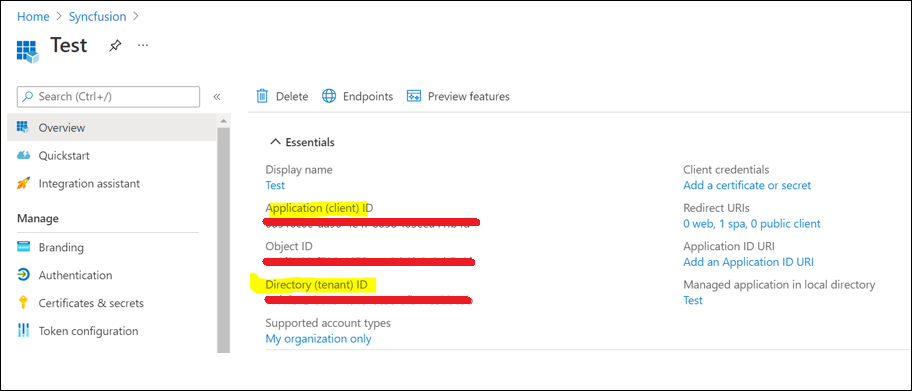

  6. Get client tenant id and application id form overview page.

    Clinet tenat id

  7. Configure those client tenant id, application id, and domain in your application appsettings.json file.

    Project configuration

Web Application and Progressive Web Application

  1. Go to below Azure Active Directory App Registration page.

    https://portal.azure.com/#view/Microsoft_AAD_IAM/ActiveDirectoryMenuBlade/~/RegisteredApps

  2. Click New Registration in App Registration page.

    AppRegistration

  3. Give name of the application and selected supported type as single tenant.

    Name and supported Account type

  4. Dropdown the page, select platform as web and give your application Redirect URI and click Register.

    Platform and Redirect URI

  5. App will be registered, go to the Authentication page and tick Access token an Id token check box.

    Access token and Id token

  6. Migrate the API by clicking the highlighted arrow like in below image.

    API Migration

    Migration configuration

  7. Get client tenant id and application id form overview page.

    Clinet tenat id

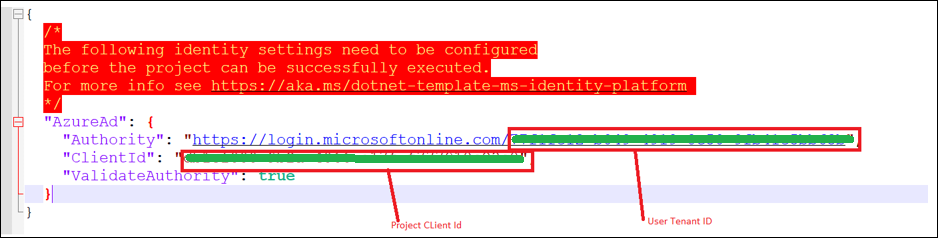

  8. Configure those client tenant id and application id in your application appsettings.json file.

    Clinet ID and Tenant ID configuration

ASP.NET Core Hosted Web Application, and ASP.NET Core Hosted with Progressive Web Application

Client project Registration and Configuration

  1. Go to below Azure Active Directory App Registration page.

    https://portal.azure.com/#view/Microsoft_AAD_IAM/ActiveDirectoryMenuBlade/~/RegisteredApps

  2. Click New Registration in App Registration page.

    AppRegistration

  3. Give name of the application and selected supported type as single tenant.

    Name and supported Account type

  4. Dropdown the page, select platform as web and give your application Redirect URI and click Register.

    Platform and Redirect URI

  5. App will be registered, go to the Authentication page and tick Access token an Id token check box.

    Access token and Id token

  6. Migrate the API by clicking the highlighted arrow like in below image.

    API Migration

    Migration configuration

  7. Get client tenant id and application id form overview page.

    Clinet tenat id

  8. Configure those client tenant id and application id in your application appsettings.json file.

    Clinet ID and Tenant ID configuration

Server project Registration and configuration

  1. Go to below Azure Active Directory App Registration page.

    https://portal.azure.com/#view/Microsoft_AAD_IAM/ActiveDirectoryMenuBlade/~/RegisteredApps

  2. Click New Registration in App Registration page.

    Server App Registration

  3. Give name of the application and selected supported type as single tenant.

    Name and supported Account type

  4. Dropdown the page, select platform as web and give your application Redirect URI and click Register.

    Server Platform and Redirect URI

  5. App will be registered, go to the Authentication page and tick Access token an Id token check box.

    Access token and Id token

  6. Migrate the API by clicking the highlighted arrow like in below image.

    API Migration

    Migration configuration

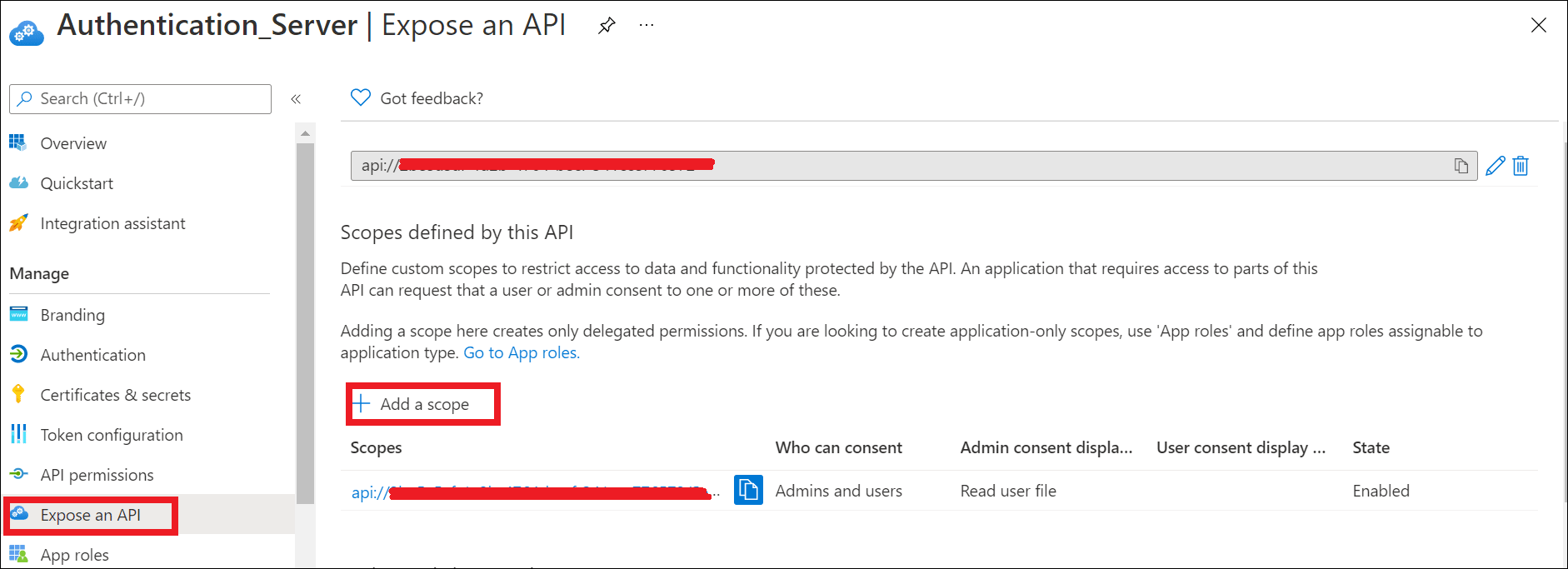

  7. Add a scope API in Expose an API page.

    Add scope API

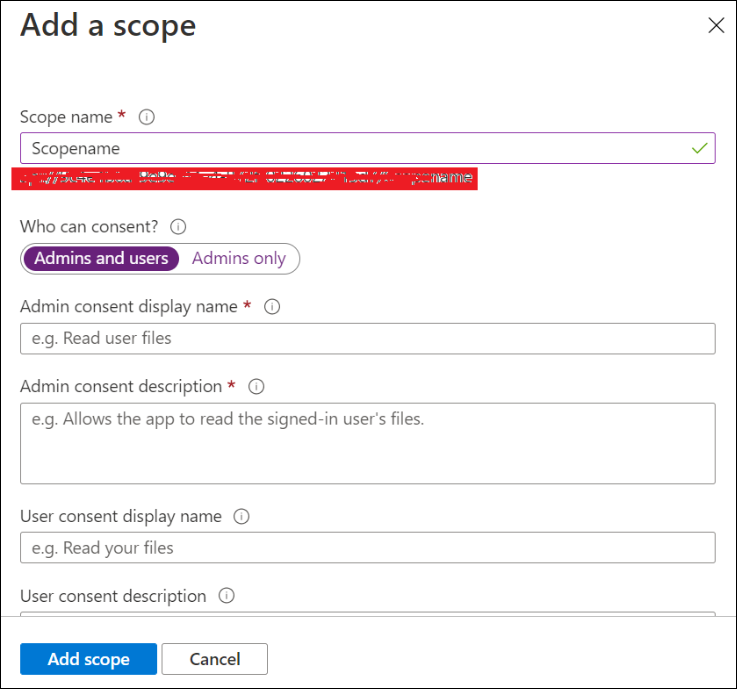

  8. Give scope name, admin consent display name, and admin consent description and click Add scope. Scope API will be created, copy those scope API Value.

    Add scope API configuration

  9. Get client tenant id and application id form overview page.

    Clinet tenat id

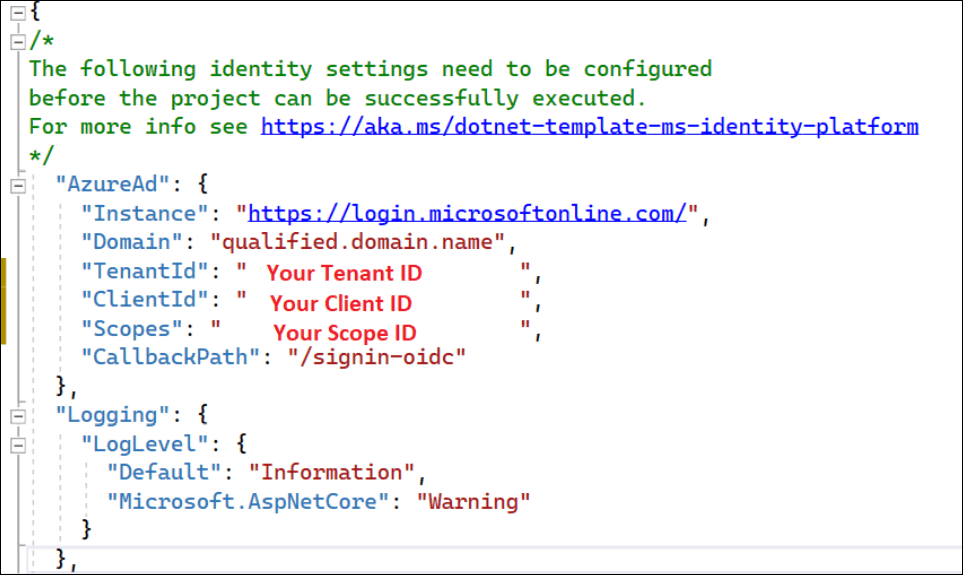

  10. Configure those client tenant id, application id, added scope api id, and domain in your application appsettings.json file.

    Project configuration

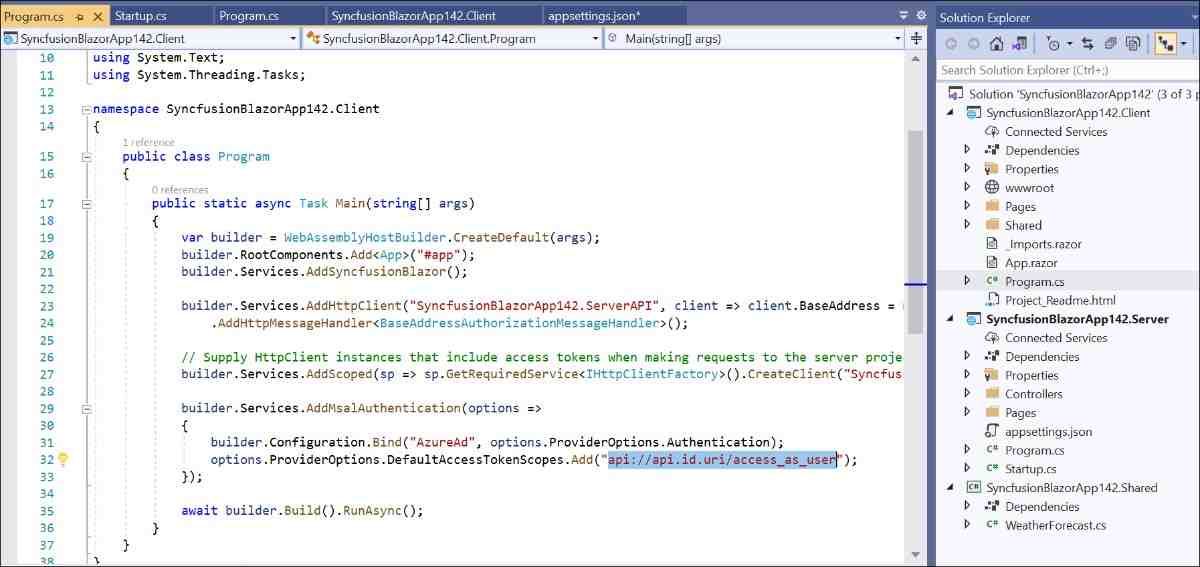

  11. Configure the scope API in client application program.cs file below highlighted place.

    Scope API configuration

Run application

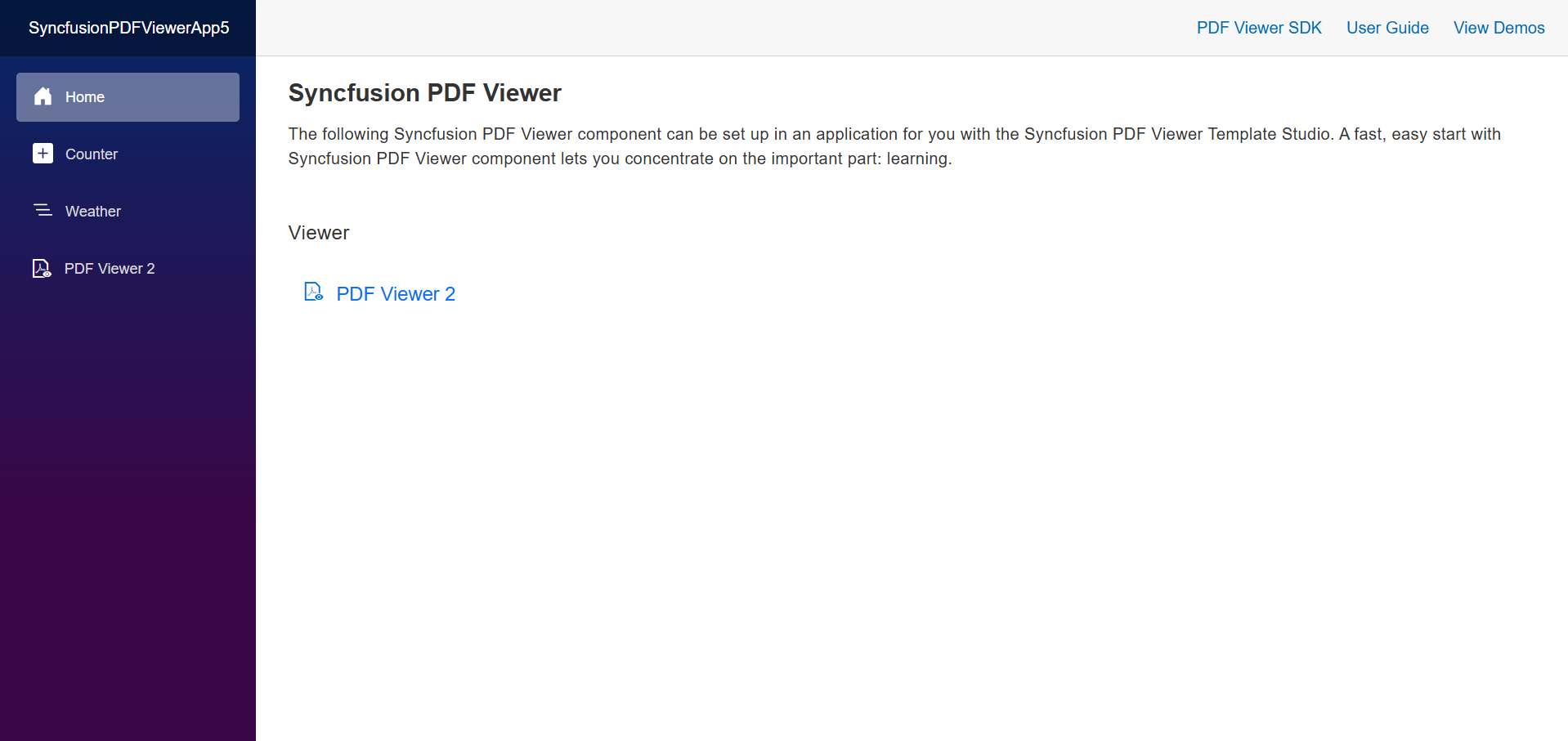

You can run the application and see the Syncfusion® PDF Viewer SDK component you selected.

Blazor Template output page

Register and Login Application

Individual Authentication

Blazor Web App

Applying Database Migrations and User Registration in the .NET 8.0, .NET 9.0 and .NET 10.0 Blazor Web App
Applying Database Migrations:

In the Blazor Web App, it’s essential to apply pending migrations to the database before proceeding with user registration. Choose one of the following options:

Option 1: Using Visual Studio Package Manager Console

Navigate to View -> Other Windows -> Package Manager Console in Visual Studio.

Run the following command in the Package Manager Console:

Update-Database

Option 2: Using Command Prompt

Open a command prompt in your project directory and execute the following command:

dotnet ef database update

User Registration:

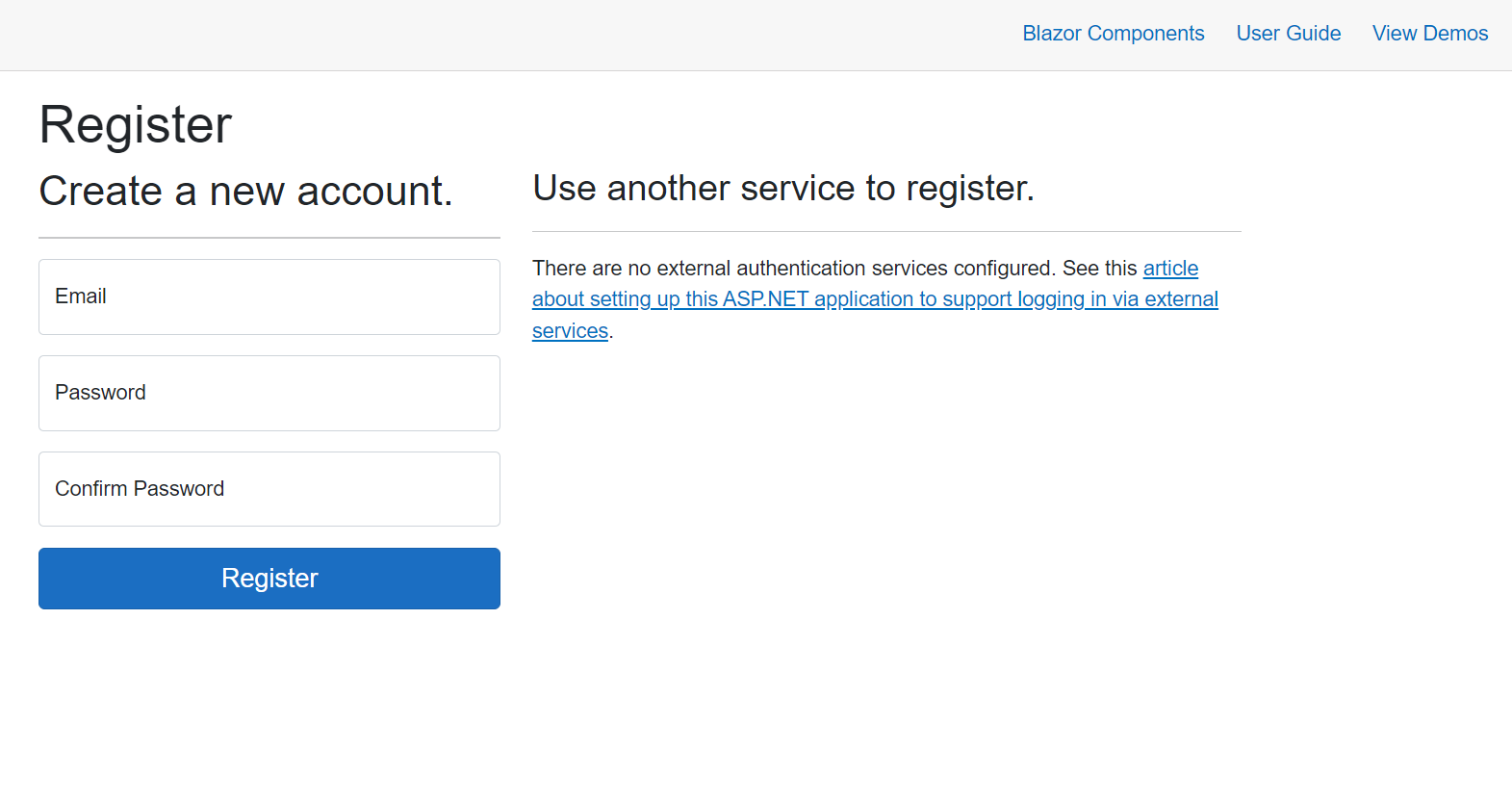

  1. Launch the application and register by submitting your email address and creating a password.

    Register the WebApp

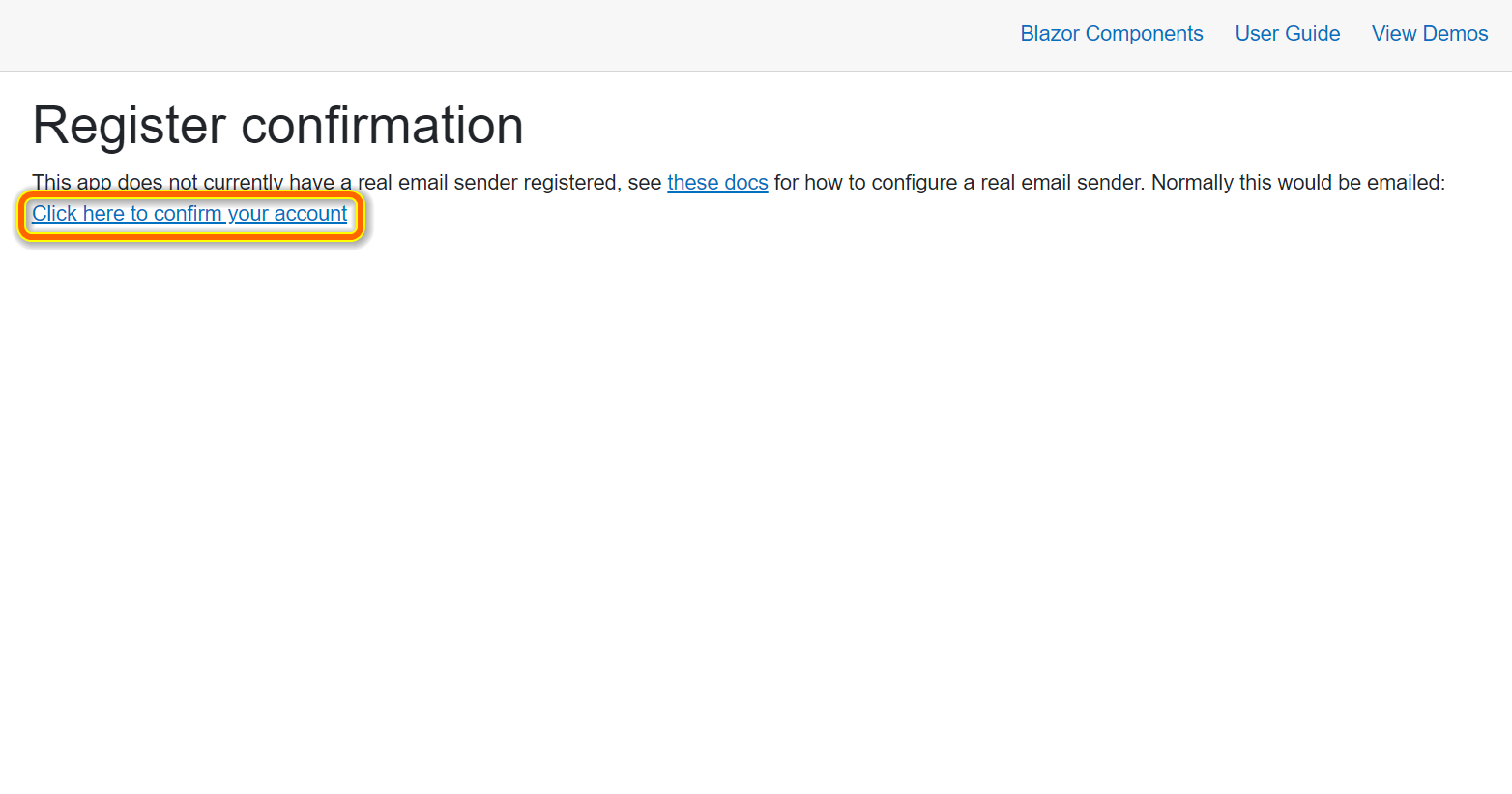

  2. Confirm your registration by clicking Click here to confirm your account.

    Confirming the WebApp registration

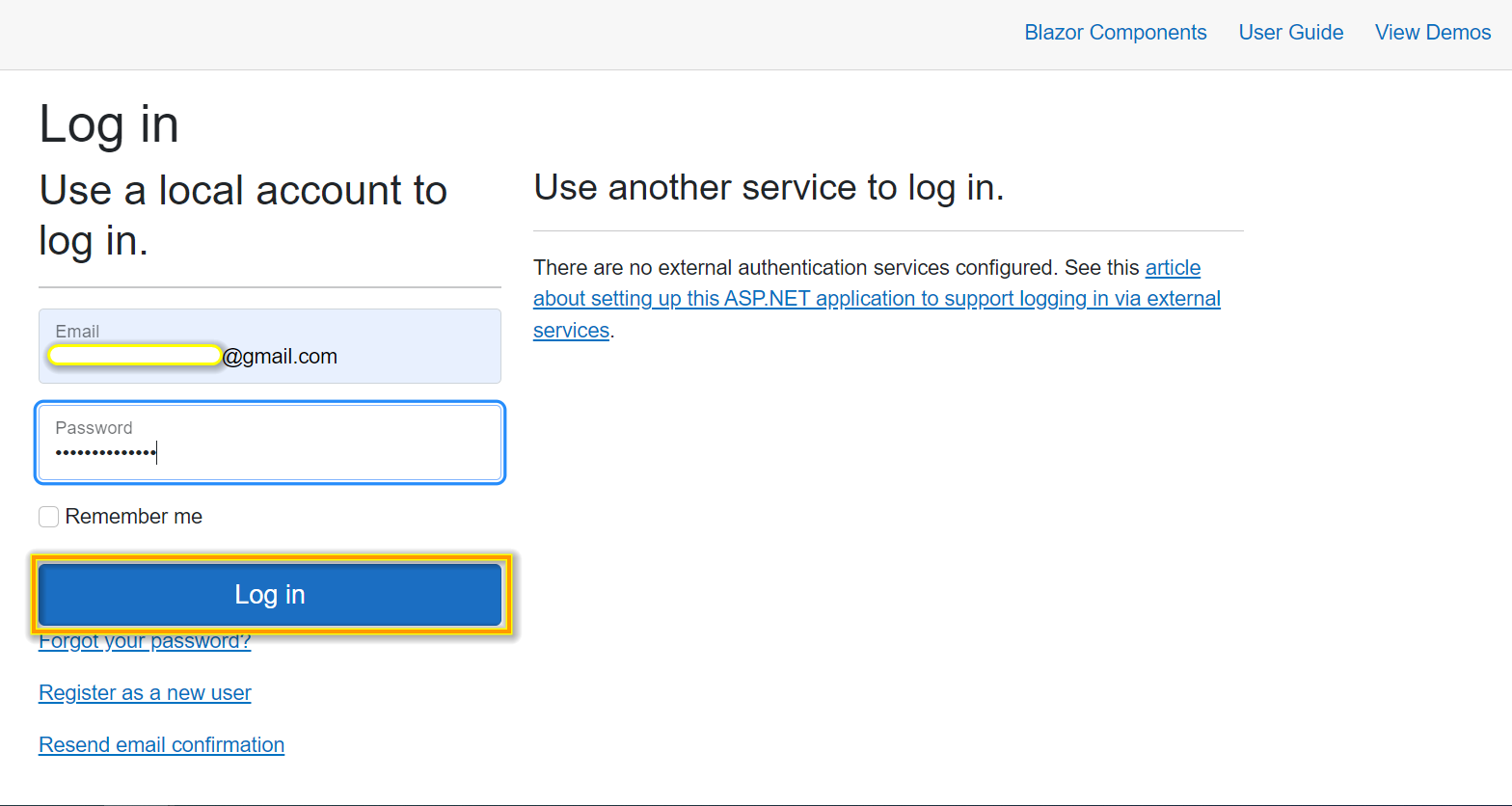

  3. Submit your registered email address and password to log in to the application.

    LogIn to the WebApp

Server Application, ASP.NET Core hosted Web Application, and Progressive Web Application with ASP.NET Core hosted

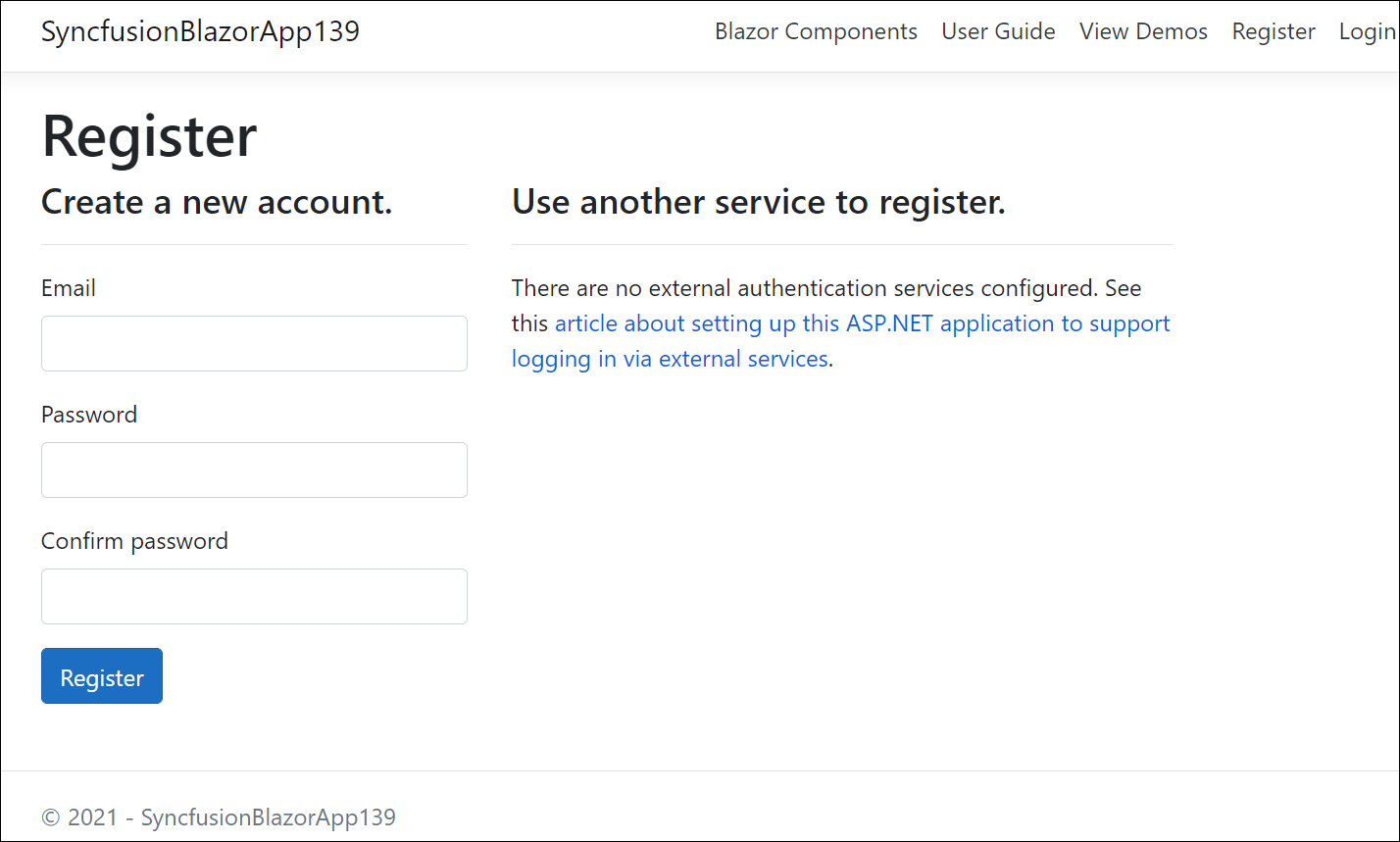

  1. For register the application, submit your email address and create a password.

    Register the application

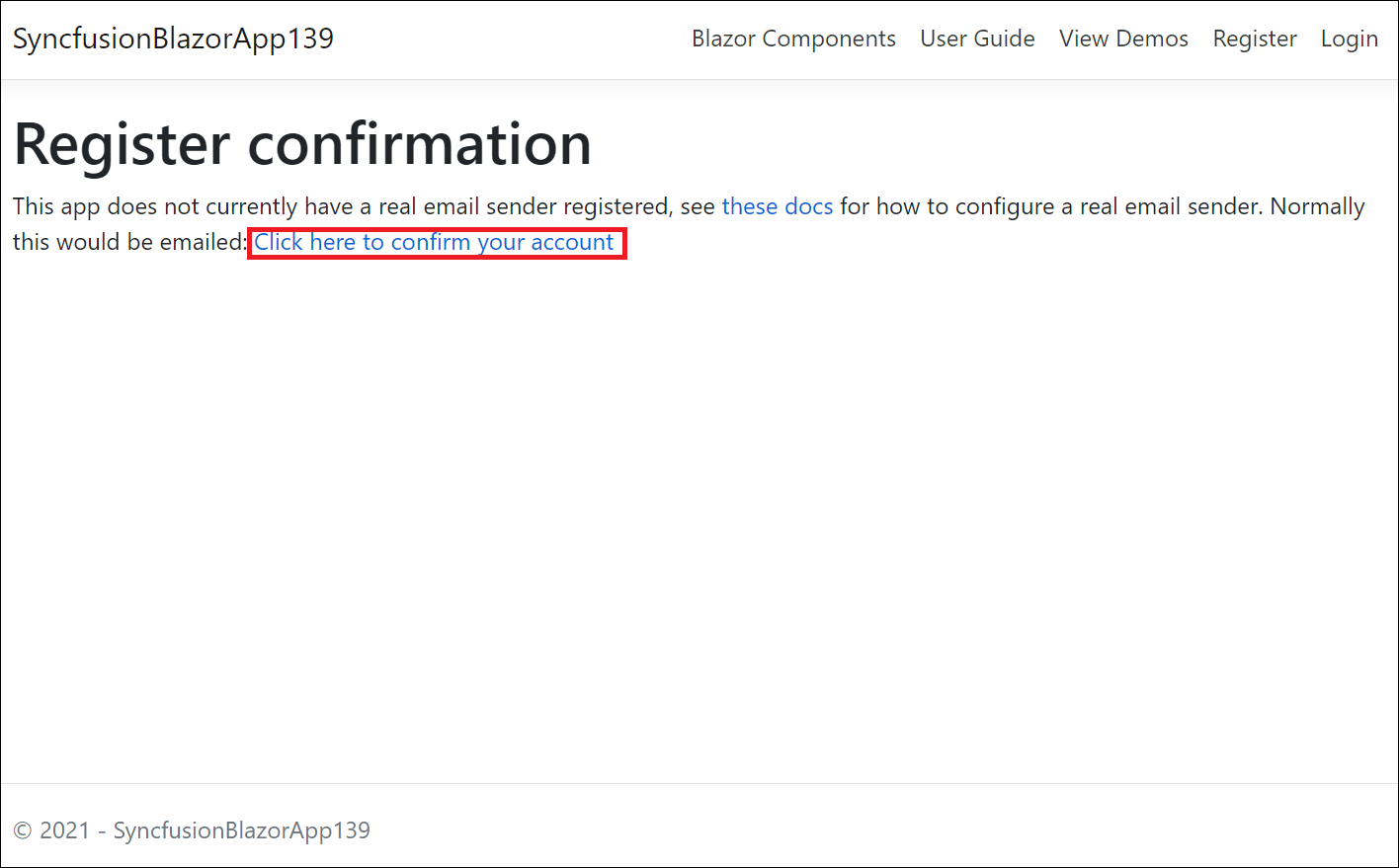

  2. Confirming registration by clicking Click here to confirm your account.

    Register the confirmation

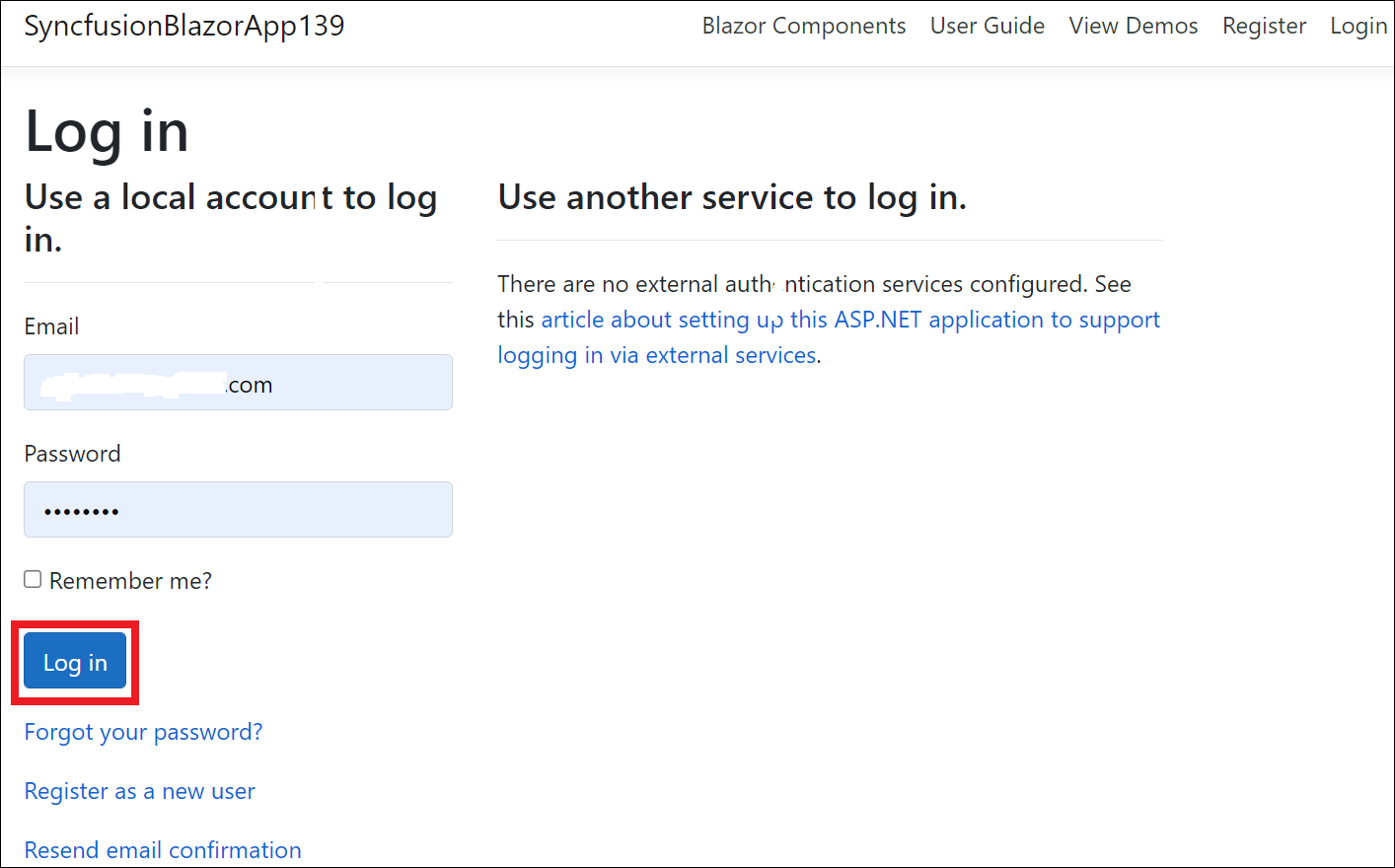

  3. Submit your registered email address and password to login the application.

    login to the application

Web Application and Progressive Web Application

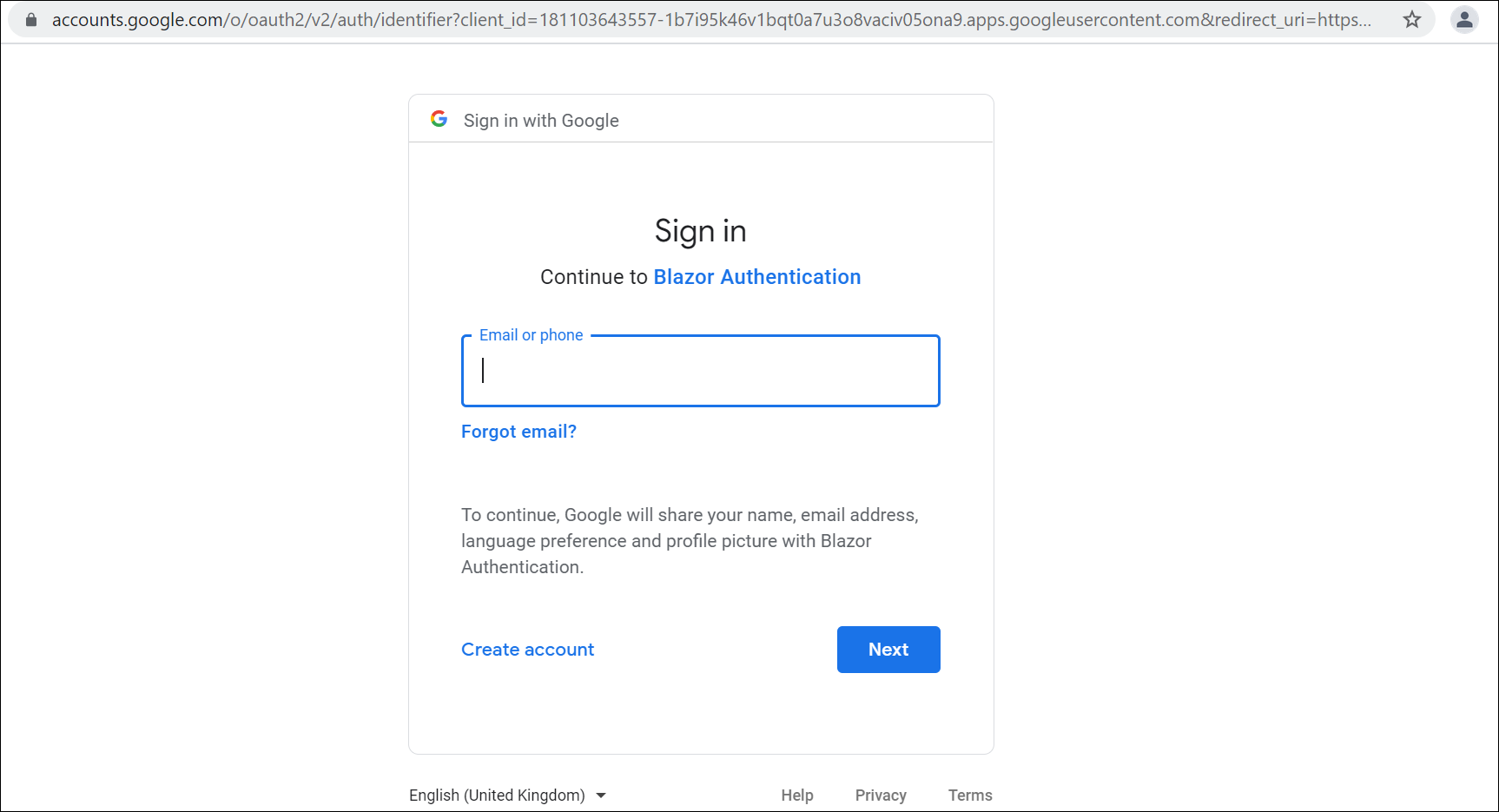

  1. Login to the application using Gmail accounts.

    Google login

Microsoft Identity Platform

Server Application, Web Application, Progressive Application, ASP.NET Core Hosted Web Application, and ASP.NET Core Hosted with Progressive Web Application

  1. Login to your application using your Microsoft account.

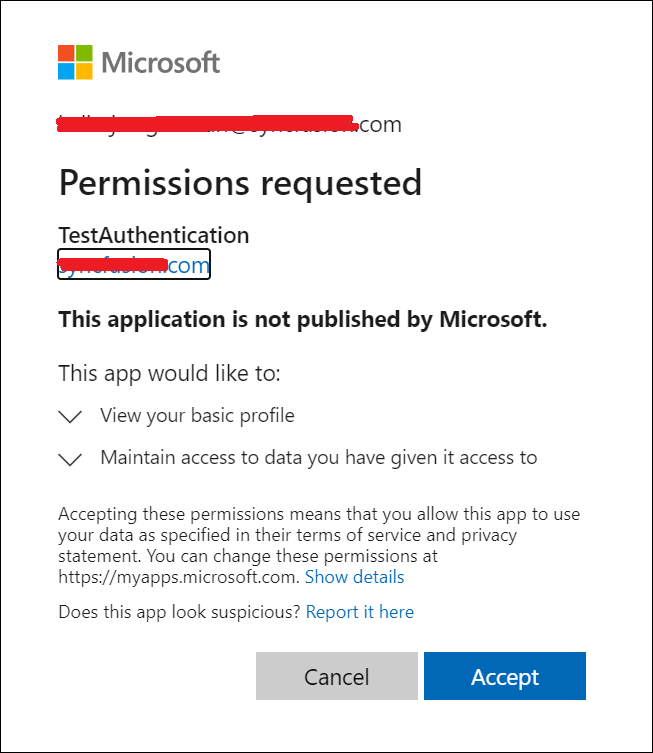

  2. Accept permission request of your application.

    Accept permission
