Creating a Syncfusion® DOCX Editor SDK application

11 Mar 20265 minutes to read

Syncfusion® provides the DOCX Editor SDK Template Studio in Visual Studio Code, which allows you to create a Syncfusion® DOCX Editor SDK application with Syncfusion® DOCX Editor SDK component. The Syncfusion® DOCX Editor SDK app is created with the required component Syncfusion® NuGet references, namespaces, styles, and component render code. The Template Studio provides an easy-to-use project wizard that walks you through the process of creating an application with Syncfusion® DOCX Editor SDK component.

NOTE

DOCX Editor SDK project templates from v33.1.44 are supported by the Syncfusion® Visual Studio Code project template.

The instructions below assist you in creating Syncfusion DOCX Editor SDK Application using Visual Studio Code:

1. To create a Syncfusion® DOCX Editor SDK application in Visual Studio Code, open the command palette by pressing Ctrl+Shift+P. Search for the word Syncfusion in the Visual Studio Code palette to get the templates provided by Syncfusion®.

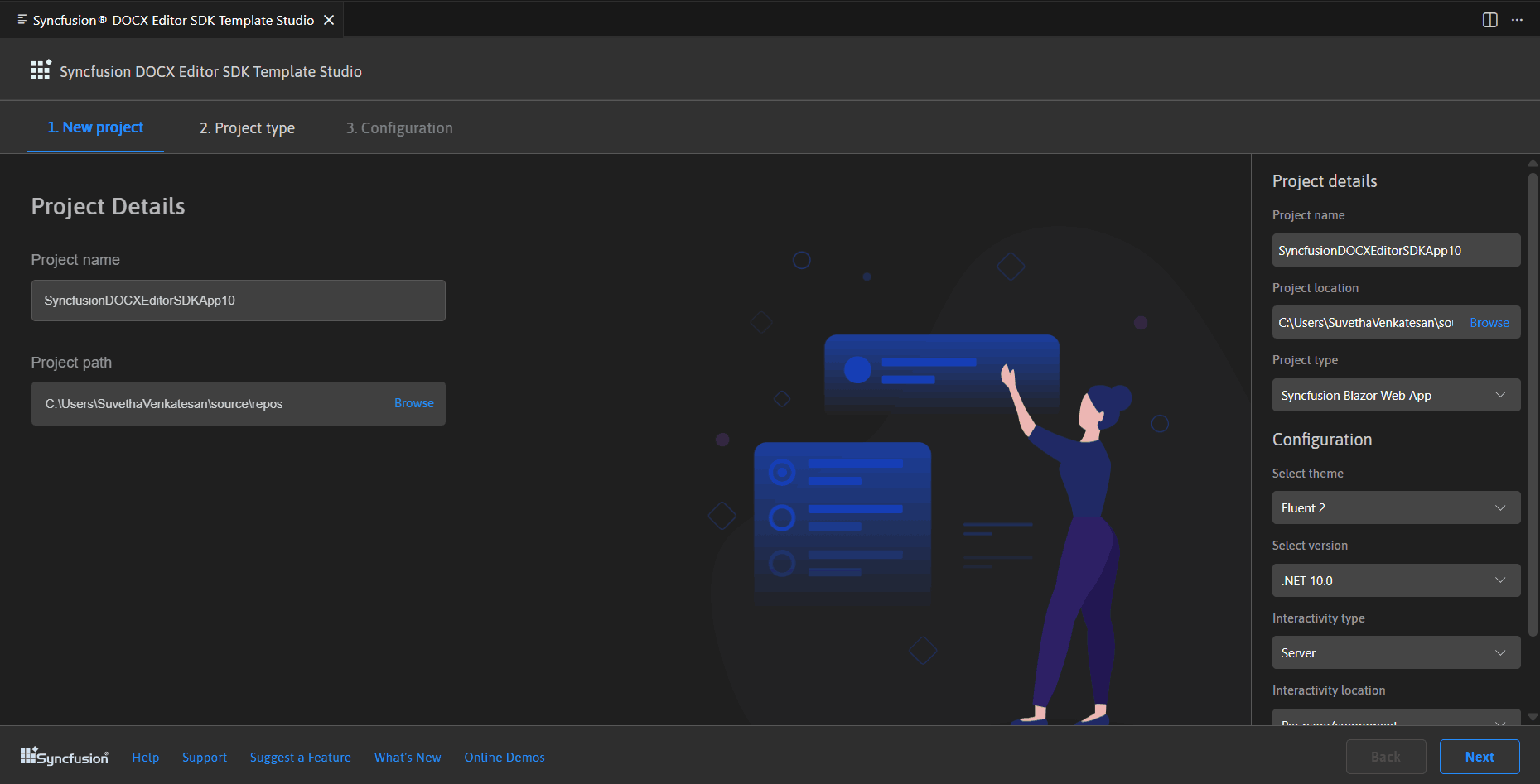

2. Select Syncfusion DOCX Editor SDK Template Studio: Launch, then press Enter key. The Template Studio wizard for configuring the Syncfusion® DOCX Editor SDK app will be launched. Provide the Project name and Project path.

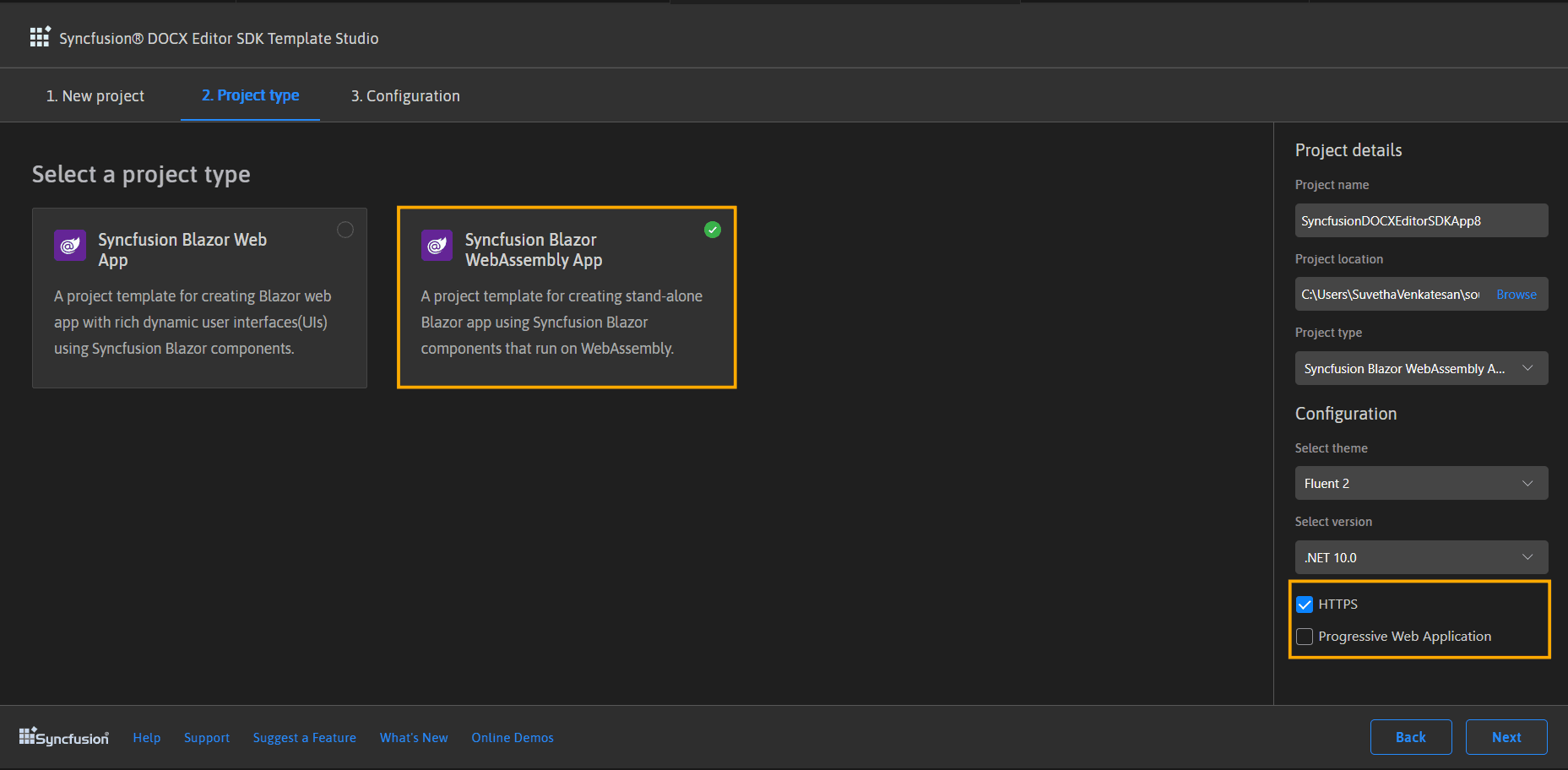

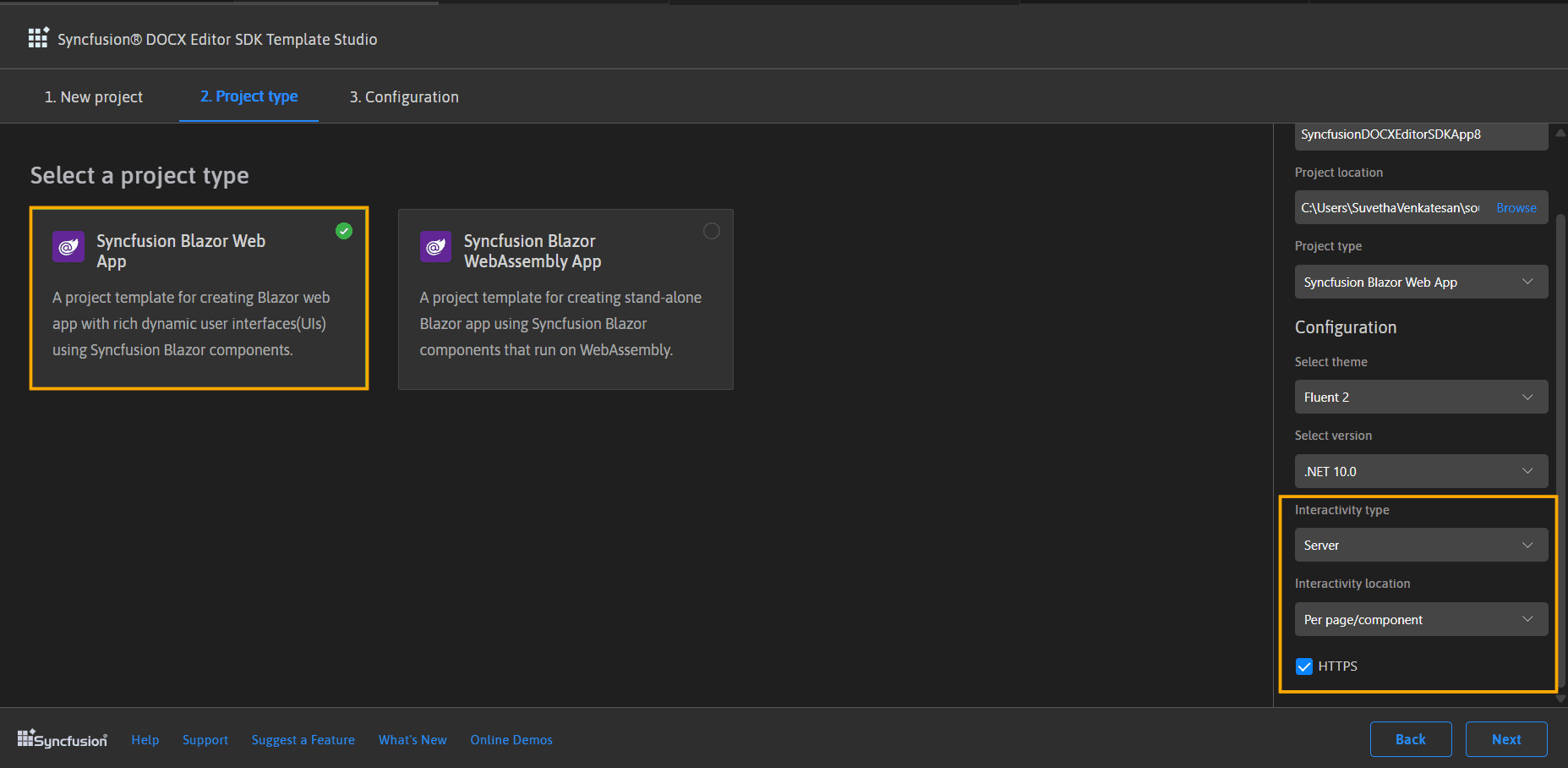

3. Select either Next or the Project type tab. Syncfusion® DOCX Editor SDK project types will be displayed. Choose one of the following Syncfusion® DOCX Editor SDK project types based on the version of the .NET SDK you are using.

   .NET SDK version	Supported Syncfusion DOCX Editor SDK Application Type
   .NET 10.0, .NET 9.0, .NET 8.0	Syncfusion DOCX Editor SDK Web App
   .NET 10.0, .NET 9.0, .NET 8.0	Syncfusion DOCX Editor SDK WebAssembly App

   In the Syncfusion DOCX Editor SDK Web App application type, you can configure the following options:

   Interactivity type	Server, WebAssembly, Auto (Server and WebAssembly)
   Interactivity location	Global, Per page/component



   In the Syncfusion DOCX Editor SDK WebAssembly App application type, you can choose Progressive Web Application.



4. Click Next or the Configuration tab to load the Configuration section. You can choose the required (.NET10.0, .NET 9.0 and .NET 8.0), themes, DOCX Editor SDK Web App, and DOCX Editor SDK Web Assembly application types.

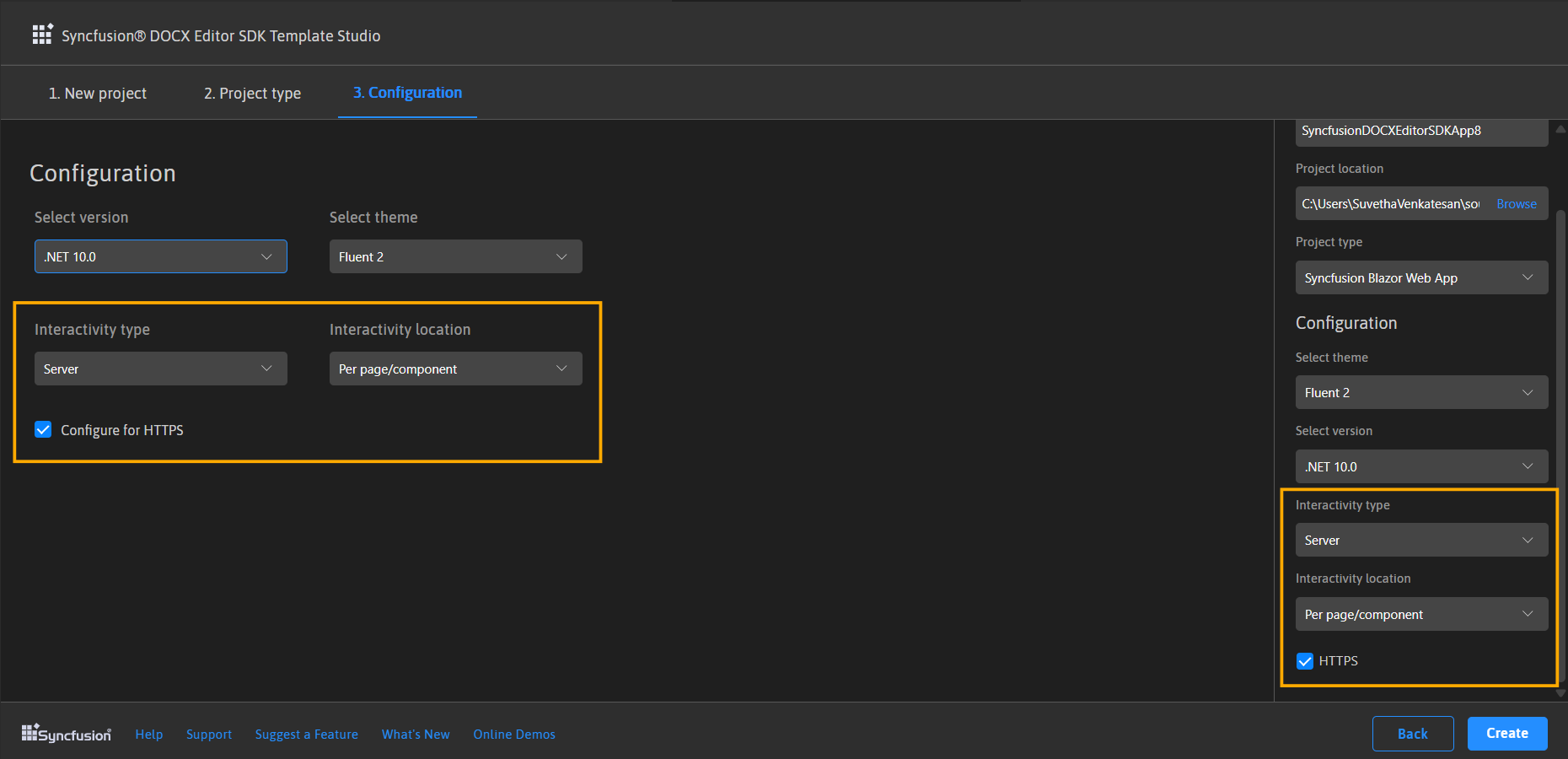

   If you choose the DOCX Editor SDK Web App application type, you can customize the Interactivity type and Interactivity location options.

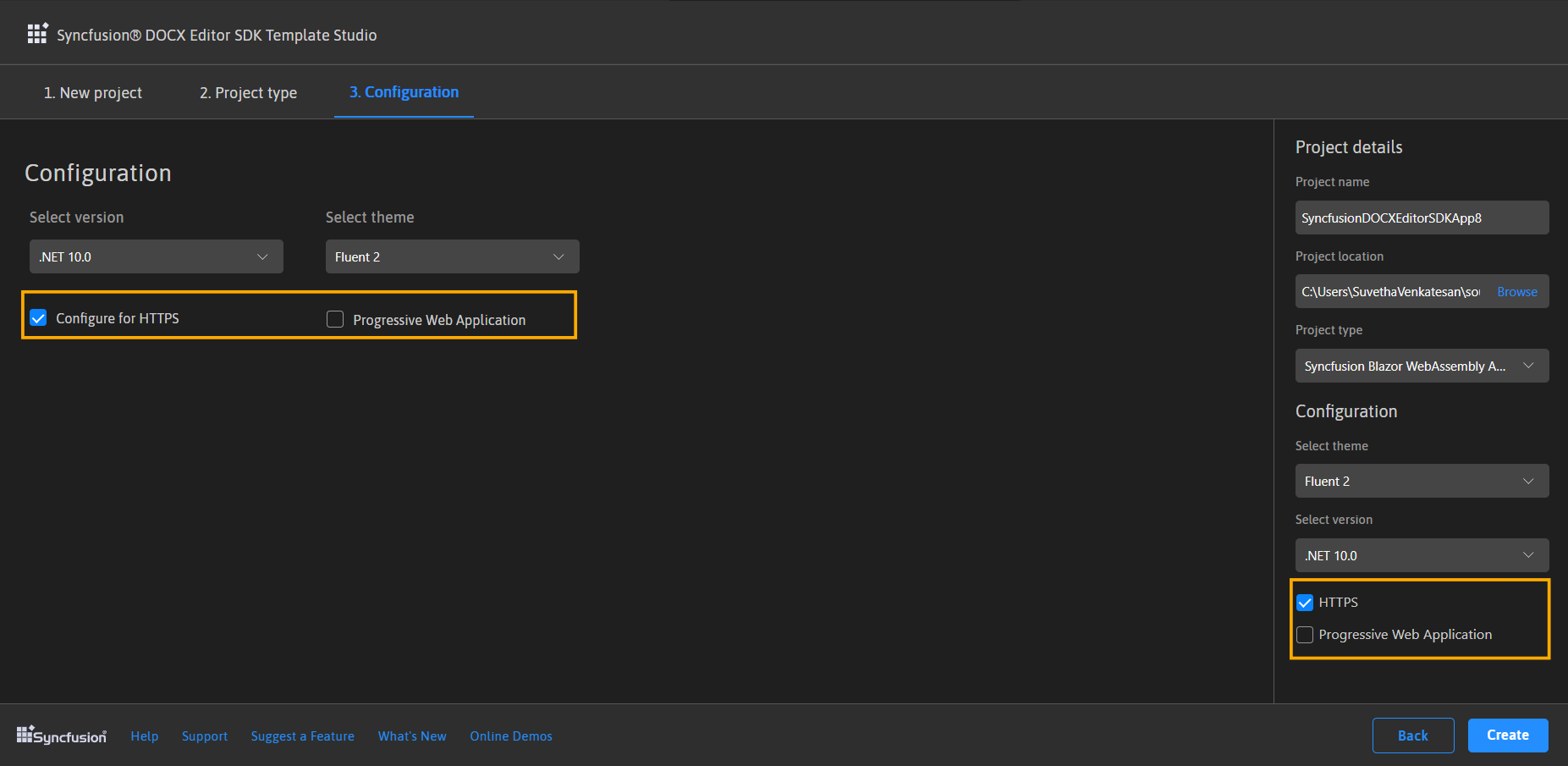

   If you choose the DOCX Editor SDK Web Assembly App application type, you can customize the Progressive Web Application option.

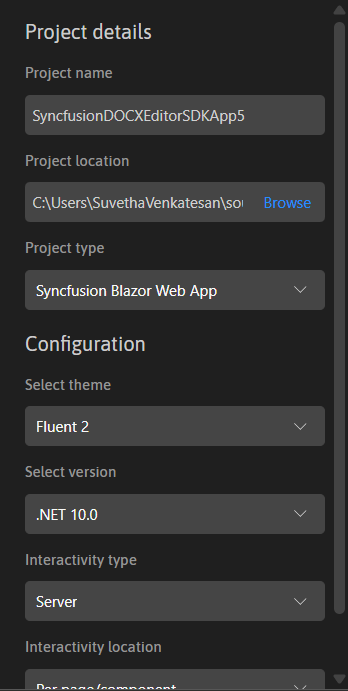

   Project details section

   You can change the configuration details below in the Project Details section to change the application type or change the configurations.



5. Click Create button. The Syncfusion® DOCX Editor SDK application has been created. The created Syncfusion® DOCX Editor SDK app has the Syncfusion NuGet packages, styles, and the render code for Syncfusion® DOCX Editor SDK component.

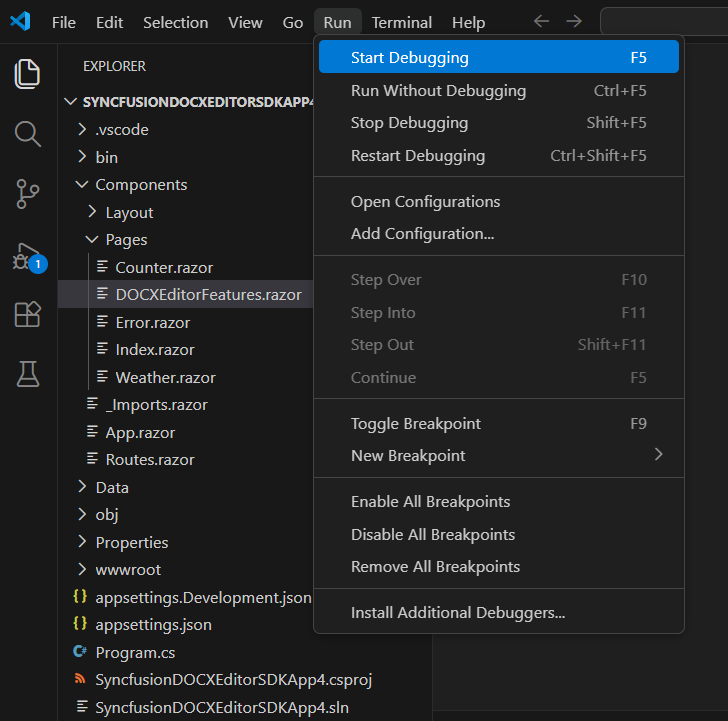

6. You can run the application to see the Syncfusion® component. Click F5 or go to Run>Start Debugging.



7. The Syncfusion® DOCX Editor SDK application configures with most recent Syncfusion® DOCX Editor SDK NuGet packages version, selected style, namespaces, selected authentication, and component render code for Syncfusion® component.

8. If you installed the trial setup or NuGet packages from nuget.org you must register the Syncfusion® license key to your application since Syncfusion® introduced the licensing system from 2018 Volume 2 (v16.2.0.41) Essential Studio® release. Navigate to the help topic to generate and register the Syncfusion® license key to your application. Refer to this UG topic for understanding the licensing details in Essential Studio® for DOCX Editor SDK.

Syncfusion® integration

The Syncfusion® DOCX Editor SDK application configures with latest Syncfusion® DOCX Editor SDK NuGet packages, styles, namespaces, and component render code for Syncfusion® DOCX Editor SDK component are added in the created application.

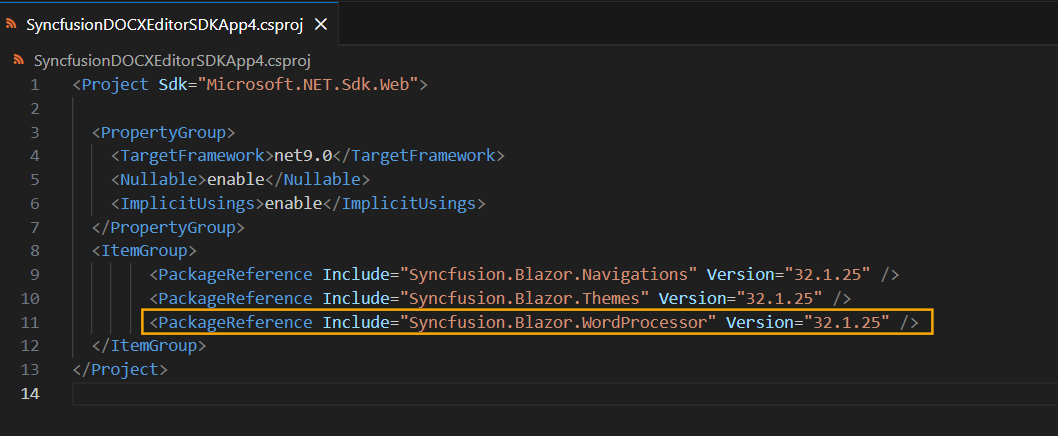

NuGet Packages

The NuGet package will be added as NuGet references for all application types.

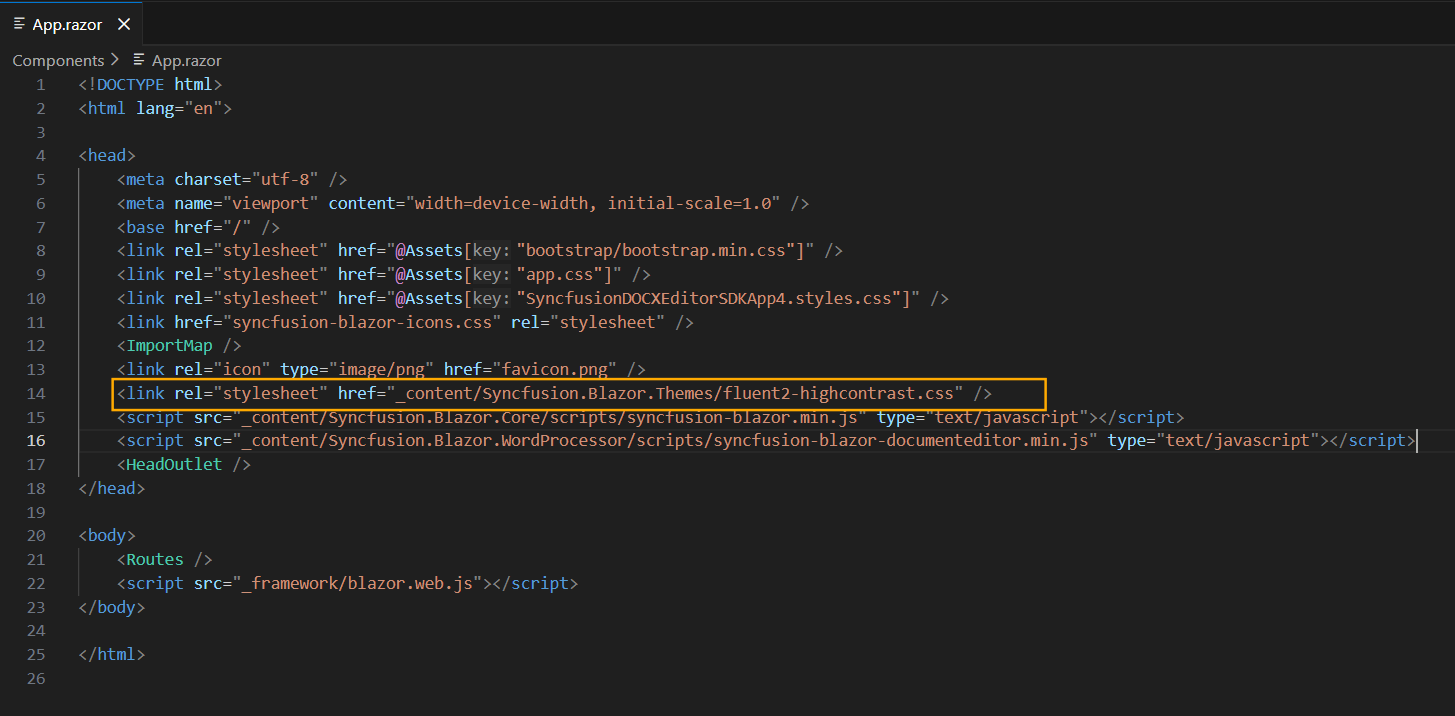

Style

The selected theme is added from Syncfusion® NuGet and its reference at these locations in DOCX Editor SDK application.

Application type	File location
Syncfusion DOCX Editor SDK Web App	~/Components/App.razor
Syncfusion DOCX Editor SDK WebAssembly App (Progressive Web Application)	{Client Project location}/wwwroot/index.html
Syncfusion DOCX Editor SDK WebAssembly App	{Project location}/wwwroot/index.html

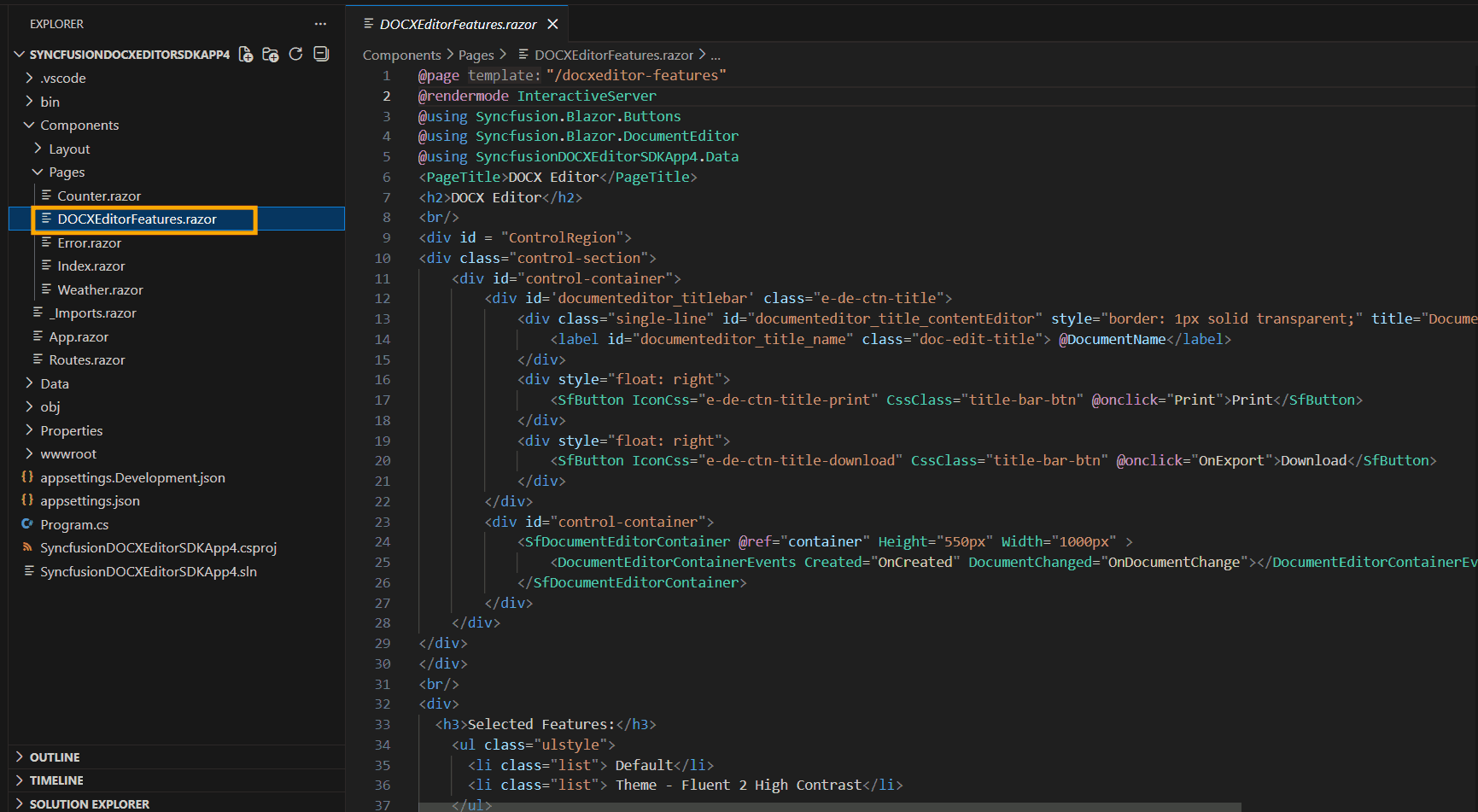

Component render code

The Syncfusion® DOCX Editor SDK component render code is in the Razor files in the pages folder. The render code is updated in these Razor files.
