Core in React Document editor component

17 Jun 202624 minutes to read

DocumentEditor depends on server side interaction for below listed operations can be written in ASP.NET Core using Syncfusion.EJ2.WordEditor.AspNet.Core.

• Import Word Document
• Paste with formatting
• Restrict Editing
• Spell Check
• Save as file formats other than SFDT and DOCX

Note: Syncfusion^® provides a predefined Word Processor server docker image targeting ASP.NET Core 2.1 framework. You can directly pull this docker image and deploy it in server on the go. You can also create own docker image by customizing the existing docker project from GitHub. To know more, refer this link.Word Processor Server Docker Image Overview

This section explains how to create the service for DocumentEditor in ASP.NET Core.

Importing Word Document

As the Document editor client-side script requires the document in SFDT file format, you can convert the Word documents (.dotx,.docx,.docm,.dot,.doc), rich text format documents (.rtf), and text documents (.txt) into SFDT format by using this Web API.

The following example code illustrates how to write a Web API for importing Word documents into Document Editor component.

    [AcceptVerbs("Post")]
    [HttpPost]
    [EnableCors("AllowAllOrigins")]
    [Route("Import")]
    public string Import(IFormCollection data)
    {
        if (data.Files.Count == 0)
            return null;
        Stream stream = new MemoryStream();
        IFormFile file = data.Files[0];
        int index = file.FileName.LastIndexOf('.');
        string type = index > -1 && index < file.FileName.Length - 1 ?
            file.FileName.Substring(index) : ".docx";
        file.CopyTo(stream);
        stream.Position = 0;

        WordDocument document = WordDocument.Load(stream, GetFormatType(type.ToLower()));
        string json = Newtonsoft.Json.JsonConvert.SerializeObject(document);
        document.Dispose();
        return json;
    }

Import document with TIFF, EMF and WMF images

The web browsers do not support to display metafile images like EMF and WMF and also TIFF format images. As a fallback approach, you can convert the metafile/TIFF format image to raster image using any image converter in the MetafileImageParsed event and this fallback raster image will be displayed in the client-side Document editor component.

Note: In MetafileImageParsedEventArgs event argument, you can get the metafile stream using MetafileStream property and you can get the IsMetafile boolean value to determine whether the image is meta file images(WMF,EMF) or TIFF format images. In below example, we have converted the TIFF to raster image in ConvertTiffToRasterImage() method using Bitmiracle https://www.nuget.org/packages/BitMiracle.LibTiff.NET.

The following example code illustrates how to use MetafileImageParsed event for creating fallback raster image for metafile present in a Word document.

    using SkiaSharp;
    using BitMiracle.LibTiff.Classic;

    public string Import(IFormCollection data)
    {
        if (data.Files.Count == 0)
            return null;
        Stream stream = new MemoryStream();
        IFormFile file = data.Files[0];
        int index = file.FileName.LastIndexOf('.');
        string type = index > -1 && index < file.FileName.Length - 1 ?
            file.FileName.Substring(index) : ".docx";
        file.CopyTo(stream);
        stream.Position = 0;

        //Hooks MetafileImageParsed event.
        WordDocument.MetafileImageParsed += OnMetafileImageParsed;
        //Converts Stream DOM to SFDT DOM.
        WordDocument document = WordDocument.Load(stream, GetFormatType(type.ToLower()));
        //Unhooks MetafileImageParsed event.
        WordDocument.MetafileImageParsed -= OnMetafileImageParsed;
        //Serializes SFDT DOM to SFDT string.
        string json = Newtonsoft.Json.JsonConvert.SerializeObject(document);
        document.Dispose();
        return json;
    }

    //Converts Metafile to raster image.
    private static void OnMetafileImageParsed(object sender, MetafileImageParsedEventArgs args)
    {
        if (args.IsMetafile)
        {
            //MetaFile image conversion(EMF and WMF)
            //You can write your own method definition for converting metafile to raster image using any third-party image converter.
            args.ImageStream = ConvertMetafileToRasterImage(args.MetafileStream);
        }
        else
        {
            //TIFF image conversion
            args.ImageStream = ConvertTiffToRasterImage(args.MetafileStream);
        }
    }

    // Converting Tiff to Png image using Bitmiracle https://www.nuget.org/packages/BitMiracle.LibTiff.NET
    private static MemoryStream ConvertTiffToRasterImage(Stream tiffStream)
    {
        MemoryStream imageStream = new MemoryStream();
        using (Tiff tif = Tiff.ClientOpen("in-memory", "r", tiffStream, new TiffStream()))
        {
        // Find the width and height of the image
        FieldValue[] value = tif.GetField(BitMiracle.LibTiff.Classic.TiffTag.IMAGEWIDTH);
        int width = value[0].ToInt();

        value = tif.GetField(BitMiracle.LibTiff.Classic.TiffTag.IMAGELENGTH);
        int height = value[0].ToInt();

        // Read the image into the memory buffer
        int[] raster = new int[height * width];
        if (!tif.ReadRGBAImage(width, height, raster))
        {
            throw new Exception("Could not read image");
        }

        // Create a bitmap image using SkiaSharp.
        using (SKBitmap sKBitmap = new SKBitmap(width, height, SKImageInfo.PlatformColorType, SKAlphaType.Premul))
        {
            // Convert a RGBA value to byte array.
            byte[] bitmapData = new byte[sKBitmap.RowBytes * sKBitmap.Height];
            for (int y = 0; y < sKBitmap.Height; y++)
            {
            int rasterOffset = y * sKBitmap.Width;
            int bitsOffset = (sKBitmap.Height - y - 1) * sKBitmap.RowBytes;

            for (int x = 0; x < sKBitmap.Width; x++)
            {
                int rgba = raster[rasterOffset++];
                bitmapData[bitsOffset++] = (byte)((rgba >> 16) & 0xff);
                bitmapData[bitsOffset++] = (byte)((rgba >> 8) & 0xff);
                bitmapData[bitsOffset++] = (byte)(rgba & 0xff);
                bitmapData[bitsOffset++] = (byte)((rgba >> 24) & 0xff);
            }
            }

            // Convert a byte array to SKColor array.
            SKColor[] sKColor = new SKColor[bitmapData.Length / 4];
            int index = 0;
            for (int i = 0; i < bitmapData.Length; i++)
            {
            sKColor[index] = new SKColor(bitmapData[i + 2], bitmapData[i + 1], bitmapData[i], bitmapData[i + 3]);
            i += 3;
            index += 1;
            }

            // Set the SKColor array to SKBitmap.
            sKBitmap.Pixels = sKColor;

            // Save the SKBitmap to PNG image stream.
            sKBitmap.Encode(SKEncodedImageFormat.Png, 100).SaveTo(imageStream);
            imageStream.Flush();
        }
        }
        return imageStream;
    }

Paste with formatting

This Web API converts the system clipboard data (HTML/RTF) to SFDT format which is required to paste content with formatting.

The following example code illustrates how to write a Web API for paste with formatting.

    [AcceptVerbs("Post")]
    [HttpPost]
    [EnableCors("AllowAllOrigins")]
    [Route("SystemClipboard")]
    public string SystemClipboard([FromBody]CustomParameter param)
    {
        if (param.content != null && param.content != "")
        {
            try
            {
                //Hooks MetafileImageParsed event.
                WordDocument.MetafileImageParsed += OnMetafileImageParsed;
                WordDocument document = WordDocument.LoadString(param.content, GetFormatType(param.type.ToLower()));
                //Unhooks MetafileImageParsed event.
                WordDocument.MetafileImageParsed -= OnMetafileImageParsed;
                string json = Newtonsoft.Json.JsonConvert.SerializeObject(document);
                document.Dispose();
                return json;
            }
            catch (Exception)
            {
                return "";
            }
        }
        return "";
    }

    public class CustomParameter
    {
        public string content { get; set; }
        public string type { get; set; }
    }

    //Converts Metafile to raster image.
    private static void OnMetafileImageParsed(object sender, MetafileImageParsedEventArgs args)
    {
    //You can write your own method definition for converting metafile to raster image using any third-party image converter.
    args.ImageStream = ConvertMetafileToRasterImage(args.MetafileStream);
    }

Note: The web browsers do not support to display metafile images like EMF and WMF. As a fallback approach, you can convert the metafile to raster image using any image converter in the MetafileImageParsed event and this fallback raster image will be displayed in the client-side Document editor component.

Restrict editing

This Web API generates hash from the specified password and salt value which is required for restrict editing functionality of Document Editor component.

The following example code illustrates how to write a Web API for restrict editing.

    [AcceptVerbs("Post")]
    [HttpPost]
    [EnableCors("AllowAllOrigins")]
    [Route("RestrictEditing")]
    public string[] RestrictEditing([FromBody] CustomRestrictParameter param)
    {
        if (param.passwordBase64 == "" || param.passwordBase64 == null)
            return null;
        return WordDocument.ComputeHash(param.passwordBase64, param.saltBase64, param.spinCount, param.algorithmSid);
    }
    public class CustomRestrictParameter
    {
        public string passwordBase64 { get; set; }
        public string saltBase64 { get; set; }
        public int spinCount { get; set; }
        public string algorithmSid { get; set; }
    }

Spell Check

Document Editor supports spell checking for input text. It identifies misspelled words and provides suggestions through a dialog and the context menu. The Document Editor client-side script requires this Web API to display error words and suggestions. This Web API returns a JSON response containing details about misspelled words and their suggestions.

Dictionary setup

The Document Editor performs spell checking using Hunspell dictionary files. These dictionaries can be obtained from their respective sources.

To set up spell checking, place the required dictionary files, including the .dic, .aff, and JSON configuration file, inside the App_Data folder in your project. To support a personal dictionary, place an empty .dic file in the same App_Data folder.

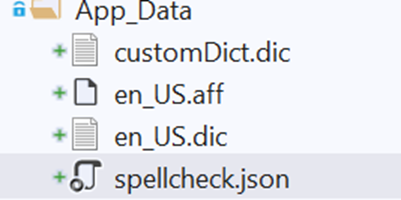

Refer to the following screenshot for the folder structure.

The JSON file should contain the configuration details in the following format:

C#

[
  {
    "LanguadeID": 1033,
    "DictionaryPath": "en_US.dic",
    "AffixPath": "en_US.aff",
    "PersonalDictPath": "customDict.dic"
  }
]

Configure spell check service

• Add the Syncfusion.EJ2.SpellChecker.AspNet.Core NuGet package to your project.

• In the Startup.cs file, configure the spell check files as shown below:

C#

public Startup(IConfiguration configuration, IWebHostEnvironment env)
{
    var builder = new ConfigurationBuilder()
        .SetBasePath(env.ContentRootPath)
        .AddJsonFile("appsettings.json", optional: true, reloadOnChange: true)
        .AddJsonFile($"appsettings.{env.EnvironmentName}.json", optional: true)
        .AddEnvironmentVariables();

    Configuration = builder.Build();

    path = Configuration["SPELLCHECK_DICTIONARY_PATH"];
    string jsonFileName = Configuration["SPELLCHECK_JSON_FILENAME"];
    //check the spell check dictionary path environment variable value and assign default data folder
    //if it is null.
    path = string.IsNullOrEmpty(path) ? Path.Combine(env.ContentRootPath, "App_Data") : Path.Combine(env.ContentRootPath, path);
    //Set the default spellcheck.json file if the json filename is empty.
    jsonFileName = string.IsNullOrEmpty(jsonFileName) ? Path.Combine(path, "spellcheck.json") : Path.Combine(path, jsonFileName);
    if (File.Exists(jsonFileName))
    {
        string jsonImport = File.ReadAllText(jsonFileName);
        List<DictionaryData> spellChecks = JsonConvert.DeserializeObject<List<DictionaryData>>(jsonImport);
        List<DictionaryData> spellDictCollection = new List<DictionaryData>();
        string personalDictPath = null;
        //construct the dictionary file path using customer provided path and dictionary name
        if (spellChecks != null)
        {
            foreach (var spellCheck in spellChecks)
            {
                spellDictCollection.Add(new DictionaryData(spellCheck.LanguadeID, Path.Combine(path, spellCheck.DictionaryPath), Path.Combine(path, spellCheck.AffixPath)));
                personalDictPath = Path.Combine(path, spellCheck.PersonalDictPath);
            }
        }
        SpellChecker.InitializeDictionaries(spellDictCollection, personalDictPath, 3);
    }
}

Web API for word-by-word spell check

This Web API performs spell checking word by word and returns a JSON response containing information about error words and suggestions, if any. By default, word-by-word spell checking is performed in the Document Editor when spell check is enabled on the client side.

The following example code illustrates how to write a Web API for word-by-word spell checking.

C#

[AcceptVerbs("Post")]
[HttpPost]
[EnableCors("AllowAllOrigins")]
[Route("SpellCheck")]
public string SpellCheck([FromBody] SpellCheckJsonData spellChecker)
{
    try
    {
        SpellChecker spellCheck = new SpellChecker();
        spellCheck.GetSuggestions(spellChecker.LanguageID, spellChecker.TexttoCheck, spellChecker.CheckSpelling, spellChecker.CheckSuggestion, spellChecker.AddWord);
        return Newtonsoft.Json.JsonConvert.SerializeObject(spellCheck);
    }
    catch
    {
        return "{\"SpellCollection\":[],\"HasSpellingError\":false,\"Suggestions\":null}";
    }
}
public class SpellCheckJsonData
{
    public int LanguageID { get; set; }
    public string TexttoCheck { get; set; }
    public bool CheckSpelling { get; set; }
    public bool CheckSuggestion { get; set; }
    public bool AddWord { get; set; }
}

Web API for page-by-page spell check

This Web API performs spell checking page by page and returns a JSON response containing information about error words and suggestions, if any. By enabling optimized spell check on the client side, you can perform page-by-page spell checking when loading documents.

The following example code illustrates how to write a Web API for page-by-page spell checking.

C#

[AcceptVerbs("Post")]
[HttpPost]
[EnableCors("AllowAllOrigins")]
[Route("SpellCheckByPage")]
public string SpellCheckByPage([FromBody] SpellCheckJsonData spellChecker)
{
    try
    {
        SpellChecker spellCheck = new SpellChecker();
        spellCheck.CheckSpelling(spellChecker.LanguageID, spellChecker.TexttoCheck);
        return Newtonsoft.Json.JsonConvert.SerializeObject(spellCheck);
    }
    catch
    {
        return "{\"SpellCollection\":[],\"HasSpellingError\":false,\"Suggestions\":null}";
    }
}

public class SpellCheckJsonData
{
    public int LanguageID { get; set; }
    public string TexttoCheck { get; set; }
    public bool CheckSpelling { get; set; }
    public bool CheckSuggestion { get; set; }
    public bool AddWord { get; set; }
}

N You can find the GitHub Web Service example then configure the dictionary set up to make use for spell check or use the Docker image to host your own web service.

Save as file formats other than SFDT and DOCX

You can configure this API, if you want to save the document in file format other than DOCX and SFDT using server-side. You can save the document in following ways:

Save the document in database or file server

This Web API saves the document in the server machine. You can customize this API to save the document into databases or file servers.

The following example code illustrates how to write a Web API for save document in server-side.

    [AcceptVerbs("Post")]
    [HttpPost]
    [EnableCors("AllowAllOrigins")]
    [Route("Save")]
    public void Save([FromBody] SaveParameter data)
    {
        string name = data.FileName;
        string format = RetrieveFileType(name);
        if (string.IsNullOrEmpty(name))
        {
            name = "Document1.doc";
        }
        WDocument document = WordDocument.Save(data.Content);
        // Saves the document to server machine file system, you can customize here to save into databases or file servers based on requirement.
        FileStream fileStream = new FileStream(name, FileMode.OpenOrCreate, FileAccess.ReadWrite);
        document.Save(fileStream, GetWFormatType(format));
        document.Close();
        fileStream.Close();
    }

    public class SaveParameter
    {
        public string Content { get; set; }
        public string FileName { get; set; }
    }

Save as other file formats by passing SFDT string

This Web API converts the SFDT string to required format and returns the document as FileStreamResult to client-side. Using this API, you can save the document in file format other than SFDT and DOCX and download the document in client browser.

The following example code illustrates how to write a Web API for export sfdt.

    [AcceptVerbs("Post")]
    [HttpPost]
    [EnableCors("AllowAllOrigins")]
    [Route("ExportSFDT")]
    public FileStreamResult ExportSFDT([FromBody] SaveParameter data)
    {
        string name = data.FileName;
        string format = RetrieveFileType(name);
        if (string.IsNullOrEmpty(name))
        {
            name = "Document1.doc";
        }
        WDocument document = WordDocument.Save(data.Content);
        return SaveDocument(document, format, name);
    }

    public class SaveParameter
    {
        public string Content { get; set; }
        public string FileName { get; set; }
    }

        private FileStreamResult SaveDocument(WDocument document, string format, string fileName)
    {
        Stream stream = new MemoryStream();
        string contentType = "";
        if (format == ".pdf")
        {
            contentType = "application/pdf";
        }
        else
        {
            WFormatType type = GetWFormatType(format);
            switch (type)
            {
                case WFormatType.Rtf:
                    contentType = "application/rtf";
                    break;
                case WFormatType.WordML:
                    contentType = "application/xml";
                    break;
                case WFormatType.Html:
                    contentType = "application/html";
                    break;
                case WFormatType.Dotx:
                    contentType = "application/vnd.openxmlformats-officedocument.wordprocessingml.template";
                    break;
                case WFormatType.Doc:
                    contentType = "application/msword";
                    break;
                case WFormatType.Dot:
                    contentType = "application/msword";
                    break;
            }
            document.Save(stream, type);
        }
        document.Close();
        stream.Position = 0;
        return new FileStreamResult(stream, contentType)
        {
            FileDownloadName = fileName
        };
    }

Save as other file formats by passing DOCX file

This Web API converts the DOCX document to required format and returns the document as FileStreamResult to client-side. Using this API, you can save the document in file format other than SFDT and DOCX and download the document in client browser.

The following example code illustrates how to write a Web API for export.

    [AcceptVerbs("Post")]
    [HttpPost]
    [EnableCors("AllowAllOrigins")]
    [Route("Export")]
    public FileStreamResult Export(IFormCollection data)
    {
        if (data.Files.Count == 0)
            return null;
        string fileName = this.GetValue(data, "filename");
        string name = fileName;
        string format = RetrieveFileType(name);
        if (string.IsNullOrEmpty(name))
        {
            name = "Document1";
        }
        WDocument document = this.GetDocument(data);
        return SaveDocument(document, format, fileName);
    }

    private string RetrieveFileType(string name)
    {
        int index = name.LastIndexOf('.');
        string format = index > -1 && index < name.Length - 1 ?
            name.Substring(index) : ".doc";
        return format;
    }

    private string GetValue(IFormCollection data, string key)
    {
        if (data.ContainsKey(key))
        {
            string[] values = data[key];
            if (values.Length > 0)
            {
                return values[0];
            }
        }
        return "";
    }

NView ASP.NET Core Web API sample in GitHub.
