Convert Word document to Image in WPF

27 Feb 20258 minutes to read

Syncfusion^® DocIO is a .NET Word library used to create, read, edit, and convert Word documents programmatically without Microsoft Word or interop dependencies. Using this library, you can convert a Word document to image in WPF.

Steps to convert Word document to Image in WPF

• Visual Studio
• JetBrains Rider

Prerequisites:

• Visual Studio 2022.
• Install .NET desktop development workload with necessary .NET Framework SDK.

Step 1: Create a new WPF application project.

Step 2: Install the Syncfusion.DocIO.Wpf NuGet package as a reference to your WPF application from NuGet.org.

NOTE

Starting with v16.2.0.x, if you reference Syncfusion^® assemblies from trial setup or from the NuGet feed, you also have to add “Syncfusion.Licensing” assembly reference and include a license key in your projects. Please refer to this link to know about registering Syncfusion^® license key in your application to use our components.

Step 3: Include the following namespaces in the MainWindow.xaml.cs file.

C#

using Syncfusion.DocIO;
using Syncfusion.DocIO.DLS;

Step 4: Add a new button in MainWindow.xaml to convert Word document to image file as follows.

C#

<Button Click="btnConvert_Click" VerticalAlignment="Center" Height="30" BorderBrush="LightBlue" HorizontalAlignment="Center" Width="150">
    <Button.Background>
        <LinearGradientBrush EndPoint="0.5,-0.04" StartPoint="0.5,1.04">
            <GradientStop Color="#FFD9E9F7" Offset="0"/>
            <GradientStop Color="#FFEFF8FF" Offset="1"/>
        </LinearGradientBrush>
    </Button.Background>
    <StackPanel Orientation="Horizontal" Height="23" Margin="0,0,0,-2.52" VerticalAlignment="Bottom" HorizontalAlignment="Right" Width="100" RenderTransformOrigin="0.5,0.5">
        <StackPanel.RenderTransform>
            <TransformGroup>
                <ScaleTransform/>
                <SkewTransform/>
                <RotateTransform Angle="-0.226"/>
                <TranslateTransform/>
            </TransformGroup>
        </StackPanel.RenderTransform>
    <Image Name="image2" Margin="2" HorizontalAlignment="Center" VerticalAlignment="Center" />
    <TextBlock Text="Word to Image" Height="38" Width="187" Margin="0,4,0,3" TextWrapping="WrapWithOverflow" />
</StackPanel>
</Button>

Step 5: Add the following code in btnConvert_Click to convert Word document to image with simple text.

C#

using (WordDocument document = new WordDocument("Input.docx", FormatType.Docx))
{
    //Convert the first page of the Word document into an image.
    System.Drawing.Image image = document.RenderAsImages(0, ImageType.Bitmap);
    //Save the image as jpeg.
    image.Save("WordToImage.Jpeg", ImageFormat.Jpeg);
}

Step 6: Build the project.

Click on Build → Build Solution or press Ctrl+Shift+B to build the project.

Step 7: Run the project.

Click the Start button (green arrow) or press F5 to run the app.

You can download a complete working sample from GitHub.

By executing the program, you will get the image as follows.

Prerequisites:

• JetBrains Rider.
• Install .NET Framework Developer Pack.

Step 1. Open JetBrains Rider and create a new WPF application project.

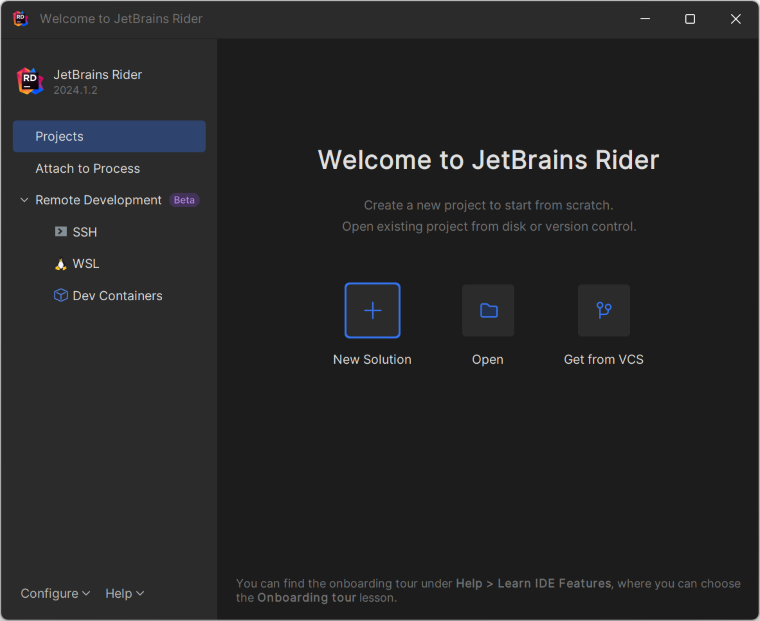

• Launch JetBrains Rider.
• Click New Solution on the welcome screen.

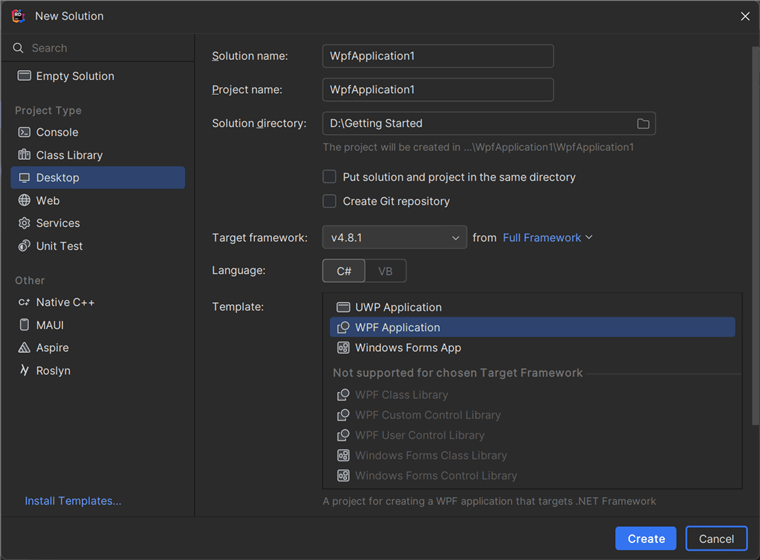

• In the New Solution dialog, select Project Type as Desktop.
• Enter a project name and specify the location.
• Select the target framework as Full Framework and choose the desired version.
• Select Template as WPF Application.
• Click create.

Step 2: Install the NuGet package from NuGet.org.

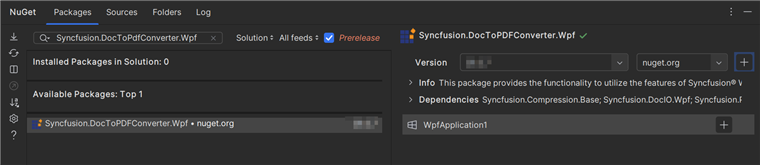

• Click the NuGet icon in the Rider toolbar and type Syncfusion.DocToPdfConverter.Wpf in the search bar.
• Ensure that nuget.org is selected as the package source.
• Select the latest Syncfusion.DocToPdfConverter.Wpf NuGet package from the list.
• Click the + (Add) button to add the package.

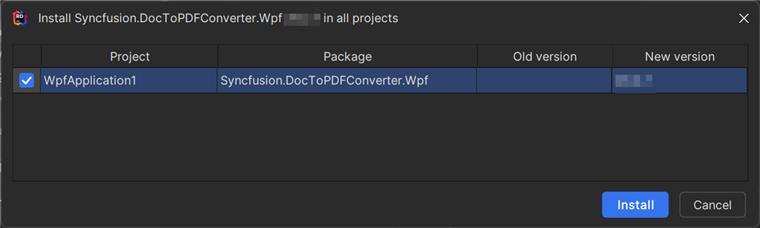

• Click the Install button to complete the installation.

NOTE

Starting with v16.2.0.x, if you reference Syncfusion assemblies from trial setup or from the NuGet feed, you also have to add “Syncfusion.Licensing” assembly reference and include a license key in your projects. Please refer to this link to know about registering Syncfusion license key in your application to use our components.

Step 3: Include the following namespaces in the MainWindow.xaml.cs file.

C#

using Syncfusion.DocIO;
using Syncfusion.DocIO.DLS;

Step 4: Add a new button in MainWindow.xaml to convert Word document to image file as follows.

C#

<Button Click="btnConvert_Click" VerticalAlignment="Center" Height="30" BorderBrush="LightBlue" HorizontalAlignment="Center" Width="150">
    <Button.Background>
        <LinearGradientBrush EndPoint="0.5,-0.04" StartPoint="0.5,1.04">
            <GradientStop Color="#FFD9E9F7" Offset="0"/>
            <GradientStop Color="#FFEFF8FF" Offset="1"/>
        </LinearGradientBrush>
    </Button.Background>
    <StackPanel Orientation="Horizontal" Height="23" Margin="0,0,0,-2.52" VerticalAlignment="Bottom" HorizontalAlignment="Right" Width="100" RenderTransformOrigin="0.5,0.5">
        <StackPanel.RenderTransform>
            <TransformGroup>
                <ScaleTransform/>
                <SkewTransform/>
                <RotateTransform Angle="-0.226"/>
                <TranslateTransform/>
            </TransformGroup>
        </StackPanel.RenderTransform>
    <Image Name="image2" Margin="2" HorizontalAlignment="Center" VerticalAlignment="Center" />
    <TextBlock Text="Word to Image" Height="38" Width="187" Margin="0,4,0,3" TextWrapping="WrapWithOverflow" />
</StackPanel>
</Button>

Step 5: Add the following code in btnConvert_Click to convert Word document to image with simple text.

C#

using (WordDocument document = new WordDocument("Input.docx", FormatType.Docx))
{
    //Convert the first page of the Word document into an image.
    System.Drawing.Image image = document.RenderAsImages(0, ImageType.Bitmap);
    //Save the image as jpeg.
    image.Save("WordToImage.Jpeg", ImageFormat.Jpeg);
}

Step 6: Build the project.

Click the Build button in the toolbar or press Ctrl+Shift+B to build the project.

Step 7: Run the project.

Click the Run button (green arrow) in the toolbar or press F5 to run the app.

You can download a complete working sample from GitHub.

By executing the program, you will get the image as follows.

Click here to explore the rich set of Syncfusion^® Word library (DocIO) features.

An online sample link to convert Word document to image in ASP.NET Core.
