Authentication Configuration

9 May 20255 minutes to read

The document processing engine uses JSON Web Token (JWT) format for authentication. By default, this authentication is disabled. You can enable it using the following environment variables:

environment:
  - ENABLE_JWT_SECURITY=true
  - JWT_PUBLIC_KEY={JWT public key here}

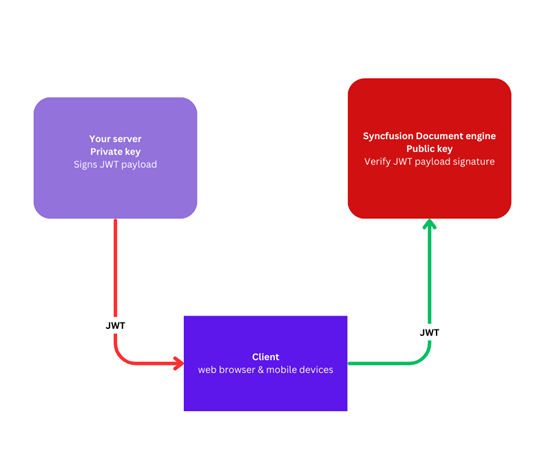

Authentication Workflow

Your backend generates a signed JWT token and sends it to the client application, which utilizes the document processing engine. The token is then validated using the public key provided in the document processing engine’s environment.

Authenctication Workflow

Generate JWT

JSON Web Tokens (JWTs) used for authentication by the Syncfusion Document Processing Engine can be generated with one of the many open-source libraries listed on JSON Web Token Libraries - jwt.io. The following example shows how to create a JWT in C#.

1. Create a key via ssh-keygen:

ssh-keygen -t rsa -b 4096 -f jwtRS256.key
# Enter your passphrase.

# Get the public key in PEM format:
openssl rsa -in jwtRS256.key -pubout -outform PEM -out jwtRS256_pub.pem

# If the above command fails because newer versions of `ssh-keygen` output a different format,
# convert the key to PEM like this and then repeat the `openssl` command.
ssh-keygen -p -m PEM -t rsa -b 4096 -f jwtRS256.key
openssl rsa -in jwtRS256.key -pubout -outform PEM -out jwtRS256_pub.pem

The private key (jwtRS256.key) is used to sign the tokens issued to clients. The public key (jwtRS256_pub.pem) must be added as JWT_PUBLIC_KEY in the document processing engine’s configuration. This allows the server to validate token signatures without the ability to create valid signatures itself.

Example public key (jwtRS256_pub.pem):

NOTE

The public key provided in the example code above is for demonstration purposes only. It is recommended to generate your own RSA key pair and use your own public key in the configuration. To generate your keys, follow the steps provided in the documentation on creating a key via ssh-keygen.

2. Install the System.IdentityModel.Tokens.Jwt NuGet package:

 Install-Package System.IdentityModel.Tokens.Jwt

3. Read the private key so that it can be used to sign JWTs:

C#
string privateKey = File.ReadAllText("jwtRS256.key");
RSA rsa = RSA.Create();
rsa.ImportFromPem(privateKey);
var tokenHandler = new JwtSecurityTokenHandler();
var tokenDescriptor = new SecurityTokenDescriptor
{
    Issuer = "sample",
    Audience = "audience",
    Expires = DateTime.UtcNow.AddMinutes(30),
    SigningCredentials = new SigningCredentials(new RsaSecurityKey(rsa), SecurityAlgorithms.RsaSha512)
};

// Generate token

var token = tokenHandler.CreateToken(tokenDescriptor);

return tokenHandler.WriteToken(token);

Note:
Ensure that the jwtRS256.key file is present in the appropriate location. This file contains the private key used to sign the JWTs issued to clients. Without this key, the tokens cannot be signed correctly.

If you have not already generated this key, please refer to the steps provided in the documentation on generating the key using ssh-keygen and openssl. Make sure to follow these steps to create both the private key (jwtRS256.key) and the corresponding public key (jwtRS256_pub.pem). The public key must be added to the document processing engine’s configuration to enable token signature validation.

You can download a complete sample from GitHub.

Validate a JWT

To validate a request with a JWT token, include the token in the request header as follows. The Syncfusion Document Processing Engine will validate the token and proceed to process the request. If validation fails, it will return an unauthorized exception.

C#
var client = new HttpClient();
var request = new HttpRequestMessage(HttpMethod.Post, "http://localhost:8003/v1/conversion/word-to-pdf");
request.Headers.Add("Authentication", "Bearer eyJhbGciOiJSUzUxMiIsInR5cCI6IkpXVCJ9.eyJuYmYiOjE3MTc1ODI1NTksImV4cCI6MTcxNzU4NDM1OSwiaWF0IjoxNzE3NTgyNTU5LCJpc3MiOiJzYW1wbGUiLCJhdWQiOiJhdWRpZW5jZSJ9.TeXSdh1Vz98kpUeXW41DFgN8J18INObi8v9Eelu-n1Xsqq6MdJXTB4EH2iks8qlfXMC5aFCIaHOagTsLC4DrSwD2XFAIoT-tsxovZucf-HPO8pd-vT7x-YhZGftKUmi87XDD-tj2eiN5trtXQkpP70HGlyx7oIX1B1P1VnW17VyiO2PEEMQFDlzFy3MDsihZPzSTpXEokX9PxDEGSwhJDwylIG11L_jQWCh2OFOkhGHzs-4zWsrhN6nIw6xliZCcG2ZiRPAU_VbqwqMd5LYwJmupdteO2f-1qMXCH8a7WPSEWSld48D0h1NMMm8l2as0yD4xskV8vXvjGTy7nSB8tFAbvOech4hq4iwrjE09qA57zGUeJwGUg3yp6GvJLVhEGoeKagCSou-tQSA3vRjhRK8fMjUiZwMhaPmfxU_oErdnrBWCoomlmghgXZr5176vopfS6T-sLo-ZrISBne0Pj9Mj30pcskuyxnWBydmRvKOv_T9gYh29Vq-CTT-rMtj2a-f-V10ax-dzlqOjdhNDoHVbx8Ei3ZmRIDWsn9dsrhYCpS-F2XT9O4Unik5CoTD0qPDjIVBpEOfEA9Gf8E9XblEDptfH-T8TOybp06_aXWTJfrIhTdbRIkzIN2oyUaNMEWStj8HauorCmz1BkGQXdz3iVdlqQulFSg2e1cSYnYw");
var content = new MultipartFormDataContent();
content.Add(new StreamContent(File.OpenRead("SalesInvoice.docx")), "file", "SalesInvoice.docx");
content.Add(new StringContent("{
  \"File\": \"file\",
  \"Password\": null,
  \"PreserveFormFields\": true,
  \"PdfComplaince\": \"PDF/A-1B\",
  \"EnableAccessibility\": false
}"), "settings");
request.Content = content;
var response = await client.SendAsync(request);
response.EnsureSuccessStatusCode();
Console.WriteLine(await response.Content.ReadAsStringAsync());

NOTE

The bearer token used in the example above is for demonstration purposes. It is recommended to generate your own JWT using the private key. To generate a JWT, refer to the steps provided in the documentation on how to create a JWT using your private key.
