Create, read and edit a PowerPoint file on Linux
24 Feb 202510 minutes to read
You can create or edit a PowerPoint file in .NET Core on Linux using Syncfusion® PowerPoint library. The below are the steps.
Create a PowerPoint file in .NET Core Console application project on Linux
Prerequisites:
- Visual Studio 2022.
- Install .NET 8 SDK or later.
Step 1: Execute the following command in Linux terminal to create a new .NET Core Console application.
dotnet new console
Step 2: Install the Syncfusion.Presentation.Net.Core NuGet package as a reference to your project from NuGet.org by execute the following command.
dotnet add package Syncfusion.Presentation.Net.Core -v 17.4.0.39 -s https://www.nuget.org/
NOTE
Starting with v16.2.0.x, if you reference Syncfusion assemblies from trial setup or from the NuGet feed, you also have to add “Syncfusion.Licensing” assembly reference and include a license key in your projects. Please refer to this link to know about registering Syncfusion license key in your application to use our components.
Step 3: Add the following Namespaces in Program.cs file.
using Syncfusion.Presentation;
using System.IO;Step 4: Add the following code snippet in Program.cs file.
//Create a new instance of PowerPoint Presentation file
IPresentation pptxDoc = Presentation.Create();
//Add a new slide to file and apply background color
ISlide slide = pptxDoc.Slides.Add(SlideLayoutType.TitleOnly);
//Specify the fill type and fill color for the slide background
slide.Background.Fill.FillType = FillType.Solid;
slide.Background.Fill.SolidFill.Color = ColorObject.FromArgb(232, 241, 229);
//Add title content to the slide by accessing the title placeholder of the TitleOnly layout-slide
IShape titleShape = slide.Shapes[0] as IShape;
titleShape.TextBody.AddParagraph("Company History").HorizontalAlignment = HorizontalAlignmentType.Center;
//Add description content to the slide by adding a new TextBox
IShape descriptionShape = slide.AddTextBox(53.22, 141.73, 874.19, 77.70);
descriptionShape.TextBody.Text = "IMN Solutions PVT LTD is the software company, established in 1987, by George Milton. The company has been listed as the trusted partner for many high-profile organizations since 1988 and got awards for quality products from reputed organizations.";
//Add bullet points to the slide
IShape bulletPointsShape = slide.AddTextBox(53.22, 270, 437.90, 116.32);
//Add a paragraph for a bullet point
IParagraph firstPara = bulletPointsShape.TextBody.AddParagraph("The company acquired the MCY corporation for 20 billion dollars and became the top revenue maker for the year 2015.");
//Format how the bullets should be displayed
firstPara.ListFormat.Type = ListType.Bulleted;
firstPara.LeftIndent = 35;
firstPara.FirstLineIndent = -35;
// Add another paragraph for the next bullet point
IParagraph secondPara = bulletPointsShape.TextBody.AddParagraph("The company is participating in top open source projects in automation industry.");
//Format how the bullets should be displayed
secondPara.ListFormat.Type = ListType.Bulleted;
secondPara.LeftIndent = 35;
secondPara.FirstLineIndent = -35;
//Gets a picture as stream.
FileStream pictureStream = new FileStream("Image.jpg", FileMode.Open);
//Adds the picture to a slide by specifying its size and position.
slide.Shapes.AddPicture(pictureStream, 499.79, 238.59, 364.54, 192.16);
//Add an auto-shape to the slide
IShape stampShape = slide.Shapes.AddShape(AutoShapeType.Explosion1, 48.93, 430.71, 104.13, 80.54);
//Format the auto-shape color by setting the fill type and text
stampShape.Fill.FillType = FillType.None;
stampShape.TextBody.AddParagraph("IMN").HorizontalAlignment = HorizontalAlignmentType.Center;
//Save the PowerPoint Presentation as stream
FileStream outputStream = new FileStream("Sample.pptx", FileMode.Create);
pptxDoc.Save(outputStream);
//Release all resources from stream
outputStream.Dispose();
//Close the PowerPoint presentation
pptxDoc.Close();Step 5: Execute the following command to restore the NuGet packages.
dotnet restore
Step 6: Execute the following command in terminal to run the application.
dotnet run
The output of the above code example will generate the below PowerPoint slide. The output will be saved in parallel to program.cs file.
Prerequisites:
- JetBrains Rider.
- Install .NET 8 SDK or later.

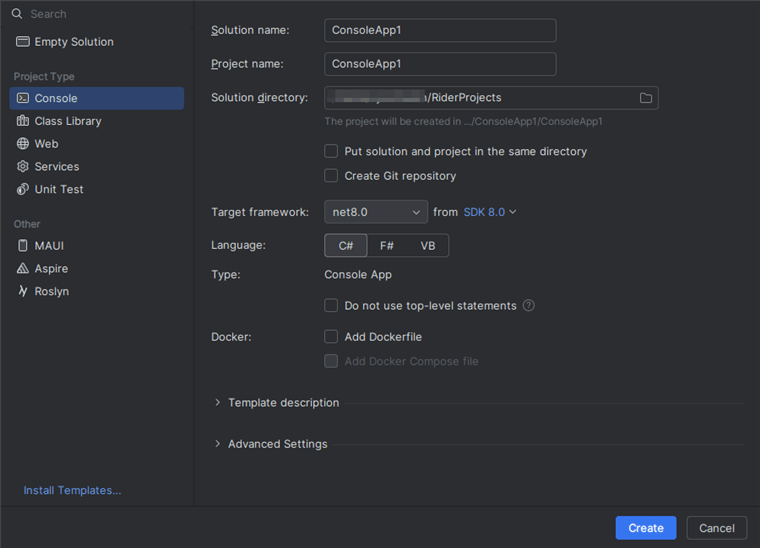

Step 1: Open JetBrains Rider and create a new .NET Core console application project.
- Launch JetBrains Rider.
- Click New Solution on the welcome screen.
- In the New Solution dialog, select Project Type as Console.
- Select the target framework (e.g., .NET 8.0, .NET 9.0).
- Enter a project name and specify the location.
- Click create.
Step 2: Install the NuGet package from NuGet.org.

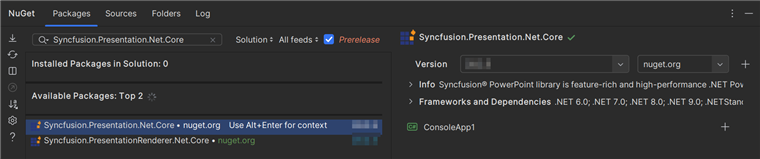

- Click the NuGet icon in the Rider toolbar and type Syncfusion.Presentation.Net.Core in the search bar.
- Ensure that nuget.org is selected as the package source.
- Select the latest Syncfusion.Presentation.Net.Core NuGet package from the list.
- Click the + (Add) button to add the package.

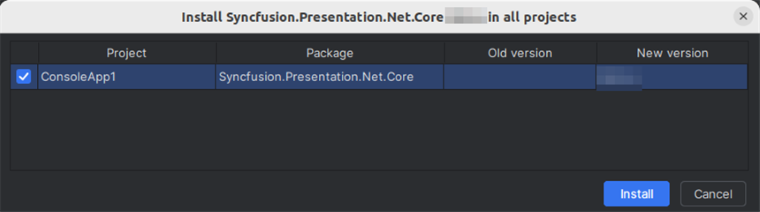

- Click the Install button to complete the installation.
NOTE
Starting with v16.2.0.x, if you reference Syncfusion assemblies from trial setup or from the NuGet feed, you also have to add “Syncfusion.Licensing” assembly reference and include a license key in your projects. Please refer to this link to know about registering Syncfusion license key in your application to use our components.
Step 3: Add the following Namespaces in Program.cs file.
using Syncfusion.Presentation;
using System.IO;Step 4: Add the following code snippet in Program.cs file.
//Create a new instance of PowerPoint Presentation file
IPresentation pptxDoc = Presentation.Create();
//Add a new slide to file and apply background color
ISlide slide = pptxDoc.Slides.Add(SlideLayoutType.TitleOnly);
//Specify the fill type and fill color for the slide background
slide.Background.Fill.FillType = FillType.Solid;
slide.Background.Fill.SolidFill.Color = ColorObject.FromArgb(232, 241, 229);
//Add title content to the slide by accessing the title placeholder of the TitleOnly layout-slide
IShape titleShape = slide.Shapes[0] as IShape;
titleShape.TextBody.AddParagraph("Company History").HorizontalAlignment = HorizontalAlignmentType.Center;
//Add description content to the slide by adding a new TextBox
IShape descriptionShape = slide.AddTextBox(53.22, 141.73, 874.19, 77.70);
descriptionShape.TextBody.Text = "IMN Solutions PVT LTD is the software company, established in 1987, by George Milton. The company has been listed as the trusted partner for many high-profile organizations since 1988 and got awards for quality products from reputed organizations.";
//Add bullet points to the slide
IShape bulletPointsShape = slide.AddTextBox(53.22, 270, 437.90, 116.32);
//Add a paragraph for a bullet point
IParagraph firstPara = bulletPointsShape.TextBody.AddParagraph("The company acquired the MCY corporation for 20 billion dollars and became the top revenue maker for the year 2015.");
//Format how the bullets should be displayed
firstPara.ListFormat.Type = ListType.Bulleted;
firstPara.LeftIndent = 35;
firstPara.FirstLineIndent = -35;
// Add another paragraph for the next bullet point
IParagraph secondPara = bulletPointsShape.TextBody.AddParagraph("The company is participating in top open source projects in automation industry.");
//Format how the bullets should be displayed
secondPara.ListFormat.Type = ListType.Bulleted;
secondPara.LeftIndent = 35;
secondPara.FirstLineIndent = -35;
//Gets a picture as stream.
FileStream pictureStream = new FileStream("Image.jpg", FileMode.Open);
//Adds the picture to a slide by specifying its size and position.
slide.Shapes.AddPicture(pictureStream, 499.79, 238.59, 364.54, 192.16);
//Add an auto-shape to the slide
IShape stampShape = slide.Shapes.AddShape(AutoShapeType.Explosion1, 48.93, 430.71, 104.13, 80.54);
//Format the auto-shape color by setting the fill type and text
stampShape.Fill.FillType = FillType.None;
stampShape.TextBody.AddParagraph("IMN").HorizontalAlignment = HorizontalAlignmentType.Center;
//Save the PowerPoint Presentation as stream
FileStream outputStream = new FileStream("Sample.pptx", FileMode.Create);
pptxDoc.Save(outputStream);
//Release all resources from stream
outputStream.Dispose();
//Close the PowerPoint presentation
pptxDoc.Close();Step 5: Build the project.
Click the Build button in the toolbar or press Ctrl+Shift+B to build the project.
Step 6: Run the project.
Click the Run button (green arrow) in the toolbar or press F5 to run the app.
The output of the above code example will generate the below PowerPoint slide. The output will be saved in parallel to program.cs file.
Read and edit a PowerPoint file in .NET Core Console application project on Linux
You can edit an existing PowerPoint file on Linux using this library. The below code snippet demonstrates accessing a shape from a slide and changing the text within it.
//Open an existing PowerPoint presentation
IPresentation pptxDoc = Presentation.Open(new FileStream("Sample.pptx",FileMode.Open));
//Gets the first slide from the PowerPoint presentation
ISlide slide = pptxDoc.Slides[0];
//Gets the first shape of the slide
IShape shape = slide.Shapes[0] as IShape;
//Change the text of the shape
if(shape.TextBody.Text == "Company History")
shape.TextBody.Text = "Company Profile";
//Save the PowerPoint presentation as stream
FileStream outputStream = new FileStream("Output.pptx", FileMode.Create);
pptxDoc.Save(outputStream);
outputStream.Position = 0;
outputStream.Flush();
outputStream.Dispose();
//Close the PowerPoint presentation
pptxDoc.Close();Click here to explore the rich set of Syncfusion® PowerPoint Library (Presentation) features.
An online sample link to create a PowerPoint Presentation in ASP.NET Core.
