Getting Started with the Vue PDF Viewer Component in the Quasar Framework

17 Oct 20256 minutes to read

This article provides a step-by-step guide for setting up a Quasar project and integrating the Syncfusion® Vue PDF Viewer component using the Composition API.

The Quasar Framework is a Vue.js-based open-source framework that empowers developers to create high-performance and responsive applications across various platforms, such as web, mobile, and desktop.

Prerequisites

System requirements for Syncfusion® Vue UI components

Set up the Quasar project

To initiate the creation of a new Quasar project, use the following commands:

npm init quasar

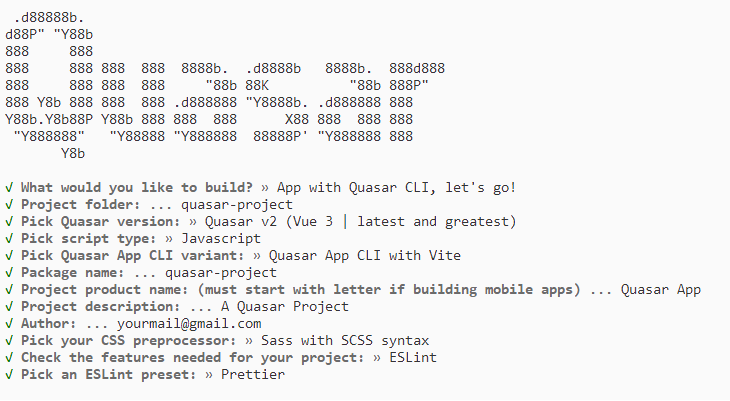

This command prompts additional configurations. When asked for a preset, choose Vue 3 with the Composition API to align with the following examples. Follow the steps outlined in the images below:

quasar-setup1

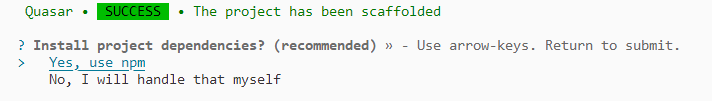

This generates the necessary files and prompts for project dependency installation. Respond with ‘yes’ to proceed with npm install, as shown in the image below:

quasar-setup2

Navigate to your project directory:

cd quasar-project

Now that quasar-project is ready to run with default settings, add Syncfusion® components to the project.

Add the Syncfusion® Vue packages

Syncfusion® Vue component packages are available at npmjs.com. To use Syncfusion® Vue components in the project, install the corresponding npm package.

This article uses the Vue PDF Viewer component as an example. To use the Vue PDF Viewer component in the project, the @syncfusion/ej2-vue-pdfviewer package needs to be installed using the following command:

npm install @syncfusion/ej2-vue-pdfviewer --save

Import Syncfusion® CSS styles

You can import themes for the Syncfusion® Vue component in various ways, such as using CSS or SASS styles from npm packages, CDN, CRG and Theme Studio. Refer to the themes topic to learn more about built-in themes and different ways to refer to themes in a Vue project.

In this article, the Material 3 theme is applied using CSS styles, which are available in installed packages. The necessary Material 3 CSS styles for the PDF Viewer component and its dependents were imported into the <style> section of the src/app.vue file.

<style>
  @import '../node_modules/@syncfusion/ej2-base/styles/material3.css';
  @import '../node_modules/@syncfusion/ej2-buttons/styles/material3.css';
  @import '../node_modules/@syncfusion/ej2-dropdowns/styles/material3.css';
  @import '../node_modules/@syncfusion/ej2-inputs/styles/material3.css';
  @import '../node_modules/@syncfusion/ej2-navigations/styles/material3.css';
  @import '../node_modules/@syncfusion/ej2-popups/styles/material3.css';
  @import '../node_modules/@syncfusion/ej2-splitbuttons/styles/material3.css';
  @import '../node_modules/@syncfusion/ej2-lists/styles/material3.css';
  @import '../node_modules/@syncfusion/ej2-vue-pdfviewer/styles/material3.css';
</style>

The order of importing CSS styles should be in line with their dependency graph.

Add the Syncfusion® Vue component

Use the following steps to add the Vue PDF Viewer component to the application:

1. First, add the setup attribute to the script tag to indicate that Vue uses the Composition API, and import the PDF Viewer component in the script section of the src/app.vue file.

<script setup>
import { PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
         BookmarkView, ThumbnailView, Print, TextSelection, TextSearch,
         Annotation, FormDesigner, FormFields } from '@syncfusion/ej2-vue-pdfviewer';
</script>

2. Then, define the Vue PDF Viewer component in the src/app.vue file, as shown below:

<template>
  <div id="app">
    <ejs-pdfviewer
      id="pdfViewer"
      :serviceUrl="serviceUrl"
      :documentPath="documentPath"
          :style="{ height: '800px', width: '1200px' }">
    </ejs-pdfviewer>
  </div>
</template>

3. Declare the bound properties serviceUrl and documentPath in the script section so the component can retrieve PDF files from the hosted web service.

<script setup>

import { provide } from 'vue';
import { PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView,
         ThumbnailView, Print, TextSelection, TextSearch, Annotation, FormDesigner, FormFields } from '@syncfusion/ej2-vue-pdfviewer';

const serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
const documentPath = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
const pdfViewer = null;

provide('PdfViewer', [ Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
                       Print, TextSelection, TextSearch, Annotation, FormDesigner, FormFields]);
</script>

The following snippet summarizes the previous steps in the src/app.vue file. The ref assignment keeps a reference available for future customization of the PDF Viewer instance.

<template>
  <ejs-pdfviewer
    ref="pdfViewer"
    :serviceUrl="serviceUrl"
    :documentPath="documentPath"
    :style="{ height: '800px', width: '1200px' }">
  </ejs-pdfviewer>
</template>

<script setup>

import { provide } from 'vue';
import { PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView,
  ThumbnailView, Print, TextSelection, TextSearch, Annotation, FormDesigner, FormFields } from '@syncfusion/ej2-vue-pdfviewer';

const serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
const documentPath = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
const pdfViewer = null;

provide('PdfViewer', [ Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
                       Print, TextSelection, TextSearch, Annotation, FormDesigner, FormFields]);
</script>

<style>

  @import '../node_modules/@syncfusion/ej2-base/styles/material3.css';
  @import '../node_modules/@syncfusion/ej2-buttons/styles/material3.css';
  @import '../node_modules/@syncfusion/ej2-dropdowns/styles/material3.css';
  @import '../node_modules/@syncfusion/ej2-inputs/styles/material3.css';
  @import '../node_modules/@syncfusion/ej2-navigations/styles/material3.css';
  @import '../node_modules/@syncfusion/ej2-popups/styles/material3.css';
  @import '../node_modules/@syncfusion/ej2-splitbuttons/styles/material3.css';
  @import '../node_modules/@syncfusion/ej2-lists/styles/material3.css';
  @import '../node_modules/@syncfusion/ej2-vue-pdfviewer/styles/material3.css';

</style>

Run the project

To run the project, use the following command:

npm run dev

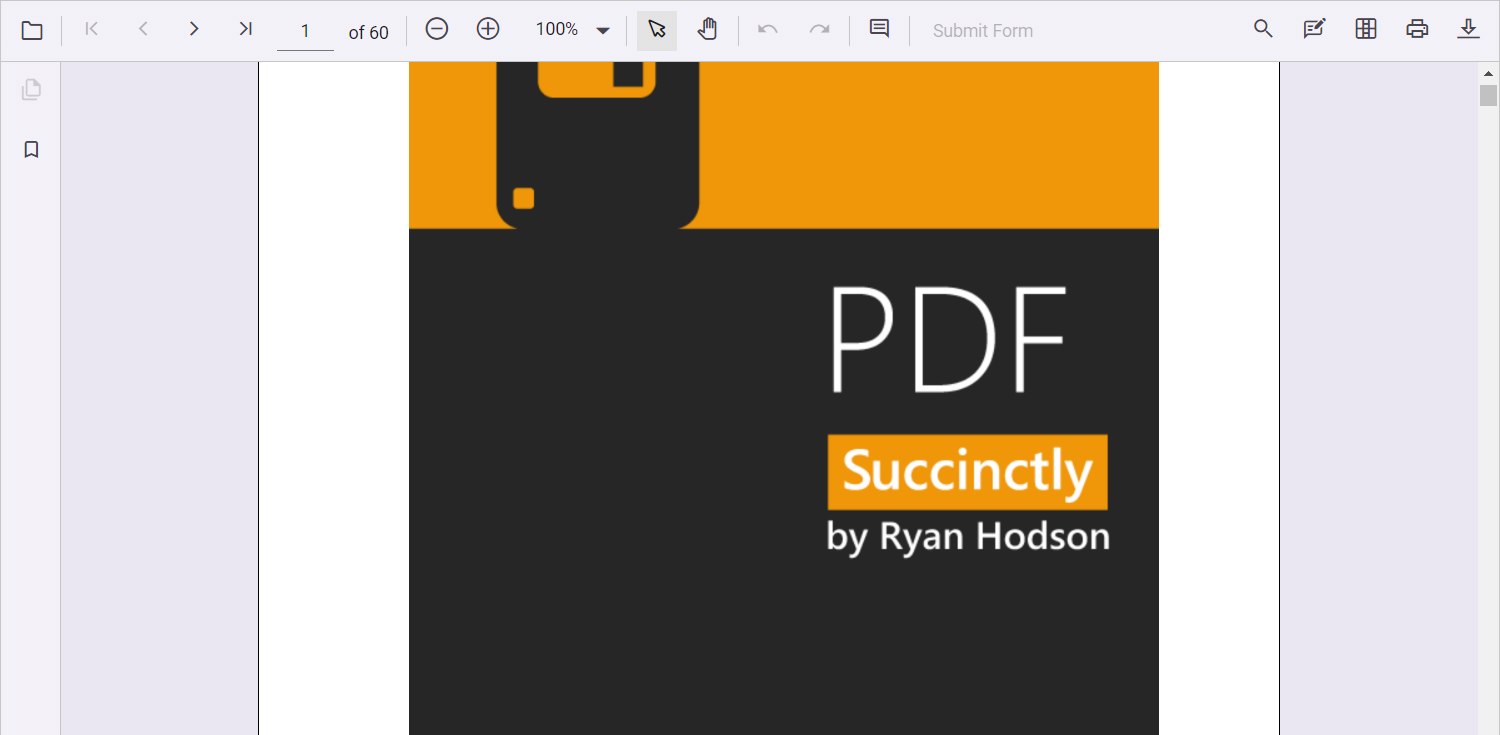

The output will appear as follows:

Quasar output
