Getting started with Syncfusion PDF Viewer in Vue 3

24 Oct 202510 minutes to read

This guide explains how to create a Vue 3 application with Vite and integrate the Syncfusion^® Vue PDF Viewer component.using the Composition API / Options API.

The Composition API is a new feature introduced in Vue.js 3 that provides an alternative way to organize and reuse component logic. It allows developers to write components as functions that use smaller, reusable functions called composition functions to manage their properties and behavior.

The Options API is the traditional way of writing Vue.js components, where the component logic is organized into a series of options that define the component’s properties and behavior. These options include data, methods, computed properties, watchers, life cycle hooks, and more.

Prerequisites

Install Node.js (version 18 or later recommended) along with npm or Yarn before creating the project. Review the system requirements for Syncfusion^® Vue UI components to confirm supported platforms.

Set up the Vite project

A recommended approach for beginning with Vue is to scaffold a project using Vite. Run one of the following commands to create a new project.

npm create vite@latest

or

yarn create vite

After running the command, follow the interactive prompts shown below to configure the project:

1. Define the project name: Specify the project name directly. This guide uses my-project.

? Project name: » my-project

1. Select Vue as the framework to target Vue 3.

? Select a framework: » - Use arrow-keys. Return to submit.
Vanilla
> Vue
  React
  Preact
  Lit
  Svelte
  Others

1. Choose JavaScript as the variant to build the Vite project with JavaScript and Vue.

? Select a variant: » - Use arrow-keys. Return to submit.
> JavaScript
  TypeScript
  Customize with create-vue ↗
  Nuxt ↗

1. After the scaffold completes, install the dependencies for my-project:

cd my-project
npm install

or

cd my-project
yarn install

With the scaffold ready, add the Syncfusion Vue PDF Viewer component to the project.

Add Syncfusion^® Vue packages

Syncfusion Vue component packages are available at npmjs.com. Install the Vue PDF Viewer package with one of the following commands.

This tutorial uses the Vue PDF Viewer component. Install the @syncfusion/ej2-vue-pdfviewer package with the following command:

  npm install @syncfusion/ej2-vue-pdfviewer --save

or

yarn add @syncfusion/ej2-vue-pdfviewer

Import Syncfusion^® CSS styles

You can import themes for the Syncfusion Vue components by using CSS or SASS assets from npm packages, a CDN, CRG, or Theme Studio. Refer to the themes topic for details about built-in themes and additional options for referencing them in a Vue project.

This tutorial applies the Material theme by importing the required CSS from the installed packages into the <style> section of the src/App.vue file.

~/src/App.vue

<style>
  @import '../node_modules/@syncfusion/ej2-base/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-buttons/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-dropdowns/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-inputs/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-navigations/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-popups/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-splitbuttons/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-lists/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-pdfviewer/styles/material.css';
</style>

Add Syncfusion^® Vue component

Follow these steps to add the Vue PDF Viewer component using the Composition API or Options API:

1. Import and register the PDF Viewer component and its child directives in the script section of the src/App.vue file. When using the Composition API, add the setup attribute to the script tag.

Composition API (~/src/App.vue)

<script setup>
import { PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
         BookmarkView, ThumbnailView, Print, TextSelection, TextSearch,
         Annotation, FormDesigner, FormFields } from '@syncfusion/ej2-vue-pdfviewer';
</script>

Options API (~/src/App.vue)

<script>
import { PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
         BookmarkView,ThumbnailView, Print,TextSelection, TextSearch,
         Annotation, FormDesigner, FormFields } from '@syncfusion/ej2-vue-pdfviewer';

}
</script>

1. Add the component definition in the template section.

~/src/App.vue

<template>
  <div id="app">
    <ejs-pdfviewer
      id="pdfViewer"
      :serviceUrl="serviceUrl"
      :documentPath="documentPath"
          :style="{ height: '800px', width: '1200px' }">
    </ejs-pdfviewer>
  </div>
</template>

1. Declare the bound properties serviceUrl and documentPath in the script section.

Composition API (~/src/App.vue)

<script setup>

import { provide } from 'vue';
import { PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView,
         ThumbnailView, Print, TextSelection, TextSearch, Annotation, FormDesigner, FormFields } from '@syncfusion/ej2-vue-pdfviewer';

const serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
const documentPath = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
const pdfViewer = null;

provide('PdfViewer', [ Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
                       Print, TextSelection, TextSearch, Annotation, FormDesigner, FormFields]);
</script>

Options API (~/src/App.vue)

<script>

import { PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
         BookmarkView,ThumbnailView, Print,TextSelection, TextSearch,
         Annotation, FormDesigner, FormFields } from '@syncfusion/ej2-vue-pdfviewer';

  export default {

  name: 'App',

  components: {
    "ejs-pdfviewer": PdfViewerComponent
  },

    data () {
      return {
        serviceUrl:"https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer",
        documentPath:"https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
      };
    },

    provide: {
      PdfViewer: [ Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
                   Print, TextSelection, TextSearch, Annotation, FormDesigner, FormFields ]}
}

</script>

Replace serviceUrl with the endpoint of your deployed PDF Viewer web service when hosting the component. The Syncfusion hosted URL shown above supports evaluation scenarios.

Here is the summarized code for the above steps in the src/App.vue file:

Composition API (~/src/App.vue)

<template>
  <ejs-pdfviewer
    ref="pdfViewer"
    :serviceUrl="serviceUrl"
    :documentPath="documentPath"
    :style="{ height: '800px', width: '1200px' }">
  </ejs-pdfviewer>
</template>

<script setup>

import { provide } from 'vue';
import { PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView,
  ThumbnailView, Print, TextSelection, TextSearch, Annotation, FormDesigner, FormFields } from '@syncfusion/ej2-vue-pdfviewer';

const serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
const documentPath = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
const pdfViewer = null;

provide('PdfViewer', [ Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
                       Print, TextSelection, TextSearch, Annotation, FormDesigner, FormFields]);
</script>

<style>

  @import '../node_modules/@syncfusion/ej2-base/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-buttons/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-dropdowns/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-inputs/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-navigations/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-popups/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-splitbuttons/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-lists/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-pdfviewer/styles/material.css';

</style>

Options API (~/src/App.vue)

<template>
  <ejs-pdfviewer
    id="pdfViewer"
    :serviceUrl="serviceUrl"
    :documentPath="documentPath"
    :style="{ height: '800px', width: '1200px' }">
  </ejs-pdfviewer>
</template>

<script>
  import { PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView,
           ThumbnailView, Print, TextSelection, TextSearch, Annotation, FormDesigner, FormFields } from '@syncfusion/ej2-vue-pdfviewer';

  export default {
    name: 'App',

    components: {
      "ejs-pdfviewer": PdfViewerComponent
    },

    data() {
      return {
        serviceUrl: "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer",
        documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
      };
    },
    provide: {
      PdfViewer: [ Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
                   Print, TextSelection, TextSearch, Annotation, FormDesigner, FormFields ]
    }
  }
</script>

<style>
  @import '../node_modules/@syncfusion/ej2-base/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-buttons/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-dropdowns/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-inputs/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-navigations/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-popups/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-splitbuttons/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-lists/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-pdfviewer/styles/material.css';
</style>

Run the project

Run the development server with one of the following commands:

npm run dev

or

yarn run dev

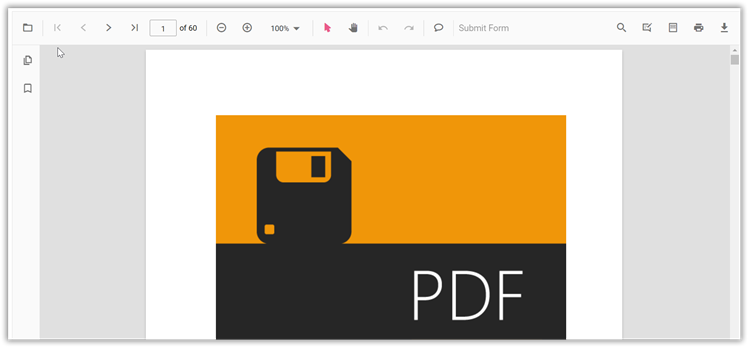

The application renders the PDF Viewer as shown below:

View sample in GitHub.
