Getting started with Vue Standalone PDF Viewer

This section briefly explains how to create the PDF Viewer component and configure its available functionalities in a Vue 2 application using Vue-CLI.

Prerequisites

System requirements for Syncfusion® Vue UI components

Setting up the Vue 2 project

To generate a Vue 2 project using Vue-CLI, use the Vue create command. Follow these steps to install Vue CLI and create a new project:

npm install -g @vue/cli
vue create quickstart
cd quickstart

or

yarn global add @vue/cli
vue create quickstart
cd quickstart

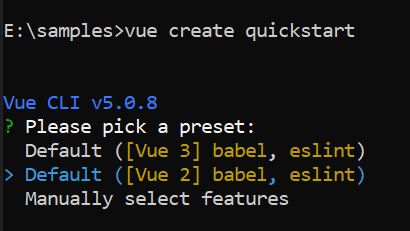

When creating a new project, choose the option Default ([Vue 2] babel, es-lint) from the menu.

Vue 2 project

Once the quick start project is set up with default settings, proceed to add Syncfusion® components to the project.

Add Syncfusion® Vue packages

Install the Syncfusion® PDF Viewer package using the following command.

Syncfusion® packages are available at npmjs.com. To use the Vue components, install the required npm package.

This article uses the Vue PDF Viewer component as an example. Install the @syncfusion/ej2-vue-pdfviewer package by running the following command:

npm install @syncfusion/ej2-vue-pdfviewer --save

or

yarn add @syncfusion/ej2-vue-pdfviewer

Import Syncfusion® CSS styles

You can import themes for the Syncfusion® Vue component in various ways, such as using CSS or SASS styles from npm packages, CDN, CRG and Theme Studio. Refer to themes topic to know more about built-in themes and different ways to refer to themes in a Vue project.

In this article, the Material theme is applied using CSS styles, which are available in the installed packages. The required Material CSS styles for the PDF Viewer component and its dependents are imported into the <style> section of the src/App.vue file.

<style>
  @import '../node_modules/@syncfusion/ej2-base/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-buttons/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-dropdowns/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-inputs/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-navigations/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-popups/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-splitbuttons/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-lists/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-pdfviewer/styles/material.css';
</style>

PDF Viewer has different themes, please refer to Supported themes section.

Add Syncfusion® Vue component

Follow the steps below to add the Vue PDF Viewer component:

1. Import and register the PDF Viewer component in the script section of the src/App.vue file.

<script>
import { PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
         BookmarkView,ThumbnailView, Print,TextSelection, TextSearch,
         Annotation, FormDesigner, FormFields, PageOrganizer} from '@syncfusion/ej2-vue-pdfviewer';

}
</script>
  1. In the template section, define the PDF Viewer component with the documentPath and resourceUrl properties.
<template>
  <div id="app">
    <ejs-pdfviewer
      id="pdfViewer"
      :resourceUrl="resourceUrl"
      :documentPath="documentPath">
    </ejs-pdfviewer>
  </div>
</template>

3. Declare the bound resourceUrl and documentPath properties in the script section.

<script>

import { PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
         BookmarkView,ThumbnailView, Print,TextSelection, TextSearch,
         Annotation, FormDesigner, FormFields, PageOrganizer } from '@syncfusion/ej2-vue-pdfviewer';

  export default {

  name: 'App',

  components: {
    "ejs-pdfviewer": PdfViewerComponent
  },

    data () {
      return {
        resourceUrl:'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib',
        documentPath:"https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
      };
    },

    provide: {
      PdfViewer: [ Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
                   Print, TextSelection, TextSearch, Annotation, FormDesigner, FormFields, PageOrganizer ]}
}

</script>

Steps to Load PDF Viewer with Local Resources

To configure the PDF Viewer to use local files for documentPath and resourceUrl instead of files hosted on a CDN, follow these steps:

Step 1: Ensure that your application includes the ej2-pdfviewer-lib folder. This folder must contain the pdfium.js and pdfium.wasm files, along with the PDF file that you intend to display. These should be located in the asset directory within your project’s public folder.

Step 2: Assign local file paths to the documentPath and resourceUrl properties within the PDF Viewer setup. The documentPath should refer to your PDF file, and the resourceUrl should point to the directory containing the supporting resources.

By following these steps, you will configure your PDF Viewer to load the required resources locally. Refer to the following code snippet:

<script>
    data() {
      return {
        resourceUrl: window.location.origin + "/asset/ej2-pdfviewer-lib",
        documentPath: window.location.origin + "/asset/pdfsuccinctly.pdf"
      };
    },
</script>

View the sample in GitHub to load the PDF Viewer with local resources.

Here is the summarized code for the steps above in the src/App.vue file:

<template>
  <ejs-pdfviewer
    id="pdfViewer"
    :resourceUrl="resourceUrl"
    :documentPath="documentPath">
  </ejs-pdfviewer>
</template>

<script>
  import { PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView,
           ThumbnailView, Print, TextSelection, TextSearch, Annotation, FormDesigner, FormFields, PageOrganizer } from '@syncfusion/ej2-vue-pdfviewer';

  export default {
    name: 'App',

    components: {
      "ejs-pdfviewer": PdfViewerComponent
    },

    data() {
      return {
        resourceUrl: 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib',
        documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
      };
    },
    provide: {
      PdfViewer: [ Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
                   Print, TextSelection, TextSearch, Annotation, FormDesigner, FormFields, PageOrganizer ]
    }
  }
</script>

<style>
  @import '../node_modules/@syncfusion/ej2-base/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-buttons/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-dropdowns/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-inputs/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-navigations/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-popups/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-splitbuttons/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-lists/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-pdfviewer/styles/material.css';
</style>

Run the project

To run the project, use the following command:

npm run serve

or

yarn run serve

Here is the summarized code for the steps above in the src/App.vue file:

The output will be displayed as follows:

<template>
  <div id="app">
    <ejs-pdfviewer
      id="pdfViewer"
      :documentPath="documentPath"
      :resourceUrl="resourceUrl">
    </ejs-pdfviewer>
  </div>
</template>

<script>
import Vue from 'vue';
import { PdfViewerPlugin, Toolbar, Magnification, Navigation, LinkAnnotation,
         BookmarkView, ThumbnailView, Print, TextSelection, TextSearch,
         Annotation, FormDesigner, FormFields, PageOrganizer } from '@syncfusion/ej2-vue-pdfviewer';
Vue.use(PdfViewerPlugin);
export default {
  name: 'app',
  data () {
    return {
      documentPath:"https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
      resourceUrl:"https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib",
    };
  },

  provide: {
    PdfViewer: [ Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
                 Print, TextSelection, TextSearch, Annotation, FormFields, FormDesigner, PageOrganizer ]
  }
}
</script>

View sample in GitHub

You can refer to our Vue PDF Viewer feature tour page for its groundbreaking feature representations. You can also explore our Vue PDF Viewer example to understand how it explains the core features of the PDF Viewer.
