Shape annotation in Vue PDF Viewer control

24 Oct 202524 minutes to read

The PDF Viewer control provides options to add, edit, and delete shape annotations. The supported shape annotation types are:

• Line
• Arrow
• Rectangle
• Circle
• Polygon

Adding a shape annotation to the PDF document

Shape annotations can be added to the PDF document using the annotation toolbar.

• Click the Edit Annotation button in the PDF Viewer toolbar. A toolbar appears below it.

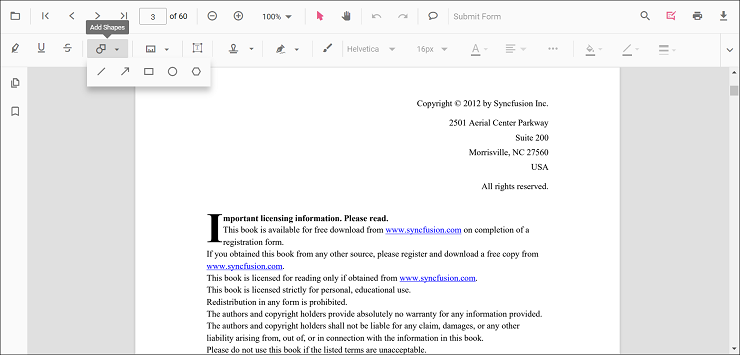

• Click the Shape Annotation drop-down button. The pop-up lists available shape annotation types.
• Select a shape type to enable its annotation mode.
• Draw the shape on the pages of the PDF document.

NOTE

When in pan mode and a shape annotation tool is selected, the PDF Viewer switches to text select mode automatically to ensure a smooth interaction experience.

Refer to the following code sample to switch to the circle annotation mode.

Composition API (Standalone)

<template>
  <div id="app">
    <button id="set">Circle</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :resourceUrl="resourceUrl" :documentPath="documentPath"
      :documentLoad="documentLoad">
    </ejs-pdfviewer>
  </div>
</template>

<script setup>
import {
  PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide, ref } from 'vue';

const pdfviewer = ref(null);
const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
const resourceUrl = 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib';

provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
  ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer])

const documentLoad = () => {
  const viewer = pdfviewer.value.ej2Instances;
  document.getElementById('set').addEventListener('click', () => {
    viewer.annotation.setAnnotationMode('Circle');
  });
}

</script>

Options API (Standalone)

<template>
  <div id="app">
    <button id="set">Circle</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :resourceUrl="resourceUrl" :documentPath="documentPath"
      :documentLoad="documentLoad">
    </ejs-pdfviewer>
  </div>
</template>

<script>

import {
  PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';

export default {
  name: "App",
  components: {
    "ejs-pdfviewer": PdfViewerComponent
  },
  data() {
    return {
      documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
      resourceUrl: 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib',
    };
  },
  provide: {
    PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
      ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]
  },

  methods: {
    documentLoad() {
      const viewer = this.$refs.pdfviewer.ej2Instances;
      document.getElementById('set').addEventListener('click', () => {
        viewer.annotation.setAnnotationMode('Circle');
      });
    }
  }
}
</script>

Composition API (Server-Backed)

<template>
  <div id="app">
    <button id="set">Circle</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :serviceUrl="serviceUrl"
      :documentLoad="documentLoad">
    </ejs-pdfviewer>
  </div>
</template>

<script setup>
import {
  PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide, ref } from 'vue';

const pdfviewer = ref(null);
const serviceUrl = "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer";
const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";

provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
  ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer])

const documentLoad = () => {
  const viewer = pdfviewer.value.ej2Instances;
  document.getElementById('set').addEventListener('click', () => {
    viewer.annotation.setAnnotationMode('Circle');
  });
}
</script>

Options API (Server-Backed)

<template>
  <div id="app">
    <button id="set">Circle</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :serviceUrl="serviceUrl"
      :documentLoad="documentLoad">
    </ejs-pdfviewer>
  </div>
</template>

<script>
import {
  PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';

export default {
  name: "App",
  components: {
    "ejs-pdfviewer": PdfViewerComponent
  },
  data() {
    return {
      serviceUrl: "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer",
      documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
    };
  },
  provide: {
    PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
      ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]
  },
  methods: {
    documentLoad() {
      const viewer = this.$refs.pdfviewer.ej2Instances;
      document.getElementById('set').addEventListener('click', () => {
        viewer.annotation.setAnnotationMode('Circle');
      });
    }
  }
}
</script>

Add a shape annotation to the PDF document programmatically

The PDF Viewer library allows adding a shape annotation programmatically using the addAnnotation() method.

Here is an example showing how to add shape annotations programmatically using addAnnotation():

Composition API (Standalone)

<template>
  <div id="app">
    <button v-on:click="addLineAnnotation">Add Line Annotation programatically</button>
    <button v-on:click="addArrowAnnotation">Add Arrow Annotation programatically</button>
    <button v-on:click="addRectangleAnnotation">Add Rectangle Annotation programatically</button>
    <button v-on:click="addCircleAnnotation">Add Circle Annotation programatically</button>
    <button v-on:click="addPolygonAnnotation">Add Polygon Annotation programatically</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :resourceUrl="resourceUrl">
    </ejs-pdfviewer>
  </div>
</template>

<script setup>
import {
  PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide, ref } from 'vue';

const pdfviewer = ref(null);
const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
const resourceUrl = 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib';

provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
  ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer])

const addLineAnnotation = function () {
  const viewer = pdfviewer.value.ej2Instances;
  viewer.annotation.addAnnotation("Line", {
    offset: { x: 200, y: 230 },
    pageNumber: 1,
    vertexPoints: [{ x: 200, y: 230 }, { x: 350, y: 230 }]
  });
}

const addArrowAnnotation = function () {
  const viewer = pdfviewer.value.ej2Instances;
  viewer.annotation.addAnnotation("Arrow", {
    offset: { x: 200, y: 370 },
    pageNumber: 1,
    vertexPoints: [{ x: 200, y: 370 }, { x: 350, y: 370 }]
  });
}

const addRectangleAnnotation = function () {
  const viewer = pdfviewer.value.ej2Instances;
  viewer.annotation.addAnnotation("Rectangle", {
    offset: { x: 200, y: 500 },
    pageNumber: 1,
    vertexPoints: [{ x: 200, y: 500 }, { x: 288, y: 499 }, { x: 289, y: 553 }, { x: 200, y: 500 }]
  });
}

const addCircleAnnotation = function () {
  const viewer = pdfviewer.value.ej2Instances;
  viewer.annotation.addAnnotation("Circle", {
    offset: { x: 200, y: 630 },
    pageNumber: 1,
    width: 90,
    height: 90
  });
}

const addPolygonAnnotation = function () {
  const viewer = pdfviewer.value.ej2Instances;
  viewer.annotation.addAnnotation("Polygon", {
    offset: { x: 200, y: 800 },
    pageNumber: 1,
    vertexPoints: [{ x: 200, y: 800 }, { x: 242, y: 771 }, { x: 289, y: 799 }, { x: 278, y: 842 }, { x: 211, y: 842 }, { x: 200, y: 800 }]
  });
}
</script>

Options API (Standalone)

<template>
  <div id="app">
    <button v-on:click="addLineAnnotation">Add Line Annotation programatically</button>
    <button v-on:click="addArrowAnnotation">Add Arrow Annotation programatically</button>
    <button v-on:click="addRectangleAnnotation">Add Rectangle Annotation programatically</button>
    <button v-on:click="addCircleAnnotation">Add Circle Annotation programatically</button>
    <button v-on:click="addPolygonAnnotation">Add Polygon Annotation programatically</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :resourceUrl="resourceUrl">
    </ejs-pdfviewer>
  </div>
</template>

<script>
import {
  PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';

export default {
  name: "App",
  components: {
    "ejs-pdfviewer": PdfViewerComponent
  },
  data() {
    return {
      documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
      resourceUrl: 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib',
    };
  },
  provide: {
    PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
      ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]
  },
  methods: {
    addLineAnnotation: function () {
      const viewer = this.$refs.pdfviewer.ej2Instances;
      viewer.annotation.addAnnotation("Line", {
        offset: { x: 200, y: 230 },
        pageNumber: 1,
        vertexPoints: [{ x: 200, y: 230 }, { x: 350, y: 230 }]
      });
    },
    addArrowAnnotation: function () {
      const viewer = this.$refs.pdfviewer.ej2Instances;
      viewer.annotation.addAnnotation("Arrow", {
        offset: { x: 200, y: 370 },
        pageNumber: 1,
        vertexPoints: [{ x: 200, y: 370 }, { x: 350, y: 370 }]
      });
    },
    addRectangleAnnotation: function () {
      const viewer = this.$refs.pdfviewer.ej2Instances;
      viewer.annotation.addAnnotation("Rectangle", {
        offset: { x: 200, y: 500 },
        pageNumber: 1,
        vertexPoints: [{ x: 200, y: 500 }, { x: 288, y: 499 }, { x: 289, y: 553 }, { x: 200, y: 500 }]
      });
    },
    addCircleAnnotation: function () {
      const viewer = this.$refs.pdfviewer.ej2Instances;
      viewer.annotation.addAnnotation("Circle", {
        offset: { x: 200, y: 630 },
        pageNumber: 1,
        width: 90,
        height: 90
      });
    },
    addPolygonAnnotation: function () {
      const viewer = this.$refs.pdfviewer.ej2Instances;
      viewer.annotation.addAnnotation("Polygon", {
        offset: { x: 200, y: 800 },
        pageNumber: 1,
        vertexPoints: [{ x: 200, y: 800 }, { x: 242, y: 771 }, { x: 289, y: 799 }, { x: 278, y: 842 }, { x: 211, y: 842 }, { x: 200, y: 800 }]
      });
    }
  }
}
</script>

Composition API (Server-Backed)

<template>
  <div id="app">
    <button v-on:click="addLineAnnotation">Add Line Annotation programatically</button>
    <button v-on:click="addArrowAnnotation">Add Arrow Annotation programatically</button>
    <button v-on:click="addRectangleAnnotation">Add Rectangle Annotation programatically</button>
    <button v-on:click="addCircleAnnotation">Add Circle Annotation programatically</button>
    <button v-on:click="addPolygonAnnotation">Add Polygon Annotation programatically</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :serviceUrl="serviceUrl">
    </ejs-pdfviewer>
  </div>
</template>

<script setup>
import {
  PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide, ref } from 'vue';

const pdfviewer = ref(null);
const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
const serviceUrl = "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer";

provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
  ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer])

const addLineAnnotation = function () {
  const viewer = pdfviewer.value.ej2Instances;
  viewer.annotation.addAnnotation("Line", {
    offset: { x: 200, y: 230 },
    pageNumber: 1,
    vertexPoints: [{ x: 200, y: 230 }, { x: 350, y: 230 }]
  });
}

const addArrowAnnotation = function () {
  const viewer = pdfviewer.value.ej2Instances;
  viewer.annotation.addAnnotation("Arrow", {
    offset: { x: 200, y: 370 },
    pageNumber: 1,
    vertexPoints: [{ x: 200, y: 370 }, { x: 350, y: 370 }]
  });
}

const addRectangleAnnotation = function () {
  const viewer = pdfviewer.value.ej2Instances;
  viewer.annotation.addAnnotation("Rectangle", {
    offset: { x: 200, y: 500 },
    pageNumber: 1,
    vertexPoints: [{ x: 200, y: 500 }, { x: 288, y: 499 }, { x: 289, y: 553 }, { x: 200, y: 500 }]
  });
}

const addCircleAnnotation = function () {
  const viewer = pdfviewer.value.ej2Instances;
  viewer.annotation.addAnnotation("Circle", {
    offset: { x: 200, y: 630 },
    pageNumber: 1,
    width: 90,
    height: 90
  });
}

const addPolygonAnnotation = function () {
  const viewer = pdfviewer.value.ej2Instances;
  viewer.annotation.addAnnotation("Polygon", {
    offset: { x: 200, y: 800 },
    pageNumber: 1,
    vertexPoints: [{ x: 200, y: 800 }, { x: 242, y: 771 }, { x: 289, y: 799 }, { x: 278, y: 842 }, { x: 211, y: 842 }, { x: 200, y: 800 }]
  });
}
</script>

Options API (Server-Backed)

<template>
  <div id="app">
    <button v-on:click="addLineAnnotation">Add Line Annotation programatically</button>
    <button v-on:click="addArrowAnnotation">Add Arrow Annotation programatically</button>
    <button v-on:click="addRectangleAnnotation">Add Rectangle Annotation programatically</button>
    <button v-on:click="addCircleAnnotation">Add Circle Annotation programatically</button>
    <button v-on:click="addPolygonAnnotation">Add Polygon Annotation programatically</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :serviceUrl="serviceUrl">
    </ejs-pdfviewer>
  </div>
</template>

<script>
import {
  PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';

export default {
  name: "App",
  components: {
    "ejs-pdfviewer": PdfViewerComponent
  },
  data() {
    return {
      documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
      serviceUrl: "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer",
    };
  },
  provide: {
    PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
      ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]
  },
  methods: {
    addLineAnnotation: function () {
      const viewer = this.$refs.pdfviewer.ej2Instances;
      viewer.annotation.addAnnotation("Line", {
        offset: { x: 200, y: 230 },
        pageNumber: 1,
        vertexPoints: [{ x: 200, y: 230 }, { x: 350, y: 230 }]
      });
    },
    addArrowAnnotation: function () {
      const viewer = this.$refs.pdfviewer.ej2Instances;
      viewer.annotation.addAnnotation("Arrow", {
        offset: { x: 200, y: 370 },
        pageNumber: 1,
        vertexPoints: [{ x: 200, y: 370 }, { x: 350, y: 370 }]
      });
    },
    addRectangleAnnotation: function () {
      const viewer = this.$refs.pdfviewer.ej2Instances;
      viewer.annotation.addAnnotation("Rectangle", {
        offset: { x: 200, y: 500 },
        pageNumber: 1,
        vertexPoints: [{ x: 200, y: 500 }, { x: 288, y: 499 }, { x: 289, y: 553 }, { x: 200, y: 500 }]
      });
    },
    addCircleAnnotation: function () {
      const viewer = this.$refs.pdfviewer.ej2Instances;
      viewer.annotation.addAnnotation("Circle", {
        offset: { x: 200, y: 630 },
        pageNumber: 1,
        width: 90,
        height: 90
      });
    },
    addPolygonAnnotation: function () {
      const viewer = this.$refs.pdfviewer.ej2Instances;
      viewer.annotation.addAnnotation("Polygon", {
        offset: { x: 200, y: 800 },
        pageNumber: 1,
        vertexPoints: [{ x: 200, y: 800 }, { x: 242, y: 771 }, { x: 289, y: 799 }, { x: 278, y: 842 }, { x: 211, y: 842 }, { x: 200, y: 800 }]
      });
    }
  }
}
</script>

Edit an existing shape annotation programmatically

To modify an existing shape annotation programmatically, use the editAnnotation() method.

Here is an example of using editAnnotation():

Composition API (Standalone)

<template>
  <div id="app">
    <button v-on:click="editLineAnnotation">Edit Line Annotation programatically</button>
    <button v-on:click="editArrowAnnotation">Edit Arrow Annotation programatically</button>
    <button v-on:click="editRectangleAnnotation">Edit Rectangle Annotation programatically</button>
    <button v-on:click="editCircleAnnotation">Edit Circle Annotation programatically</button>
    <button v-on:click="editPolygonAnnotation">Edit Polygon Annotation programatically</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :resourceUrl="resourceUrl">
    </ejs-pdfviewer>
  </div>
</template>

<script setup>
import {
  PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { ref } from 'vue';

const pdfviewer = ref(null);
const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
const resourceUrl = 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib';

provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
  ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer])

const editLineAnnotation = function () {
  const pdfviewer = pdfviewer.value.ej2Instances;
  for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
    if (pdfviewer.annotationCollection[i].subject === "Line") {
      pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
      pdfviewer.annotationCollection[i].thickness = 2;
      pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
      pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
    }
  }
}

const editArrowAnnotation = function () {
  const pdfviewer = pdfviewer.value.ej2Instances;
  for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
    if (pdfviewer.annotationCollection[i].subject === "Arrow") {
      pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
      pdfviewer.annotationCollection[i].thickness = 2;
      pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
      pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
      pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
    }
  }
}

const editRectangleAnnotation = function () {
  const pdfviewer = pdfviewer.value.ej2Instances;
  for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
    if (pdfviewer.annotationCollection[i].subject === "Rectangle") {
      pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
      pdfviewer.annotationCollection[i].thickness = 2;
      pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
      pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
      pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
    }
  }
}

const editCircleAnnotation = function () {
  const pdfviewer = pdfviewer.value.ej2Instances;
  for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
    if (pdfviewer.annotationCollection[i].subject === "Circle") {
      pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
      pdfviewer.annotationCollection[i].thickness = 2;
      pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
      pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
      pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
    }
  }
}

const editPolygonAnnotation = function () {
  const pdfviewer = pdfviewer.value.ej2Instances;
  for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
    if (pdfviewer.annotationCollection[i].subject === "Polygon") {
      pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
      pdfviewer.annotationCollection[i].thickness = 2;
      pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
      pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
      pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
    }
  }
}
</script>

Options API (Standalone)

<template>
  <div id="app">
    <button v-on:click="editLineAnnotation">Edit Line Annotation programatically</button>
    <button v-on:click="editArrowAnnotation">Edit Arrow Annotation programatically</button>
    <button v-on:click="editRectangleAnnotation">Edit Rectangle Annotation programatically</button>
    <button v-on:click="editCircleAnnotation">Edit Circle Annotation programatically</button>
    <button v-on:click="editPolygonAnnotation">Edit Polygon Annotation programatically</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :resourceUrl="resourceUrl">
    </ejs-pdfviewer>
  </div>
</template>

<script>
import {
  PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';

export default {
  name: "App",
  components: {
    "ejs-pdfviewer": PdfViewerComponent
  },
  data() {
    return {
      documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
      resourceUrl: 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib',
    };
  },
  provide: {
    PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
      ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]
  },
  methods: {
    editLineAnnotation: function () {
      const pdfviewer = this.$refs.pdfviewer.ej2Instances;
      for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
        if (pdfviewer.annotationCollection[i].subject === "Line") {
          pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
          pdfviewer.annotationCollection[i].thickness = 2;
          pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
          pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
        }
      }
    },
    editArrowAnnotation: function () {
      const pdfviewer = this.$refs.pdfviewer.ej2Instances;
      for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
        if (pdfviewer.annotationCollection[i].subject === "Arrow") {
          pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
          pdfviewer.annotationCollection[i].thickness = 2;
          pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
          pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
          pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
        }
      }
    },
    editRectangleAnnotation: function () {
      const pdfviewer = this.$refs.pdfviewer.ej2Instances;
      for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
        if (pdfviewer.annotationCollection[i].subject === "Rectangle") {
          pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
          pdfviewer.annotationCollection[i].thickness = 2;
          pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
          pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
          pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
        }
      }
    },
    editCircleAnnotation: function () {
      const pdfviewer = this.$refs.pdfviewer.ej2Instances;
      for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
        if (pdfviewer.annotationCollection[i].subject === "Circle") {
          pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
          pdfviewer.annotationCollection[i].thickness = 2;
          pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
          pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
          pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
        }
      }
    },
    editPolygonAnnotation: function () {
      const pdfviewer = this.$refs.pdfviewer.ej2Instances;
      for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
        if (pdfviewer.annotationCollection[i].subject === "Polygon") {
          pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
          pdfviewer.annotationCollection[i].thickness = 2;
          pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
          pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
          pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
        }
      }
    }
  }
}
</script>

Composition API (Server-Backed)

<template>
  <div id="app">
    <button v-on:click="editLineAnnotation">Edit Line Annotation programatically</button>
    <button v-on:click="editArrowAnnotation">Edit Arrow Annotation programatically</button>
    <button v-on:click="editRectangleAnnotation">Edit Rectangle Annotation programatically</button>
    <button v-on:click="editCircleAnnotation">Edit Circle Annotation programatically</button>
    <button v-on:click="editPolygonAnnotation">Edit Polygon Annotation programatically</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :serviceUrl="serviceUrl">
    </ejs-pdfviewer>
  </div>
</template>

<script setup>

import {
  PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide } from 'vue';

const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
const serviceUrl = "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer";

provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
  ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer])

const editLineAnnotation = function () {
  const pdfviewer = pdfviewer.value.ej2Instances;
  for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
    if (pdfviewer.annotationCollection[i].subject === "Line") {
      pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
      pdfviewer.annotationCollection[i].thickness = 2;
      pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
      pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
    }
  }
}

const editArrowAnnotation = function () {
  const pdfviewer = pdfviewer.value.ej2Instances;
  for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
    if (pdfviewer.annotationCollection[i].subject === "Arrow") {
      pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
      pdfviewer.annotationCollection[i].thickness = 2;
      pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
      pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
      pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
    }
  }
}

const editRectangleAnnotation = function () {
  const pdfviewer = pdfviewer.value.ej2Instances;
  for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
    if (pdfviewer.annotationCollection[i].subject === "Rectangle") {
      pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
      pdfviewer.annotationCollection[i].thickness = 2;
      pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
      pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
      pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
    }
  }
}

const editCircleAnnotation = function () {
  const pdfviewer = pdfviewer.value.ej2Instances;
  for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
    if (pdfviewer.annotationCollection[i].subject === "Circle") {
      pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
      pdfviewer.annotationCollection[i].thickness = 2;
      pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
      pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
      pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
    }
  }
}

const editPolygonAnnotation = function () {
  const pdfviewer = pdfviewer.value.ej2Instances;
  for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
    if (pdfviewer.annotationCollection[i].subject === "Polygon") {
      pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
      pdfviewer.annotationCollection[i].thickness = 2;
      pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
      pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
      pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
    }
  }
}
</script>

Options API (Server-Backed)

<template>
  <div id="app">
    <button v-on:click="editLineAnnotation">Edit Line Annotation programatically</button>
    <button v-on:click="editArrowAnnotation">Edit Arrow Annotation programatically</button>
    <button v-on:click="editRectangleAnnotation">Edit Rectangle Annotation programatically</button>
    <button v-on:click="editCircleAnnotation">Edit Circle Annotation programatically</button>
    <button v-on:click="editPolygonAnnotation">Edit Polygon Annotation programatically</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :serviceUrl="serviceUrl">
    </ejs-pdfviewer>
  </div>
</template>

<script>

import {
  PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';


export default {
  name: "App",
  components: {
    "ejs-pdfviewer": PdfViewerComponent
  },
  data() {
    return {
      documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
      serviceUrl: "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer",
    };
  },
  provide: {
    PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
      ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]
  },
  methods: {
    editLineAnnotation: function () {
      const pdfviewer = this.$refs.pdfviewer.ej2Instances;
      for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
        if (pdfviewer.annotationCollection[i].subject === "Line") {
          pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
          pdfviewer.annotationCollection[i].thickness = 2;
          pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
          pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
        }
      }
    },
    editArrowAnnotation: function () {
      const pdfviewer = this.$refs.pdfviewer.ej2Instances;
      for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
        if (pdfviewer.annotationCollection[i].subject === "Arrow") {
          pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
          pdfviewer.annotationCollection[i].thickness = 2;
          pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
          pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
          pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
        }
      }
    },
    editRectangleAnnotation: function () {
      const pdfviewer = this.$refs.pdfviewer.ej2Instances;
      for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
        if (pdfviewer.annotationCollection[i].subject === "Rectangle") {
          pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
          pdfviewer.annotationCollection[i].thickness = 2;
          pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
          pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
          pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
        }
      }
    },
    editCircleAnnotation: function () {
      const pdfviewer = this.$refs.pdfviewer.ej2Instances;
      for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
        if (pdfviewer.annotationCollection[i].subject === "Circle") {
          pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
          pdfviewer.annotationCollection[i].thickness = 2;
          pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
          pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
          pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
        }
      }
    },
    editPolygonAnnotation: function () {
      const pdfviewer = this.$refs.pdfviewer.ej2Instances;
      for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
        if (pdfviewer.annotationCollection[i].subject === "Polygon") {
          pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
          pdfviewer.annotationCollection[i].thickness = 2;
          pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
          pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
          pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
        }
      }
    }
  }
}
</script>

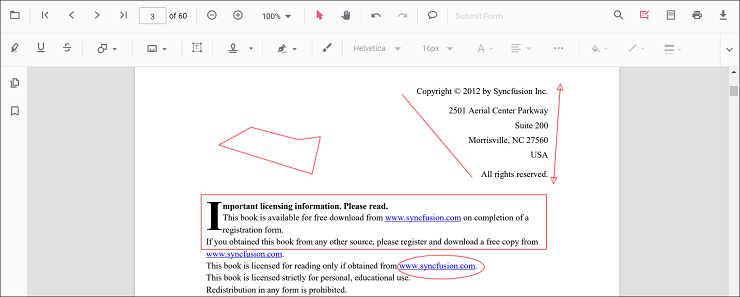

Edit an properties of the shape annotation

The fill color, stroke color, thickness, and opacity of shape annotations can be edited using the Edit Color, Edit Stroke Color, Edit Thickness, and Edit Opacity tools in the annotation toolbar.

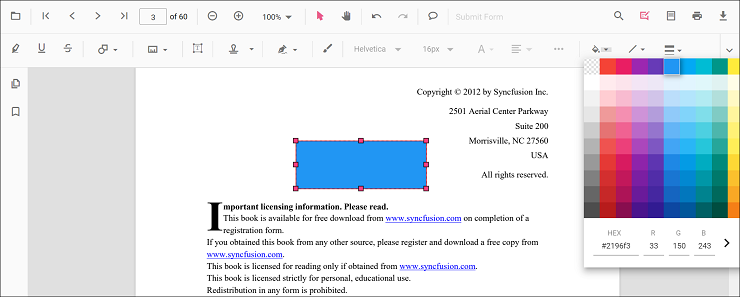

Editing fill color

The fill color of the annotation can be edited using the color palette provided in the Edit Color tool.

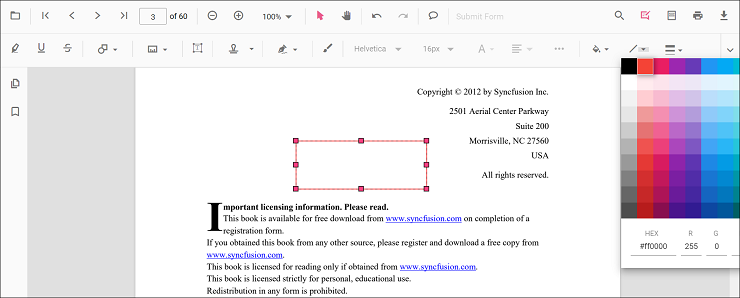

Editing stroke color

The stroke color of the annotation can be edited using the color palette provided in the Edit Stroke Color tool.

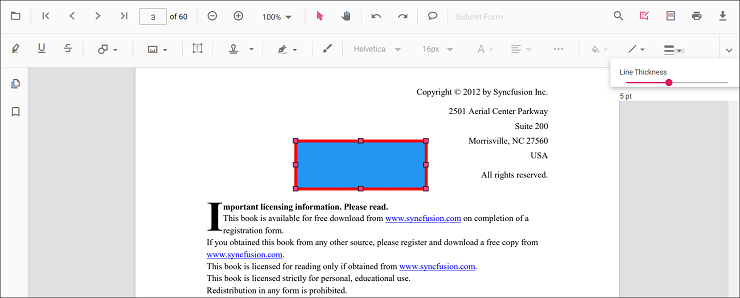

Editing thickness

The thickness of the border of the annotation can be edited using the range slider provided in the Edit Thickness tool.

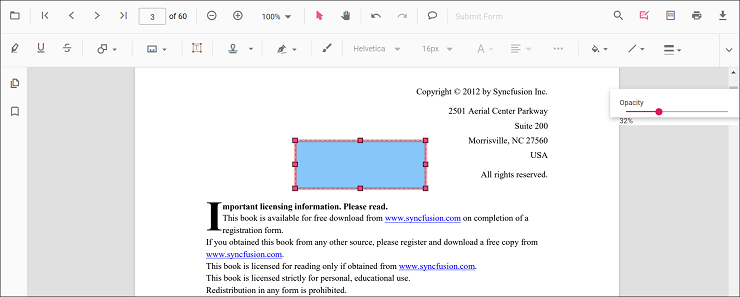

Editing opacity

The opacity of the annotation can be edited using the range slider provided in the Edit Opacity tool.

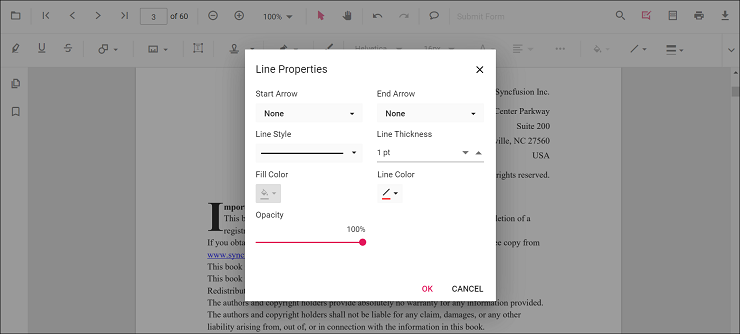

Editing the line properties

Line and arrow annotations have additional options in the Line Properties window. Open it by right-clicking a line or arrow annotation and selecting Properties from the context menu.

Refer to the following code sample to set the default annotation settings.

Set default properties during control initialization

Default properties for shape annotations can be set before creating the control using LineSettings, ArrowSettings, RectangleSettings, CircleSettings, and PolygonSettings.

Composition API (Standalone)

<template>
  <div id="app">
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :lineSettings="lineSettings"
      :arrowSettings="arrowSettings" :rectangleSettings="rectangleSettings" :circleSettings="circleSettings"
      :polygonSettings="polygonSettings" :resourceUrl="resourceUrl">
    </ejs-pdfviewer>
  </div>
</template>

<script setup>
import {
  PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide } from 'vue';

const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
const resourceUrl = 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib';
const lineSettings = { fillColor: 'blue', opacity: 0.6, strokeColor: 'green' };
const arrowSettings = { fillColor: 'green', opacity: 0.6, strokeColor: 'blue' };
const rectangleSettings = { fillColor: 'yellow', opacity: 0.6, strokeColor: 'orange' };
const circleSettings = { fillColor: 'orange', opacity: 0.6, strokeColor: 'pink' };
const polygonSettings = { fillColor: 'pink', opacity: 0.6, strokeColor: 'yellow' };

provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
  Print, TextSelection, TextSearch, Annotation, FormFields, FormDesigner, PageOrganizer])

</script>

Options API (Standalone)

<template>
  <div id="app">
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :lineSettings="lineSettings"
      :arrowSettings="arrowSettings" :rectangleSettings="rectangleSettings" :circleSettings="circleSettings"
      :polygonSettings="polygonSettings" :resourceUrl="resourceUrl">
    </ejs-pdfviewer>
  </div>
</template>

<script>
import {
  PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';

export default {
  name: "App",
  components: {
    "ejs-pdfviewer": PdfViewerComponent
  },
  data() {
    return {
      documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
      resourceUrl: 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib',
      lineSettings: { fillColor: 'blue', opacity: 0.6, strokeColor: 'green' },
      arrowSettings: { fillColor: 'green', opacity: 0.6, strokeColor: 'blue' },
      rectangleSettings: { fillColor: 'yellow', opacity: 0.6, strokeColor: 'orange' },
      circleSettings: { fillColor: 'orange', opacity: 0.6, strokeColor: 'pink' },
      polygonSettings: { fillColor: 'pink', opacity: 0.6, strokeColor: 'yellow' }
    };
  },
  provide: {
    PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
      Print, TextSelection, TextSearch, Annotation, FormFields, FormDesigner, PageOrganizer]
  },
}
</script>

Composition API (Server-Backed)

<template>
  <div id="app">
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :serviceUrl="serviceUrl" :documentPath="documentPath"
      :lineSettings="lineSettings" :arrowSettings="arrowSettings" :rectangleSettings="rectangleSettings"
      :circleSettings="circleSettings" :polygonSettings="polygonSettings">
    </ejs-pdfviewer>
  </div>
</template>

<script setup>
import {
  PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide } from 'vue';

const serviceUrl = "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer";
const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
const lineSettings = { fillColor: 'blue', opacity: 0.6, strokeColor: 'green' };
const arrowSettings = { fillColor: 'green', opacity: 0.6, strokeColor: 'blue' };
const rectangleSettings = { fillColor: 'yellow', opacity: 0.6, strokeColor: 'orange' };
const circleSettings = { fillColor: 'orange', opacity: 0.6, strokeColor: 'pink' };
const polygonSettings = { fillColor: 'pink', opacity: 0.6, strokeColor: 'yellow' };

provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
  Print, TextSelection, TextSearch, Annotation, FormFields, FormDesigner, PageOrganizer])

</script>

Options API (Server-Backed)

<template>
  <div id="app">
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :serviceUrl="serviceUrl" :documentPath="documentPath"
      :lineSettings="lineSettings" :arrowSettings="arrowSettings" :rectangleSettings="rectangleSettings"
      :circleSettings="circleSettings" :polygonSettings="polygonSettings">
    </ejs-pdfviewer>
  </div>
</template>

<script>
import {
  PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';

export default {
  name: "App",
  components: {
    "ejs-pdfviewer": PdfViewerComponent
  },
  data() {
    return {
      serviceUrl: "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer",
      documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
      lineSettings: { fillColor: 'blue', opacity: 0.6, strokeColor: 'green' },
      arrowSettings: { fillColor: 'green', opacity: 0.6, strokeColor: 'blue' },
      rectangleSettings: { fillColor: 'yellow', opacity: 0.6, strokeColor: 'orange' },
      circleSettings: { fillColor: 'orange', opacity: 0.6, strokeColor: 'pink' },
      polygonSettings: { fillColor: 'pink', opacity: 0.6, strokeColor: 'yellow' }
    };
  },
  provide: {
    PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
      Print, TextSelection, TextSearch, Annotation, FormFields, FormDesigner, PageOrganizer]
  }
}
</script>
