Free text annotation in Vue PDF Viewer control

13 Feb 202624 minutes to read

The PDF Viewer control supports adding, editing, and deleting free text annotations. This article explains how to add free text annotations using the toolbar and programmatically, modify their properties, and manage selection and focus.

Add a free text annotation to the PDF document

Free text annotations can be added to the PDF document using the annotation toolbar.

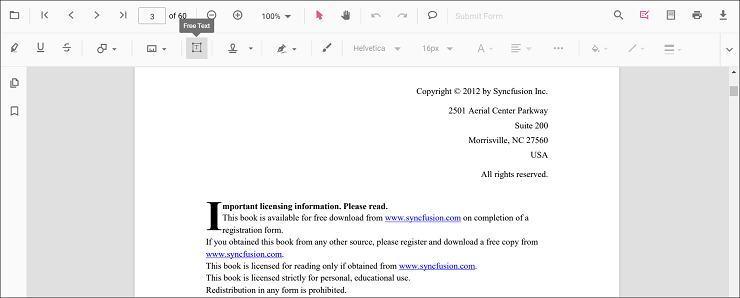

• Click the Edit Annotation button in the PDF Viewer toolbar. The annotation toolbar appears below it.
• Select the Free Text Annotation button to enable free text annotation mode.
• Add text anywhere on the pages of the PDF document.

When in pan mode, selecting free text annotation switches the PDF Viewer to text-selection mode.

The following example switches to free text annotation mode using a button click.

Composition API (Standalone)

<template>
  <div id="app">
    <button id="set">FreeText</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :resourceUrl="resourceUrl"
      :documentLoad="documentLoad">
    </ejs-pdfviewer>
  </div>
</template>

<script setup>
import {
  PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide, ref } from 'vue';

const pdfviewer = ref(null);
const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
const resourceUrl = 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib';

provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
  ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer])

const documentLoad = () => {
  document.getElementById('set').addEventListener('click', () => {
    pdfviewer.value.ej2Instances.annotation.setAnnotationMode('FreeText');
  });
}

</script>

Options API (Standalone)

<template>
  <div id="app">
    <button id="set">FreeText</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :resourceUrl="resourceUrl"
      :documentLoad="documentLoad">
    </ejs-pdfviewer>
  </div>
</template>

<script>

import {
  PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';

export default {
  name: "App",
  components: {
    "ejs-pdfviewer": PdfViewerComponent
  },
  data() {
    return {
      documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
      resourceUrl: 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib',
    };
  },
  provide: {
    PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
      ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]
  },

  methods: {
    documentLoad() {
      document.getElementById('set').addEventListener('click', () => {
        this.$refs.pdfviewer.ej2Instances.annotation.setAnnotationMode('FreeText');
      });
    }
  }
}
</script>

Composition API (Server-Backed)

<template>
  <div id="app">
    <button id="set">FreeText</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :serviceUrl="serviceUrl"
      :documentLoad="documentLoad">
    </ejs-pdfviewer>
  </div>
</template>

<script setup>
import {
  PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide, ref } from 'vue';

const pdfviewer = ref(null);
const serviceUrl = "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer";
const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";

provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
  ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer])

const documentLoad = () => {
  document.getElementById('set').addEventListener('click', () => {
    pdfviewer.value.ej2Instances.annotation.setAnnotationMode('FreeText');
  });
}

</script>

Options API (Server-Backed)

<template>
  <div id="app">
    <button id="set">FreeText</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :serviceUrl="serviceUrl"
      :documentLoad="documentLoad">
    </ejs-pdfviewer>
  </div>
</template>

<script>
import {
  PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';

export default {
  name: "App",
  components: {
    "ejs-pdfviewer": PdfViewerComponent
  },
  data() {
    return {
      serviceUrl: "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer",
      documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
    };
  },
  provide: {
    PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
      ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]
  },
  methods: {
    documentLoad() {
      document.getElementById('set').addEventListener('click', () => {
        this.$refs.pdfviewer.ej2Instances.annotation.setAnnotationMode('FreeText');
      });
    }
  }
}
</script>

Add a free text annotation programmatically to the PDF document

The PDF Viewer library allows adding a free text annotation programmatically using the addAnnotation() method.

Here is an example of adding a free text annotation programmatically using addAnnotation():

Composition API (Standalone)

<template>
  <div id="app">
    <button v-on:click="addAnnotation">Add Annotation programatically</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :resourceUrl="resourceUrl"
      :addAnnotation="addAnnotation">
    </ejs-pdfviewer>
  </div>
</template>

<script setup>
import {
  PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide, ref } from 'vue';

const pdfviewer = ref(null);
const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
const resourceUrl = 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib';

provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
  ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer])

const addAnnotation = function () {
  pdfviewer.value.ej2Instances.annotation.addAnnotation("FreeText", {
    offset: { x: 100, y: 150 },
    fontSize: 16,
    fontFamily: "Helvetica",
    pageNumber: 1,
    width: 200,
    height: 40,
    isLock: false,
    textAlignment: 'Center',
    borderStyle: 'solid',
    borderWidth: 2,
    borderColor: 'red',
    fillColor: 'blue',
    fontColor: 'white',
    defaultText: "Syncfusion"
  });
}
</script>

Options API (Standalone)

<template>
  <div id="app">
    <button v-on:click="addAnnotation">Add Annotation programatically</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :resourceUrl="resourceUrl"
      :addAnnotation="addAnnotation">
    </ejs-pdfviewer>
  </div>
</template>

<script>
import {
  PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';

export default {
  name: "App",
  components: {
    "ejs-pdfviewer": PdfViewerComponent
  },
  data() {
    return {
      documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
      resourceUrl: 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib',
    };
  },
  provide: {
    PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
      ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]
  },
  methods: {
    addAnnotation: function () {
      this.$refs.pdfviewer.ej2Instances.annotation.addAnnotation("FreeText", {
        offset: { x: 100, y: 150 },
        fontSize: 16,
        fontFamily: "Helvetica",
        pageNumber: 1,
        width: 200,
        height: 40,
        isLock: false,
        textAlignment: 'Center',
        borderStyle: 'solid',
        borderWidth: 2,
        borderColor: 'red',
        fillColor: 'blue',
        fontColor: 'white',
        defaultText: "Syncfusion"
      });
    }
  }
}
</script>

Composition API (Server-Backed)

<template>
  <div id="app">
    <button v-on:click="addAnnotation">Add Annotation programatically</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :serviceUrl="serviceUrl"
      :addAnnotation="addAnnotation">
    </ejs-pdfviewer>
  </div>
</template>

<script setup>
import {
  PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide } from 'vue';

const pdfviewer = ref(null);
const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
const serviceUrl = "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer";

provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
  ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer])

const addAnnotation = function () {
  pdfviewer.value.ej2Instances.annotation.addAnnotation("FreeText", {
    offset: { x: 100, y: 150 },
    fontSize: 16,
    fontFamily: "Helvetica",
    pageNumber: 1,
    width: 200,
    height: 40,
    isLock: false,
    textAlignment: 'Center',
    borderStyle: 'solid',
    borderWidth: 2,
    borderColor: 'red',
    fillColor: 'blue',
    fontColor: 'white',
    defaultText: "Syncfusion"
  });
}
</script>

Options API (Server-Backed)

<template>
  <div id="app">
    <button v-on:click="addAnnotation">Add Annotation programatically</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :serviceUrl="serviceUrl"
      :addAnnotation="addAnnotation">
    </ejs-pdfviewer>
  </div>
</template>

<script>
import {
  PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';

export default {
  name: "App",
  components: {
    "ejs-pdfviewer": PdfViewerComponent
  },
  data() {
    return {
      documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
      serviceUrl: "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer",
    };
  },
  provide: {
    PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
      ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]
  },
  methods: {
    addAnnotation: function () {
      this.$refs.pdfviewer.ej2Instances.annotation.addAnnotation("FreeText", {
        offset: { x: 100, y: 150 },
        fontSize: 16,
        fontFamily: "Helvetica",
        pageNumber: 1,
        width: 200,
        height: 40,
        isLock: false,
        textAlignment: 'Center',
        borderStyle: 'solid',
        borderWidth: 2,
        borderColor: 'red',
        fillColor: 'blue',
        fontColor: 'white',
        defaultText: "Syncfusion"
      });
    }
  }
}
</script>

Change the content of an existing free text annotation programmatically

To change the content of an existing free text annotation programmatically, use the editAnnotation() method.

Here is an example of changing the content of a free text annotation using editAnnotation():

Composition API (Standalone)

<template>
  <div id="app">
    <button v-on:click="editAnnotation">Edit Annotation programatically</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :resourceUrl="resourceUrl">
    </ejs-pdfviewer>
  </div>
</template>

<script setup>

import {
  PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide, ref } from 'vue';

const pdfviewer = ref(null);
const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
const resourceUrl = 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib';

provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
  ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer])

const editAnnotation = function () {
  const viewer = pdfviewer.value.ej2Instances;
  for (let i = 0; i < viewer.annotationCollection.length; i++) {
    if (viewer.annotationCollection[i].subject === "Text Box") {
      const width = viewer.annotationCollection[i].bounds.width;
      const height = viewer.annotationCollection[i].bounds.height;
      viewer.annotationCollection[i].bounds = { x: 100, y: 100, width: width, height: height };
      viewer.annotationCollection[i].dynamicText = 'syncfusion';
      viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
    }
  }
}
</script>

Options API (Standalone)

<template>
  <div id="app">
    <button v-on:click="editAnnotation">Edit Annotation programatically</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :resourceUrl="resourceUrl">
    </ejs-pdfviewer>
  </div>
</template>

<script>

import {
  PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';

export default {
  name: "App",
  components: {
    "ejs-pdfviewer": PdfViewerComponent
  },
  data() {
    return {
      documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
      resourceUrl: 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib',
    };
  },
  provide: {
    PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
      ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]
  },
  methods: {
    editAnnotation: function () {
      const viewer = this.$refs.pdfviewer.ej2Instances;
      for (let i = 0; i < viewer.annotationCollection.length; i++) {
        if (viewer.annotationCollection[i].subject === "Text Box") {
          const width = viewer.annotationCollection[i].bounds.width;
          const height = viewer.annotationCollection[i].bounds.height;
          viewer.annotationCollection[i].bounds = { x: 100, y: 100, width: width, height: height };
          viewer.annotationCollection[i].dynamicText = 'syncfusion';
          viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
        }
      }
    }
  }
}
</script>

Composition API (Server-Backed)

<template>
  <div id="app">
    <button v-on:click="editAnnotation">Edit Annotation programatically</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :serviceUrl="serviceUrl">
    </ejs-pdfviewer>
  </div>
</template>

<script setup>
import {
  PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide, ref } from 'vue';

const pdfviewer = ref(null);
const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
const serviceUrl = "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer";

provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
  ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer])

const editAnnotation = function () {
  const viewer = pdfviewer.value.ej2Instances;
  for (let i = 0; i < viewer.annotationCollection.length; i++) {
    if (viewer.annotationCollection[i].subject === "Text Box") {
      const width = viewer.annotationCollection[i].bounds.width;
      const height = viewer.annotationCollection[i].bounds.height;
      viewer.annotationCollection[i].bounds = { x: 100, y: 100, width: width, height: height };
      viewer.annotationCollection[i].dynamicText = 'syncfusion';
      viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
    }
  }
}
</script>

Options API (Server-Backed)

<template>
  <div id="app">
    <button v-on:click="editAnnotation">Edit Annotation programatically</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :serviceUrl="serviceUrl">
    </ejs-pdfviewer>
  </div>
</template>

<script>
import {
  PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';

export default {
  name: "App",
  components: {
    "ejs-pdfviewer": PdfViewerComponent
  },
  data() {
    return {
      documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
      serviceUrl: "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer",
    };
  },
  provide: {
    PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
      ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]
  },
  methods: {
    editAnnotation: function () {
      const viewer = this.$refs.pdfviewer.ej2Instances;
      for (let i = 0; i < viewer.annotationCollection.length; i++) {
        if (viewer.annotationCollection[i].subject === "Text Box") {
          const width = viewer.annotationCollection[i].bounds.width;
          const height = viewer.annotationCollection[i].bounds.height;
          viewer.annotationCollection[i].bounds = { x: 100, y: 100, width: width, height: height };
          viewer.annotationCollection[i].dynamicText = 'syncfusion';
          viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
        }
      }
    }
  }
}
</script>

NOTE

The current version of the PDF Viewer does not edit existing document text. New free text annotations can be added and modified within the document.

Edit free text annotation properties

Free text annotation properties that can be modified using the annotation toolbar include font family, font size, font styles, font color, text alignment, fill color, stroke color, border thickness, and opacity. The toolbar provides dedicated controls for each of these settings.

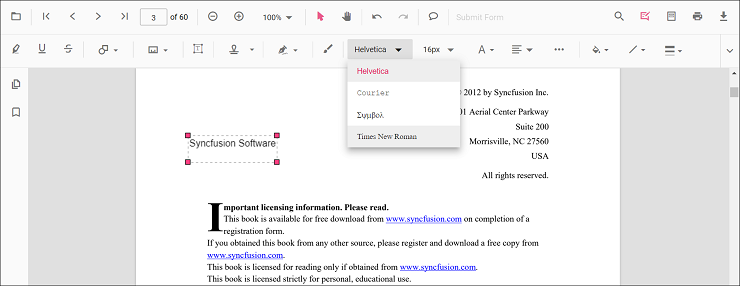

Font family

Choose a font family from the Font Family tool to update the annotation text.

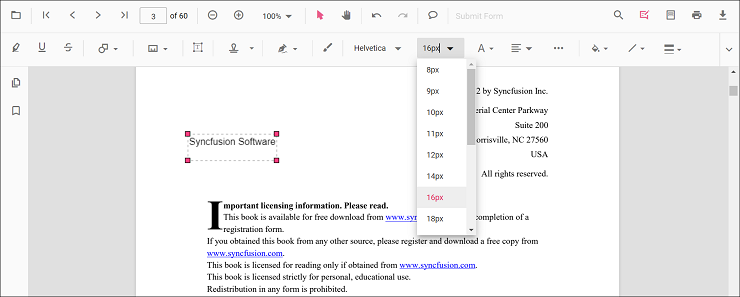

Font size

Choose a size from the Font Size tool to update the annotation text size.

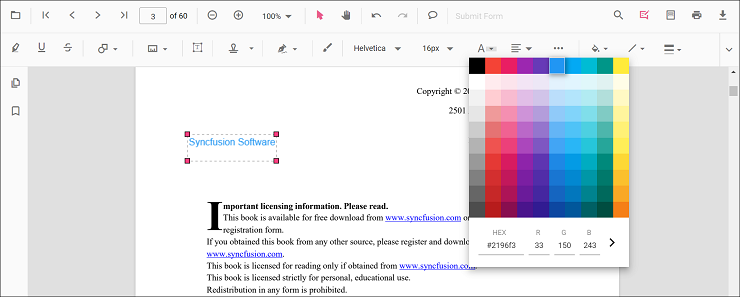

Font color

Select a color from the Font Color palette to change the font color.

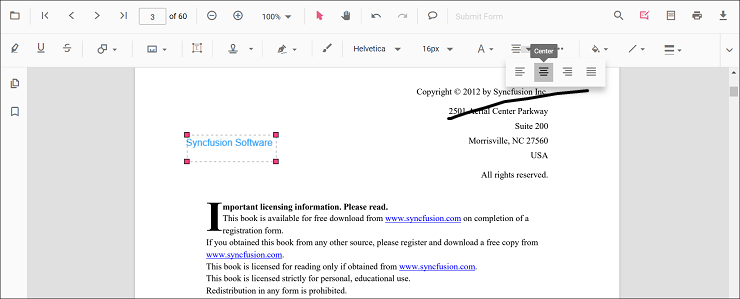

Text alignment

Use the Text Align tool to set the annotation text alignment.

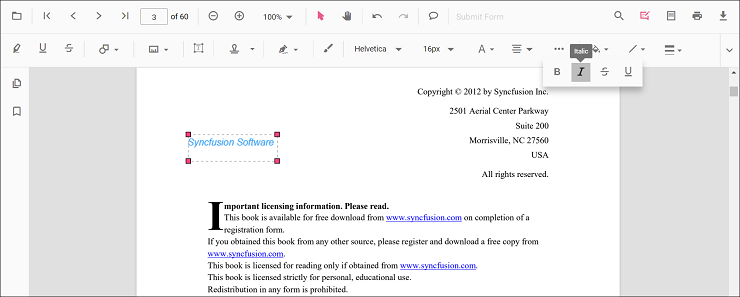

Font styles

Enable bold, italic, or underline using the Font Style tool.

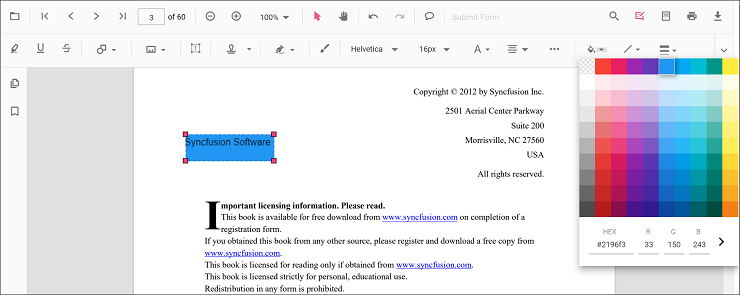

Fill color

Set the annotation background using the Edit Color tool.

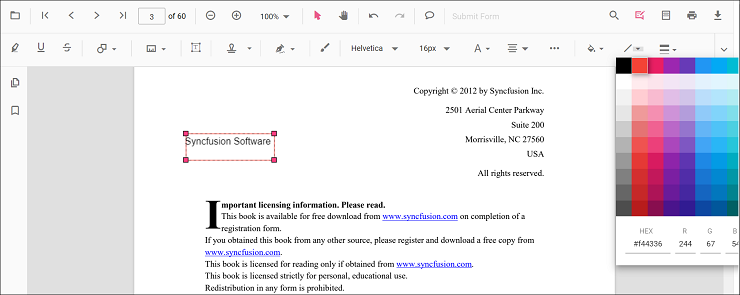

Stroke color

Set the annotation border color using the Edit Stroke Color tool.

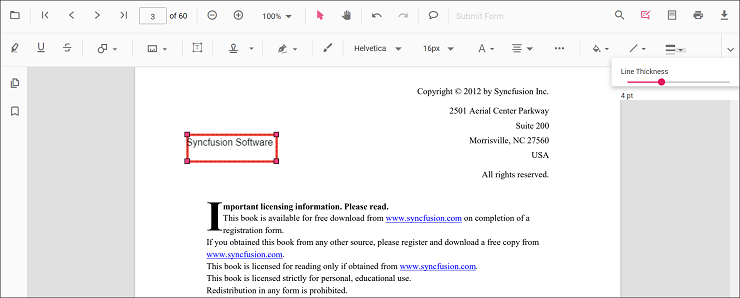

Thickness

Adjust border thickness with the Edit Thickness slider.

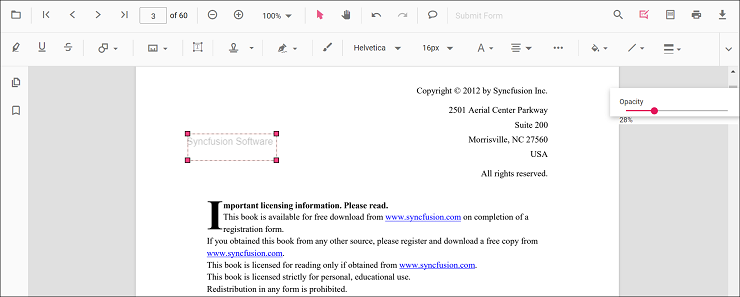

Opacity

Adjust annotation opacity with the Edit Opacity slider.

Set default properties during control initialization

Default properties for free text annotations can be set before creating the control using FreeTextSettings.

After changing default values, the selected values are applied. The following example sets default free text annotation settings.

Composition API (Standalone)

<template>
  <div id="app">
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :resourceUrl="resourceUrl"
      :freeTextSettings="freetextSettings">
    </ejs-pdfviewer>
  </div>
</template>

<script setup>
import {
  PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide } from 'vue';

const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
const resourceUrl = 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib';
const freetextSettings = { fillColor: 'green', borderColor: 'blue', fontColor: 'yellow' };

provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
  ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer])

</script>

Optiions API (Standalone)

<template>
  <div id="app">
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :resourceUrl="resourceUrl"
      :freeTextSettings="freetextSettings">
    </ejs-pdfviewer>
  </div>
</template>

<script>

import {
  PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';

export default {
  name: "App",
  components: {
    "ejs-pdfviewer": PdfViewerComponent
  },
  data() {
    return {
      documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
      resourceUrl: 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib',
      freetextSettings: { fillColor: 'green', borderColor: 'blue', fontColor: 'yellow' }
    };
  },
  provide: {
    PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
      ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]
  },
}
</script>

Composition API (Server-backed)

<template>
  <div id="app">
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :serviceUrl="serviceUrl"
      :freeTextSettings="freetextSettings">
    </ejs-pdfviewer>
  </div>
</template>

<script setup>
import {
  PdfViewerComponent as EjsPdfviewer, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide } from 'vue';

const serviceUrl = "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer";
const documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
const freetextSettings = { fillColor: 'green', borderColor: 'blue', fontColor: 'yellow' }

provide('PdfViewer', [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
  ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer])

</script>

Options API (Server-Backed)

<template>
  <div id="app">
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :serviceUrl="serviceUrl"
      :freeTextSettings="freetextSettings">
    </ejs-pdfviewer>
  </div>
</template>

<script>
import {
  PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print, TextSelection,
  TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';

export default {
  name: "App",
  components: {
    "ejs-pdfviewer": PdfViewerComponent
  },
  data() {
    return {
      serviceUrl: "https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer",
      documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
      freetextSettings: { fillColor: 'green', borderColor: 'blue', fontColor: 'yellow' }
    };
  },
  provide: {
    PdfViewer: [Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, Annotation,
      ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]
  }
}
</script>
