Comments in Vue PDF Viewer control

24 Oct 20255 minutes to read

The PDF Viewer control provides options to add, edit, and delete comments for the following annotations in PDF documents:

• Shape annotation
• Stamp annotation
• Sticky note annotation
• Measurement annotation
• Text markup annotation
• Free text annotation
• Ink annotation

Adding a comment to the annotation

Annotation comments, replies, and status can be managed in the PDF document using the comment panel.

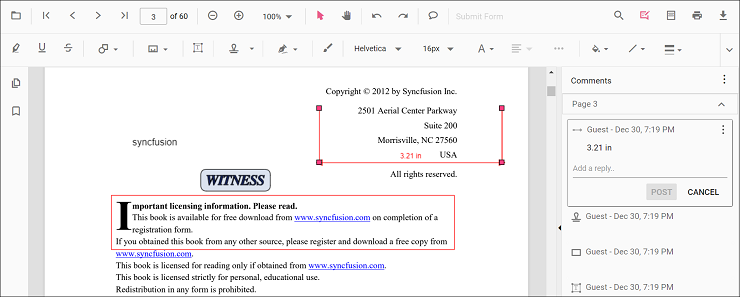

Comment panel

Annotation comments can be added to the PDF using the comment panel. The comment panel can be opened in the following ways:

1. Using the annotation menu

   • Click the Edit Annotation button in the PDF Viewer toolbar. A toolbar appears below it.
   • Click the Comment Panel button. The comment panel opens.

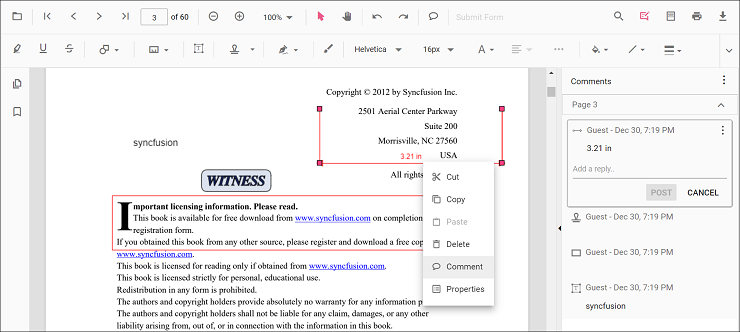

2. Using Context menu

   • Select the annotation in the PDF document and right-click it.
   • Select Comment from the context menu.

3. Using the Mouse click

   • Select the annotation in the PDF document and double-click it. The comment panel opens.

If the comment panel is already open, select the annotation and add comments using the panel.

Adding comments

• Select the annotation in the PDF document.
• The corresponding comment thread is highlighted in the comment panel.
• Add comments and replies using the comment panel.

Adding Comment Replies

• Multiple replies can be added to a comment.
• After adding a comment, add replies as needed.

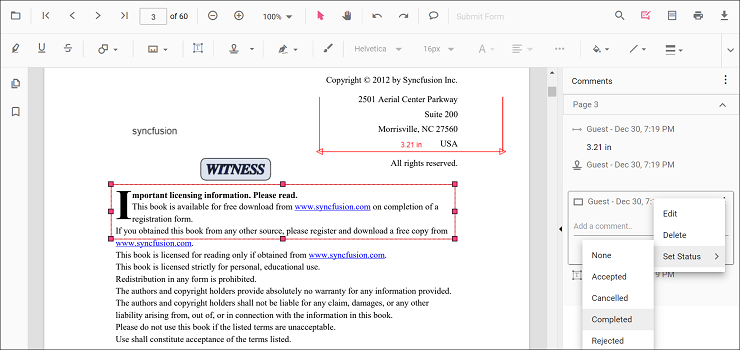

Adding Comment or Reply Status

• Select the annotation comment in the comment panel.
• Click More options in the comment or reply container.
• Select Set Status from the context menu.
• Choose a status for the comment.

Editing the comments and comments replies of the annotations

Comments, replies, and status can be edited using the comment panel.

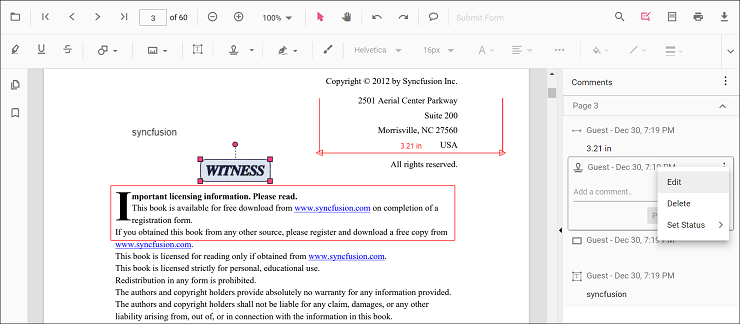

Editing the Comment or Comment Replies

Edit comments and replies in the following ways:

1. Using the Context menu

   • Select the annotation comment in the comment panel.
   • Click More options in the comment or reply container.
   • Select Edit from the context menu.
   • An editable text box appears. Change the content of the comment or reply.

2. Using the Mouse Click

   • Select the annotation comment in the comment panel.
   • Double-click the comment or reply content.
   • An editable text box appears. Change the content of the comment or reply.

Editing Comment or Reply Status

• Select the annotation comment in the comment panel.
• Click More options in the comment or reply container.
• Select Set Status from the context menu.
• Choose a status for the comment.
• None is the default state. Selecting None clears the status indicator; the comment or reply remains visible.

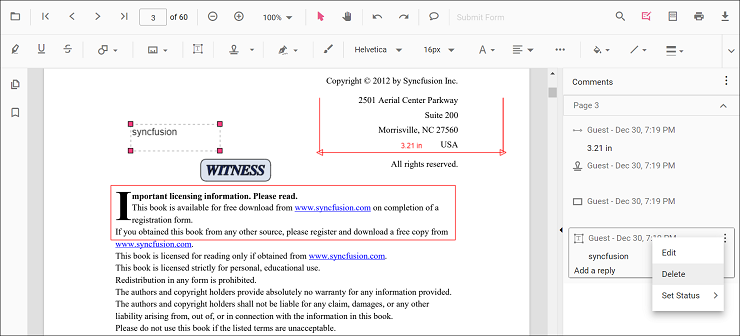

Delete Comment or Comment Replies

• Select the annotation comment in the comment panel.
• Click More options in the comment or reply container.
• Select Delete from the context menu.

How to check the comments added by the user

Comments added to the PDF document can be read using the annotation’s comments property.

The following example logs comments in response to a button click.

Standalone

<template>
  <div id="app">
    <button id="checkComments">Check the Comments</button>
    <ejs-pdfviewer id="pdfViewer" ref="pdfviewer" :documentPath="documentPath" :resourceUrl="resourceUrl"
      :documentLoad="documentLoad">
    </ejs-pdfviewer>
  </div>
</template>

<script setup>
import {
  PdfViewerComponent as EjsPdfviewer,
  Toolbar, Magnification, Navigation, LinkAnnotation,
  BookmarkView, Annotation, ThumbnailView, Print,
  TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer
} from '@syncfusion/ej2-vue-pdfviewer';
import { provide, ref } from 'vue';

const pdfviewer = ref(null);

const documentPath = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
const resourceUrl  = 'https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib';

provide('PdfViewer', [
  Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView,
  Annotation, ThumbnailView, Print, TextSelection, TextSearch,
  FormFields, FormDesigner, PageOrganizer
]);

const documentLoad = () => {
  const viewer = pdfviewer.value.ej2Instances;
  document.getElementById('checkComments')?.addEventListener('click', () => {
    const annotationCollections = viewer.annotationCollection || [];

    for (let x = 0; x < annotationCollections.length; x++) {
      const ann = annotationCollections[x];
      console.log('annotation Id : ' + ann.annotationId);

      const comments = ann.comments || [];
      for (let y = 0; y < comments.length; y++) {
        const comment = comments[y];
        console.log(`comment[${y}] : ${comment.note}`);
      }
      if (ann.note) {
        console.log('note : ' + ann.note);
      }
    }
  });
};
</script>

The annotation will be deleted on deleting the comment using comment panel.
