Measurement annotation in React PDF Viewer

25 Feb 202624 minutes to read

The PDF Viewer supports measurement annotations for capturing distances, perimeters, areas, radius, and volumes.

Supported measurement annotations:

  • Distance
  • Perimeter
  • Area
  • Radius
  • Volume

Measurement annotations overview

Add measurement annotations

Measurement annotations are available from the annotation toolbar.

  • Open the annotation toolbar using the Edit Annotation button in the PDF Viewer toolbar.
  • Use the Measurement Annotation drop-down to choose a measurement type.
  • Select a measurement type to enable its annotation mode, then place the measurement on the page.

If the viewer is in pan mode, selecting a measurement annotation activates text selection mode where applicable.

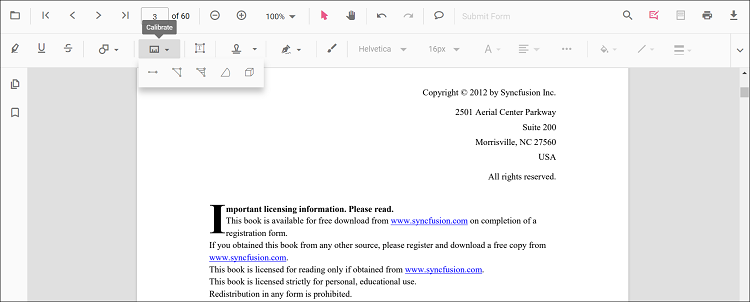

CalibrateTool

The following example switches the viewer to distance annotation mode.

import * as ReactDOM from 'react-dom';
import * as React from 'react';
import { PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
         BookmarkView, ThumbnailView, Print, TextSelection, TextSearch, Annotation,
         FormFields, FormDesigner, PageOrganizer, Inject } from '@syncfusion/ej2-react-pdfviewer';
let pdfviewer;

function App() {
  function distanceMode() {
    var viewer = document.getElementById('container').ej2_instances[0];
    viewer.annotation.setAnnotationMode('Distance');
  }
  return (<div>
    <button onClick={distanceMode}>Distance</button>
    <div className='control-section'>
      <PdfViewerComponent ref={(scope) => { pdfviewer = scope; }}
        id="container"
        documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
        resourceUrl="https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib"
        style={{ 'height': '640px' }}>
import { PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
         BookmarkView, ThumbnailView, Print, TextSelection, TextSearch, Annotation,
         FormFields, FormDesigner, PageOrganizer, Inject } from '@syncfusion/ej2-react-pdfviewer';
      </PdfViewerComponent>
    </div>
  </div>);
}
const root = ReactDOM.createRoot(document.getElementById('sample'));
root.render(<App />);
import * as ReactDOM from 'react-dom';
import * as React from 'react';
import { PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
         BookmarkView, ThumbnailView, Print, TextSelection, TextSearch, Annotation,
         FormFields, FormDesigner, PageOrganizer, Inject } from '@syncfusion/ej2-react-pdfviewer';
let pdfviewer;

function App() {
  function distanceMode() {
    var viewer = document.getElementById('container').ej2_instances[0];
    viewer.annotation.setAnnotationMode('Distance');
  }
  return (<div>
    <button onClick={distanceMode}>Distance</button>
    <div className='control-section'>
      <PdfViewerComponent ref={(scope) => { pdfviewer = scope; }}
        id="container"
        documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
        serviceUrl="https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer"
        style={{ 'height': '640px' }}>

              <Inject services={[ Toolbar, Annotation, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
                                  Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]} />
      </PdfViewerComponent>
    </div>
  </div>);
}
const root = ReactDOM.createRoot(document.getElementById('sample'));
root.render(<App />);

Add a measurement annotation to the PDF document programmatically

The PDF Viewer library allows adding measurement annotations programmatically using the addAnnotation() method.

The following examples demonstrate how to add measurement annotations programmatically using addAnnotation().

import * as ReactDOM from 'react-dom';
import * as React from 'react';
import './index.css';
import { PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
         Print, TextSelection, TextSearch, Annotation, FormFields, FormDesigner, PageOrganizer, Inject } from '@syncfusion/ej2-react-pdfviewer';
let pdfviewer;

function App() {

  function addDistanceAnnotation() {
    var viewer = document.getElementById('container').ej2_instances[0];
    viewer.annotation.addAnnotation("Distance", {
      offset: { x: 200, y: 230 },
      pageNumber: 1,
      vertexPoints: [{ x: 200, y: 230 }, { x: 350, y: 230 }]
    });
  }
  function addPerimeterAnnotation() {
    var viewer = document.getElementById('container').ej2_instances[0];
    viewer.annotation.addAnnotation("Perimeter", {
      offset: { x: 200, y: 350 },
      pageNumber: 1,
      vertexPoints: [{ x: 200, y: 350 }, { x: 285, y: 350 }, { x: 286, y: 412 }]
    });
  }
  function addAreaAnnotation() {
    var viewer = document.getElementById('container').ej2_instances[0];
    viewer.annotation.addAnnotation("Area", {
      offset: { x: 200, y: 500 },
      pageNumber: 1,
      vertexPoints: [{ x: 200, y: 500 }, { x: 288, y: 499 }, { x: 289, y: 553 }, { x: 200, y: 500 }]
    });
  }
  function addRadiusAnnotation() {
    var viewer = document.getElementById('container').ej2_instances[0];
    viewer.annotation.addAnnotation("Radius", {
      offset: { x: 200, y: 630 },
      pageNumber: 1,
      width: 90,
      height: 90
    });
  }
  function addVolumeAnnotation() {
    var viewer = document.getElementById('container').ej2_instances[0];
    viewer.annotation.addAnnotation("Volume", {
      offset: { x: 200, y: 810 },
      pageNumber: 1,
      vertexPoints: [{ x: 200, y: 810 }, { x: 200, y: 919 }, { x: 320, y: 919 }, { x: 320, y: 809 }, { x: 200, y: 810 }]
    });
  }
  return (<div>
    <button onClick={addDistanceAnnotation}>Add Distance Annotation programatically</button>
    <button onClick={addPerimeterAnnotation}>Add Perimeter Annotation programatically</button>
    <button onClick={addAreaAnnotation}>Add Area Annotation programatically</button>
    <button onClick={addRadiusAnnotation}>Add Radius Annotation programatically</button>
    <button onClick={addVolumeAnnotation}>Add Volume Annotation programatically</button>
    <div className='control-section'>
      <PdfViewerComponent
        ref={(scope) => { pdfviewer = scope; }}
        id="container"
        documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
        resourceUrl="https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib"
        style={{ 'height': '640px' }}>

              <Inject services={[ Toolbar, Annotation, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
                                  Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]} />
      </PdfViewerComponent>
    </div>
  </div>);
}
const root = ReactDOM.createRoot(document.getElementById('sample'));
root.render(<App />);
import * as ReactDOM from 'react-dom';
import * as React from 'react';
import './index.css';
import { PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
         Print, TextSelection, TextSearch, Annotation, FormFields, FormDesigner, PageOrganizer, Inject } from '@syncfusion/ej2-react-pdfviewer';
let pdfviewer;

function App() {

  function addDistanceAnnotation() {
    var viewer = document.getElementById('container').ej2_instances[0];
    viewer.annotation.addAnnotation("Distance", {
      offset: { x: 200, y: 230 },
      pageNumber: 1,
      vertexPoints: [{ x: 200, y: 230 }, { x: 350, y: 230 }]
    });
  }
  function addPerimeterAnnotation() {
    var viewer = document.getElementById('container').ej2_instances[0];
    viewer.annotation.addAnnotation("Perimeter", {
      offset: { x: 200, y: 350 },
      pageNumber: 1,
      vertexPoints: [{ x: 200, y: 350 }, { x: 285, y: 350 }, { x: 286, y: 412 }]
    });
  }
  function addAreaAnnotation() {
    var viewer = document.getElementById('container').ej2_instances[0];
    viewer.annotation.addAnnotation("Area", {
      offset: { x: 200, y: 500 },
      pageNumber: 1,
      vertexPoints: [{ x: 200, y: 500 }, { x: 288, y: 499 }, { x: 289, y: 553 }, { x: 200, y: 500 }]
    });
  }
  function addRadiusAnnotation() {
    var viewer = document.getElementById('container').ej2_instances[0];
    viewer.annotation.addAnnotation("Radius", {
      offset: { x: 200, y: 630 },
      pageNumber: 1,
      width: 90,
      height: 90
    });
  }
  function addVolumeAnnotation() {
    var viewer = document.getElementById('container').ej2_instances[0];
    viewer.annotation.addAnnotation("Volume", {
      offset: { x: 200, y: 810 },
      pageNumber: 1,
      vertexPoints: [{ x: 200, y: 810 }, { x: 200, y: 919 }, { x: 320, y: 919 }, { x: 320, y: 809 }, { x: 200, y: 810 }]
    });
  }
  return (<div>
    <button onClick={addDistanceAnnotation}>Add Distance Annotation programatically</button>
    <button onClick={addPerimeterAnnotation}>Add Perimeter Annotation programatically</button>
    <button onClick={addAreaAnnotation}>Add Area Annotation programatically</button>
    <button onClick={addRadiusAnnotation}>Add Radius Annotation programatically</button>
    <button onClick={addVolumeAnnotation}>Add Volume Annotation programatically</button>
    <div className='control-section'>
      <PdfViewerComponent
        ref={(scope) => { pdfviewer = scope; }}
        id="container"
        documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
        serviceUrl="https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer"
        style={{ 'height': '640px' }}>

              <Inject services={[ Toolbar, Annotation, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
                                  Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]} />
      </PdfViewerComponent>
    </div>
  </div>);
}
const root = ReactDOM.createRoot(document.getElementById('sample'));
root.render(<App />);

Edit an existing measurement annotation programmatically

Use the editAnnotation() method to modify existing measurement annotations programmatically.

The following example demonstrates editAnnotation().

import * as ReactDOM from 'react-dom';
import * as React from 'react';
import './index.css';
import { PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
         Print, TextSelection, TextSearch, Annotation, FormFields, FormDesigner, PageOrganizer, Inject } from '@syncfusion/ej2-react-pdfviewer';
let pdfviewer;

function App() {

  function editDistanceAnnotation() {
    var viewer = document.getElementById('container').ej2_instances[0];
    for (let i = 0; i < viewer.annotationCollection.length; i++) {
      if (viewer.annotationCollection[i].subject === "Distance calculation") {
        viewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
        viewer.annotationCollection[i].strokeColor = "#0000FF";
        viewer.annotationCollection[i].thickness = 2 ;
        viewer.annotationCollection[i].fillColor = "#FFFF00";
        viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
      }
    }
  }
  function editPerimeterAnnotation() {
    var viewer = document.getElementById('container').ej2_instances[0];
    for (let i = 0; i < viewer.annotationCollection.length; i++) {
      if (viewer.annotationCollection[i].subject === "Perimeter calculation") {
        viewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
        viewer.annotationCollection[i].strokeColor = "#0000FF";
        viewer.annotationCollection[i].thickness = 2 ;
        viewer.annotationCollection[i].fillColor = "#FFFF00";
        viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
      }
    }
  }
  function editAreaAnnotation() {
    var viewer = document.getElementById('container').ej2_instances[0];
    for (let i = 0; i < viewer.annotationCollection.length; i++) {
      if (viewer.annotationCollection[i].subject === "Area calculation") {
        viewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
        viewer.annotationCollection[i].strokeColor = "#0000FF";
        viewer.annotationCollection[i].thickness = 2 ;
        viewer.annotationCollection[i].fillColor = "#FFFF00";
        viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
      }
    }
  }
  function editRadiusAnnotation() {
    var viewer = document.getElementById('container').ej2_instances[0];
    for (let i = 0; i < viewer.annotationCollection.length; i++) {
      if (viewer.annotationCollection[i].subject === "Radius calculation") {
        viewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
        viewer.annotationCollection[i].strokeColor = "#0000FF";
        viewer.annotationCollection[i].thickness = 2 ;
        viewer.annotationCollection[i].fillColor = "#FFFF00";
        viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
      }
    }
  }
  function editVolumeAnnotation() {
    var viewer = document.getElementById('container').ej2_instances[0];
    for (let i = 0; i < viewer.annotationCollection.length; i++) {
      if (viewer.annotationCollection[i].subject === "Volume calculation") {
        viewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
        viewer.annotationCollection[i].strokeColor = "#0000FF";
        viewer.annotationCollection[i].thickness = 2 ;
        viewer.annotationCollection[i].fillColor = "#FFFF00";
        viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
      }
    }
  }
  return (<div>
    <button onClick={editDistanceAnnotation}>Edit Distance Annotation programatically</button>
    <button onClick={editPerimeterAnnotation}>Edit Perimeter Annotation programatically</button>
    <button onClick={editAreaAnnotation}>Edit Area Annotation programatically</button>
    <button onClick={editRadiusAnnotation}>Edit Radius Annotation programatically</button>
    <button onClick={editVolumeAnnotation}>Edit Volume Annotation programatically</button>
    <div className='control-section'>
      <PdfViewerComponent
        ref={(scope) => { pdfviewer = scope; }}
        id="container"
        documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
        resourceUrl="https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib"
        style={{ 'height': '640px' }}>

              <Inject services={[ Toolbar, Annotation, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
                                  Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]} />
      </PdfViewerComponent>
    </div>
  </div>);
}
const root = ReactDOM.createRoot(document.getElementById('sample'));
root.render(<App />);
import * as ReactDOM from 'react-dom';
import * as React from 'react';
import './index.css';
import { PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
         Print, TextSelection, TextSearch, Annotation, FormFields, FormDesigner, PageOrganizer, Inject } from '@syncfusion/ej2-react-pdfviewer';
let pdfviewer;

function App() {

  function editDistanceAnnotation() {
    var viewer = document.getElementById('container').ej2_instances[0];
    for (let i = 0; i < viewer.annotationCollection.length; i++) {
      if (viewer.annotationCollection[i].subject === "Distance calculation") {
        viewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
        viewer.annotationCollection[i].strokeColor = "#0000FF";
        viewer.annotationCollection[i].thickness = 2 ;
        viewer.annotationCollection[i].fillColor = "#FFFF00";
        viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
      }
    }
  }
  function editPerimeterAnnotation() {
    var viewer = document.getElementById('container').ej2_instances[0];
    for (let i = 0; i < viewer.annotationCollection.length; i++) {
      if (viewer.annotationCollection[i].subject === "Perimeter calculation") {
        viewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
        viewer.annotationCollection[i].strokeColor = "#0000FF";
        viewer.annotationCollection[i].thickness = 2 ;
        viewer.annotationCollection[i].fillColor = "#FFFF00";
        viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
      }
    }
  }
  function editAreaAnnotation() {
    var viewer = document.getElementById('container').ej2_instances[0];
    for (let i = 0; i < viewer.annotationCollection.length; i++) {
      if (viewer.annotationCollection[i].subject === "Area calculation") {
        viewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
        viewer.annotationCollection[i].strokeColor = "#0000FF";
        viewer.annotationCollection[i].thickness = 2 ;
        viewer.annotationCollection[i].fillColor = "#FFFF00";
        viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
      }
    }
  }
  function editRadiusAnnotation() {
    var viewer = document.getElementById('container').ej2_instances[0];
    for (let i = 0; i < viewer.annotationCollection.length; i++) {
      if (viewer.annotationCollection[i].subject === "Radius calculation") {
        viewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
        viewer.annotationCollection[i].strokeColor = "#0000FF";
        viewer.annotationCollection[i].thickness = 2 ;
        viewer.annotationCollection[i].fillColor = "#FFFF00";
        viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
      }
    }
  }
  function editVolumeAnnotation() {
    var viewer = document.getElementById('container').ej2_instances[0];
    for (let i = 0; i < viewer.annotationCollection.length; i++) {
      if (viewer.annotationCollection[i].subject === "Volume calculation") {
        viewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
        viewer.annotationCollection[i].strokeColor = "#0000FF";
        viewer.annotationCollection[i].thickness = 2 ;
        viewer.annotationCollection[i].fillColor = "#FFFF00";
        viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
      }
    }
  }
  return (<div>
    <button onClick={editDistanceAnnotation}>Edit Distance Annotation programatically</button>
    <button onClick={editPerimeterAnnotation}>Edit Perimeter Annotation programatically</button>
    <button onClick={editAreaAnnotation}>Edit Area Annotation programatically</button>
    <button onClick={editRadiusAnnotation}>Edit Radius Annotation programatically</button>
    <button onClick={editVolumeAnnotation}>Edit Volume Annotation programatically</button>
    <div className='control-section'>
      <PdfViewerComponent
        ref={(scope) => { pdfviewer = scope; }}
        id="container"
        documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
        serviceUrl="https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer"
        style={{ 'height': '640px' }}>

              <Inject services={[ Toolbar, Annotation, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
                                  Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]} />
      </PdfViewerComponent>
    </div>
  </div>);
}
const root = ReactDOM.createRoot(document.getElementById('sample'));
root.render(<App />);

Edit properties of measurement annotations

Change fill color, stroke color, thickness, and opacity using the annotation toolbar tools: Edit Color, Edit Stroke Color, Edit Thickness, and Edit Opacity.

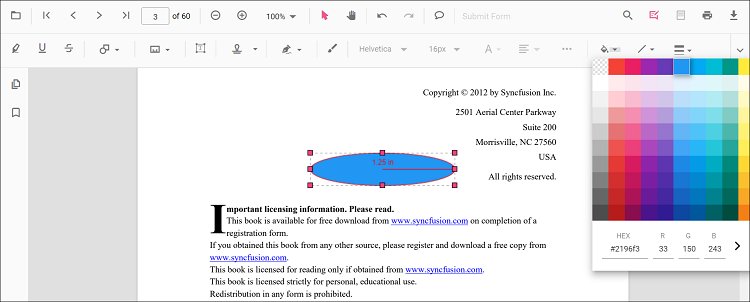

Edit fill color

Change the fill color with the color palette in the Edit Color tool.

CalibrateFillColor

Edit stroke color

Change the stroke color with the Edit Stroke Color tool.

CalibrateStrokeColor

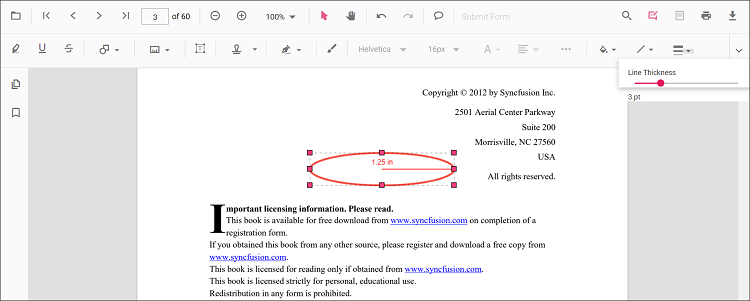

Edit thickness

Adjust border thickness with the range slider in the Edit Thickness tool.

CalibrateThickness

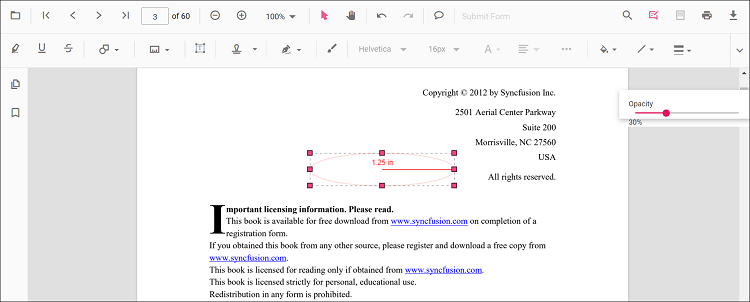

Edit opacity

Adjust annotation opacity with the range slider in the Edit Opacity tool.

CalibrateOpacity

Edit line properties

Line-based measurement annotations (distance and perimeter) include additional options in the Line Properties window. Open it by right-clicking the annotation and choosing Properties.

CalibrateProperty

Set default properties during initialization

Default properties for measurement annotations can be configured on the viewer before creation using the distanceSettings, perimeterSettings, areaSettings, radiusSettings, and volumeSettings properties.

The following code snippet shows how to set default measurement annotation settings on initialization.

import * as ReactDOM from 'react-dom';
import * as React from 'react';
import { PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
         BookmarkView, ThumbnailView, Print, TextSelection, TextSearch, Annotation,
         FormFields, FormDesigner, PageOrganizer, Inject } from '@syncfusion/ej2-react-pdfviewer';
let pdfviewer;

export function App() {
  return (<div>
    <div className='control-section'>
      <PdfViewerComponent ref={(scope) => { pdfviewer = scope; }}
        id="container"
        documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
        resourceUrl="https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib"
        distanceSettings={{fillColor: 'blue', opacity: 0.6, strokeColor: 'green'}}
        perimeterSettings={{fillColor: 'green', opacity: 0.6, strokeColor: 'blue'}}
        areaSettings={{fillColor: 'yellow', opacity: 0.6, strokeColor: 'orange'}}
        radiusSettings={{fillColor: 'orange', opacity: 0.6, strokeColor: 'pink'}}
        volumeSettings={{fillColor: 'pink', opacity: 0.6, strokeColor: 'yellow'}}
        style={{ 'height': '640px' }}>

              <Inject services={[ Toolbar, Annotation, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
                                  Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]} />
      </PdfViewerComponent>
    </div>
  </div>);
}
const root = ReactDOM.createRoot(document.getElementById('sample'));
root.render(<App />);
import * as ReactDOM from 'react-dom';
import * as React from 'react';
import { PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
         BookmarkView, ThumbnailView, Print, TextSelection, TextSearch, Annotation,
         FormFields, FormDesigner, PageOrganizer, Inject } from '@syncfusion/ej2-react-pdfviewer';
let pdfviewer;

export function App() {
  return (<div>
    <div className='control-section'>
      <PdfViewerComponent ref={(scope) => { pdfviewer = scope; }}
        id="container"
        documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
        serviceUrl="https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer"
        distanceSettings={{fillColor: 'blue', opacity: 0.6, strokeColor: 'green'}}
        perimeterSettings={{fillColor: 'green', opacity: 0.6, strokeColor: 'blue'}}
        areaSettings={{fillColor: 'yellow', opacity: 0.6, strokeColor: 'orange'}}
        radiusSettings={{fillColor: 'orange', opacity: 0.6, strokeColor: 'pink'}}
        volumeSettings={{fillColor: 'pink', opacity: 0.6, strokeColor: 'yellow'}}
        style={{ 'height': '640px' }}>

              <Inject services={[ Toolbar, Annotation, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
                                  Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]} />
      </PdfViewerComponent>
    </div>
  </div>);
}
const root = ReactDOM.createRoot(document.getElementById('sample'));
root.render(<App />);

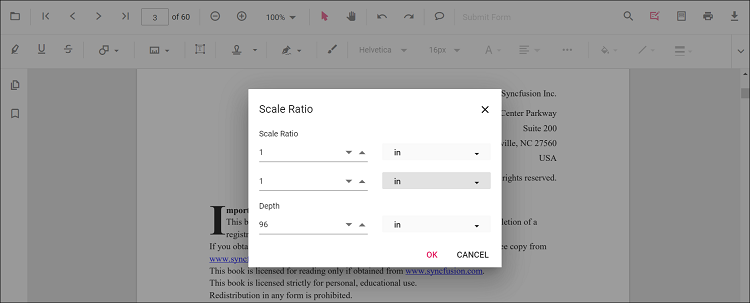

Scale ratio and measurement units

Modify the scale ratio and measurement unit via the Scale Ratio option in the viewer’s context menu.

CalibrateScaleRatio

Supported units for measurement annotations:

  • Inch
  • Millimeter
  • Centimeter
  • Point
  • Pica
  • Feet

CalibrateScaleDialog

Set default scale ratio during initialization

Configure scale ratio defaults using measurementSettings (for example, scaleRatio, conversionUnit, and displayUnit) before creating the viewer. The following snippet demonstrates these settings.

import * as ReactDOM from 'react-dom';
import * as React from 'react';
import { PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
         BookmarkView, ThumbnailView, Print, TextSelection, TextSearch, Annotation,
         FormFields, FormDesigner, PageOrganizer, Inject } from '@syncfusion/ej2-react-pdfviewer';
let pdfviewer;

function App() {
  return (<div>
    <div className='control-section'>
      <PdfViewerComponent ref={(scope) => { pdfviewer = scope; }}
        id="container"
        documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
        resourceUrl="https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib"
        measurementSettings={{scaleRatio: 2, conversionUnit: 'cm', displayUnit: 'cm'}}
        style={{ 'height': '640px' }}>

              <Inject services={[ Toolbar, Annotation, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
                                  Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]} />
      </PdfViewerComponent>
    </div>
  </div>);
}
const root = ReactDOM.createRoot(document.getElementById('sample'));
root.render(<App />);
import * as ReactDOM from 'react-dom';
import * as React from 'react';
import { PdfViewerComponent, Toolbar, Magnification, Navigation, LinkAnnotation,
         BookmarkView, ThumbnailView, Print, TextSelection, TextSearch, Annotation,
         FormFields, FormDesigner, PageOrganizer, Inject } from '@syncfusion/ej2-react-pdfviewer';
let pdfviewer;

function App() {
  return (<div>
    <div className='control-section'>
      <PdfViewerComponent ref={(scope) => { pdfviewer = scope; }}
        id="container"
        documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
        serviceUrl="https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer"
        measurementSettings={{scaleRatio: 2, conversionUnit: 'cm', displayUnit: 'cm'}}
        style={{ 'height': '640px' }}>
              <Inject services={[ Toolbar, Annotation, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView,
                                  Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer]} />
      </PdfViewerComponent>
    </div>
  </div>);
}
const root = ReactDOM.createRoot(document.getElementById('sample'));
root.render(<App />);
