Navigation in TypeScript PDF Viewer

The TypeScript PDF Viewer supports multiple navigation options, including toolbar controls, programmatic commands, bookmarks, thumbnails, hyperlinks, and table of contents.

Toolbar page navigation option

The default toolbar includes the following navigation options:

<!DOCTYPE html>
<html lang="en">

<head>
    <title>Essential JS 2</title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0, user-scalable=no" />
    <meta name="description" content="Essential JS 2" />
    <meta name="author" content="Syncfusion" />
    <link rel="shortcut icon" href="resources/favicon.ico" />
    <link href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet" />

    <!--style reference from app-->
    <link href="/styles/styles.css" rel="stylesheet" />

    <!--system js reference and configuration-->
    <script src="node_modules/systemjs/dist/system.src.js" type="text/javascript"></script>
    <script src="system.config.js" type="text/javascript"></script>
</head>

<body>
    <!--Element which will render as PdfViewer -->
    <div id="PdfViewer"></div>
</body>

</html>

Enable or disable page navigation using the following configuration:

import { PdfViewer, Toolbar, Magnification, Navigation, LinkAnnotation,ThumbnailView,BookmarkView, TextSelection} from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar,Magnification,Navigation, LinkAnnotation,ThumbnailView,BookmarkView, TextSelection);

let pdfviewer: PdfViewer = new PdfViewer({enableNavigation: true, documentPath:'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf'});
pdfviewer.appendTo('#PdfViewer');
import { PdfViewer, Toolbar, Magnification, Navigation, LinkAnnotation,ThumbnailView,BookmarkView, TextSelection} from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar,Magnification,Navigation, LinkAnnotation,ThumbnailView,BookmarkView, TextSelection);

let pdfviewer: PdfViewer = new PdfViewer({enableNavigation: true, documentPath:'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf'});
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.appendTo('#PdfViewer');

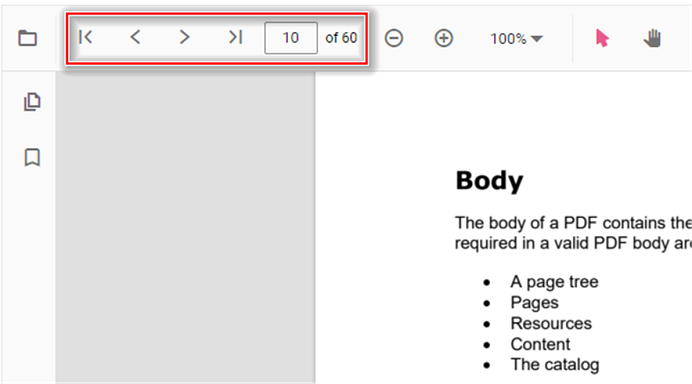

PDF Viewer toolbar navigation controls

You can also perform page navigation programmatically:

<!DOCTYPE html>
<html lang="en">

<head>
    <title>Essential JS 2</title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0, user-scalable=no" />
    <meta name="description" content="Essential JS 2" />
    <meta name="author" content="Syncfusion" />
    <link rel="shortcut icon" href="resources/favicon.ico" />
    <link href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet" />

    <!--style reference from app-->
    <link href="/styles/styles.css" rel="stylesheet" />

    <!--system js reference and configuration-->
    <script src="node_modules/systemjs/dist/system.src.js" type="text/javascript"></script>
    <script src="system.config.js" type="text/javascript"></script>
</head>

<body>
    <!--Element which will render as PdfViewer -->
    <button id="goToFirstPage">Go To First Page</button>
    <button id="goToLastPage">Go To last Page</button>
    <button id="goToNextPage">Go To Next Page</button>
    <button id="goToPage">Go To Page</button>
    <button id="goToPreviousPage">Go To Previous Page</button>
    <div id="PdfViewer"></div>
</body>

</html>
import {PdfViewer, Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView, Print TextSelection, TextSearch, Annotation, FormFields } from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar,Magnification,Navigation, LinkAnnotation,ThumbnailView,BookmarkView, TextSelection, TextSearch, Annotation, FormFields );

let viewer: PdfViewer = new PdfViewer();
viewer.appendTo('#pdfViewer');
viewer.load('https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf', null);

// Go To First Page
document.getElementById('goToFirstPage').addEventListener('click', () => {
  viewer.navigation.goToFirstPage();
});
// Go To Last Page
document.getElementById('goToLastPage').addEventListener('click', () => {
  viewer.navigation.goToLastPage();
});
// Go To Next Page
document.getElementById('goToNextPage').addEventListener('click', () => {
  viewer.navigation.goToNextPage();
});
// Go To Page
document.getElementById('goToPage').addEventListener('click', () => {
  viewer.navigation.goToPage(4);
});
// Go To Previous Page
document.getElementById('goToPreviousPage').addEventListener('click', () => {
  viewer.navigation.goToPreviousPage();
});
import {PdfViewer, Toolbar, Magnification, Navigation, LinkAnnotation, BookmarkView, ThumbnailView, Print TextSelection, TextSearch, Annotation, FormFields } from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar,Magnification,Navigation, LinkAnnotation,ThumbnailView,BookmarkView, TextSelection, TextSearch, Annotation, FormFields );

let viewer: PdfViewer = new PdfViewer();
viewer.serviceUrl =
  'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
viewer.appendTo('#pdfViewer');
viewer.load('https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf', null);

// Go To First Page
document.getElementById('goToFirstPage').addEventListener('click', () => {
  viewer.navigation.goToFirstPage();
});
// Go To Last Page
document.getElementById('goToLastPage').addEventListener('click', () => {
  viewer.navigation.goToLastPage();
});
// Go To Next Page
document.getElementById('goToNextPage').addEventListener('click', () => {
  viewer.navigation.goToNextPage();
});
// Go To Page
document.getElementById('goToPage').addEventListener('click', () => {
  viewer.navigation.goToPage(4);
});
// Go To Previous Page
document.getElementById('goToPreviousPage').addEventListener('click', () => {
  viewer.navigation.goToPreviousPage();
});

View the programmatic navigation sample for a working example.

Bookmark navigation

Bookmarks saved in PDF files provide quick navigation. Enable or disable bookmark navigation using the following configuration:

import { PdfViewer, Toolbar, Magnification, Navigation, LinkAnnotation, Annotation, ThumbnailView,BookmarkView, TextSelection} from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar,Magnification,Navigation, Annotation, LinkAnnotation,ThumbnailView,BookmarkView, TextSelection);

let pdfviewer: PdfViewer = new PdfViewer({enableBookmark: true, documentPath:'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf'});
pdfviewer.appendTo('#PdfViewer');
import { PdfViewer, Toolbar, Magnification, Navigation, LinkAnnotation, Annotation, ThumbnailView,BookmarkView, TextSelection} from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar,Magnification,Navigation, Annotation, LinkAnnotation,ThumbnailView,BookmarkView, TextSelection);

let pdfviewer: PdfViewer = new PdfViewer({enableBookmark: true, documentPath:'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf'});
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.appendTo('#PdfViewer');

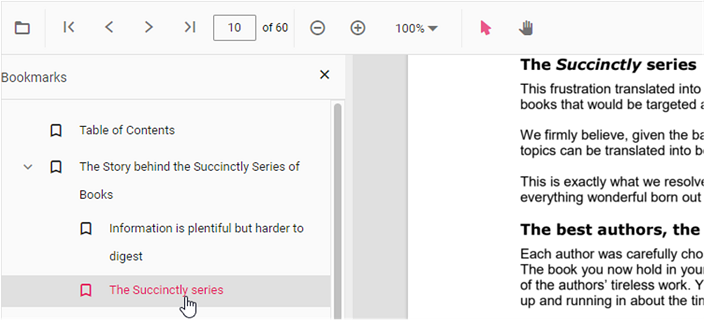

PDF Viewer bookmark panel

Use the goToBookmark method to navigate to a specific bookmark. The method throws an error if the bookmark does not exist in the document.

Example:

  <button id="gotobookmark">Specfic Page</button>

document.getElementById('gotobookmark').addEventListener('click', () => {
  viewer.bookmark.goToBookmark(x, y);
});

x - Specifies the pageIndex for Navigate.

y - Specifies the Y coordinates value of the Page.

Use the getBookmarks method to retrieve all bookmarks. The method returns a list of bookmark objects that include metadata for each entry.

Example:

  <button id="getBookmarks">retrieve bookmark</button>

document.getElementById('getBookmarks').addEventListener('click', () => {
  var getBookmarks = viewer.bookmark.getBookmarks();
  console.log(getBookmarks)
});

Thumbnail navigation

Thumbnails provide miniature representations of PDF pages for quick navigation. Enable or disable thumbnail navigation using the following configuration:

import { PdfViewer, Toolbar, Magnification, Navigation, Annotation, LinkAnnotation,ThumbnailView,BookmarkView, TextSelection} from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar,Magnification,Navigation, Annotation, LinkAnnotation,ThumbnailView,BookmarkView, TextSelection);

let pdfviewer: PdfViewer = new PdfViewer({enableThumbnail: true, documentPath:'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf'});
pdfviewer.appendTo('#PdfViewer');
import { PdfViewer, Toolbar, Magnification, Navigation, Annotation, LinkAnnotation,ThumbnailView,BookmarkView, TextSelection} from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar,Magnification,Navigation, Annotation, LinkAnnotation,ThumbnailView,BookmarkView, TextSelection);

let pdfviewer: PdfViewer = new PdfViewer({enableThumbnail: true, documentPath:'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf'});
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.appendTo('#PdfViewer');

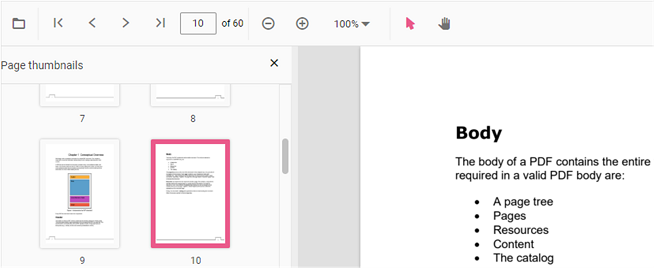

PDF Viewer thumbnail pane

Hyperlink navigation enables users to open URLs embedded in the PDF.

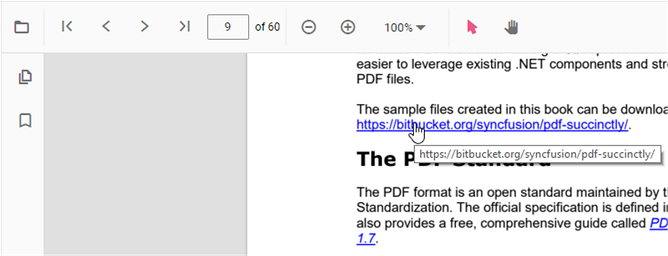

PDF Viewer hyperlink navigation

Table of content navigation

Table of contents navigation allows users to jump to sections defined in the document outline.

Enable or disable table of contents navigation using the following configuration:

import { PdfViewer, Toolbar, Magnification, Navigation, Annotation, LinkAnnotation,ThumbnailView,BookmarkView, TextSelection} from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar,Magnification,Navigation, Annotation, LinkAnnotation,ThumbnailView,BookmarkView, TextSelection);

let pdfviewer: PdfViewer = new PdfViewer({enableHyperlink: true, documentPath:'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf'});
pdfviewer.appendTo('#PdfViewer');
import { PdfViewer, Toolbar, Magnification, Navigation, Annotation, LinkAnnotation,ThumbnailView,BookmarkView, TextSelection} from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar,Magnification,Navigation, Annotation, LinkAnnotation,ThumbnailView,BookmarkView, TextSelection);

let pdfviewer: PdfViewer = new PdfViewer({enableHyperlink: true, documentPath:'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf'});
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.appendTo('#PdfViewer');

Change the hyperlink open state using the following configuration:

import { PdfViewer, Toolbar, Magnification, Navigation, Annotation, LinkAnnotation,ThumbnailView,BookmarkView, TextSelection} from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar,Magnification,Navigation, Annotation, LinkAnnotation,ThumbnailView,BookmarkView, TextSelection);

let pdfviewer: PdfViewer = new PdfViewer({enableHyperlink: true, documentPath:'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf', hyperlinkOpenState:'NewTab'});
pdfviewer.appendTo('#PdfViewer');
import { PdfViewer, Toolbar, Magnification, Navigation, Annotation, LinkAnnotation,ThumbnailView,BookmarkView, TextSelection} from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar,Magnification,Navigation, Annotation, LinkAnnotation,ThumbnailView,BookmarkView, TextSelection);

let pdfviewer: PdfViewer = new PdfViewer({enableHyperlink: true, documentPath:'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf', hyperlinkOpenState:'NewTab'});
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.appendTo('#PdfViewer');

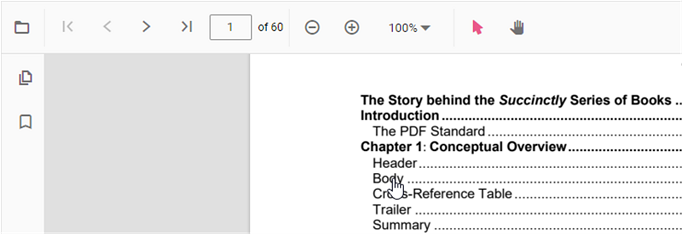

PDF Viewer table of contents panel
