Getting started with TypeScript PDF Viewer (standalone)

This guide explains how to create the PDF Viewer component and configure its features in TypeScript using the Essential JS 2 quickstart seed repository.

This application is integrated with a webpack configuration (webpack.config.js) and uses the latest version of the webpack-cli. It requires Node.js v14.15.0 or higher. For more information, refer to the webpack getting started guide.

Set up the development environment

Open a command prompt in the target directory and run the following command to clone the Syncfusion JavaScript (Essential JS 2) quickstart project from GitHub.

git clone https://github.com/SyncfusionExamples/ej2-quickstart-webpack- ej2-quickstart

After cloning, run the following command to navigate to the ej2-quickstart folder.

cd ej2-quickstart

Add Syncfusion JavaScript packages

Syncfusion JavaScript (Essential JS 2) packages are available on the npmjs.com public registry. Install all EJ2 controls with the @syncfusion/ej2 meta package or install individual control packages.

The quickstart application is preconfigured with @syncfusion/ej2 in ~/package.json. Use the following command to install dependencies:

npm install

Import Syncfusion CSS styles

Add the component CSS in the ~/src/styles/styles.css file, as shown below:

style.css
@import '../../node_modules/@syncfusion/ej2-base/styles/material.css';
@import '../../node_modules/@syncfusion/ej2-buttons/styles/material.css';
@import '../../node_modules/@syncfusion/ej2-dropdowns/styles/material.css';
@import '../../node_modules/@syncfusion/ej2-inputs/styles/material.css';
@import '../../node_modules/@syncfusion/ej2-navigations/styles/material.css';
@import '../../node_modules/@syncfusion/ej2-popups/styles/material.css';
@import '../../node_modules/@syncfusion/ej2-splitbuttons/styles/material.css';
@import "../../node_modules/@syncfusion/ej2-pdfviewer/styles/material.css";
@import "../../node_modules/@syncfusion/ej2-notifications/styles/material.css";

Add the PDF Viewer component

Add the PDF Viewer component in app.ts:

app.ts
import { PdfViewer, Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner} from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner);

let pdfviewer: PdfViewer = new PdfViewer();
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.resourceUrl = "https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib";
pdfviewer.appendTo('#PdfViewer');

Load PDF Viewer with local resources

To configure the PDF Viewer to use local files for documentPath and resourceUrl instead of CDN-hosted files, follow these steps:

Step 1: Ensure the application includes the ej2-pdfviewer-lib folder. This folder must contain the pdfium.js, pdfium.wasm files, and the PDF file to display. Place these files in the project’s dist directory.

Step 2: Assign local file paths to the documentPath and resourceUrl properties. The documentPath should refer to the PDF file, and the resourceUrl should point to the directory containing the supporting resources.

The following example shows how to load resources locally:

app.ts
pdfviewer.documentPath = window.location.origin + "/pdfsuccinctly.pdf";
pdfviewer.resourceUrl = window.location.origin + "/ej2-pdfviewer-lib";

View the sample in GitHub to load PDF Viewer with local resources

Add an HTML div element to act as the PDF Viewer element in index.html:

index.html
<!DOCTYPE html>
<html lang="en">

<head>
    <title>Essential JS 2</title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0, user-scalable=no" />
    <meta name="description" content="Essential JS 2" />
    <meta name="author" content="Syncfusion" />
    <link rel="shortcut icon" href="resources/favicon.ico" />
    <link href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet" />
</head>

<body>
    <!--Element which will render as PDF Viewer -->
    <div id="PdfViewer"></div>
</body>

</html>

Run the application

The quickstart project is configured to compile and run in the browser. Use the following command to start the application:

npm start

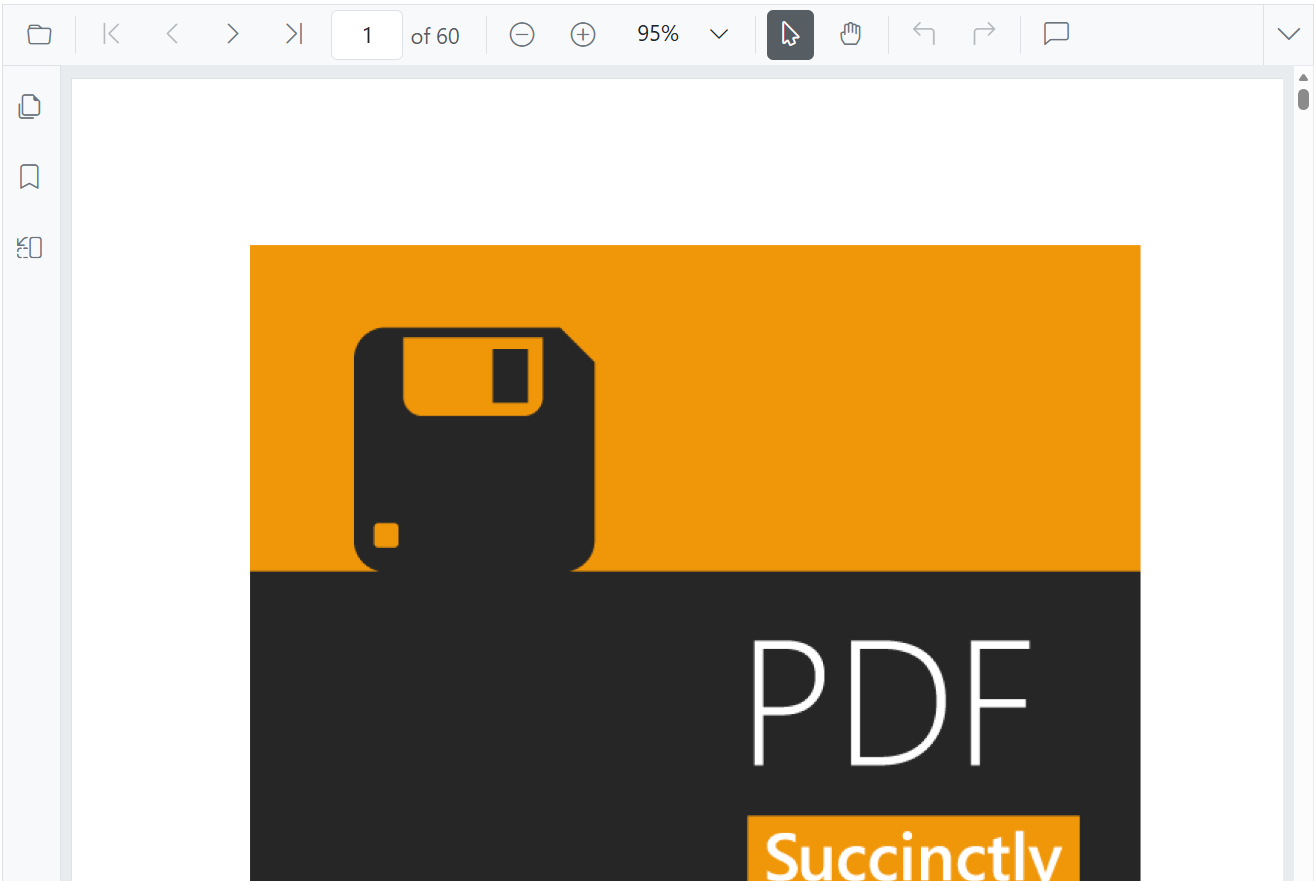

Output:

index.ts
index.html
import { PdfViewer, Toolbar, Magnification, Navigation, Annotation, LinkAnnotation,
         ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner} from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject( Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView,
                  BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner );

let pdfviewer: PdfViewer = new PdfViewer();
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.resourceUrl="https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib";
pdfviewer.appendTo('#PdfViewer');
<!DOCTYPE html>
<html lang="en">

<head>
    <title>EJ2 PDF Viewer</title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="TypeScript PDF Viewer Control" />
    <meta name="author" content="Syncfusion" />
    <link href="index.css" rel="stylesheet" />
    <link href="https://cdn.syncfusion.com/ej2/31.1.23/material.css" rel="stylesheet" />

    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
</head>
<body>
    <div id='loader'>Loading....</div>
    <div id='container'>
        <div id='PdfViewer' style="height:500px;width:100%;"></div>
    </div>
</body>
</html>

Module injection

To enable additional features, inject the required modules. The following modules extend the PDF Viewer’s functionality:

LinkAnnotation: Enables hyperlink navigation.
BookmarkView: Displays and navigates document bookmarks.
Magnification: Provides zoom in/out operations.
Navigation: Enables page navigation.
TextSelection: Enables text selection.
ThumbnailView: Displays page thumbnails for navigation.
Toolbar: Enables the built-in toolbar UI.
Print: Enables printing.
Annotation: Enables annotation features.
TextSearch: Enables text search.
FormFields: Enables form field support.
FormDesigner: Enables designing and editing of form fields.

Inject modules using the PdfViewer.Inject method.

Refer to the JavaScript PDF Viewer feature tour for an overview of capabilities. Explore the JavaScript PDF Viewer example to see core features in action.
