Form filling in ASP.NET MVC PDF Viewer Component

18 Nov 20183 minutes to read

The PDF Viewer component displays existing form fields in a PDF document and enables filling and downloading filled data.

The form fields displayed in the PDF Viewer are:

• TextBox
• Password
• CheckBox
• RadioButton
• ListBox
• DropDown
• SignatureField
• InitialField

Disabling form fields

The PDF Viewer control provides an option to disable interaction with form fields. Use the following configuration to disable form fields in the viewer.

Standalone

```html
<div style="width:100%;height:600px">
    @Html.EJS().PdfViewer("pdfviewer").EnableFormFields(false).DocumentPath("https://cdn.syncfusion.com/content/pdf/form-filling-document.pdf").Render()
</div>
```

Server-Backed

```html
<div style="width:100%;height:600px">
    @Html.EJS().PdfViewer("pdfviewer").ServiceUrl(VirtualPathUtility.ToAbsolute("~/PdfViewer/")).EnableFormFields(false).DocumentPath("https://cdn.syncfusion.com/content/pdf/form-filling-document.pdf").Render()
</div>
```

How to draw handwritten signature in the signature field

Add a handwritten signature to a Signature field by following these steps:

• Click the signature field in the PDF document to open the signature panel.

• Draw the signature in the signature panel.

• Click the CREATE button. The drawn signature is added to the signature field.

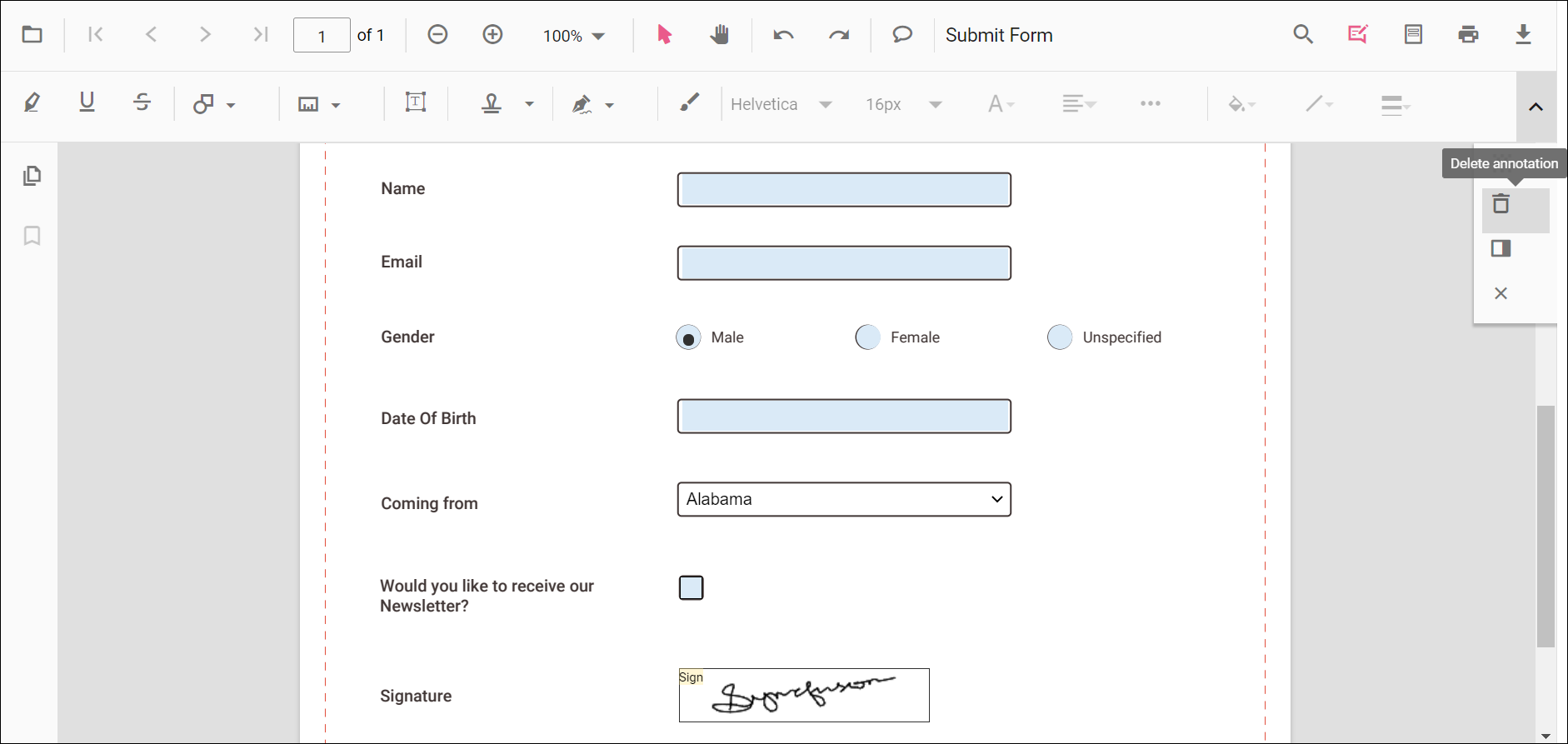

Delete the signature inside the signature field

Delete a signature placed in a signature field by using the Delete option in the annotation toolbar.

Export and import form fields

The PDF Viewer control provides the support to export and import the form field data in the following formats using the importFormFields, exportFormFields, and exportFormFieldsAsObject methods.

• FDF
• XFDF
• JSON

Importing form fields using PDF Viewer API

You can import the form fields using JSON file or JSON object in code behind like the below code sample.

<button id="viewer" onclick="OnImportFormFieldsClick()">Import FormFields</button>
<div style="width:100%;height:600px">
    @Html.EJS().PdfViewer("pdfviewer").ServiceUrl(VirtualPathUtility.ToAbsolute("~/PdfViewer/")).DocumentPath("https://cdn.syncfusion.com/content/pdf/form-filling-document.pdf").Render()
</div>
<script>
    function OnImportFormFieldsClick() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        //The json file has been placed inside the App_Data folder.);
        pdfViewer.importFormFields("D:/PDFViewer/Examples/mvcsample/App_Data/ImportFormFields.json");
    }
</script>

NOTE

The JSON file for importing the form fields should be placed in the desired location and the path should be provided correctly.

Exporting form fields from the PDF document using PDF Viewer API

You can export the form fields as JSON file in code behind as the following code sample.

Standalone

```html
<button id="viewer" onclick="OnExportFormFieldsClick()">Export FormFields</button>
<div style="width:100%;height:600px">
    @Html.EJS().PdfViewer("pdfviewer").DocumentPath("https://cdn.syncfusion.com/content/pdf/form-filling-document.pdf").Render()
</div>
<script>
    function OnExportFormFieldsClick() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
         pdfViewer.exportFormFields(null,'Json');
    }
</script>
```

Server-Backed

```html
<button id="viewer" onclick="OnExportFormFieldsClick()">Export FormFields</button>
<div style="width:100%;height:600px">
    @Html.EJS().PdfViewer("pdfviewer").ServiceUrl(VirtualPathUtility.ToAbsolute("~/PdfViewer/")).DocumentPath("https://cdn.syncfusion.com/content/pdf/form-filling-document.pdf").Render()
</div>
<script>
    function OnExportFormFieldsClick() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
         pdfViewer.exportFormFields(null,'Json');
    }
</script>
```

See also

• Handwritten Signature in ASP.NET MVC PDF Viewer Component
• Form Designer
