Shape Annotations in ASP.NET Core PDF Viewer

28 Feb 202624 minutes to read

The PDF Viewer control provides comprehensive shape annotation capabilities for adding, editing, deleting, and customizing various geometric shapes. This guide covers toolbar-based and programmatic approaches to shape creation.

Shape types

The PDF Viewer supports five primary shape annotation types:

  • Line
  • Arrow
  • Rectangle
  • Circle
  • Polygon

Shape annotations overview

Adding a shape annotation to the PDF document

Shape annotations can be added to PDF documents using the built-in annotation toolbar with an intuitive multi-step interface.

1. Enable annotation mode

  • Click the Edit Annotation button in the PDF Viewer toolbar
  • A secondary toolbar appears below the main toolbar

2. Select shape type

  • Click the Shape Annotation drop-down button
  • The pop-up displays all available shape annotation types

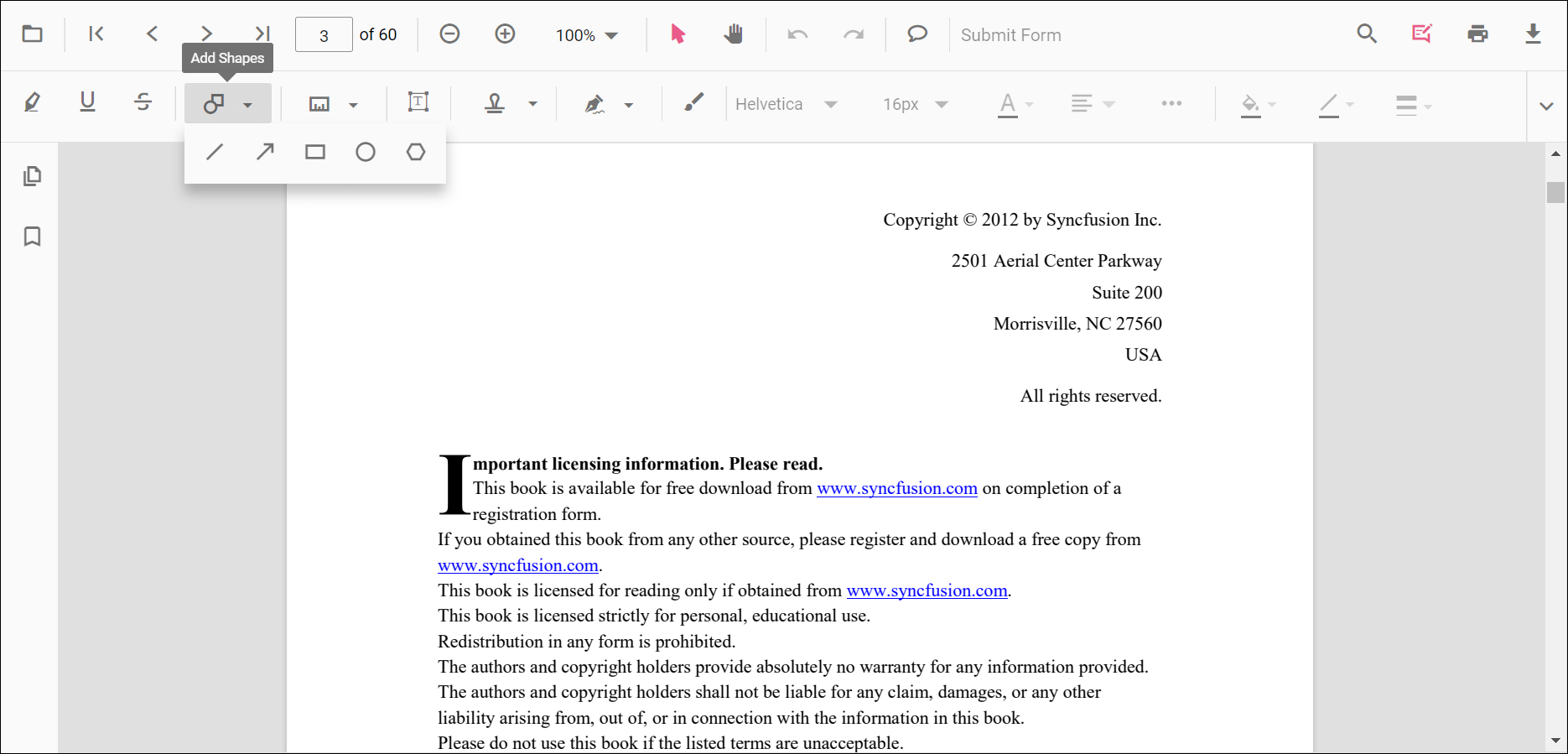

Shape annotation toolbar

3. Choose specific shape

  • Select a shape type to activate its annotation mode
  • The cursor changes to indicate annotation mode is active

4. Draw the shape

  • Click and drag on the PDF page to draw the shape
  • Release to complete the shape placement
  • Use handles to resize and reposition as needed

NOTE

When in pan mode and a shape annotation tool is selected, the PDF Viewer automatically switches to text select mode for smooth interaction.

Example: Switch to circle annotation mode

<!--Element to set shape annotation mode-->
<button id="set" onclick="addAnnot()">Circle</button>
<div style="width:100%;height:600px">
    <ejs-pdfviewer id="pdfviewer"
                   style="height:600px"
                   documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf">
    </ejs-pdfviewer>
</div>
<script>
    function addAnnot() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfViewer.annotation.setAnnotationMode('Circle');
    }
</script>
<!--Element to set shape annotation mode-->
<button id="set" onclick="addAnnot()">Circle</button>
<div style="width:100%;height:600px">
    <ejs-pdfviewer id="pdfviewer"
                   style="height:600px"
                   serviceUrl="/api/PdfViewer"
                   documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf">
    </ejs-pdfviewer>
</div>
<script>
    function addAnnot() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfViewer.annotation.setAnnotationMode('Circle');
    }
</script>

Add a shape annotation to the PDF document programmatically

The PDF Viewer library provides the addAnnotation() API method for programmatic shape insertion, enabling dynamic workflow automation and batch operations.

Examples: Add shapes programmatically

<button onclick="addLineAnnotation()">add Line Annotation programatically</button>
<button onclick="addArrowAnnotation()">add Arrow Annotation programatically</button>
<button onclick="addRectangleAnnotation()">add Rectangle Annotation programatically</button>
<button onclick="addCircleAnnotation()">add Circle Annotation programatically</button>
<button onclick="addPolygonAnnotation()">add Polygon Annotation programatically</button>

<div style="width:100%;height:600px">
    <ejs-pdfviewer id="pdfviewer"
                   style="height:600px"
                   documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf">
    </ejs-pdfviewer>
</div>
<script>
    function addLineAnnotation() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfviewer.annotation.addAnnotation("Line", {
            offset: { x: 200, y: 230 },
            pageNumber: 1,
            vertexPoints: [{ x: 200, y: 230 }, { x: 350, y: 230 }]
        });
    }
    function addArrowAnnotation() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfviewer.annotation.addAnnotation("Arrow", {
            offset: { x: 200, y: 370 },
            pageNumber: 1,
            vertexPoints: [{ x: 200, y: 370 }, { x: 350, y: 370 }]
        });
    }
    function addRectangleAnnotation() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfviewer.annotation.addAnnotation("Rectangle", {
            offset: { x: 200, y: 500 },
            pageNumber: 1,
            vertexPoints: [{ x: 200, y: 500 }, { x: 288, y: 499 }, { x: 289, y: 553 }, { x: 200, y: 500 }]
        });
    }
    function addCircleAnnotation() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfviewer.annotation.addAnnotation("Circle", {
            offset: { x: 200, y: 630 },
            pageNumber: 1,
            width: 90,
            height: 90
        });
    }
    function addPolygonAnnotation() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfviewer.annotation.addAnnotation("Polygon", {
            offset: { x: 200, y: 800 },
            pageNumber: 1,
            vertexPoints: [{ x: 200, y: 800 }, { x: 242, y: 771 }, { x: 289, y: 799 }, { x: 278, y: 842 }, { x: 211, y: 842 }, { x: 200, y: 800 }]
        });
    }
</script>
<button onclick="addLineAnnotation()">add Line Annotation programatically</button>
<button onclick="addArrowAnnotation()">add Arrow Annotation programatically</button>
<button onclick="addRectangleAnnotation()">add Rectangle Annotation programatically</button>
<button onclick="addCircleAnnotation()">add Circle Annotation programatically</button>
<button onclick="addPolygonAnnotation()">add Polygon Annotation programatically</button>
<div style="width:100%;height:600px">
    <ejs-pdfviewer id="pdfviewer"
                   style="height:600px"
                   serviceUrl="/api/PdfViewer"
                   documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf">
    </ejs-pdfviewer>
</div>
<script>
    function addLineAnnotation() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfviewer.annotation.addAnnotation("Line", {
            offset: { x: 200, y: 230 },
            pageNumber: 1,
            vertexPoints: [{ x: 200, y: 230 }, { x: 350, y: 230 }]
        });
    }
    function addArrowAnnotation() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfviewer.annotation.addAnnotation("Arrow", {
            offset: { x: 200, y: 370 },
            pageNumber: 1,
            vertexPoints: [{ x: 200, y: 370 }, { x: 350, y: 370 }]
        });
    }
    function addRectangleAnnotation() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfviewer.annotation.addAnnotation("Rectangle", {
            offset: { x: 200, y: 500 },
            pageNumber: 1,
            vertexPoints: [{ x: 200, y: 500 }, { x: 288, y: 499 }, { x: 289, y: 553 }, { x: 200, y: 500 }]
        });
    }
    function addCircleAnnotation() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfviewer.annotation.addAnnotation("Circle", {
            offset: { x: 200, y: 630 },
            pageNumber: 1,
            width: 90,
            height: 90
        });
    }
    function addPolygonAnnotation() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfviewer.annotation.addAnnotation("Polygon", {
            offset: { x: 200, y: 800 },
            pageNumber: 1,
            vertexPoints: [{ x: 200, y: 800 }, { x: 242, y: 771 }, { x: 289, y: 799 }, { x: 278, y: 842 }, { x: 211, y: 842 }, { x: 200, y: 800 }]
        });
    }
</script>

Edit an existing shape annotation programmatically

Modify shape properties such as colors, thickness, and appearance using the editAnnotation() API method.

Example: Edit shape annotation properties

<button onclick="editLineAnnotation()">edit Line Annotation programatically</button>
<button onclick="editArrowAnnotation()">edit Arrow Annotation programatically</button>
<button onclick="editRectangleAnnotation()">edit Rectangle Annotation programatically</button>
<button onclick="editCircleAnnotation()">edit Circle Annotation programatically</button>
<button onclick="editPolygonAnnotation()">edit Polygon Annotation programatically</button>
<div style="width:100%;height:600px">
    <ejs-pdfviewer id="pdfviewer"
                   style="height:600px"
                   documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf">
    </ejs-pdfviewer>
</div>
<script>
    function editLineAnnotation() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
            if (pdfviewer.annotationCollection[i].subject === "Line") {
                pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
                pdfviewer.annotationCollection[i].thickness = 2;
                pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
                pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
            }
        }
    }
    function editArrowAnnotation() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
            if (pdfviewer.annotationCollection[i].subject === "Arrow") {
                pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
                pdfviewer.annotationCollection[i].thickness = 2;
                pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
                pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
                pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
            }
        }
    }
    function editRectangleAnnotation() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
            if (pdfviewer.annotationCollection[i].subject === "Rectangle") {
                pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
                pdfviewer.annotationCollection[i].thickness = 2;
                pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
                pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
                pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
            }
        }
    }
    function editCircleAnnotation() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
            if (pdfviewer.annotationCollection[i].subject === "Circle") {
                pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
                pdfviewer.annotationCollection[i].thickness = 2;
                pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
                pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
                pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
            }
        }
    }
    function editPolygonAnnotation() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
            if (pdfviewer.annotationCollection[i].subject === "Polygon") {
                pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
                pdfviewer.annotationCollection[i].thickness = 2;
                pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
                pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
                pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
            }
        }
    }
</script>
<button onclick="editLineAnnotation()">edit Line Annotation programatically</button>
<button onclick="editArrowAnnotation()">edit Arrow Annotation programatically</button>
<button onclick="editRectangleAnnotation()">edit Rectangle Annotation programatically</button>
<button onclick="editCircleAnnotation()">edit Circle Annotation programatically</button>
<button onclick="editPolygonAnnotation()">edit Polygon Annotation programatically</button>
<div style="width:100%;height:600px">
    <ejs-pdfviewer id="pdfviewer"
                   style="height:600px"
                   serviceUrl="/api/PdfViewer"
                   documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf">
    </ejs-pdfviewer>
</div>
<script>
    function editLineAnnotation() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
            if (pdfviewer.annotationCollection[i].subject === "Line") {
                pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
                pdfviewer.annotationCollection[i].thickness = 2;
                pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
                pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
            }
        }
    }
    function editArrowAnnotation() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
            if (pdfviewer.annotationCollection[i].subject === "Arrow") {
                pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
                pdfviewer.annotationCollection[i].thickness = 2;
                pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
                pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
                pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
            }
        }
    }
    function editRectangleAnnotation() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
            if (pdfviewer.annotationCollection[i].subject === "Rectangle") {
                pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
                pdfviewer.annotationCollection[i].thickness = 2;
                pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
                pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
                pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
            }
        }
    }
    function editCircleAnnotation() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
            if (pdfviewer.annotationCollection[i].subject === "Circle") {
                pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
                pdfviewer.annotationCollection[i].thickness = 2;
                pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
                pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
                pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
            }
        }
    }
    function editPolygonAnnotation() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        for (let i = 0; i = pdfviewer.annotationCollection.length; i++) {
            if (pdfviewer.annotationCollection[i].subject === "Polygon") {
                pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
                pdfviewer.annotationCollection[i].thickness = 2;
                pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
                pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle"
                pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
            }
        }
    }
</script>

Editing the properties of the shape annotation

Shape annotations support comprehensive styling options through the annotation toolbar and context menus.

The annotation toolbar provides four primary editing tools for all shapes:

1. Edit Fill Color

  • Access the color palette via the Edit Color tool
  • Select a color to apply fill to the shape

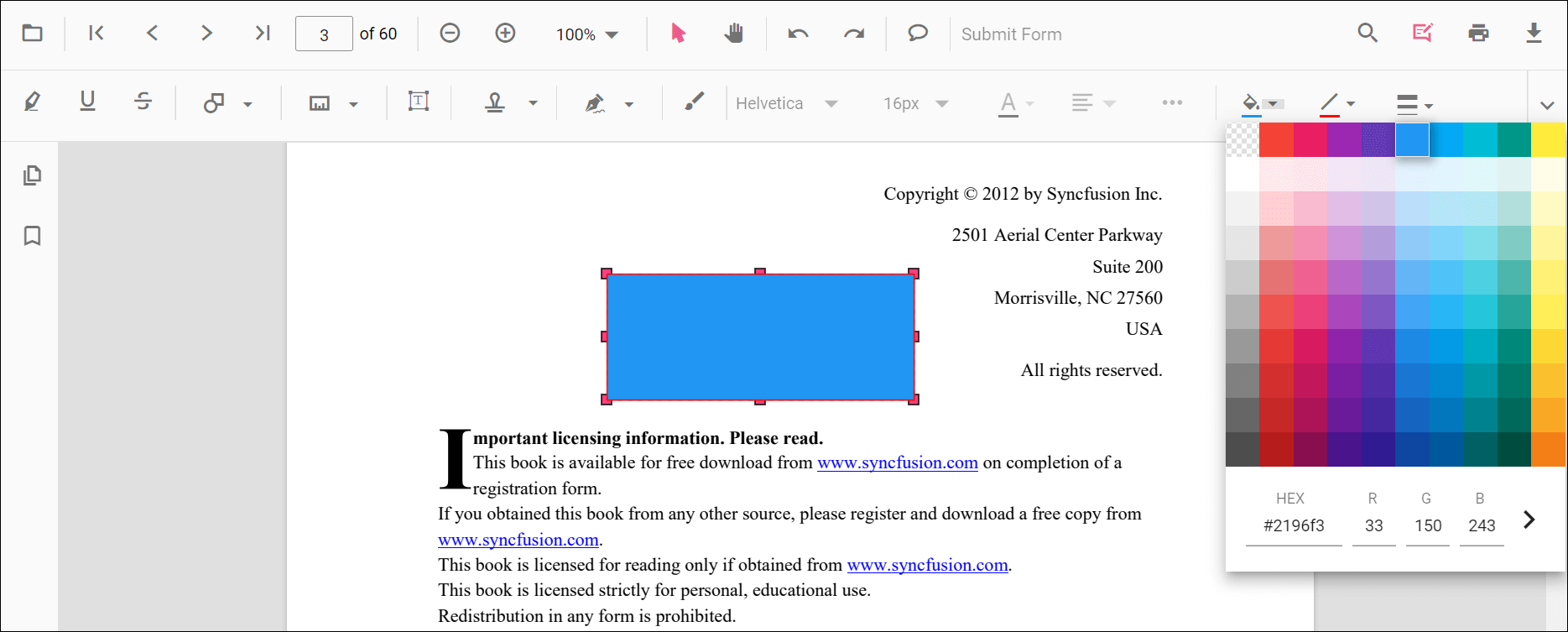

Edit fill color for shapes

2. Edit Stroke Color

  • Use the Edit Stroke Color tool to change the border color
  • Open color palette and select desired stroke color

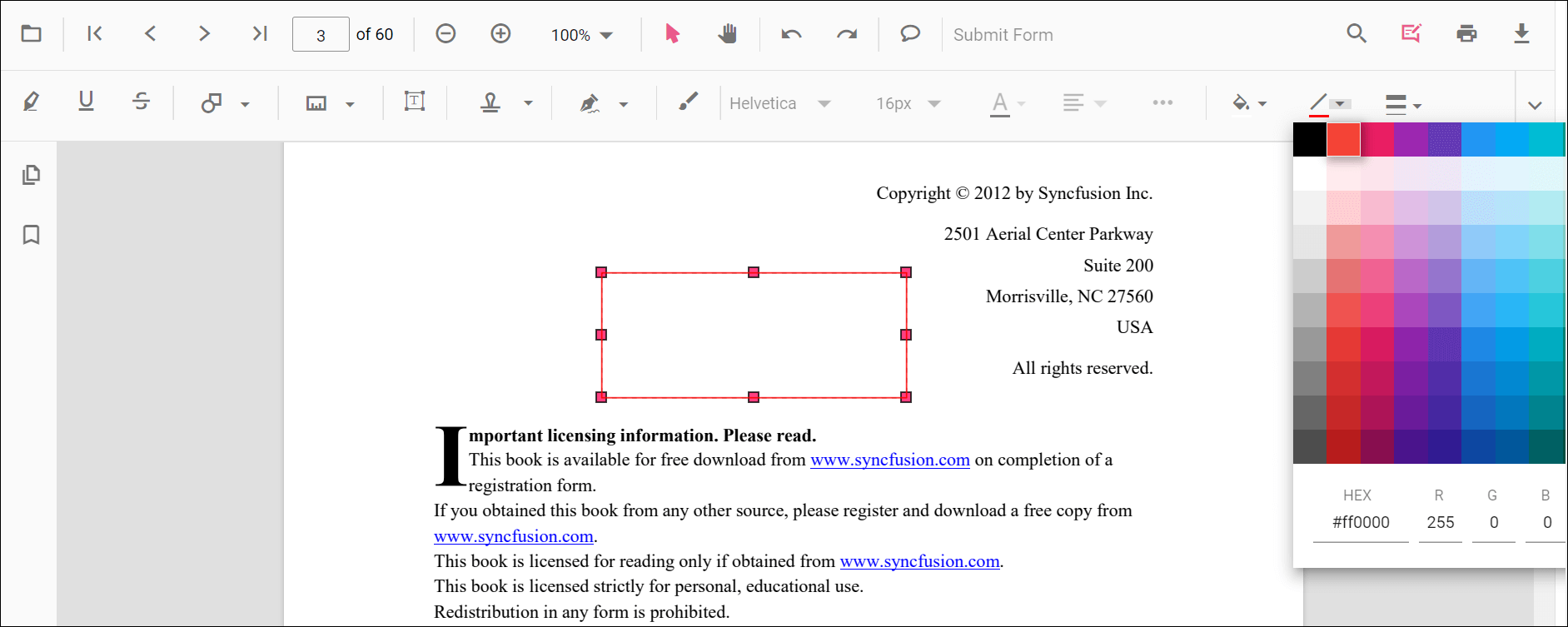

Edit stroke color for shapes

3. Edit Thickness

Adjust border thickness using the range slider in the Edit Thickness tool

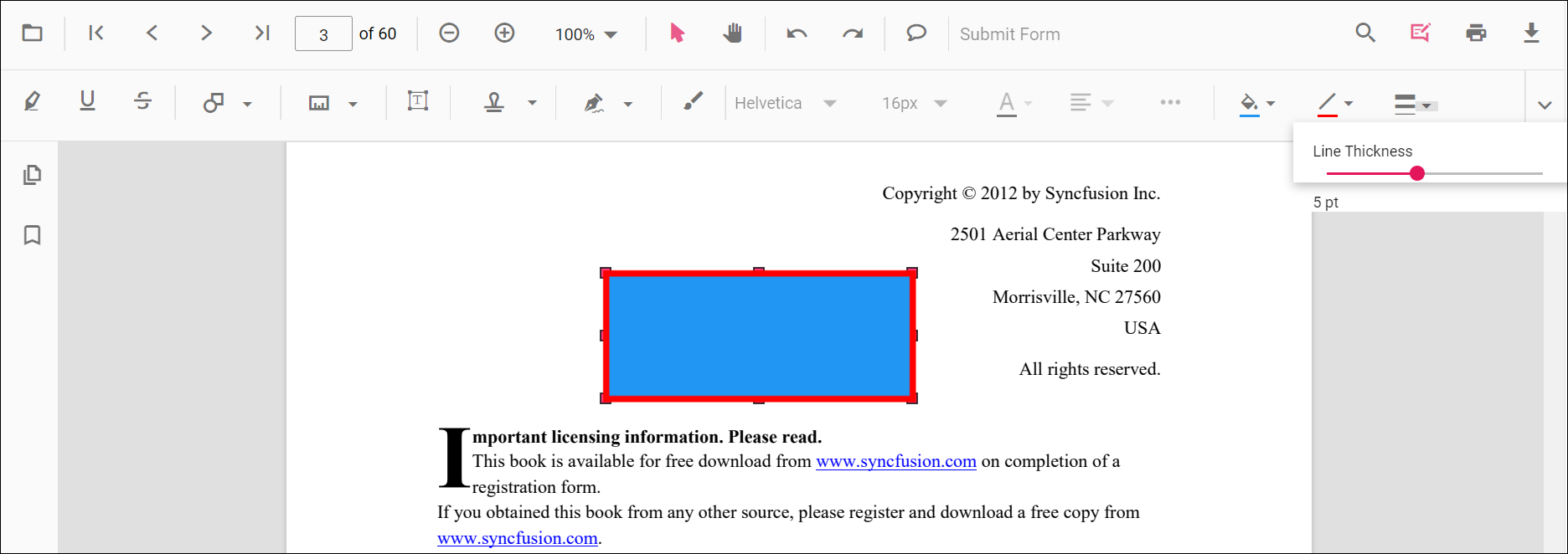

Edit thickness for shapes

4. Edit Opacity

Control shape transparency using the range slider in the Edit Opacity tool.

Edit opacity for shapes

Line and arrow properties

Line and arrow annotations offer additional customization through a dedicated properties dialog.

Accessing line properties:

  1. Right-click on a line or arrow annotation
  2. Select Properties from the context menu
  3. Modify line start/end style, dash pattern, and other options

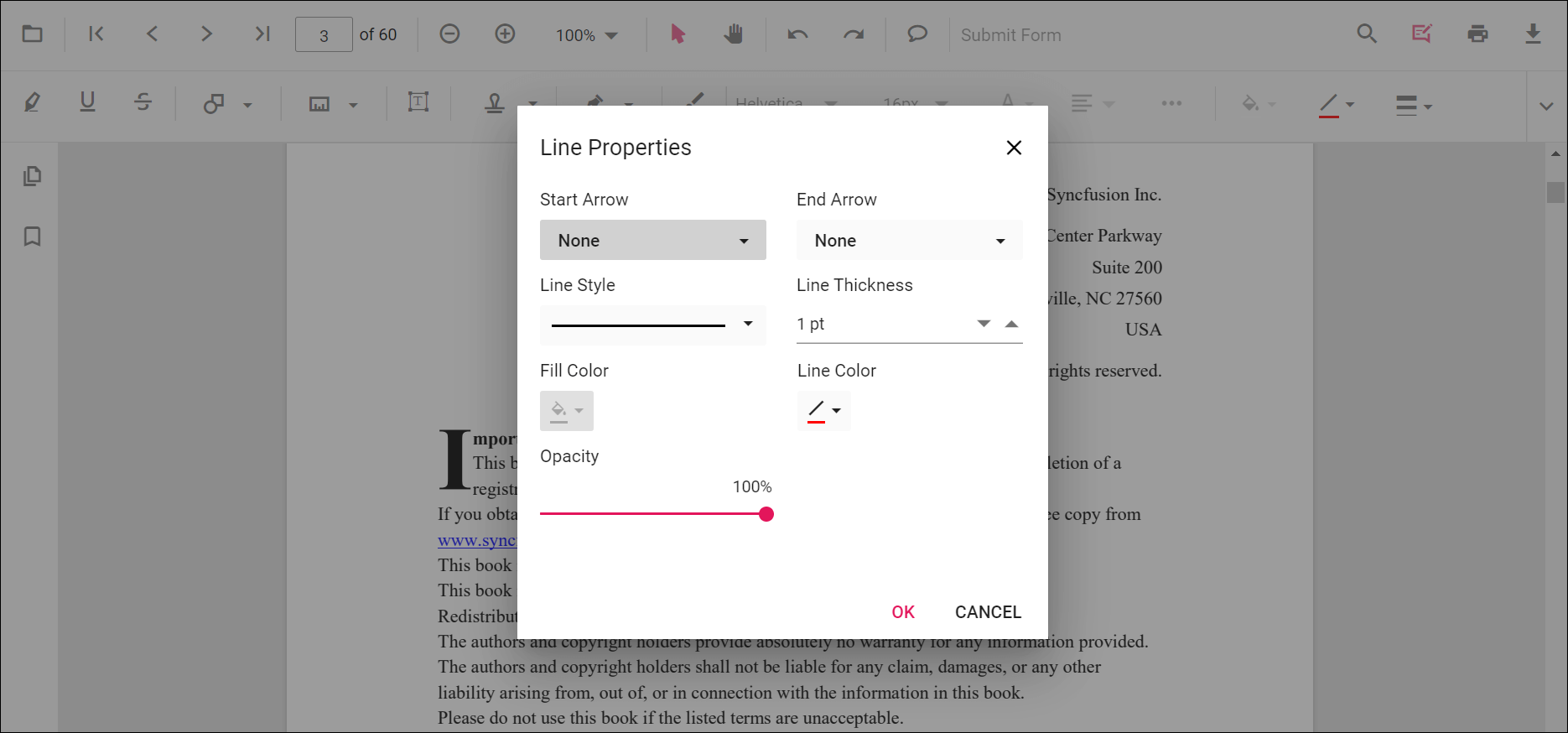

Line properties dialog

Set default properties during control initialization

Configure default shape annotation properties globally during PDF Viewer initialization. These defaults apply to all subsequently created shapes of each type.

Example: Configure default shape properties

<div style="width:100%;height:600px">
    <ejs-pdfviewer id="pdfviewer"
                   style="height:600px"
                   documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
                   lineSettings="@(new Syncfusion.EJ2.PdfViewer.PdfViewerLineSettings
            {FillColor="blue", Opacity=0.6, StrokeColor="green"})"
                   arrowSettings="@(new Syncfusion.EJ2.PdfViewer.PdfViewerArrowSettings
            {FillColor="green", Opacity=0.6, StrokeColor="blue"})"
                   rectangleSettings="@(new Syncfusion.EJ2.PdfViewer.PdfViewerRectangleSettings
            {FillColor="yellow", Opacity=0.6, StrokeColor="orange"})"
                   circleSettings="@(new Syncfusion.EJ2.PdfViewer.PdfViewerCircleSettings
            {FillColor="orange", Opacity=0.6, StrokeColor="pink"})"
                   polygonSettings="@(new Syncfusion.EJ2.PdfViewer.PdfViewerPolygonSettings
            {FillColor="pink", Opacity=0.6, StrokeColor="yellow"})">
    </ejs-pdfviewer>
</div>
<div style="width:100%;height:600px">
    <ejs-pdfviewer id="pdfviewer"
                   style="height:600px"
                   serviceUrl="/api/PdfViewer"
                   documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
                   lineSettings="@(new Syncfusion.EJ2.PdfViewer.PdfViewerLineSettings
            {FillColor="blue", Opacity=0.6, StrokeColor="green"})"
                   arrowSettings="@(new Syncfusion.EJ2.PdfViewer.PdfViewerArrowSettings
            {FillColor="green", Opacity=0.6, StrokeColor="blue"})"
                   rectangleSettings="@(new Syncfusion.EJ2.PdfViewer.PdfViewerRectangleSettings
            {FillColor="yellow", Opacity=0.6, StrokeColor="orange"})"
                   circleSettings="@(new Syncfusion.EJ2.PdfViewer.PdfViewerCircleSettings
            {FillColor="orange", Opacity=0.6, StrokeColor="pink"})"
                   polygonSettings="@(new Syncfusion.EJ2.PdfViewer.PdfViewerPolygonSettings
            {FillColor="pink", Opacity=0.6, StrokeColor="yellow"})">
    </ejs-pdfviewer>
</div>
