Text markup annotation in Angular PDF Viewer

11 Feb 202624 minutes to read

The PDF Viewer provides options to add, edit, and delete text markup annotations, including highlight, underline, strikethrough, and squiggly.

Text markup annotations

Highlight text

There are two ways to highlight text:

  1. Using the context menu
    • Select text in the PDF document and right-click it.
    • Select Highlight in the context menu.

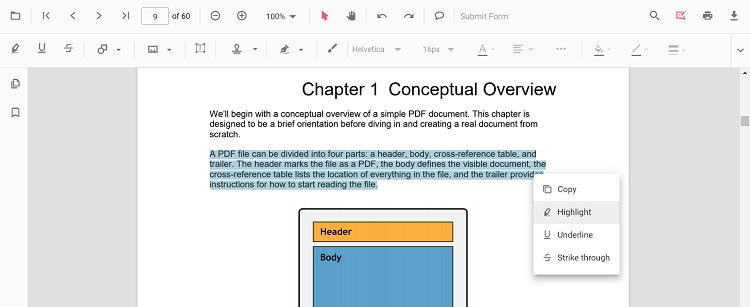

Context menu option to highlight selected text

  1. Using the annotation toolbar
    • Click the Edit Annotation button in the PDF Viewer toolbar to open the annotation toolbar.
    • Select Highlight to enable highlight mode.
    • Select text to add the highlight annotation.
    • Alternatively, select text first and then click Highlight.

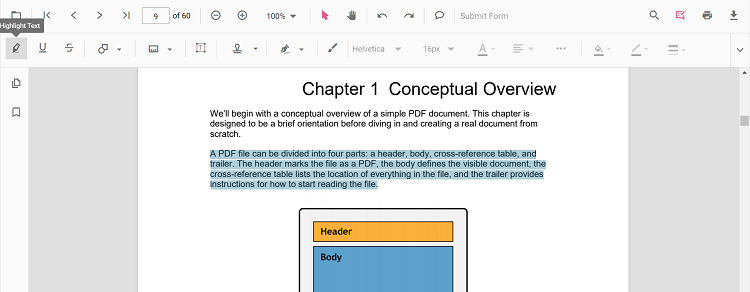

Highlight button in the annotation toolbar

When pan mode is active and a text markup mode is entered, the PDF Viewer switches to text selection mode to enable selection.

Refer to the following code sample to switch to the highlight mode.

import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Highlight</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [resourceUrl]='resource'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public resource: string = "https://cdn.syncfusion.com/ej2/25.1.35/dist/ej2-pdfviewer-lib";
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode('Highlight');
  }
}
import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Highlight</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [serviceUrl]='service'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public service: string = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode('Highlight');
  }
}

Refer to the following code sample to switch back to normal mode from the highlight mode.

import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Highlight Text</button>
  <button (click)="setNone()">None</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [resourceUrl]='resource'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public resource: string = "https://cdn.syncfusion.com/ej2/25.1.35/dist/ej2-pdfviewer-lib";
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode('Highlight');
    }
    setNone() {
      var pdfviewer = (<any>document.getElementById("pdfViewer")).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode("None");
    }
}
import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Highlight Text</button>
  <button (click)="setNone()">None</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [serviceUrl]='service'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public service: string = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode('Highlight');
  }
  setNone() {
      var pdfviewer = (<any>document.getElementById("pdfViewer")).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode("None");
  }
}

Highlight text programmatically

Programmatically add highlights using the addAnnotation() method.

Example:

import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService, HighlightSettings } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Highlight</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [resourceUrl]='resource'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public resource: string = "https://cdn.syncfusion.com/ej2/25.1.35/dist/ej2-pdfviewer-lib";
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotation.addAnnotation("Highlight", {
        bounds: [{ x: 97, y: 110, width: 350, height: 14 }],
        pageNumber: 1
    } as HighlightSettings);
  }
}
import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService, HighlightSettings } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Highlight</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [serviceUrl]='service'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public service: string = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotation.addAnnotation("Highlight", {
        bounds: [{ x: 97, y: 110, width: 350, height: 14 }],
        pageNumber: 1
    } as HighlightSettings);
  }
}

Underline text

There are two ways to underline text:

  1. Using the context menu
    *Select text in the PDF document and right-click it.
    • Select Underline in the context menu.

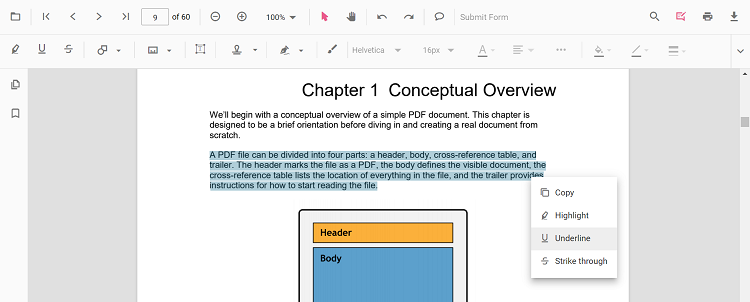

Context menu option to underline selected text

  1. Using the annotation toolbar
    • Click the Edit Annotation button in the PDF Viewer toolbar to open the annotation toolbar.
    • Select Underline to enable underline mode.
    • Select text to add the underline annotation.
    • Alternatively, select text first and then click Underline.

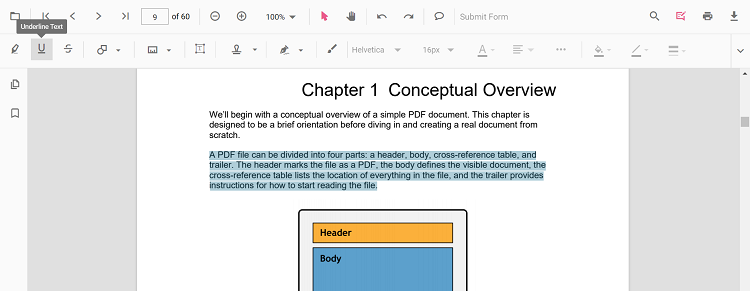

Underline button in the annotation toolbar

In the pan mode, if the underline mode is entered, the PDF Viewer control will switch to text select mode to enable the text selection for underlining the text.

Refer to the following code sample to switch to the underline mode.

import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Underline</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [resourceUrl]='resource'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public resource: string = "https://cdn.syncfusion.com/ej2/25.1.35/dist/ej2-pdfviewer-lib";
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode('Underline');
  }
}
import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Underline</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [serviceUrl]='service'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public service: string = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode('Underline');
  }
}

Refer to the following code sample to switch back to normal mode from the underline mode.

import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Underline Text</button>
  <button (click)="setNone()">None</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [resourceUrl]='resource'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public resource: string = "https://cdn.syncfusion.com/ej2/25.1.35/dist/ej2-pdfviewer-lib";
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode('Underline');
    }
    setNone() {
      var pdfviewer = (<any>document.getElementById("pdfViewer")).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode("None");
    }
}
import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Underline Text</button>
  <button (click)="setNone()">None</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [serviceUrl]='service'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public service: string = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode('Underline');
  }
  setNone() {
      var pdfviewer = (<any>document.getElementById("pdfViewer")).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode("None");
  }
}

Underline text programmatically

Programmatically add underlines using the addAnnotation() method.

Example:

import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService, UnderlineSettings } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Underline text</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [resourceUrl]='resource'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public resource: string = "https://cdn.syncfusion.com/ej2/25.1.35/dist/ej2-pdfviewer-lib";
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotation.addAnnotation("Underline", {
        bounds: [{ x: 250, y: 148, width: 345, height: 14 }],
        pageNumber: 2
    } as HighlightSettings);
  }
}
import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService, UnderlineSettings } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Underline text</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [serviceUrl]='service'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public service: string = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotation.addAnnotation("Underline", {
        bounds: [{ x: 250, y: 148, width: 345, height: 14 }],
        pageNumber: 2
    } as HighlightSettings);
  }
}

Strikethrough text

There are two ways to strikethrough text:

  1. Using the context menu
    • Select text in the PDF document and right-click it.
    • Select Strikethrough in the context menu.

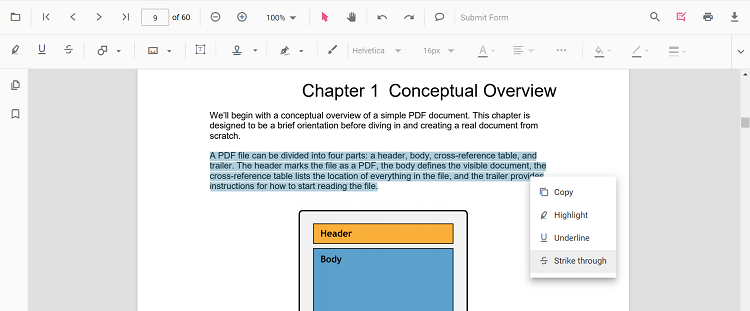

Context menu option to strikethrough selected text

  1. Using the annotation toolbar
    • Click the Edit Annotation button in the PDF Viewer toolbar to open the annotation toolbar.
    • Select Strikethrough to enable strikethrough mode.
    • Select text to add the strikethrough annotation.
    • Alternatively, select text first and then click Strikethrough.

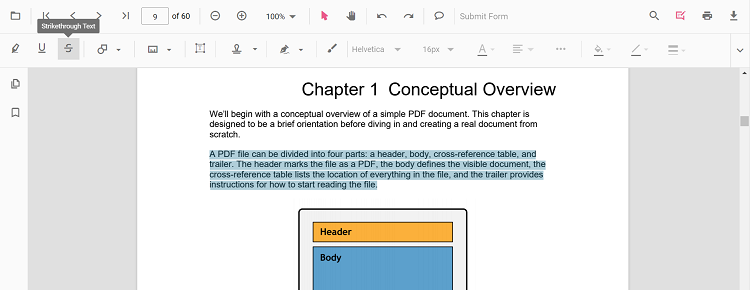

Strikethrough button in the annotation toolbar

NOTE

While in pan mode, clicking the strikethrough button switches the viewer to text select mode so text can be selected for annotation.

Refer to the following code sample to switch to strikethrough mode.

import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Strikethrough text</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [resourceUrl]='resource'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public resource: string = "https://cdn.syncfusion.com/ej2/25.1.35/dist/ej2-pdfviewer-lib";
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode('Strikethrough');
  }
}
import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Strikethrough text</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [serviceUrl]='service'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public service: string = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode('Strikethrough');
  }
}

Refer to the following code sample to switch back to normal mode from the strikethrough mode.

import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Strikethrough Text</button>
  <button (click)="setNone()">None</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [resourceUrl]='resource'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public resource: string = "https://cdn.syncfusion.com/ej2/25.1.35/dist/ej2-pdfviewer-lib";
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode('Strikethrough');
    }
    setNone() {
      var pdfviewer = (<any>document.getElementById("pdfViewer")).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode("None");
    }
}
import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Strikethrough Text</button>
  <button (click)="setNone()">None</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [serviceUrl]='service'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public service: string = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode('Strikethrough');
  }
  setNone() {
      var pdfviewer = (<any>document.getElementById("pdfViewer")).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode("None");
  }
}

Strikethrough text programmatically

Programmatically add strikethrough using the addAnnotation method.

Example:

import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService, StrikethroughSettings } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Strikethrough text</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [resourceUrl]='resource'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public resource: string = "https://cdn.syncfusion.com/ej2/25.1.35/dist/ej2-pdfviewer-lib";
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotation.addAnnotation("Strikethrough", {
        bounds: [{ x: 250, y: 144, width: 345, height: 14 }],
        pageNumber: 2
    } as StrikethroughSettings);
  }
}
import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService, StrikethroughSettings } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Strikethrough text</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [serviceUrl]='service'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public service: string = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotation.addAnnotation("Strikethrough", {
        bounds: [{ x: 250, y: 144, width: 345, height: 14 }],
        pageNumber: 2
    } as StrikethroughSettings);
  }
}

Add Squiggly to text

There are two ways to add squiggly to text:

  1. Using the context menu
    • Select text in the PDF document and right-click it.
    • Select Squiggly in the context menu.

Context menu option to add a squiggly underline to selected text

  1. Using the annotation toolbar
    • Click the Edit Annotation button in the PDF Viewer toolbar to open the annotation toolbar.
    • Select Squiggly to enable squiggly mode.
    • Select text to add the squiggly annotation.
    • Alternatively, select text first and then click Squiggly.

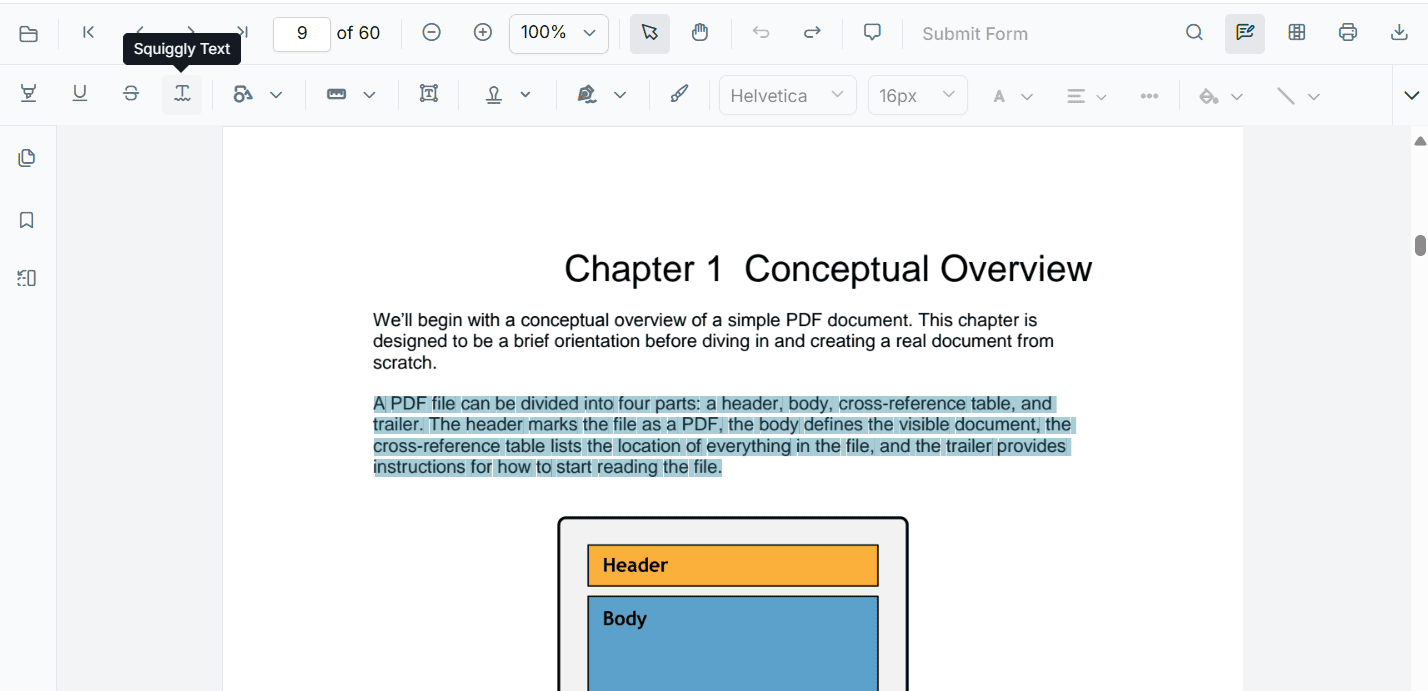

Squiggly button in the annotation toolbar

NOTE

While in pan mode, clicking the squiggly button switches the viewer to text select mode so text can be selected for annotation.

Refer to the following code sample to switch to squiggly mode.

import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Squiggly text</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [resourceUrl]='resource'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public resource: string = "https://cdn.syncfusion.com/ej2/30.1.37/dist/ej2-pdfviewer-lib";
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode('Squiggly');
  }
}
import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Squiggly text</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [serviceUrl]='service'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public service: string = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode('Squiggly');
  }
}

Refer to the following code sample to switch back to normal mode from the squiggly mode.

import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Squiggly Text</button>
  <button (click)="setNone()">None</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [resourceUrl]='resource'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public resource: string = "https://cdn.syncfusion.com/ej2/30.1.37/dist/ej2-pdfviewer-lib";
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode('Squiggly');
    }
    setNone() {
      var pdfviewer = (<any>document.getElementById("pdfViewer")).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode("None");
    }
}
import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Squiggly Text</button>
  <button (click)="setNone()">None</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [serviceUrl]='service'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public service: string = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode('Squiggly');
  }
  setNone() {
      var pdfviewer = (<any>document.getElementById("pdfViewer")).ej2_instances[0];
      pdfviewer.annotationModule.setAnnotationMode("None");
  }
}

Squiggly text programmatically

Refer to the following code snippet to switch back to normal mode from squiggly mode. Use the addAnnotation() API to add squiggly annotations.

Example:

import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService, SquigglySettings } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Squiggly text</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [resourceUrl]='resource'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public resource: string = "https://cdn.syncfusion.com/ej2/30.1.37/dist/ej2-pdfviewer-lib";
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotation.addAnnotation("Squiggly", {
        bounds: [{ x: 250, y: 144, width: 345, height: 14 }],
        pageNumber: 2
    } as SquigglySettings);
  }
}
import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService, SquigglySettings } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">squiggly text</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [serviceUrl]='service'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public service: string = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotation.addAnnotation("Squiggly", {
        bounds: [{ x: 250, y: 144, width: 345, height: 14 }],
        pageNumber: 2
    } as SquigglySettings);
  }
}

Deleting a text markup annotation

The selected annotation can be deleted in the following ways:

  1. Using the Delete/Backspace key
    • Select the annotation.
    • Press Delete (or Backspace). The selected annotation is removed.
  2. Using the annotation toolbar
    • Select the annotation.
    • Click Delete Annotation in the annotation toolbar. The selected annotation is removed.

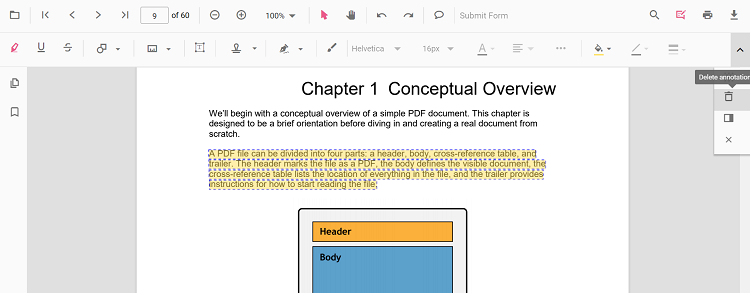

Delete annotation button in the annotation toolbar

Edit text markup annotation properties

The color and opacity of text markup annotations can be edited using the Edit Color and Edit Opacity tools in the annotation toolbar.

Edit color

Use the color palette in the Edit Color tool to change the annotation color.

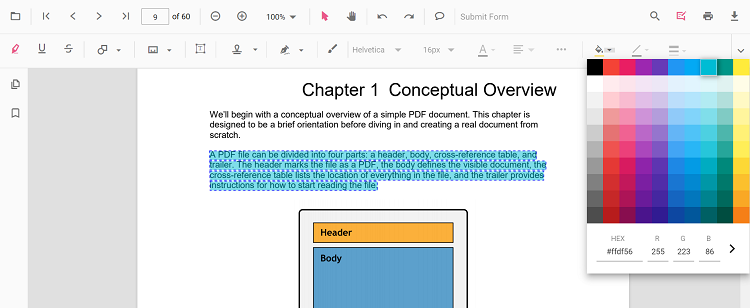

Color palette in the Edit Color tool for text markup annotations

Edit opacity

Use the range slider in the Edit Opacity tool to change annotation opacity.

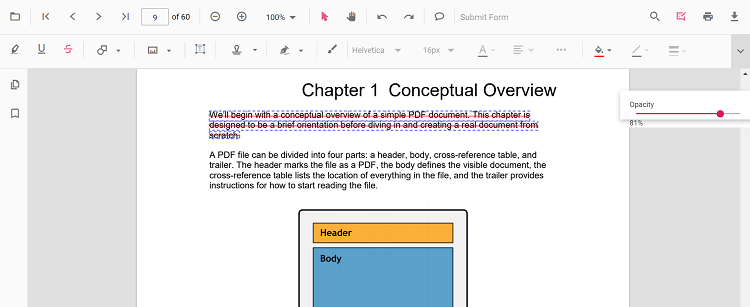

Range slider in the Edit Opacity tool for text markup annotations

Set default properties during control initialization

Set default properties before creating the control using highlightSettings, underlineSettings, strikethroughSettings, and squigglySettings.

NOTE

After editing default color and opacity with the Edit Color and Edit Opacity tools, the default values update to the selected settings.

Refer to the following code sample to set the default annotation settings.

import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [resourceUrl]='resource'
    [highlightSettings]='highlightSettings'
    [underlineSettings]='underlineSettings'
    [strikethroughSettings]='strikethroughSettings'
    [squigglySettings]='squigglySettings'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public resource: string = "https://cdn.syncfusion.com/ej2/25.1.35/dist/ej2-pdfviewer-lib";
    public highlightSettings = { author: 'Guest User', subject: 'Important', color: '#ffff00', opacity: 0.9, modifiedDate: '' };
    public underlineSettings = { author: 'Guest User', subject: 'Points to be remembered', color: '#00ffff', opacity: 0.9, modifiedDate: '' };
    public strikethroughSettings = { author: 'Guest User', subject: 'Not Important', color: '#ff00ff', opacity: 0.9, modifiedDate: '' };
    public squigglySettings = { author: 'Guest User', subject: 'Confidential', color: '#0000ff', opacity: 0.9, modifiedDate: '' };
    ngOnInit(): void {
    }
}
import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [serviceUrl]='service'
    [highlightSettings]='highlightSettings'
    [underlineSettings]='underlineSettings'
    [strikethroughSettings]='strikethroughSettings'
    [squigglySettings]='squigglySettings'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public service: string = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
    public highlightSettings = { author: 'Guest User', subject: 'Important', color: '#ffff00', opacity: 0.9, modifiedDate: '' };
    public underlineSettings = { author: 'Guest User', subject: 'Points to be remembered', color: '#00ffff', opacity: 0.9, modifiedDate: '' };
    public strikethroughSettings = { author: 'Guest User', subject: 'Not Important', color: '#ff00ff', opacity: 0.9, modifiedDate: '' };
    public squigglySettings = { author: 'Guest User', subject: 'Confidential', color: '#0000ff', opacity: 0.9, modifiedDate: '' };
    ngOnInit(): void {
    }
}

Perform undo and redo

The PDF Viewer supports undo and redo for changes. For text markup annotations, undo and redo are provided for:

  • Inclusion of the text markup annotations.
  • Deletion of the text markup annotations.
  • Change of either color or opacity of the text markup annotations.

Undo and redo actions can be performed in the following ways:

  1. Using keyboard shortcuts:
    After performing a text markup annotation action, press Ctrl+Z to undo and Ctrl+Y to redo.
  2. Using the toolbar:
    Use the Undo and Redo tools in the toolbar.

Refer to the following code snippet to call undo and redo actions from the client side.

import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="Undo()">Undo</button>
  <button (click)="Redo()">Redo</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [resourceUrl]='resource'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public resource: string = "https://cdn.syncfusion.com/ej2/25.1.35/dist/ej2-pdfviewer-lib";
    ngOnInit(): void {
    }
    Undo() {
      var pdfviewer = (<any>document.getElementById("pdfViewer")).ej2_instances[0];
      pdfviewer.undo();
    }
    Redo() {
      var pdfviewer = (<any>document.getElementById("pdfViewer")).ej2_instances[0];
      pdfviewer.redo();
   }
}
import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="Undo()">Undo</button>
  <button (click)="Redo()">Redo</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [serviceUrl]='service'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public service: string = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
    ngOnInit(): void {
    }
    Undo() {
      var pdfviewer = (<any>document.getElementById("pdfViewer")).ej2_instances[0];
      pdfviewer.undo();
    }
    Redo() {
      var pdfviewer = (<any>document.getElementById("pdfViewer")).ej2_instances[0];
      pdfviewer.redo();
   }
}

Save text markup annotations

Click the download tool in the toolbar to save text markup annotations to the PDF document. The original document is not modified.

Print text markup annotations

Click the print tool in the toolbar to print the PDF document with text markup annotations. The original document is not modified.

Disable text markup annotation

Disable text markup annotations using the enableTextMarkupAnnotation property.

import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">

  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [resourceUrl]='resource'
    [enableTextMarkupAnnotation]='false'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public resource: string = "https://cdn.syncfusion.com/ej2/25.1.35/dist/ej2-pdfviewer-lib";
    ngOnInit(): void {
    }
}
import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">

  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [serviceUrl]='service'
    [enableTextMarkupAnnotation]='false'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public service: string = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
    ngOnInit(): void {
    }
}
