Sticky notes in Angular PDF Viewer control

18 Nov 201817 minutes to read

The PDF Viewer control provides options to add, edit, and delete sticky note annotations in the PDF document.

StickyNotesAnnotation

Add a sticky note annotation to the PDF document

Sticky note annotations can be added to the PDF document using the annotation toolbar.

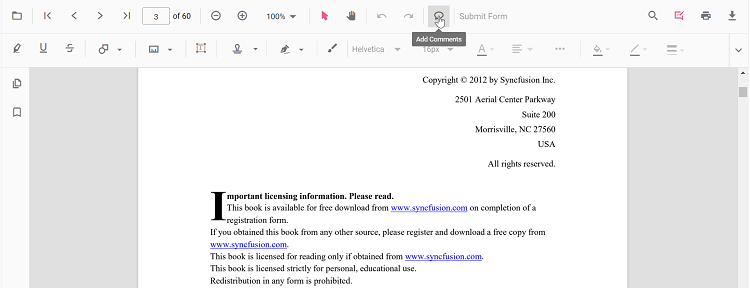

  • Click the Comments button in the PDF Viewer toolbar. The annotation toolbar appears below it.
  • Click the position where the sticky note annotation should be added.
  • The sticky note annotation is added at the clicked position.

StickyNotesTool

Annotation comments can be added using the comment panel.

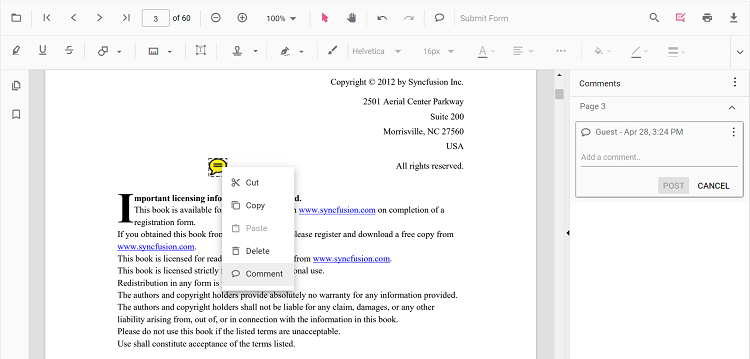

  • Select a sticky note annotation in the PDF document and right-click it.
  • Select Comment from the context menu.
  • Add comments, replies, and status using the comment panel.

StickyNotesComment

Add a sticky note annotation to the PDF document programmatically

The PDF Viewer library allows adding a sticky note annotation programmatically using the addAnnotation() method.

Here is an example showing how to add a sticky note annotation programmatically using addAnnotation():

import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService, StickyNotesSettings } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Add StickyNotes Programmatically</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [resourceUrl]='resource'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public resource: string = "https://cdn.syncfusion.com/ej2/25.1.35/dist/ej2-pdfviewer-lib";
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotation.addAnnotation("StickyNotes", {
        offset: { x: 100, y: 200 },
        pageNumber: 1,
        isLock: false
    } as StickyNotesSettings);
  }
}
import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService, StickyNotesSettings } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="addAnnotation()">Add StickyNotes Programmatically</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [serviceUrl]='service'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public service: string = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
    ngOnInit(): void {
    }
    addAnnotation() {
      var pdfviewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      pdfviewer.annotation.addAnnotation("StickyNotes", {
        offset: { x: 100, y: 200 },
        pageNumber: 1,
        isLock: false
    } as StickyNotesSettings);
  }
}

Edit an existing sticky note annotation programmatically

To modify an existing sticky note annotation programmatically, use the editAnnotation() method.

Here is an example of using editAnnotation():

import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="editAnnotation()">edit sticky note</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [resourceUrl]='resource'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public resource: string = "https://cdn.syncfusion.com/ej2/25.1.35/dist/ej2-pdfviewer-lib";
    ngOnInit(): void {
    }
    editAnnotation() {
      var viewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      for (let i = 0; i < viewer.annotationCollection.length; i++)
      {
        if (viewer.annotationCollection[i].shapeAnnotationType === "sticky") {
          var width = viewer.annotationCollection[i].bounds.width;
          var height = viewer.annotationCollection[i].bounds.height;
          viewer.annotationCollection[i].bounds = {x : 100, y: 100, width: width, height: height };
          viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
        }
      }
    }
}
import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">
  <button (click)="editAnnotation()">edit sticky note</button>
  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [serviceUrl]='service'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public service: string = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
    ngOnInit(): void {
    }
    editAnnotation() {
      var viewer = (<any>document.getElementById('pdfViewer')).ej2_instances[0];
      for (let i = 0; i < viewer.annotationCollection.length; i++)
      {
        if (viewer.annotationCollection[i].shapeAnnotationType === "sticky") {
          var width = viewer.annotationCollection[i].bounds.width;
          var height = viewer.annotationCollection[i].bounds.height;
          viewer.annotationCollection[i].bounds = {x : 100, y: 100, width: width, height: height };
          viewer.annotation.editAnnotation(viewer.annotationCollection[i]);
        }
      }
    }
}

Edit the properties of the sticky note annotations

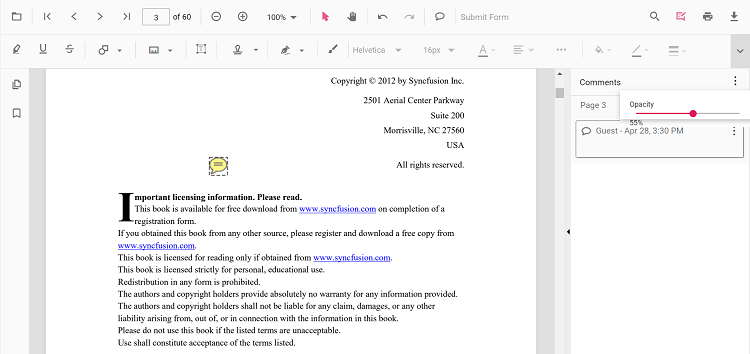

Editing opacity

Edit opacity using the range slider in the Edit Opacity tool.

StickyNotesOpacity

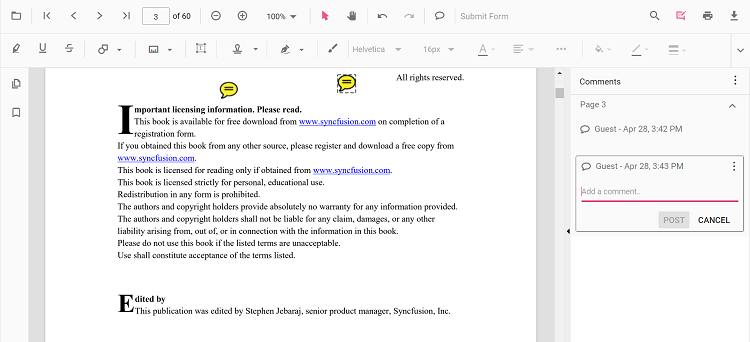

Editing comments

Comment text, replies, and status can be edited using the comment panel.

  • Open the comment panel using the Comment Panel button in the annotation toolbar.

StickyNotesComment

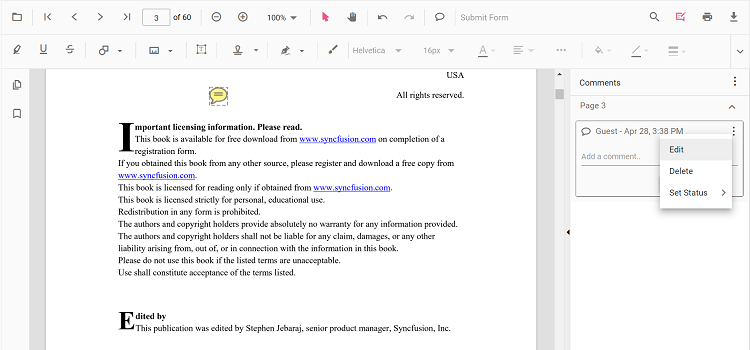

Modify or delete comments or replies, and change status using the menu options in the comment panel.

StickyNotesEdit

Set default properties during the control initialization

Default properties for sticky note annotations can be set before creating the control using StickyNotesSettings.

After changing default opacity using the Edit Opacity tool, the selected value is applied. The following example sets default sticky note annotation settings.

import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">

  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [resourceUrl]='resource'
    [stickyNotesSettings]='stickyNotesSettings'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public resource: string = "https://cdn.syncfusion.com/ej2/25.1.35/dist/ej2-pdfviewer-lib";
    public stickyNotesSettings = { author: 'Syncfusion' };
    ngOnInit(): void {
    }
}
import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">

  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [serviceUrl]='service'
    [stickyNotesSettings]='stickyNotesSettings'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public service: string = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
    public stickyNotesSettings = { author: 'Syncfusion' };
    ngOnInit(): void {
    }
}

Disable sticky note annotations

The PDF Viewer control provides an option to disable sticky note annotations. The following example disables the feature.

import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">

  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [resourceUrl]='resource'
    [enableStickyNotesAnnotation]='false'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public resource: string = "https://cdn.syncfusion.com/ej2/25.1.35/dist/ej2-pdfviewer-lib";
    ngOnInit(): void {
    }
}
import { Component, OnInit } from '@angular/core';
import { LinkAnnotationService, BookmarkViewService,
         MagnificationService, ThumbnailViewService, ToolbarService,
         NavigationService, TextSearchService, TextSelectionService,
         PrintService, FormDesignerService, FormFieldsService,
         AnnotationService, PageOrganizerService } from '@syncfusion/ej2-angular-pdfviewer';

@Component({
  selector: 'app-root',
  // specifies the template string for the PDF Viewer component
  template: `<div class="content-wrapper">

  <ejs-pdfviewer
    id="pdfViewer"
    [documentPath]='document'
    [serviceUrl]='service'
    [enableStickyNotesAnnotation]='false'
    style="height:640px;display:block">
  </ejs-pdfviewer>
</div>`,
  providers: [ LinkAnnotationService, BookmarkViewService, MagnificationService,
               ThumbnailViewService, ToolbarService, NavigationService,
               TextSearchService, TextSelectionService, PrintService,
               AnnotationService, FormDesignerService, FormFieldsService, PageOrganizerService]
})
export class AppComponent implements OnInit {
    public document = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
    public service: string = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer';
    ngOnInit(): void {
    }
}
