Create or Generate PDF file in Blazor
4 Dec 202424 minutes to read
The Syncfusion® Blazor PDF library is used to create, read, and edit PDF documents. This library also offers functionality to merge, split, stamp, forms, and secure PDF files.
To include the Syncfusion® Blazor PDF library into your Blazor application, please refer to the NuGet Package Required or Assemblies Required documentation.
To quickly get started with creating a PDF document in Blazor, check this video:
Steps to create PDF document in Blazor Server-Side application

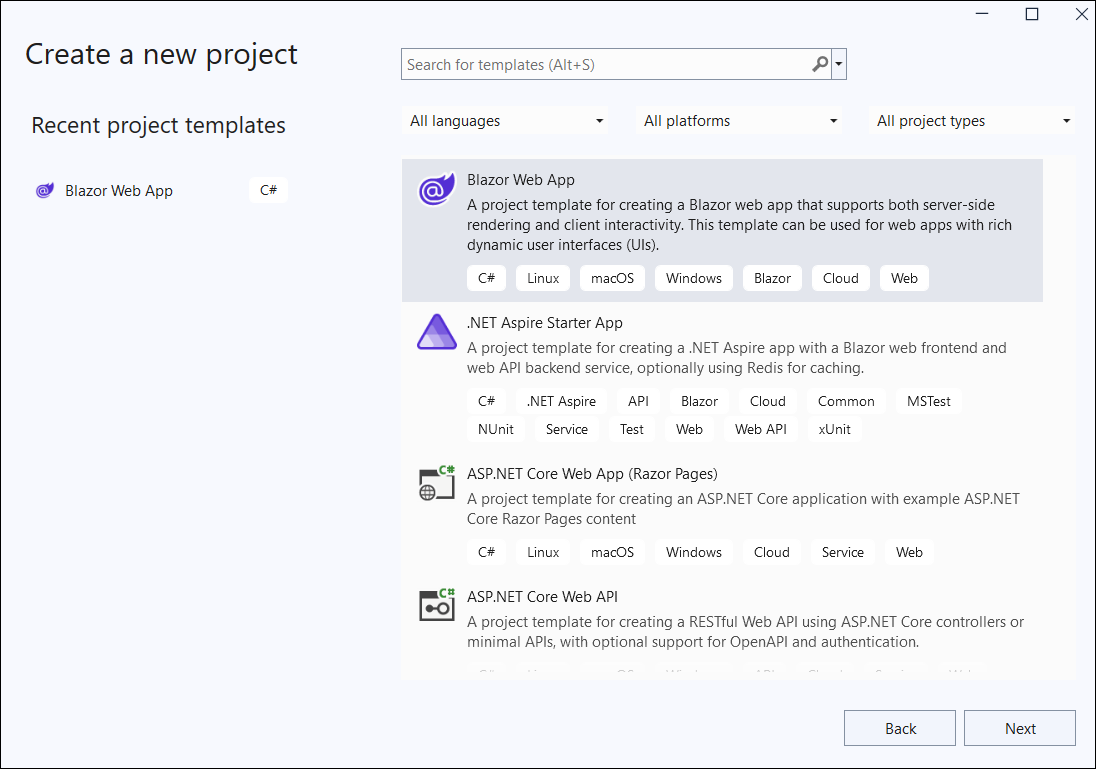

Step 1: Create a new C# Blazor server-side application project. Select Blazor App from the template and click the Next button.
Step 2: Now, the project configuration window appears. Click Create button to create a new project with the default project configuration.
Step 3: Choose Blazor Server App from the dashboard and click Create button to create a new Blazor server-side application.
Step 4: Install the Syncfusion.PDF.Net.Core NuGet package as a reference to your Blazor application from NuGet.org.
NOTE
Starting with v16.2.0.x, if you reference Syncfusion® assemblies from trial setup or from the NuGet feed, you also have to add “Syncfusion.Licensing” assembly reference and include a license key in your projects. Please refer to this link to know about registering Syncfusion® license key in your application to use our components.
Step 5: Create a new cs file named ExportService under Data folder and include the following namespaces in the file.
using Syncfusion.Pdf;
using Syncfusion.Pdf.Graphics;
using Syncfusion.Pdf.Grid;
using Syncfusion.Drawing;Step 6: The PdfDocument object represents an entire PDF document that is being created. The PdfTextElement is used to add text in a PDF document and which provides the layout result of the added text by using the location of the next element that decides to prevent content overlapping. The PdfGrid allows you to create table by entering data manually or from an external data sources.
Add the following code sample in ExportService class which illustrates how to create a simple PDF document using PdfTextElement and PdfGrid.
//Export weather data to PDF document.
public static MemoryStream CreatePdf(WeatherForecast[] forecasts)
{
if (forecasts == null)
{
throw new ArgumentNullException("Forecast cannot be null");
}
//Create a new PDF document.
using (PdfDocument pdfDocument = new PdfDocument())
{
int paragraphAfterSpacing = 8;
int cellMargin = 8;
//Add page to the PDF document.
PdfPage page = pdfDocument.Pages.Add();
//Create a new font.
PdfStandardFont font = new PdfStandardFont(PdfFontFamily.TimesRoman, 16);
//Create a text element to draw a text in PDF page.
PdfTextElement title = new PdfTextElement("Weather Forecast", font, PdfBrushes.Black);
PdfLayoutResult result = title.Draw(page, new PointF(0, 0));
PdfStandardFont contentFont = new PdfStandardFont(PdfFontFamily.TimesRoman, 12);
PdfTextElement content = new PdfTextElement("This component demonstrates fetching data from a service and Exporting the data to PDF document using Syncfusion .NET PDF library.", contentFont, PdfBrushes.Black);
PdfLayoutFormat format = new PdfLayoutFormat();
format.Layout = PdfLayoutType.Paginate;
//Draw a text to the PDF document.
result = content.Draw(page, new RectangleF(0, result.Bounds.Bottom + paragraphAfterSpacing, page.GetClientSize().Width, page.GetClientSize().Height), format);
//Create a PdfGrid.
PdfGrid pdfGrid = new PdfGrid();
pdfGrid.Style.CellPadding.Left = cellMargin;
pdfGrid.Style.CellPadding.Right = cellMargin;
//Applying built-in style to the PDF grid.
pdfGrid.ApplyBuiltinStyle(PdfGridBuiltinStyle.GridTable4Accent1);
//Assign data source.
pdfGrid.DataSource = forecasts
pdfGrid.Style.Font = contentFont;
//Draw PDF grid into the PDF page.
pdfGrid.Draw(page, new Syncfusion.Drawing.PointF(0, result.Bounds.Bottom + paragraphAfterSpacing));
using (MemoryStream stream = new MemoryStream())
{
//Saving the PDF document into the stream.
pdfDocument.Save(stream);
//Closing the PDF document.
pdfDocument.Close(true);
return stream;
}
}
}Register your service in the ConfigureServices method available in the Startup.cs class as follows.
public void ConfigureServices(IServiceCollection services)
{
services.AddRazorPages();
services.AddServerSideBlazor();
services.AddSingleton<WeatherForecastService>();
services.AddSingleton<ExportService>();
}Step 6: Inject ExportService in-to FetchData.razor using the following code.
@inject ExportToFileService exportService
@inject Microsoft.JSInterop.IJSRuntime JS
@using System.IO;Create a button in the FetchData.razor using the following code.
<button class="btn btn-primary" @onclick="@ExportToPdf">Export to PDF</button>Add the ExportToPdf method in FetchData.razor page to call the export service.
@functions
{
protected async Task ExportToPdf()
{
using (MemoryStream excelStream = ExportService.CreatePdf(forecasts))
{
await JS.SaveAs("Sample.pdf", excelStream.ToArray());
}
}
}Step 7: Create a class file with FileUtil name and add the following code to invoke the JavaScript action to download the file in the browser.
public static class FileUtil
{
public static ValueTask<object> SaveAs(this IJSRuntime js, string filename, byte[] data)
=> js.InvokeAsync<object>(
"saveAsFile",
filename,
Convert.ToBase64String(data));
}Step 8: Add the following JavaScript function in the _Host.cshtml available under the Pages folder.
<script type="text/javascript">
function saveAsFile(filename, bytesBase64) {
if (navigator.msSaveBlob) {
//Download document in Edge browser
var data = window.atob(bytesBase64);
var bytes = new Uint8Array(data.length);
for (var i = 0; i < data.length; i++) {
bytes[i] = data.charCodeAt(i);
}
var blob = new Blob([bytes.buffer], { type: "application/octet-stream" });
navigator.msSaveBlob(blob, filename);
}
else {
var link = document.createElement('a');
link.download = filename;
link.href = "data:application/octet-stream;base64," + bytesBase64;
document.body.appendChild(link); // Needed for Firefox
link.click();
document.body.removeChild(link);
}
}
</script>You can download a complete working sample from GitHub.
By executing the program, you will get the following output in the browser.
Click the Export to PDF button, and you will get the PDF document with the following output.
NOTE
It is recommended to use Blazor Server-Side application to reduce the pay back load which is high in Blazor Client-Side.
Click here to explore the rich set of Syncfusion® PDF library features.
An online sample link to create PDF document in Blazor.
Steps to create PDF document in Blazor client-side application:
Step 1: Create a new C# Blazor client-side application project. Select Blazor App from the template and click the Next button.

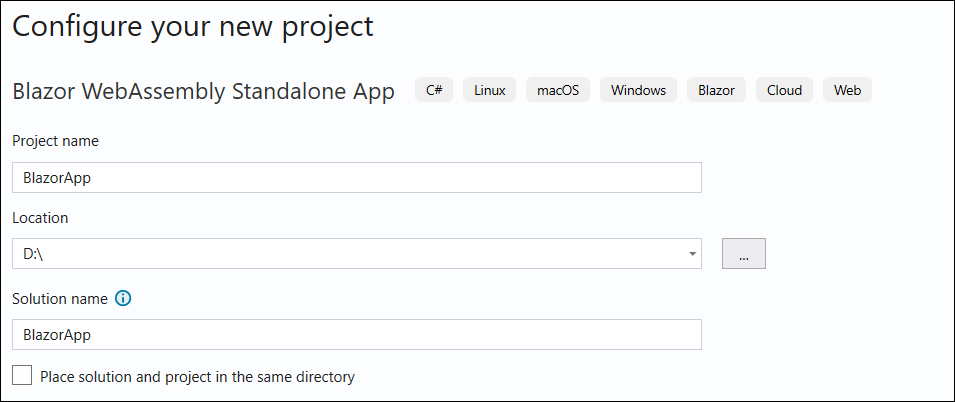

Step 2: Now, the project configuration window appears. Click Create button to create a new project with the default project configuration.

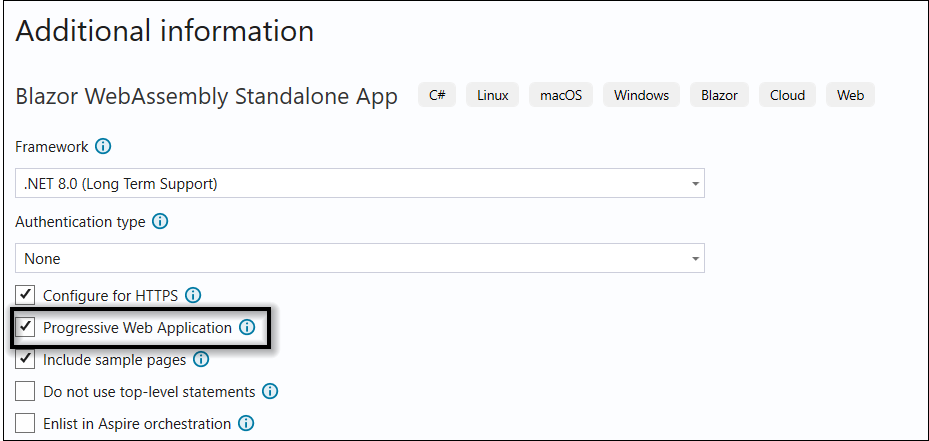

Step 3: Blazor WebAssembly App from the dashboard and click Create button to create a new Blazor client-side application.

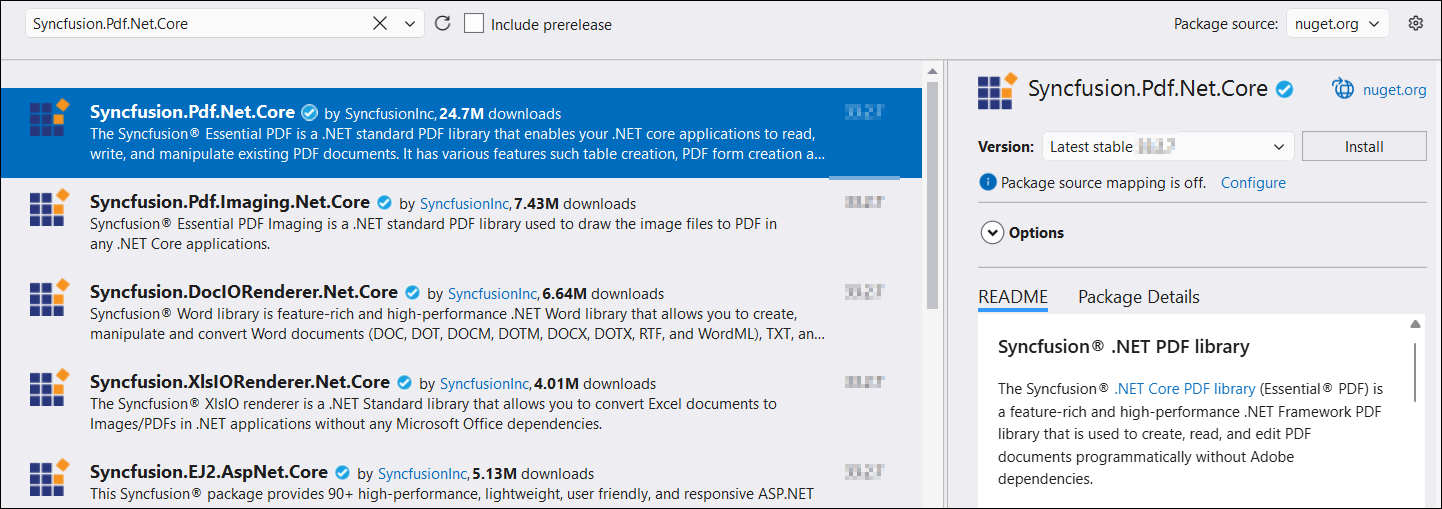

Step 4: Install the Syncfusion.PDF.Net.Core NuGet package as a reference to your Blazor application from NuGet.org.
NOTE
Starting with v16.2.0.x, if you reference Syncfusion® assemblies from trial setup or from the NuGet feed, you also have to add “Syncfusion.Licensing” assembly reference and include a license key in your projects. Please refer to this link to know about registering Syncfusion® license key in your application to use our components.
Step 5: Next, include the following namespaces in that FetchData.razor file.
@using Syncfusion.Pdf
@using Syncfusion.Pdf.Grid;
@using Syncfusion.Drawing;
@using Syncfusion.Pdf.Graphics;
@inject Microsoft.JSInterop.IJSRuntime JS
@using System.IO;Step 6: Create a button in the FetchData.razor using the following code.
<button class="btn btn-primary" @onclick="@ExportToPdf">Export to PDF</button>Step 7: Define the @ExportToPdf click function on FetchData.razor file.
The PdfDocument object represents an entire PDF document that is being created and add a PdfPage to it. The PdfTextElement is used to add text in a PDF document and which provides the layout result of the added text by using the location of the next element that decides to prevent content overlapping. The PdfGrid allows you to create table by entering data manually or from an external data sources.
@functions {
void ExportToPdf()
{
int paragraphAfterSpacing = 8;
int cellMargin = 8;
//Create a new PDF document.
PdfDocument pdfDocument = new PdfDocument();
//Add Page to the PDF document.
PdfPage page = pdfDocument.Pages.Add();
//Create a new font.
PdfStandardFont font = new PdfStandardFont(PdfFontFamily.TimesRoman, 16);
//Create a text element to draw a text in PDF page.
PdfTextElement title = new PdfTextElement("Weather Forecast", font, PdfBrushes.Black);
PdfLayoutResult result = title.Draw(page, new PointF(0, 0));
PdfStandardFont contentFont = new PdfStandardFont(PdfFontFamily.TimesRoman, 12);
//Create text element.
PdfTextElement content = new PdfTextElement("This component demonstrates fetching data from a client side and Exporting the data to PDF document using Syncfusion .NET PDF library.", contentFont, PdfBrushes.Black);
PdfLayoutFormat format = new PdfLayoutFormat();
format.Layout = PdfLayoutType.Paginate;
//Draw a text to the PDF document.
result = content.Draw(page, new RectangleF(0, result.Bounds.Bottom + paragraphAfterSpacing, page.GetClientSize().Width, page.GetClientSize().Height), format);
//Create a PdfGrid.
PdfGrid pdfGrid = new PdfGrid();
pdfGrid.Style.CellPadding.Left = cellMargin;
pdfGrid.Style.CellPadding.Right = cellMargin;
//Applying built-in style to the PDF grid
pdfGrid.ApplyBuiltinStyle(PdfGridBuiltinStyle.GridTable4Accent1);
//Assign data source.
pdfGrid.DataSource = forecasts;
pdfGrid.Style.Font = contentFont;
//Draw PDF grid into the PDF page.
pdfGrid.Draw(page, new Syncfusion.Drawing.PointF(0, result.Bounds.Bottom + paragraphAfterSpacing));
//Create memory stream.
MemoryStream memoryStream = new MemoryStream();
//Save the PDF document.
pdfDocument.Save(memoryStream);
//Download the PDF document
JS.SaveAs("Sample.pdf", memoryStream.ToArray());
}
}Step 7: Create a class file with FileUtil name and add the following code to invoke the JavaScript action to download the file in the browser.
public static class FileUtil
{
public static ValueTask<object> SaveAs(this IJSRuntime js, string filename, byte[] data)
=> js.InvokeAsync<object>(
"saveAsFile",
filename,
Convert.ToBase64String(data));
}Step 8: Add the following JavaScript function in the index.html available under the wwwroot folder.
<script type="text/javascript">
function saveAsFile(filename, bytesBase64) {
if (navigator.msSaveBlob) {
//Download document in Edge browser
var data = window.atob(bytesBase64);
var bytes = new Uint8Array(data.length);
for (var i = 0; i < data.length; i++) {
bytes[i] = data.charCodeAt(i);
}
var blob = new Blob([bytes.buffer], { type: "application/octet-stream" });
navigator.msSaveBlob(blob, filename);
}
else {
var link = document.createElement('a');
link.download = filename;
link.href = "data:application/octet-stream;base64," + bytesBase64;
document.body.appendChild(link); // Needed for Firefox
link.click();
document.body.removeChild(link);
}
}
</script>You can download a complete working sample from GitHub.

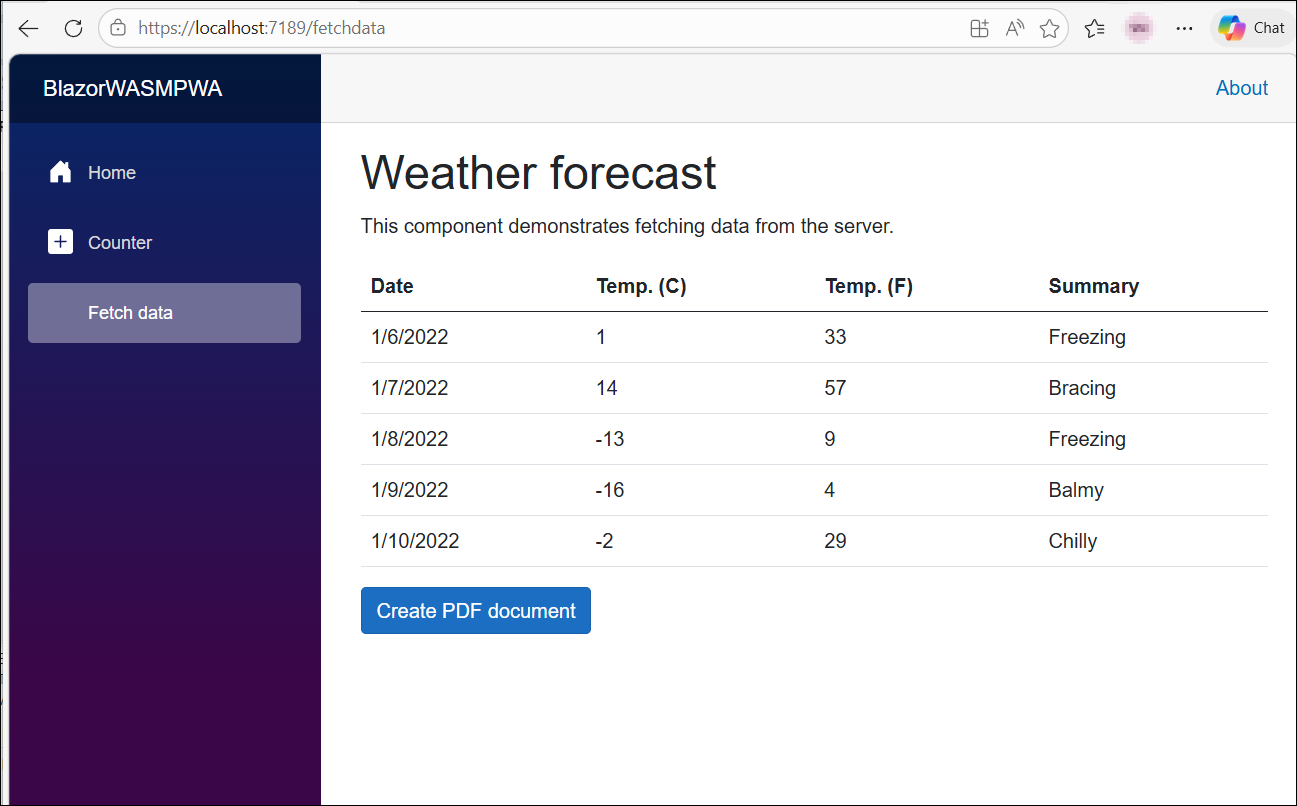

By executing the program, you will get the following output in the browser.
Click the Export to PDF button and you will get the PDF document with the following output.
Click here to explore the rich set of Syncfusion® PDF library features.
An online sample link to create PDF document in Blazor.
Steps to create PDF documents in .NET MAUI Blazor application

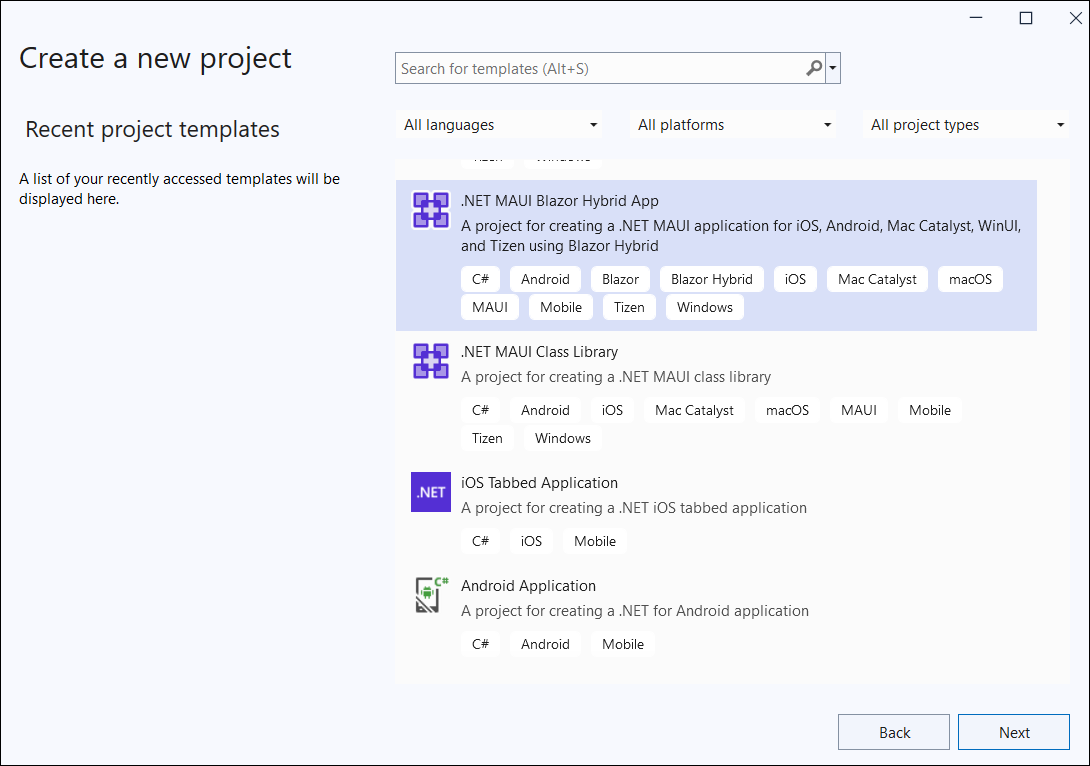

Step 1: Create a new project by choosing .NET MAUI Blazor Hybrid App template in Visual Studio.
Step 2: Now, the project configuration window appears. Set the project name and location, then select Create button to create a new project with the default project configuration.
Step 3: Install the Syncfusion.PDF.NET NuGet package as a reference to your Blazor application from NuGet.org.
Step 4: Next, include the following namespaces in the _Imports.razor file.
@using Syncfusion.Pdf;
@using Syncfusion.Pdf.Graphics;
@using Syncfusion.Pdf.Grid;
@using Syncfusion.Drawing;
@using BlazorMauiAppCreatePdfSample.ServicesStep 5: Create a button in the Weather.razor using the following code.
<button class="btn btn-primary" @onclick="@ExportToPdf">Export to PDF</button>Step 6: Define the @ExportToPdf click function on Weather.razor file.
The PdfDocument object represents an entire PDF document that is being created and add a PdfPage to it. The PdfTextElement is used to add text in a PDF document and which provides the layout result of the added text by using the location of the next element that decides to prevent content overlapping. The PdfGrid allows you to create table by entering data manually or from an external data source.
@functions {
void ExportToPdf()
{
int paragraphAfterSpacing = 8;
int cellMargin = 8;
//Create a new PDF document.
PdfDocument pdfDocument = new PdfDocument();
//Add Page to the PDF document.
PdfPage page = pdfDocument.Pages.Add();
//Create a new font.
PdfStandardFont font = new PdfStandardFont(PdfFontFamily.TimesRoman, 16);
//Create a text element to draw a text in PDF page.
PdfTextElement title = new PdfTextElement("Weather Forecast", font, PdfBrushes.Black);
PdfLayoutResult result = title.Draw(page, new PointF(0, 0));
PdfStandardFont contentFont = new PdfStandardFont(PdfFontFamily.TimesRoman, 12);
//Create text element.
PdfTextElement content = new PdfTextElement("This component demonstrates fetching data from a client side and Exporting the data to PDF document using Syncfusion .NET PDF library.", contentFont, PdfBrushes.Black);
PdfLayoutFormat format = new PdfLayoutFormat();
format.Layout = PdfLayoutType.Paginate;
//Draw a text to the PDF document.
result = content.Draw(page, new RectangleF(0, result.Bounds.Bottom + paragraphAfterSpacing, page.GetClientSize().Width, page.GetClientSize().Height), format);
//Create a PdfGrid.
PdfGrid pdfGrid = new PdfGrid();
pdfGrid.Style.CellPadding.Left = cellMargin;
pdfGrid.Style.CellPadding.Right = cellMargin;
//Applying built-in style to the PDF grid
pdfGrid.ApplyBuiltinStyle(PdfGridBuiltinStyle.GridTable4Accent1);
//Assign data source.
pdfGrid.DataSource = forecasts;
pdfGrid.Style.Font = contentFont;
//Draw PDF grid into the PDF page.
pdfGrid.Draw(page, new Syncfusion.Drawing.PointF(0, result.Bounds.Bottom + paragraphAfterSpacing));
using (MemoryStream ms = new MemoryStream())
{
// Save the PDF document to the memory stream
pdfDocument.Save(ms);
// Close the PDF document
pdfDocument.Close(true);
// Reset the memory stream position
ms.Position = 0;
// Create a SaveService instance
SaveService service = new SaveService();
// Save and view the PDF document
service.SaveAndView("Output.pdf", "application/pdf", ms);
}
}Save the PDF document on different platforms
Create a folder named Services, then add a class called SaveService.cs within this folder, and insert the following code into it.
public partial class SaveService
{
//Method to save document as a file and view the saved document.
public partial void SaveAndView(string filename, string contentType, MemoryStream stream);
}Now, we need to implement platform-specific code to save the PDF document.
Andriod
Create a new class file named SaveAndroid.cs within the Android folder and add the following code to enable file saving on the Android platform.
public partial void SaveAndView(string filename, string contentType, MemoryStream stream)
{
string exception = string.Empty;
string? root = null;
if (Android.OS.Environment.IsExternalStorageEmulated)
{
root = Android.App.Application.Context!.GetExternalFilesDir(Android.OS.Environment.DirectoryDownloads)!.AbsolutePath;
}
else
root = System.Environment.GetFolderPath(System.Environment.SpecialFolder.MyDocuments);
Java.IO.File myDir = new(root + "/Syncfusion");
myDir.Mkdir();
Java.IO.File file = new(myDir, filename);
if (file.Exists())
{
file.Delete();
}
try
{
FileOutputStream outs = new(file);
outs.Write(stream.ToArray());
outs.Flush();
outs.Close();
}
catch (Exception e)
{
exception = e.ToString();
}
if (file.Exists())
{
if (Build.VERSION.SdkInt >= Android.OS.BuildVersionCodes.N)
{
var fileUri = AndroidX.Core.Content.FileProvider.GetUriForFile(Android.App.Application.Context, Android.App.Application.Context.PackageName + ".provider", file);
var intent = new Intent(Intent.ActionView);
intent.SetData(fileUri);
intent.AddFlags(ActivityFlags.NewTask);
intent.AddFlags(ActivityFlags.GrantReadUriPermission);
Android.App.Application.Context.StartActivity(intent);
}
else
{
var fileUri = Android.Net.Uri.Parse(file.AbsolutePath);
var intent = new Intent(Intent.ActionView);
intent.SetDataAndType(fileUri, contentType);
intent = Intent.CreateChooser(intent, "Open File");
intent!.AddFlags(ActivityFlags.NewTask);
Android.App.Application.Context.StartActivity(intent);
}
}
}NOTE
Introduced a new runtime permission model for the Android SDK version 23 and above. So, include the following code for enabling the Android file provider to save and view the generated PDF document.
- Create a new XML file with the name of
file_paths.xmlunder the Android project Resources/xml folder and add the following code in it.
<?xml version="1.0" encoding="utf-8"?>
<paths xmlns:android="http://schemas.android.com/apk/res/android">
<external-path
name="external"
path="." />
<external-files-path
name="external_files"
path="." />
<cache-path
name="cache"
path="." />
<external-cache-path
name="external_cache"
path="." />
<files-path
name="files"
path="." />
</paths>- Add the following code to the
AndroidManifest.xmlfile located under Properties/AndroidManifest.xml.
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android">
<application android:allowBackup="true" android:icon="@mipmap/appicon" android:roundIcon="@mipmap/appicon_round" android:supportsRtl="true">
<provider
android:name="androidx.core.content.FileProvider"
android:authorities="${applicationId}.provider"
android:exported="false"
android:grantUriPermissions="true">
<meta-data
android:name="android.support.FILE_PROVIDER_PATHS"
android:resource="@xml/file_paths" />
</provider>
</application>
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<uses-permission android:name="android.permission.INTERNET" />
</manifest>IOS
Create a new class file named SaveIOS.cs within the iOS folder and include the following code to enable file saving on the iOS platform.
public partial void SaveAndView(string filename, string contentType, MemoryStream stream)
{
string exception = string.Empty;
string path = Environment.GetFolderPath(Environment.SpecialFolder.Personal);
string filePath = Path.Combine(path, filename);
try
{
FileStream fileStream = File.Open(filePath, FileMode.Create);
stream.Position = 0;
stream.CopyTo(fileStream);
fileStream.Flush();
fileStream.Close();
}
catch (Exception e)
{
exception = e.ToString();
}
if (contentType != "application/html" || exception == string.Empty)
{
UIViewController? currentController = UIApplication.SharedApplication!.KeyWindow!.RootViewController;
while (currentController!.PresentedViewController != null)
currentController = currentController.PresentedViewController;
QLPreviewController qlPreview = new();
QLPreviewItem item = new QLPreviewItemBundle(filename, filePath);
qlPreview.DataSource = new PreviewControllerDS(item);
currentController.PresentViewController((UIViewController)qlPreview, true, null);
}
}MacOS
Create a new class file named SaveMac.cs within the MacCatalyst folder and include the following code to enable file saving on the MacOS platform.
public partial void SaveAndView(string filename, string contentType, MemoryStream stream)
{
string path = Environment.GetFolderPath(Environment.SpecialFolder.MyDocuments);
string filePath = Path.Combine(path, filename);
stream.Position = 0;
//Saves the document
using FileStream fileStream = new(filePath, FileMode.Create, FileAccess.ReadWrite);
stream.CopyTo(fileStream);
fileStream.Flush();
fileStream.Dispose();
UIWindow? window = GetKeyWindow();
if (window != null && window.RootViewController != null)
{
UIViewController? uiViewController = window.RootViewController;
if (uiViewController != null)
{
QLPreviewController qlPreview = new();
QLPreviewItem item = new QLPreviewItemBundle(filename, filePath);
qlPreview.DataSource = new PreviewControllerDS(item);
uiViewController.PresentViewController((UIViewController)qlPreview, true, null);
}
}
}
public UIWindow? GetKeyWindow()
{
foreach (var scene in UIApplication.SharedApplication.ConnectedScenes)
{
if (scene is UIWindowScene windowScene)
{
foreach (var window in windowScene.Windows)
{
if (window.IsKeyWindow)
{
return window;
}
}
}
}
return null;
}Windows
Create a new class file named SaveWindows.cs within the Windows folder and include the following code to enable file saving on the Windows platform.
public async partial void SaveAndView(string filename, string contentType, MemoryStream stream)
{
StorageFile stFile;
string extension = Path.GetExtension(filename);
//Gets process windows handle to open the dialog in application process.
IntPtr windowHandle = System.Diagnostics.Process.GetCurrentProcess().MainWindowHandle;
if (!Windows.Foundation.Metadata.ApiInformation.IsTypePresent("Windows.Phone.UI.Input.HardwareButtons"))
{
//Creates file save picker to save a file.
FileSavePicker savePicker = new();
if (extension == ".xlsx")
{
savePicker.DefaultFileExtension = ".xlsx";
savePicker.SuggestedFileName = filename;
//Saves the file as xlsx file.
savePicker.FileTypeChoices.Add("XLSX", new List<string>() { ".xlsx" });
}
if (extension == ".docx")
{
savePicker.DefaultFileExtension = ".docx";
savePicker.SuggestedFileName = filename;
//Saves the file as Docx file.
savePicker.FileTypeChoices.Add("DOCX", new List<string>() { ".docx" });
}
else if (extension == ".doc")
{
savePicker.DefaultFileExtension = ".doc";
savePicker.SuggestedFileName = filename;
//Saves the file as Doc file.
savePicker.FileTypeChoices.Add("DOC", new List<string>() { ".doc" });
}
else if (extension == ".rtf")
{
savePicker.DefaultFileExtension = ".rtf";
savePicker.SuggestedFileName = filename;
//Saves the file as Rtf file.
savePicker.FileTypeChoices.Add("RTF", new List<string>() { ".rtf" });
}
else if (extension == ".pdf")
{
savePicker.DefaultFileExtension = ".pdf";
savePicker.SuggestedFileName = filename;
//Saves the file as Pdf file.
savePicker.FileTypeChoices.Add("PDF", new List<string>() { ".pdf" });
}
else if (extension == ".pptx")
{
savePicker.DefaultFileExtension = ".pptx";
savePicker.SuggestedFileName = filename;
//Saves the file as pptx file.
savePicker.FileTypeChoices.Add("PPTX", new List<string>() { ".pptx" });
}
else if (extension == ".png")
{
savePicker.DefaultFileExtension = ".png";
savePicker.SuggestedFileName = filename;
//Saves the file as png file.
savePicker.FileTypeChoices.Add("PNG", new List<string>() { ".png" });
}
WinRT.Interop.InitializeWithWindow.Initialize(savePicker, windowHandle);
stFile = await savePicker.PickSaveFileAsync();
}
else
{
StorageFolder local = ApplicationData.Current.LocalFolder;
stFile = await local.CreateFileAsync(filename, CreationCollisionOption.ReplaceExisting);
}
if (stFile != null)
{
using (IRandomAccessStream zipStream = await stFile.OpenAsync(FileAccessMode.ReadWrite))
{
//Writes compressed data from memory to file.
using Stream outstream = zipStream.AsStreamForWrite();
outstream.SetLength(0);
//Saves the stream as file.
byte[] buffer = stream.ToArray();
outstream.Write(buffer, 0, buffer.Length);
outstream.Flush();
}
//Create message dialog box.
MessageDialog msgDialog = new("Do you want to view the document?", "File has been created successfully");
UICommand yesCmd = new("Yes");
msgDialog.Commands.Add(yesCmd);
UICommand noCmd = new("No");
msgDialog.Commands.Add(noCmd);
WinRT.Interop.InitializeWithWindow.Initialize(msgDialog, windowHandle);
//Showing a dialog box.
IUICommand cmd = await msgDialog.ShowAsync();
if (cmd.Label == yesCmd.Label)
{
//Launch the saved file.
await Windows.System.Launcher.LaunchFileAsync(stFile);
}
}
}The helper files mentioned above are available on this page. You can refer to this page for more details.
You can download a complete working sample from GitHub.
By running the program, you will see the output in the browser when you click the “Whether” option in the left-side menu.
Click the Export to PDF button to get the PDF document with the following output.
Click here to explore the rich set of Syncfusion® PDF library features.
