Create or Generate a PDF File in a Vue Application

16 Jul 20269 minutes to read

The JavaScript PDF Library is used to create, read, and edit PDF documents. The JavaScript PDF Library also offers functionality to merge, split, stamp, fill PDF forms, and secure PDF files.

This guide explains how to integrate the JavaScript PDF Library into a Vue application that runs in the browser. The generated PDF is downloaded directly from the browser; no server-side PDF rendering is required.

Vue 2 reached end-of-life on December 31, 2023. This guide leads with Vue 3 (recommended) and provides a separate Vue 2 path for legacy projects.

Prerequisites

Before you begin, make sure you have the following installed:

  • Node.js 18 or later.
  • npm 9 or later, or Yarn 1.22 or later.
  • Visual Studio Code, Code Studio, or another code editor.
  • A supported browser such as the latest versions of Microsoft Edge, Google Chrome, or Mozilla Firefox.

To verify your Node.js and npm versions, run:

node --version
npm --version

Create a new Vue 3 project using the official scaffolding tool. This guide uses Vite as the bundler.

npm create vue@latest my-pdf-app
cd my-pdf-app
npm install

When prompted, choose the default options (TypeScript is optional; this guide uses plain JavaScript).

The final project structure is:

my-pdf-app/
├── public/
├── src/
│   ├── App.vue
│   ├── main.js
│   └── components/
├── index.html
└── package.json

Create a Vue 2 Project (Legacy)

NOTE

Vue 2 reached end-of-life on December 31, 2023. Use Vue 2 only for legacy projects.

To create a Vue 2 project using the legacy Vue CLI:

npm install -g @vue/cli
vue create quickstart
cd quickstart

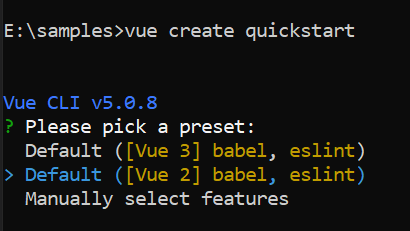

When prompted, choose Default ([Vue 2] babel, es-lint).

Vue 2 project

Install the JavaScript PDF Library

All Syncfusion® JS 2 packages are published in the npmjs.com registry. The npm install command below resolves @syncfusion/ej2-pdf to the latest stable version compatible with Vue 2.7+ or Vue 3.4+.

npm install @syncfusion/ej2-pdf --save
  • If you prefer Yarn, use the following command.
yarn add @syncfusion/ej2-pdf

NOTE

For image and data extraction features, install the @syncfusion/ej2-pdf-data-extract package as an add-on. Note the following:

  • Copy the ej2-pdf-lib folder from the @syncfusion/ej2-pdf-data-extract package into your project’s public/, dist/, or assets/ directory (wherever your static files are served).
  • Make sure the ej2-pdf-lib folder exists in your final build output if you need to extract images or data from PDF files.
  • Ensure your server serves .wasm files with the Content-Type: application/wasm MIME type. Vite and Vue CLI dev servers already handle this; configure production servers manually.
  • This setup is not required for basic PDF creation.

Transitive Dependencies

The following packages are included automatically by @syncfusion/ej2-pdf and do not need to be installed separately:

  • @syncfusion/ej2-base — common utilities used by the library.
  • @syncfusion/ej2-compression — compression support used by PDF features.

License Registration

If your project requires a Syncfusion license, register the license key before using the PDF API. Add the following code at the top of src/App.vue’s <script> block:

import { registerLicense } from '@syncfusion/ej2-base';

registerLicense('YOUR_LICENSE_KEY');

Replace YOUR_LICENSE_KEY with the key from your Syncfusion account. For more information, see the Syncfusion licensing documentation.

Create a PDF Document

Replace the contents of src/App.vue with the following code. The script imports the PDF classes as named exports from @syncfusion/ej2-pdf and creates a one-page PDF in a click handler. The same code works for both Vue 2 and Vue 3.

<script>
import { registerLicense } from '@syncfusion/ej2-base';
import {
  PdfDocument,
  PdfFontFamily,
  PdfFontStyle,
  PdfBrush
} from '@syncfusion/ej2-pdf';

// Optional: register the Syncfusion license key (required for commercial usage)
registerLicense('YOUR_LICENSE_KEY');

export default {
  name: 'App',
  methods: {
    createPdf() {
      // Create a new PDF document
      const pdf = new PdfDocument();

      // Add a new page
      const page = pdf.addPage();

      // Get graphics from the page
      const graphics = page.graphics;

      // Embed a standard font (family, size, style)
      const font = pdf.embedFont(
        PdfFontFamily.helvetica,
        36,
        PdfFontStyle.regular
      );

      // Create a solid black brush using an RGB object
      const brush = new PdfBrush({ r: 0, g: 0, b: 0 });

      // Draw the text inside a layout rectangle
      graphics.drawString(
        'Hello World!!!',
        font,
        { x: 20, y: 20, width: graphics.clientSize.width - 20, height: 60 },
        brush
      );

      // Save and download the PDF
      pdf.save('Output.pdf');

      // Release document resources
      pdf.destroy();
    }
  }
};
</script>

<template>
  <div id="app">
    <button @click="createPdf">Create PDF document</button>
  </div>
</template>

NOTE

This sample uses named imports from the npm package (import { PdfDocument, ... } from '@syncfusion/ej2-pdf'). The npm package does not expose a global ej namespace; using ej.pdf.PdfDocument without an import will throw ReferenceError: ej is not defined in a Vite or Vue CLI build. If you prefer the UMD-style global, load ej2.min.js from the Syncfusion CDN in index.html (or public/index.html) instead of importing the npm package.

NOTE

A click handler is used in this example, so no additional setup is required. The PDF classes load when the import runs at module evaluation time, which happens before any user interaction.

Code Explanation

  • registerLicense(key) — registers the Syncfusion license key at application startup. Required for commercial usage.
  • PdfDocument — creates a new PDF document instance.
  • addPage() — appends a blank page to the document and returns the PdfPage object.
  • page.graphics — returns the PdfGraphics drawing surface for the page.
  • embedFont(family, size, style) — embeds one of the standard PDF font families (here, Helvetica 36pt regular) and returns a PdfFont object.
  • new PdfBrush({ r, g, b }) — creates a solid color brush from an RGB object (each channel 0-255); here, black.
  • drawString(text, font, layoutRect, brush) — draws the text inside the rectangle defined by x, y, width, and height.
  • graphics.clientSize.width — the writable width of the page in points.
  • save('Output.pdf') — saves the PDF and triggers a browser download with the specified file name. The file is sent to the browser’s default downloads folder.
  • destroy() — releases native resources held by the document.

Run the Application

Vue 3 (Vite)

Open a terminal in the project root and start the Vite development server:

npm run dev

Vite serves the application at http://localhost:5173. Open this URL in a browser and click Create PDF document to download the generated file as Output.pdf.

Vue 2 (Vue CLI)

Open a terminal in the project root and start the Vue CLI development server:

npm run serve

Vue CLI serves the application at http://localhost:8080. Open this URL in a browser and click Create PDF document to download the generated file as Output.pdf.

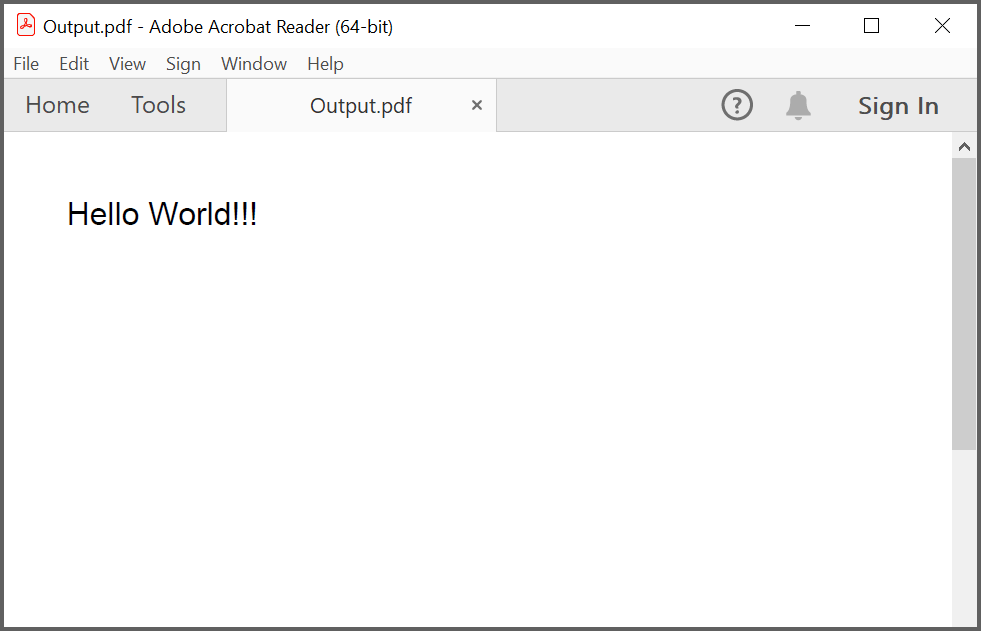

The generated PDF contains a single page with the text “Hello World!!!” drawn at the top-left.

Vue PDF output

Troubleshooting

Problem Cause Resolution
ReferenceError: ej is not defined The code uses the global ej.pdf namespace but the npm package does not expose it Switch to named imports: import { PdfDocument, ... } from '@syncfusion/ej2-pdf'
SyntaxError: Unexpected token ':' in App.vue TypeScript type annotations were left in a plain <script> block Remove the : ej.pdf.PdfType annotations, or add lang="ts" to the <script> tag and configure TypeScript in the project
Error: Cannot find module '@syncfusion/ej2-pdf' The package is not installed Run npm install @syncfusion/ej2-pdf --save
Button click does nothing The click handler is not wired Confirm the button uses @click="createPdf" and that createPdf is defined in the methods block
WASM 404 or MIME type error The ej2-pdf-lib folder is missing or not served with the right MIME type Copy the ej2-pdf-lib folder from the @syncfusion/ej2-pdf-data-extract package into public/ and confirm the server serves .wasm as application/wasm
Output.pdf does not download The browser blocks the download Check the browser’s download settings and the downloads folder
registerLicense warning at runtime The license key is missing or invalid Confirm the key is set in App.vue and is the correct key for your Syncfusion account
Port already in use (5173 or 8080) Another process is using the port Stop the conflicting process or change the port in vite.config.js / vue.config.js
npm install warns about deprecated packages on Vue 2 Vue 2 and @vue/cli are in maintenance / EOL Migrate to Vue 3 using npm create vue@latest
