Create or Generate a PDF File in ASP.NET MVC

17 Jul 20269 minutes to read

The JavaScript PDF Library is used to create, read, and edit PDF documents. The JavaScript PDF Library also offers functionality to merge, split, stamp, fill forms, and secure PDF files.

This guide explains how to integrate the JavaScript PDF Library into an ASP.NET MVC application. The PDF is generated client-side in the browser using the Syncfusion JavaScript PDF Library loaded from a CDN; ASP.NET MVC is used to host the page that triggers the download.

Prerequisites

Before you begin, make sure you have the following installed:

  • Visual Studio 2019 or later (Visual Studio 2022 recommended) with the ASP.NET and web development workload.
  • .NET Framework 4.6.2 or later.
  • An active internet connection (the sample loads the JavaScript PDF Library from the Syncfusion CDN).
  • A supported browser such as the latest versions of Microsoft Edge, Google Chrome, or Mozilla Firefox.

NOTE

This guide uses the CDN distribution of the JavaScript PDF Library. No client-side registerLicense call is required when loading the library from the Syncfusion CDN; licensing is handled at the account level.

Create the Project

Step 1: Start Visual Studio and select Create a new project.

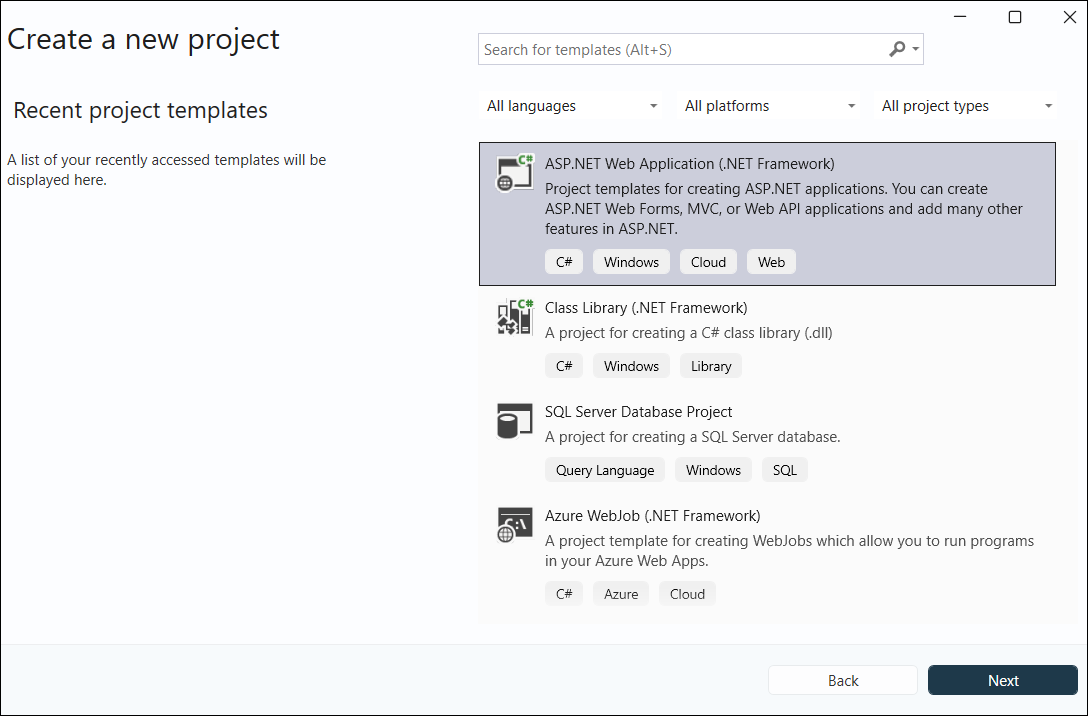

Step 2: In the Create a new project dialog, select ASP.NET MVC Web Application project (.NET Framework).

ASP.NET MVC PDF creation1

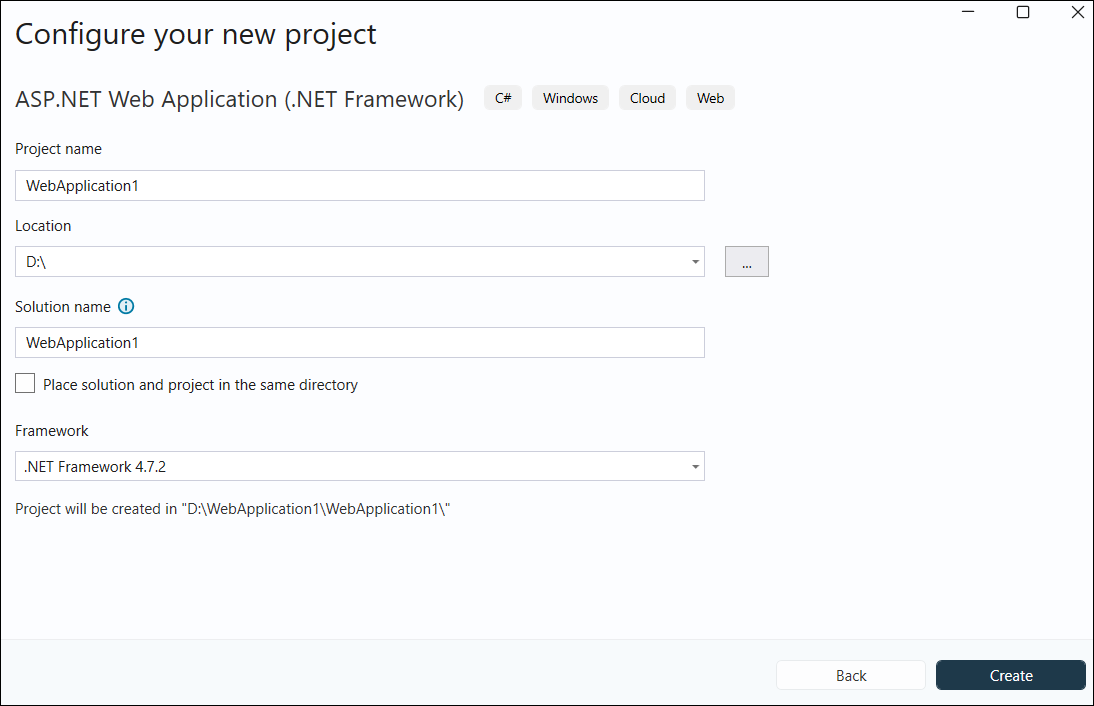

Step 3: In the Configure your new project dialog, enter the project name, choose the target framework (for example, .NET Framework 4.7.2).

ASP.NET MVC PDF creation2

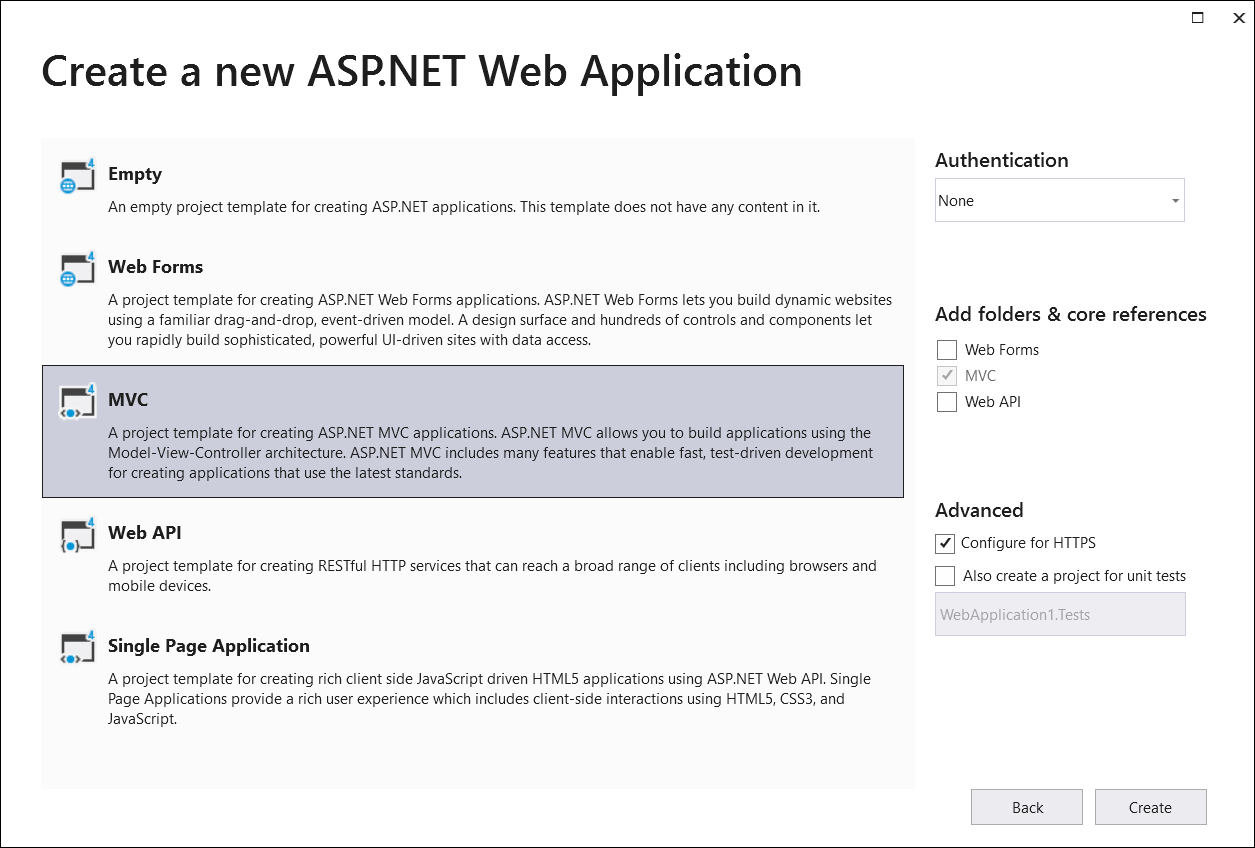

Step 4: Confirm that Web Application pattern (Model-View-Controller) is selected in the additional information dialog, and then select the Create button.

ASP.NET MVC PDF creation3

Add the Script Reference

Step 5: Add the script reference: open ~/Views/Shared/_Layout.cshtml and add the Syncfusion CDN reference inside the <head> element. Also confirm that the layout contains @await RenderSectionAsync("Scripts", required: false) so the @section Scripts block in Step 6 can render.

<head>
    ...
    <!-- JavaScript PDF Library (CDN) -->
    <script src="https://cdn.syncfusion.com/ej2/31.2.15/dist/ej2.min.js"></script>
</head>
<body>
    @RenderBody()
    @await RenderSectionAsync("Scripts", required: false)
</body>

NOTE

Check out the following topics for including script references in an ASP.NET MVC application to enable PDF creation using the JavaScript PDF Library:

NOTE

The 31.2.15 CDN version is compatible with the .NET 8 and .NET 9 target frameworks. If you use a different Syncfusion version in your application, replace the CDN URL with the matching version.

Generate the PDF

Step 6: Create a PDF document: open ~/Views/Home/Index.cshtml and add a button plus a click handler that uses the JavaScript PDF Library to generate a PDF in the browser.

<div class="container py-4">
    <h1 class="h4 mb-3">Create PDF document</h1>
    <p class="text-muted">Click the button to generate and download a PDF.</p>
    <button id="btnCreatePdf" class="btn btn-primary">Generate PDF document</button>
</div>
@section Scripts {
    <script>
        document.getElementById('btnCreatePdf').addEventListener('click', function () {
            // Create a new PDF document
            let pdf = new ej.pdf.PdfDocument();
            // Add a new page
            let page = pdf.addPage();
            // Get graphics from the page
            let graphics = page.graphics;
            // Set font
            let font = pdf.embedFont(ej.pdf.PdfFontFamily.helvetica, 36, ej.pdf.PdfFontStyle.regular);
            // Create a new black brush
            let brush = new ej.pdf.PdfBrush({ r: 0, g: 0, b: 0 });
            // Draw text
            graphics.drawString('Hello World!!!', font, { x: 20, y: 20, width: graphics.clientSize.width - 20, height: 60 }, brush);
            // Save and download PDF (client-side)
            pdf.save('output.pdf');
            // Destroy the PDF document instance
            pdf.destroy();
        });
    </script>
}

Code Explanation

  • ej.pdf.PdfDocument — creates a new PDF document instance.
  • addPage() — appends a blank page to the document and returns the PdfPage object.
  • page.graphics — returns the PdfGraphics drawing surface for the page.
  • embedFont(family, size, style) — embeds one of the standard PDF font families (here, Helvetica 36pt regular) and returns a PdfStandardFont object.
  • new ej.pdf.PdfBrush({ r, g, b }) — creates a solid color brush from an RGB object (each channel 0-255); here, black.
  • drawString(text, font, layoutRect, brush) — draws the text inside the rectangle defined by x, y, width, and height. The rectangle object has the shape { x, y, width, height }.
  • graphics.clientSize.width — the writable width of the page in points.
  • save('output.pdf') — saves the PDF and triggers a client-side browser download with the specified file name. The file is sent to the browser’s default downloads folder; nothing is written to the server. The call is synchronous in the browser build.
  • destroy() — releases native resources held by the document. It is safe to call immediately after save() because the download is initiated before the document is destroyed.

Build and Run the Application

Step 7: Build the project: click Build > Build Solution or press Ctrl + Shift + B to build the project.

Step 8: Run the project: click the Start button (green arrow) or press F5 to run the app. Visual Studio launches the app in your default browser.

After running the application, click Generate PDF document. The browser downloads output.pdf, which contains a single page with the text “Hello World!!!” drawn at the top-left.

ASP.NET MVC PDF output

Additional Configuration (Optional)

NOTE

The following steps are required only if you need image or data extraction features. They are not required for the basic PDF creation shown in this guide.

If you need image and data extraction, install the data-extraction add-on and copy the ej2-pdf-lib folder into your project.

  1. Install the add-on package:

    npm install @syncfusion/ej2-pdf-data-extract --save

  2. Copy the ej2-pdf-lib folder from node_modules/@syncfusion/ej2-pdf-data-extract/dist/ej2-pdf-lib into wwwroot/lib/ej2-pdf-lib/. The folder must contain the required .js and .wasm files.

  3. Confirm that the ej2-pdf-lib folder is reachable at runtime (for example, at https://localhost:xxxx/lib/ej2-pdf-lib/).

Troubleshooting

Problem Cause Resolution
ej is not defined in the browser console The CDN script tag is missing or blocked Confirm the <script> reference in _Layout.cshtml is reachable and not blocked by an ad blocker or network policy
Button click does nothing The click handler is rendered before the button exists, or @section Scripts is missing in the layout Confirm _Layout.cshtml contains @await RenderSectionAsync("Scripts", required: false)
SyntaxError: Unexpected token ':' TypeScript annotations were left inside a plain <script> block Remove the : ej.pdf.PdfType annotations; the script must be plain JavaScript
Failed to load resource: 404 on ej2.min.js The CDN version path is incorrect or the network is restricted Verify the CDN URL and internet access; switch to the NPM or CRG approach if the CDN is not reachable
output.pdf does not download The browser blocks the download Check the browser’s download settings and the downloads folder
WASM or .js 404s for data extraction The ej2-pdf-lib folder is not under wwwroot/ Copy the ej2-pdf-lib folder from the @syncfusion/ej2-pdf-data-extract package into wwwroot/lib/
CORS errors when loading the data-extraction assets The ej2-pdf-lib assets are served from a different origin Serve the ej2-pdf-lib folder from the same ASP.NET MVC application under wwwroot/
