Getting Started with WPF Spreadsheet (SfSpreadsheet)

27 May 20267 minutes to read

This section briefly explains how to include the Syncfusion^® WPF Spreadsheet component in WPF App using Visual Studio.

Prerequisites

• System requirements for WPF components

Create a new WPF App in Visual Studio

You can create a WPF Application using Visual Studio via Microsoft Templates or the Syncfusion^® WPF.

Assemblies Deployment

To add a WPF spreadsheet component to your application by installing it via NuGet packages(Recommended) or by manually adding the required assemblies to the project.

• NuGet Package
• Assemblies (.dll)

Install Syncfusion^® WPF Spreadsheet NuGet packages

To add WPF Spreadsheet component in the application, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search and install:

• Syncfusion.SfSpreadsheet.WPF

To ensure the control is styled correctly, install the theme package:

• Syncfusion.Themes.Windows11Light.WPF

Add Syncfusion® WPF Spreadsheet Assemblies

Below table describes, list of assemblies required to be added in project when the WPF Spreadsheet control is used in your application.

Assembly	Description
Syncfusion.SfCellGrid.WPF.dll	Contains the base and fundamental classes which holds the underlying architecture for displaying cells with virtualized behavior and selection/interaction of cells.
Syncfusion.SfGridCommon.WPF.dll	Contains the classes which holds the properties and functions of scroll viewer and disposable elements
Syncfusion.SfSpreadsheet.WPF.dll	Contains the classes that handles all the UI Operations of SfSpreadsheet such as importing of sheets, applying formulas/styles etc.
Syncfusion.Shared.WPF.dll	Contains the classes which holds the controls like Color pickers,Chromeless window, ComboBoxAdv, DateTimeEdit etc.
Syncfusion.Tools.WPF.dll	Contains the classes which holds the controls like TabControlExt, TabItemExt, Gallery, GroupBar, TabSplitter etc which are used in SfSpreadsheet
Syncfusion.XlsIO.Base.dll	Contains the base classes which is responsible for read and write in Excel files, Worksheet Manipulations, Formula calculations etc.

Below are the additional DLLs required for applying themes and skinning to the SfSpreadsheet control:

Assembly	Description
Syncfusion.Themes.Windows11Light.WPF.dll	Contains the Windows 11 Light theme style for Syncfusion WPF controls.
Syncfusion.SfSkinManager.WPF.dll	Contains the SfSkinManager which helps to apply different themes to Syncfusion WPF controls.

NOTE

You need to add these references to your project to use the skinning and theming capabilities of the SfSpreadsheet.

Below are the assemblies list that can be added when you want to enable certain features in SfSpreadsheet control.

Optional Assemblies	Description
Syncfusion.SfSpreadsheetHelper.WPF.dll	Contains the classes which is responsible for importing charts and sparklines into SfSpreadsheet.
Syncfusion.ExcelChartToImageConverter.WPF.dll	Contains the classes which is responsible for converting charts as image.
Syncfusion.SfChart.WPF.dll	Contains the classes which is responsible for importing charts like Line charts, Pie charts, Sparklines etc.
Syncfusion.ExcelToPDFConverter.Base.dll	Contains the base and fundamental classes which is responsible for converting excel to PDF.
Syncfusion.Pdf.Base.dll	Contains the base and fundamental classes for creating PDF.

Add WPF Spreadsheet component

WPF Spreadsheet control can be added to an application either through the designer (XAML) or programmatically using code.

• Via Designer
• Via Coding

1. Add the theme and the SfSkinManager namespace to style the control correctly. Then, include the SfSkinManager namespace in the XAML code and apply the desired theme.

MainWindow.xaml

<Window x:Class="Namespace.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:syncfusionskin="clr-namespace:Syncfusion.SfSkinManager;assembly=Syncfusion.SfSkinManager.WPF"
        syncfusionskin:SfSkinManager.Theme="{syncfusionskin:SkinManagerExtension ThemeName=Windows11Light}">

</Window>

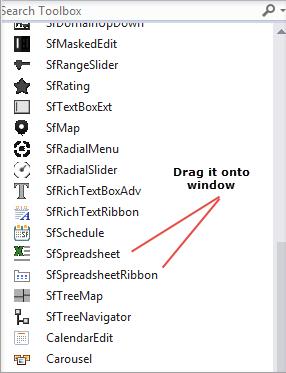

1. Open the Visual Studio Tool box. Navigate to Syncfusion^® Controls tab, and find the SfSpreadsheet/SfSpreadsheetRibbon toolbox items.

1. Drag SfSpreadsheetRibbon and drop in the Designer area from the Toolbox.

MainWindow.xaml

<Window x:Class="YourNamespace.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
	xmlns:syncfusion="clr-namespace:Syncfusion.UI.Xaml.Spreadsheet;assembly=Syncfusion.SfSpreadsheet.WPF"
        xmlns:syncfusionskin="clr-namespace:Syncfusion.SfSkinManager;assembly=Syncfusion.SfSkinManager.WPF"
        syncfusionskin:SfSkinManager.Theme="{syncfusionskin:SkinManagerExtension ThemeName=Windows11Light}">
    <Grid>
	<syncfusion:SfSpreadsheetRibbon />
    </Grid>
</Window>

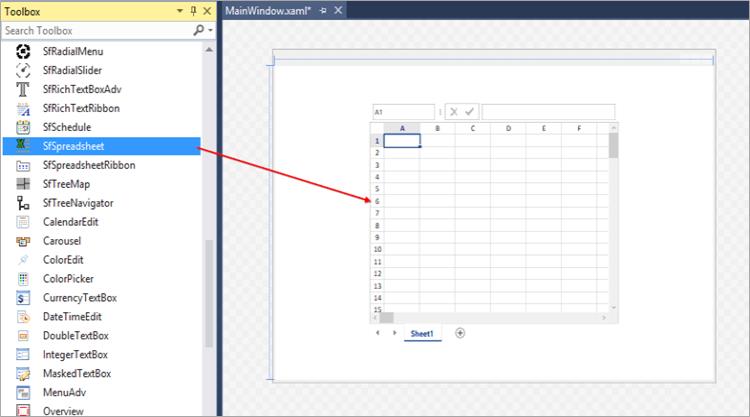

1. Spreadsheet can be added to the application by dragging SfSpreadsheet to the Designer area.

MainWindow.xaml

<Window x:Class="YourNamespace.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
	xmlns:syncfusion="clr-namespace:Syncfusion.UI.Xaml.Spreadsheet;assembly=Syncfusion.SfSpreadsheet.WPF"
        xmlns:syncfusionskin="clr-namespace:Syncfusion.SfSkinManager;assembly=Syncfusion.SfSkinManager.WPF"
        syncfusionskin:SfSkinManager.Theme="{syncfusionskin:SkinManagerExtension ThemeName=Windows11Light}">

    <Grid>
	<syncfusion:SfSpreadsheet x:Name = spreadsheet />
    </Grid>
</Window>

NOTE

Declare a name for the Spreadsheet component as shown above for reference.

1. To make an interaction between Ribbon items and SfSpreadsheet, bind the SfSpreadsheet as DataContext to the SfSpreadsheetRibbon.

MainWindow.xaml

<Window x:Class="YourNamespace.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
	xmlns:syncfusion="clr-namespace:Syncfusion.UI.Xaml.Spreadsheet;assembly=Syncfusion.SfSpreadsheet.WPF"
        xmlns:syncfusionskin="clr-namespace:Syncfusion.SfSkinManager;assembly=Syncfusion.SfSkinManager.WPF"
        syncfusionskin:SfSkinManager.Theme="{syncfusionskin:SkinManagerExtension ThemeName=Windows11Light}">

    <Grid>
	<syncfusion:SfSpreadsheetRibbon DataContext= "{Binding ElementName=spreadsheet}"  />
	<syncfusion:SfSpreadsheet x:Name = spreadsheet />
    </Grid>
</Window>

Spreadsheet is available in the following namespace “Syncfusion.UI.Xaml.Spreadsheet” and it can be created programmatically by using XAML

MainWindow.xaml

<Window x:Class="WpfApp1.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:syncfusion="http://schemas.syncfusion.com/wpf"
        xmlns:syncfusionskin ="clr-namespace:Syncfusion.SfSkinManager;assembly=Syncfusion.SfSkinManager.WPF"
        syncfusionskin:SfSkinManager.Theme="{syncfusionskin:SkinManagerExtension ThemeName=Windows11Light}"
        mc:Ignorable="d">
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>
        <syncfusion:SfSpreadsheetRibbon Grid.Row="0" DataContext="{Binding ElementName=spreadsheet}"  />
        <syncfusion:SfSpreadsheet Name="spreadsheet" Grid.Row="1" />
    </Grid>
</Window>

MainWindow.xaml.cs

public MainWindow()
{
    InitializeComponent();

    SfSkinManager.ApplyThemeAsDefaultStyle = true;

    SfSkinManager.SetTheme(this, new Theme("Windows11Light"));

    Grid grid = new Grid();

    grid.RowDefinitions.Add(new RowDefinition { Height = GridLength.Auto });

    grid.RowDefinitions.Add(new RowDefinition { Height = new GridLength(1, GridUnitType.Star) });

    SfSpreadsheet spreadsheet = new SfSpreadsheet();

    SfSpreadsheetRibbon ribbon = new SfSpreadsheetRibbon() { SfSpreadsheet = spreadsheet };

    Grid.SetRow(ribbon, 0);

    Grid.SetRow(spreadsheet, 1);

    grid.Children.Add(ribbon);

    grid.Children.Add(spreadsheet);

    this.Content = grid;
}

Run the application

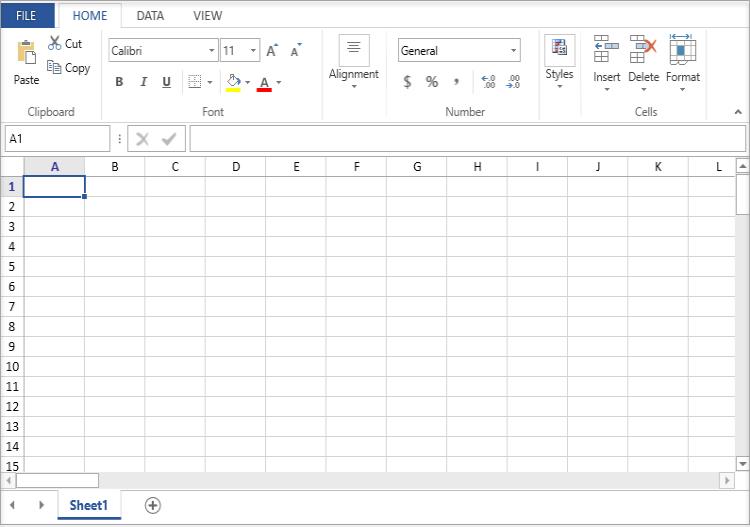

Press Ctrl+F5 (Windows) or ⌘+F5 (macOS) to launch the application.The output will appear as follows:

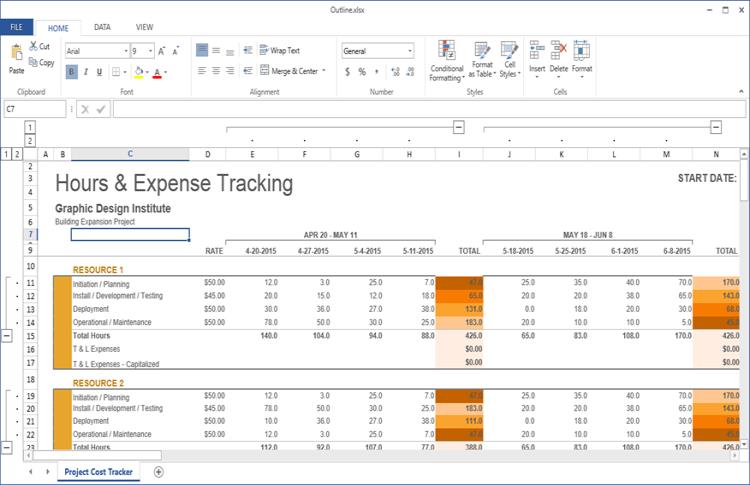

To learn how to create, open, and save files in the WPF Spreadsheet Component, see Workbook Operations.

NOTE

View Sample in GitHub.
