Managing Cell Ranges in the Blazor Spreadsheet Component

23 Jul 202611 minutes to read

A cell range is a set of selected cells in a Spreadsheet, typically specified using A1 notation (for example, A1:B10). A range may be a single cell or a contiguous block of cells that can be manipulated or processed collectively.

Cell formatting

The Spreadsheet component supports a wide range of cell-formatting operations—including text styling (font family, size, color, and weight), cell fill, borders, alignment, number formats, and conditional formatting—that can be applied to a single cell, a selected range, or the entire worksheet. For more details, refer to the Text and Cell Formatting documentation.

Autofill

The Autofill feature automatically populates adjacent cells with data that follows a pattern or extends values from the source cells. It helps avoid entering repetitive data manually. The AllowAutofill property can be used to enable or disable this feature.

• The default value of the AllowAutofill property is true.

To enable or disable autofill declaratively, set the AllowAutofill property on the SfSpreadsheet component. For example:

Index.razor

@using Syncfusion.Blazor.Spreadsheet

<SfSpreadsheet AllowAutofill="true">
    <SpreadsheetRibbon></SpreadsheetRibbon>
</SfSpreadsheet>

Autofill can be performed in one of the following ways:

• Select the source cell or range, then drag and drop the selection using the fill handle element to extend the values to adjacent cells.
• Use the AutofillAsync() method programmatically.

Autofill options

Autofill supports multiple behaviors that control how adjacent cells are populated when using the fill handle. After dragging the fill handle, the AutoFillOptions menu appears as a popup near the destination range. You can also right-click the destination range and select AutoFillOptions to access the same options. The available options are:

• Copy Cells
• Fill Series
• Fill Formatting Only
• Fill Without Formatting

Copy Cells

Copies the source cell content and formatting to the selected destination range. After dragging the fill handle from the selection to the target area, choose Copy Cells from the AutoFillOption menu to replicate both values and presentation. When the source contains formulas, relative references are adjusted to match the destination.

Fill Series

Extends a recognizable pattern—such as numbers (1, 2, 3), days or months (Mon, Tue; Jan, Feb), or dates—into the destination range while preserving the source formatting. Drag the fill handle to the target cells and choose Fill Series in the AutoFillOptions menu to continue the detected sequence.

Fill Formatting Only

Applies only the source styling—number format, font, fill color, borders, and alignment—to the destination range, leaving existing values unchanged. Drag the fill handle over the target cells and select Fill Formatting Only from the AutoFillOptions menu to unify appearance without altering data.

Fill Without Formatting

Continues the detected series into the destination range but retains the destination’s existing formatting. After dragging the fill handle, choose Fill Without Formatting from the AutoFillOptions menu to apply only the new values while keeping the target style intact.

The following illustration demonstrates the use of autofill in the Spreadsheet component.

The AutofillAsync() method accepts string parameters in A1 notation for fillRange and dataRange. The following table lists the available parameters:

Parameter	Type	Description
fillRange	string	Specifies the fill range in A1 notation (e.g., “A1:A5”).
dataRange	string	Specifies the source data range in A1 notation (e.g., “B1:B5”).
direction	string	Specifies the direction to be filled (“Up”, “Right”, “Down”, or “Left”).

Implementing autofill programmatically

Index.razor

@page "/"
@using Syncfusion.Blazor.Spreadsheet

<button @onclick="AutofillRangeHandler">Autofill</button>
<SfSpreadsheet @ref="SpreadsheetInstance" DataSource="DataSourceBytes">
    <SpreadsheetRibbon></SpreadsheetRibbon>
</SfSpreadsheet>

@code {
    public byte[] DataSourceBytes { get; set; }
    public SfSpreadsheet SpreadsheetInstance;

    protected override void OnInitialized()
    {
        string filePath = "wwwroot/Sample.xlsx";
        DataSourceBytes = File.ReadAllBytes(filePath);
    }

    public async Task AutofillRangeHandler()
    {
	    // Basic usage with only the fill range parameter.
        await SpreadsheetInstance.AutofillAsync("B7:B8");
    }
}

Autofill Events

The Blazor Spreadsheet provides events that are triggered during autofill operations, such as AutofillActionBegin and AutofillActionEnd. These events enable the execution of custom actions before and after an autofill operation, allowing for validation, customization, and response handling.

AutofillActionBegin

The AutofillActionBegin event is triggered before an autofill operation is performed. This event provides an opportunity to validate the autofill operation and apply restrictions based on custom logic, such as preventing the operation under specific conditions.

Purpose

This event is useful for scenarios where autofill behavior needs to be controlled dynamically—such as restricting autofill in specific ranges or preventing autofill based on certain conditions.

Event Arguments

The event uses the AutofillActionBeginEventArgs class, which includes the following properties:

Event Arguments	Type	Description
FillRange (read-only)	string	The address of the target range for the autofill operation (e.g., “Sheet1!A2:A5”).
DataRange (read-only)	string	The source data range for the autofill operation (e.g., “Sheet1!A1:A1”).
Direction (read-only)	string	The direction of the autofill operation (“Down”, “Right”, “Up”, or “Left”).
Cancel	bool	A boolean value to cancel the autofill operation.

Index.razor

@page "/"
@using Syncfusion.Blazor.Spreadsheet

<SfSpreadsheet DataSource="DataSourceBytes" AutofillActionBegin="OnAutofillActionBegin">
    <SpreadsheetRibbon></SpreadsheetRibbon>
</SfSpreadsheet>

@code {
    public byte[] DataSourceBytes { get; set; }

    protected override void OnInitialized()
    {
        string filePath = "wwwroot/Sample.xlsx";
        DataSourceBytes = File.ReadAllBytes(filePath);
    }

    public void OnAutofillActionBegin(AutofillActionBeginEventArgs args)
    {
        // Prevent autofill for a specific range.
        if (args.FillRange == "A1:A10")
        {
            args.Cancel = true;
        }

        // Prevent autofill when dragging upward.
        if (args.Direction == "Up")
        {
            args.Cancel = true;
        }
    }
}

AutofillActionEnd

The AutofillActionEnd event is triggered after an autofill operation has been successfully completed. This event provides detailed information about the completed autofill action, enabling further processing or logging if required.

Purpose

This event is useful for scenarios where actions after the autofill are needed, such as logging the autofill operation, updating related data, or triggering additional UI updates.

Event Arguments

The event uses the AutofillActionEndEventArgs class, which includes the following properties:

Event Arguments	Type	Description
FillRange (read-only)	string	The address of the target range where the autofill was applied (e.g., “Sheet1!A2:A5”).
DataRange (read-only)	string	The source data range used for the autofill operation (e.g., “Sheet1!A1:A1”).
Direction (read-only)	string	The direction of the autofill operation (“Down”, “Right”, “Up”, or “Left”).

Index.razor

@page "/"
@using Syncfusion.Blazor.Spreadsheet

<SfSpreadsheet DataSource="DataSourceBytes" AutofillActionEnd="OnAutofillActionEnd">
    <SpreadsheetRibbon></SpreadsheetRibbon>
</SfSpreadsheet>

@code {
    public byte[] DataSourceBytes { get; set; }

    protected override void OnInitialized()
    {
        string filePath = "wwwroot/Sample.xlsx";
        DataSourceBytes = File.ReadAllBytes(filePath);
    }

    public void OnAutofillActionEnd(AutofillActionEndEventArgs args)
    {
        // Log or process the completed autofill operation.
        Console.WriteLine($"Autofill completed for range: {args.FillRange}");
    }
}

Clear

The Clear functionality removes cell contents (formulas and data), formats (including number formats), and hyperlinks from a selected range.

Applying the clear functionality

Clearing can be performed through the user interface (UI) using any of the following methods:

Using the Ribbon

• Select a cell or a range of cells to clear.
• In the Home tab of the Ribbon, click the Clear drop-down arrow.
• Select one of the following options from the drop-down menu:

Option	Use
Clear All	Clears all contents, formats, and hyperlinks.
Clear Formats	Clears only the formatting from the selected cells.
Clear Contents	Clears only the contents (formulas and data) from the selected cells.
Clear Hyperlinks	Clears only the hyperlinks from the selected cells.

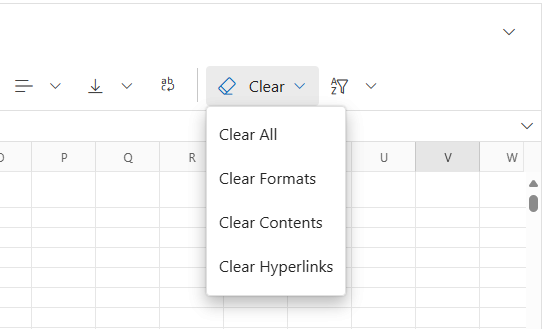

The following image displays the clear options available in the Ribbon toolbar under the Home tab of the Blazor Spreadsheet.

Using the Context Menu

• Select a cell or a range of cells to clear.
• Right-click the selected range to open the context menu.
• Select Clear Contents to remove only the formulas and data from the current selection.

Clear programmatically

The ClearAsync() method clears contents, formatting, hyperlinks, or all aspects of the specified range or current selection in the spreadsheet.

The available parameters are:

Parameter	Type	Description
options	Enum	Specifies the type of clear operation to perform. The available values are: ClearContents, ClearFormats, ClearHyperlinks, and ClearAll
range	string	The A1-style range to clear

Remarks

• The method parses the provided range and resolves the target worksheet and range before performing the clear operation.
• If range is null or empty, the operation is applied to the current selection.

Index.razor

@page "/"
@using Syncfusion.Blazor.Spreadsheet

<SfButton OnClick="ClearHandler" Content="Clear Cells"></SfButton>

<SfSpreadsheet @ref="SpreadsheetInstance" DataSource="DataSourceBytes">
    <SpreadsheetRibbon></SpreadsheetRibbon>
</SfSpreadsheet>

@code {
    public byte[] DataSourceBytes { get; set; }
    public SfSpreadsheet SpreadsheetInstance { get; set; }

    protected override void OnInitialized()
    {
        string filePath = "wwwroot/Sample.xlsx";
        DataSourceBytes = File.ReadAllBytes(filePath);
    }

    public async Task ClearHandler()
    {
        // Clears only contents from range A1:A10 on Sheet1.
        await SpreadsheetInstance.ClearAsync(ClearOperationType.ClearContents, "Sample!A1:A10");

        // Clears only formats from the current selection.
        await SpreadsheetInstance.ClearAsync(ClearOperationType.ClearFormats);
    }
}
