Syncfusion® Angular UI Builder Skill with PDF Viewer for AI Assistants

2 Jun 20268 minutes to read

Syncfusion® Angular UI Builder Skill is an AI-powered agent skill that accelerates Angular PDF Viewer development by transforming natural-language UI requirements into production-ready code using Syncfusion® Angular components.

Integrated with your AI-powered IDE, it leverages deep knowledge of Syncfusion® PDF Viewer and other Angular components to deliver accurate and ready-to-use code.
By combining intelligent code generation with best practices, accessibility standards, and design-system consistency, Angular UI Builder helps you rapidly build scalable PDF viewing applications and user interfaces without leaving your development workflow.

Prerequisites

Before installing Angular UI Builder Skill with PDF Viewer, ensure the following:

Key Benefits

AI-Driven UI Generation

  • Transforms prompts into fully developed Angular components rather than just partial code snippets.
  • Automatically selects appropriate Syncfusion® components and features
  • Produces structured, maintainable code

Component Usage & API Accuracy

  • Uses correct Syncfusion® component APIs
  • Injects required feature modules (paging, sorting, filtering, etc.)
  • Avoids unsupported or deprecated patterns

Patterns & Best Practices

  • Recommended component composition and state management
  • Event handling aligned with Angular standards
  • Secure and scalable coding patterns

Accessibility & Responsiveness

  • WCAG 2.1 AA–aligned output
  • Semantic HTML with ARIA support
  • Mobile-first responsive layouts

Design-System Integration

  • Supports Tailwind, Bootstrap, Material, or custom themes
  • Ensures consistent Syncfusion® styling and theme usage

Installation

Before installing Angular UI Builder Skill with PDF Viewer, ensure that APM (Agent Package Manager) is installed and available in your environment.

Verify APM Installation

Run the following command to confirm APM is installed:

apm --version

Install the Syncfusion® Angular UI Builder Skill with PDF Viewer package using APM

Use the APM CLI to install the Angular UI Builder skill with PDF Viewer for your preferred environment:

apm install syncfusion/angular-ui-builder -t copilot
apm install syncfusion/angular-ui-builder -t cursor
apm install syncfusion/angular-ui-builder -t codex
apm install syncfusion/angular-ui-builder -t claude

After installation, the following artifacts are added to your project for the GitHub Copilot target:

  • .agent/skills/ – contains the skill files
  • .github/agents/ – contains the agent configuration

Refer to the documentation for details about supported deployment targets.

For Syncfusion® Code Studio, use the Copilot command above to install the Angular UI Builder.

How the Syncfusion® Angular UI Builder Skill Works with PDF Viewer

  1. Intent Analysis: Parse the user’s prompt to identify component types and high-level layout intent.
  2. Project Detection: Automatically detects project framework, package manager, existing themes, and PDF Viewer configuration.
  3. Component Mapping: Map intent to Syncfusion® PDF Viewer and Angular components, including required modules.
  4. Theming & Design System
    Load required theming guidelines and confirm key design choices:
    • CSS framework (Tailwind, Bootstrap, Material, or Greenfield(custom theme)). If no themes detected in the existing project, Greenfield and Syncfusion Tailwind3 theme are shown as the default option, which can be used as is or changed based on preference.
    • Syncfusion theme (Tailwind3, Bootstrap5, Material3, fluent2)
    • Light and Dark Mode
    • Core design basics (colors, spacing, typography, responsiveness, accessibility)
  5. Code Generation: Produce TypeScript Angular components with PDF Viewer integration, props interfaces, and CSS/styling scaffolding.
  6. Dependency Management: Recommend or install required Syncfusion® packages and peer dependencies.
  7. Validation: Run accessibility and basic security checks, request confirmation for changes.
  8. Code Insertion: Create files or patch existing files following project structure and conventions.

Key enforcement points:

  • Adds correct theme and CSS imports for chosen Syncfusion® themes
  • Injects only the feature modules required by generated components
  • Generates semantic HTML with ARIA attributes and keyboard support
  • Avoids unsupported or deprecated API usages for Syncfusion® components

The assistant handles most stages automatically and may request confirmation where required.

Using the AI Assistant

After installing Angular UI Builder Skill with PDF Viewer and APM, the relevant agent and skill files are added to your project under:

  • .agent/skills/ (skill files)
  • .github/agents/ (Angular UI builder agent configuration, based on the selected target)

To start using the skill:

  1. Open your supported IDE.

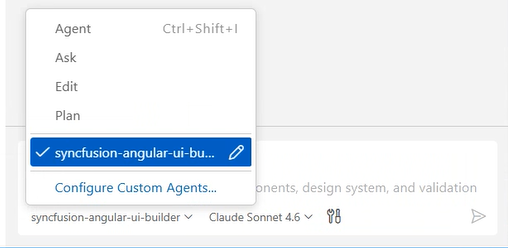

  2. In the chat panel, select the syncfusion-angular-ui-builder agent from the Agent dropdown.
    Set Agent
  3. Start prompting the agent with a clear description of your UI requirements.

For Syncfusion® Code Studio, if the UI Builder agent is not shown, ensure that the agent location is configured to use it in the chat, and refer to the documentation to configure the agent location properly.

Example Prompts:

Invoice Viewer with Details Panel

Design a resume review interface using the PDF viewer for candidate CVs. Add a right panel with candidate details, ratings, tags, and action buttons (shortlist, reject, schedule interview). Include quick notes functionality. Focus on fast scanning and decision-making UX.

Course Material Viewer

Design an invoice viewing screen where the PDF viewer is displayed on the left and a structured details panel on the right. The panel should include invoice summary, payment status, client info, and action buttons (mark as paid, download, send reminder). Use card-based sections and soft colors for financial clarity.

Generated code follows best practices with accessible, semantic HTML, responsive mobile-first layouts, strong TypeScript typing, and built-in security measures such as input validation and avoidance of embedded secrets.

Best Practices

Follow these guidelines to get the most out of UI Builder and ensure high-quality production-ready results:

  • Stay consistent: Maintain consistent file organization, naming conventions, and coding standards throughout your project.
  • Use advanced AI models: For best results, use Claude Sonnet 4.6 or higher capability models to produce better code quality and more accurate implementations.
  • Review all content and assets before production: Replace any placeholder images or icons (e.g., stock images or emoji sets) with your brand assets. Also validate the logic, security, and compatibility with your existing code before deployment.

Troubleshooting

  • APM installation failure: Refer to this documentation

  • Skills not loading: Ensure the .agent/ and .github/agents/ folders exist in your project and that the skill was installed successfully using APM. Verify that the correct agent is selected from the Agent dropdown in your IDE.

  • Component not rendering: Retry generation using the specific component skill to resolve the issue, and ensure required Syncfusion® packages and themes are properly configured.

  • Syncfusion license banner appears: Use the licensing skill to correctly register and validate your Syncfusion® license key in the application.

FAQ

Which agents/IDEs are supported?
Any Skills-compatible agent that reads local skill files (Code Studio, VS Code, Cursor, etc.).

Are skills loaded automatically?
Yes. Supported agents automatically load relevant skills based on your query.

Can I customize the generated styles?
Yes. The skill supports choosing Tailwind, Bootstrap, Material, or a custom theme; generated components include clear integration points for style adjustments.

Does it modify files automatically?
The skill proposes changes and requires confirmation for insertion; automatic dependency installation may be offered depending on agent permissions.
