Diagram Ribbon in WPF SfDiagram

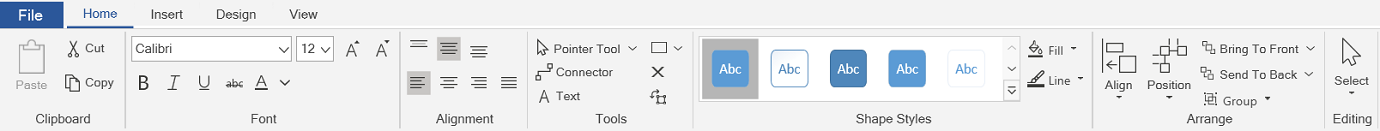

The WPF SfDiagram ribbon control is a user interface that hosts a Quick Access Toolbar, Application Menu, and Tabs to provide the most common features and settings for the WPF SfDiagram. The diagram ribbon control contains the UI elements that allow end-users to load and save diagrams, add diagram items to the canvas, format text within the diagram items, rearrange and recolor shapes, change the canvas size and orientation, and perform copy-and-paste operations.

The following table lists actions that end-users can perform using the Diagram Ribbon.

Ribbon Tab	Ribbon Bar	Actions
Home	Clipboard	Cut, Copy, and Paste operations.
	Font	Change the font settings of the selected shape.
	Alignment	Realign the text within the selected shape.
	Tools	Select any of the pointer, pan, drawing, connector, annotation, and port tools.
	Shape Styles	Change the background and border colors for the currently selected shape using a palette of predefined patterns or by selecting the colors individually using color pickers.
	Arrange	Change the position, alignment, or Z-order of the selected shapes.
	Select	Select all the diagram items or by specific type.
Insert	Diagram Parts	Allows you to add an image item or connection line to the canvas.
Design	Page Setup	Toggle between portrait and landscape page orientation, set the page size.
	Themes	A diagram theme gives your diagram a variety of dynamic looks, ranging from professional and modern to stylish. By combining colors, fonts, and effects in a unified and purposeful manner, each theme delivers a polished, modern appearance.
	Variants	Variant styles are sets of styles applied to diagram elements.
	Connectors	Change the appearance of the connection lines in the canvas.
View	Show	Toggle the visibility of the Zoom Pan window, Rulers, Gridlines, and Page Breaks.
	Zoom	Zoom the diagram so that the entire page either fits the window or is as wide as the window.

Assembly Deployment

Refer to the control dependencies section to get the list of assemblies or NuGet package that needs to be added as a reference to use the control in any application.

You can find more details about installing the NuGet package in a WPF application in the following link:
How to install nuget packages

Adding Diagram Ribbon

The following section helps you to add the SfDiagramRibbon in your application with the SfDiagram.

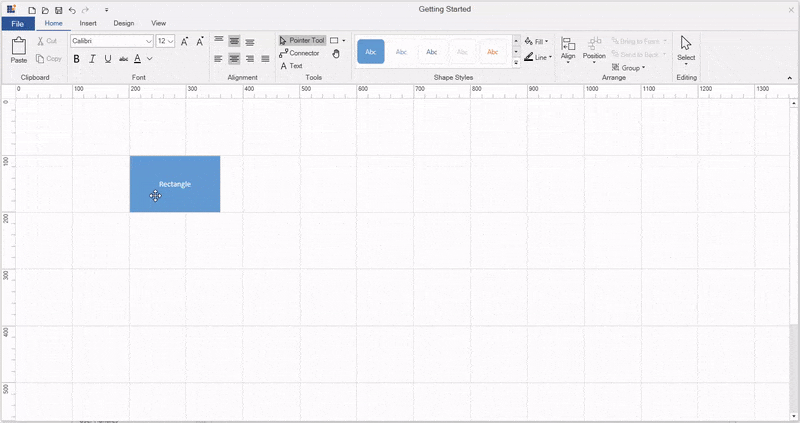

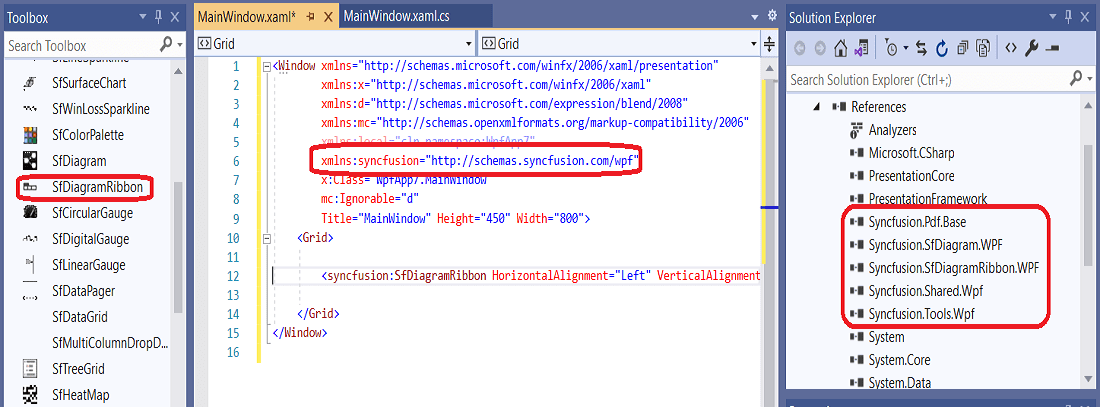

The SfDiagramRibbon control can be added to the application by dragging it from the toolbox and dropping it in the designer view. The required assembly references will be added automatically.

Manually

The following steps describe how to add the Diagram ribbon control manually, with a code example.

1. Add the following required assembly reference to the project: Syncfusion.SfDiagramRibbon.WPF.

2. Import the Syncfusion® WPF schema http://schemas.syncfusion.com/wpf or the SfDiagramRibbon control namespace Syncfusion.UI.Xaml.DiagramRibbon in your application.

3. Declare the SfDiagramRibbon control in your application, and set the SfDiagram as its DataContext so the ribbon commands act on the diagram.

   XAML

   <Window xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
           xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
           xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
           xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
           xmlns:local="clr-namespace:SfDiagram_WPF"
           xmlns:syncfusion="http://schemas.syncfusion.com/wpf"
           x:Class="SfDiagram_WPF.MainWindow"
           mc:Ignorable="d" Title="MainWindow" Height="350" Width="525">
       <Grid>
           <Grid.RowDefinitions>
               <RowDefinition Height="Auto"/>
               <RowDefinition Height="*"/>
           </Grid.RowDefinitions>
           <syncfusion:SfDiagramRibbon DataContext="{Binding ElementName=Diagram}" Grid.Row="0"/>
           <syncfusion:SfDiagram x:Name="Diagram" Grid.Row="1">
               <syncfusion:SfDiagram.Theme>
                   <syncfusion:OfficeTheme/>
               </syncfusion:SfDiagram.Theme>
               <syncfusion:SfDiagram.Nodes>
                   <syncfusion:NodeCollection/>
               </syncfusion:SfDiagram.Nodes>
               <syncfusion:SfDiagram.Connectors>
                   <syncfusion:ConnectorCollection/>
               </syncfusion:SfDiagram.Connectors>
           </syncfusion:SfDiagram>
       </Grid>
   </Window>

   C#

   using Syncfusion.UI.Xaml.Diagram;
   using Syncfusion.UI.Xaml.Diagram.Theming;
   using Syncfusion.UI.Xaml.DiagramRibbon;

   namespace SfDiagram_WPF
   {
       public partial class MainWindow : Window
       {
           public MainWindow()
           {
               InitializeComponent();

               // Initialize and add a diagram and a diagram ribbon to the application.
               SfDiagram Sfdiagram = new SfDiagram() { Theme = new OfficeTheme(), Nodes = new NodeCollection(), Connectors = new ConnectorCollection() };
               SfDiagramRibbon sfDiagramRibbon = new SfDiagramRibbon() { DataContext = Sfdiagram };

               Sfdiagram.SetValue(Grid.RowProperty, 1);
               sfDiagramRibbon.SetValue(Grid.RowProperty, 0);

               Root_Grid.Children.Add(Sfdiagram);
               Root_Grid.Children.Add(sfDiagramRibbon);
           }
       }
   }

Simple Diagram Designer

This section describes how to build a simple diagram designer application with diagram ribbon, and diagram control.

NOTE

Set the diagram as the DataContext of SfDiagramRibbon so the ribbon commands act on the diagram. Setting GraphConstraints.Undoable on the SfDiagram enables the Undo and Redo buttons in the Quick Access Toolbar.

XAML

<Grid>

    <Grid.RowDefinitions>
        <RowDefinition Height="Auto"/>
        <RowDefinition Height="*"/>
    </Grid.RowDefinitions>

    <syncfusion:SfDiagramRibbon x:Name="DiagramRibbon" Grid.Row="0" DataContext="{Binding ElementName=Diagram}"/>
    <!-- GraphConstraints.Undoable enables the Undo and Redo buttons on the Quick Access Toolbar. -->
    <syncfusion:SfDiagram x:Name="Diagram" Grid.Row="1" Constraints="Undoable,Default">
        <syncfusion:SfDiagram.Theme>
            <syncfusion:OfficeTheme/>
        </syncfusion:SfDiagram.Theme>
        <syncfusion:SfDiagram.Nodes>
            <syncfusion:NodeCollection/>
        </syncfusion:SfDiagram.Nodes>
        <syncfusion:SfDiagram.Connectors>
            <syncfusion:ConnectorCollection/>
        </syncfusion:SfDiagram.Connectors>
        <syncfusion:SfDiagram.Groups>
            <syncfusion:GroupCollection/>
        </syncfusion:SfDiagram.Groups>
        <syncfusion:SfDiagram.SnapSettings>
            <syncfusion:SnapSettings SnapConstraints="All"/>
        </syncfusion:SfDiagram.SnapSettings>
        <syncfusion:SfDiagram.HorizontalRuler>
            <syncfusion:Ruler Orientation="Horizontal"/>
        </syncfusion:SfDiagram.HorizontalRuler>
        <syncfusion:SfDiagram.VerticalRuler>
            <syncfusion:Ruler Orientation="Vertical"/>
        </syncfusion:SfDiagram.VerticalRuler>
    </syncfusion:SfDiagram>

</Grid>

C#

SfSkinManager.SetTheme(this, new Syncfusion.SfSkinManager.Theme() { ThemeName = "Office2019Colorful" });

// Initialize and add a diagram and a diagram ribbon to the application.
SfDiagram Sfdiagram = new SfDiagram()
{
    Theme = new OfficeTheme(),
    Nodes = new NodeCollection(),
    Connectors = new ConnectorCollection(),
    Groups = new GroupCollection(),
    Constraints = GraphConstraints.Default | GraphConstraints.Undoable,
    SnapSettings = new SnapSettings() { SnapConstraints = SnapConstraints.All },
    HorizontalRuler = new Syncfusion.UI.Xaml.Diagram.Controls.Ruler() { Orientation = Orientation.Horizontal },
    VerticalRuler = new Syncfusion.UI.Xaml.Diagram.Controls.Ruler() { Orientation = Orientation.Vertical },
};

SfDiagramRibbon sfDiagramRibbon = new SfDiagramRibbon() { DataContext = Sfdiagram };

Sfdiagram.SetValue(Grid.RowProperty, 1);
sfDiagramRibbon.SetValue(Grid.RowProperty, 0);

Root_Grid.Children.Add(Sfdiagram);
Root_Grid.Children.Add(sfDiagramRibbon);

View sample in GitHub

Ribbon Customization

The Ribbon can be customized in two ways.

Using the Control Template

A user can customize the ribbon items by overriding the template of the SfDiagramRibbon.

To override the template:

1. In a WPF project, add a new ResourceDictionary (for example, SfDiagramRibbonTemplate.xaml).
2. Copy the default SfDiagramRibbon template from the Syncfusion WPF installation directory (Syncfusion.SfDiagramRibbon.WPF/Themes/Generic.xaml) into the new ResourceDictionary.
3. Modify the template to add, remove, or restyle ribbon elements.
4. Apply the template at the application or window scope:

Using the Tabs Property in Events

Handle the SfDiagramRibbon.Loaded event to add or remove ribbon tabs and ribbon items at startup with the help of the Tabs property in the SfDiagramRibbon.

Adding a Ribbon Tab

To add a custom ribbon tab with the default tabs in the SfDiagramRibbon.

C#

DiagramRibbon.Loaded += DiagramRibbon_Loaded;

// Subscribed in XAML as Loaded="DiagramRibbon_Loaded".
private void DiagramRibbon_Loaded(object sender, RoutedEventArgs e)
{
    // Add a new Ribbon tab.
    RibbonTab FormatTab = new RibbonTab() { Caption = "Format" };
    (sender as SfDiagramRibbon).Tabs.Add(FormatTab);
}

Removing a Ribbon Tab

To remove a ribbon tab from the default tabs in SfDiagramRibbon.

C#

DiagramRibbon.Loaded += DiagramRibbon_Loaded;

// Subscribed in XAML as Loaded="DiagramRibbon_Loaded".
private void DiagramRibbon_Loaded(object sender, RoutedEventArgs e)
{
    // Remove the Insert tab.
    (sender as SfDiagramRibbon).Tabs.RemoveAt(1);
}

Adding Ribbon Items

To add a custom ribbon item with the default items in an already existing ribbon tab.

C#

DiagramRibbon.Loaded += DiagramRibbon_Loaded;

// Subscribed in XAML as Loaded="DiagramRibbon_Loaded".
private void DiagramRibbon_Loaded(object sender, RoutedEventArgs e)
{
    // Add new Ribbon Item.
    RibbonTab InsertTab = (sender as SfDiagramRibbon).Tabs.ElementAt(1);
    InsertTab.Items.Add(new RibbonBar() { Header = "Links" });
}

Removing a Ribbon Bar

To remove an already existing ribbon bar from a ribbon tab.

C#

DiagramRibbon.Loaded += DiagramRibbon_Loaded;

// Subscribed in XAML as Loaded="DiagramRibbon_Loaded".
private void DiagramRibbon_Loaded(object sender, RoutedEventArgs e)
{
    // Remove the alignment bar from the Home Tab.
    RibbonTab HomeTab = (sender as SfDiagramRibbon).Tabs.ElementAt(0);
    HomeTab.Items.RemoveAt(2);
}
