Connecting SQL Server to React Diagram using ASP.NET Core Web API

18 Nov 201824 minutes to read

This guide explains how to load and visualize organizational chart data stored in a Microsoft SQL Server database using the Syncfusion® React Diagram component. It demonstrates how to configure SQL Server, create the required database schema, expose the data through an ASP.NET Core Web API, and bind the API response to a React application to render an organizational chart diagram.

What is Microsoft SqlClient?

Microsoft.Data.SqlClient is the official .NET library used to connect ASP.NET Core applications to Microsoft SQL Server. It enables applications to execute SQL queries, call stored procedures, and read or write data securely using strongly supported APIs from Microsoft. SqlClient is commonly used in Web APIs where precise control over database access, performance, and security is required.

Key benefits of SqlClient:

• Secure by Design: Supports parameterized queries to help prevent SQL injection attacks.
• High Performance: Provides efficient, low‑level access to SQL Server with minimal overhead.
• Asynchronous Support: Supports async database operations for better scalability in web APIs.
• Full SQL Control: Allows precise control over SQL queries, stored procedures, and transactions.
• Official Microsoft Provider: Maintained and supported by Microsoft for long‑term compatibility with SQL Server.

Prerequisites

Ensure the following software and packages are installed before proceeding:

Software / Package	Version	Purpose
Node.js	18.x or later	React development runtime
React CLI	16 or later	Create, build, and run React application
.NET SDK	8.0 or later	Build and run the ASP.NET Core Web API
Microsoft SQL Server	2019 or later	Relational database server
SQL Server Management Studio (SSMS)	Latest	Manage SQL Server databases and execute queries
Microsoft.Data.SqlClient (NuGet)	7.0.0 or later	SQL Server connectivity for ASP.NET Core
Syncfusion.EJ2.AspNet.Core (NuGet)	33.1.45 or later	Server‑side helpers for DataManager operations
@syncfusion/ej2-react-diagrams (npm)	33.1.45 or later	React Diagram component

Installing and configuring Microsoft SQL Server and SQL Server Management Studio (SSMS)

To store and manage diagram data, Microsoft SQL Server must be installed and configured before integrating it with the ASP.NET Core Web API. This section explains how to install SQL Server, install SQL Server Management Studio (SSMS), and preparing the environment for database creation. This setup is a one‑time process and only needs to be completed before configuring the backend API.

Installing Microsoft SQL Server

Microsoft SQL Server provides the relational database engine used to store organizational chart data required by the diagram component.

Follow these steps to install SQL Server:

1. Download the Microsoft SQL Server installer for the required edition from the official page: [https://www.microsoft.com/en-in/sql-server/sql-server-downloads] (https://www.microsoft.com/en-in/sql-server/sql-server-downloads). For this guide, SQL Server Express is selected. It is a free, lightweight edition suitable for development, testing, and sample applications.

2. Open the downloaded installer file to launch the setup wizard.

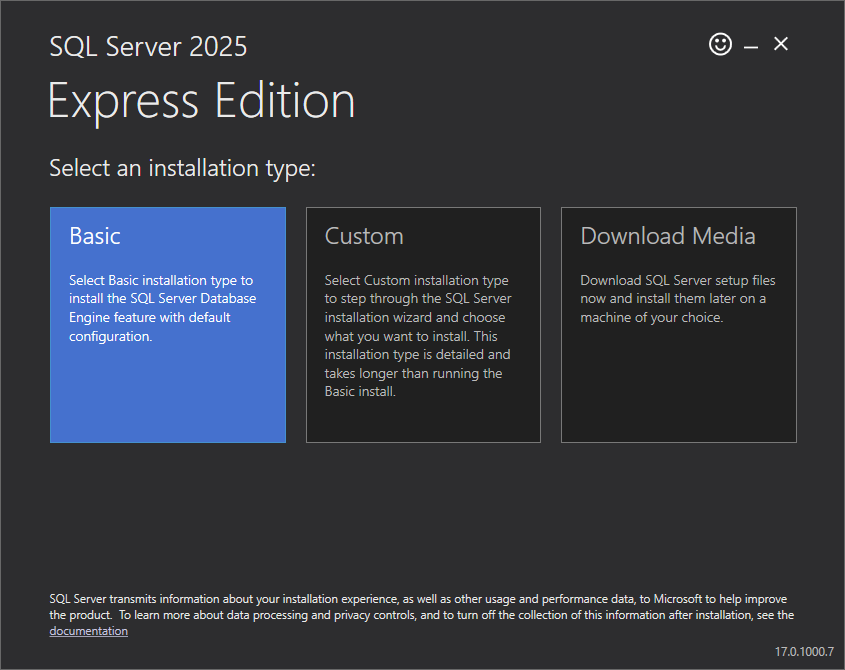

3. Choose the installation type (for example, Basic for quick setup or Custom for advanced configuration).

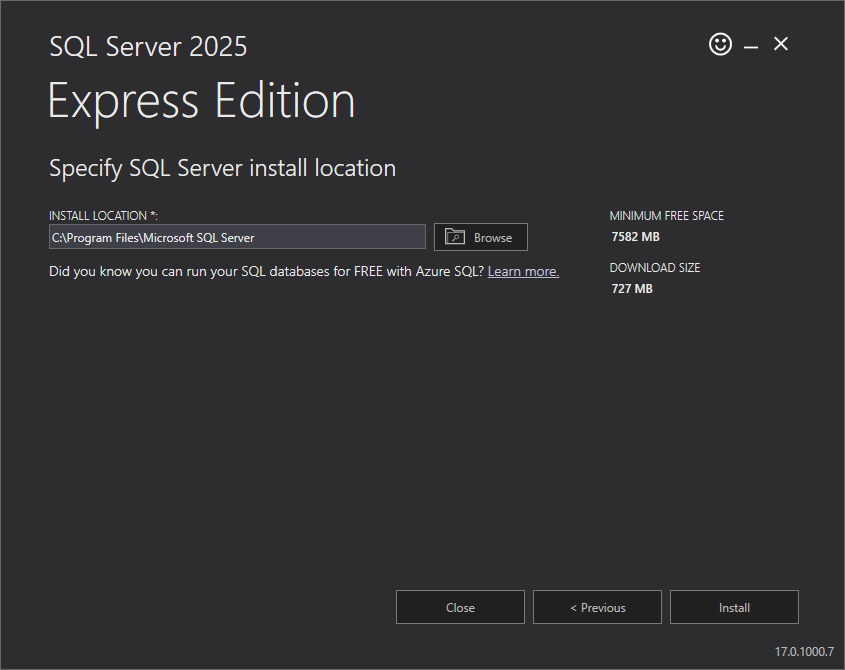

1. Select the installation location when prompted and proceed with the installation.

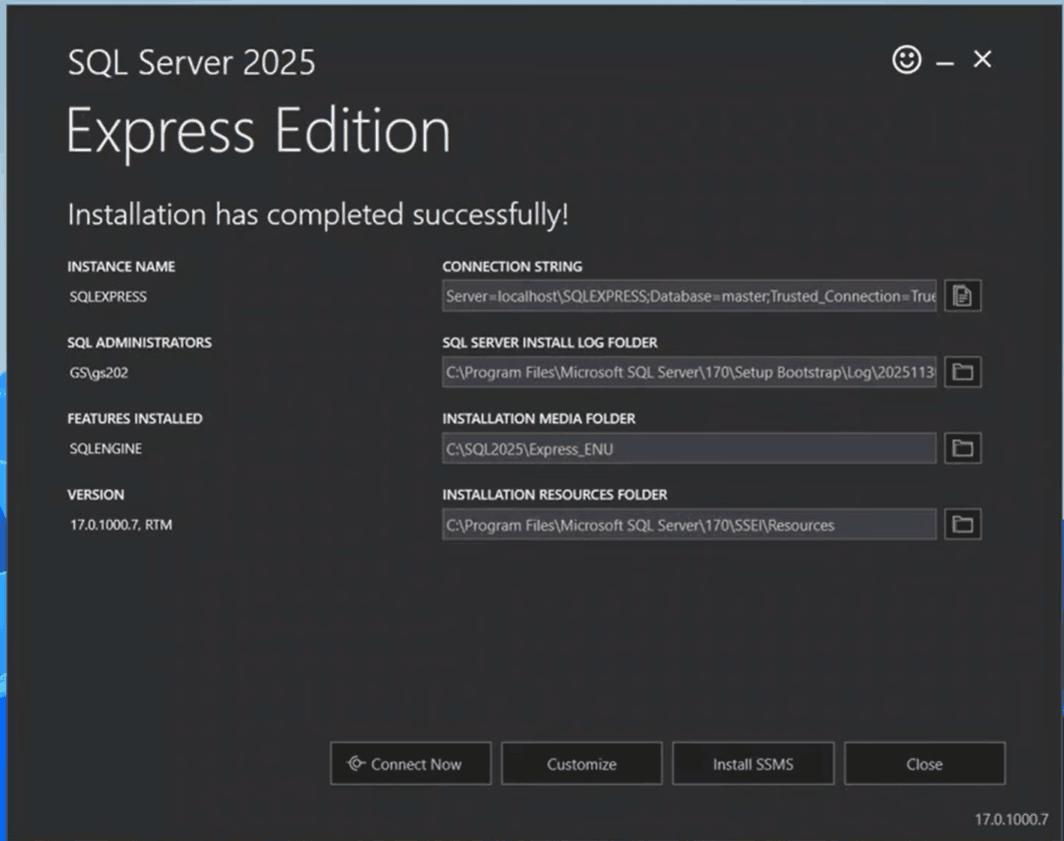

1. Wait for the setup process to complete. Once finished, a confirmation message indicates that SQL Server has been installed successfully.

At this stage, the SQL Server database engine is installed, but a management tool is required to interact with the server.

Installing SQL Server Management Studio (SSMS)

SQL Server Management Studio (SSMS) is a graphical interface used to connect to SQL Server, manage databases, execute queries, and inspect data.

Follow these steps to install SSMS:

1. From the SQL Server installer completion screen, click the Install SSMS button. This action redirects you to the official Microsoft download page.

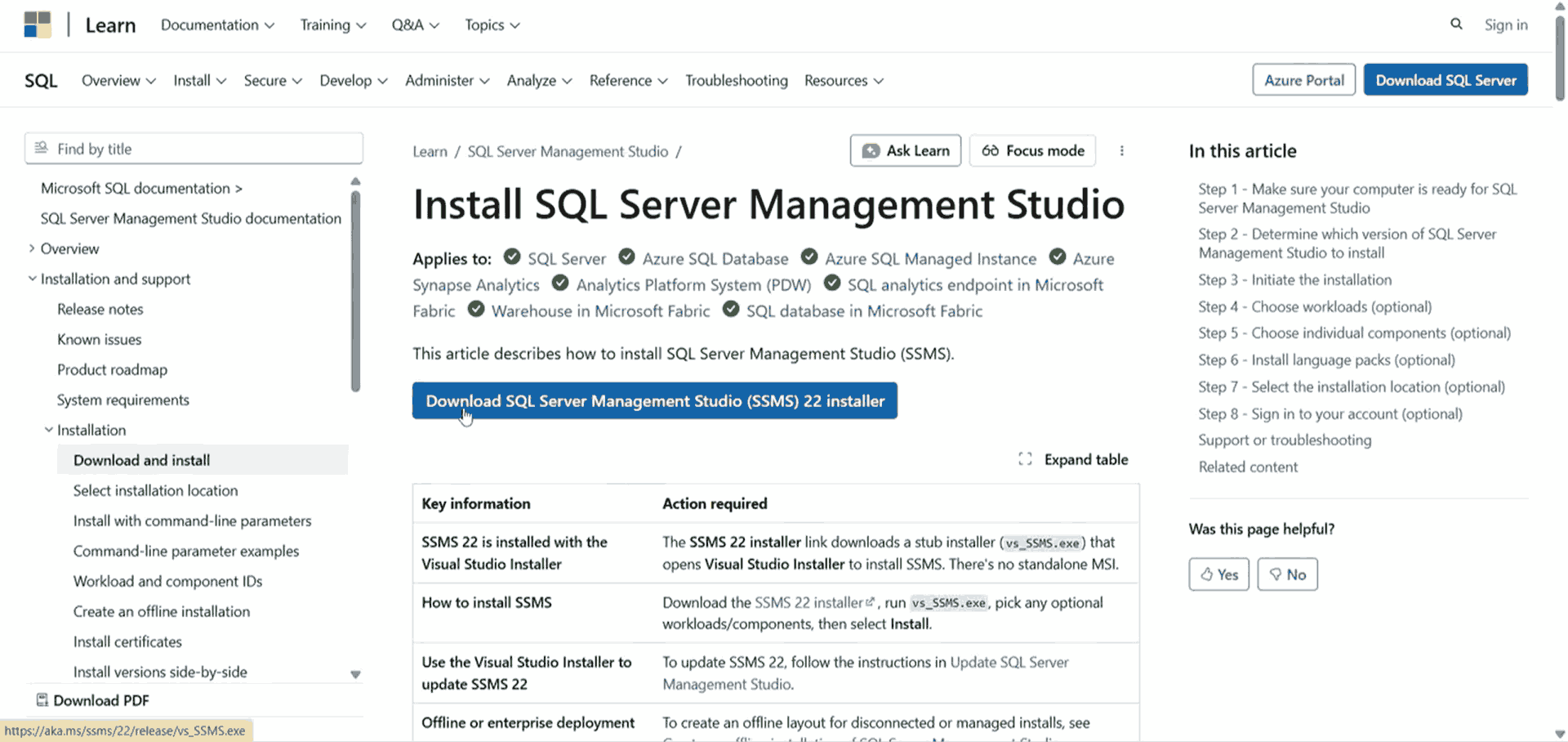

1. Download the SSMS installer.

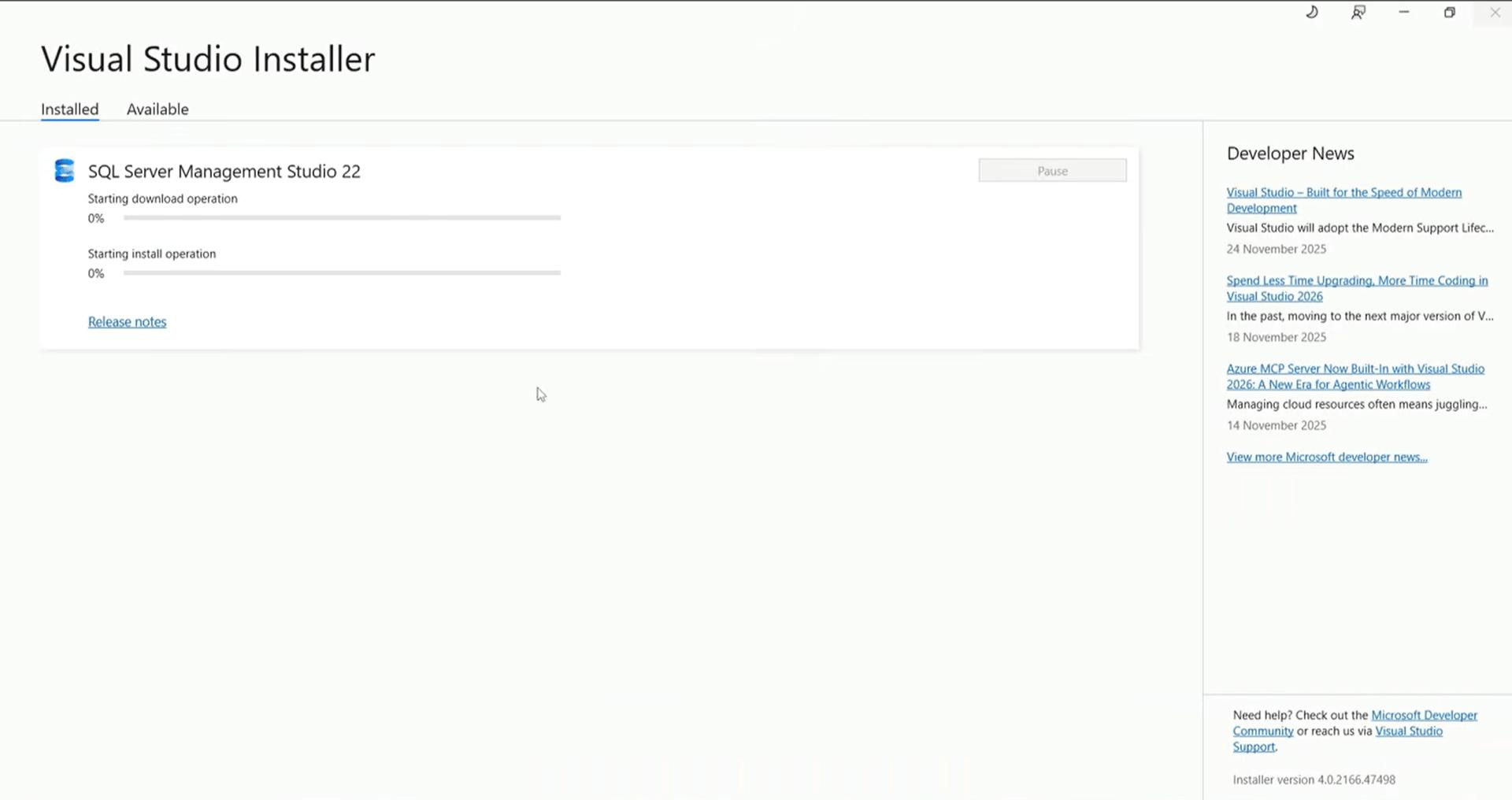

2. Open the downloaded installer file. This launches the Visual Studio Installer.

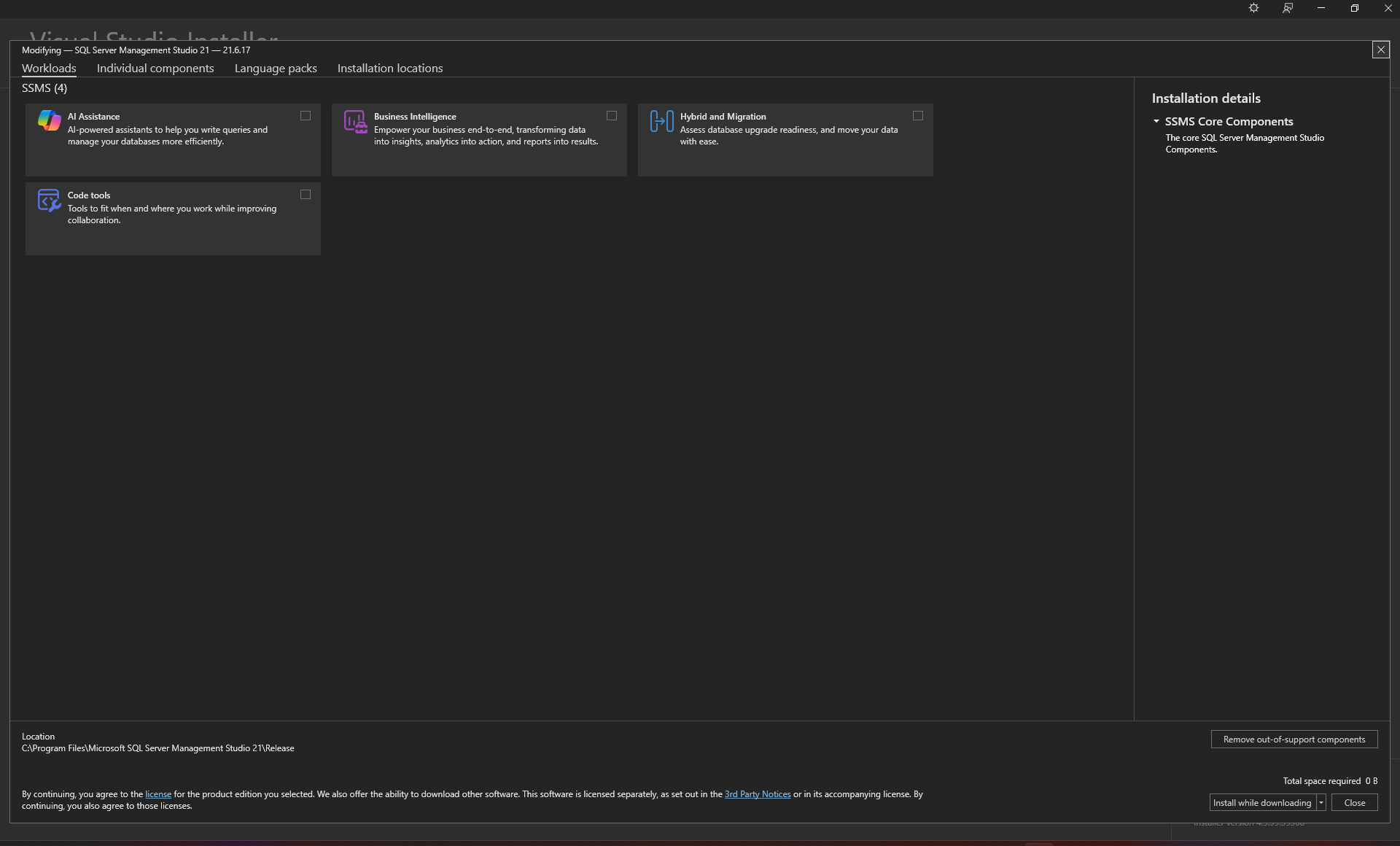

3. Select the required workloads (the default selections are sufficient for most users).

1. Click the Install button and wait for the installation to complete.

1. Once installation finishes, close the installer.

Connecting to SQL Server using SQL Server Management Studio (SSMS)

After installing SQL Server Management Studio (SSMS), connect to the SQL Server instance to begin creating databases and tables.

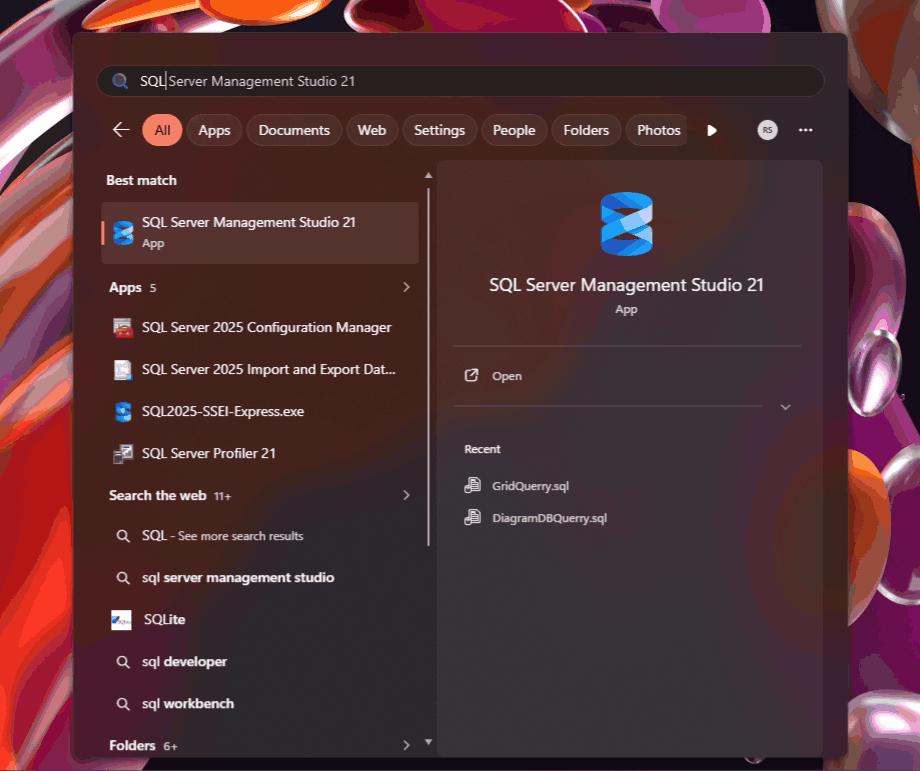

1. Launch SQL Server Management Studio from the Windows Start menu or application launcher.

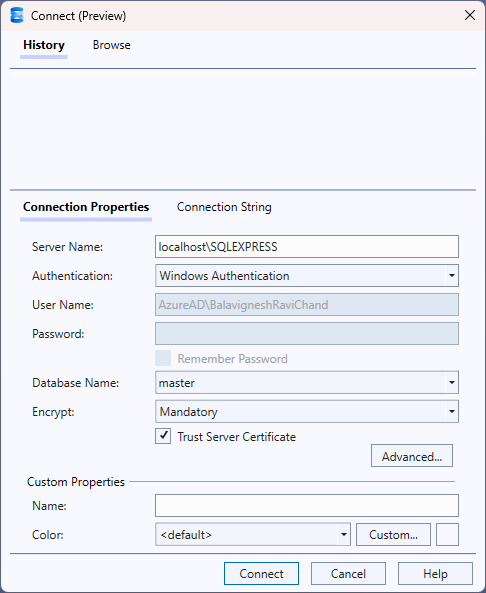

1. In the Connect to Server dialog, configure the connection properties:
   • Server name: Required (for example, localhost or .\SQLEXPRESS)
   • Authentication: Windows Authentication (recommended for local development)
   • Enable Trust server certificate if prompted

1. Click the Connect button to establish the connection.

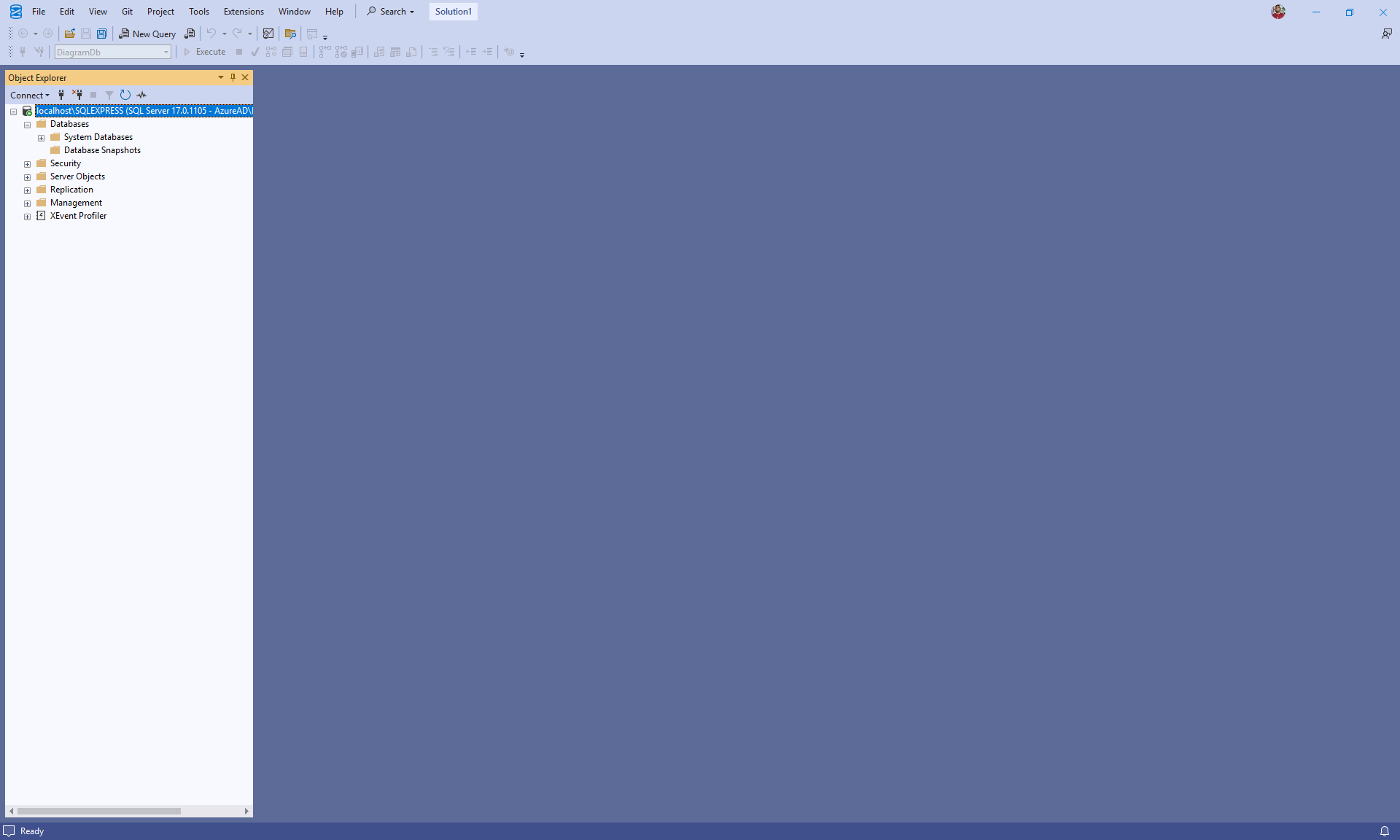

2. After a successful connection, the Object Explorer displays the connected SQL Server instance and its available components such as databases, security settings, and server objects.

The SQL Server environment is now ready for database creation and data configuration.

Creating the database and schema

After connecting to SQL Server using SSMS, the next step is to create the database and schema required to store organizational chart data. The schema represents parent–child relationships that are rendered as nodes and connectors in the Syncfusion® React Diagram component.

Creating the database

A dedicated database named DiagramDb is used to store organizational chart data. The database can be created using either the SSMS user interface or a SQL script.

Manual approach (using SSMS UI)

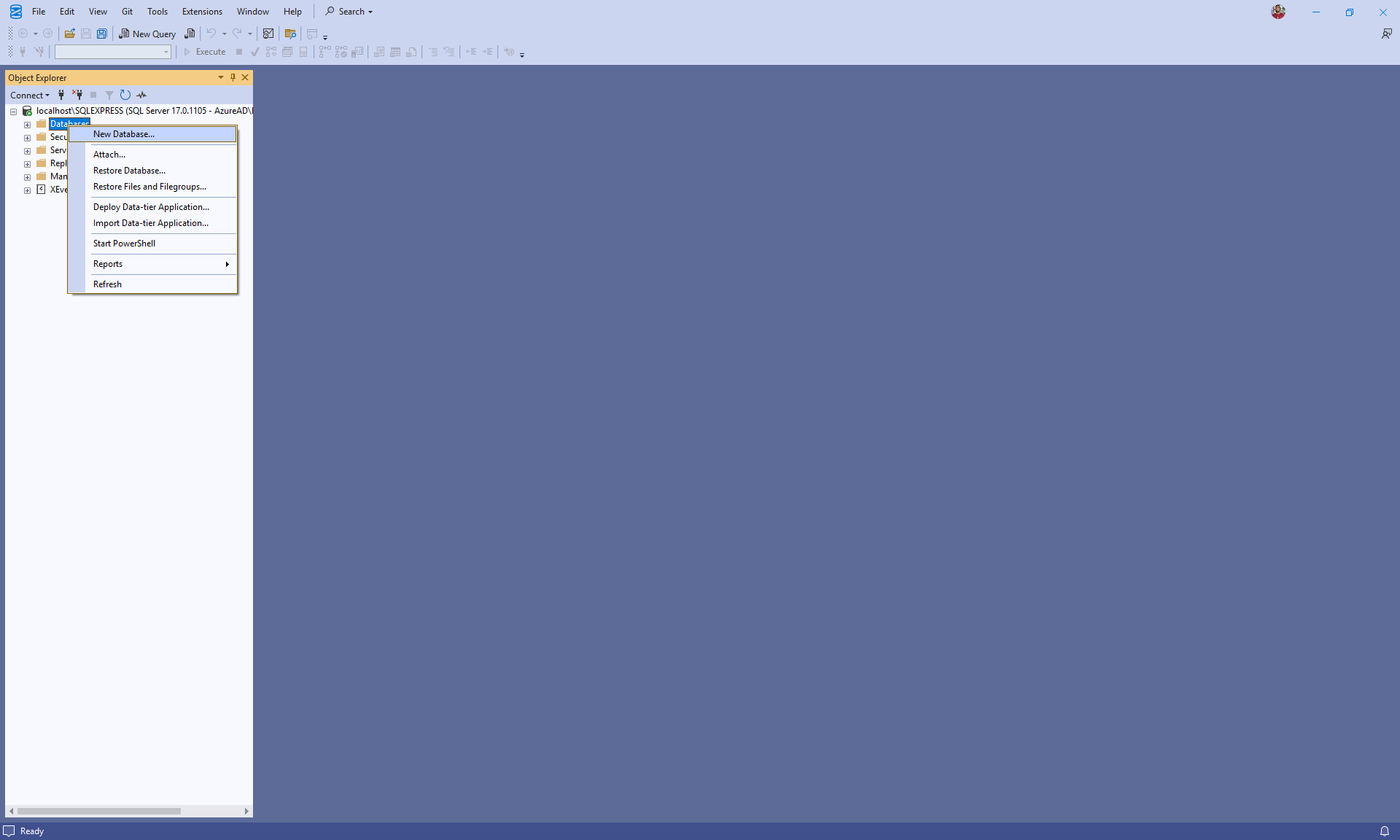

1. In Object Explorer, right‑click the Databases folder.

1. Select New Database from the context menu.

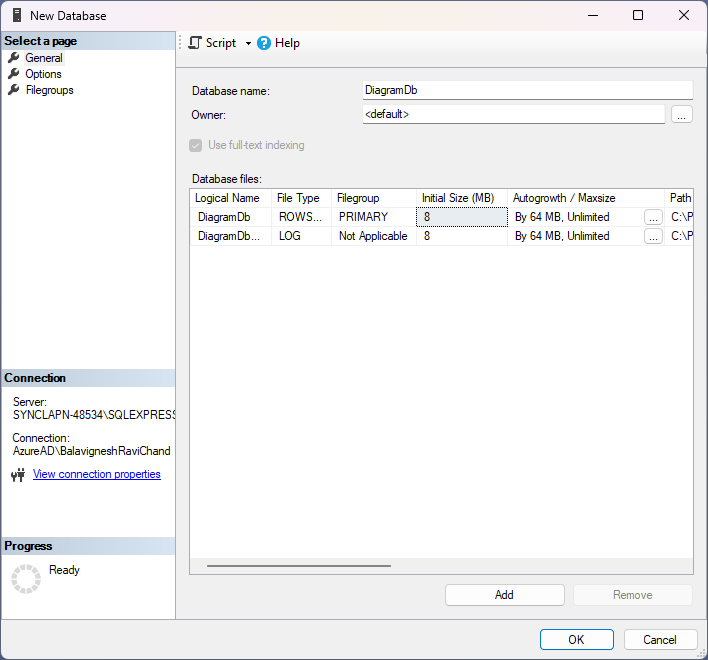

2. Enter DiagramDb as the database name.
3. Click the OK button to create the database.

Query‑Based approach

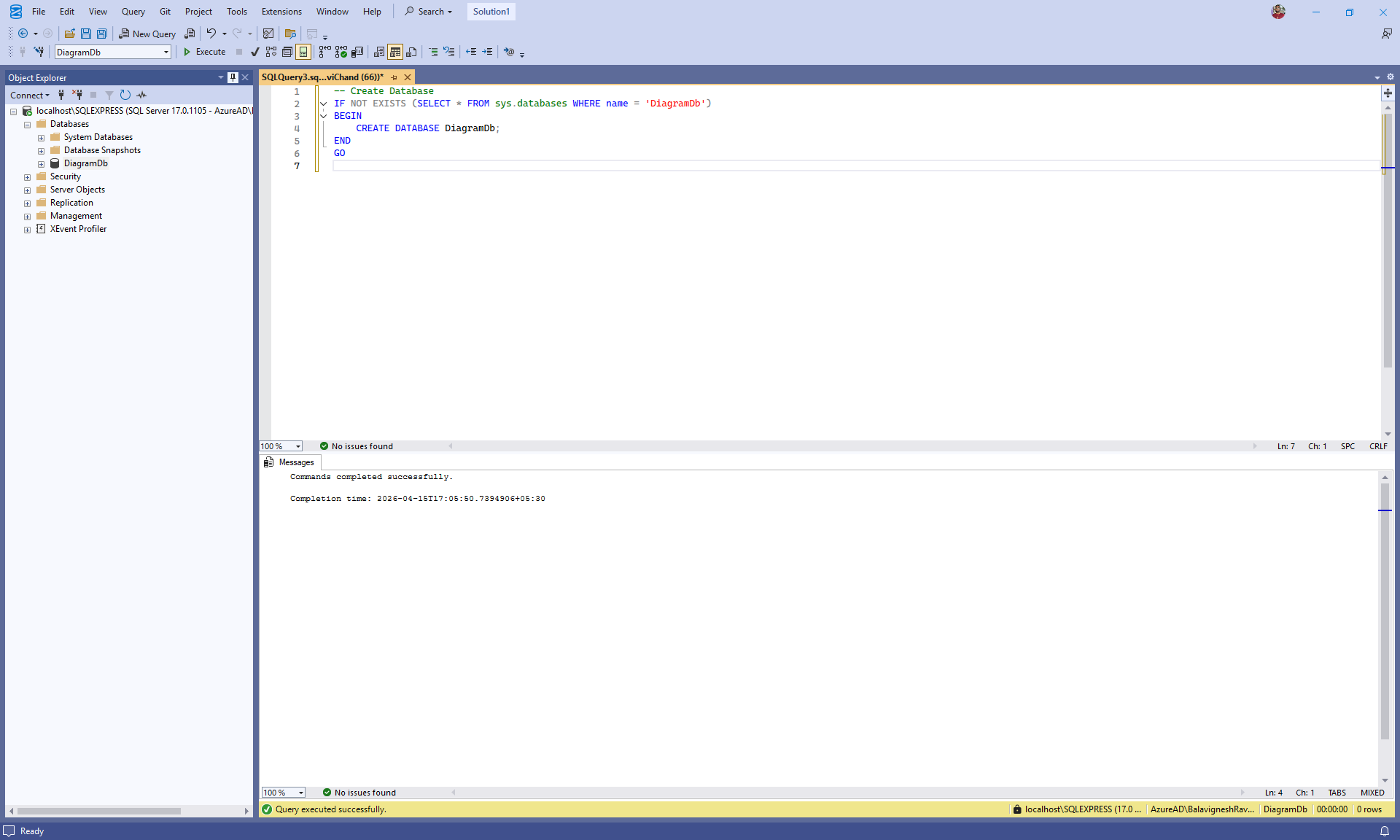

Alternatively, the database can be created using a SQL query.

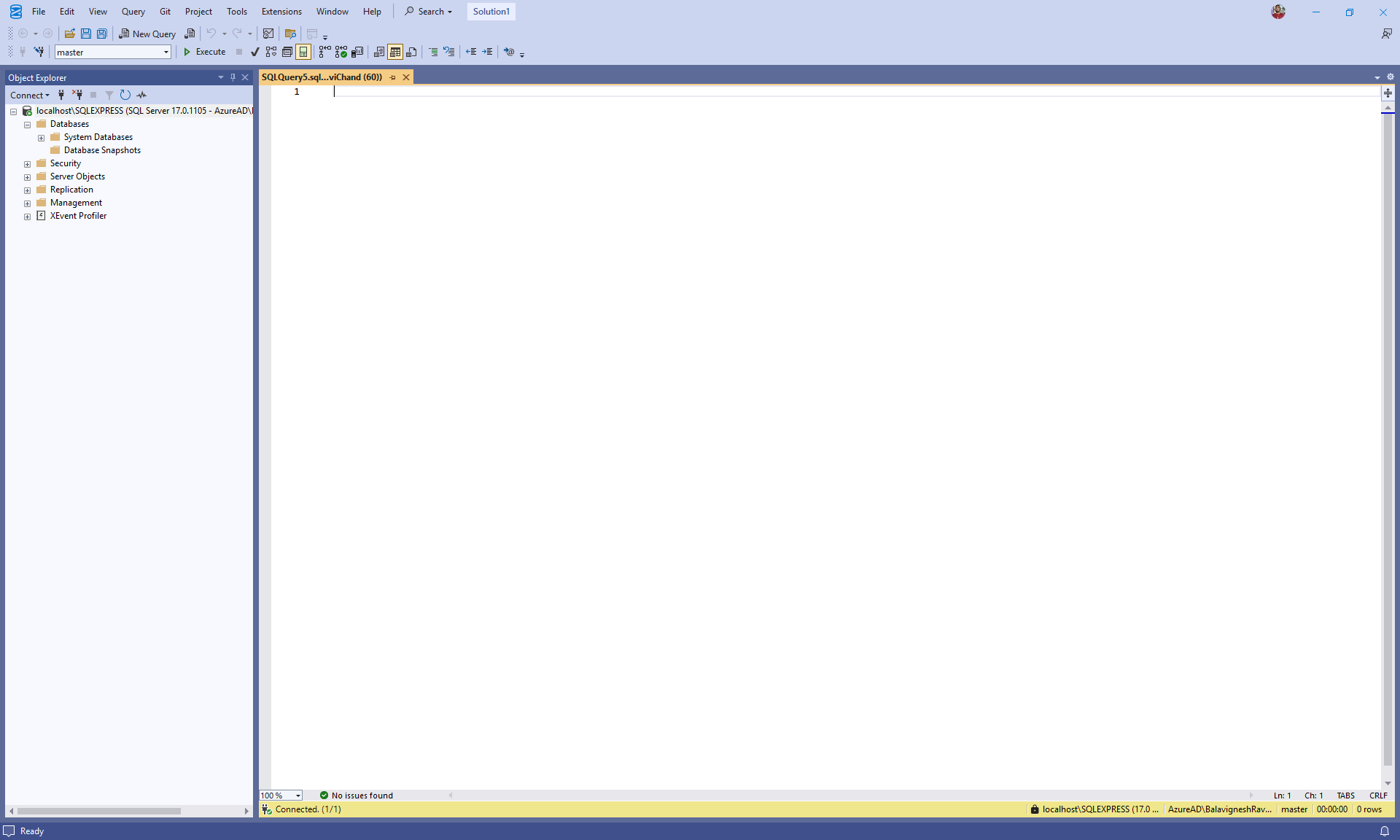

• Click New Query button in the SSMS toolbar to open the query editor.

• Paste the following SQL script into the query editor and click Execute to run the query.

-- Create Database
IF NOT EXISTS (SELECT * FROM sys.databases WHERE name = 'DiagramDb')
BEGIN
    CREATE DATABASE DiagramDb;
END
GO

Creating the table

Create a table named LayoutNode to store the data that defines the structure of the diagram.

• Each record represents a diagram node.
• The Id column uniquely identifies a node.
• The ParentId column establishes parent–child relationships.
• Root‑level nodes contain a NULL value for ParentId.

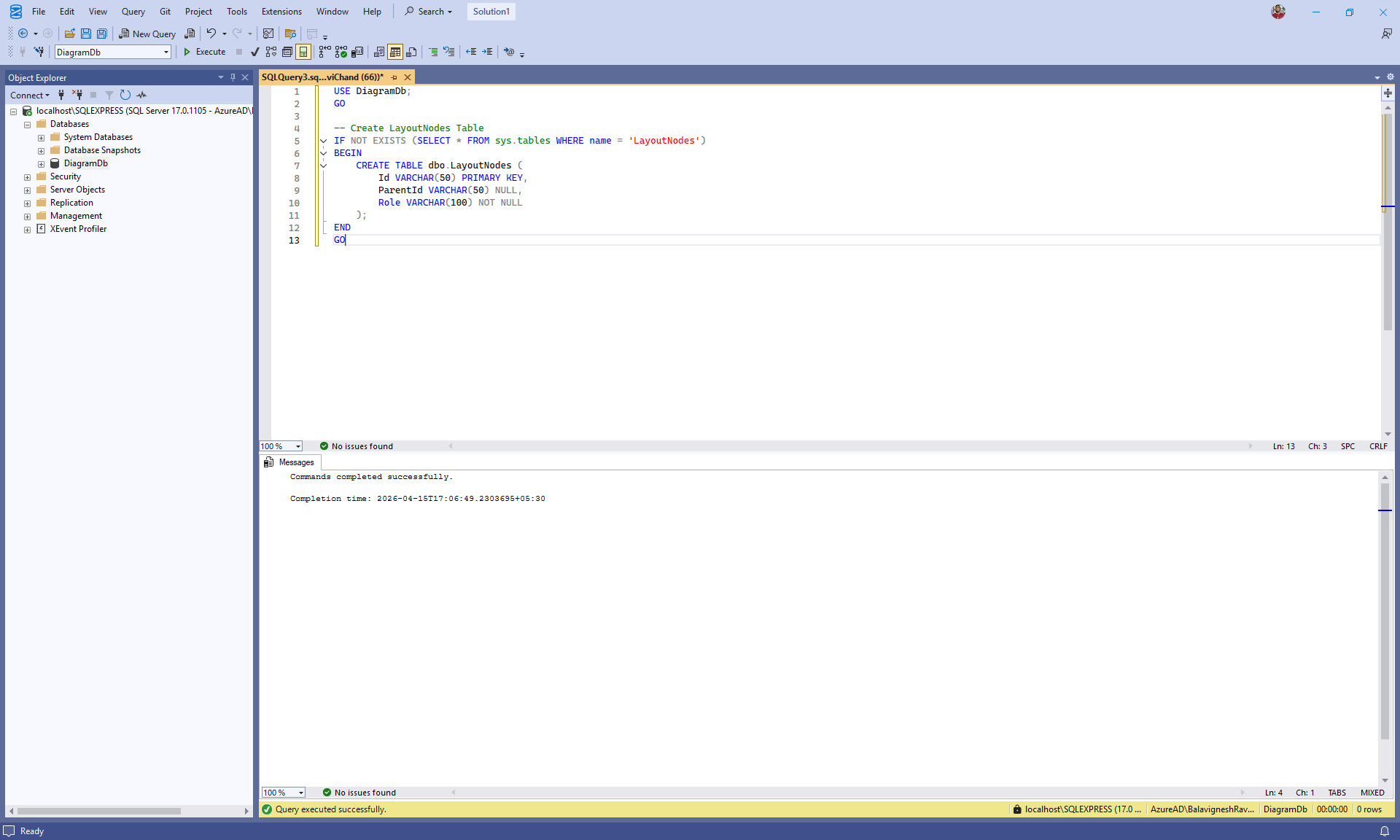

Run the following SQL script in the query editor to create the table in the DiagramDb database.

-- Create LayoutNode Table
IF NOT EXISTS (SELECT * FROM sys.tables WHERE name = 'LayoutNode')
BEGIN
    CREATE TABLE dbo.LayoutNode (
        Id VARCHAR(50) PRIMARY KEY,
        ParentId VARCHAR(50) NULL,
        Role VARCHAR(100) NOT NULL
    );
END
GO

Inserting sample data

Sample records can be added to the LayoutNode table to populate the database with initial data.

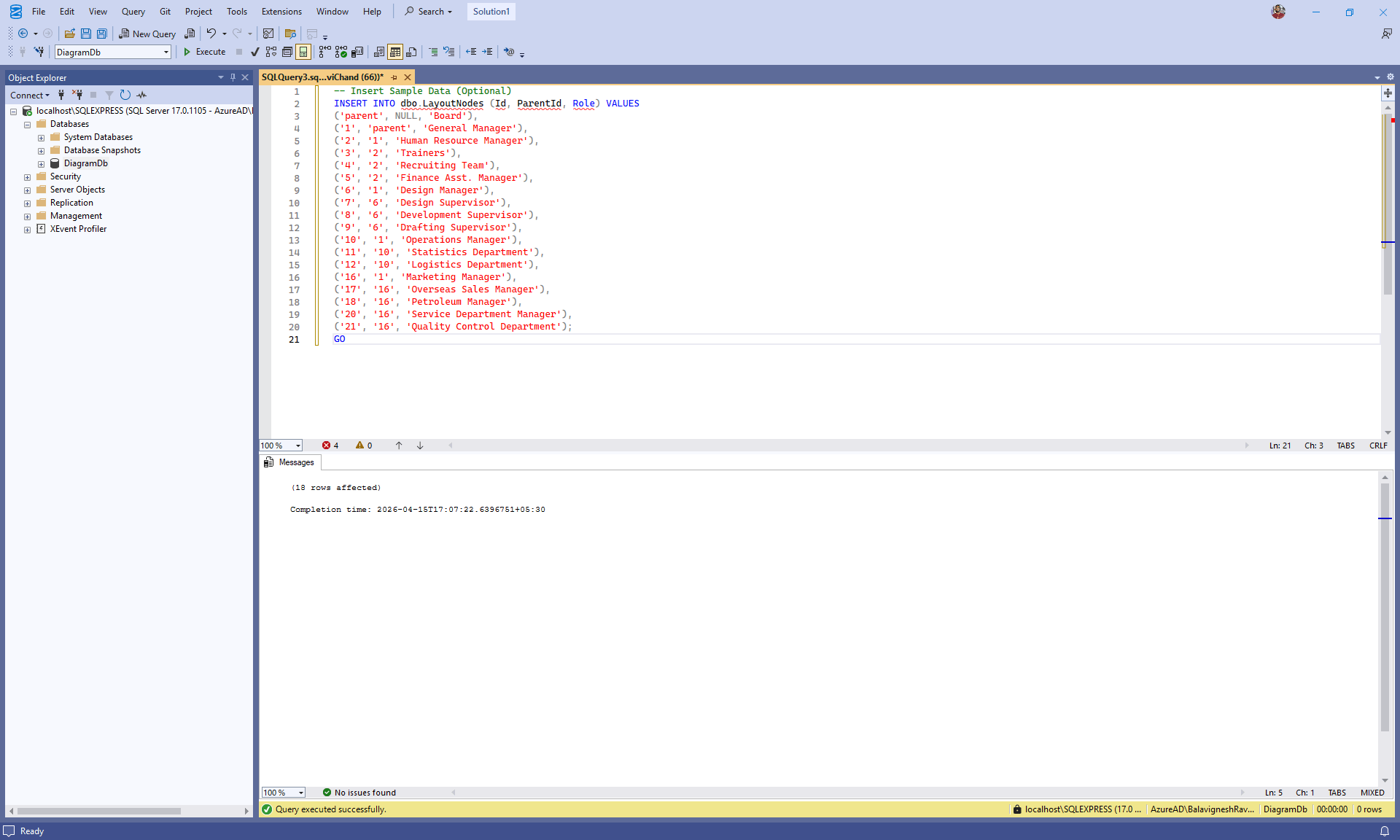

Run the following SQL script in the query editor to insert sample records into the table.

-- Insert Sample Data (Optional)
INSERT INTO dbo.LayoutNode (Id, ParentId, Role) VALUES
('parent', NULL, 'Board'),
('1', 'parent', 'General Manager'),
('2', '1', 'Human Resource Manager'),
('3', '2', 'Trainers'),
('4', '2', 'Recruiting Team'),
('5', '2', 'Finance Asst. Manager'),
('6', '1', 'Design Manager'),
('7', '6', 'Design Supervisor'),
('8', '6', 'Development Supervisor'),
('9', '6', 'Drafting Supervisor'),
('10', '1', 'Operations Manager'),
('11', '10', 'Statistics Department'),
('12', '10', 'Logistics Department'),
('16', '1', 'Marketing Manager'),
('17', '16', 'Overseas Sales Manager'),
('18', '16', 'Petroleum Manager'),
('20', '16', 'Service Department Manager'),
('21', '16', 'Quality Control Department');
GO

Verifying the inserted data

Verify that the records have been created successfully by querying the LayoutNode table.

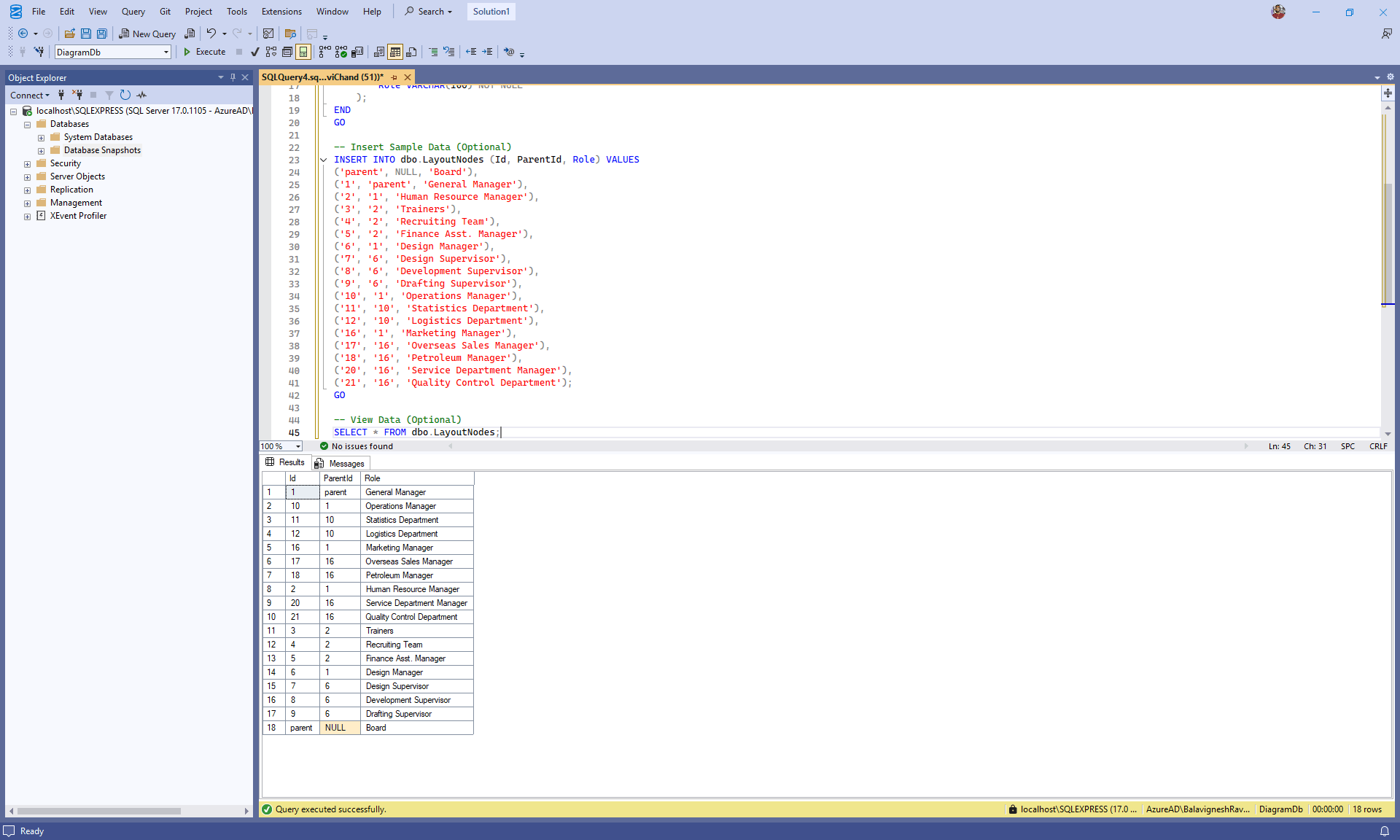

Run the following SQL query in the query editor to view the inserted data.

SELECT * FROM dbo.LayoutNode;

Integrating SQL Server with ASP.NET Core Web API

In this section, an ASP.NET Core Web API project is created and configured to connect to SQL Server using Microsoft.Data.SqlClient. The API retrieves organizational chart layout data from the database and returns it in a format that can be consumed by the Syncfusion® React Diagram component.

Step 1: Create the ASP.NET Core Web API project

Creating the Web API project using Visual Studio

The ASP.NET Core Web API project can be created using Visual Studio as follows:

1. Open Visual Studio.
2. Select Create a new project.
3. Choose ASP.NET Core Web API and click Next.
4. Enter the project name as React_Diagram_MSSQL.Server.
5. Select the project location and click Next.
6. Choose the target framework (for example, .NET 8.0).
7. Keep authentication set to None.
8. Click Create.

Visual Studio generates a new ASP.NET Core Web API project with default files such as Program.cs and appsettings.json.

Creating the Web API project using Visual Studio Code

Alternatively, the project can be created using the .NET CLI, which is commonly used with Visual Studio Code.

1. Open a terminal or command prompt.
2. Navigate to the directory where you want to create the server application.
3. Run the following commands:

dotnet new webapi -n React_Diagram_MSSQL.Server
cd React_Diagram_MSSQL.Server

Step 2: Installing required NuGet packages

After creating the ASP.NET Core Web API project, install the following required NuGet packages.

• Microsoft.Data.SqlClient – Provides connectivity to Microsoft SQL Server.
• Syncfusion.EJ2.AspNet.Core – Provides server‑side support for DataManager operations.

The required NuGet packages can be installed using any one of the following methods.

Method 1: Using Package Manager Console (Visual Studio)

1. Open Visual Studio.
2. Navigate to Tools → NuGet Package Manager → Package Manager Console.
3. Run the following commands:

Install-Package Microsoft.Data.SqlClient
Install-Package Syncfusion.EJ2.AspNet.Core

Method 2: Using NuGet Package Manager UI (Visual Studio)

1. Open Visual Studio.
2. Navigate to Tools → NuGet Package Manager → Manage NuGet Packages for Solution.
3. Select the Browse tab.
4. Search for and install each package individually:
   • Microsoft.Data.SqlClient
   • Syncfusion.EJ2.AspNet.Core

Method 3: Using .NET CLI / Integrated Terminal (Visual Studio Code)

The required packages can also be installed using the .NET CLI. Ensure the commands are executed from the Web API project directory.

dotnet add package Microsoft.Data.SqlClient
dotnet add package Syncfusion.EJ2.AspNet.Core

Step 3: Create the data model

A data model defines how data stored in a database table is represented within the ASP.NET Core application. It maps database records to C# objects that can be used by the Web API and returned to the Syncfusion® React Diagram component.

In this application, the data model maps directly to the LayoutNode table created in SQL Server.

This model does not create or modify database tables. It only represents the existing SQL Server schema within the application.

Instructions:

1. Create a new folder named Data in the application project.
2. Inside the Data folder, create a new file named LayoutNode.cs.
3. Define the LayoutNode class with the following code:

using System.ComponentModel.DataAnnotations;

namespace React_Diagram_MSSQL.Server.Data
{
  /// <summary>
  /// Represents a node in the layout hierarchy used by the diagram.
  /// </summary>
  public class LayoutNode
  {
      /// <summary>
      /// Gets or sets the unique identifier for the layout node.
      /// </summary>
      /// <remarks>
      /// This property serves as the primary key for the node.
      /// </remarks>
      [Key]
      public string Id { get; set; } = null!;

      /// <summary>
      /// Gets or sets the identifier of the parent node.
      /// </summary>
      /// <remarks>
      /// A null value indicates that this node is a root-level node.
      /// </remarks>
      public string? ParentId { get; set; }

      /// <summary>
      /// Gets or sets the role associated with the layout node.
      /// </summary>
      /// <remarks>
      /// This value determines the responsibility or classification of the node
      /// within the diagram.
      /// </remarks>
      public string Role { get; set; } = null!;
  }
}

Step 4: Create the repository class

A repository class acts as a bridge between the ASP.NET Core Web API and the SQL Server database. It contains the logic required to read data from the database and return it in a format that can be used by the API.

Using a repository helps maintain a clear separation by isolating database access logic from controller logic.

Instructions:

1. Inside the Data folder, create a new file named LayoutNodeRepository.cs.
2. Define the LayoutNodeRepository class with the following code:

using Microsoft.Data.SqlClient;

namespace React_Diagram_MSSQL.Server.Data
{
    public class LayoutNodeRepository
    {
        private readonly string _connectionString;

        /// <summary>
        /// Initializes the repository with a connection string from configuration.
        /// </summary>
        public LayoutNodeRepository(IConfiguration configuration)
        {
            _connectionString = configuration.GetConnectionString("DiagramDb")!;
        }

        /// <summary>
        /// Creates a new SQL connection using the configured connection string.
        /// </summary>
        private SqlConnection GetConnection() => new SqlConnection(_connectionString);

        /// <summary>
        /// Returns all layout nodes ordered by Id.
        /// </summary>
        public async Task<List<LayoutNode>> GetLayoutNodesAsync()
        {
            var list = new List<LayoutNode>();
            const string sql =
                @"SELECT Id, ParentId, Role FROM dbo.LayoutNode";

            await using var conn = GetConnection();
            await conn.OpenAsync();
            await using var cmd = new SqlCommand(sql, conn);
            await using var reader = await cmd.ExecuteReaderAsync();

            while (await reader.ReadAsync())
            {
                list.Add(
                    new LayoutNode
                    {
                        Id = reader["Id"] as string ?? string.Empty,
                        ParentId = reader["ParentId"] as string,
                        Role = reader["Role"] as string ?? string.Empty
                    }
                );
            }
            return list;
        }
    }
}

Explanation:

• The repository reads the SQL Server connection string from application configuration.
• A helper method creates a new SqlConnection when needed.
• The GetLayoutNodesAsync method retrieves all layout nodes from the LayoutNode table and maps each record to a LayoutNode object.
• The method returns the data as a list that can be consumed by the API controller.

Step 5: Create the API controller

The API controller exposes layout‑node data as an HTTP endpoint that can be consumed by the diagram component.

Instructions:

1. Create a new folder named Controllers (if it does not already exist).
2. Add a new file named LayoutNodesController.cs.
3. Paste the following code:

using React_Diagram_MSSQL.Server.Data;
using Microsoft.AspNetCore.Mvc;
using Syncfusion.EJ2.Base;
using Newtonsoft.Json.Linq;

namespace React_Diagram_MSSQL.Server.Controllers
{

  [ApiController]
  [Route("api/[controller]")]
  public class LayoutNodesController : ControllerBase
  {
      private readonly LayoutNodeRepository _repository;

      public LayoutNodesController(LayoutNodeRepository repository)
      {
          _repository = repository;
      }

      // GET api/layoutnodes
      [HttpGet]
      public async Task<IActionResult> GetAll()
      {
          var data = await _repository.GetLayoutNodesAsync();
          return Ok(data);
      }

      // GET api/layoutnodes/ping
      [HttpGet("ping")]
      public IActionResult Ping()
      {
          return Ok(new { status = "ok", time = DateTime.UtcNow });
      }
  }
}

Explanation

• /api/layoutnodes returns all layout nodes from SQL Server.
• Data is retrieved through the LayoutNodeRepository class.

Step 6: Configure the connection string

A connection string contains the information needed to connect the application to the SQL Server database, including the server address, database name, and authentication credentials.

Instructions:

1. Open the appsettings.json file in the project root.
2. Add or update the ConnectionStrings section with the SQL Server connection details:

{
  "ConnectionStrings": {
    "DiagramDb": "Data Source=localhost;Initial Catalog=DiagramDb;Integrated Security=True;Connect Timeout=30;Encrypt=False;Trust Server Certificate=False;Application Intent=ReadWrite;Multi Subnet Failover=False"
  },
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft.AspNetCore": "Warning"
    }
  },
  "AllowedHosts": "*"
}

Connection string components:

Component	Description
Data Source	The address of the SQL Server instance (server name, IP address, or localhost)
Initial Catalog	The database name (in this case, DiagramDb)
Integrated Security	Set to True for Windows Authentication; use False with Username/Password for SQL Authentication
Connect Timeout	Connection timeout in seconds (default is 15)
Encrypt	Enables encryption for the connection (set to True for production environments)
Trust Server Certificate	Whether to trust the server certificate (set to False for security)
Application Intent	Set to ReadWrite for normal operations or ReadOnly for read-only scenarios
Multi Subnet Failover	Used in failover clustering scenarios (typically False)

Step 7: Register services

The Program.cs file is where application services are registered and configured. This file must be updated to register services and the repository for dependency injection.

Instructions:

1. Open the Program.cs file at the project root.
2. Replace the existing content with the following configuration:

using React_Diagram_MSSQL.Server.Data;

var builder = WebApplication.CreateBuilder(args);

// Add MVC controllers with Newtonsoft.Json (for JObject support)
builder
    .Services.AddControllers()
    .AddNewtonsoftJson(options =>
    {
        options.SerializerSettings.NullValueHandling = Newtonsoft.Json.NullValueHandling.Ignore;
    });

// (Optional) Swagger for API exploration in Development
builder.Services.AddEndpointsApiExplorer();
builder.Services.AddSwaggerGen();

// CORS: allow all (simple for local dev / separate frontend)
builder.Services.AddCors(options =>
{
    options.AddDefaultPolicy(policy => policy.AllowAnyOrigin().AllowAnyHeader().AllowAnyMethod());
});

// Register repository for DI
builder.Services.AddScoped<LayoutNodeRepository>();

var app = builder.Build();

// Swagger only in Development
if (app.Environment.IsDevelopment())
{
    app.UseSwagger();
    app.UseSwaggerUI();
}

// Enable CORS and map controllers
app.UseCors();
app.MapControllers();

app.Run();

Explanation

• Controller support is enabled to expose API endpoints.
• The LayoutNodeRepository is registered for dependency injection.
• CORS is enabled to allow the React application to call the API.
• Swagger is enabled in development for testing and exploration.

The backend setup is now complete.

Integrating Syncfusion® React Diagram

The following steps describe how to render the Diagram and connect it to the SQL Server back-end.

Step 1: Creating the React client application

Create the React client application using the following commands in a Visual Studio Code terminal or command prompt:

npm create vite@latest React_Diagram_MSSQL.client
cd React_Diagram_MSSQL.client

This command scaffolds a new React application using Vite.

Step 2: Adding Syncfusion® packages

Install the required Syncfusion® packages by running the following commands:

npm install @syncfusion/ej2-react-diagrams --save

After installation, the necessary CSS files are available in the node_modules directory.
Add the required CSS references to the src/index.css file to apply styling to the Diagram component.

@import "../node_modules/@syncfusion/ej2-react-diagrams/styles/bootstrap5.3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/bootstrap5.3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/bootstrap5.3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/bootstrap5.3.css";

For this project, the “Bootstrap 5.3” theme is applied. Other themes can be selected, or the existing theme can be customized to meet specific project requirements. For detailed guidance on theming and customization, refer to the Syncfusion® React Components Appearance documentation.

Step 3: Add Syncfusion® React Diagram

The React Diagram component can be added to the (src/App.tsx) file using the following code.

import React from 'react';
import { DiagramComponent, Inject, DataBinding, HierarchicalTree, SnapConstraints} from "@syncfusion/ej2-react-diagrams";
import type{ ConnectorModel, NodeModel, LayoutModel, DataSourceModel} from "@syncfusion/ej2-react-diagrams";
import './app.css';

let diagramInstance: DiagramComponent;

const App: React.FC = () => {
  return (
    <div className="host">
      <DiagramComponent
        id="container"
        ref={(diagram) => (diagramInstance = diagram)}
        width={"100%"}
        height={"550px"}
      </DiagramComponent>
    </div>
  );
};

export default App;

This code initializes the Diagram component with default dimensions.

Step 4: Fetch data from Web API and bind it to the Diagram

In this step, data is retrieved from the ASP.NET Core Web API and assigned to the Diagram as a data source. Create a loadData function in the (src/App.tsx) file to fetch the API data and assign it to the Diagram using dataSourceSettings.

import React from 'react';
import { DiagramComponent, Inject, DataBinding, HierarchicalTree, SnapConstraints} from "@syncfusion/ej2-react-diagrams";
import { DataManager, Query } from '@syncfusion/ej2-data';
import type{ ConnectorModel, NodeModel, LayoutModel, DataSourceModel} from "@syncfusion/ej2-react-diagrams";
import './app.css';

const BASE_URL = 'http://localhost:5239/api/layoutnodes';

let items: DataManager;

const loadData = () => {
  fetch(BASE_URL, {
    method: 'GET',
    headers: { 'Content-Type': 'application/json' },
  })
    .then((response) => response.json())
    .then((data) => {
      items = new DataManager(data as JSON[], new Query());

      if (diagramInstance) {
        // Set layout type
        diagramInstance.layout = {
          type: 'OrganizationalChart',
        };

        // Assign fetched data to Diagram
        diagramInstance.dataSourceSettings = {
          id: 'id',
          parentId: 'parentId',
          dataSource: items,
        };
      }
    });
};

Step 5: Complete code

The following snippet shows the complete React Diagram configuration with data binding, layout, and styling applied.

App.tsx

import React from 'react';
import { DiagramComponent, Inject, DataBinding, HierarchicalTree, SnapConstraints} from "@syncfusion/ej2-react-diagrams";
import { DataManager, Query } from '@syncfusion/ej2-data';
import type{ ConnectorModel, NodeModel, LayoutModel, DataSourceModel} from "@syncfusion/ej2-react-diagrams";
import './app.css';

const BASE_URL = 'http://localhost:5239/api/layoutnodes';
let diagramInstance: DiagramComponent;

let items: DataManager;

 const loadData = () =>{
    fetch(BASE_URL, {
      method: 'GET',
      headers: { 'Content-Type': 'application/json' },
    })
    .then((response) => {
      if (!response.ok) {
        throw new Error(`HTTP error! status: ${response.status}`);
      }
      return response.json();
    })
    .then((data) => {
      items = new DataManager(data as JSON[], new Query().take(5));
      if (diagramInstance) {
        diagramInstance.layout = {
          //Sets layout type
          type: 'OrganizationalChart'
        }

        //Configures data source for Diagram
        diagramInstance.dataSourceSettings = {
          id: 'id',
          parentId: 'parentId',
          dataSource: items
        }
      }
    })
    .catch((error) => {
      console.error('Error loading data:', error);
    });
}
let snapSettings = {
    constraints: SnapConstraints.None,
};

const App: React.FC = () => {
  loadData();

  return (
    <div className="host">
    <DiagramComponent
        id="container"
        ref={(diagram) => (diagramInstance = diagram)}
        width={"100%"}
        height={"550px"}
        snapSettings={snapSettings}
        //Sets the default properties for nodes
        getNodeDefaults={(obj: NodeModel) => {
          obj.width = 120;
          obj.height = 40;
          obj.shape = { type: 'Basic', shape: 'Rectangle' };
          obj.annotations = [{ content: (obj.data as { role: 'string' }).role }];
          obj.style = { fill: '#6BA5D7', strokeColor: 'white' };
          return obj;
        }}

        //Sets the default properties for connectors
        getConnectorDefaults={(connector: ConnectorModel) => {
          connector.type = 'Orthogonal';
          connector.cornerRadius = 7;
          connector.targetDecorator = { shape: 'None' };
          return connector;
        }}
      >

        {/* Inject necessary services for the diagram */}
        <Inject services={[DataBinding, HierarchicalTree]} />
      </DiagramComponent>
    </div>
  );
};

export default App;

Running the application

Step 1: Build and run the ASP.NET Core Web API:

Navigate to the server project folder and run the following command in a terminal:

dotnet build
dotnet run

Step 2: Run the React client:

From the client folder, run the following command in a terminal to start the React application:

npm run dev

Step 3: Access the application:

Open a web browser and navigate to the URL shown in the terminal to view the Diagram.

Complete sample repository

A complete, working sample implementation is available in the GitHub repository.

Summary

Step	Description	Reference
1	Install and configure Microsoft SQL Server and SQL Server Management Studio	View
2	Create the database, schema, and insert organizational chart diagram data	View
3	Create and configure the ASP.NET Core Web API back-end	View
4	Integrate and configure the Syncfusion® React Diagram component	View
5	Run and test the complete application	View

See also

• Data Binding
• Organizational Chart Layout
