Getting Started with React Diagram

This section explains how to create a React application from scratch and build a simple diagram using the Syncfusion® React Diagram component.

Ready to streamline your Syncfusion^® React development? Discover the full potential of Syncfusion^® React components with Syncfusion^® AI Coding Assistant. Effortlessly integrate, configure, and enhance your projects with intelligent, context-aware code suggestions, streamlined setups, and real-time insights—all seamlessly integrated into your preferred AI-powered IDEs like VS Code, Cursor, Syncfusion^® Code Studio and more. Explore Syncfusion^® AI Coding Assistant.

Prerequisites

Node.js 24+ (LTS recommended).
Syncfusion CLI.

Install the Syncfusion CLI

Install the Syncfusion CLI globally using the following command:

npm install -g @syncfusion/syncfusion-cli

Set up the Vite project using Syncfusion CLI

You can create a React Vite application using the Syncfusion CLI. The CLI provides two ways to create a project:

Non-interactive mode

Non-interactive mode allows you to create a project directly using a single command with the required command-line arguments.

sf new my-diagram-app --framework react --type ts --template diagram --theme tailwind3

In this mode, the project configuration is passed directly in the command. The above command creates a React Vite application configured with the Syncfusion^® Diagram component.

Interactive mode

Interactive mode guides you through the project creation process with step-by-step prompts.

sf

When you run the sf command, the CLI prompts you to select the required project configuration. To create a React Vite application with the Syncfusion^® Diagram component, select the following options:

CMD
√ Project name? ... my-diagram-app
√ Choose Framework: » React
√ Choose Build Tool: » Vite
√ Choose Language: » Typescript
√ Choose Template: » Diagram
√ Choose Theme: » Tailwind3
√ Choose Style Format: » CSS
√ Would you like to integrate the Syncfusion MCP Server (AI Assistant) into this project? ... no
√ Would you like to install Syncfusion Component Skills for AI-powered development? ... no
√ Install dependencies and start app now? ... no

The above selections generate a React Vite application configured with the Syncfusion^® Diagram component. You can choose different values for language, theme, style format, MCP setup, and skills installation based on your project requirements.

The Syncfusion^® CLI creates the project with a predefined template. After the project is generated, you can customize or replace the component code based on your application requirements.

Run the project

Once the project is created, navigate to the project directory and run the following commands in your terminal.

cd my-diagram-app
npm install
npm run dev

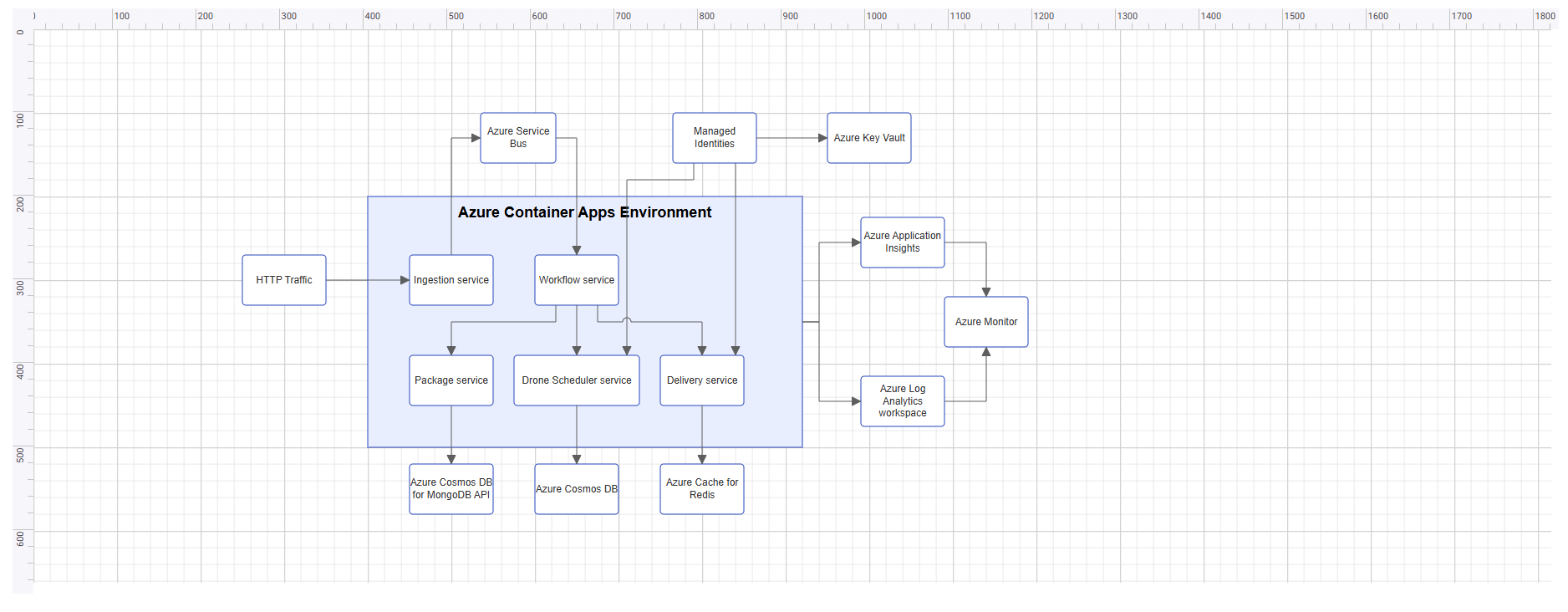

The output will appear as follows:

Diagram Component

Prerequisites

Requirement	Version
React	16 or higher
Node.js	18.0.0 or above

React supported versions

React version	Minimum Syncfusion® React Diagram version
React v19	29.1.33 and above
React v18	20.2.36 and above
React v17	18.3.50 and above
React v16	16.2.45 and above

Browser Support

Browser	Supported versions
Chrome	Latest
Firefox	Latest
Opera	Latest
Edge	79+ (Chromium)
Safari	9+
iOS Safari	9+
Android Browser / Chrome for Android	4.4+

Before You Begin

This guide uses the React application structure generated by Vite with the TypeScript template.

The main files used in this guide are:

src/App.tsx — Defines the root React component.
src/App.css — Contains Syncfusion® theme references.

NOTE

In a Vite React TypeScript application, the root component is generated as src/App.tsx by default. If your application uses JavaScript, the equivalent file is src/App.jsx.

NOTE

This guide uses the TypeScript template for better type checking with Diagram models such as NodeModel, ConnectorModel, and FlowShapeModel.

Step 1: Create a React application

Use Vite to create and manage React applications. Vite provides a fast development environment and optimized builds for modern React applications. Syncfusion® recommends using Vite for setting up React applications.

Create a new React application using the following command:

npm create vite@latest my-diagram-app -- --template react-ts

During the setup process, the CLI will prompt you for a few configuration options. Select the following:

Which linter to use? → ESLint
Install with npm and start now? → No

The base dependencies and the Syncfusion® package are installed in the next steps.

NOTE

To use JavaScript instead of TypeScript, create the application using npm create vite@latest my-diagram-app -- --template react. The root component file will then be src/App.jsx instead of src/App.tsx.

Navigate to the project folder:

cd my-diagram-app

Step 2: Install the Syncfusion® React Diagram package

All Syncfusion Essential® JS 2 packages are available in the npmjs.com registry.

Install the React Diagram package using the following command:

npm install @syncfusion/ej2-react-diagrams

NOTE

Installing @syncfusion/ej2-react-diagrams automatically installs the required dependency packages.

NOTE

A Syncfusion® license key is not required for local development. However, a valid Syncfusion® license key must be registered before deploying the application to production. For details, see Registering a Syncfusion® license key.

Step 3: Add the required styles

The Diagram component needs Syncfusion® theme styles to display correctly. Syncfusion® theme packages include ready-to-use styles for supported components.

Install the Tailwind 3 theme package using the following command:

npm install @syncfusion/ej2-tailwind3-theme

Add the following import to the src/App.css file:

@import '../node_modules/@syncfusion/ej2-tailwind3-theme/styles/diagram/index.css';

For the list of available themes, refer to the Themes documentation.

NOTE

Syncfusion® provides multiple built-in themes. If the application uses a different theme, replace the @syncfusion/ej2-tailwind3-theme/styles/diagram/index.css reference with the corresponding theme path, such as @syncfusion/ej2-material3-theme/styles/diagram/index.css.

NOTE

Ensure that App.css is imported in the src/App.tsx file so that the theme styles are applied to the Diagram component.

NOTE

The @import path depth (../node_modules/...) assumes App.css lives in src/. If App.css is at the project root, use ./node_modules/... instead.

Step 4: Add the Diagram component

Import DiagramComponent from @syncfusion/ej2-react-diagrams and add it to the React component.

Update the src/App.tsx file as follows:

import { DiagramComponent } from '@syncfusion/ej2-react-diagrams';
import './App.css';

function App() {
  return (
    <DiagramComponent
      id="diagram"
      width="100%"
      height="580px"
    />
  );
}

export default App;

At this stage, the Diagram component renders an empty canvas. The next step replaces this code with a more complete example.

NOTE

The Diagram component must have a valid height. If the height is not set, the Diagram canvas may not be visible.

Step 5: Create your first Diagram with nodes and connectors

This section explains how to create a simple flowchart by adding nodes, customizing their appearance, and connecting them using connectors.

The following example creates a flowchart with four nodes: Start, Process, Decision, and End. It also applies common node and connector settings using the getNodeDefaults and getConnectorDefaults callback bindings.

Replace the entire contents of src/App.tsx with the following code:

import {
  DiagramComponent,
  type ConnectorModel,
  type FlowShapeModel,
  type NodeModel
} from '@syncfusion/ej2-react-diagrams';
import './App.css';

const terminator: FlowShapeModel = {
  type: 'Flow',
  shape: 'Terminator'
};

const process: FlowShapeModel = {
  type: 'Flow',
  shape: 'Process'
};

const decision: FlowShapeModel = {
  type: 'Flow',
  shape: 'Decision'
};

const nodes: NodeModel[] = [
  {
    id: 'node1',
    offsetX: 300,
    offsetY: 100,
    shape: terminator,
    annotations: [
      {
        content: 'Start'
      }
    ]
  },
  {
    id: 'node2',
    offsetX: 300,
    offsetY: 200,
    shape: process,
    annotations: [
      {
        content: 'Process'
      }
    ]
  },
  {
    id: 'node3',
    offsetX: 300,
    offsetY: 300,
    shape: decision,
    annotations: [
      {
        content: 'Decision?'
      }
    ]
  },
  {
    id: 'node4',
    offsetX: 300,
    offsetY: 400,
    shape: terminator,
    annotations: [
      {
        content: 'End'
      }
    ]
  }
];

const connectors: ConnectorModel[] = [
  {
    id: 'connector1',
    sourceID: 'node1',
    targetID: 'node2'
  },
  {
    id: 'connector2',
    sourceID: 'node2',
    targetID: 'node3'
  },
  {
    id: 'connector3',
    sourceID: 'node3',
    targetID: 'node4'
  }
];

function nodeDefaults(node: NodeModel): NodeModel {
  node.width = 140;
  node.height = 50;
  node.style = {
    fill: '#E8F4FF',
    strokeColor: '#357BD2'
  };
  return node;
}

function connectorDefaults(connector: ConnectorModel): ConnectorModel {
  connector.type = 'Orthogonal';
  connector.targetDecorator = {
    shape: 'Arrow',
    width: 10,
    height: 10
  };
  return connector;
}

function App() {
  return (
    <DiagramComponent
      id="diagram"
      width="100%"
      height="580px"
      nodes={nodes}
      connectors={connectors}
      getNodeDefaults={nodeDefaults}
      getConnectorDefaults={connectorDefaults}
    />
  );
}

export default App;

In this example:

offsetX and offsetY define the position of each node.
shape defines the node shape configuration, and FlowShapeModel.shape specifies flowchart shapes such as Terminator, Process, or Decision.
The annotations property adds text inside each node using the content field.
sourceID and targetID define the connection between nodes.
getNodeDefaults applies common width, height, fill color, and stroke color to all nodes.
getConnectorDefaults applies common connector settings, such as orthogonal routing and target arrows.

Step 6: Run the application

Run the application using the following command:

npm run dev

Open the generated local URL (by default, http://localhost:5173) in the browser. The application displays the diagram as shown below:

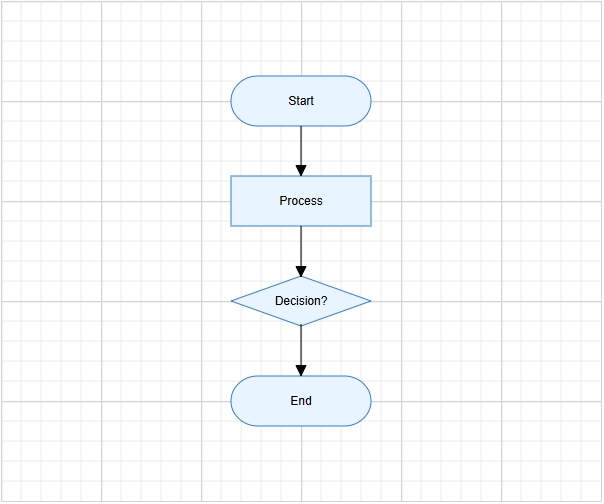

Rendered flowchart with four nodes connected vertically by arrows

NOTE

To stop the development server, press Ctrl + C in the terminal where it is running.

NOTE

To build the application for production, run npm run build. The generated output is placed in the dist folder.

Next steps

To explore the Diagram component in more depth, refer to the following topics:
