Configure the Syncfusion code studio

The Syncfusion code studio can be configured using the config.yaml specification. To open this file, follow the below steps.

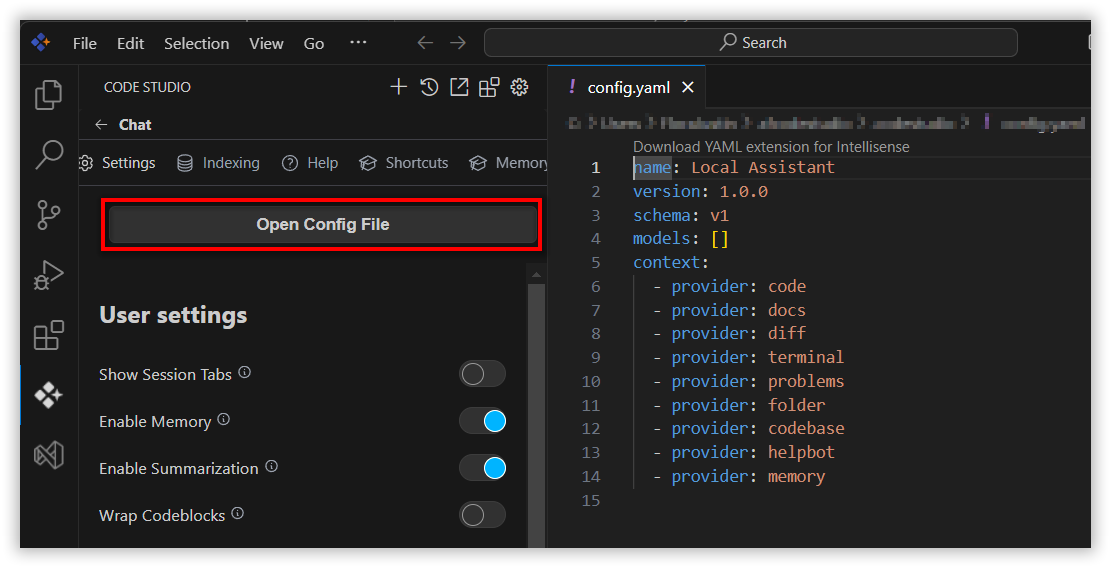

1. Open the settings of Syncfusion code studio chat
2. And click Open Config File

You add your configuration setting in the opened config.yaml file.

Properties of config.yaml

All properties at all levels are optional unless explicitly marked as required.

The top-level properties in the config.yaml configuration file are:

Property	Required	Description
name	Yes	Specifies the name of the configuration.
version	Yes	Specifies the version of your configuration.
schema	Yes	Specifies the schema version used for the config.yaml (e.g., v1).
models	No	Defines the language models used in your configuration.
context	No	Defines context providers.
rules	No	List of rules that the LLM should follow.
prompts	No	A list of custom prompts that can be invoked from the chat window.
docs	No	List of documentation sites to index.
mcpServers	No	Used to configure MCP server.

Example:

name: Local Assistant
version: 1.0.0
schema: v1
models:
  - name: GPT-4.1
    provider: openai
    model: gpt-4.1
    apiKey: original key
prompts:
  - name: check
    description: Check for mistakes in my code
    prompt: |
      Please read the highlighted code and check for any mistakes. You should look for the following, and be extremely vigilant:
        - Syntax errors
        - Logic errors
        - Security vulnerabilities
context:
  - provider: code
  - provider: docs
  - provider: diff
  - provider: terminal
  - provider: problems
  - provider: folder
  - provider: codebase
  - provider: helpbot
mcpServers:
  - name: context 7
    command: cmd
    args:
      - /c
      - npx -y @upstash/context7-mcp@latest
