WPF Smith Chart (SfSmithChart) Overview

18 Nov 20181 minute to read

The Smith chart is one of the most useful data visualization tools for high-frequency circuit applications. It contains two sets of circles to plot the parameters of transmission lines.

SfSmithChart provides a perfect way to visualize data with a high level of user interactivity that focuses on development, productivity, and simplicity of use.

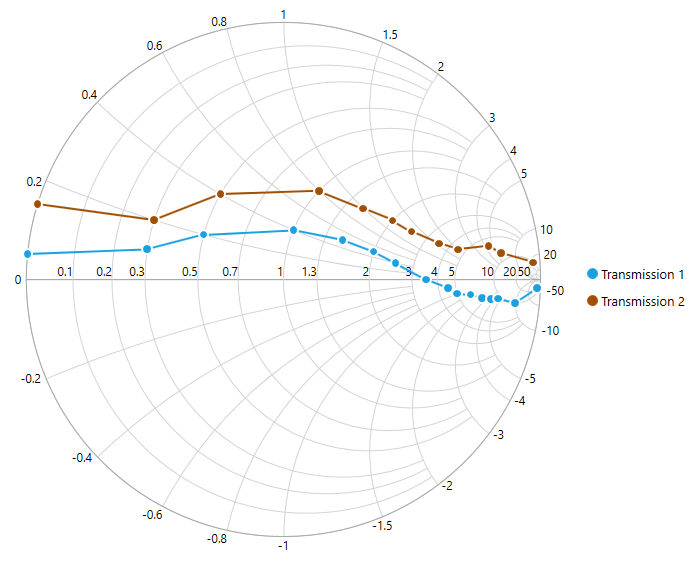

Overview_img1

Key features

  • Visualization of the impedance and admittance of a transmission line.
  • Representation of data with line series and various types of markers.
  • Data label support for better readability.
  • Interactive tooltip support.
  • Interactive legend.
  • Customizable colors.
  • Allows mapping the data from the specified path by achieving the data binding concept.
