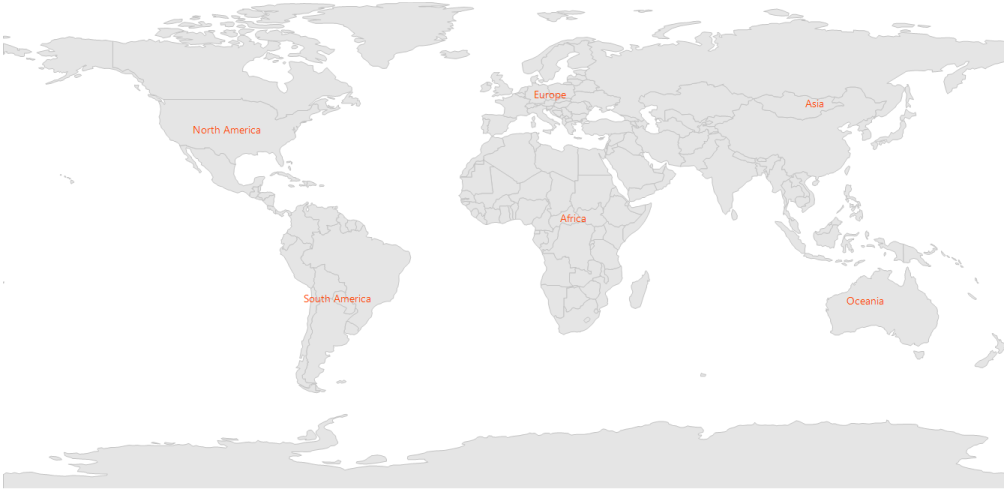

Annotations in Windows Forms Map (Maps)

Annotations are used to add messages on the map. In Maps control, annotations are denoted using the following major properties:

1. AnnotationLabel: Shows some information in text format.

2. AnnotationStroke: Applies specific color to annotations.

3. Latitude and Longitude: Position the annotations anywhere on the map based on latitude and longitude, which are string types, used to set coordinates of the MapAnnotation in the form of latitude and longitude.

Code sample:

C#

partial class Form1
{
    private Syncfusion.Windows.Forms.Maps.Maps mapsControl1;

    private void InitializeComponent()
    {
        this.mapsControl1 = new Syncfusion.Windows.Forms.Maps.Maps();
        this.mapsControl1.Name = "mapsControl1";
        this.mapsControl1.Size = new System.Drawing.Size(880, 585);
        this.Controls.Add(this.mapsControl1);
        this.ClientSize = new System.Drawing.Size(880, 585);
        this.Load += new System.EventHandler(this.Form1_Load);
    }
}

VB.NET

Partial Class Form1
    Private mapsControl1 As Syncfusion.Windows.Forms.Maps.Maps

    Private Sub InitializeComponent()
        Me.mapsControl1 = New Syncfusion.Windows.Forms.Maps.Maps()
        Me.mapsControl1.Name = "mapsControl1"
        Me.mapsControl1.Size = New System.Drawing.Size(880, 585)
        Me.Controls.Add(Me.mapsControl1)
        Me.ClientSize = New System.Drawing.Size(880, 585)
        AddHandler Me.Load, New System.EventHandler(AddressOf Me.Form1_Load)
    End Sub
End Class

C#

public partial class Form1 : Form
{
    private void Form1_Load(object sender, EventArgs e)
    {
        this.mapsControl1.Dock = DockStyle.Fill;
        this.mapsControl1.Margin = new Padding(0, 0, 4, 0);
        this.mapsControl1.MapBackgroundBrush = new SolidBrush(Color.White);
        this.mapsControl1.MapItemsShape = Syncfusion.Windows.Forms.Maps.MapItemShapes.None;

        MapViewModel model = new MapViewModel();

        ShapeFileLayer shapeLayer = new ShapeFileLayer();
        shapeLayer.Uri = "world1.shp";
        shapeLayer.ItemSource = model.Countries;
        shapeLayer.ShapeSetting.ShapeFill = "#E5E5E5";
        shapeLayer.ShapeSetting.ShapeStrokeThickness = 1.5;
        shapeLayer.ShapeSetting.ShapeStroke = "#C1C1C1";

        shapeLayer.Annotations.Add(new Annotation() { AnnotationLabel = "North America", Latitude = 40.4230, Longitude = -112.7372, AnnotationStroke = new SolidBrush(Color.OrangeRed) });
        shapeLayer.Annotations.Add(new Annotation() { AnnotationLabel = "Africa", Latitude = 9.1021, Longitude = 18.2812, AnnotationStroke = new SolidBrush(Color.OrangeRed) });
        shapeLayer.Annotations.Add(new Annotation() { AnnotationLabel = "Europe", Latitude = 53.0000, Longitude = 9.0000, AnnotationStroke = new SolidBrush(Color.OrangeRed) });
        shapeLayer.Annotations.Add(new Annotation() { AnnotationLabel = "South America", Latitude = -19.6048, Longitude = -73.0625, AnnotationStroke = new SolidBrush(Color.OrangeRed) });
        shapeLayer.Annotations.Add(new Annotation() { AnnotationLabel = "Asia", Latitude = 49.8380, Longitude = 105.8203, AnnotationStroke = new SolidBrush(Color.OrangeRed) });
        shapeLayer.Annotations.Add(new Annotation() { AnnotationLabel = "Oceania", Latitude = -20.3456, Longitude = 120.4346, AnnotationStroke = new SolidBrush(Color.OrangeRed) });

        this.mapsControl1.Layers.Add(shapeLayer);
    }
}

VB.NET

Public Partial Class Form1
    Inherits Form

    Private Sub Form1_Load(sender As Object, e As EventArgs)
        Me.mapsControl1.Dock = DockStyle.Fill
        Me.mapsControl1.Margin = New Padding(0, 0, 4, 0)
        Me.mapsControl1.MapBackgroundBrush = New SolidBrush(Color.White)
        Me.mapsControl1.MapItemsShape = Syncfusion.Windows.Forms.Maps.MapItemShapes.None

        Dim model As New MapViewModel()

        Dim shapeLayer As New ShapeFileLayer()
        shapeLayer.Uri = "world1.shp"
        shapeLayer.ItemSource = model.Countries
        shapeLayer.ShapeSetting.ShapeFill = "#E5E5E5"
        shapeLayer.ShapeSetting.ShapeStrokeThickness = 1.5
        shapeLayer.ShapeSetting.ShapeStroke = "#C1C1C1"

        shapeLayer.Annotations.Add(New Annotation() With {.AnnotationLabel = "North America", .Latitude = 40.4230, .Longitude = -112.7372, .AnnotationStroke = New SolidBrush(Color.OrangeRed)})
        shapeLayer.Annotations.Add(New Annotation() With {.AnnotationLabel = "Africa", .Latitude = 9.1021, .Longitude = 18.2812, .AnnotationStroke = New SolidBrush(Color.OrangeRed)})
        shapeLayer.Annotations.Add(New Annotation() With {.AnnotationLabel = "Europe", .Latitude = 53.0000, .Longitude = 9.0000, .AnnotationStroke = New SolidBrush(Color.OrangeRed)})
        shapeLayer.Annotations.Add(New Annotation() With {.AnnotationLabel = "South America", .Latitude = -19.6048, .Longitude = -73.0625, .AnnotationStroke = New SolidBrush(Color.OrangeRed)})
        shapeLayer.Annotations.Add(New Annotation() With {.AnnotationLabel = "Asia", .Latitude = 49.8380, .Longitude = 105.8203, .AnnotationStroke = New SolidBrush(Color.OrangeRed)})
        shapeLayer.Annotations.Add(New Annotation() With {.AnnotationLabel = "Oceania", .Latitude = -20.3456, .Longitude = 120.4346, .AnnotationStroke = New SolidBrush(Color.OrangeRed)})

        Me.mapsControl1.Layers.Add(shapeLayer)
    End Sub
End Class
