Getting Started with ##Platform_Name## Circular Gauge Control

This document explains how to create a Circular Gauge and configure its pointer value in TypeScript using the Essential JS 2 webpack quickstart seed repository.

This application uses the webpack.config.js configuration provided by the quickstart repository. For information about webpack and its features, refer to the webpack getting-started guide.

Prerequisites

Before you begin, ensure that the following software is installed:

  • Node.js with npm
  • Visual Studio Code or another text editor
  • Git for cloning the quickstart repository
  • A modern web browser such as Chrome, Edge, Firefox, or Safari

Register your Syncfusion license key before initializing the control. For more information, refer to the license key registration documentation.

Dependencies

The Circular Gauge control is available in the @syncfusion/ej2-circulargauge package.

The following dependencies are required:

|-- @syncfusion/ej2-circulargauge
    |-- @syncfusion/ej2-base
    |-- @syncfusion/ej2-svg-base
    |-- @syncfusion/ej2-pdf-export

Compatible package versions are resolved from the package.json file in the quickstart project. Keep all Syncfusion package versions consistent to avoid dependency conflicts.

Quick Setup

Step 1: Create a Project Folder

Create a folder named my-circular-gauge in your preferred location. This folder will contain the Circular Gauge TypeScript project.

Step 2: Open a Terminal

Open a terminal and navigate to the my-circular-gauge folder.

  • On Windows, use Command Prompt or PowerShell.
  • On macOS or Linux, use Terminal.

Step 3: Clone the Quickstart Repository

Run the following command to clone the Syncfusion JavaScript quickstart project:

git clone https://github.com/SyncfusionExamples/ej2-quickstart-webpack ej2-quickstart

Step 4: Navigate to the Project Folder

Navigate to the cloned project directory:

cd ej2-quickstart

Step 5: Install the Required Packages

The quickstart application includes its required packages in the project-root package.json file.

Run the following command to install the project dependencies:

npm install

Step 6: Add the Circular Gauge Container

Open the src/index.html file. Preserve the existing content generated by the seed project and add a div element with the ID container inside the body element.

<!DOCTYPE html>
<html lang="en">

<head>
    <title>Essential JS 2 Circular Gauge</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Syncfusion Circular Gauge TypeScript example">
    <meta name="author" content="Syncfusion">
    <!-- Preserve the existing head content from the seed template. -->
</head>

<body>
    <h1>Syncfusion Circular Gauge</h1>
    <!-- Container for the Circular Gauge. -->
    <div id="container"></div>
</body>

</html>

The webpack configuration supplied by the quickstart project compiles the TypeScript entry file and loads the generated bundle in this page.

Step 7: Initialize the Circular Gauge

Open the src/app/app.ts file and add the following code:

import { CircularGauge } from '@syncfusion/ej2-circulargauge';

let gauge: CircularGauge = new CircularGauge();
gauge.appendTo('#element');

The CircularGauge constructor creates the component and the appendTo() method attaches the Circular gauge instance to the DOM element with the ID element.

Step 8: Run the Application

Run the following command from the project root:

npm run start

Wait for webpack to finish compiling the application. If the browser does not open automatically, open the local URL displayed in the terminal.

The project commonly runs at:

http://localhost:4000/

The exact port can vary based on the webpack development-server configuration.

To stop the development server, press Ctrl+C in the terminal.

Output

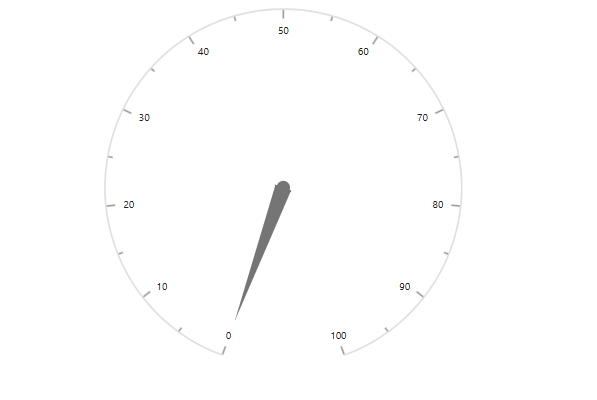

The following screenshot shows the output of the Syncfusion Circular Gauge quick start application:

Syncfusion Circular Gauge Quick Start Output

Troubleshooting

  • The repository cannot be cloned. Verify that Git is installed, confirm your internet connection, and run git --version.
  • npm install fails. Verify that Node.js and npm are installed, and run node --version and npm --version.
  • Cannot find module '@syncfusion/ej2-circulargauge'. Run npm install @syncfusion/ej2-circulargauge --save from the project root.
  • The TypeScript application does not compile. Ensure that all Syncfusion packages use compatible versions and review the complete error by running npm run build.
  • The page is blank. Check the browser console for errors and confirm that webpack completed the build successfully.
  • The gauge is not displayed. Ensure that the HTML container ID is container and that appendTo('#container') uses the same ID.
