Getting Started with Blazor Sunburst Chart in Web App

This section briefly explains how to include the Blazor Sunburst Chart component in your Blazor Web App using Visual Studio, Visual Studio Code, and the .NET CLI.

Ready to streamline your Blazor development?
Discover the full potential of Blazor components with AI Coding Assistants. Effortlessly integrate, configure, and enhance your projects with intelligent, context-aware code suggestions, streamlined setups, and real-time insights—all seamlessly integrated into your preferred AI-powered IDEs like VS Code, Cursor, Code Studio and more. Explore AI Coding Assistants

Using .NET CLI Templates

Quickly set up a Blazor application using the preconfigured Syncfusion Web App Template.

First, install the template using the .NET CLI.

dotnet new install Syncfusion.Blazor.WebApp.Templates

Next, create a new project with following command.

dotnet new syncfusionblazorwebapp --name MyApp --interactivity Server --all-interactive Global
dotnet new syncfusionblazorwebapp --name MyApp --interactivity WebAssembly --all-interactive Global
dotnet new syncfusionblazorwebapp --name MyApp --interactivity Auto --all-interactive Global

If you prefer per-page/component interactivity instead of global interactivity, replace --all-interactive Global with --all-interactive PerPage/component (or omit the --all-interactive flag).

After creating the project, navigate to the main project folder (for example, MyApp) and run the following command.

cd MyApp
dotnet run
cd MyApp
dotnet run
cd MyApp
dotnet run

Manually creating a new Blazor Web App

Create a Blazor Web App using Visual Studio via Microsoft Templates or the Syncfusion® Blazor Extension.

Run the following command to create a new Blazor Web App.

dotnet new blazor -o BlazorWebApp --interactivity Auto
cd BlazorWebApp
cd BlazorWebApp.Client

Alternatively, create a Blazor Web App using Visual Studio Code via Microsoft Templates, the Syncfusion® Blazor Extension, or the C# Dev Kit extension.

Configure the appropriate Interactive render mode and Interactivity location while creating a Blazor Web App. For detailed information, refer to the interactive render mode documentation.

Install the required Blazor package

Install the Syncfusion.Blazor.Charts NuGet package. This package delivers every Syncfusion Blazor chart component, including the Blazor Sunburst Chart. All Syncfusion Blazor packages are available on nuget.org. See the NuGet packages topic for details. If using the WebAssembly or Auto render modes in the Blazor Web App, install this package in the .Client project.

  1. Go to Tools → NuGet Package Manager → Manage NuGet Packages for Solution.
  2. Search the required NuGet package (Syncfusion.Blazor.Charts) and install it.

Alternatively, you can install the same package using the Package Manager Console with the following command.

Install-Package Syncfusion.Blazor.Charts -Version 35.1.37

Open the terminal and run the following command.

dotnet add package Syncfusion.Blazor.Charts -v 35.1.37

Add import namespaces

After the package is installed, open the ~/_Imports.razor file from the .Client project and import the Syncfusion.Blazor and Syncfusion.Blazor.Charts namespaces.

@using Syncfusion.Blazor
@using Syncfusion.Blazor.Charts

Register the Blazor service

Open the Program.cs file in Blazor Web App and register the Blazor service and include the required namespace reference using Syncfusion.Blazor; at the top. If the Interactive Render Mode is set to WebAssembly or Auto, register the Blazor service in Program.cs files of both the server and client projects in your Blazor Web App.

builder.Services.AddSyncfusionBlazor();

Add script resource

Include the required script references at the end of the <body> section in the App.razor file to enable Sunburst Chart functionality.

<script src="_content/Syncfusion.Blazor.Charts/scripts/sf-sunburst-chart.js" type="text/javascript"></script>

Add Blazor Sunburst Chart component

Open a Razor file located in the ~/Pages/*.razor (for example, Home.razor) and add the Blazor Sunburst Chart component inside the .Client project razor file.

If the interactivity location is set to Per page/component in the Web App, define a render mode at the top of the razor file. (For example, InteractiveServer, InteractiveWebAssembly or InteractiveAuto). If the Interactivity is set to Global with Auto or WebAssembly, the render mode is automatically configured in the App.razor file by default.

@rendermode InteractiveAuto

<SfSunburstChart TItem="NodeDetails"
                 DataSource="@DataSource"
                 IdMemberPath="@nameof(NodeDetails.Id)"
                 ParentIdMemberPath="@nameof(NodeDetails.ParentId)"
                 ValueMemberPath="@nameof(NodeDetails.Value)"
                 LabelMemberPath="@nameof(NodeDetails.Name)"
                 Width="100%"
                 Height="450px">
</SfSunburstChart>

@code {
    public class NodeDetails
    {
        public string Id { get; set; } = string.Empty;
        public string? ParentId { get; set; }
        public string Name { get; set; } = string.Empty;
        public double Value { get; set; }
    }

    public List<NodeDetails> DataSource = new()
    {
        new NodeDetails { Id = "USA", ParentId = null, Name = "USA" },
        new NodeDetails { Id = "USA-Electronics", ParentId = "USA", Name = "Electronics", Value = 35 },
        new NodeDetails { Id = "India", ParentId = null, Name = "India" },
        new NodeDetails { Id = "India-Electronics", ParentId = "India", Name = "Electronics", Value = 30 },
        new NodeDetails { Id = "Germany", ParentId = null, Name = "Germany" },
        new NodeDetails { Id = "Germany-Electronics", ParentId = "Germany", Name = "Electronics", Value = 20 }
    };
}

Run the application

Press Ctrl+F5 (Windows) or ⌘+F5 (macOS) to launch the application. The Blazor Sunburst Chart component will render in your default web browser.

Open the terminal and navigate to the main project folder (for example, BlazorWebApp) and run the following command.

cd ..
cd BlazorWebApp
dotnet run

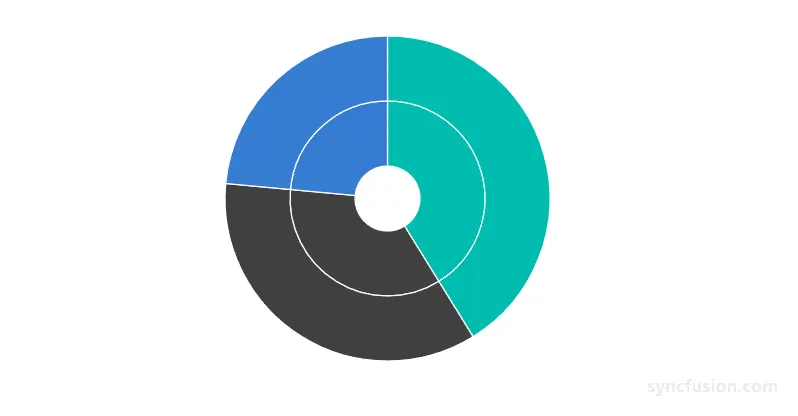

Blazor Sunburst Chart

Populate Sunburst Chart with data

The Blazor Sunburst Chart renders hierarchical data as concentric rings. As shown in the previous example, the hierarchy is described through a single flat IEnumerable<TItem> collection, and the chart derives the levels from how each row’s ParentId maps to another row’s Id. Each root row (ParentId is null) becomes the innermost ring, and each level of children becomes the next outer ring.

Key mappings to configure:

  • DataSource is the IEnumerable<NodeDetails> collection that supplies the nodes.
  • IdMemberPath specifies the field that contains the unique identifier for each node (NodeDetails.Id). The default value is string.Empty. The property is marked [EditorRequired]. Every node must have a unique, non-null, and non-empty identifier. Missing or duplicate identifiers invalidate the hierarchy, and the chart does not generate identifiers automatically.
  • ParentIdMemberPath specifies the field that contains the parent identifier for each node (NodeDetails.ParentId). The default value is string.Empty. The property is marked [EditorRequired]. A null, empty, or whitespace parent identifier creates a top-level node. Unresolved parent identifiers, self-references, and cyclic references invalidate the hierarchy.
  • LabelMemberPath specifies the field that contains the display label for each node (NodeDetails.Name). The default value is string.Empty. The property is marked [EditorRequired]. A null, empty, or whitespace label uses the localized unknown text as the display label.
  • ValueMemberPath specifies the numeric field that determines the segment sweep (NodeDetails.Value). The default value is string.Empty. The property is marked [EditorRequired].

Leaf nodes contain the numeric Value that drives rendering. Ancestor nodes with a value less than or equal to 0 use the aggregated value of their descendants.
